Table 3 Typical configuration and structure diagram of limb 1

From: Type Synthesis of Fully Decoupled Three Translational Parallel Mechanism with Closed-Loop Units and High Stiffness

Basic decoupled limb configuration

CxPnRx

CxRxRx

PxRxRxPy

RyPyRyPz

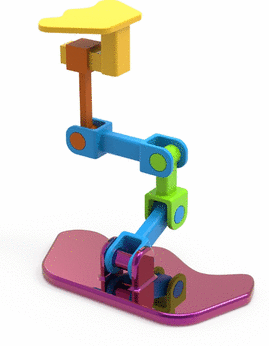

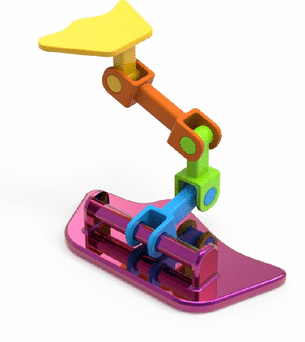

Structure diagram

View full size image

View full size image

View full size image

View full size image

Basic decoupled limb configuration

RyRyRxPnRx

CyRyRxRx

RyRyRxRxRx

RyRyRxRxPy

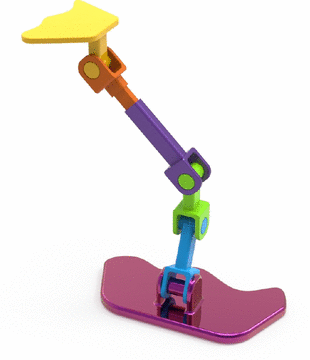

Structure diagram

View full size image

View full size image

View full size image

View full size image
