Table 2 Implant parameters
From: Oblique Cutting Based Mechanical Model for Insertion Torque of Dental Implant
Implant | Appearance | Angle (°) | Size (mm) |
|---|---|---|---|

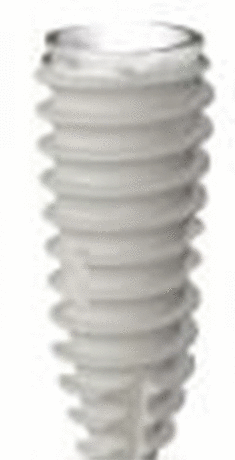

IS BIS4510 |
| β1=1.0 | L=10 |
β2=17 | D= ϕ4.5 | ||
α1=6 | P=0.8 | ||
α2=30 | hd=0.25 | ||
λ=90 | w=0.08 | ||
φ=0 | H=ϕ4.4 | ||

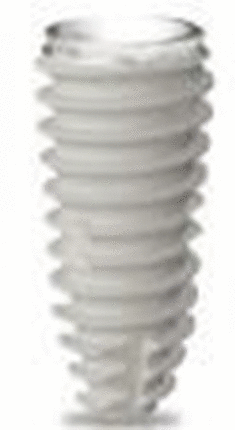

IS BIS5010 |
| β1=1.7 | L=10 |
β2=17 | D= ϕ5 | ||
α1=6 | P=0.8 | ||
α2=30 | hd=0.25 | ||
λ=90 | w=0.08 | ||
φ=0 | H=ϕ4.9 | ||

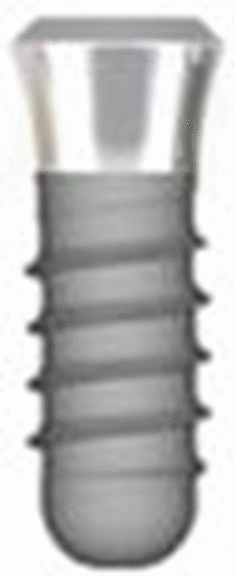

ITI RN4210 |
| β=0 | L=10 |
α=30 | D=ϕ4.8 | ||
η1=85 | P=1.25 | ||
η2=10 | H=ϕ4.2 | ||
ξ=4.74 | w=0.1 | ||
ITI RN4810 |
| β=0 | L=10 |
α=30 | D=ϕ4.8 | ||
η1=85 | P=1.25 | ||
η2=10 | H=ϕ4.2 | ||
ξ=4.74 | w=0.1 | ||
DIO SFR5010 |
| β1=0 | L1=2.5 |
α1=8.5 | D1=ϕ5.0 | ||
η1=85 | P1=0.4 | ||
η2=10 | H1=ϕ4.9 | ||
ξ=1.5 | w1=0.05 | ||
β2=8.75 | L2=6.5 | ||
α2=7 | D2=ϕ5 | ||
α3=30 | P2=0.8 | ||
λ=90 | H2=ϕ4.2 | ||
φ=0 | w2=0.12 |
