Table 5 Subtractive manufacturing of microneedles

From: A Review of Nano/Micro/Milli Needles Fabrications for Biomedical Engineering

Fabrication methods Fabrication illustrations SEM images Materials Advantages Typical limitations Typical applications
Photolithography and etching View full size image Solid microneedles
View full size image
Silicon, Tungsten High precision, high efficiency, fit for mass production Expensive equipment, harsh environment, multiple steps Bio-sensoring, drug delivery
Micro machining

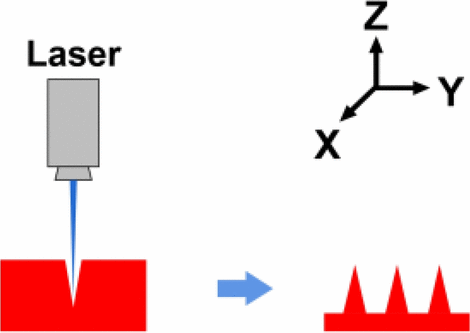

 Laser machining View full size image Solid microneedles
View full size image
Copper, Titanium, Stainless steel High efficiency, maskless, high flexibility, non-contact machining Rough surface quality, lower machining accuracy, arced needle tip Bio-electrode, bio-sensoring, drug delivery, bioinspired microneedles

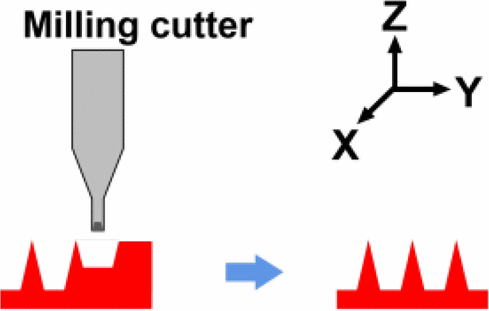

 Mililing machining View full size image Solid microneedles
View full size image
Aluminum alloy, Stainless steel 316L High precision, good surface quality Low efficiency, high cost Microneedle template

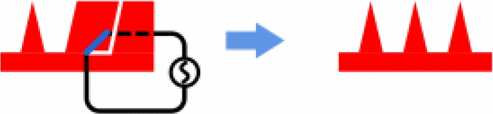

 Wire electrical discharge machining View full size image Solid microneedles
View full size image
Stainless steel High precision, good aspect ratio, reproducibility Time consuming, limited material Bio-electrode
