Table 7 Additive manufacturing of microneedles

From: A Review of Nano/Micro/Milli Needles Fabrications for Biomedical Engineering

Methods

Fabrication illustrations

SEM images

Materials

Advantages

Typical limitations

Typical applications

Typical 3D printing

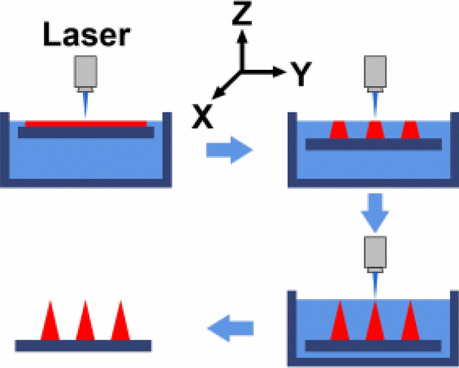

 Stereolithography

View full size image

Solid microneedles

View full size image

Photo curable polymer

High efficiency, high repeatability, high flexibility

Poor surface quality, rough surface, large tip radius

Transdermal drug delivery

 Digital light processing

View full size image

Bioinspired microneedles

View full size image

Photo curable polymer

Complex 3D structure, high flexibility, non-contact machining

Rough surface, limited materials,

Transdermal drug delivery, fog harvest

Drawing method

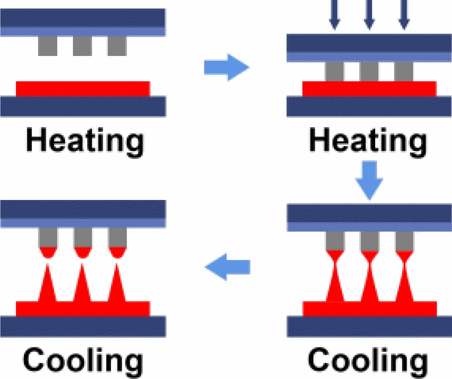

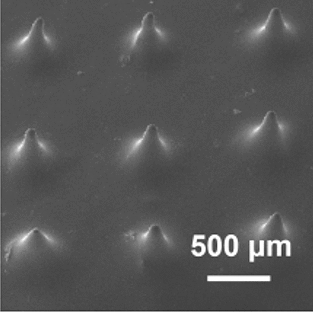

 Thermal drawing

View full size image

Solid microneedles

View full size image

SU-8, PLGA, Maltose

High aspect ratio, high efficiency, maskless

Low repeatability, limited materials, high temperature

Bio-electrode, brain-computer interface

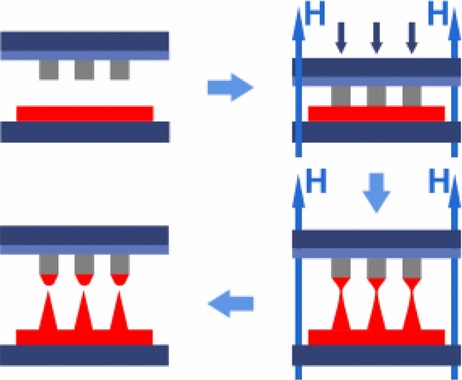

 Magnetorheological drawing

View full size image

Bioinspired microneedles

View full size image

Curable magnetorheological fluid

One-step fabrication, maskless, high flexibility

Low biocompatibility, limited material

Transdermal drug delivery, bio-electrode, bio-sensing
