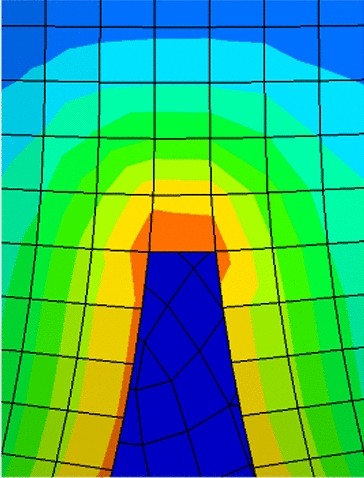

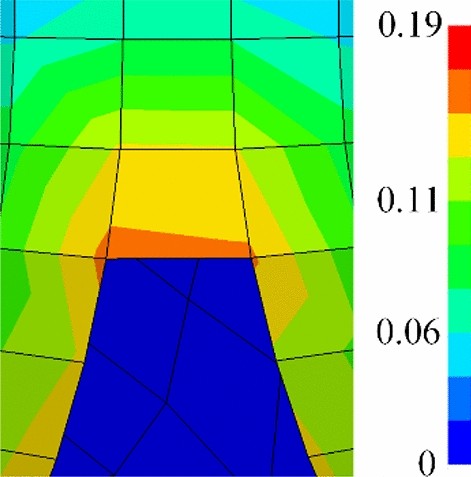

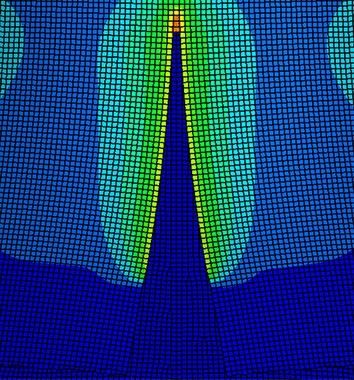

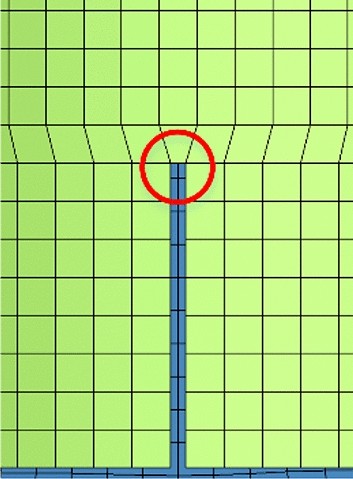

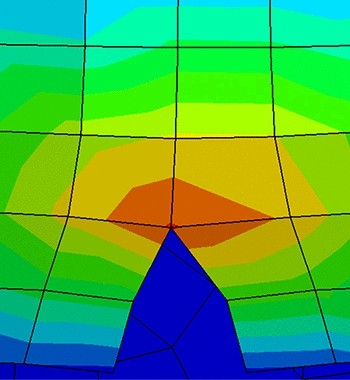

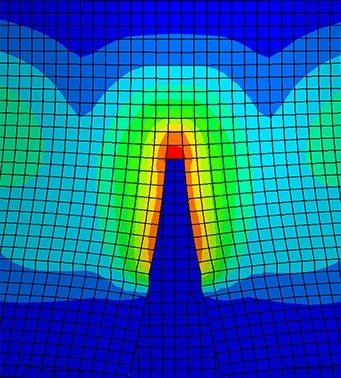

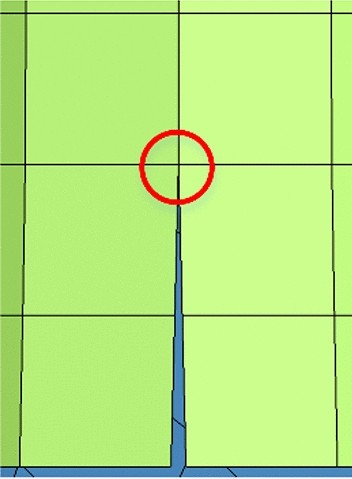

Table 5 Local deformation of the CFS model with element sizes 0.2Â mm, 0.5Â mm, 1Â mm and 2Â mm
Element size (mm) | 0.2 | 0.5 | 1 | 2 | |
|---|---|---|---|---|---|
FE model |
|
|
|
| |
Displacement 7.6Â mm | Plastic strain nephogram |
|
|
|
|
Displacement 30Â mm | Plastic strain nephogram |
|
|
|
|
Average stain | 0.0722 | 0.0804 | 0.103 | 0.124 | |
