New Family of 3-DOF UP-Equivalent Parallel Mechanisms with High Rotational Capability

Abstract

Parallel mechanisms (PMs) having the same motion characteristic with a UP kinematic chain (U denotes a universal joint, and P denotes a prismatic joint) are called UP-equivalent PMs. They can be used in many applications, such as machining and milling. However, the existing UP-equivalent PMs suffer from the disadvantages of strict assembly requirements and limited rotational capability. Type synthesis of UP-equivalent PMs with high rotational capability is presented. The special 2R1T motion is briefly discussed and the fact that the parallel module of the Exechon robot is not a UP-equivalent PM is disclosed. Using the Lie group theory, the kinematic bonds of limb chains and their mechanical generators are presented. Structural conditions for constructing such UP-equivalent PMs are proposed, which results in numerous new architectures of UP-equivalent PMs. The high rotational capability of the synthesized mechanisms is illustrated by an example. The advantages of no strict assembly requirements and high rotational capability of the newly developed PMs will facilitate their applications in the manufacturing industry.

1 Introduction

Among the various lower mobility parallel mechanisms(PMs), those with two rotational and one translational motion(2R1T) are particularly useful and can be implemented in many applications. The Z3 head [1], whose parallel part is a 2R1T 3-PRS PM(P is a prismatic pair, R is a revolute pair, and S is a spherical joint), is the most well-known. Another example is the 2-UPR-SPR PM(U denotes a universal joint), which has been successfully used in the development of the Exechon robot [2].

It should be noted that different 2R1T PMs may have distinct motion characteristics. According to the virtual chain method [3], they can be classified into three categories: PU-equivalent PMs, RPR-equivalent PMs, and UP-equivalent PMs.

A PU-equivalent PM can perform three degrees of freedom (3-DOF) motion that is identical to the end motion of a PU serial chain. The two axes of rotation always intersect and remain perpendicular. In other words, the rotation center of a PU-equivalent PM is restricted to a line; thus, the so-called parasitic motion [4] is eliminated. There were few PU-equivalent PMs until the authors of this paper systematically investigated their type synthesis [5].

An RPR-equivalent PM can perform 3-DOF motion that is the same as the end motion of an RPR serial chain. The two rotational axes are in different planes and are perpendicular. Li and Hervé [6, 7] disclosed numerous architectures of the RPR-equivalent PMs. This type of mechanism can be used in many applications where high stiffness and dexterity are required, such as in five-axis machining [8], aircraft wing assembly [9], and friction stir welding [10].

A UP-equivalent PM can perform 3-DOF motion that is identical to the end motion of a UP serial chain. One axis of rotation is fixed to the base while intersecting and remaining perpendicular to the other. Such features lead to reduced complexity in kinematic model, control, calibration and are thus preferable in practice. There are two ways to construct UP-equivalent PMs. The first is to either add a passive UP serial chain to a 6-DOF 3-UPS PM, like the Tricept robot [11], or add an articulated UP serial chain to a 6-DOF 2-UPS PM, like the TriVariant robot [12, 13]. The passive or articulated UP serial chain constrains the motion of the moving platform, and no strict geometrical condition is required. Thus, the Tricept and TriVariant robots are widely used in manufacturing and assembly.

The second is to use identical limb chains. Kong and Gosselin first studied the type synthesis of UP-equivalent PMs using screw theory [3]. They systematically enumerated numerous architectures. However, these architectures require strict geometrical conditions, such as the intersection of three or more revolute axes at a common point in space, which is very difficult to implement in practice.

In addition, one may think that the parallel module of the Exechon robot [2], which is a 2-UPR-SPR PM, belongs to the UP-equivalent PMs family. In the following section, we demonstrate that the mechanism is not a UP-equivalent PM.

Although the UP-equivalent PMs output 2R1T motion, their reachable workspaces are usually of concern since they are used for locating in most applications. However, it should be noted that their reachable workspaces are highly dependent on their rotational capabilities since the position variations of the moving platforms in two directions are generated by the two rotational motions of the mechanisms. The reachable workspaces of the Tricept and TriVariant robots are not large because their rotational capabilities are limited to some extent by spherical joints, particularly with the existence of multiple spherical joints. It is meaningful to expand the rotational capabilities of UP-equivalent PMs to ultimately achieve considerable reachable workspaces.

In this paper, we attempt to invent new architectures of UP-equivalent PMs with high rotational capability and low geometrical condition requirements. That is, the new architectures of UP-equivalent PMs should contain no spherical joints and should avoid a common point of intersection of several revolute axes in space. Theoretically, type synthesis of PMs with two rotational DOFs is more difficult and complicated than that of PMs with either one or no rotation. Hence, although considerable progress has been made in terms of the general method for type synthesis of lower-mobility PMs [14,15,16,17,18,19,20,21,22,23,24,25,26,27], and some 3T or 3T1R PMs with specified kinematic properties have been proposed [28,29,30,31,32], few architectures of UP-equivalent PMs without spherical joints and strict assembly requirement have been disclosed.

The organization of this paper is as follows. Section 2 presents a brief introduction of notations and properties of the UP-equivalent motion. Section 3 discusses the limb bonds of the UP-equivalent PMs. Section 4 constructs the UP-equivalent PMs in a special category. Section 5 illustrates the rotational capability of the proposed mechanisms. Section 6 discusses the application of the proposed PMs. Section 7 summarizes the conclusions.

2 Special 2R1T Motion

2.1 Notations

Firstly, a brief introduction of the Lie group theory is given. Some displacement subgroups used in this paper are listed in Table 1. For more details about Lie group theory, please see Refs. [14,15,16,17,18,19,20].

Table 1 Displacement subgroups

Since there are usually some special geometrical conditions in lower mobility PMs, superscripts are used in the following sections to indicate the axial direction of the kinematic pairs. For instance, ^uP represents a prismatic pair with its axis parallel to vector u; ^uR denotes a revolute pair whose axis is parallel to vector u; and ^uvU represents a universal joint whose two rotational axes are parallel to vectors u and v, respectively. In contrast, the spherical joint is denoted by S without superscript since it allows rotation around any axis passing through its center.

In view of practical values, limbs that contain two or more prismatic pairs, helical pairs, and parallelogram are neglected here. However, UP-equivalent PMs with these pairs can also be synthesized following the method raised in this paper.

2.2 Special 2R1T Motion

A special 2R1T motion can be represented by product {R(O, u)}{R(O, v)}{T(w)}. Such a motion can be generated by a ^uvU^wP chain or a ^uR^vR^wP chain. The rotation center O is fixed, and thus no parasitic motion exists.

A displacement set of {R(O, u)}{R(O, v)}{T(w)} is obtained by the composition of three displacements. The first displacement is a translation parallel to w:

$$\varvec{M} \to \varvec{M}_{\text{T}} = t\varvec{w + M}, \, \forall {\text{ point }}M ,$$

(1)

where the real number t is the translation amplitude.

The second displacement is a rotation of angle ψ around axis (O, v):

$$\varvec{M}_{\text{T}} \to \varvec{M}_{\text{R1}} = \varvec{O} + \exp (\psi \varvec{v} \times )(\varvec{OM}_{\text{T}} ) .$$

(2)

Since OM_T = tw + OM, the transformation of M into M_R1 is expressed by

$$\varvec{M} \to \varvec{M}_{\text{R1}} = \varvec{O} + \exp (\psi \varvec{v} \times )(\varvec{OM} + t\varvec{w}) .$$

(3)

The third displacement is a rotation of angle φ around axis (O, u). The point M_R1 is transformed into the final position M′ as

$$\begin{aligned} \varvec{M}_{\text{R1}} \to \varvec{M^{\prime}} \\ &= \varvec{O} + \exp (\varphi \varvec{u} \times )(\varvec{OM}_{\text{R1}} ) \\ &= \varvec{O} + \exp (\varphi \varvec{u} \times )\exp (\psi\varvec{v} \times )(\varvec{OM} + t\varvec{w}) \\ &= \varvec{O} + t\exp (\varphi \varvec{u} \times )\exp (\psi\varvec{v} \times )\varvec{w} + \exp (\varphi \varvec{u} \times )\exp (\psi\varvec{v} \times )(\varvec{OM}), \\ \end{aligned}$$

(4)

which expresses the transformation M→M′.

The displacement M→M′ is the product of spherical rotation M→M _R  = O+exp(φu×)exp(ψv×)(OM), followed by translation M _R →M′ = M _R  + texp(φu×)exp(ψv×)w.

2.3 Special Case: Exechon Robot

Figure 1 shows a 2-UPR-SPR PM that is the parallel module of the Exechon robot. Intuitively, it is often thought that the 2-UPR-SPR PM is a UP-equivalent PM. However, this is not true.

Figure 1

Exechon robot

Limb 1 and limb 3 are UPR chains. Limb 2 is an SPR chain. A₁ and A₃ denote the central points of the two U-joints in limb 1 and limb 3, respectively. A₂ denotes the center of the spherical joint in limb 2. B _i (i = 1, 2, 3) denotes a point on the revolute axes adjacent to the moving platform in limb i. Counting from the base, the first revolute axes of the two U-joints are coincident. The fourth revolute axes in limb 1 and limb 3 are parallel, and perpendicular to the fifth revolute axis in limb 2.

The kinematic bond of limb 1 is {L₁} = {R(A₁, u)}{R(A₁, v)}{T(x ₁ )}{R(B₁, v)}, where x₁ is a unit vector in the uw plane and is perpendicular to v. Using product closure, we have {L₁} = {R(A₁, u)}{G(v)} = {R(O, u)}{G(v)}, because O is also a point on the first revolute axis.

The kinematic bond of limb 3 is {L₃} = {R(A₃, u)}{R(A₃, v)}{T(x ₃ )}{R(B₃, v)}, where x₃ is a unit vector in the uw plane and is perpendicular to v. Through a similar analysis to that of limb 1, we have {L₃} = {R(O, u)}{G(v)}.

Since {L₁} = {L₃}, we only need to discuss the intersection of the displacement sets produced by limb 1 and limb 2. The kinematic bond of limb 2 is {L₂} = {R(A₂, v)}{R(A₂, u)}{R(A₂, x ₂ )}{T(x ₂ )}{R(B₂, u)}, where x₂ is a unit vector in the vw plane and is perpendicular to u.

Because {R(A₂, v)}{R(A₂, u)}{R(A₂, x ₂ )} = {S(A₂)}, we have

$$\begin{aligned} \{ \varvec{L}_{2} \} &= \{ \varvec{S}(A_{2} )\} \{ \varvec{T}(\varvec{x}_{2} )\} \{ \varvec{R}(B_{2} ,\varvec{u})\} \\ &= \{ \varvec{S}(A_{2} )\} \{ \varvec{R}(A_{2} ,\varvec{u})\} \{ \varvec{T}(\varvec{x}_{2} )\} \{ \varvec{R}(B_{2} ,\varvec{u})\} \\ &= \{ \varvec{S}(A_{2} )\} \{ \varvec{G}(\varvec{u})\} . \\ \end{aligned}$$

(5)

The intersection of limb 1 and limb 2 is given by

$$\{ \varvec{L}_{1} \} \cap \{ \varvec{L}_{2} \} = \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{G}(\varvec{v})\} \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{G}(\varvec{u})\} .$$

(6)

It is simple to determine {G(v)}∩{G(u)} = {T(w)}. Hence, {G(v)}and {G(u)}can be decomposed into products, including the factor {T(w)}, as

$$\{ \varvec{G}(\varvec{v})\} = \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{u})\} \{ \varvec{T}(\varvec{w})\} ,$$

(7)

$$\{ \varvec{G}(\varvec{u})\} = \{ \varvec{R}(A_{2} ,\varvec{u})\} \{ \varvec{T}(\varvec{v})\} \{ \varvec{T}(\varvec{w})\} .$$

(8)

Substituting Eq. (7) and Eq. (8) into Eq. (6) yields

$$\begin{aligned} & \{ \varvec{L}_{1} \} \cap \{ \varvec{L}_{2} \} \\ & = \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{u})\} \{ \varvec{T}(\varvec{w})\}\\ & \quad \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{G}(\varvec{u})\} \{ \varvec{T}(\varvec{w})\} \\ & = [\{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{u})\} \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{G}(\varvec{u})\} ]\{ \varvec{T}(\varvec{w})\} . \\ \end{aligned}$$

(9)

Because {R(O, u)}{R(O, v)}≠{R(O, v)}{R(O, u)}, {R(O, u)}{R(O, v)}{T(u)}∩{S(A₂)}{G(u)} is only a two-dimensional submanifold of {R(O, u)}{R(O, v)}{T(u)}. Hence, although the parallel module of the Exechon robot has three DOFs, it is not a UP-equivalent PM.

3 Limb Bond of UP-Equivalent PMs

3.1 Displacement Set of UP-Equivalent PMs

The motion generated by a UP chain has three DOF. Hence, three limbs are preferable for the UP-equivalent PMs. Each limb generates a set of feasible displacements (or kinematic bond) denoted by {L _i }, (i = 1, 2, 3). {R(O, u)}{R(O, v)}{T(w)} must be the intersection of all limb kinematic bonds produced by all limb chains. Hence, we can write

$$\bigcap\limits_{i = 1}^{3} {\ \{{\varvec{L}}_{i} \} = \{ {\varvec{R}} (O , \varvec{u} ) \} \{ \varvec{R} (O , \varvec{v} )\} } \{\varvec{T} (\varvec{w} ) \} .$$

(10)

3.2 Limb Bond of UP-Equivalent PMs

Obviously, {R(O, u)}{R(O, v)}{T(w)} should be included in the displacement set {L _i } generated by the ith limb chain, that is, {R(O, u)}{R(O, v)}{T(w)}⊂{L _i }. If one or two limbs are sufficient to produce a UP motion, one or two generators of {D} can be the second and third limb. For example, one can construct a UP-equivalent PM using two 6-DOF SPS or UPS limbs, and one ^uvU^wP chain. This is straightforward and is not discussed in this paper. We only focus on the type synthesis of UP-equivalent PMs with lower-mobility limbs.

There are three groups of limb bonds, distinguished by their dimensions (Dim).

Group 1::

Dim({L _i }) = 3

This corresponds to only one condition, i.e., {L _i } = {R(O, u)}{R(O, v)}{T(w)}. The corresponding mechanical generator (MG) is a 3-DOF ^uvU^wP chain. However, one cannot construct a UP-equivalent PM with three identical ^uvU^wP chains.

Group 2::

Dim({L _i }) = 4

To obtain 4-DOF limbs, one can add {R(O, u)}{R(O, v)}{T(w)} to a 1-D subgroup. Only results that yield subgroups of {D} are considered here. A 1-D translational subgroup or rotational subgroup can be selected as the added factor.

Adding {R(O, u)}{R(O, v)}{T(w)} to a 1-D translational subgroup {T(t)} yields

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{w})\} \{ \varvec{T}(\varvec{t})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T} 2(\varvec{w} , { }\varvec{t})\} . \\ \end{aligned}$$

(11)

{T2(w, t)} is generated by a serial array of two prismatic pairs. However, it is discarded because limbs with two prismatic pairs are not considered for practical purposes.

With added factor {R(A, w)}, we have

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{w})\} \{ \varvec{R}(A,\varvec{w})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{C}(A,\varvec{w})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{R}(A,\varvec{w})\} \{ \varvec{T}(\varvec{w})\} . \\ \end{aligned}$$

(12)

Note that the point A does not necessarily belong to axis (O, w). However, if the end-effector motion is constrained by the other two limbs to be {R(O, u)}{R(O, v)}{T(w)}, then there is no motion in the R pair embodying {R(A, w)}. Hence, combination {R(O, u)}{R(O, v)}{C(A, w)} is discarded.

If A∈axis(O, w), Eq. (12) becomes

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{R}(A,\varvec{w})\} \{ \varvec{T}(\varvec{w})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{R}(O,\varvec{w})\} \{ \varvec{T}(\varvec{w})\} \\ &= \{ \varvec{S}(O)\} \{ \varvec{T}(\varvec{w})\} . \\ \end{aligned}$$

(13)

The 3-D group {S(O)} is equal to product{R(O, i)}{R(O, j)}{R(O, k)} provided that (i, j, k) is a vector base. With k = w, we have{R(O, i)}{R(O, j)}{R(O, w)}{T(w)} = {R(O, i)}{R(O, j)}{C(O, w)} and we can use {C(O, w)} = {T(w)}{R(O, w)}, which gives {R(O, i)}{R(O, j)}{T(w)}{R(O, w)}, where i≠u and j≠v.

With added factor {R(A, v)}, we have

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{w})\} \{ \varvec{R}(A,\varvec{v})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{G}(\varvec{v})\} \\ \end{aligned}$$

(14)

The 3-D group {G(v)} is equal to {R(A, v)}{R(B, v)}{T(r)} with generally A≠O and r⊥v≠w. We also have {G(v)} = {R(A, v)}{T(r)}{R(B, v)} = {T(r)}{R(A, v)}{R(B, v)} = {R(A, v)}{R(B, v)}{R(C, v)}.

In summary, we obtain two types of 4-D products: {S(O)}{T(w)} = {R(O, i)}{R(O, j)}{C(O, w)} with i ≠ u and j≠v, and {R(O, u)}{G(v)}, in which the cylindrical 2-D group, spherical 3-D group, and planar 3-D group can be decomposed into products of their 1-D subgroups. Table 2 lists the 4-D limb bonds and their MGs of UP-equivalents PMs.

Table 2 4-D limb bonds of UP-equivalent PMs

Group 3::

Dim({L _i }) = 5

With added factor {R(A, k)}{R(B, k)}, we have

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}(\varvec{w})\} \{ \varvec{R}(A,\varvec{k})\} \{ \varvec{R}(B,\varvec{k})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{G}(\varvec{k})\} . \\ \end{aligned}$$

(15)

Thus, various MGs can be obtained by using product closure in {G(k)}, as listed in Table 3.

Table 3 5-D limb bonds of UP-equivalent PMs

Adding a group of translation {T(t)}, and ∀ unit vector t ≠ w, in the 4-D product {S(O)}{T(w)}, we obtain

$$\{ \varvec{S}(O)\} \{ \varvec{T}(\varvec{w})\} \{ \varvec{T}(\varvec{t})\} = \{ \varvec{S}(O)\} \{ \varvec{T} 2(\varvec{w} , { }\varvec{t})\} .$$

(16)

{S(O)}{T2(w, t)} is an irreducible representation of the reducible product {S(O)}{G(s)}, with s⊥w (the planes orthogonal to s are parallel to w).

{S(O)}{G(s)} has two main categories of irreducible representations. One is {R(O, i)}{R(O, j)}{G(s)}, where (i, j, k) is a vector base (generally, i ≠ u and j ≠ v). The other is {S(O)}{G2(s)}, where {G2(s)} denotes one of the 2-D submanifolds of the 3-D group{G(s)}. We neglect {S(O)}{G2(s)} intentionally because a spherical joint is needed to implement {S(O)}. Table 4 lists the MGs of 5-D limb bond {R(O, i)}{R(O, j)}{G(s)}.

Table 4 5-D limb bonds of UP-equivalent PMs

Adding a 2D group of planar translations in product {R(O, u)}{R(O, v)}{T(w)}, we obtain

$$\begin{aligned} \{ \varvec{L}_{i} \} &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{T}\} \\ &= \{ \varvec{X}(\varvec{u})\} \{ \varvec{X}(\varvec{v})\} . \\ \end{aligned}$$

(17)

{X(u)}{X(v)} is called the double Schoenflies motion or X–X motion [18]. It is reducible and includes three translations and two rotations. The axes of the rotations are parallel to vectors u and v, whereas the locations of the axes can be arbitrary. For detailed MGs of the X–X motion, please see Ref. [18].

3.3 Parallel Arrangement of Limbs

A UP-equivalent PM can be obtained by connecting a moving platform to a fixed base using the three limbs listed in Table 2 or Table 3. Note that the U-joints in the three limbs must be coincident, which causes difficulties in fabrication and actuation. Henceforth, we use the first revolute axis to denote the fixed revolute axis of the U-joint and the second axis to denote the moving revolute axis of the U-joint.

We set the first revolute axes of the U-joints in limbs 2 and 3 to be coincident with the first revolute axis of the U-joint in limb 1, as shown in Figure 2(a). Consequently, we have {R(O, u)}∩{R(A₂, u)}∩{R(A₃, u)} = {R(O, u)} because the three U-joint centers O, A₂, and A₃ are collinear.

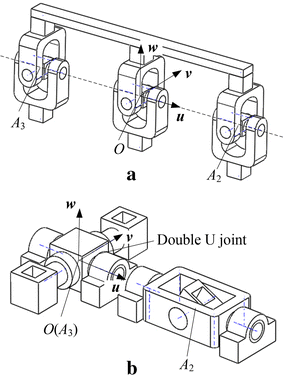

Figure 2

Arrangement of U-joints. a First rotational axes of U-joints are coincident, b Two U-joints are combined into a complex U-joint

Then, the two U-joints in limb 1 and limb 3 are combined into one complex U-joint as shown in Figure 2(b). Note that this condition implies that {L₁} = {L₃} and the three limbs are set orthogonally. Consequently, the displacement set of the moving platform is determined by the intersection of {L₁} and {L₂}.

For clarity, we denote the type of UP-equivalent PMs by the dimensions of the three limbs, that is, Dim({L₁})-Dim({L₂})-Dim({L₃}). In this way, we classify the UP-equivalent PMs into three categories: 3-3-X, 4-4-X, and 5-5-X, in which X can be 3, 4, or 5. Here we only focus on subcategory 5-5-4 for practical purposes.

4 UP-Equivalent PMs in Category5-5-4

There are three limb bonds for a 5-5-X UP-equivalent PM, namely, {R(O, u)}{R(O, v)}{G(k)}, {G(u)}{G(v)}, and {S(O)}{G(v)}. One can set any of them to be {L₁} and one of the other two to be {L₂}. However, for practical reasons, we let {L₁} = {L₃} = {R(O, u)}{R(O, v)}{G(k)}.

When {L₂} = {R(O, u)}{G(v)}, the intersection of {L₁} and {L ₂ } is {R(O, u)}{R(O, v)}{T(w)}. Using the four MGs of {R(O, u)}{R(O, v)}{G(k)} and the four MGs of {R(O, u)}{G(v)}, one can obtain 16 UP-equivalent PMs, as listed in Table 5. Figure 3 shows three UP-equivalent PMs, in which the first three kinematic pairs, counting from the moving platform in each of the three architectures, are identical; this results in a maximum symmetry in the UP-equivalent PMs. Figure 4 shows another six UP-equivalent PMs in this group.

Table 5 UP-equivalent PMs in group 1 in category5-5-4

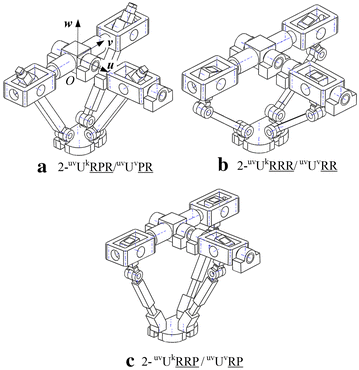

Figure 3

Three UP-equivalent PMs in subcategory 5-5-4

Figure 4

Six UP-equivalent PMs in subcategory 5-5-4

Note that {S(A ₂ )}{T(w)} cannot be used as a limb bond in this group. When {L₂} = {S(A ₂ )}{T(w)}, the intersection of {L₁} and {L ₂ } is

$$\begin{aligned} & \{ \varvec{L}_{1} \} \cap \{ \varvec{L}_{2} \} \\ & \quad = \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(O,\varvec{v})\} \{ \varvec{G}(\varvec{k})\} \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{T}(\varvec{w})\} \\ & \quad = \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{T}(\varvec{w})\} \\ \end{aligned}$$

(18)

Another option is to let {L₁} = {L₃} = {G(u)}{G(v)}. When {L₂} = {R(O, u)}{G(v)}, the intersection of {L₁} and {L ₂ } is {L ₂ } itself. Thus, {R(O, u)}{G(v)} cannot be used as a limb bond in this group.

When {L₂} = {S(A₂)}{T(w)} and A₂∈axis (O, u), the intersection of {L₁} and {L ₂ } is

$$\begin{aligned} \{ \varvec{L}_{1} \} \cap \{ \varvec{L}_{2} \} &= \{ \varvec{G}(\varvec{u})\} \{ \varvec{G}(\varvec{v})\} \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{T}(\varvec{w})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{G}(\varvec{v})\} \cap \{ \varvec{S}(A_{2} )\} \{ \varvec{T}(\varvec{w})\} \\ &= \{ \varvec{R}(O,\varvec{u})\} \{ \varvec{R}(A_{2} ,\varvec{v})\} \{ \varvec{T}(\varvec{w})\} . \\ \end{aligned}$$

(19)

Using the fifteen MGs of {G(u)}{G(v)} and the three MGs of {S(A ₂ )}{T(w)}, one can obtain 45 UP-equivalent PMs. However, there is less practical potentials of those architectures due to the difficulties in actuation.

5 Rotational Capability

It is obvious that the constructed PMs have unlimited rotational capability around one axis, i.e., the coincident axis of the two U-joints in each mechanism. In contrast, the rotational range around the other axis can also be considerably large, which is proved in this section by taking the 2-UPRR/UPR mechanism as an example. As shown in Figure 5, the mechanism has three limbs; limb 1 and limb 2 are UPRR type limbs and share a common U-joint, and limb 3 is a UPR type limb. The central points of the P pair and the first R pair in limb 1 (limb 2) are coincident, and these points are denoted by A₁ (for limb 1) and A₂ (for limb 2) hereafter. The center of the U-joint in limb 3 is denoted by A₃, and the centers of the three moving platform-connected R pairs are denoted by B₁, B₂, and B₃, respectively.

Figure 5

Three configurations of the 2UPRR-UPR mechanism

There are several necessary geometrical conditions in the mechanism. The first rotational axes of the two U-joints (s₁, s₇) are coincident. In limb 1 and limb 2, the R pairs have parallel axes (s₃, s₄, s₅, s₆). In limb 3, the R pair has an axis (s₉) parallel to line B₁B₂ and the second rotational axis (s₈) of the U-joint within the same limb. The three P pairs (denoted by P _i for limb i) are equipped with motors. In addition, the rotation around axis s₁ is also actuated. Thus, there are four inputs in total. In an initial configuration, as shown in Figure 5(a), s₁ and s₇ are parallel to s₃, s₄, s₅ and s₆. s₈ and s₉ are parallel to line B₁B₂ and the second rotational axis (s₂) of the U-joint in limb 1. From this configuration, if we fix P₃ as well as axis s₁ of the U-joint and give P₁ and P₂ with different displacements, the mechanism will move to a configuration as in Figure 5(b), in which s₂ is no longer parallel to s₈, s₉, and line B₁B₂. The mechanism degenerates into a 2-DOF mechanism with one rotational DOF around axis s₁(s₇) and a translational DOF. This is denoted by 1R1T configuration. In contrast, if we fix axis s₁, P₁, and P₂ in the initial configuration, and give a displacement to P₃, the mechanism will move to a configuration in Figure 5(c), in which s₁ and s₇ are not parallel to s₃, s₄, s₅ and s₆. The mechanism in this configuration has three DOFs, including two rotations around axes s₁ and s₂; this is called the 2R1T configuration. The rotational angle of s₁ always equals that of s₇, and the displacements of P₁ and P₂ are the same since limb 1 and limb 2 are designed to have identical dimensions. Therefore, if the mechanism is in the initial configuration, to prevent it from moving to the 1R1T configuration, P₁ and P₂ should be properly controlled to ensure that $\left| {OA_{1} } \right| = \left| {OA_{2} } \right|$ (O is the center of the U-joint in limb 1). Thus, s₂ will remain parallel to s₈, s₉, and line B₁B₂. The mechanism continues working in the 2R1T operation mode.

Next, the kinematic model of the mechanism is established. Here, we only focus on the 2R1T operation mode. A global coordinate system G(O-XYZ) is attached to the fixed base with its origin coincident with the central point of the U-joint in limb 1; axis Y is coincident with the first rotational axis of the U-joint, which is connected to the fixed base; axis X is parallel to the horizontal plane and perpendicular to axis Y, and axis Z is defined according to the right hand rule, as in Figure 6. Similarly, a local coordinate system L(p-xyz) is attached to the moving platform with its origin located at the middle of line B₁B₂, axis x coincident with B₂B₁, axis y passing through point B₃, and axis z defined according to the right hand rule.

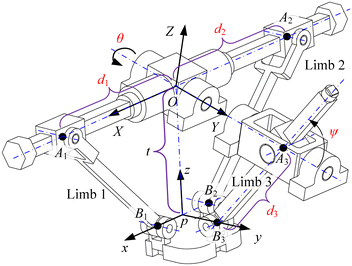

Figure 6

2UPRR-UPR mechanism

The orientation of the moving platform can be expressed by a rotation around axis Y followed by a rotation around the resulting axis X’. Thus, the rotational matrix is given by

$$\begin{aligned} {}^{G}\varvec{R}_{L} = \varvec{R}_{Y} \varvec{R}_{X} & = \left[ {\begin{array}{*{20}c} {\cos \alpha } \quad 0 \quad {\sin \alpha } \\ 0 \quad 1\quad 0 \\ { - \sin \alpha }\quad 0 \quad {\cos \alpha } \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} 1 \quad 0 \quad0 \\ 0 \quad {\cos \beta } \quad{ - \sin \beta } \\ 0 \quad {\sin \beta } \quad {\cos \beta } \\ \end{array} } \right] \\ & = \left[ {\begin{array}{*{20}c} {\cos \alpha }\quad {\sin \alpha \sin \beta } \quad{\sin \alpha \cos \beta } \\ 0 \quad {\cos \beta } \quad { - \sin \beta } \\ { - \sin \alpha } \quad {\cos \alpha \sin \beta } \quad {\cos \alpha \cos \beta } \\ \end{array} } \right], \\ \end{aligned}$$

(20)

where $\alpha$ and $\beta$ are rotational angles around axes Y and X′, respectively.

The position vector of point p expressed in the global coordinate system can be given by

$$\varvec{p} = \left[ {t\sin \alpha \cos \beta , { } - t\sin \beta , { }t\cos \alpha \cos \beta } \right]^{\text{T}} ,$$

(21)

where t denotes the distance between points O and p.

5.1 Inverse Position Solutions and Jacobian Matrix

The displacements of the three P pairs are denoted by d₁, d₂, and d₃, and the rotational angle of the first axis of the U-joint in limbs 1 and 2 is denoted by $\theta$, as in Figure 6. The inverse position problem is to find the values of d₁, d₂, d₃, and $\theta$ with the moving platform parameters $\alpha$, $\beta$, and t given. This is quite an easy problem and one can directly determine that $\theta$ equals $\alpha$. We express the position vectors of points A _i (i = 1, 2, 3) in the global coordinate system as

$$\begin{aligned} \varvec{A}_{1} &= [d_{1} \cos \theta , { }0 , { } - d_{1} \sin \theta ]^{\text{T}} , \\ \varvec{A}_{2} &= [d_{2} \cos \theta , { }0 , { } - d_{2} \sin \theta ]^{\text{T}} , \\ \varvec{A}_{3} &= [0 , { }a , { }0 ]^{\text{T}} , \\ \end{aligned}$$

(22)

where a represents the length of OA₃. We have d₁ = −d₂ since P₁ and P₂ are properly actuated.

The position vectors of points B _i (i = 1, 2, 3) expressed in local coordinate system are given by

$$\begin{aligned}^{L} \varvec{B}_{1} & = [m , { }0 , { }0 ]^{\text{T}} , \\^{L} \varvec{B}_{2} & = [- m , { }0 , { }0 ]^{\text{T}} , \\^{L} \varvec{B}_{3} & = [0 , { }n , { }0 ]^{\text{T}} , \\ \end{aligned}$$

(23)

where the left superscript L denotes that the coordinates are expressed in the local system, m and n are dimensional parameters of the moving platform.

The vectors in Eq. (23) can be transformed into the global coordinate system using the following expression

$$\varvec{B}_{i} = {}^{G}\varvec{R}_{L} {}^{L}\varvec{B}_{i} { + }\varvec{p}\varvec{.}$$

(24)

Thus, we have

$$\begin{aligned} \varvec{B}_{1} = & \left[ {\begin{array}{*{20}c} {m\cos \alpha + t\sin \alpha \cos \beta } \\ { - t\sin \beta } \\ { - m\sin \alpha + t\cos \alpha \cos \beta } \\ \end{array} } \right], \\ \varvec{B}_{2} = & \left[ {\begin{array}{*{20}c} { - m\cos \alpha + t\sin \alpha \cos \beta } \\ { - t\sin \beta } \\ {m\sin \alpha + t\cos \alpha \cos \beta } \\ \end{array} } \right], \\ \varvec{B}_{3} = & \left[ {\begin{array}{*{20}c} {n\sin \alpha \sin \beta + t\sin \alpha \cos \beta } \\ {n\cos \beta - t\sin \beta } \\ {n\cos \alpha \sin \beta + t\cos \alpha \cos \beta } \\ \end{array} } \right]. \\ \end{aligned}$$

(25)

Three constraint equations are established as

$$\begin{aligned} \left| {\varvec{A}_{1} - \varvec{B}_{1} } \right| =\, & l, \\ \left| {\varvec{A}_{2} - \varvec{B}_{2} } \right| =\, & l, \\ \left| {\varvec{A}_{3} - \varvec{B}_{3} } \right| =\, & d_{3} , \\ \end{aligned}$$

(26)

where the constant l represents the length of link A₁B₁ and A₂B₂.

Substituting Eqs. (22) and (25) into Eq. (26) yields

$$\begin{aligned} &\left( {m\cos \alpha + t\sin \alpha \cos \beta - d_{1} \cos \theta } \right)^{2} + \left( {t\sin \beta } \right)^{2} \\ &\quad + \left( { - m\sin \alpha + t\cos \alpha \cos \beta { + }d_{1} \sin \theta } \right)^{2} \\ &=l^{2} , \left( { - m\cos \alpha + t\sin \alpha \cos \beta - d_{2} \cos \theta } \right)^{2} \\ &\quad+ \left( {t\sin \beta } \right)^{2} { + }\left( {m\sin \alpha + t\cos \alpha \cos \beta { + }d_{2} \sin \theta } \right)^{2} \\ &= l^{2} , \left( {n\sin \alpha \sin \beta + t\sin \alpha \cos \beta } \right)^{2} { + }\left( {n\cos \beta - t\sin \beta - a} \right)^{2} \\ &\quad+ \left( {n\cos \alpha \sin \beta + t\cos \alpha \cos \beta } \right)^{2} = d_{3}^{2} . \\ \end{aligned}$$

(27)

Through Eq. (27), the input parameters can be easily solved given the output parameters α, β, and t.

Differentiating both sides of Eq. (27) with respect to time, and using the fact that $\dot{\theta }{ = }\dot{\alpha }$, a set of equations can be derived and rearranged into matrix form as

$$\varvec{\dot{d} = J \dot{x}} ,$$

(28)

in which $\dot{\varvec{d}}$ = [$\dot{d}_{1}$, $\dot{d}_{2}$, $\dot{d}_{3}$, $\dot{\theta }$]^T is a vector that represents the input joint velocities, $\dot{\varvec{x}}$ = [$\dot{\alpha }$, $\dot{\beta }$, $\dot{t}$]^T represents the velocities of the moving platform, and J is a $4 \times 3$ matrix as follows:

$$\varvec{J}{ = }\left[ {\begin{array}{*{20}l} {J_{11} } \hfill & {J_{12} } \hfill & {J_{13} } \hfill \\ {J_{21} } \hfill & {J_{22} } \hfill & {J_{23} } \hfill \\ {J_{31} } \hfill & {J_{32} } \hfill & {J_{33} } \hfill \\ {J_{41} } \hfill & {J_{42} } \hfill & {J_{43} } \hfill \\ \end{array} } \right],$$

(29)

in which the detailed expressions of the elements are as

$$J_{11} = 0, \, J_{12} = 0,\, J_{13} = \frac{t}{{m - d_{1} }},$$

$$J_{21} = 0, \, J_{22} = 0,\, J_{23} = \frac{t}{{d_{1} - m}},$$

$$J_{31} = 0,$$

$$J_{32} = \frac{a(t\cos \beta + n\sin \beta )}{{\sqrt {a^{2} + n^{2} + t^{2} - 2an\cos \beta + 2at\sin \beta } }},$$

$$J_{33} = \frac{t + a\sin \beta }{{\sqrt {a^{2} + n^{2} + t^{2} - 2an\cos \beta + 2at\sin \beta } }},$$

$$J_{41} = 1, \, J_{42} = 0,\, J_{43} = 0.$$

5.2 Workspace and Singularity

Once the inverse kinematic model is established, the workspace of the mechanism can be determined by considering some constraints imposed by joints and actuators. Since the mechanism has unlimited rotational capability around axis Y, $\alpha$ is fixed as zero without loss of generality, and only the ranges of $\beta$ and t are evaluated. Table 6 lists the dimensional parameters of the mechanism. The constraints of workspace are given as

$$\left\{ \begin{aligned} & 1 60{\text{ mm}} \le d_{ 1} , \, d_{ 2} \le 3 60{\text{ mm,}} \\ & 80{\text{ mm}} \le d_{ 3} \le 4 00{\text{ mm,}} \\ & \pi /6 \le \psi \le 5\pi /6, \\ \end{aligned} \right.$$

(30)

where $\psi$ is the angle between A₃B₃ and axis Y, as shown in Figure 6. $\psi$ is constrained in a reasonable region to avoid interference between links.

Table 6 Architectural parameters

By searching the potential region for points that satisfy the conditions in Eq. (30), the workspace of the mechanism is numerically determined as in Figure 7(a). The range of t is determined by the stroke of the actuators mounted to P₁ and P₂. When P₁ and P₂ reach their maximum stroke, t has a maximum value of −216 mm, corresponding to the right boundary of the workspace. Figure 7(e) shows such a configuration. When P₁ and P₂ reach their minimum stroke, t has a minimum value of −349.08 mm, corresponding to the left boundary of the workspace. Such a configuration is shown in Figure 7(d). The upper and lower boundaries of the workspace are determined by the stroke of P₃ and the angle constraint of $\psi$.

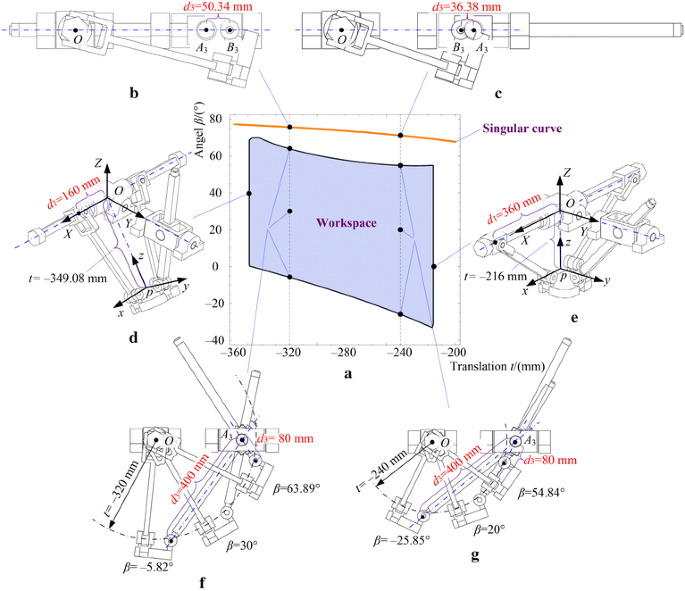

Figure 7

Workspace, singularity and rotational capability. a Workspace, b Singular configuration I, c Singular configuration II, d P₁ and P₂ reach their minimum stroke, e P₁ and P₂ reach their maximum stroke, f Rotational range with t = −320 mm, g Rotational range with t = −240 mm

From Figure 7(a), we can see that rotational angle $\beta$ is allowed over a considerably large range, varying from −33° to 70°. Furthermore, when t is set to a constant value, the rotational capability is still very high. The ranges of $\beta$ are −5.82°~63.89° and −25.85°~54.84° when t is fixed at −320 mm and −240 mm, respectively, as illustrated in Figure 7(a), Figure 7(f), and Figure 7(g).

A main factor that limits the rotational capability of a parallel mechanism is the inherent singularity, which may appear in the workspace, and divide it into small pieces. Therefore, the singularities of the 2-UPRR/UPR mechanism should be considered. Singularities of a mechanism can be determined by judging the determinant of its Jacobian matrix [33]. For the redundantly-actuated mechanism studied here, the Jacobian matrix is a $4 \times 3$ matrix, but we can easily find that J₁ = −J₂ (J₁ and J₂ are the first and second rows of the Jacobian matrix J, respectively) since d₁ = −d₂ always holds. Therefore, the singularities of the 2-UPRR/UPR mechanism can be defined by the following expression

$${ \det }\left( {\varvec{J}_{\text{n}} } \right) = 0 ,\quad \varvec{ J}_{\text{n}} = \left[ {\begin{array}{*{20}c} {J_{11} } & {J_{12} } & {J_{13} } \\ {J_{31} } & {J_{32} } & {J_{33} } \\ {J_{41} } & {J_{42} } & {J_{43} } \\ \end{array} } \right].$$

(31)

Using this expression, the singularities of the mechanism are found and displayed with the orange line in Figure 7(a). We find that the singularities are not within the workspace, which means the high rotational capability of the mechanism will not be affected.

In fact, the determined singularities correspond to configurations when points O, A₃, and B₃ locate at a common line. Two singular configurations are illustrated in Figure 7(b) and Figure 7(c). In these configurations, the moving platform can have an infinitesimal translation in the direction perpendicular to OA₃, despite all the actuations being locked. In other words, any external force in this direction cannot be balanced by the actuate force/torque. However, these singular configurations are not contained in the workspace since d₃ and $\psi$ exceed their permitted ranges.

6 Application

Parallel mechanisms have been successfully applied in the development of various machine tools [34,35,36,37]. It is believed that some of the proposed UP-equivalent PMs, which have compact structures and less joints in the limbs, have promising applications in this field. For example, by combining the 2-URPR/UPR PM and a 2-DOF translational gantry, a hybrid milling machine is developed as in Figure 8. The machine has a tool mounted on the moving platform of the PM and can operate on complex surfaces by relying on the coordinated motions of the PM and the gantry. It has the same operational ability as the Tricept and TriVariant robots. Furthermore, its parallel part has the advantages of high load capacity, high rotational capability, and no strict assembly requirement, which is preferable in practice.

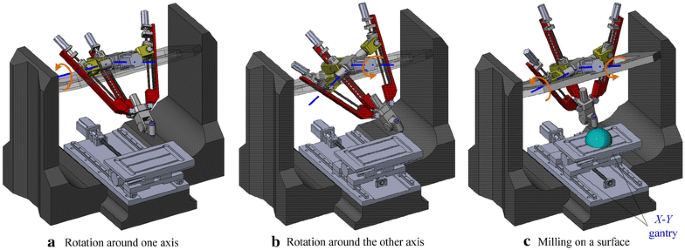

Figure 8

Hybrid milling machine

7 Conclusions

• 1. A new family of UP-equivalent PMs with high rotational ability and low requirements in terms of geometrical conditions is disclosed using displacement subgroup theory. The new architectures of UP-equivalent PMs do not contain spherical joints and have no strict assembly requirements; this has several benefits in terms of manufacturing cost and payload capability.

• 2. The high rotational capability of the proposed mechanisms is verified by investigating a typical example. In contrast to the unlimited rotational capability around one axis, rotation around the other axis is allowed over a considerably wide range of −33° ~ 70°. The singular curve is not within the workspace, and thus does not affect the rotational capability of the mechanism.
