Modification of Roll Flattening Analytical Model Based on the Plane Assumption

Chinese Journal of Mechanical Engineering201831:46

https://doi.org/10.1186/s10033-018-0246-1

  • Received: 10 April 2017
  • Accepted: 30 May 2018
  • Published:

Abstract

Roll flattening is an important component in the roll stack elastic deformation, which has important influence on controlling of the strip crown and flatness. Foppl formula and semi-infinite body model are the most popular analytical models in the roll flattening calculation. However, the roll flattening calculated by traditional flattening models has a great deviation from actual situation, especially near the barrel edges. Therefore, in order to improve the accuracy of roll flattening, a new model is proposed based on the elastic half plane theory. The calculation formulas of roll flattening are deduced respectively under the assumptions of plane strain and plane stress. Then, the two assumptions are combined through the method of introducing an transition coefficient, and the distribution rules of roll flattening for different rolling force, flattening width, roll length and roll diameter are analyzed by using the FEM analysis software Marc. Regarding the ratio of the length to roll end and the roll diameter as variable to fit the transition coefficient, the new model of roll flattening is established based on the elastic half plane theory. Finally, the transition coefficient is fitted to establish the model. Compared with the traditional models, the new model can effectively improve the calculation deviation in the roll end, which has important significance for accurate simulation of plate shape, especially for the distribution of rolling force between rolls.

Keywords

  • Roll flattening
  • Plane strain
  • Plane stress
  • Transition coefficient
  • FEM

1 Introduction

The flattening between work roll and strip and the flattening between rolls are important components of the important influence on controlling of the strip crown and flatness [110]. For the flattening between work roll and strip, because of the strip width is shorter than the work roll length more the 200 mm and the contact arc length is far less than roll diameter, the work roll can be seen as semi-infinite body and it’s reasonable to use the elastic half space theory [11, 12] for roll flattening. For the flattening between rolls, because of the length of back up roll is almost equal to the work roll (or the back-up roll length is less than the work roll), using the semi-infinite body assumption is obviously unreasonable, especially for the shorter one, and the Foppl formula [13] is employed for solving this frequently. The space problem is simplified into plane problem in Foppl formula, which ignore the influence of the axial stress, so the deviation in the roll end still exists. Figure 1 shows the comparison between the actual situation and the results calculated by the two models under the condition of uniform load.
Figure 1
Figure 1

Sketch map of flattening calculation models

Many scholars have studied on this problem, Berger et al. [14] established a way for the roll flattening calculation considering the pressure gradients along the roll axis direction. Based on Berger’s theory, Hacquin et al. [15] proposed a semi-analytical model by coupling with the analytical model and FEM. Yu et al. [1618] chosen Foppl formula as the roll flattening model and established a roll deformation model of 20-high mill. Coupled with the metal plastic deformation, the effects of work roll crown and the second intermediate non-drive roll crown on strip edge drop were analyzed. Jiang et al. [19, 20] chosen the semi-infinite body as the roll flattening model and proposed a roll deformation model in cold thin strip rolling with roll edge contact. Then, the mechanics of the cold strip rolling was analyzed based on the model. Zhou et al. [21, 22] examined the validity of the classical formulae by comparison of the results from different methods and modified the semi-infinite body model based on FEM. Xiao and Yuan et al. [2327] analyzed the error of semi-infinite body model in roll calculation and proposed an analytical model in flat rolling by boundary integral equation method. Wang et al. [28] used the 3-D elastic-plastic FEM to simulate the thin strip rolling process of UCM cold rolling mill. In the model, a novel calculation approach is proposed to obtain the actuator efficiency factors of the flatness actuators in terms of intermediate roll bending, work roll bending and intermediate roll shifting. Du and Linghu et al. [2931] developed a 3-D FEM simulation model of six-high CVC rolling process by using nonlinear elastic-plastic finite element method and the elastic flattening of rolls and the elastic workpiece are coupled as a whole in the model.

From the existing research results, it’s seen that the analytical method based on semi-infinite body model lack of theoretical support and the FEM cost considerable time [32]. For the geometry and stress situation of the work roll and back-up roll, the space problem can be simplified to plane problem approximately, which can effectively reduce the amount of calculation and meet the engineering precision requirement. In this paper, the roll flattening model is analyzed and modified based on the elastic half plane theory.

2 Formula Derivation Based on Elastic Half Plane Theory

For the rolls, whose cross section shape is circular, and its boundary bears the pressure p, which is balanced with shear stress. The sketch map of force analysis is shown as Figure 2.
Figure 2
Figure 2

Force analysis of roll barrel cross-section

Assuming the distribution of pressure p along the direction of flattening width 2b is elliptical and according to the elastic theory [33], the stress component of the roll cross section along the directions of the X axis and Y axis in the rectangular coordinate system can be expressed as:
$$ \left\{ \begin{aligned} \sigma_{x} = p_{0} \left[ {\frac{b(R + y)}{{4R^{2} }} + \frac{b}{{\sqrt {b^{2} + (R - y)^{2} } }} } \right. \hfill \\ \left. {\quad \quad - 2\frac{{\sqrt {b^{2} + (R - y)^{2} } - (R - y)}}{b}} \right], \hfill \\ \sigma_{y} = p_{0} \left[ {\frac{b(R - y)}{{4R^{2} }} - \frac{b}{{\sqrt {b^{2} + (R - y)^{2} } }}} \right]. \hfill \\ \end{aligned} \right. $$
(1)
For the roll flattening, the change from the roll central to the edge can be regarded as a transformation which is from plane strain problem to plane stress problem, that is say, when the roll bears uniform load, the minimum size of flattening occurs in the middle, which is suitable for the plane strain assumption, and the maximum size of flattening occurs in the edge, which is suitable for the plane stress assumption. So, the calculation formulas are deduced under the two assumptions.
  1. (1)

    Plane stress assumption (the axial stress is 0)


According to the Hooke’s law, the equation can be obtained as follows:
$$ \varepsilon_{y} = \frac{1}{E} \, (\sigma_{y} - \upsilon \sigma_{x}) . $$
(2)
The axis deformation along Y axis can be obtained by integration:
$$ \delta = - \int {\varepsilon_{y} } {\text{d}}y = - \frac{1}{E}\int {(\sigma_{y} - \upsilon \sigma_{x} )\,} {\text{d}}y. $$
(3)
The flattening deformation in bearing area OA can be obtained by Integration from 0 to R:
$$ \Delta R = \frac{2p}{{\uppi}E}\left[ {\ln \frac{2R}{b} + \frac{1}{8}\left( {3\upsilon - 1} \right)} \right]. $$
(4)
The flattening deformation in nonbearing area OB can be obtained by integration from − R to 0:
$$ \Delta R^{\prime} = \frac{2p}{{\uppi}E}\left[ {\ln 2 + \frac{1}{8}\left( {\upsilon - 3} \right)} \right]. $$
(5)
  1. (2)

    Plane strain assumption (the axial strain is 0)



For plane strain assumption, according to the elastic mechanics theory, the calculation formula can be obtained by replacing E to \( \frac{E}{{1 - \upsilon^{2} }} \) and replacing υ to \( \frac{\upsilon }{1 - \upsilon } \).

The flattening deformation in bearing area OA can be expressed as:
$$ \Delta R = \frac{{2p(1 - \upsilon^{2} )}}{{\uppi}E}\left( {\ln \frac{2R}{b} + \frac{1}{8}\frac{4\upsilon - 1}{1 - \upsilon }} \right). $$
(6)
The flattening deformation in nonbearing area OB can be expressed as:
$$ \Delta R^{\prime} = \frac{{2p(1 - \upsilon^{2} )}}{{\uppi}E}\left( {\ln 2 + \frac{1}{8}\frac{4\upsilon - 3}{1 - \upsilon }} \right). $$
(7)

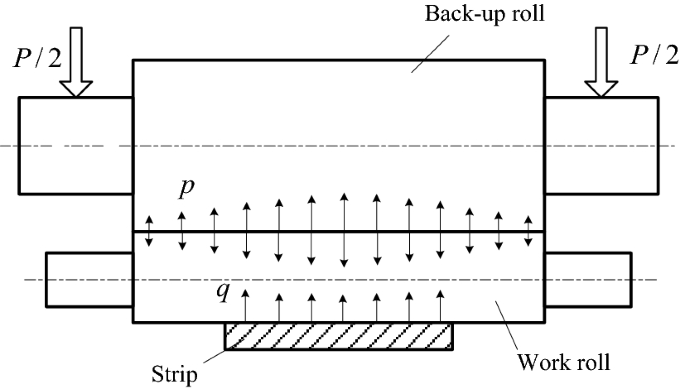

The sketch map of rolls under force is shown as Figure 3, for the back-up roll, which only bears the pressure on one side and depend on the braced force in roll neck to keep balance, therefore, the roll flattening only need be calculated by the formula of OA section. For the work roll, which bears the pressure on both sides, therefore, the roll flattening need be calculated not only in the bearing area (OA section) caused by the pressure between rolls p, but also in the nonbearing area (OB section) caused by the rolling force q. The total size of the flattening should be the sum of the work roll’ s and back-up roll’s.
Figure 3
Figure 3

Sketch map of rolls under force

3 Modification of Roll Flattening Model

3.1 Finite Element Simulation of Roll Flattening

In the roll flattening calculation, because the area of plane strain assumption and plane stress assumption is uncertain, the commercial finite element software MSC. Marc is employed to simulate the roll flattening and offer reference for the comprehensive application of the two assumptions. An example is illustrated for this, in which the roll diameter is 850 mm, the roll length is 1780 mm and the roll surface bears the uniform load 10 N/mm along the direction of roll length. In order to have higher comparability between the results calculated by finite element method and plane, the flattening width is calculated by Hertz formula firstly, and then according to the elliptic curve assumption of distribution rule, the grids in stress area are subdivided to make the finite element model and analytical model have same input conditions.

Figure 4 shows the result of FEM calculation, it can be seen that the size of flattening increases gradually from the roll centre to the roll edge, because there is no constraint of normal stress and shear stress in the roll end.
Figure 4
Figure 4

FEM calculation result of roll flattening

In the same parameter conditions with finite element simulation, the present paper uses the plane strain assumption and plane stress assumption to calculate respectively, and gets the size of flattening in the roll central and roll end. The specific value as Table 1 shows. We can see the analytic calculation results and finite element calculation results are better matched, there are two reasons lead to deviations: the one reason appeared in the process of analytic calculation to solve integral, simplifying some expressions and ignoring some infinitesimal; the another reason is that the input conditions of two kinds of calculation methods can’t reach consistent exactly, such as the distribution of roll force, and make elliptic curve equivalent with some discrete values when doing the finite element simulation.
Table 1

Comparison of roll flattening

Flattening size

The centre (minimum) (mm)

The end (maximum) (mm)

Based on plane assumption

0.129

0.146

Calculated by FEM

0.128

0.152

3.2 Introduction and Fitting Method of Transition Coefficient

According to the result calculated by FEM, the flattening area can be divided into the central part and the edge part, as shown in Figure 5.
Figure 5
Figure 5

Part differentiates of roll flattening

It can be seen that the size of roll flattening in the central area is almost the same, and it can be regarded as suiting for the plane strain assumption. The size of roll flattening increases with closing to the roll ends gradually. In order to describe the changing rule of roll flattening in edge area, the transition coefficient is introduced to express the assumption of plane stress and plane strain under external force. So, the roll flattening in arbitrary position can be calculated by the following formula.
$$ \left\{ \begin{aligned} \delta &= \delta_{0} ,\quad\quad\quad\quad\quad\quad\quad\quad\quad\quad x > s,\\ \delta & = k(x)\delta_{1} + \left[ {1 - k(x)} \right]\delta_{0} ,\quad 0 \le x \le s, \\ \end{aligned} \right. $$
(8)
where δ is the size of roll flattening; δ0 is the size of roll flattening calculated by the plane strain assumption; δ1 is the size of roll flattening calculated by the plane stress assumption; x is the distance from the roll end; s is the length of roll edge area; and k(x) is the transition coefficient.
For different pressure sizes, flattening widths, roll lengths and roll diameters, the changing rule of transition coefficient is different. So, four groups of roll flattening are simulated by FEM under the conditions which are shown is Table 2.
Table 2

FEM simulation conditions of roll flattening

No.

Type

Value

1

Pressure size (kN/mm)

5/10/15

2

Flattening width (mm)

4/5.47/7

3

Roll length (mm)

1335/1780/2225

4

Roll diameter (mm)

700/850/1000

According to the FEM results, the changing curves of transition coefficient are described as Figure 6. From Figure 6(a), Figure 6(b) and Figure 6(c) it can be seen that the changing curves are basically coincident under the conditions of different rolling forces, flattening widths and roll lengths, that is to say, these three factors have little influence on the transition coefficient in a certain range, which can be neglected. From Figure 6(d) it can be seen that the roll diameter has obvious influence on the transition coefficient, with the roll diameter becoming much smaller, the transition coefficient will be close to 0 fast.
Figure 6
Figure 6

Changing law comparison of transition coefficients under different conditions

According to elastic mechanics theory, if the length of a roll which can be seen as a semi infinite body exceeds a certain value, the flattening in roll edge should be consistent under the same load, so the roll length has little influence on transition coefficient changing trend. Because roll flattening is the relative difference between roll surface subsidence and roll central, the different roll diameters will lead to different standards for roll flattening calculation. In order to analyze the roll flattening changing rule with different roll diameters, the curve of transition coefficient is drawn by taking the ratio of the distance from roll end x and the roll diameter D as variables, as shown in Figure 7.
Figure 7
Figure 7

Effect of different roll diameters on transition coefficient

From Figure 7 it can be seen that the three curves are basically coincident. According to the variation characteristics, the index curve is employed to fit the transition coefficient k(x) by taking x/D as variable, which can be expressed as
$$ k(x) = a^{{\left( {\frac{x}{D}} \right)}} , $$
(9)
where a is the fitting coefficient, a = 4.8269 × 10−5.
Bring Eq. (9) into Eq. (8), the roll fattening distribution can be obtained. Figure 8 shows the comparison of calculation results between the modified model and FEM. It can be seen that the two results are basically approached, that is to say, the modified model effectively avoids the error in roll edge calculation.
Figure 8
Figure 8

Calculation result comparison of FEM and modified model on roll flattening

4 Influence Analysis of Roll Flattening Model on Strip Shape Simulation

In roll stack deformation calculation, the modified flattening model can be used to calculate the flattening between rolls. Because the length of work roll is longer than strip width, it is reasonable to regard the work roll as a semi infinite body. To study the influence on strip shape calculated by different flattening models, an example of F1 stand is simulated by 3-D FEM Coupled Model [34].

In the simulation of strip shape, variational method is employed to solve the lateral flow of metal and influential function method is employed to calculate roll deflection, the lateral distribution of roll flattening, pressure between rolls, strip thickness and front tension can be obtained by iterative strategy. Figure 9 shows the results.
Figure 9
Figure 9

Effect of roll flattening models on calculation results

From Figure 9(a) it can be seen that the size of roll flattening calculated by the modified model is larger than Foppl formula in the area of both ends which is suitable for plane stress assumption. As shown by the value, the extends range is about 10 μm which is about 4% of the average size of flattening, while the values in roll central are basically identical. From Figure 9(b) it can be seen that the pressure between rolls in the area of both ends becomes smaller since the flattening changing. As shown by the value, the reduction range is about 1 kN/mm which is more than 10% of the average pressure between rolls. From the Figure 9(c) and Figure 9(d) it can be seen that the strip thickness and front tension are basically identical. Although the modification of flattening model does not have obvious influence on the final results of strip shape, the influence of pressure between rolls should not be ignored. In view of the actual production, the excessive wear of back-up rolls often appears, so the modified flattening model is of important significance for the accurate calculation of pressure between rolls in the roll contour optimization.

5 Conclusions

  1. (1)

    For the roll flattening, the change from the roll central to the edge can be regarded as a transformation from plane strain problem to plane stress problem. According to the elastic theory, the calculation formulas are deduced respectively under the assumptions of plane strain and plane stress.


  2. (2)

    Through introducing the transition coefficient, the plane strain assumption and the plane stress assumption are combined. By using the FEM software, it can be seen that the different rolling force, different flattening width and different roll length have little influence on transition coefficient in a certain range, which can be ignored; while the different roll diameters influence transition coefficient obviously.


  3. (3)

    Regarding the ratio of the length to roll end and the roll diameter as variable to fit the transition coefficient, the new model of roll flattening is established based on the elastic half plane theory.


  4. (4)

    By contrast, the modified flattening model has little influence on the distribution of strip thickness and tension, but the influence of pressure distribution between rolls should not be ignored which is of important guiding significance to analyze the roll wear, and so on.



Declarations

Authors’ contributions

Q-XH was in charge of the whole trial; TW wrote the manuscript; HX and X-DQ assisted with sampling and laboratory analyses. All authors read and approved the final manuscript.

Authors’ Information

Tao Wang, born in 1985, is currently a lecturer at Taiyuan University of Technology, China. He received his Ph.D. degree from Yanshan University, China, in 2013. His research interests include rolling process and equipment.

Qing-Xue Huang, born in 1960, is currently a professor at Taiyuan University of Technology, China. He received his PhD degree from Yanshan University, China, in 1999. His research interests include rolling process and equipment, composite material forming and mechanical design.

Hong Xiao, born in 1962, is currently a professor at Yanshan University, China. He received his Ph.D. degree from Yanshan University, China, in 1991. His research interests include computer simulation of rolling process and plastic processing theory.

Xiang-Dong Qi, born in 1970, is currently a professor at Yanshan University, China. He received his Ph.D. degree from Yanshan University, China, in 2002. His research interests include shape control theory, rolling process and equipment.

Competing interests

The authors declare that they have no competing interests.

Funding

Supported by Shanxi Provincial Science and Technology Major Project of China (Grant No. MC2016-01), Major Program of National Natural Science Foundation of China (Grant No. U1710254), and Natural Science Foundation of Shanxi Province (Grant No. 201701D221143).

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
College of Mechanical Engineering, Taiyuan University of Technology, Taiyuan, 030024, China
(2)
National Engineering Research Center of Cold Strip Rolling Equipment and Technology, Yanshan University, Qinhuangdao, 066004, China
