Experimental Study on Wear Performance and Oil Film Characteristics of Surface Textured Cylinder Liner in Marine Diesel Engine

Chinese Journal of Mechanical Engineering201831:52

https://doi.org/10.1186/s10033-018-0252-3

  • Received: 29 June 2016
  • Accepted: 13 June 2018
  • Published:

Abstract

It is of a vital importance to reduce the frictional losses in marine diesel engines. Advanced surface textures have provided an effective solution to friction performance of rubbing pairs due to the rapid development of surface engineering techniques. However, the mechanisms through which textured patterns and texturing methods prove beneficial remains unclear. To address this issue, the tribological system of the cylinder liner-piston ring (CLPR) is investigated in this work. Two types of surface textures (Micro concave, Micro V-groove) are processed on the cylinder specimen using different processing methods. Comparative study on the friction coefficients, worn surface texture features and oil film characteristics are performed. The results demonstrate that the processing method of surface texture affect the performance of the CLPR pairs under the specific testing conditions. In addition the micro V-groove processed by CNCPM is more favorable for improving the wear performances at the low load, while the micro-concave processed by CE is more favorable for improving the wear performances at the high load. These findings are in helping to understand the effect of surface texture on wear performance of CLPR.

Keywords

  • Cylinder liner-piston ring (CLPR)
  • Surface texture structure
  • Frictional and wear characteristic
  • Oil film characteristic

1 Introduction

The marine diesel engine is the heart of a marine system. Cylinder liner-piston ring (CLPR) system is one of the major contributors for the mechanical losses in a diesel engine [1]. Surface texture of the cylinder liner is identified as one of the significant factors that improve the tribological properties of diesel engine with regard to wear (surface topography and running performance), oil consumption, fuel efficiency, lubrication oil (element concentration and wear particle), and so on [2]. For this reason, cylinder liner surfaces are processed by exercising immense attention. Many researches focus on the potential of using surface texturing on cylinder liners to improve the friction, wear, lubrication and reduce the friction, and designs of different geometric shapes and texturing parameters are investigated using numerical simulation and experimental methods [3, 4].

Through the early studies, Akamatsu et al. [5] found that the surface concave can improve the life of the friction pairs operating in mixed/boundary lubrication regimes. Later on, various models including the numerical [6, 7], lubrication [8], and analytical [9, 10] ones were developed to study and reduce the friction between cylinder liner and piston ring by alternating the shape, size, and pattern orientations of the surface textures.

For the experiments, various surface texturing methods [1118] employed by the researchers. Such as laser surface texturing [11, 12], pulsed air arc treatment [13], electropolishing [14], reactive ion etching (RIE) [15], photochemical machining [16], maskless electrochemical texturing [17], micro computer numerical control (CNC) texturing [18], and so on. Among the different surface texturing techniques, laser texturing technique is one of the most widely used thermal energy based noncontact type advanced method. Etsion and Sher [19] evaluated the effect of partially laser surface-textured piston rings through testing the fuel consumption and exhaust gas composition of a diesel engine. Hua et al. [12] investigated the effect of discriminating partition laser surface micro-texturing on engine comprehensive performance compared the fuel consumption. Yousfi et al. [20, 21] found the effect of surface smoothness and plateauness and theirs evolution during running-in tests. Then, they showed that ellipse patterns oriented at ring sliding direction contribute the most to reduce the friction coefficient using a reciprocating ring-liner tribometer. Grabon et al. [22] compared the tribological behavior of honed cylinder liners with and without additional oil pockets created by burnishing method using reciprocating tester.

In the above existing works of CLPR, the various textured patterns were tested and compared. It seems that texture can lead to friction reduction and/or reducing the fuel consumption. However, the mechanisms through which textured patterns and texturing methods prove beneficial remains unclear. This is in part to the fact that the majority of research focused on comparing the performance of the different textured patterns using the same texturing method, with few texturing methods of same pattern and oil film characteristic being attempted.

Up to date, limited quantity studies on the effect of the surface textures of cylinder liners with assistance of comparing the different texturing methods for better understanding of wear mechanisms and lubrication performances. In addition, only a limited number of texture studies have used test rigs to measure and analyze the oil film characteristic response [23]. Of particular significance is this work carried out by Costa and Hutchings [24] who investigated the influence of surface topography on lubricant film thickness for the reciprocating sliding of patterned plane steel surfaces against cylindrical counter bodies under conditions of hydrodynamic lubrication.

It is well known that the lubricant film characteristic between cylinder liner and piston ring provides a key comparable parameter to evaluate the performance of CLPR. Various methods have been implemented to measure the oil film thickness [25]. Dearlove et al. [26] simultaneously measured mid-stroke lubricant film thickness using the Laser Induced Fluorescence (LIF) and friction force in a single piston ring-floating liner. Mills et al. [27] applied the technique of Ultrasonic Sensing in IC engine cylinder liner applications by mounting elements to the cylinder liner. Other methods such as capacitative [28], induction [29] also have been used to measure the oil film thickness between cylinder liner and piston ring. But each measurement technology has its strengths and weaknesses.

In conclusion, mainly due to the difficulty in performing such measurements under the running conditions of CLPR. As a result, there remain uncertainties regarding the mechanisms by which texturing method or surface texture effect the friction pairs of CLPR. Contact resistance is an effective technique for representing the oil film characteristic of CLPR friction pair. This work aimed to study the influence mechanism of cylinder liner surface texture on the friction and lubrication performance of CLPR components. A series of experiments have been carried out on a reciprocating test rig. The oil film characteristics between cylinder liner and piston ring were obtained using the contact resistance technology. Findings of this work contribute to understanding of the influence of the texturing method and surface micro processing on the CLPR pair and can be referred to in practice.

2 Experiment and Methodology

2.1 Test Sample Preparation

In order to simulate the CLPR more realistic during the experimental tests, Specimens were cut from cylinder liner and piston ring, which material was typically applied in marine diesel engines. The specimen of cylinder liner was cut from boron cast iron cylinder liner (Figure 1(a)), the specimen of piston ring was cut from ductile cast iron piston ring (Figure 1(b)) and the CLPR mating graph (Figure 1(c)). The metrical parameters of the specimens were displayed in Table 1. Computer Numerical Control (CNC) Wire-Cut Electric Discharge Machining (EDM) was applied to process the specimens.
Figure 1
Figure 1

Image of the test samples: (a) cylinder liner, (b) piston ring, (c) CLPR mating graph

Table 1

Metrical parameters of the specimens

Parameter

Cylinder liner

Piston ring

Material

Boron cast iron

Ductile cast iron

Brinell hardness (HB)

200‒240

445‒480

Specimen size

Length × Width × Thickness (mm × mm × mm)

120 × 80 × 10

50 × 3 ×  5

In the experimental tests, the micro-concave cylinder liner and micro V-groove cylinder liner were prepared using different texturing methods. The selection of the geometries was based on existing work [1, 2, 8, 22] in which a dimpled surface was reported to reduce friction although the influences of different processing methods and mixed micro-groove structures were not take into account. The computer numerical control precision machining (CNCPM) was employed to produce the texted surface textures including the micro-concave and micro V-groove. Meanwhile, the micro concave was obtained using the chemical etching (CE). And the parameters of micro-concave by the chemical etching were consistent with that The CNC Precision Machining. The geometric models and processing parameters of textured cylinder liners were shown in Table 2. The piston ring running profile was flat. Compared the different processing method, the hardness of wear surfaces processed by CE became lower than that of CNCPM.
Table 2

The geometric models and processing parameters of textured cylinder liners

Note: CNCPM; CE

2.2 Experimental Apparatus and Wear Tests

All wear experiments were conducted using a commercial reciprocating wear testing machine (MWF-10 tribo-tester, Yihua Ltd., China). The sketch map of the reciprocation tester is shown in Figure 2. During the tests, the upper specimen (made of piston ring) remained stationary while the lower specimen (made of cylinder liner) slid against the surface of the upper specimen with a reciprocation motion. The required load was pressed on the upper specimen. The rotational movement was changed into reciprocating movement by a crankshaft assembly. The radius of crank was 50 mm, therefore its stroke was 100 mm.
Figure 2
Figure 2

Reciprocation tester: (a) picture of the tester; (b) schematic diagram. 1. Electromotor, 2. Frequency transformer, 3. Link mechanism, 4. Guide rail, 5. Fixture of cylinder liner, 6. Specimen of cylinder liner, 7. Digital microscope, 8. Loading device, 9. Hydraulic system, 10. Sensor of load force, 11. Fixture of piston ring, 12. Specimen of piston ring, 13. Sensor of friction force, 14. Industrial personal computer

To accelerate the tribo-tests to obtain the results in a reasonable time frame, special lubricating oil without additives was used in this study. The 70 N based oil with a kinematic viscosity of 13 mm2/s at 40 °C was used. The tribological tests were carried out under full lubrication. Lubricating fluid was supplied into the inlet side of the contact zone, while the frequency of lubrication was 1 mL/min; during the test time interval between oil drops delivery was the same.

In order to simulate the real applications in marine diesel engine, friction test were conducted at a stable low speed 200 r/min. Experiment was performed with three average loads: 200 N, 400 N, 600 N. Each CLPR friction pair ran for 4 h. All friction tests were repeated twice under the same condition to check the repeatability of the results. After completion of each experiment, the fixtures of cylinder liner and piston ring were cleaned to ensure that each CLPR ran in the same condition.

2.3 Measurement Techniques

The quantitative studies of the wear properties and features were conducted through friction coefficient analysis, topographical analysis of worn surface, composition examination, and oil film characteristic. Brief information of these techniques used in this work is provided below.

The results of friction force measurement were recorded using laboratory measuring system. The topographies of the prepared sample surfaces were measured using a 3D surface profilometer before and after the tests. The tip radius of the stylus was 2 μm. The previous version of this test method was described in details in Ref. [2].

According to the features of the cylinder liner surfaces, the four surface height-related parameters were adopted to describe the distinct between the different surface textured cylinder liners. The definitions of the selected parameters are presented as follows.

The root mean square (Sq) is amplitude parameter and is defined as [30]:
$$S_\text{q} \, = \,\sqrt {\frac{1}{MN}\sum\limits_{0}^{M - 1} {\sum\limits_{0}^{N - 1} {\left( {Z\left( {x_{k} ,y_{l} } \right)\, - \,u} \right)^{2} } } } .$$
(1)
The root mean square gradient (Sdq) is the hybrid parameters indicated the RMS-value of the surface slope within the sampling area, and is defined as [30]:
$$S_\text{dq} \, = \,\sqrt {\frac{1}{{\left( {M\, - \,1} \right)\left( {N\, - \,1} \right)}}\sum\limits_{k\, = \,0}^{M\, - \,1} {\sum\limits_{l\, = \,0}^{N\, - \,1} {\left( {\frac{{z\left( {x_{k} ,y_{l} } \right)\, - \,z\left( {x_{k - 1} ,y_{l} } \right)}}{\delta x}} \right)^{2} \, + \,\left( {\frac{{z\left( {x_{k} ,y_{l} } \right)\, - \,z\left( {x_{k} ,y_{l} \, - \,1} \right)}}{\delta y}} \right)^{2} } } } .$$
(2)
The surface bearing index (Sbi) and valley fluid retention Index (Svi) are the functional parameters, and is defined as [30]:
$$S_{\text{bi}} \, = \,\frac{{S_{q} }}{{Z_{0.05} }},$$
(3)
$$S_{\text{vi}} \, = \,\frac{{V_{v} \left( {h_{0.05} } \right)\, - \,V_{v} \left( {h_{0.8} } \right)}}{{\left( {M\, - \,1} \right)\left( {N\, - \,1} \right)\delta_{x} \delta_{y} }}/S_{q} ,$$
(4)
where \(Z\left( {x_{k} ,y_{l} } \right)\)is the height value for \(\left( {x_{k} ,y_{l} } \right)\), M is the sampling points for the direction of x, and N is the sampling points for direction y.
Contact resistance analysis technique was used to characterize the lubrication oil film thickness and examine the wear severities between the cylinder liner and piston ring. The circuit and schematic diagrams were shown in Figure 3. Electrical conductivity of the lubricating oil has a great disparity with that of the metal was the operating principle of this method. This technique requires an insulated surface mounted sensor of the contact elements. In this study, two wires were respectively attached to the specimen of cylinder liner and piston ring. Meanwhile, the specimens of cylinder liner and piston ring were insulated with their fixtures using the fish paper. The electrical resistances of the friction pair were recorded by the Labview acquisition system and analyzed to determine the lubrication oil film characteristics of the friction pairs and their wear mechanisms.
Figure 3
Figure 3

Contact resistance tester system: (a) appearance; (b) schematic diagram

3 Results and Discussion

The tribological properties of the CLPR were investigated through comparative analyses of the friction coefficients, wear surface topographies and resistances values under different surface textures, texturing methods and running conditions. The results are presented in the following sections.

3.1 Analysis of Friction Coefficients

Table 3 shows the variation of friction coefficient of the CLPR friction pairs at different surface textures, texturing methods and loads under the same rotational speed (200 r/min). Different surface textures and texturing methods produced a significant effect on the friction coefficients of CLPR friction pairs.
Table 3

Variation of friction coefficients for the textured cylinder liners

With the increase of load, the growth trend of the friction coefficient in the micro-concave processed by CE was firstly increased and then decreased, while in the micro-concave and the micro V-groove processed by the CNCPM were gradually increased. This probably that either the texturing methods or the surface textures had a certain influence on the friction properties of the CLPR friction pairs. We discuss the influence details as followings.

3.1.1 Friction Coefficients under Different Texturing Methods

It was well known that the surface concave could improve the wear properties of the friction pair [1, 7] and various surface texturing methods were employed by researchers to process the surface of friction pairs [31]. However, little research was focused on the effect of the texturing methods in understanding the wear mechanisms and lubrication performances.

As can be seen in Table 3, the friction coefficients in the CNCPM textured cylinder liner was smaller than that in the CE textured cylinder liner at the low loads (200 N and 400 N) while at the high load (600 N), the opposite is true. It was hypothesized that the CNCPM texturing method was better for cylinder liner than CE texturing method at the low loads. Moreover, at the low loads (200 N and 400 N), the mean values of friction coefficients with the CNCPM surface were 0.0407 and 0.0502, while the CE surface were 0.0681 and 0.0753. It was mainly because the processing methods changed the surface contact performance. The surface hardness under different texturing methods was measured using an automatic digital display Rockwell hard-tester (Huayin Ltd., China). The hardness of the untreated cylinder liner surface was 19.4 HRC, while the CE surface was 17.6 HRC and the CNCPM surface was 20.9 HRC. During the processing of CE, the hardness of wear surface became low, the normal forces loaded by hydraulic system were remained constant during the tests, so the soft surface processed by CE needed longer testing time to remove and the wear degree became more severe at low loads than that of the CNCPM. Consequently, the CE method may produce larger friction coefficients than the CNCPM. Because the friction force became larger during remove the effected surface of cylinder liners. But with the high load (600 N), the effected surface was removed during the beginning of the test, which can be proved by the curve variation tendencies of the first 3600 s in Table 3 (Micro-concave processed by CE, 600 N). As a result, the friction coefficient was firstly raised and then decreased during the loads increased. During the processing of CNCPM, the hardness of wear surface increases due to high processing temperature, so the wear degree became slight at low loads. In addition, the existence of the micro-concave made the cylinder liner surface store a portion of the lubrication oil and improved the lubrication at low loads. With the increase of load, the condition of lubrication became worse. This ultimately increased the friction coefficients between the friction pairs. Finally, it led to a rise in friction coefficients.

3.1.2 Friction Coefficients under Different Surface Textures

The types of surface textures influenced the friction coefficient behaviors markedly as shown in Table 3. The variation of the friction coefficient between cylinder liner and piston ring of the two different types of surface texture processed by CNCPM were compared and analyzed. At the load of 200 N, the friction coefficient in the micro V-groove surface was smaller than that in the micro-concave surface. The possible reasons were that when the micro V-groove were ran at a low load, the existence of the grooves made the cylinder liner surface store amount of lubrication oil, which was much more than that in the micro-concave surface. The lubrication oil slowed down the wear of CLPR friction pair. And thus the friction coefficient was relatively low at the load of 200 N. When the applied load increased to 400 N, the friction coefficient in the micro V-groove surface was larger than that in the micro-concave surface. This is because that when the load increased, the wear surfaces of friction pairs were forced into close contact. Due to the fact that the length of the groove was larger than the thickness of piston ring and the diameter of micro-concave was smaller than the thickness of piston ring, the lubrication oil in the micro V-groove was more readily to be squeezed out than the micro-concave. Hence, the friction coefficient of micro V-groove was larger than that of micro-concave at the load of 400 N. When the applied load grew to 600 N, the lubrication environment of CLPT became harshest. A large number and different kinds of wear particles generated. For the micro V-groove cylinder liner, some wear particles were whirled away by the lubrication oil. In addition, the micro V-groove could retain more and larger size of wear particles than the micro-concave. Consequently, the friction coefficient of micro V-groove was lower than that of micro-concave at the load of 600 N.

3.2 Surface Topographies Analysis of Cylinder Liner Worn Surface

Table 4 shows the test parameters of the treated surface textures after the tests. Because of friction and wear between the CLPR friction pair, the scratches along the reciprocation direction were left on the specimens during the 4 h of testing. Moreover, the topographies of the cylinder liner presented a direct relationship with their wear performances. Therefore, the wear mechanism could be characterized by the microscopic parameters of worn surfaces. At a microscopic scale, the lubrication of friction pair was inferred through quantitative topographic studies of the cylinder liner worn surfaces. The parameters were obtained by averaging the measured areas.
Table 4

Test parameters of the cylinder liner surface textures after the tests

According to the Sq values, the distribution of the cylinder liner surface peaks mostly increased after the tests. It was mainly because the wear process along contact surfaces of the cylinder liner destroyed the original topographies and made the height distribution more non-uniform. The Sq values of micro-concave processed by CE were smaller at low loads and larger at high load than that by the CNCPM, which was consistent with the variation trend of friction coefficient. Using the same processing method, the Sq values of micro-concave were smaller at load of 400 N and larger at loads of 200 N and 600 N than that of micro V-groove.

A high Sdq value may indicate a rapid change in the surface topography and a higher friction and wear between cylinder liner and piston ring. This can be intuitively understood comparing the mean values of different surface textures and different applied loads in Table 4. Sbi is the ratio of the root-mean-square deviation over the surface height at 5% bearing area. For a Gaussian height distribution Sbi approaches 0.608 for an increasing number of pixels. A large Sbi indicates a good bearing property. The results produced in this work revealed that the micro V-groove had a highest Sbi value (> 0.608) at 200 N which indicated that it had a good bearing property, micro-concave processed by CE had a smallest Sbi value (< 0.608) at 400 N indicating a poor bearing property, and micro-concave processed by CNCPM had a smallest Sbi value (< 0.608) at 600 N and a highest Sbi value (> 0.608) at 400 N. Functional parameter Svi is used to indicate the fluid retention property in the valley zone. A larger Svi indicates a good retention capability feature. In this study, the Svi values had the same tendency as Sbi.

Finally, through the comparative analysis of the microscopic parameters of different surface textured cylinder liners, it found that the cylinder liner shown different performance under the different loads and surface textures. The micro-concave cylinder liner processed by CE was suitable for running with the load 600 N, the micro-concave cylinder liner processed by CNCPM was suitable for running in the applied load 400 N and the micro V-groove cylinder liner processed by CNCPM was suitable for running with the loads 400 N and 600 N. In general, the micro V-groove processed by CNCPM was better on the wear surface improvement than others during the tests.

3.3 Analysis of Contact Resistance

To further analyze the effect of the cylinder liner surface textures and load on the lubrication oil film characteristic, the contact resistance measuring technique was used to calculate the variation and mean values of the contact resistance.

Figure 4 depicts the variation of contact resistance values for the micro-concave cylinder liner processed by CE and piston ring with different loads. It can be seen that the loads had a significant effect on the contact resistance values of CLPR friction pairs. In general, the contact resistance values were decreased as the load increased. As well known, the loads had a significant effect on the tribological properties of friction pairs. When the load grew, the wear surfaces of the friction pairs were forced into close contact. The thickness of the lubrication oil film between them became thinner.
Figure 4
Figure 4

Variation of contact resistance values for the micro-concave cylinder liner processed by CE at the different load: (a) 200 N, (b) 400 N, (c) 600 N

Figure 4 also shows that the lubrication oil film between cylinder liner and piston ring can be qualitative characterized by the variation of contact resistance values between them. The cylinder liner and piston ring are mainly composed of metallic materials. Electric will generated by the friction of the CLPR. Since the lubrication oil is weak conductive, if the contact resistance was used to measure the cylinder liner and piston ring during the test, for the same-type of lubrication oil, when the contact resistance value increased, it indicated that the lubrication oil and film thickness between the cylinder liner and piston ring became sufficient and thick and vice versa.

Hence, it can be noticed from Figure 4 that the fluctuation levels of contact resistance values were different when the load increased. The effects of contact resistance values on fluctuation from strong to weak were ranked as 200 N, 400 N, and 600 N. The main reason was believed to be as follows. The wear particles were generated from the cylinder liner and piston ring and retained considerable conductivity. So the conductive properties of lubrication oil were affected by the amount and size of the wear particles. At the lowest load, the clearance of the friction pairs was the largest, the wear particles were easily transported to contact area of the friction pairs and the fluctuation level of contact resistance values between the cylinder liner and piston ring was relatively large. When the load grew, the wear surfaces of the friction pairs were forced into close contact. The wear particles were hardly transported to the friction pairs and the fluctuation levels of contact resistance values became relatively small.

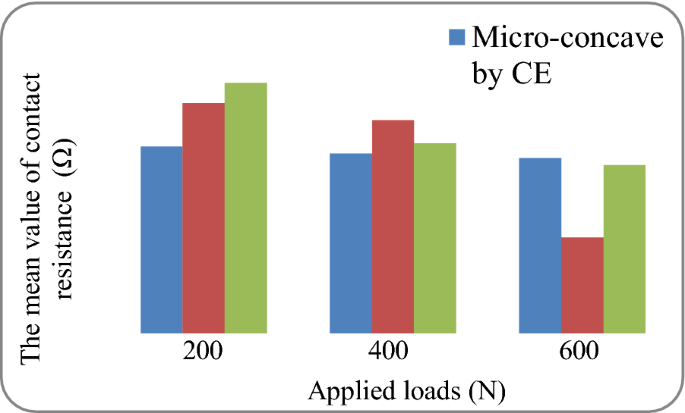

Figure 5 shows the mean values of contact resistance for cylinder liner and piston ring at different loads and surface textures. For the same surface texture but different loads, the mean values of contact resistance were decreased as the load increased. Comparison of the mean values of the same load, the mean value of micro V-groove by CNCPM was the largest at 200 N, the mean value of micro-concave by CNCPM was the largest at 400 N and the mean value of micro-concave by CE was the largest at 600 N.
Figure 5
Figure 5

Variation of mean values of contact resistance between cylinder liner and piston ring under different surface textures and applied loads

The variation of the friction coefficients (in Table 3) and the contact resistance (in Figure 5) under the different loads and surface textures were compared and analyzed. It was found that, the mean value of the friction coefficients in micro V-groove surface at 200 N was the smallest and the contact resistance was the largest. The results revealed that the mean value of the friction coefficients was in inverse proportion to that of the contact resistance. Inverse growth phenomena appeared only in the micro-concave by CE at 600 N. The mean value of the friction coefficients was in-between but the contact resistance was the largest. The main reason was believed to be as follows. The surface hardness processed by CE (17.6 HRC) was smaller than that by CNCPM (20.9 HRC). The micro-concave processed by CE may provide more lubrication oil between the cylinder liner and piston ring than that by CNCPM under the same load of 600 N. The variance of the mean value of contact resistance for two different types of surface texture processed by CNCPM was larger than that of the friction coefficient. The main reason was that the micro V-groove could retain more wear particles than the micro-concave, so there were more wear particles existed in the lubrication oil between the cylinder liner and piston ring for the micro-concave surface. And the existed wear particles could reduce the value of the contact resistance. These were qualitatively consistent with the trend of the analysis of surface morphologies.

4 Conclusions

  1. (1)

    The wear performances are affected by the texturing methods of surface textures. In addition the micro V-groove processed by CNCPM is more favorable for improving the wear performances at the low load, while the micro-concave processed by CE is more favorable for improving the wear performances at the high load.


  2. (2)

    For the different surface textures, the micro V-groove processed by CNCPM is generally better on the wear surface improvement than others during the tested conditions.


  3. (3)

    The characteristic parameter of contact resistance is firstly used to represent the oil film characteristic and wear performance of surface textured CLPR pair, which is qualitatively consistent with the trend of friction coefficient and surface morphology.



As a whole, the processing method of surface texture affected the performance of the CLPR pairs under the specific testing conditions. Further study is being conducted to analyze the wear performance of different kinds and densities of micro-groove (V-groove, grooves with different angles, and so on) by CE and the surface textured cylinder liners by other processing method. The outcome will be reported in due course.
