Modelling of the Influence of Tool Runout on Surface Generation in Micro Milling

Abstract

Micro milling is a flexible and economical method to fabricate micro components with three-dimensional geometry features over a wide range of engineering materials. But the surface roughness and micro topography always limit the performance of the machined micro components. This paper presents a surface generation simulation in micro end milling considering both axial and radial tool runout. Firstly, a surface generation model is established based on the geometry of micro milling cutter. Secondly, the influence of the runout in axial and radial directions on the surface generation are investigated and the surface roughness prediction is realized. It is found that the axial runout has a significant influence on the surface topography generation. Furthermore, the influence of axial runout on the surface micro topography was studied quantitatively, and a critical axial runout is given for variable feed per tooth to generate specific surface topography. Finally, the proposed model is validated by means of experiments and a good correlation is obtained. The proposed surface generation model offers a basis for designing and optimizing surface parameters of functional machined surfaces.

1 Introduction

Micro milling is recognized as one of the most versatile machining processes to fabricate micro components and micro features [1], due to the advantages including wide material choices, true 3D micro geometry machining capability, high accuracy, low cost and environmentally friendliness [2,3,4,5]. Recently, micro milling has been employed to fabricate the microfluidic devices [6,7,8,9,10]. Microfluidic channels are the important part of micro-chemical devices, which is widely being used in microelectronic and biomedical applications. The characteristic scale of microfluidic channels is generally between a few to several hundred microns, and micro-milling has a very high superiority in such scale machining. Tool diameters are down-scaled in micro milling, unfortunately the surface roughness is not down-scaled in micro milling, this is mainly due to the fact that cutting edge radius and machining dynamics such as tool runout are not down-scaled and they are similar to those in conventional milling. Therefore, the relative surface roughness, i.e., the ratio of surface roughness to the machined feature size, is believed to be larger in micro milling. Research has shown that the wall roughness and micro topography can significantly affect the flow and drag along the microfluidic channel path [11], and microreactors often need to control the flow pattern to achieve enhanced mixing, to achieve enhanced mass transfer, and improve the reaction rate. And on the other hand, design and control of wall roughness and micro topography has become an effective means of micro-flow control [12,13,14]. In addition, the micro features size produced by micro milling makes the subsequent finishing processes, e.g., grinding or polishing, expensive or even impossible. Therefore, modelling surface generation in micro-milling is significant and it provides a theoretical basis the design and manufacture of micro-fluidic channels.

Research has been carried out in micro milling surface generation in recent years. Vogler et al. [15] developed a model to predict the surface generation for single-phase materials based on the minimum chip thickness concept. investigated the effect of micro tool cutting edge radius on the surface roughness in the micro machining, and pointed out that larger cutting edge radius would increase the surface roughness due to the existence of the minimum chip thickness. Oliaei and Karpat [16] investigated the influence of machining parameters on the surface roughness of stainless steel machining. Bissacco et al. [17] studied the size effects on surface generation by ball nose and flat end micro milling of hardened tool steel, and the effects of the increased ratio between cutting edge radius and chip thickness have been observed. Sun et al. [18] studied the relationship among the surface roughness, the feed per tooth, as well as the cutter geometry. Li et al. [19] proposed a trajectory-based surface roughness model for micro-end-milling and proven capable of capturing the minimum chip thickness, micro tool geometry and process parameters. Based on this model, a surface roughness model with tool wear effect is developed by taking the material removal volume and cutting velocity into account and is experimentally validated. Weule et al. [20] investigated surface generation in micro-end-milling of steel and concluded that the surface roughness had the increasing trend when the feed rate was smaller than the cutting edge radius. Previous research studied the influence of geometry of the cutter, machining parameters, tool wear and minimum cutting chip thickness on the surface generation in micro milling. While the runout of the tool is ignored, which plays an important role in the surface generation in micro milling due to the fact that in micro milling the magnitude of tool runout is comparable with the feed per tooth. In this paper, a surface generation model is proposed considering the tool runout both in axial and radial directions, after that the influence of the runout on the surface generation is studied quantitatively.

2 Surface Generation Model in Micro Milling

A model to simulate the surface generation in micro end milling is proposed by considering the tool-workpiece intersection caused by the runout of the cutter. The complex end milling cutter geometry is considered and used to generate the surface profile around the centerline region of the machined slot. For each tool path, the surface profile is computed as combination of the previously computed surface profile, the finial surface is generated by the deepest cutting path considering the tool intersection. The following procedure is used in the model to develop the surface profile, as shown in Figure 1. Firstly, the cutter profile is described in a mathematical model, considering the geometry parameters of the cutter, including corner radius, end cutting edge angle; Secondly, the cutter profile is translated according to the machining parameters, such as the feed per tooth and tool runout; Thirdly, the final surface profile is generated by considering the intersection of the cutting edge. Lastly, the final surface profile is swept along the trajectory of the cutting path to form a three dimensional surface.

Figure 1

Flow chart of proposed surface generation process

2.1 Mathematical Model of the Cutter and Ideal Machined Surface Generation

Figure 2 shows the contour of a micro milling tool, the cutter profile $\left( {x,y} \right)$ can be expressed as:

$$y = \left\{ {\begin{array}{*{20}l} {\sqrt {r_{\varepsilon }^{2} - x^{2} } , \quad r_{\varepsilon } \ge x > - r_{\varepsilon } \sin \left( {k^{\prime}_{r} } \right),} \\ {r_{\varepsilon } { \cos }\left( {k^{\prime}_{r} } \right) + \left( {x + r_{\varepsilon } { \sin }\left( {k^{\prime}_{r} } \right)} \right){ \tan }\left( {k^{\prime}_{r} } \right), \quad x \le - r_{\varepsilon } \sin \left( {k^{\prime}_{r} } \right),} \\ \end{array} } \right.$$

(1)

where $r_{\varepsilon }$ denotes the corner radius of the tool and $k^{\prime}_{r}$ denotes the rake angle.

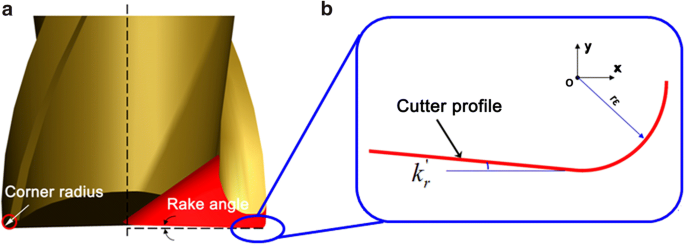

Figure 2

Cutter profile of the micro milling: a Tool geometry model, b the profile of the cutter

The ideal surface roughness of the machined surface were mainly determined by the tool geometry (corner radius $r_{\varepsilon }$, rake angle $k^{\prime}_{r}$) and the feed per tooth $f_{z}$, the surface left by the cutter can be divided into the following two cases.

• 1. $r_{\varepsilon } > 0$, $f_{z} \le 2r_{\varepsilon } { \sin }k^{\prime}_{r}$, the machined surface is made up of the circular arc edge of the tool, as shown in Figure 3(a). The maximum height of residual area (peak-valley) is

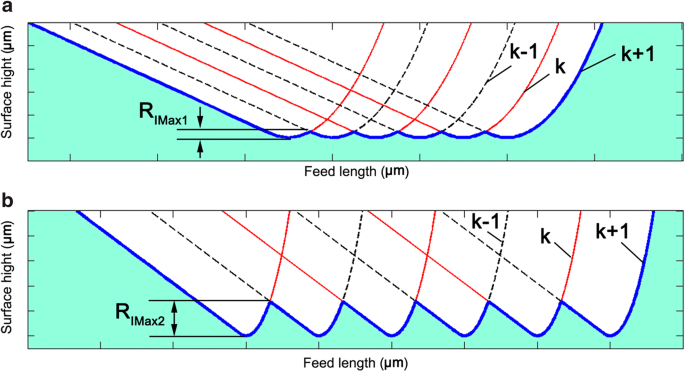

  Figure 3



  Ideal machined surface in micro milling: a 1st case of the ideal machined surface, b 2nd case of the ideal machined surface

  $$R_{{{\text{Imax}}1}} = r_{\varepsilon } - \sqrt {r_{\varepsilon }^{2} - \left( {\frac{{f_{z} }}{2}} \right)^{2} } \approx \frac{{f_{z}^{2} }}{{8r_{\varepsilon } }}.$$

  (2)

• 2. $r_{\varepsilon } > 0$, $f_{z} > 2r_{\varepsilon } { \sin }k^{\prime}_{r}$, the machined surface is made up of the circular arc edge of the tool and the end cutting edge, as shown in Figure 3(b). The maximum height of residual area (peak-valley) is

  $$R_{{{\text{Imax}}2}} = r_{\varepsilon } \left( {1 - { \cos }k^{\prime}_{r} } \right) + f_{z} { \sin }k^{\prime}_{r} \left( {{ \cos }k^{\prime}_{r} - { \sin }k^{\prime}_{r} \sqrt {\frac{{2r_{\varepsilon } }}{{f_{z} { \sin }k^{\prime}_{r} }} - 1} } \right).$$

  (3)

2.2 Surface Generation Model Considering Tool Runout

When considering the tool runout, the machined surface generation becomes more complex, Figure 4 and Figure 5 show the influence of radial and axial runout on the surface generation.

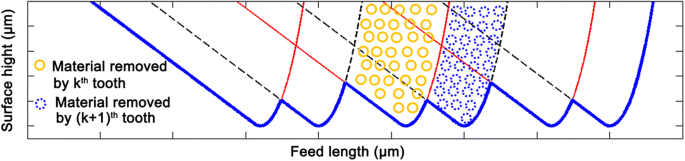

Figure 4

Influence of radial runout on surface generation

Figure 5

Influence of axial runout on surface generation

From Figure 4 it can be found that the kth tooth removes more material than the (k+1)th, due to the runout in radial direction, which affect the uncut chip thickness of each feed per tooth. Thus, the runout in radial direction has a significant influence on cutting forces.

Figure 5 shows the influence of the runout in axial direction on surface generation. It can be found that the tool mark generates by the kth tooth was completely removed by the (k+1)th tooth due to the cutter runout in axial direction. The finial profile of the machined surface formed by the (k+1)th tooth. The period of the tool mark is around twice time of the feed per tooth. Thus, the cutter runout in axial direction affects the cutting depth directly and hence has a significant influence on surface generation.

However, in a micro milling machining system, both radial and axial runout exist simultaneously, which make the machined surface becomes more complex. When considering both radial and axial runout, the surface topography presents three typical cases.

• 1. $r_{\varepsilon } > 0$, $f_{z} \le 2r_{\varepsilon } { \sin }k^{\prime}_{r}$, the machined surface as shown in Figure 6 is made up of the circular arc edge of the tool, the maximum height of residual area (peak-valley) is

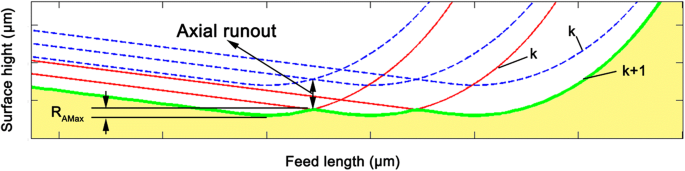

  Figure 6



  First case of the surface profile considering radial and axial runout

  $$R_{\text{Amax}} = r_{\varepsilon } - \sqrt {r_{\varepsilon }^{2} - \left( {\frac{{2f_{z} }}{2}} \right)^{2} } \approx \frac{{f_{z}^{2} }}{{2r_{\varepsilon } }}.$$

  (4)

  It can be found that in this case a slight axial runout ($r_{\text{axial}} > \frac{{f_{z}^{2} }}{{2r_{\varepsilon } }}$) will cause the emergence of single-tooth cutting, which increases surface roughness significantly, i.e., almost 4 times larger than the ideal roughness as shown in Eq. (2). Considering that the magnitude of inevitable axial runout is comparable to feed per tooth, in this case the ideal roughness as shown in Figure 3(a) is difficult to achieve. This explains the reason why in micro milling actual surface roughness deviates substantially from theoretical surface roughness in most of the machining system and merely reducing feedrate cannot improve surface roughness.

• 2. $r_{\varepsilon } > 0$, $f_{z} > 2r_{\varepsilon } { \sin }k^{\prime}_{r}$, the machined surface as shown in Figure 7 is made up of the circular arc edge of the tool and the end cutting edge. The second and third cases fall into this criterion and are illustrated as follows.

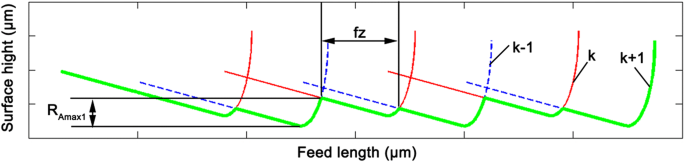

  Figure 7



  Second case of the surface profile considering radial and axial runout

  In the second case, the surface is composed by the two teeth, and the maximum roughness of the surface is

  $$R_{{{\text{Amax}}1}} = r_{\varepsilon } \left( {1 - { \cos }k^{\prime}_{r} } \right) + f_{z} { \sin }k^{\prime}_{r} \left( {{ \cos }k^{\prime}_{r} - { \sin }k^{\prime}_{r} \sqrt {\frac{{2r_{\varepsilon } }}{{f_{z} { \sin }k^{\prime}_{r} }} - 1} } \right) + 2r_{\text{axial}} .$$

  (5)

It can be found that the R_Amax1 is equal to the ideal R_Imax2 as shown in Eq. (3) plus the axial runout of the cutter.

In the third case, the surface is only formed by one tooth as shown in Figure 8, and the maximum roughness of the surface (peak-valley) is

$$R_{{{\text{Amax}}2}} = r_{\varepsilon } \left( {1 - { \cos }k^{\prime}_{r} } \right) + 2f_{z} { \sin }k^{\prime}_{r} \left( {{ \cos }k^{\prime}_{r} - { \sin }k^{\prime}_{r} \sqrt {\frac{{2r_{\varepsilon } }}{{2f_{z} { \sin }k^{\prime}_{r} }} - 1} } \right).$$

(6)

Figure 8

Third case of the surface profile considering radial and axial runout

In this case, it can be found that the tool path on the machined surface is equal to the spindle rotation speed, rather than the spindle rotation speed multiplies the number of flutes.

The critical axial runout for the separation of the second case and the third case surface generation can be judged as follows:

when $r_{\text{axial}} \le (R_{{{\text{Amax}}2}} - R_{{{\text{Imax}}2}} )/2$, the second case occur;

when $r_{\text{axial}} > (R_{{{\text{Amax}}2}} - R_{{{\text{Imax}}2}} )/2$, the third case occur.

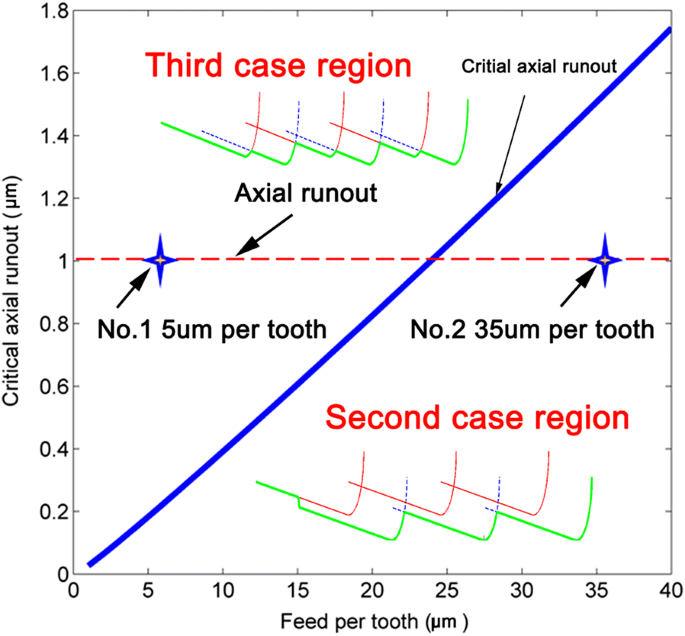

A critical axial runout diagram for the separation of the second case and the third case surface generation is given in Figure 9, for a specified feed per tooth, if the actual axial runout is smaller than the critical axial runout, then the second case of the surface profile will occur. Otherwise if the real axial runout is larger than the critical axial runout, then the third case of the surface profile will occur.

Figure 9

Critical axial runout for the separation of the second case and the third case surface generation

3 Experimental Validation

3.1 Determination of Tool Runout

The experiments were carried out on a 3-axis micro milling machine tool (Nanowave MTS5R), the runout of the high speed spindle is tested by using a modular capacitive sensor system (Demodulator DL6220, Micro-epsilon), two capacitive sensors (CS005) with 1 nm resolution and 50 μm measuring range. As shown in Figure 10, an ultra-precision test bar was clamped in the spindle, and two capacitive sensors were used to test the spindle runout with 20000 r/min in axial direction and radial direction. The test results show that the axial and radial runout is 1 μm and 1.6 μm, respectively.

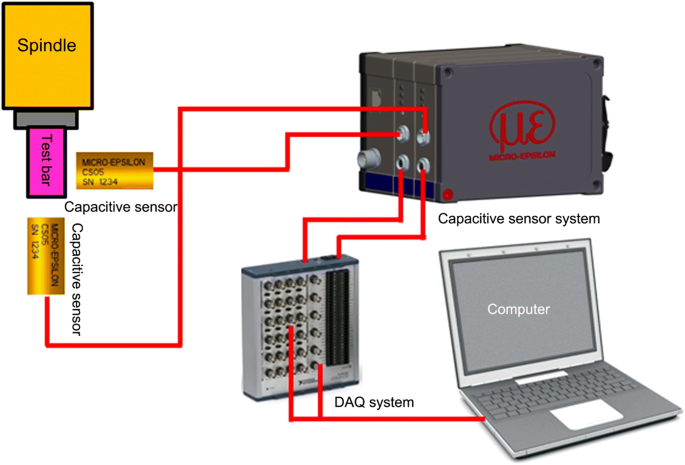

Figure 10

Schematic of the spindle runout test setup

From the judgment map as Figure 9, it can be found that for axial runout of 1 μm, when the feed per tooth less than 24 μm per tooth, the machined surface generation falls into the third case; and when the feed per tooth larger than 24 μm per tooth, the machined surface generation falls into the second case.

3.2 Simulation and Experimental Verification

Two set simulation and machining experiments are carried out with a 2 flutes micro milling cutter, the cutter diameter is 0.5 mm, the corner radius and the end cutting edge angle are measured as 5 μm and 5°, respectively. The machining parameters used in the experiments are 5 μm per tooth and 35 μm per tooth, respectively, at a spindle speed of 20000 r/min and an axial depth of cut of 20 μm.

Figure 11(a) shows the surface topography simulation results of 5 μm feed per tooth. The simulation results are analyzed by PSD as shown in Figure 11(b). The period of the tool marks is determined as 0.101 μm⁻¹ (10 μm), which indicates that the tool marks of the 2nd tooth are removed by the 1st tooth because of the influence of the axial runout. Therefore, the tool make period is twice of the feed per tooth.

Figure 11

Surface topography simulation results of 5 μm feed per tooth: a surface topography, b PSD analysis

Figure 12(a) shows the surface topography simulation results of 35 μm feed per tooth. The PSD analysis of the simulation results as shown in Figure 12(b) indicates that the period of the tool marks is determined as 0.0287 μm⁻¹ (35 μm), which indicates that with the increase of the feed per tooth, the effect of axial runout on the topography can be reduced. Each cutting tooth can be reflected in the final surface topography, therefore, the tool marks period agree with the feed per tooth.

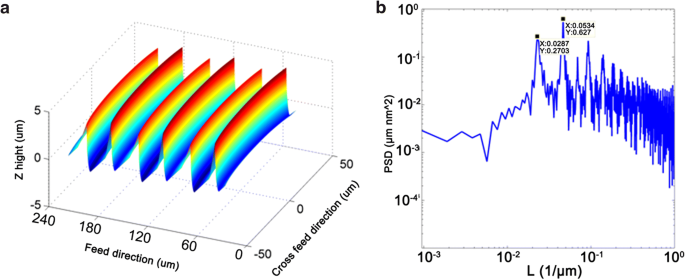

Figure 12

Surface topography simulation results of 35 μm feed per tooth: a surface topography, b PSD analysis

The machining experiments were carried out using the same machining parameters as those in the simulation. Figures 13 and 14 give the surface measurement results, which were obtained by a white light interferometer (Vecco NTll00). It can be seen that when the feed per tooth is 5 μm, the period of the tool mark is twice time of the feed per tooth 0.103 μm⁻¹ (9.7 μm). When the feed per tooth increases to 35 μm, the period of the tool mark is the same as the feed per tooth 0.0278 μm⁻¹ (35.9 μm). The experiment results agree well with the simulation results and hence verify the reliability of the proposed method.

Figure 13

Machined surface topography results of 5 μm feed per tooth: a surface topography, b PSD analysis

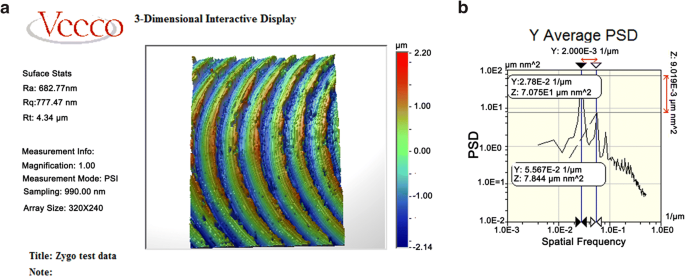

Figure 14

Machined surface topography results of 35 μm feed per tooth: a surface topography, b PSD analysis

4 Conclusions

In this paper, a surface generation model of micro end milling has been developed by taking into account tool runout in the machining process. A numerical model based on the geometry of the cutter profile is established to investigate the tool intersection caused by the tool runout. The influence of the tool runout on machined surface roughness and machined topography are discussed. Simulation using the proposed model with different feed per tooth (5 μm/tooth, 35 μm/tooth) and the results were verified by corresponding micro milling experiments. The following conclusions can be drawn:

• Tool runout has a significant influence of the surface roughness, and axial tool runout limits the achievable surface roughness. Three typical surface topography generation cases of the machined surface in micro milling are presented by considering tool runout, and the emergence conditions for each surface generation cases are investigated quantitatively.

• The tool runout in axial direction has significant influence on the machined topography generation.

• Proposed surface generation model has been verified by the micro milling experiments over a wide range of feedrate, and the results show that it provides accurate surface topography prediction.
