Design and Analysis of a Magnetic Bearings with Three Degrees of Freedom

Abstract

The current research of supporting and transmission system in flywheel energy storage system (FESS) focuses on the low consumption design. However, friction loss is a non-negligible factor in the high-speed but lightweight FESS energy and momentum storage with mechanical-type supporting system. In order to realize the support system without mechanical loss and to maximize the efficiency of the flywheel battery, a permanent magnet biased magnetic bearings (PMBMB) is applied to the FESS with the advantages of low loss, high critical speed, flexible controllability and compact structure. In this frame, the relevant research of three degrees of freedom (3-DOF) PMBMB for a new type FESS is carried out around the working principle, structural composition, coupling characteristics analysis, mathematical model, and structural design. In order to verify the performance of the 3-DOF PMBMB, the radial force mathematical model and the coupling determination equations of radial two DOF are calculated according to an equivalent magnetic circuit, and radial–axial coupling is analyzed through finite element analysis. Moreover, a control system is presented to solve the control problems in practical applications. The rotor returns to the balanced position in 0.05 s and maintains stable suspension. The displacement fluctuation is approximately 40 μm in the y direction and 30 μm in the x direction. Test results indicate that the dynamic rotor of the proposed flywheel energy storage system with PMBMB has excellent characteristics, such as good start-of-suspension performance and stable suspension characteristics. The proposed research provides the instruction to design and control a low loss support system for FESS.

1 Introduction

The year 2015 was an extraordinary one for renewable energy, with the largest global capacity additions seen to date [1]. The year saw several developments including a dramatic decline in global fossil fuel prices; a series of announcements regarding the lowest-ever prices for renewable power long-term contracts; a significant increase in attention to energy storage; and a historic climate agreement in Paris that brought together the global community. Renewables are now established around the world as mainstream sources of energy [2, 3]. Rapid growth, particularly in the power sector, is driven by several factors, including the improving cost-competiveness of renewable technologies, dedicated policy initiatives, better access to financing, energy security and environmental concerns, growing demand for energy in developing and emerging economies, and the need for access to modern energy [4]. However, the challenges still remain, particularly beyond the power sector. The development of renewable energy technologies can be used to relieve or solve the dependence on traditional energy sources. Before the renewable energy technologies are widely applied, it is necessary to develop the energy storage technology to improve energy efficiency especially in the fields of renewable energy, distributed power generation, electric vehicles, and so on.

Flywheel energy storage system (FESS) is an energy storage device [5] with long life, high energy storage density, and low rotational loss; thus, it is considered the most competitive and promising energy storage technology and has received attention from scholars recently [6, 7]. FESS stores mechanical energy [8] that is converted into electrical energy in a manner analogous to that of electrochemical batteries [9] with chemical energy. The materials for the flywheel, the type of electrical machine, the type of bearings, and the confinement atmosphere determine the energy efficiency [10] (>85%) of flywheel-based energy storage systems. A flywheel system stores mechanical energy that interchanges in the form of electrical energy by means of an electrical machine/generator with a bidirectional power converter.

For fully integrated flywheel battery, compact structure, low scattering and high efficiency are the main consideration of design objectives. Friction loss is a non-negligible factor in the high-speed but lightweight flywheel energy storage system (FESS) for energy and momentum storage with mechanical-type supporting system [11, 12]. In order to realize the support system without mechanical loss [13, 14], to maximize the efficiency of the flywheel battery [15], permanent magnet biased magnetic bearings (PMBMB) is applied to the FESS with the advantages of low loss, high critical speed [16], flexible controllability and compact structure [17]. Compared with the active magnetic bearing, the heat loss is smaller, the structure is more compact, and the reliability is higher in FESS with the PMBMB supporting system [18, 19].

The flywheel rotor in FESS is rotated by an electric machine operating as a motor at electric energy storage mode. In the case of a breakdown of electric current, the flywheel rotor rotated by its inertia under vacuum conditions makes the electric machine operate as a generator [20]. As the core of an energy conversion unit, the type of motor/generator utilized for high-power FESS exerts a significant effect on the overall performance of an energy storage device [21]. Reliable, fail-safe, robust, compact, and low-cost electric motors are needed for FESS with high temperatures or extreme temperature variations. The bearingless switched reluctance motor (BSRM) [22, 23] possesses these characteristics. Given that the structure of MB is similar to that of the stator of a switched reluctance motor (SRM), bearing-less technology is applied to SRM to fully enhance its high-speed performance [24, 25]. BSRM can not only rotate but also realize two DOF levitation [26, 27] by integrating a magnetic levitation winding into the motor stator. Conventional MB are a source of energy losses and require lubrication to relieve mechanical friction. High rotational speed of the flywheel rotor in motoring mode generally leads to large friction loss because of wearing. A solution is to select a three DOF hybrid magnetic bearings (HMB) [28] with low suspension power consumption.

In this study, a permanent magnet biased MB (PMBMB) that is among the most recommended HMB for reducing cost and consumption is utilized as a three DOF MB that can produce a biased magnetic field with minimal winding. The rotor system is frequently supported by DC active magnetic bearings and a magnetized permanent magnet. Power amplifiers (e.g., linear and switching power amplifiers) can drive a DC magnetic bearing. Thus, a five DOF levitation system can be realized with PMBMB and BSRM. This study focuses on a theory of design and analysis for a three DOF PMBMB. First, the working principle of PMBMB is introduced, and a method of structural parameter design is proposed. Second, the radial force mathematical model and the coupling determination equations of radial two DOF are derived based on an equivalent magnetic circuit. Finally, radial–axial coupling is analyzed through finite element analysis, and the theoretical analyses are verified based on the experimental results of the test facility.

2 New Type of FESS

One of the key technologies of FESS is its supporting technique, which can not only support the operation of the flywheel (making it operate stably) but also reduce the size of the flywheel rotor. At present, the types of supporting parts are mechanical, superconducting MB, electromagnetic suspension, and permanent MB support. Figure 1 shows a new type of FESS with the characteristics of short axial length, compact structure, flexible control strategy, and minimal loss.

Figure 1

Structure of the flywheel device

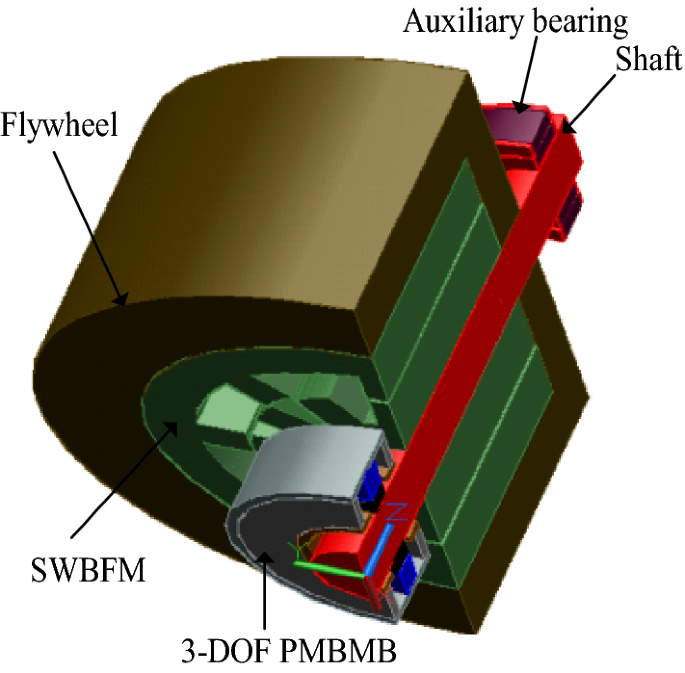

The new FESS mainly consists of a bearing-less motor, a three DOF PMBMB, and an auxiliary bearing. The bearing-less motor is a single-winding bearing-less flywheel motor (SWBFM) [29] with the advantages of low loss, high specific power and fault-tolerant performance which is improved from the structure of BSRM.

Figure 2(a) shows the configuration of a three DOF PMBMB (the axial control coils are hidden in active view), and its magnified view is shown in Figure 2(b) (axial and radial control coils are hidden in active view). The PMBMB consists of a radial stator with four poles, four radial control coils, a rotor laminator, an axial stator with two radial control coils, and an axial magnetized permanent magnet (PM).

Figure 2

Schematics of a three DOF PMBMB

If the rotor is suspended in an equilibrium position, only biased flux is generated by the PM circuits in MB. Once the rotor diverges from the equilibrium position, control flux is added to biased flux. Consequently, static biased and control fluxes are synthesized through addition and subtraction. The resultant force generated by the synthesized magnetic flux suspends the rotor in the equilibrium position.

The operation principle of the radial force of the 3-DOF PMBMB is introduced in Figure 2(c). The $\phi_{{x{\text{m}}}}$ produced by radial control coils is the control magnetic flux in the x-direction, and $\phi_{\text{m}}$ is the bias magnetic flux produced by PM.

Given the symmetrical structure of PMBMB, $\phi_{\text{m}}$ is a constant in the positive and negative x-directions. If the rotor is pushed in the negative x-direction by an external force, then the length of the air gap increases and $\phi_{{x{\text{m}}}}$ decreases in the positive x-direction. The length of the air gap decreases when $\phi_{\text{m}}$ increases in the negative x-direction. $\phi_{\text{m}}$ can be produced by radial control coils to strengthen the $\phi_{\text{m}}$ in the positive x-direction and balance the magnetic flux.

According to the symmetric structure of PMBMB, $\phi_{\text{m}}$ is a constant in x positive and x negative directions. If the rotor lamination moves toward the x negative direction because of a external force acting on it, $\phi_{\text{m}}$ would decrease in the x positive direction because of the increased length of air gap. Similarly, $\phi_{\text{m}}$ increases in the x negative direction. $\phi_{{x{\text{m}}}}$ can be produced by radial control coils to strengthen the $\phi_{\text{m}}$ in the x positive direction to balance the magnetic flux in the x negative direction.

3 Parameter Design of PMBMB

A method for the parameter design of PMBMB was developed. The design goal is that the maximum value of axial levitation force is 200 N, whereas the maximum value of radial levitation force is 100 N. The inside diameter of the rotor lamination is 37 mm, the outer diameter is 49 mm, and the axial length is 18 mm. The structure of the rotor lamination is shown in Figure 3, where r_i is the inside diameter, r_j is the outer diameter, and l is the axial length. S_z is defined as the sectional area of the axial magnetic pole, and S_xy is defined as the sectional area of the radial magnetic pole (r_i, r_j, and l are regarded as given variables).

Figure 3

Rotor lamination of PMBMB

3.1 Calculation of Equivalent Magnetic Circuit for PMBMB

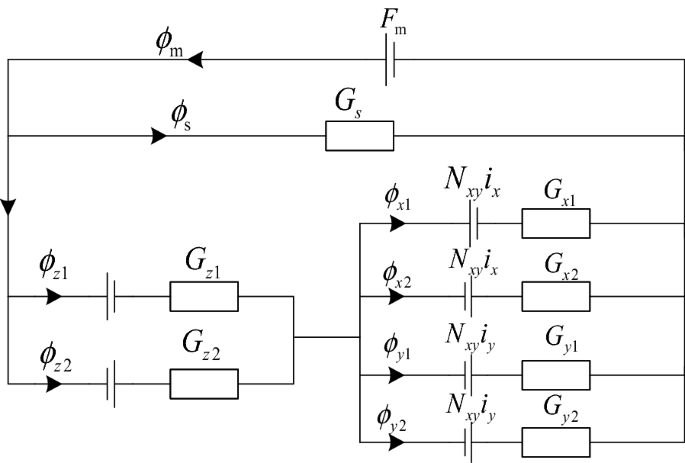

The equivalent magnetic circuit of PMBMB is shown in Figure 4. G_z1 and G_z2 are defined as the magnetic conductance of the axial air gap, N_z is defined as the number of the axial control coils, and i_z is defined as the current of the axial control coils. G_x1, G_x2, G_y1, and G_y2 are defined as the magnetic conductance of the radial air gap, and N_xy is defined as the number of radial control coils. i_x and i_y are the current of the radial control coils. ϕ_s is the leakage magnetic flux, and G_s is the leakage magnetic conductance. F_m is the magnetomotive force produced by PM. The relationship among G_x1, G_x2, G_y1, G_y2, G_z1, and G_z2 can be expressed as follows:

$$\left\{ \begin{array}{ll} G_{x} = G_{x1} + G_{x2} {\kern 1pt} ,\hfill \\ G_{y} = G_{y1} + G_{y2} {\kern 1pt} ,\hfill \\ G_{z} = G_{z1} + G_{z2} {\kern 1pt} ,\hfill \\ G_{\text{g}} = G_{x} + G_{y} + G_{z} {\kern 1pt} . \hfill \\ \end{array} \right.$$

(1)

Figure 4

Equivalent hybrid excitation magnetic circuit of PMBMB

In a balanced position, g_z is defined as the axial length of the air gap, and g_xy is defined as the radial length of the air gap. x and y are the values of displacement in the radial direction, and z is the value of displacement in the axial direction. Thus, magnetic conductance can be written as follows:

$$\left\{ \begin{array}{ll} G_{x1} = \frac{{\mu_{0} S_{xy} }}{{g_{xy} - x}},{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} G_{y1} = \frac{{\mu_{0} S_{xy} }}{{g_{xy} - y}}, \hfill \\ G_{x2} = \frac{{\mu_{0} S_{xy} }}{{g_{xy} + x}}{\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} G_{z1} = \frac{{\mu_{0} S_{z} }}{{g_{z} - z}}, \hfill \\ G_{y2} = \frac{{\mu_{0} S_{xy} }}{{g_{xy} + y}}{\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} G_{z2} = \frac{{\mu_{0} S_{z} }}{{g_{z} + z}}. \hfill \\ \end{array} \right.$$

(2)

The magnetic flux can be obtained as

$$\begin{aligned} \phi_{x1} = [F_{\text{m}} G_{z} - N_{z} i_{z} (G_{z1} - G_{z2} ) - N_{xy} i_{y} (G_{y2} - \hfill \quad\\ G_{y1} ) - N_{xy} i_{x} (G_{z} + 2G_{x2} + G_{y} )]/[G_{\text{g}} /G_{x1} ], \hfill \\ \end{aligned}$$

(3)

$$\begin{aligned} \phi_{x2} = [F_{\text{m}} G_{z} - N_{z} i_{z} (G_{z1} - G_{z2} ) - N_{xy} i_{y} (G_{y2} - \hfill \quad \\ G_{y1} ) + N_{xy} i_{x} (G_{z} + 2G_{x1} + G_{y} )]/[G_{\text{g}} /G_{x2} ], \hfill \\ \end{aligned}$$

(4)

$$\begin{aligned} \phi_{y1} = [F_{\text{m}} G_{z} - N_{z} i_{z} (G_{z1} - G_{z2} ) - N_{xy} i_{x} (G_{x2} - \hfill \quad \\ G_{x1} ) - N_{xy} i_{y} (G_{z} + 2G_{y2} + G_{x} )]/[G_{\text{g}} /G_{y1} ], \hfill \\ \end{aligned}$$

(5)

$$\begin{aligned} \phi_{y2} = [F_{\text{m}} G_{z} - N_{z} i_{z} (G_{z1} - G_{z2} ) - N_{xy} i_{x} (G_{x2} - \hfill \quad \\ G_{x1} ) + N_{xy} i_{y} (G_{z} + 2G_{y1} + G_{x} )]/[G_{\text{g}} /G_{y2} ], \hfill \\ \end{aligned}$$

(6)

$$\begin{aligned} \phi_{z1} = [F_{\text{m}} (G_{x} + G_{y} ) - N_{z} i_{z} (G_{x} + 2G_{z2} + G_{y} ) + \hfill \quad \\ N_{xy} i_{x} (G_{x2} - G_{x1} ) - N_{xy} i_{y} (G_{y2} - G_{y1} )]/[G_{\text{g}} /G_{z1} ]{\kern 1pt} ,\hfill \\ \end{aligned}$$

(7)

$$\begin{aligned} \phi_{z2} = [N_{z} i_{z} (G_{x} + 2G_{z1} + G_{y} ) - N_{xy} i_{y} (G_{y2} - G_{y1} ) \hfill \quad \\ + F_{\text{m}} (G_{x} + G_{y} ) + N_{xy} i_{x} (G_{x2} - G_{x1} )]/[G_{\text{g}} /G_{z2} ]. \hfill \\ \end{aligned}$$

(8)

F_x is defined as the levitation force in the x direction, F_y is levitation force in the y direction, and F_z is levitation force in the z direction (axial direction). Thus, F_x, F_y, and F_z can be expressed as

$$\left\{ \begin{array}{ll} F_{x} = \frac{{\phi_{x1}^{2} - \phi_{x2}^{2} }}{{2\mu_{0} S_{xy} }}, \\F_{y} = \frac{{\phi_{y1}^{2} - \phi_{y2}^{2} }}{{2\mu_{0} S_{xy} }}, \hfill \\ F_{z} = \frac{{\phi_{z1}^{2} - \phi_{z2}^{2} }}{{2\mu_{0} S_{z} }}. \hfill \\ \end{array} \right.$$

(9)

When the rotor lamination is at the balanced position, the magnetic induction intensity on one side of the PMBMB should be increased to the maximum value, defined as B_s, to produce the maximum value of levitation force. Correspondingly, the magnetic induction intensity on the other side of the PMBMB should be decreased to zero. In this study, the value of B_s is 1.2 T. Thus, the maximum value of levitation force can be derived as

$$\left\{ \begin{array}{*{20}l} 2F_{{xy{\text{m}}}} = \frac{{B_{\text{s}}^{2} S_{z} }}{{2\mu_{0} }} ,\hfill \\ F_{{z{\text{m}}}} = \frac{{B_{\text{s}}^{2} S_{z} }}{{2\mu_{0} }} ,\hfill \\ F_{{xy{\text{m}}}} = \frac{{B_{\text{s}}^{2} S_{xy} }}{{2\mu_{0} }}. \hfill \\ \end{array} \right.$$

(10)

The results of Eq. (10) are S_z = 350 mm² and S_xy = 175 mm².

3.2 Design of Radial and Axial Poles

The design goal is as follows: the duty ratio of radial poles is 0.5, defined as f; the number of radial poles is 4; the length of air gap is 0.5 mm; and the maximum value of radial levitation force is 100 N. b_p, h_p, and l₁ are the width, length, and height of the radial pole, respectively. t_p corresponds to the arc length. The relationship of structure size is expressed as

$$\left\{ {\begin{array}{*{20}l} {f = \frac{{nt_{{\text{p}}} }}{{2\pi (r_{{\text{j}}} + g_{1} )}},} \\ {b_{{\text{p}}} = 2(r + g_{1} )\sin \frac{{t_{{\text{p}}} }}{{2(r + g_{1} )}}}. \\ \end{array} } \right.$$

(11)

Thus,

$$\left\{ \begin{array}{l} b_{\text{p}} = 2(r + g_{1} )\sin \frac{f\pi }{n}, \\ S_{xy} = \varphi_{1} b_{\text{p}} l_{1} , h_{\text{p}} = \frac{{2S_{xy} }}{{b_{\text{p}} \varphi_{2} }}, \\ \end{array} \right.$$

(12)

where the value of φ₁ is 0.9 and the value of φ₂ is 0.6.

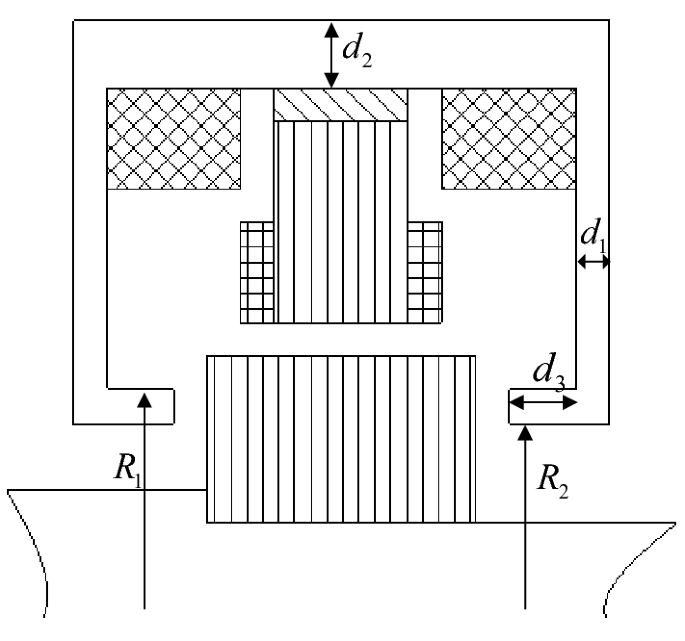

From Figure 5, the structure parameters can be derived as R₁ = 22.5 mm, R₂ = 20 mm, d₁ =  d₃ = 4 mm, and d₂ = 2 mm.

Figure 5

Structure of the axial stator

3.3 Parameter Design of PM

For an annular PM that is radially magnetized, D_p is the inside diameter, T_p (3 mm) is the magnetization thickness, and L_p is the axial length. When h_p is derived, D_p is also derived. B_p and H_p are the parameters of the working point according to the B–H curve. The relationship between B_p and H_p can be expressed as

$$B_{\text{p}} = - \mu_{\text{p}} H_{\text{p}} + B_{\text{r}} ,$$

(13)

where μ_p is the magnetic permeability and μ_p = B_r/H. B_r is the residual flux density.

$$\left\{ \begin{array}{ll} H_{\text{p}} T_{\text{p}} = \frac{{2B_{0} g_{0} }}{{\mu_{0} }}{\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} B_{0} = \frac{{B_{\text{s}} }}{2} ,\hfill \\ S_{\text{p}} = \frac{{\phi_{\text{m}} }}{{B_{\text{p}} }} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} L_{\text{p}} = \frac{{S_{\text{p}} }}{{\pi (D_{{1{\text{p}}}} + \frac{{T_{\text{p}} }}{2})}} ,\hfill \\ \end{array} \right.$$

(14)

where S_p is the cross-sectional area of PM. Thus, the value of L_p is 8 mm. The number of windings can be written as follows:

$$Ni = \frac{{B_{0} g_{0} }}{{\mu_{0} }}.$$

(15)

Hence, the value of N_xy and N_z is 120, and the rated current is 4 A.

3.4 Finite Element Analysis of PMBMB

The finite element model of PMBMB was analyzed with Ansoft. The magnetic flux density distribution of the radial stator and rotor is shown in Figure 6.

Figure 6

Magnetic flux density distribution of the radial stator and rotor lamination

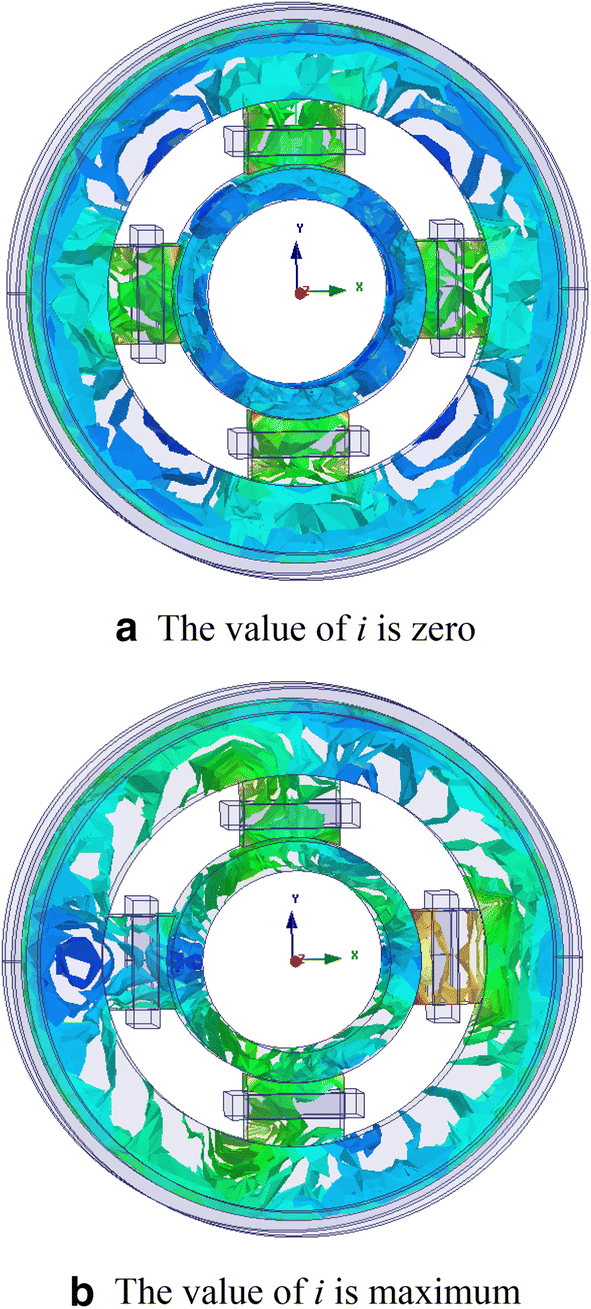

The magnetic flux density distribution when the rotor is at the balanced position and the value of i is zero is shown in Figure 6(a). The bias magnetic field line produced by PM is a closed loop in radial poles, RL, and air gap. The magnetic flux density distribution in the x and y directions is symmetrical. Thus, the resultant force is zero.

The magnetic flux density distribution when the rotor is at the balanced position and the value of i is maximum (4 A) is shown in Figure 6(b). The radial levitation force in x positive (108 N) and y negative directions (− 110 N) can be produced without magnetic circuit saturation. The value of F_x is 108 N, the value of F_y is − 110 N, and the value of F_z is 204 N, which meet the design requirements.

4 Coupling Analysis of PMBMB

The analysis of PMBMB focused on radial two-DOF coupling and radial–axial coupling.

4.1 Numerical Analysis for Radial Two-DOF Coupling

The air gap reluctance is less than the circular PM reluctance, and the control magnet flux produced by radial coil does not pass through the PM and the magnetic circuit of magnetic flux leakage. The equivalent magnetic circuit of the radial control magnetic field is shown in Figure 7. The i₁ and i₂ are the current of radial coils.

Figure 7

Equivalent magnetic circuit of radial control magnetic field

According to the loop and node equations, the magnetic flux is as follows:

$$\left\{ \begin{array}{ll} \phi_{1} = \frac{{Ni_{1} (G_{2} + 2G_{3} + G_{4} ) + Ni_{2} ( - G_{4} + G_{2} )}}{{1 + \frac{{G_{2} }}{{G_{1} }} + \frac{{G_{3} }}{{G_{1} }} + \frac{{G_{4} }}{{G_{1} }}}}, \hfill \\ \phi_{2} = \frac{{Ni_{1} (G_{1} - G_{3} ) + Ni_{2} (2G_{4} + G_{1} + G_{3} )}}{{1 + \frac{{G_{1} }}{{G_{2} }} + \frac{{G_{3} }}{{G_{2} }} + \frac{{G_{4} }}{{G_{2} }}}}, \hfill \\ \phi_{3} = \frac{{Ni_{1} (2G_{1} + G_{2} + G_{4} ) + Ni_{2} (G_{4} - G_{2} )}}{{1 + \frac{{G_{1} }}{{G_{3} }} + \frac{{G_{2} }}{{G_{3} }} + \frac{{G_{4} }}{{G_{3} }}}}, \hfill \\ \phi_{4} = \frac{{Ni_{1} (G_{3} - G_{1} ) + Ni_{2} (2G_{2} + G_{1} + 2G_{2} )}}{{1 + \frac{{G_{1} }}{{G_{4} }} + \frac{{G_{2} }}{{G_{4} }} + \frac{{G_{3} }}{{G_{4} }}}}. \hfill \\ \end{array} \right.$$

(16)

In extreme cases, the eccentric displacement of the rotor is approximately 1/10 of the air gap length:

$$\left\{ \begin{aligned} G_{ 1} = G_{ 2} = 1 1G_{xy} / 10{\kern 1pt} , \hfill \\ G_{ 3} = G_{ 4} = 1 1G_{xy} / 10, \hfill \\ \end{aligned} \right.$$

(17)

where G_xy is the magnetic conductance of the radial air gap in the balanced position. The coupling determination equations of radial two DOFs are

$$\left\{ \begin{array}{ll} \phi_{1} = 0.96Ni_{1} G_{xy} - 0.046Ni_{2} G_{xy} , \hfill \\ \phi_{2} = 0.96Ni_{2} G_{xy} - 0.046Ni_{1} G_{xy} , \hfill \\ \phi_{3} = 1.1Ni_{1} G_{xy} + 0.06Ni_{2} G_{xy} , \hfill \\ \phi_{4} = 0.06Ni_{1} G_{xy} + 1.1Ni_{2} G_{xy} . \hfill \\ \end{array} \right.$$

(18)

According to Eq. (18), the magnetic flux of the air gap in the x direction produced by the control coil of the y direction is approximately 1/20 of the magnetic flux produced by the control coil of the x direction. Similarly, the magnetic flux of the air gap in the y direction produced by the control coil of the x direction is approximately 1/20 of the magnetic flux produced by the control coil of the y direction. Thus, the mutual coupling of magnetic flux in the radial two DOFs (x and y directions) can be ignored.

4.2 Finite Element Analysis of Radial–Axial Coupling

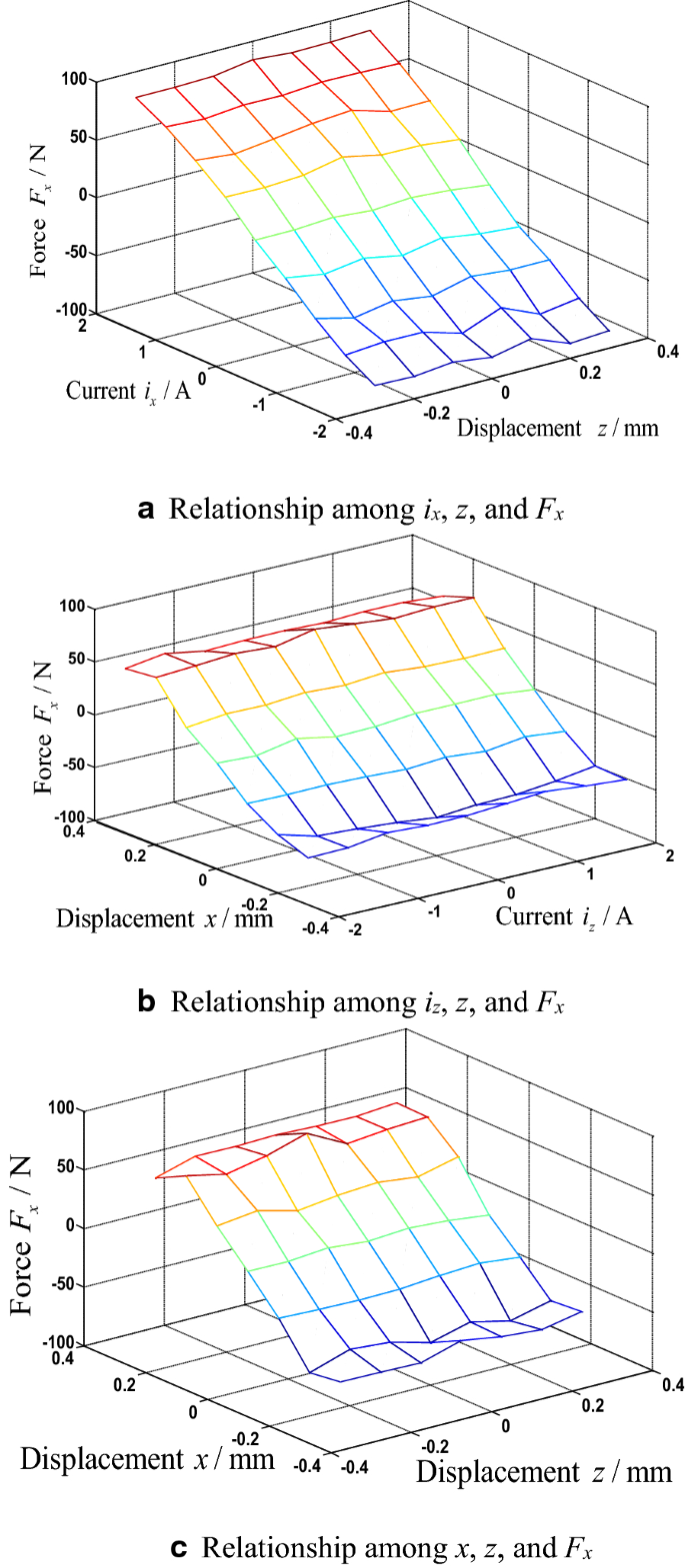

The relationship of radial–axial coupling is present in Figure 8. The relationship among radial control current i_x, displacement in the z direction, and radial levitation force F_x is shown in Figure 8(a). The rotor is at the balanced position in x and y directions, and the value of control current in x and y directions is zero. Figure 8(a) indicates that when the axial displacement in the z direction fluctuates within [− 0.2 mm, 0.2 mm], almost no influence is exerted on F_x because of the axial displacement. However, the edge area is nonlinear. Accordingly, the current stiffness coefficient is not the same in the levitating stage and at the balanced position.

Figure 8

Relationship among forces, currents, and displacements

The relationship among radial control current i_z, displacement in the x direction, and radial levitation force F_x is shown in Figure 8(b). The rotor is at the balanced position in z and y directions, and the value of control current in x and y directions is zero. Figure 8(b) shows that (1) when radial displacement in the x direction fluctuates within [− 0.2 mm, 0.2 mm], almost no influence is exerted on F_x because of the control current in z direction; (2) when radial displacement in the x direction fluctuates within [− 0.3 mm, − 0.2 mm] and [0.2 mm, 0.3 mm], nonlinear areas appear according to the magnetic saturation with a small length of air gap. Comparison of Figures 8(a) and 10(b) indicates that control current has more influence on radial levitation force than the displacement of displacement in the z direction.

Figure 8(c) shows that (1) when radial displacement in the x direction fluctuates within [− 0.2 mm, 0.2 mm], the graph tilts at a certain angle with the x–y plane. The radial levitation force is thus proportional to radial displacement, and axial displacement has minimal influence on radial levitation force; (2) when radial displacement in the x direction fluctuates within [−  0.3 mm, − 0.2 mm] and [0.2 mm, 0.3 mm], the corresponding area appears nonlinear, which indicates that coupling occurs between axial and radial control in the rotor-floating stage.

The relationship among radial control current i_x, eccentricity in the x-direction, and radial levitation force F_x is exhibited in Figure 9. The rotor is at the balanced position in the z- and y-directions, and the value of control current in the z- and y-directions is zero. When the radial eccentricity in the x-direction fluctuates at [− 0.2 mm, 0.2 mm], the graph tilts at a certain angle along the x-y plane. The relationship between radial eccentricity x, and radial levitation force F_x is exhibited in Figure 4(a). When the radial eccentricity in the x-direction fluctuates at [− 0.2 mm, 0.2 mm], the radial levitation force is F_x proportional to x. When the radial eccentricity in the x-direction fluctuates at [− 0.2 mm, − 0.4 mm] and at [0.2 mm, 0.4 mm], the relationship between x, and F_x is nonlinear. The relationship between radial control current i_x, and radial levitation force F_x is exhibited in Figure 4(b). When the radial eccentricity in the x-direction fluctuates at [− 2 A, 2 A], the radial levitation force is F_x proportional to radial control current i_x. When the radial eccentricity in the x-direction fluctuates at [− 4 A, − 2A] and at [2 A, 4 A], the relationship between i_x, and F_x is nonlinear.

Figure 9

Relationship between x, i_x and F_x

5 Experiments for Floating and Displacement

The block diagram of the control system for the three-DOF PMBMB is presented in Figure 10. The control system for the three-DOF PMBMB includes an external displacement closed-looped control and an internal current closed-looped control. The differential forward proportional-integral-derivative (PID) control method is adopted in the displacement closed-looped control. A comparison method of hysteretic current is adopted in the current closed-looped control.

Figure 10

Block diagram of the control system for PMBMB

The feedback signals of x, y, and z positions, which are processed in an interface circuit board, can be obtained when the rotor is displaced from the balanced position by external disturbance. The position deviation signals (i.e., the difference between the balanced position reference signals and the position feedback signals) are then sent to the PID controllers. The PID controllers transform the deviation signals into force signals (F_x, F_y, and F_z) that are outputted to the force-current transformation modules. The current reference signals (i ^* _x , i_y,^* and i ^* _z ) are obtained from the force-current transformation modules. The excitation currents (i_x, i_y, and i_z) to the radial and axial control coils can be obtained through the switching power amplifiers. Through this process, the control currents are adjusted by the control system with a negative position and current feedbacks to readjust the flux distribution. In addition, the rotor can be suspended in the ideal balanced position. If the rotor is suspended in the balanced position (i.e., x^*= 0, y^*= 0, and z^*= 0), the output of the PID controllers will be zero because the displacement deviation is zero (i.e., the exciting current will also be zero), and the rotor can be suspended by the PM.

A PID controller with a differential restriction link and integral separation is applied in the control system. The transfer function of this controller is obtained as follows:

$$G\left( s \right) = \left\{ \begin{array}{ll} \frac{{K_{\text{p}} \left( {1 + T_{\text{d}} S} \right)}}{{\left( {1 + \tau T_{\text{d}} S} \right)}}\left( {1 + \frac{1}{{T_{\text{i}} S}}} \right),\: \left| e \right| \le c, \hfill \\ \frac{{K_{\text{p}} \left( {1 + T_{\text{d}} S} \right)}}{{\left( {1 + \tau T_{\text{d}} S} \right)}}, \left| e \right| > c, \hfill \\ \end{array} \right.$$

(20)

where $K_{\text{p}}$ is the proportionality coefficient, $T_{\text{i}}$ is the integral action time constant, $T_{\text{d}}$ is the derivative action time constant, $\tau$ is the differential gain coefficient, e is the difference between the equilibrium position reference signals and the position feedback signals, and c is the threshold value.

In this study, the experimental system of PMBMB was designed according to the specification shown in Table 1 to achieve stable suspension. The experimental waveforms are shown in Figure 11.

Table 1 Specification of a prototype

Figure 11

Experimental waveforms of PMBMB

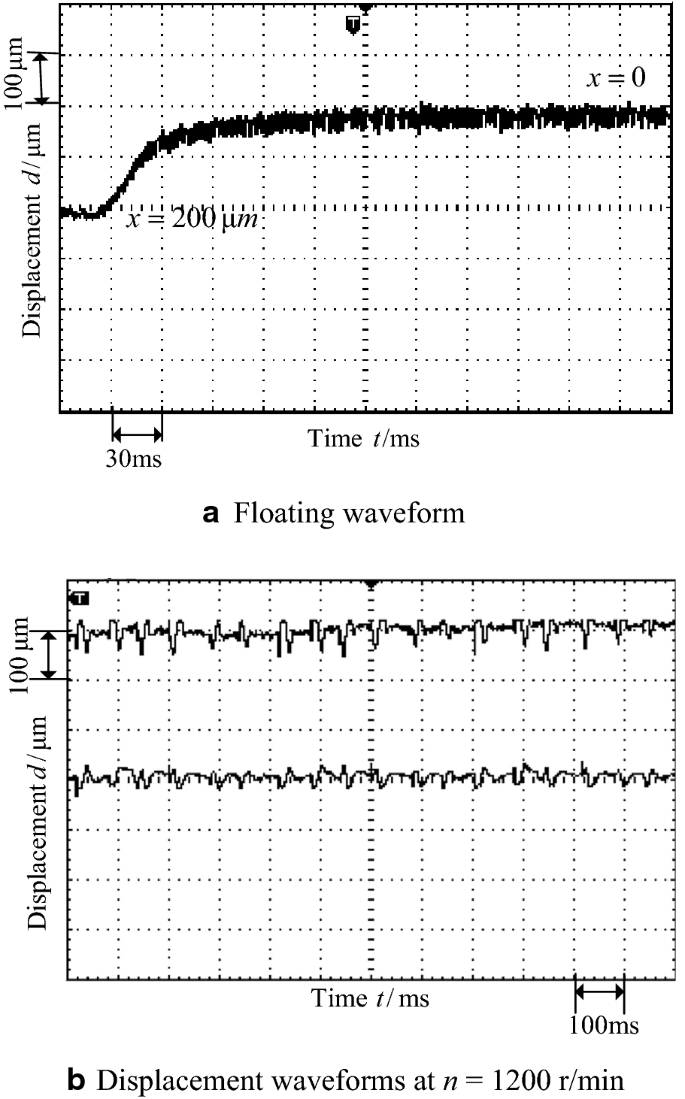

Figure 11(a) shows the floating waveform of displacement in the x direction. The rotor remains at the stationary position (0.2 mm, 0.25 mm) before floating to the balanced position. After conducting the control coil, the rotor returns to the balanced position in 0.05 s and maintains stable suspension.

Figure 11(b) shows the displacement waveforms at n = 1200 r/min in x and y directions. When the rotor is in the stable suspension stage, the unilateral displacement fluctuation in the y direction is approximately 40 μm, which is 8% of the length of the air gap; the unilateral displacement fluctuation in the x direction is approximately 30 μm, which is also 8% of the length of the air gap. The displacement fluctuation is significantly less than the length of the air gap. The PMBMB designed in this study therefore has excellent properties.

6 Conclusions

In order to realize the support system without mechanical loss and to maximize the efficiency of the flywheel battery, a PMBMB is applied to the new FESS with the advantages of low loss, high critical speed, flexible controllability and compact structure. The research is focus on the design and analysis of the PMBMB.

• (1) The parameter design method of PMBMB is obtained and verified by the finite element analysis.

• (2) A control system design of a three-DOF PMBMB is designed according to the numerical analysis and finite element analysis of radial–axial coupling. The theory results show that the coupling near the equilibrium position can be ignored.

• (3) The performance experiments show that the designed PMBMB has excellent properties of floating and stable suspension.
