Application of Instantaneous Rotational Speed to Detect Gearbox Faults Based on Double Encoders

Abstract

Considerable studies have been carried out on fault diagnosis of gears, with most of them concentrated on conventional vibration analysis. However, besides the complexity of gear dynamics, the diagnosis results in terms of vibration signal are easily misjudged owing to the interference of sensor position or other components. In this paper, an alternative gearbox fault detection method based on the instantaneous rotational speed is proposed because of its advantages over vibration analysis. Depending on the timer/counter-based method for the pulse signal of the optical encoder, the varying rotational speed can be obtained effectively. Owing to the coupling and meshing of gears in transmission, the excitations are the same for the instantaneous rotational speed of the input and output shafts. Thus, the differential signal of instantaneous rotational speeds can be adopted to eliminate the effect of the interference excitations and extract the associated feature of the localized fault effectively. With the experiments on multistage gearbox test system, the differential signal of instantaneous speeds is compared with other signals. It is proved that localized faults in the gearbox generate small angular speed fluctuations, which are measurable with an optical encoder. Using the differential signal of instantaneous speeds, the fault characteristics are extracted in the spectrum where the deterministic frequency component and its harmonics corresponding to crack fault characteristics are displayed clearly.

1 Introduction

As the transmission component widely used in various machines, the gearbox plays a critical role in mechanical systems, and thus, gearbox fault diagnosis based on vibration signals attracts considerable research interests [1]. In addition to deterministic approaches such as statistical features [2, 3] and time–frequency analysis [4, 5], many analysis tools have been used, including decision tree [6], frequency demodulation [7, 8], and stochastic resonance [9, 10]. However, vibration analysis still has inherent limitations in the diagnosis of complex gear system, in which the vibration signal is easily contaminated by a large amount of interference, and the strength of the signal depends on the position of the vibration transducer.

As the torsional vibration signal has a simpler spectral structure than the transverse vibration signal [11] and has the advantage of a short transmission path and high signal-to-noise ratio, it is also applied to the fault diagnosis of gears in wind turbines [12, 13] and traction systems [14]. Recently, the instantaneous angular speed (IAS) has revealed a high sensitivity to change in mechanical systems [15]. Because the defects in rotating machines have a direct impact on the angular speed, the IAS signal usually contains a considerable amount of information on fault components [16]. The different IAS-based techniques have been developed for bearings [17], induction motors [18], and gearboxes. For the gear transmission of numerical control machines, Zhou et al. [19] utilized the instantaneous speed obtained using a servo motor encoder to monitor the state of the parts, and adopted the instantaneous speed estimated by the digital differentiator to identify the vibration source [20]. Additionally, Stander et al. [21] used a simplified mathematical model of a gear system to illustrate monitoring of the instantaneous angular speed. Roy et al. [22] applied spectrum to the synchronously averaged IAS signal under different working conditions.

Recently, Li et al. [23] developed a new approach to extract the features of a gearbox based on IAS signal. The idea behind using IAS signal is that the presence of a defect changes the dynamics of the gearbox and this definitively alters the rotational speeds of the shafts. Besides the IAS signals measured from the input shaft of the gearbox, Sankar et al. [24] also analyzed the varying speed of the output shaft for detection of faults in a multistage automobile gearbox. However, considering the gear stage, the unavoidable interference in the gear chain can contribute to the signal of instantaneous angular speed, which increases the difficulty of feature extraction.

It is verified that a localized gear fault can result in a periodic fall in the mesh stiffness at the rotational frequency of the faulty gear shaft, resulting in a change in the instantaneous rotational speed; this indicates that it can be used to detect the presence of a gear defect. Consequently, as an angular sensor, the optical encoder offers high resolution and accuracy with the mechanism of data acquisition, and the timer/counter-based method is used to obtain the associated instantaneous rotational speed directly. Thus, for the transmission system, the instantaneous speed of the input and output shafts can be obtained by optical encoders synchronously. Moreover, to reduce the effects of external interference and improve the ability of fault detection for gear transmission systems, the differential signal of the instantaneous speeds of the input and the output shafts is utilized to extract the gear fault feature. Compared with the signal of a single encoder, instantaneous transmission ratio, and vibration signal, the proposed feature extraction method based on the differential signal of double encoders is feasible and effective.

This paper is organized as follows: Section 2 provides the fundamental knowledge of the rotating speed fluctuation of gear defects. In Section 3, the principle of the measurement of instantaneous speed is introduced. Section 4 proposes the feature extraction scheme based on the differential signal of instantaneous speeds in detail, and the gear defect experiment is presented to evaluate the proposed method in Section 5. Finally, conclusions are drawn in Section 6.

2 Rotational Speed Fluctuation of Gear Defect

For the gear transmission, the input shaft transmits torque to the output shaft with meshing gears [25, 26], and the model of single axis transmission system can be given by

$$\varvec{J}\ddot{\varOmega } + \varvec{C}\dot{\varOmega } + k\varOmega = \varvec{M},$$
(1)

where J and C are the rotational inertia and damping matrix, respectively; Ω and M are the angular displacement and load, respectively; and k is the mesh stiffness. For a gear mesh period Tm and a given contact ratio (1 < ε < 2), the pinion and wheel are first contacted by one pair of teeth during (ε − 1)Tm; then, both are contacted by two pairs of teeth during (2 − ε)Tm. Thus, gear mesh stiffness is periodic with the period Tm, which can be approximated as

$$k(t) = \left\{ {\begin{array}{*{20}l} {\begin{array}{*{20}c} {k_{\text{max} } }, & \text{if} & {nT_{m} \le t \le (n + \varepsilon - 1)T_{m} }, \\ \end{array} } \hfill \\ {\begin{array}{*{20}c} {k_{\text{min} } }, & \text{if} & {(n + \varepsilon - 1)T_{m} \le t \le (n + 1)T_{m} }, \\ \end{array} } \hfill \\ \end{array} } \right.$$
(2)

where n is an integer representing the nth gear mesh period [27]. It is well known that a broken tooth can lead to a loss of contact, and consequently a periodic loss in tooth stiffness. The tooth crack also leads to a periodic decline in the gear mesh stiffness with the rotational frequency of the faulty gear, which results in periodical perturbation of speed with rotation. It follows that the external excitations are mainly attributed from the abnormal change in mesh stiffness when the load and input speed are constant. Therefore, the rotational speed theoretically includes not only the mesh frequencies, but also the low frequency component corresponding to the rotation of the faulty gear.

3 Measurement of Instantaneous Speed Based on the Encoder

3.1 Pulse Sequence of Shaft Angular Displacement

For multi-stage gear transmission systems, optical encoders with same resolution are mounted on the input and output shafts of the gearbox respectively. It is assumed that the teeth of the grating disc are uniformly distributed around the circumference. Then, without considering the effects of noise, the output signal of the shaft angular displacement from the optical encoder exhibits a uniformly periodic pulse f(t) when the angular speed of the rotary shaft is constant. Thus, the signal of the shaft encoder can be represented by [28]

$$f(t) = \sum {c_{n} \cos (nr\omega t + \theta )} ,$$
(3)

where \(\omega\) and \(\theta\) are the angular speed of the rotary shaft and initial phase of the signal, respectively; r is the resolution of the encoder; and cn is the amplitude of the nth harmonic component. Note that the pulse period of the sequence of shaft angular displacement corresponds to the rotational speed. Figure 1 shows the pulse period S of the angular displacement of the input and output shafts, where Si = {Si(1), Si(2), Si(3), …}, and So = {So(1), So(2), So(3), …}. It can be seen that each S is the elapsed time (ET) between two successive pulses in the prescribed duration. Generally, when a tooth mesh has a faulty tooth, the mesh stiffness suddenly changes, causing speed fluctuation, and this is reflected by the change in corresponding elapsed time. Thus, it enables the sequence S of successive pulse periods to contain the dynamic responses of the fault components.

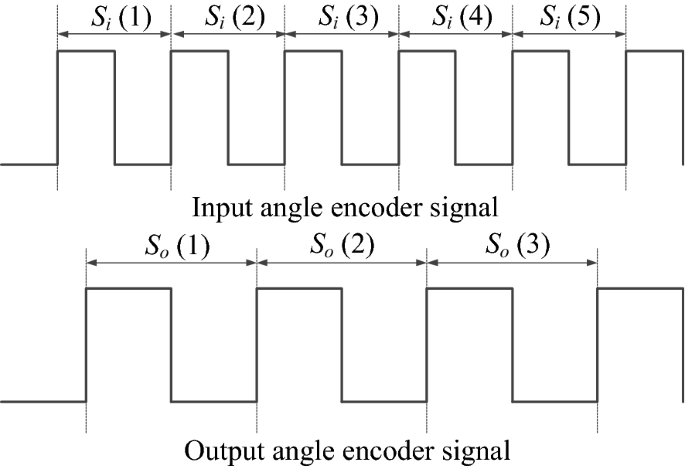

Figure 1
figure 1

Pulse sequence of shaft angular displacement

3.2 Measurement of Instantaneous Speed

Based on the mechanism of data acquisition, the timer/counter-based method treats the output signal from the optical encoder as a pulse sequence, and the pulse sequence can be used to start and stop the timer/counter. Thus, the instantaneous speed is estimated by measuring the ET for the corresponding unit of angular displacement. In this study, the ET of a speed pulse is obtained by using a high-frequency clock, as shown in Figure 2. The data acquisition system consists of a high-frequency counter device, which is commonly found on traditional data acquisition boards. The latch circuit latches the time at which the encoder pulses reach a rising edge, and the ET of a single period of encoder signal can be measured. Thus, the ET sequences of the pulse period for the input and output shafts can be extracted synchronously.

Figure 2
figure 2

Measurement principle of instantaneous speed

As only the revolution speed fluctuations are of interest in this study, all signal processing and analysis is conducted within the time duration of successive encoder gratings. It is known that the frequency of pulse sequence is equal to the reciprocal of ET between two successive pulses. According to the pulses per revolution of the encoder, the instantaneous revolution speed V of the rotary shaft can be calculated as

$$V(n) = \left( {\frac{1}{{S^{\prime}(n)}}} \right)/r,n = 0,1,2, \ldots ,N - 1 ,$$
(4)

where N is the number of data points; the resolution r of the encoder is the number of encoder gratings; and the elapsed time of each S′(n) is equal to the average of adjacent points \(S^{\prime}(n) = (S(n) + S(n + 1))/2\). Note that the instantaneous speed V is described in the unit of Hz. Obviously, the acquisition process is equivalent to the time estimation between successive rising edges of the encoder signal. It can be seen that the acquisition occurs at a sampling frequency directly linked to the shaft rotational speed and obviously to the resolution of the encoder [29].

4 Feature Extraction Scheme Based on the Differential Signal of Instantaneous Speeds

As a component in the transmission device, besides the gear localized defect, some unavoidable manufacturing or installation errors tend to affect the measured instantaneous speed signal, which makes the detection of gear defects difficult. However, considering the common excitation source in the gear chain, the differential signal of instantaneous speeds of the input and output shaft can effectively reduce the effect of these excitation sources, and improve the accuracy of the fault identification. The feature extraction scheme based on the double encoder is shown in Figure 3.

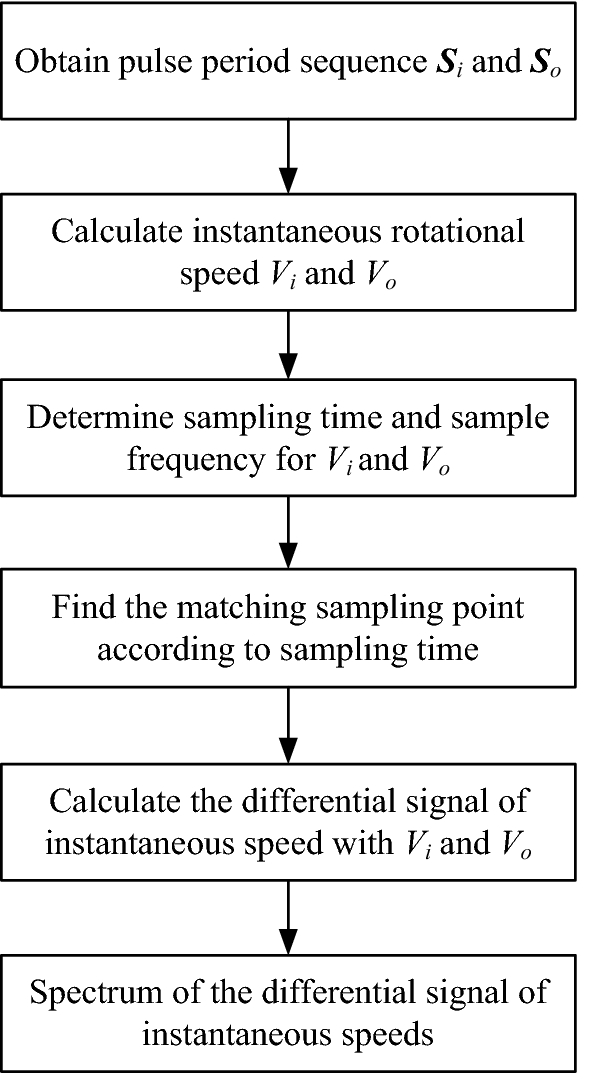

Figure 3
figure 3

Feature extraction scheme

  1. 1)

    The pulse period sequences Si(n) and So(n) of the input and output shafts, respectively, are measured synchronously; then, the respective instantaneous revolution speeds Vi(n) and Vo(n) are calculated using Eq. (4).

  2. 2)

    According to the acquisition of the instantaneous speed, the corresponding sample time of each V(n) is equal to the accumulation of corresponding ET of the pulse period. Then, the sample time T(n) of the instantaneous speed can be described as follows:

    $$T (n ) { = }\sum\limits_{{i{ = 0}}}^{n} {S (i )} ,\;n = 0 ,\, 1 ,\, 2 ,\ldots ,\,N - 1.$$
    (5)

    For different instantaneous speeds Vi(n) and Vo(n), the corresponding time signals Ti(n) and To(n), respectively, can be calculated using Eq. (5).

  3. 3)

    For simplicity of analysis, the spectrum is obtained by considering an average sampling frequency, which is estimated from the average speed of rotation because the gearbox operates at a constant speed. Based on the mechanism of data acquisition, the timer/counter-based method can sample r points in one revolution of the gear shaft.

    Simultaneously, the average rotational speed \(\bar{V}\) in revolutions per second is set to \(\frac{1}{N}\sum\limits_{i = 0}^{{N{ - }1}} {V(i)}\).

    Then, the associated sampling frequencies of the input and output shafts, respectively, are calculated by multiplying the average rotational speed by the pulse per revolution of the encoder:

    $$fs = \bar{V} * r .$$
    (6)
  4. 4)

    According to the time signals Ti(n) and To(n) of the instantaneous speeds, pairs of sampling points from the signals of the input and output shafts are determined.

    1. 4.1)

      It is assumed that the sampling frequency for the input shaft is higher; then, the instantaneous speed Vi(n) of the input shaft can be set as the basis.

    2. 4.2)

      Time signals Ti(n) and To(n) are used to find the sampling point of the signal Vo(n) whose sampling time is closest to that of the signal Vi(n). Specifically, the matching sampling points from the output shaft signal, which has the minimum sampling time difference between instantaneous speed signals, are selected.

  5. 5)

    With the pairs of sampling points of the input and output shafts, the differential signal of the instantaneous rotational speed is determined by

    $$V_{d} (n_{i} ) = g \cdot V_{o} (n_{o} ) - V_{i} (n_{i} ) ,$$
    (7)

    where g is the transmission ratio; and Vi(ni) and Vo(no) are the nth instantaneous speed points of the input and output shafts, respectively. Thus, the interference can be reduced by the differential signal of instantaneous speeds.

  6. 6)

    The spectrum of differential signal is calculated using the associated sampling frequency fs, and the gear defect feature can be easily identified according to the rotational frequency of the rotor shafts.

5 Application for Detection of Gearbox Defects

5.1 Experimental Setup

The main components of the spur gearbox test system are shown in Figure 4. The system primarily includes a two-stage spur gearbox that can be used to simulate different localized defects, a 3-hp motor to drive the gearbox, and a magnetic brake to load the torque. The motor rotating speed is controlled by a speed controller. The load is provided by the magnetic brake and can be adjusted by the brake controller. The transmission ratio of the gearbox is 3.3. Two encoders with a resolution of 1024 pulse per revolution are mounted on the input and output shafts, respectively. The signal of the encoder is collected by an NI 6211 DAQ with counter mode.

Figure 4
figure 4

Two-stage spur gearbox test system

The intact gear, the cracked gear with a crack depth of 1 mm at the root of a single tooth, and the broken gear with one tooth completely removed are located on the input shaft from left to right (as shown in Figure 5). Meanwhile, the speeds of the input shaft are approximately 10 and 17 Hz, respectively, and a load torque of 5 Nm is applied to the output shaft. The signals of the two encoders are sampled by the 80 MHz high-frequency counter, and the sample length is set to 102400.

Figure 5
figure 5

Intact and localized defect gears

5.2 Analyses and Discussions

The waveforms and spectra of the instantaneous speeds collected from the three running conditions at an input speed of 10 Hz are shown in Figures 6 and 7, respectively. According to the gearbox structure and transmission ratio, the rotational frequency fi of the input shaft is 10 Hz; the lay frequency fm and the output frequency fo are 4 and 3 Hz, respectively.

Figure 6
figure 6

Differential signals at a speed of 10 Hz

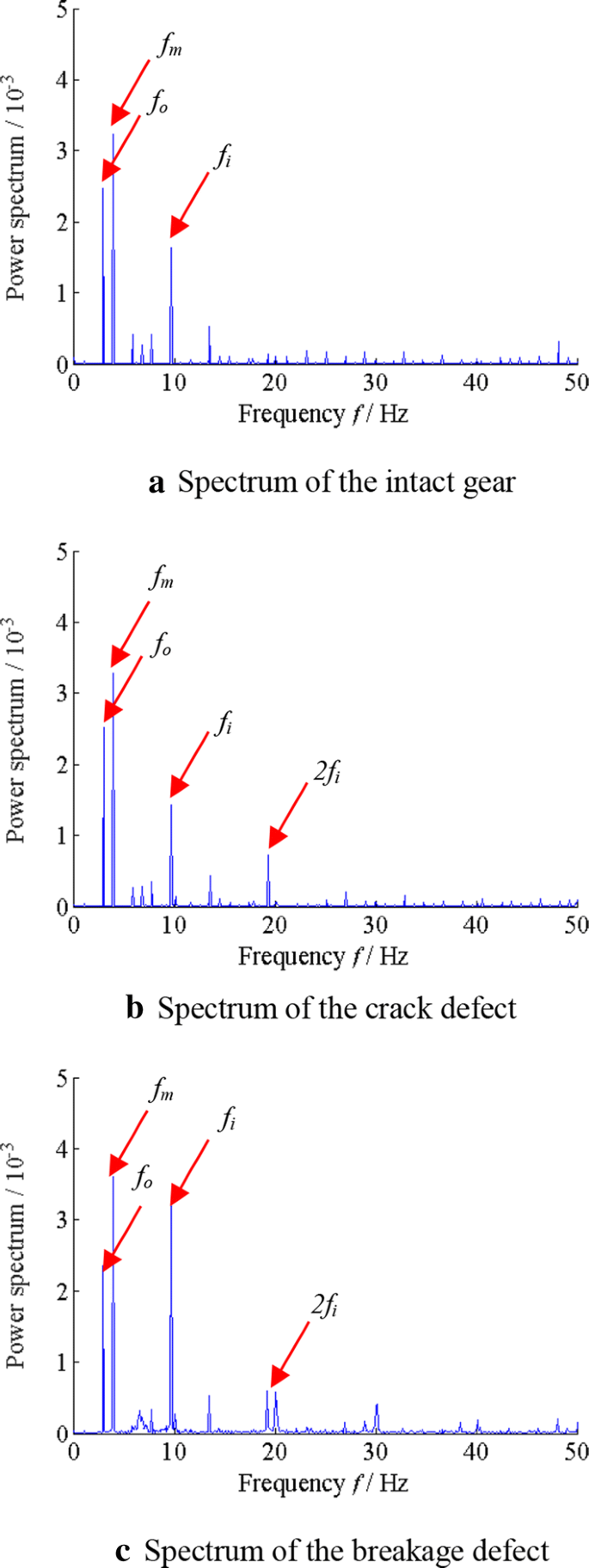

Figure 7
figure 7

Spectra of differential signals at a speed of 10 Hz

The waveform of an intact gear, shown in Figure 6(a), is characterized by cyclical fluctuations; however, from the waveform of the crack defect given in Figure 6(b), some weak impulses can be observed in the speed fluctuation. On the contrary, as shown in Figure 6(c), owing to the reduced meshing stiffness, the distinct impulse caused by the broken tooth can be found.

Regardless of the gear state (intact gear, cracked gear, broken tooth), for the low frequency range of [0, 50] Hz in Figure 7, the main gear frequencies are denoted by arrows and are visible as being located at the primary shaft rotational frequency associated with 10, 4, and 3 Hz. Obviously, for the gear transmission, the instantaneous speed contains all stage frequency components due to the excitation of manufacturing or installation errors, such as eccentricity of the wheel. However, there are no obvious harmonics of the rotary frequency in Figure 7(a) for the intact gear.

When a gear has a localized defect, the periodic excitation of the reduced mesh stiffness of the defect gear changes the performance of the rotational frequency and results in a harmonic component due to the time delay of the common-frequency excitations. As shown in Figure 7(b), the amplitude of the input shaft frequency of 10 Hz is similar to that of the intact gear, but the second harmonic component can be observed in the spectrum of the crack defect. Meanwhile, for the breakage defect given in Figure 7(c), the amplitude of the input shaft frequency of 10 Hz is higher than that of the intact case because of the intense periodic impulses caused by broken teeth meshing. Thus, the fault of a broken tooth can be traced clearly by the highlighted frequency and its harmonic.

It can be concluded from the results that the differential signal of instantaneous speed can be used as an effective means to reflect the varying instantaneous speeds caused by localized defects, and to improve the detection ability for gear diagnosis.

Additionally, the instantaneous speed signals of double encoders at an input speed of 17 Hz are analyzed, and the spectra of the differential signals of the instantaneous speeds are given in Figure 8. For the input speed of 17 Hz, three frequency components (input frequency 17 Hz, lay frequency 6.8 Hz, and output frequency 5.1 Hz) are observed clearly.

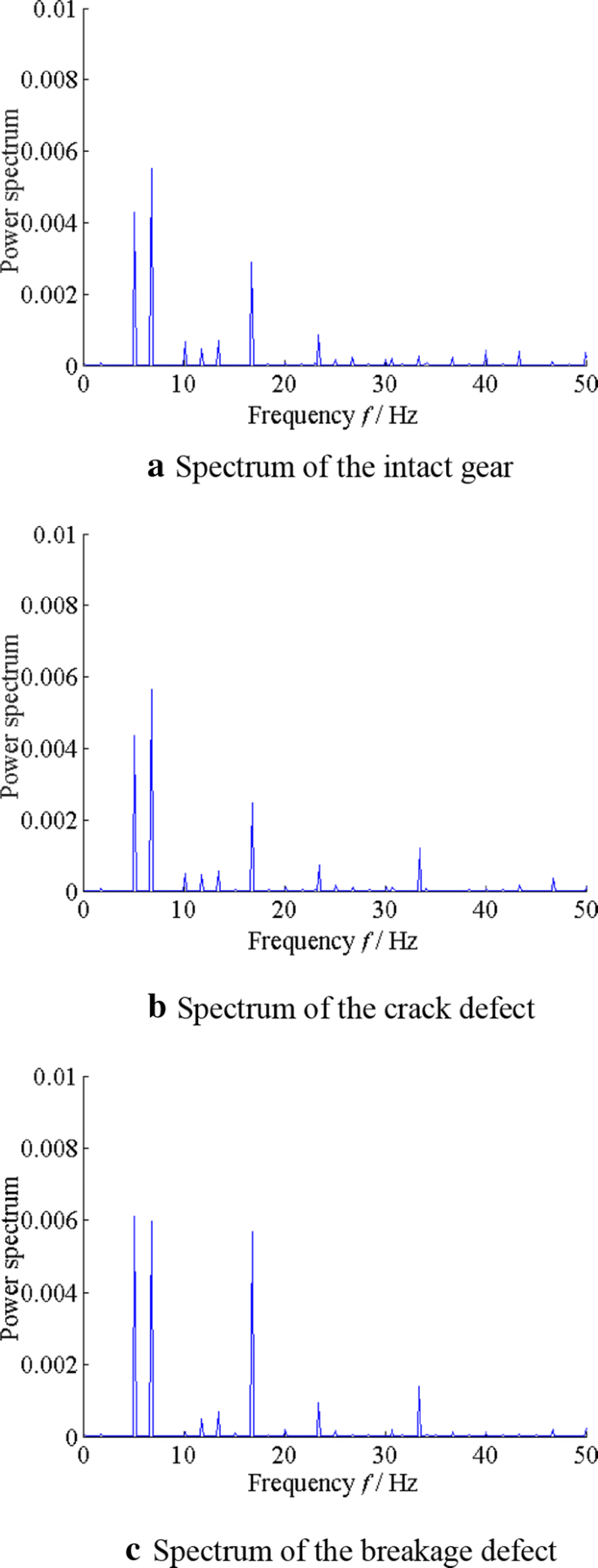

Figure 8
figure 8

Spectra of differential signals at a speed of 17 Hz

It can be seen from Figure 8 that the spectrum of the intact gear only contains the frequencies of the input shaft, lay shaft, and output shaft, whereas the local defect excites the rotary frequency and its harmonic of the defect gear shaft.

5.3 Comparison with Instantaneous Speed of Single Encoder

To test the effectiveness of the proposed method, the instantaneous rotational speed of a single encoder is used. For the input speed of 10 Hz, Figures 9, 10 and 11 depict the waveforms and spectra of the instantaneous speeds of the input shaft encoder in the intact and localized defect states. It is clear that the waveform of the intact gear shown in Figure 9(a) is similar to that of the crack defect given in Figure 10(a). However, it is noted that the periodic impulses can be observed clearly for the broken tooth defect shown in Figure 10(b).

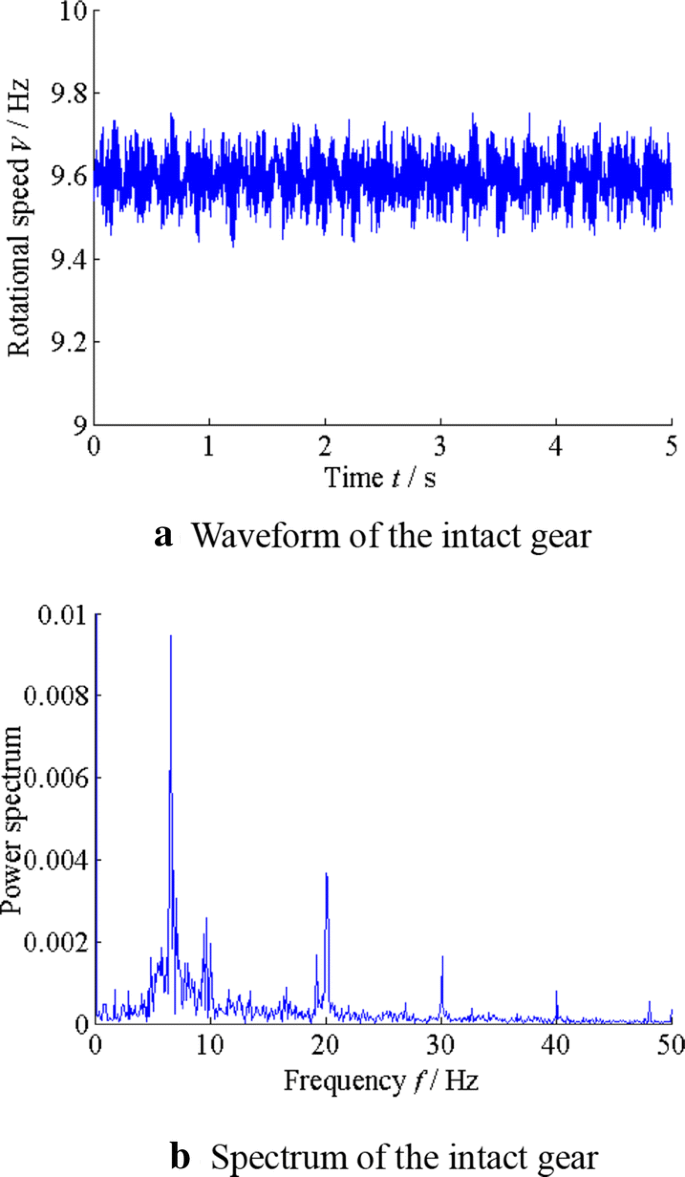

Figure 9
figure 9

Instantaneous speed signal of the input shaft encoder for the intact gear

Figure 10
figure 10

Instantaneous speed signal of the input shaft encoder for localized defects

Figure 11
figure 11

Spectra of instantaneous speed of the input shaft encoder

In the spectrum of the defect case shown in Figure 11, the frequency component of 10 Hz is the rotating frequency of the input shaft, whereas the predominant frequency of 6.5 Hz is the interference component inspired by other excitation in the gear chain, which covers the frequency components of the lay shaft and output shaft.

With increasing degree of gear defect, the amplitude of the frequency of 10 Hz increases gradually; This is consistent with the previous results. However, for the crack defect, it is difficult to use the instantaneous speed of the single encoder to identify faults as they have similar amplitude of rotational frequency.

Additionally, Figure 12 illustrates the spectra of instantaneous speed signals of the output shaft encoder in the intact and damaged conditions, respectively. In the case where the transmission ratio is considered, the varying speed of the output shaft is similar to that of the input shaft. It is noted that the excitation response of the gear chain appears in not only the speed signal of the input shaft, but also that of the output shaft. From the spectrum of the output shaft encoder, the corresponding frequency of 10 Hz has a significant increase for the broken tooth defect.

Figure 12
figure 12

Spectra of instantaneous speed of the output shaft encoder

However, for the crack defect, the amplitude of the 10 Hz frequency is similar to that of the intact gear, such that it is difficult to identify the fault from the signal of the intact gear. Obviously, compared to the single encoder, the differential speed signal of the instantaneous speeds can reduce the effect of external interference, and the crack defect can be identified by the exact frequency component.

5.4 Comparison with Instantaneous Transmission Ratio

The instantaneous transmission ratio is also used for comparison. For the sampling pairs of Vi(n) and Vo(n), the instantaneous transmission ratio can be defined as:

$$I(n_{i} ) = \frac{{V_{i} (n_{i} )}}{{V_{o} (n_{o} )}} ,$$
(8)

where Vi(ni) is the nth instantaneous speed point of the input shaft, and Vo(no) is the nth instantaneous speed point of the output shaft. The signal of the instantaneous transmission ratio for the intact gear and localized defects at the input speed of 10 Hz are shown in Figures 13, 14 and 15.

Figure 13
figure 13

Signal of instantaneous transmission ratio for the intact gear. a Waveform of the intact gear, b Spectrum of the intact gear

Figure 14
figure 14

Signal of instantaneous transmission ratio for the crack defect

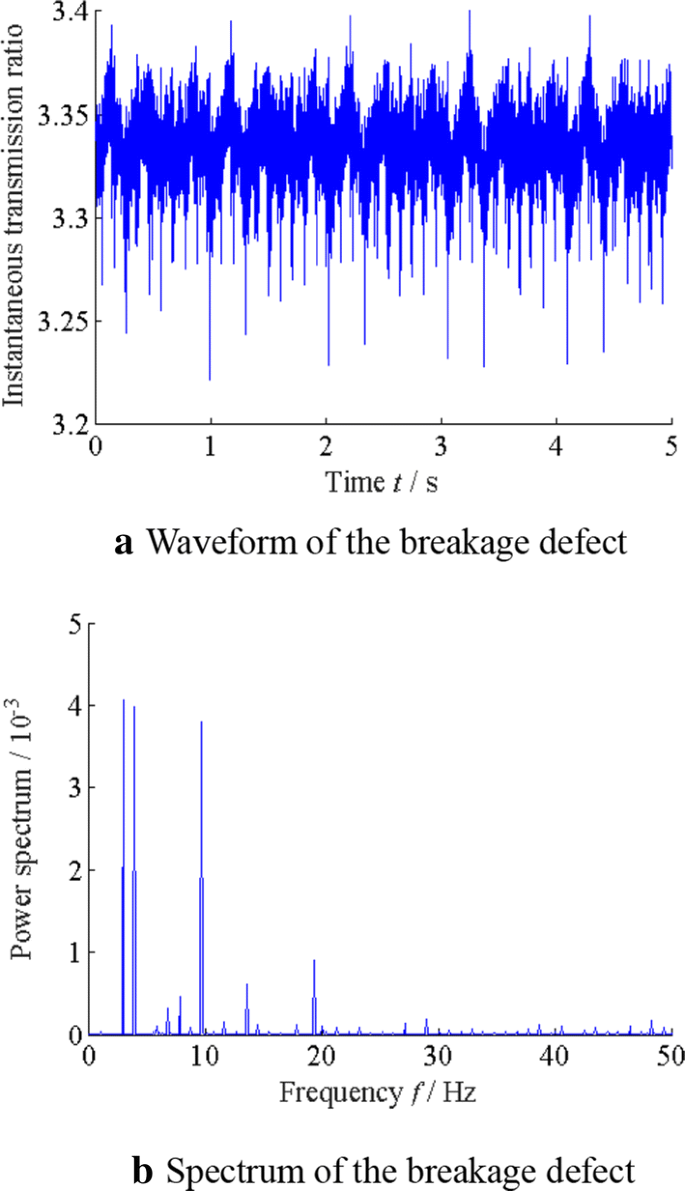

Figure 15
figure 15

Signal of instantaneous transmission ratio for the breakage defect

As shown in Figure 15, compared with the intact gear, the breakage defect is clearly observed in the form of the impulse, and the amplitude of the rotational frequency of 10 Hz also increases. However, for the crack defect, the rotational frequency and the second harmonic presented in Figure 14(b) are similar to that of the intact gear; thus, they are hardly distinguished. In brief, it is not easy to use the signal of the instantaneous transmission ratio to detect weak faults.

5.5 Comparison with Vibration Signal

For further comparison, the vibration in the test system is measured. The input speed is maintained at 17 Hz and a 5 Nm load is imposed on the output shaft. Vibration signals are collected using an NI 9234 DAQ recorder at the sampling frequency of 10 kHz for the input bearing. The waveforms of the intact gear and crack defect are given in Figure 16. It is obvious that the amplitude of the crack defect is still similar to that of the intact gear.

Figure 16
figure 16

Waveform of the intact gear and the crack defect

Considering the characteristic of the impulse caused by a localized fault in the gearbox or bearing [30], the Morlet wavelet is adopted to extract the fault feature from the vibration signal. Meanwhile, to extract the weak impulse component effectively, the shape factor of the Morlet wavelet can be optimized with the Shannon entropy.

With a shape factor of 0.4, the optimal Morlet wavelet decomposition of the crack defect is shown in Figure 17. In the figure, the duration of the impulses corresponding to the rotation period of the driving shaft is not clear. Obviously, it is difficult to identify the crack defect with the time–frequency representation.

Figure 17
figure 17

Time–frequency representation of the crack defect

6 Conclusions

  1. (1)

    Based on the timer/counter-based method, the instantaneous rotational speeds of the input and output shafts can be obtained synchronously from the optical encoder. Meanwhile, the differential signal of instantaneous speed can reduce the effect of external excitations and enhance the extraction ability of the localized fault feature.

  2. (2)

    For localized defects, the periodic excitation of the reduced mesh stiffness of the defect gear changes the spectrum performance of the rotational frequency and results in a harmonic component with the effect of same frequency excitations.

  3. (3)

    Compared with the single encoder signal and the instantaneous transmission ratio, the differential signal of instantaneous speed is less affected by the external excitation. In addition, the optical encoders can provide a higher quality signal compared to vibration analysis.
