Dynamic Characteristics Analysis with Multi-Directional Coupling in a TBM Mainframe

Abstract

The cutterhead of a full-face rock tunnel boring machine (TBM) is constantly subjected to varying impact and dynamic loads during tunneling processes, resulting in relatively large vibrations that could easily lead to fatigue cracking of the entire machine and affect the tunneling performance and efficiency. To explore the dynamic characteristics of the TBM mainframe, a TBM from a water-diversion project is investigated in this research. According to the TBM vibration transmission route, an equivalent dynamic model of the TBM mainframe is established using the lumped-mass method in which the relevant dynamic parameters are solved. Additionally, the dynamic response characteristics of the TBM mainframe are analyzed. The results indicate that the vibration levels in three directions are approximately the same, the multi-directional vibration of the cutterhead is more intense than that of other components, and the vibration and external excitation exhibit identical change trends. A set of vibration field tests is performed to analyze the in situ dynamic responses of the mainframe and verify the correctness of the dynamic model. The theoretical and measured acceleration values of the TBM mainframe have the same magnitude, which proves the validity of the dynamic model and its solution. The aforementioned results provide an important theoretical value and practical significance for the design and assessment of the TBM mainframe.

1 Introduction

The tunnel boring machine (TBM) is large-scale underground equipment that is widely used in underground tunnel projects owing to high safety and reliability, low manpower requirement, minor environmental damages, and rapid excavation speed [1, 2]. As a key component of the TBM, the mainframe is composed of a cutterhead system, main drive system, shield, and main girder as well as a supporting-thrust system. Because of complicated geological conditions and variable tunneling parameters, a tunnel often features high strength and high confining pressure as well as a high quartz content, along with the step crushing of rocks. In the tunneling process, the TBM cutterhead is subjected to large thrust and torque caused by the interaction between the cutters and rock [3, 4], which may result in significant damages, such as cracking of the cutterhead and loosening or separation of bolts, and affect the fatigue life of the TBM mainframe.

Studies on the TBM mainframe system have been carried out by several researchers, including those on external loads, thrust, torque, overturning torque, and unbalanced radial force in the tunneling process. Relevant models have also been established to conduct dynamic characteristic analyses of the cutterhead system. Rostami [5] analyzed various factors affecting the rock-breaking load of a disc cutter, established the CSM (Colorado School of Mines) force-estimation model for the cutter, and evaluated the performance of the cutterhead from the perspective of disc cutter layouts. Xia et al. [6] studied the formation mechanism and change pattern of the side force suffered by the center cutter and set up a calculation model for predicting the average side force. Huo et al. [7] subdivided the TBM disc cutter into center, inner, and gauge cutters and presented a multi-stage rock fragmentation load prediction model for disc cutter groups based on the dense-core theory and types of disc cutters. Shi et al. [8] put forward a method for calculating the cutterhead torque by taking into account the cutterhead structure, cutting principle, and geological conditions. Additionally, Zhou et al. [9] and Geng et al. [10] studied the factors that influence the thrust and torque of cutterheads and derived a model for calculating the relevant thrust, torque, overturning torque, and other external loads. Xia et al. [11] modified the cutterhead overturning moment calculation model and analyzed the mechanical performance of a typical TBM cutterhead under different working conditions. Zhao et al. [12] analyzed the composition of earth pressure balance (EPB) TBM cutterhead torque and developed a theoretical TBM torque model for a rock–soil interface mixed ground. Because of the difficulties in obtaining the accurate load of the cutterhead using theoretical analysis, test methods have been applied to acquire the load data of the cutterhead and its change trends. A test of external loads was performed by Entacher et al. [13, 14], who presented a method to detect the three-directional loading of a disc cutter in real-time and conducted a field test in the Austrian Koralm Tunnel. Geng et al. [15] proposed an experimental method to investigate the rock-cutting process of a TBM gauge cutter. According to the theoretical models, Zhang et al. [16, 17] analyzed the total load in an EPB TBM tunneling process and established a predictive model for the total load, which reflected the influence of the geological, operating, and structural parameters. Sun et al. [18, 19] and Li et al. [20] established a coupling nonlinear dynamic model of a cutterhead system to analyze the dynamic characteristics of the cutterhead. Huo et al. [21, 22] established multi-degree-of-freedom coupling dynamic models for the disc cutter and cutter system and revealed the dynamic characteristics of the disc cutter and cutter system. In addition, Huo et al. [23, 24] presented multi-coupling dynamic models for the TBM main drive and supporting systems and carried out a field strain test to verify the models. Festa et al. [25] set up a kinematic model for a TBM based on theoretical and geometrical considerations, and the ground displacements were obtained through the model and verified using the TBM monitoring data. In addition, considering the redundant driven rotary system, propulsion system, and geological conditions, Zhang et al. [26] and Huang et al. [27] established a mutual coupling dynamic model for cutterhead tunneling to analyze the dynamic characteristics of the rotary and supporting-propulsion systems under complex geological conditions.

As mentioned before, efforts have been intensified in the research and design of TBM cutterheads. However, profound studies on the TBM mainframe from the perspective of dynamics have not yet been performed. The existing dynamic model has been simplified to merely analyze the data of the main drive without considering the supporting or propelling forces provided by the main girder and gripper shoes in the mainframe. As a result, the transmission path is not closed. Additionally, differences in the frequency spectrum characteristics exist between the simulation-predicted dynamic and real external loads. Therefore, to investigate the dynamic characteristics of the TBM mainframe, a dynamic model of a TBM mainframe is established, which comprehensively considers the time-varying external excitations, transmission route of the vibration, and three-dimensional forces obtained from rock-breaking experiments. In addition, a set of field tests is carried out to collect field data and validate the correctness of the dynamic model. The present study provides a theoretical basis for evaluating and designing the TBM mainframe structure that can effectively prevent cracking, reduce the vibrations of the TBM mainframe, and prolong the fatigue life of the main bearing as well as improve tunneling efficiency.

2 Dynamic Model of TBM Mainframe

During the tunneling process, the vibrations of the TBM mainframe consist of lateral, vertical, tunneling, lateral overturning, and vertical overturning vibrations. The loads acting on the mainframe are shown in Figure 1, where F_z and T are the thrust force in the tunneling direction and total torque, respectively, and M, F_x, and F_y represent the overturning moment, lateral unbalanced force, and vertical unbalanced force, respectively. Total thrust F_t is provided by the propelling hydraulic cylinders to move the TBM forward. The cutterhead, main drive, and first section of the main girder are mainly backed by the bottom shield, which are tightly attached to the rock, thus bearing the friction resistance force F_f caused by gravity G.

Figure 1

Loads in the TBM mainframe

The transmission path of the mainframe external excitations and vibrations is opposite that of the TBM tunneling thrust. The three-directional impact loads of the cutterhead are created by the disc cutters that break the rock during TBM tunneling. Through a connection flange in the cutterhead, the load and vibration are transmitted from the cutterhead to the main bearing and subsequently to the other parts behind the main drive. Then, through the main girder and propelling hydraulic cylinders at both sides of the main girder, the load and vibration are transmitted to the saddle holder of the gripper shoes that grip the rock, providing a forward reaction force and reducing the vibration of the gripper shoes.

According to the analysis of the load transmission path in the TBM mainframe, the lumped-mass method is adopted to simplify the connection relationships of each component to the spring-damping system to establish an equivalent dynamic model of the TBM mainframe, as shown in Figures 2 and 3.

Figure 2

Dynamic model of the lateral and vertical vibrations of the TBM mainframe

Figure 3

Coupling dynamic model of the tunneling and overturning vibrations of the TBM mainframe

Figure 2 shows a dynamic model of the lateral and vertical vibrations of the mainframe. Figure 3 shows a dynamic model that represents the coupling relationship between the tunneling and overturning vibrations in the mainframe. When the overturning vibration is calculated, the connection relationships between the cutterhead and the main bearing are simplified into four spring-damping systems. The whole overturning stiffness of the cutterhead is equal to the tunneling joint stiffness. In the dynamic model, x, y, and z denote the lateral, vertical, and tunneling directions, respectively. m₁, m₂, m₃, m₄₁, m₄₂, m₄₃, and m₅ represent the masses of the cutterhead, main bearing, main drive (including the shield), main girder 1, main girder 2, main girder 3, and gripper shoes, respectively. x₁, x₂, x₃, x₄₁, x₄₂, x₄₃, and x₅ represent the lateral degrees of freedom of the cutterhead, main bearing, main drive, main girder 1, main girder 2, main girder 3, and gripper shoes respectively. y, z, and θ denote the corresponding vertical, tunneling, and overturning degrees of freedom respectively. k_x1, k_x2, k_x3, k_x41, k_x42, k_x43, k_x5, k_y1, k_y2, k_y3, k_y41, k_y42, k_y43, and k_y5 denote the lateral and vertical equivalent stiffness values of the cutterhead, main bearing, main drive, main girder 1, main girder 2, main girder 3, and gripper shoes, whereas c represents the corresponding damping.

According to the dynamic model, the dynamic equations of the vibration transmission in the TBM mainframe under different degrees of freedom are presented. The lateral and vertical degrees of freedom are expressed as follows:

$$\left\{ \begin{array}{*{20}l} m_{1} \cdot \ddot{x}_{1} + c_{x1} \left( {\dot{x}_{1} - \dot{x}_{2} } \right) + k_{x1} \left( {x_{1} - x_{2} } \right) = F_{x} , \hfill \\ m_{1} \cdot \ddot{y}_{1} + c_{y1} \left( {\dot{y}_{1} - \dot{y}_{2} } \right) + k_{y1} \left( {y_{1} - y_{2} } \right) = F_{y} , \hfill \\ m_{2} \cdot \ddot{x}_{2} + c_{x1} \left( {\dot{x}_{2} - \dot{x}_{1} } \right) + c_{x2} \left( {\dot{x}_{2} - \dot{x}_{3} } \right) + k_{x1} \left( {x_{2} - x_{1} } \right) + k_{x2} \left( {x_{2} - x_{3} } \right) = 0, \hfill \\ m_{2} \cdot \ddot{y}_{2} + c_{y1} \left( {\dot{y}_{2} - \dot{y}_{1} } \right) + c_{y2} \left( {\dot{y}_{2} - \dot{y}_{3} } \right) + k_{y1} \left( {y_{2} - y_{1} } \right) + k_{y2} \left( {y_{2} - y_{3} } \right) = 0, \hfill \\ m_{3} \cdot \ddot{x}_{3} + c_{x2} \left( {\dot{x}_{3} - \dot{x}_{2} } \right) + c_{x3} \left( {\dot{x}_{3} - \dot{x}_{41} } \right) + c_{x31} \cdot \dot{x}_{3} + k_{x2} \left( {x_{3} - x_{2} } \right) + k_{x3} \left( {x_{3} - x_{41} } \right) = 0, \hfill \\ m_{3} \cdot \ddot{y}_{3} + c_{y2} \left( {\dot{y}_{3} - \dot{y}_{2} } \right) + c_{y3} \left( {\dot{y}_{3} - \dot{y}_{41} } \right) + c_{y31} \cdot \dot{x}_{3} + k_{y2} \left( {y_{3} - y_{2} } \right) + k_{y3} \left( {y_{3} - y_{41} } \right) = 0, \hfill \\ m_{41} \cdot \ddot{x}_{41} + c_{x3} \left( {\dot{x}_{41} - \dot{x}_{3} } \right) + c_{x41} \left( {\dot{x}_{41} - \dot{x}_{42} } \right) + k_{x3} \left( {x_{41} - x_{3} } \right) + k_{x41} \left( {x_{41} - x_{42} } \right) = 0, \hfill \\ m_{41} \cdot \ddot{y}_{41} + c_{y3} \left( {\dot{y}_{41} - \dot{y}_{3} } \right) + c_{y41} \left( {\dot{y}_{41} - \dot{y}_{42} } \right) + k_{y3} \left( {y_{41} - y_{3} } \right) + k_{y41} \left( {y_{41} - y_{42} } \right) = 0, \hfill \\ m_{42} \cdot \ddot{x}_{42} + c_{x41} \left( {\dot{x}_{42} - \dot{x}_{41} } \right) + c_{x42} \left( {\dot{x}_{42} - \dot{x}_{43} } \right) + 2c_{z4} \left( {\dot{x}_{42} - \dot{x}_{5} } \right) \hfill \\ \quad + k_{x41} \left( {x_{42} - x_{41} } \right) + k_{x42} \left( {x_{42} - x_{43} } \right) + 2k_{z4} \left( {x_{42} - x_{5} } \right) = 0, \hfill \\ m_{42} \cdot \ddot{y}_{42} + c_{y41} \left( {\dot{y}_{42} - \dot{y}_{41} } \right) + c_{y42} \left( {\dot{y}_{42} - \dot{y}_{43} } \right) + k_{y41} \left( {y_{42} - y_{41} } \right) + k_{y42} \left( {y_{42} - y_{3} } \right) = 0, \hfill \\ m_{43} \cdot \ddot{x}_{43} + c_{x42} \left( {\dot{x}_{43} - \dot{x}_{42} } \right) + 2c_{x43} \left( {\dot{x}_{43} - \dot{x}_{5} } \right) + k_{x42} \left( {x_{43} - x_{42} } \right) + 2k_{x43} \left( {x_{43} - x_{5} } \right) = 0, \hfill \\ m_{43} \cdot \ddot{y}_{43} + c_{y42} \left( {\dot{y}_{43} - \dot{y}_{42} } \right) + 2c_{y43} \left( {\dot{y}_{43} - \dot{y}_{5} } \right) + k_{y42} \left( {y_{43} - y_{42} } \right) + 2k_{y43} \left( {y_{43} - y_{5} } \right) = 0, \hfill \\ m_{5} \cdot \ddot{x}_{5} + c_{x43} \left( {\dot{x}_{5} - \dot{x}_{43} } \right) + c_{z4} \left( {\dot{x}_{5} - \dot{x}_{42} } \right) + c_{x5} \cdot \dot{x}_{5} \hfill \\ \quad + k_{x43} \left( {x_{5} - x_{43} } \right) + k_{z4} \left( {x_{5} - x_{42} } \right) + k_{x5} \cdot x_{5} - F_{5} = 0, \hfill \\ m_{5} \cdot \ddot{y}_{5} + c_{y43} \left( {\dot{y}_{5} - \dot{y}_{43} } \right) + c_{y5} \cdot \dot{y}_{5} + k_{y43} \left( {y_{5} - y_{43} } \right) + k_{y5} \cdot y_{5} - F_{5} = 0. \hfill \\ \end{array} \right.$$

(1)

The tunneling degree of freedom is expressed as follows:

$$\left\{ \begin{array}{*{20}l} m_{1} \cdot \ddot{z}_{1} + c_{zx11} \left( {\dot{z}_{x11} - \dot{z}_{2} } \right) + c_{zx12} \left( {\dot{z}_{x12} - \dot{z}_{2} } \right) + c_{zy11} \left( {\dot{z}_{y11} - \dot{z}_{2} } \right) + c_{zy12} \left( {\dot{z}_{y12} - \dot{z}_{2} } \right) \hfill \\ \quad + k_{zx11} \left( {z_{x11} - z_{2} } \right) + k_{zx12} \left( {z_{x12} - z_{2} } \right) + k_{zy11} \left( {z_{y11} - z_{2} } \right) + k_{zy12} \left( {z_{y12} - z_{2} } \right) = F_{z} , \hfill \\ m_{2} \cdot \ddot{z}_{2} + c_{zx11} \left( {\dot{z}_{2} - \dot{z}_{x11} } \right) + c_{zx12} \left( {\dot{z}_{2} - \dot{z}_{x12} } \right) + c_{zy11} \left( {\dot{z}_{2} - \dot{z}_{y11} } \right) + c_{zy12} \left( {\dot{z}_{2} - \dot{z}_{y12} } \right) + c_{z2} \left( {\dot{z}_{2} - \dot{z}_{3} } \right) \hfill \\ \quad + k_{zx11} \left( {z_{2} - z_{x11} } \right) + k_{zx12} \left( {z_{2} - z_{x12} } \right) + k_{zy11} \left( {z_{2} - z_{y11} } \right)\; + k_{zy12} \left( {z_{2} - z_{y12} } \right) + k_{z2} \left( {z_{2} - z_{3} } \right) = \;0, \hfill \\ m_{3} \cdot \ddot{z}_{3} + c_{z2} \left( {\dot{z}_{3} - \dot{z}_{2} } \right) + c_{z3} \left( {\dot{z}_{3} - \dot{z}_{41} } \right) + k_{z2} \left( {z_{3} - z_{2} } \right) + k_{z3} \left( {z_{3} - z_{41} } \right) = F_{f} , \hfill \\ m_{41} \cdot \ddot{z}_{41} + c_{z3} \left( {\dot{z}_{41} - \dot{z}_{3} } \right) + c_{z41} \left( {\dot{z}_{41} - \dot{z}_{42} } \right) + k_{z3} \left( {z_{41} - z_{3} } \right) + k_{z41} \left( {z_{41} - z_{42} } \right) = 0, \hfill \\ m_{42} \cdot \ddot{z}_{42} + c_{z41} \left( {\dot{z}_{42} - \dot{z}_{41} } \right) + c_{z42} \left( {\dot{z}_{42} - \dot{z}_{43} } \right) + 2c_{z4} \left( {\dot{z}_{42} - \dot{z}_{5} } \right) \hfill \\ \quad {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + k_{z41} \left( {z_{42} - z_{41} } \right) + k_{z42} \left( {z_{42} - z_{43} } \right) + 2k_{z4} \left( {z_{42} - z_{5} } \right) = - 2F_{t} , \hfill \\ m_{43} \cdot \ddot{z}_{43} + c_{z42} \left( {\dot{z}_{43} - \dot{z}_{42} } \right) + c_{z43} \cdot \dot{z}_{43} + k_{z42} \left( {z_{43} - z_{42} } \right) + k_{z43} \cdot z_{43} = 0, \hfill \\ m_{5} \cdot \ddot{z}_{5} + c_{z4} \left( {\dot{z}_{5} - \dot{z}_{42} } \right) + c_{z5} \cdot \dot{z}_{5} + k_{z4} \left( {z_{5} - z_{42} } \right) + k_{z5} \cdot z_{5} = F_{t} . \hfill \\ \end{array} \right.$$

(2)

The overturning degree of freedom is expressed as follows:

$$\left\{ \begin{array}{*{20}l} I_{1x} \cdot \ddot{\theta }_{x1} - c_{zx11} \left( {\dot{z}_{x11} - \dot{z}_{2} } \right) \cdot a_{L} + c_{zx12} \left( {\dot{z}_{x12} - \dot{z}_{2} } \right) \cdot a_{L} \hfill \\ \quad - k_{zx11} \left( {z_{x11} - z_{2} } \right) \cdot a_{L} + k_{zx12} \left( {z_{x12} - z_{2} } \right) \cdot a_{L} = M_{x} , \hfill \\ I_{{1{\text{y}}}} \cdot \ddot{\theta }_{{{\text{y}}1}} - c_{{z{\text{y}}11}} \left( {\dot{z}_{y11} - \dot{z}_{2} } \right) \cdot a_{L} + c_{zy12} \left( {\dot{z}_{y12} - \dot{z}_{2} } \right) \cdot a_{L} \hfill \\ \quad - k_{zy11} \left( {z_{y11} - z_{2} } \right) \cdot a_{L} + k_{zy12} \left( {z_{y12} - z_{2} } \right) \cdot a_{L} = M_{y} , \hfill \\ \end{array} \right.$$

(3)

where I_1x and I_1y are the lateral and vertical moments of inertia, respectively. k_zx11, k_zx12, k_zy11, and k_zy12 are the tunneling equivalent stiffness values of the four pieces of cutterhead.

Coupling relationships exist between the tunneling and overturning vibrations. The relationships between the displacement of each cutterhead pieces and that of the cutterhead tunneling vibration are expressed in Eq. (4):

$$\left\{ \begin{aligned} z_{x11} = z_{1} - a_{L} \sin \theta_{x1} , \hfill \\ z_{x12} = z_{1} + a_{L} \sin \theta_{x1} , \hfill \\ z_{y11} = z_{1} - a_{L} \sin \theta_{y1} , \hfill \\ z_{y12} = z_{1} + a_{L} \sin \theta_{y1} , \hfill \\ \end{aligned} \right.$$

(4)

where z_x11, z_x12, z_y11, and z_y12 are the displacements of each cutterhead piece, z₁ is the axial vibration displacement of the cutterhead, θ_x1 and θ_y1 are the overturning angles of the cutterhead, and a_L is the radius of the cutterhead.

By creating a simultaneous equation from Eqs. (2)–(4), the coupling dynamic model of the tunneling and overturning vibrations can be expressed as Eq. (5):

$$\left\{ \begin{array}{*{20}l} m_{1} \cdot \ddot{z}_{1} + c_{zx11} \left( {\dot{z}_{1} - \dot{z}_{2} - a_{L} \dot{\theta }_{x1} } \right) + c_{zx12} \left( {\dot{z}_{1} - \dot{z}_{2} + a_{L} \dot{\theta }_{x1} } \right) \hfill \\ \quad + c_{zy11} \left( {\dot{z}_{1} - \dot{z}_{2} - a_{L} \dot{\theta }_{y1} } \right){\kern 1pt} + c_{zy12} \left( {\dot{z}_{1} - \dot{z}_{2} + a_{L} \dot{\theta }_{y1} } \right) \hfill \\ \quad + k_{zx11} \left( {z_{1} - z_{2} - a_{L} \theta_{x1} } \right) + k_{zx12} \left( {z_{1} - z_{2} + \theta_{x1} } \right) \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + k_{zy11} \left( {z_{1} - z_{2} - a_{L} \theta_{y1} } \right) + k_{zy12} \left( {z_{1} - z_{2} + a_{L} \theta_{y1} } \right) = F_{z} , \hfill \\ m_{2} \cdot \ddot{z}_{2} + c_{zx11} \left( {\dot{z}_{2} - \dot{z}_{1} + a_{L} \dot{\theta }_{x1} } \right) + c_{zx12} \left( {\dot{z}_{2} - \dot{z}_{1} - a_{L} \dot{\theta }_{x1} } \right) + c_{zy11} \left( {\dot{z}_{2} - \dot{z}_{1} + a_{L} \dot{\theta }_{y1} } \right) \hfill \\ \quad {\kern 1pt} + c_{zy12} \left( {\dot{z}_{2} - \dot{z}_{1} - a_{L} \dot{\theta }_{y1} } \right) + c_{z2} \left( {\dot{z}_{2} - \dot{z}_{3} } \right) + k_{zx11} \left( {z_{2} - z_{1} + a_{L} \theta_{x1} } \right) \hfill \\ \quad + k_{zx12} \left( {z_{2} - z_{1} - a_{L} \theta_{x1} } \right) + k_{zy11} \left( {z_{2} - z_{1} + a_{L} \theta_{y1} } \right) + k_{zy12} \left( {z_{2} - z_{1} - a_{L} \theta_{y1} } \right) \hfill \\ \quad + k_{z2} \left( {z_{2} - z_{3} } \right) = 0, \hfill \\ m_{3} \cdot \ddot{z}_{3} + c_{z2} \left( {\dot{z}_{3} - \dot{z}_{2} } \right) + c_{z3} \left( {\dot{z}_{3} - \dot{z}_{41} } \right) + k_{z2} \left( {z_{3} - z_{2} } \right) + k_{z3} \left( {z_{3} - z_{41} } \right) = F_{f} , \hfill \\ m_{41} \cdot \ddot{z}_{41} + c_{z3} \left( {\dot{z}_{41} - \dot{z}_{3} } \right) + c_{z41} \left( {\dot{z}_{41} - \dot{z}_{42} } \right) + k_{z3} \left( {z_{41} - z_{3} } \right) + k_{z41} \left( {z_{41} - z_{42} } \right) = 0, \hfill \\ m_{42} \cdot \ddot{z}_{42} + c_{z41} \left( {\dot{z}_{42} - \dot{z}_{41} } \right) + c_{z42} \left( {\dot{z}_{42} - \dot{z}_{43} } \right) + 2c_{z4} \left( {\dot{z}_{42} - \dot{z}_{5} } \right) \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + k_{z41} \left( {z_{42} - z_{41} } \right) + k_{z42} \left( {z_{42} - z_{43} } \right) + 2k_{z4} \left( {z_{42} - z_{5} } \right) = 0, \hfill \\ m_{43} \cdot \ddot{z}_{43} + c_{z42} \left( {\dot{z}_{43} - \dot{z}_{42} } \right) + c_{z43} \cdot \dot{z}_{43} + k_{z42} \left( {z_{43} - z_{42} } \right) + k_{z43} \cdot z_{43} = 0, \hfill \\ m_{5} \cdot \ddot{z}_{5} + c_{z4} \left( {\dot{z}_{5} - \dot{z}_{42} } \right) + c_{z5} \cdot \dot{z}_{5} + k_{z4} \left( {z_{5} - z_{42} } \right) + k_{z5} \cdot z_{5} = 0, \hfill \\ {{I_{1x} } \mathord{\left/ {\vphantom {{I_{1x} } {a_{L} }}} \right. \kern-0pt} {a_{L} }} \cdot \ddot{\theta }_{x1} - c_{zx11} \left( {\dot{z}_{1} - \dot{z}_{2} - a_{L} \dot{\theta }_{x1} } \right) + c_{zx12} \left( {\dot{z}_{1} - \dot{z}_{2} { + }a_{L} \dot{\theta }_{x1} } \right) \hfill \\ \quad - k_{zx11} \left( {z_{1} - z_{2} - a_{L} \theta_{x1} } \right) + k_{zx12} \left( {z_{1} - z_{2} { + }a_{L} \theta_{x1} } \right) = {{M_{x} } \mathord{\left/ {\vphantom {{M_{x} } {a_{L} }}} \right. \kern-0pt} {a_{L} }}, \hfill \\ {{I_{1y} } \mathord{\left/ {\vphantom {{I_{1y} } {a_{L} }}} \right. \kern-0pt} {a_{L} }} \cdot \ddot{\theta }_{{{\text{y}}1}} - c_{{z{\text{y}}11}} \left( {\dot{z}_{1} - \dot{z}_{2} - a_{L} \dot{\theta }_{y1} } \right) + c_{zy12} \left( {\dot{z}_{1} - \dot{z}_{2} + a_{L} \dot{\theta }_{y1} } \right) \hfill \\ \quad - k_{zy11} \left( {z_{1} - z_{2} - a_{L} \theta_{y1} } \right) + k_{zy12} \left( {z_{1} - z_{2} + a_{L} \theta_{y1} } \right) = {{M_{y} } \mathord{\left/ {\vphantom {{M_{y} } {a_{L} }}} \right. \kern-0pt} {a_{L} }}. \hfill \\ \end{array} \right.$$

(5)

The above vibration transmission equations can be expressed into matrix form as:

$${\varvec{M}}\ddot{X} + {\varvec{C}}\dot{X} + {\varvec{K}} = F,$$

(6)

where X is the displacement vector, M is the mass matrix, K is the stiffness matrix, C is the damping matrix, and F is the external excitation.

3 Solution for Dynamic Parameters

By considering the TBM used in a water-diversion project as a research object, the layout of the disc cutters in the cutterhead is shown in Figure 4. The cutterhead diameter is 7930 mm with 51 cutters, including 8 center, 32 normal, and 11 gauge cutters. The spacing between the center cutters is 101.5 mm and that between the normal cutters is 83 mm. The inclination angles of the gauge cutters are 65.5°, 68.5°, and 70°.

Figure 4

Layout of the disc cutters

3.1 External Excitations of the TBM Cutterhead

The dominant geological formation in the water-diversion project is granite with high compressive strength. Thus, the TBM cutterhead suffers from violent vibrations during the tunneling process. To provide loads for the cutterhead, full-scale rock-breaking tests are performed on a linear cutting machine (LCM) in Central South University [28]. The LCM consists of the frame, moving unit, disc cutter, cutter housing unit, hydraulic unit, control unit, and data acquisition unit, as shown in Figure 5. A 17-in disc cutter is used for the test, and rock samples with dimensions of 900 mm × 380 mm × 280 mm are used for cutter breaking. The type and mechanical properties of the experimental rock are based on typical TBM geological conditions. By filtering the test data and combining them with simulation, three-dimensional forces can be obtained, as shown in Figure 5. The average vertical and rolling forces in the center cutter are 236 and 34.7 kN, respectively, and the lateral force is concentrated in the range from − 80 to 80 kN. The average vertical and rolling forces of the normal cutter are 256 and 29.1 kN, where the lateral force ranges from − 20 to 20 kN. The average vertical and rolling forces of the gauge cutter are 214 and 35.74 kN, respectively. The lateral force ranges from 20 to 120 kN.

Figure 5

Three-dimensional loads of the cutters

Based on the radius, position angle, and tilt angle of the cutter as well as the cutter loads in three directions, the total thrust, total torque and change trend of the radial unbalanced force of the cutterhead can be obtained, which can be presented as time-varying external excitations.

3.2 Calculation of Equivalent Stiffness and Damping

Three-row rollers are used in the TBM main bearing, as shown in Figure 6, i.e., main axial rollers that withstand the thrust load, secondary axial roller bearing for the bending moment, and radial rollers that carry the radial load.

Figure 6

Structure of the main bearing

The elastic deformation in the elastic line-contact area can be calculated using an empirical equation [29]. The Hertz contact stiffness between the axial roller and raceway is defined as

$$k_{H}^{\prime } = \frac{{d_{Q} }}{{d_{\delta } }} = 2.894 \times 10^{5} L_{we}^{0.8} Q^{0.1} ,$$

(7)

where L_we represents the effective length of the rollers and Q denotes the contact load.

According to the equation that calculates the oil-film thickness of the contact area, the contact stiffness in the contact area can be expressed as

$$k_{L} = \frac{{d_{Q} }}{{d_{{h_{c} }} }} = - 2.18 \times 10^{3} \frac{{E_{0}^{0.03} Q^{1.13} }}{{\alpha^{0.54} (\eta_{0} u)^{0.7} R^{0.43} L_{we}^{0.13} }}{\kern 1pt} ,$$

(8)

where α is the viscosity pressure coefficient of the lubricant, η₀ is the dynamic viscosity of the lubricant, u is the average speed, R is the equivalent curvature radius of the contact area, E is the elastic modulus, and E₀ is the equivalent elastic modulus.

The contact-area stiffness can be calculated as follows:

$$k = {\kern 1pt} {\kern 1pt} \frac{1}{{{1 \mathord{\left/ {\vphantom {1 {k_{H} }}} \right. \kern-0pt} {k_{H} }} + {1 \mathord{\left/ {\vphantom {1 {k_{L} }}} \right. \kern-0pt} {k_{L} }}}}{\kern 1pt} ,$$

(9)

where k_H denotes the Hertz contact stiffness and k_L denotes the contact stiffness of the oil film.

According to the elastic fluid dynamics, the contact damping between the rollers and roller raceway consists of the roller structural and oil-film damping. Considering the effect of the oil-film thickness, the main-bearing damping coefficient is calculated using the following equation [30].

The damping between the rollers and inner raceway can be expressed as:

$$c_{1} = \frac{{27.4R_{{}}^{1.5} \cdot L_{we}^{0.805} \cdot Z^{0.805} \cdot Q^{0.195} }}{{\alpha^{0.81} \eta_{0}^{0.05} n_{i}^{1.05} r^{0.645} (R_{1} + r)^{1.05} (1 - \gamma )^{1.695} (1 + \gamma )^{1.05} E_{0}^{ - 0.045} }}.$$

(10)

The damping between the rollers and surface raceway can be expressed as:

$$c_{2} = \frac{{27.4R_{{}}^{1.5} \cdot L_{we}^{0.805} \cdot Z^{0.805} \cdot Q^{0.195} }}{{\alpha^{0.81} \eta_{0}^{0.05} n_{i}^{1.05} r^{0.645} (R_{1} + r)^{1.05} (1 + \gamma )^{1.695} (1 - \gamma )^{1.05} E_{0}^{ - 0.045} }},$$

(11)

$$c = {\kern 1pt} {\kern 1pt} \frac{1}{{{1 \mathord{\left/ {\vphantom {1 {c_{1} }}} \right. \kern-0pt} {c_{1} }} + {1 \mathord{\left/ {\vphantom {1 {c_{2} }}} \right. \kern-0pt} {c_{2} }}}}{\kern 1pt} ,$$

(12)

where Z is the number of rollers, n_i is the rotating speed of the raceway, r is the radius of the roller, and R₁ is the radius of the inner raceway.

Employing theoretical calculations or experimental measurements to acquire the equivalent stiffness and damping parameters of the cutterhead, main drive, main girder, and support saddle of the gripper shoes is difficult. Therefore, the finite-element method and empirical formula are employed to obtain their stiffness and damping coefficients. The equivalent stiffness of the components can be calculated using Hooke’s law. The equivalent damping calculation equation can be expressed as follows:

$$c = 2\xi \cdot \sqrt {m_{e} \cdot k_{e} } ,$$

(13)

where c is the structural damping, ζ is the damping ratio, and m_e and k_e represent the equivalent mass and equivalent stiffness, respectively.

By summarizing the aforementioned results, the stiffness and damping parameters of each component are obtained, and the partial parameters are listed in Table 1.

Table 1 Partial stiffness and damping parameters of mainframe

4 Dynamic Responses of TBM Mainframe

Because the vertical vibration response is similar to the lateral vibration response, this study only analyzes the vibration responses in the lateral, tunneling, and overturning directions of the cutterhead and main girder 1.

4.1 Vibration Response in Tunneling Direction

Under the impact of external excitations, the vibration acceleration curves of the TBM mainframe in the tunneling direction are shown in Figure 7. The cutterhead acceleration is concentrated from − 3.5g to + 3.5g with maximum acceleration of more than 7g, demonstrating an intense vibration. When the vibration is transmitted to main girder 1, the acceleration changes to the range from − 2.8g to 2.8g with a peak of 5.9g. The frequency responses of the TBM mainframe in the tunneling direction are shown in Figure 8. The vibration energy of the cutterhead is mainly in the frequency range of 0–130 Hz, and the vibration energy of the main girder is mainly concentrated in the frequency range of 0–70 Hz.

Figure 7

Vibration acceleration in the tunneling direction

Figure 8

Frequency spectrum results in the tunneling direction

4.2 Vibration Responses in Overturning Direction

The vibration angular acceleration of the cutterhead in the overturning direction is shown in Figure 9a, and the overturning angle curve is shown in Figure 9b. The overturning angular acceleration is relatively small, which mainly ranges from − 1.5 to + 1.5 rad/s² with the cutterhead rotation. Overall variation periods of angular acceleration and overturning angle are equal to the period of cutterhead rotation. Frequency responses of the mainframe in the overturning direction are shown in Figure 10. The vibration energy occurs mainly in the frequency range of 0–130 Hz.

Figure 9

Vibration responses in the overturning direction

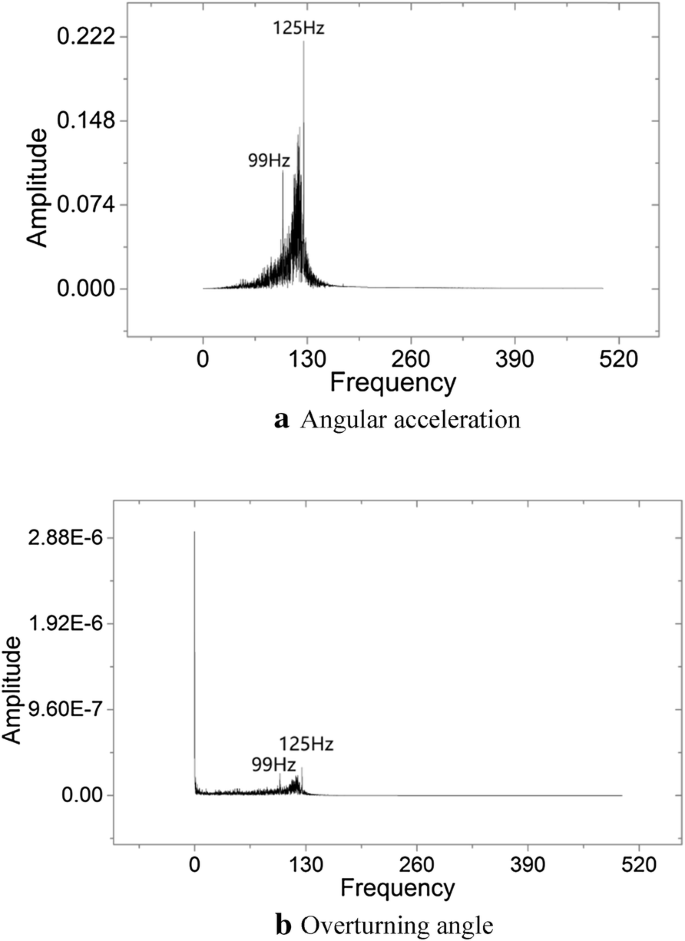

Figure 10

Frequency spectrum results in the overturning direction

4.3 Vibration Responses in Lateral Direction

The lateral acceleration of the cutterhead is shown in Figure 11, which mainly ranges from − 1.4g to + 1.4g with a maximum of more than 1.45g. The acceleration of the main girder is slightly lower than that of the cutterhead, which can be attributed to the restraint effect of the bottom support shield. The acceleration of the main girder ranges from − 1.0g to + 1.0g with a maximum of 1.25g. The frequency spectrum of the lateral vibration is shown in Figure 12. Vibration energy of the cutterhead is distributed in the frequency range of 0–130 Hz, whereas that of the main girder is distributed in the range of 0–100 Hz.

Figure 11

Vibration acceleration in the lateral direction

Figure 12

Frequency spectrum results in the lateral direction

4.4 Transfer Law of Loads

The change trend of the propelling resistance transferred from the cutterhead to main girder 1 can be estimated from Figure 13, which clearly shows that the change trends in the transfer process are basically the same. The propelling resistance of the cutterhead is concentrated between 4200 and 22000 kN with an average value of 12848 kN. The propelling resistance of the main girder mainly ranges from 2000 to 28000 kN with an average of 12867 kN.

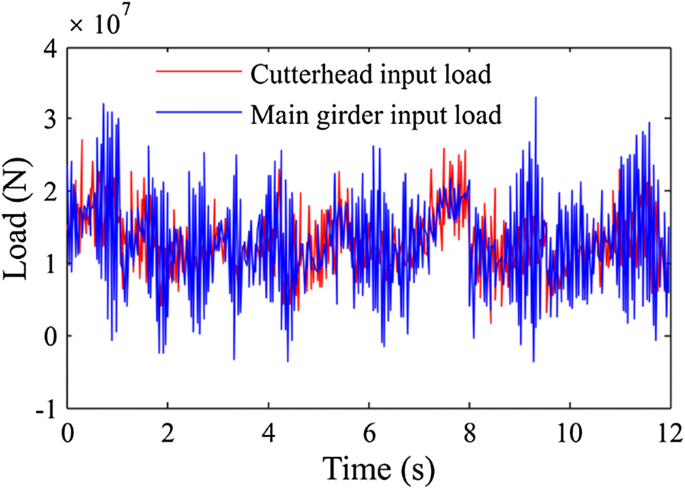

Figure 13

Propelling resistance transmission

From the abovementioned results, the following conclusions can be drawn. Parallel conditions exist between the vibration responses of the cutterhead and main girder. The cutterhead suffers from more intense vibrations with the frequencies concentrated at approximately 0–130 Hz, whereas the frequencies of the main girder vibration are mainly concentrated at approximately 0–100 Hz. The farther the position is from the cutterhead, the lower are the vibration frequencies. The vibrations in the tunneling direction are more intense than those in the lateral direction. In the load-transfer process, the mean loads remain the same, whereas the change range of the loads expands.

5 Validation of Dynamic Model Based on Field Tests

To verify the correctness of the dynamic model, a field test was performed in the TBM mainframe from a water-diversion project. The vibration tests were conducted using an acceleration test system. The locations of the acceleration test points are shown in Figure 14.

Figure 14

Locations of the acceleration sensors

Considering the poor working condition of the cutterhead, acceleration sensors were attached to the manhole of the cutterhead, i.e., point A in Figure 14. The test points in the main drive were located around the B point on the main girder connecting plate, and the test points for the main girder were located on the C, D, and E point positions. The vibration signals in the manhole were transferred in a wireless manner, whereas those of the other test points were directly obtained through the transmission lines. At each test point, three acceleration sensors for the lateral, vertical, and tunneling directions were installed.

5.1 Vibration Test of Cutterhead

The field-test values of the vibration of the cutterhead are compared with the theoretical values, as shown in Figure 15. The measured values of the cutterhead lateral acceleration are larger than those calculated by the model, which mainly range from − 2g to + 2g. The mean-square deviation of the lateral-test acceleration is 1.01g, whereas the calculated value is 0.61g. The measured values of the vibration acceleration in the tunneling direction are lower than the calculated values, which mainly range from − 3g to + 3g. The mean-square deviation of the measured tunneling acceleration is 1.92g, and that of the calculated acceleration is 2.1g.

Figure 15

Measured and calculated accelerations of cutterhead

5.2 Vibration Test of Main Girder

The measured and calculated acceleration values of the main girder are shown in Figure 16, which shows that the measured values of the lateral-vibration acceleration in the main girder are larger than the calculated values, mainly ranging from − 2g to + 2g. The mean-square deviation of the lateral measured acceleration is 0.86g, and that of the calculated value is 0.52g. In the tunneling direction, the test values of the vibration acceleration are lower than the calculated values, which mainly range between − 2.3g and 2.3g with the maximum value reaching 5g. Mean-square deviation of the measured tunneling acceleration is 1.51g, and that of the calculated acceleration is 1.72g.

Figure 16

Measured and calculated accelerations of main girder

Comparison of the field-test and calculated values of the acceleration in the TBM mainframe reveals that the calculated values of the lateral and vertical vibration acceleration are lower than the test values, whereas the calculated values of the vibration acceleration in the tunneling direction is larger than the measured values. The reasons for the differences in the tunneling and other directions can be attributed to the complex internal structure of each component in the mainframe and the slant stiffened plate of the cutterhead. In the transmission process, partial vibrations in the tunneling direction can be transmuted into other vibrations such as the lateral and vertical vibrations due to the slant stiffened plate and complex internal structure of the mainframe.

The calculated and measured acceleration values of the TBM mainframe have the same magnitude within a relatively acceptable error range. The major error comes from the simplification of the complex internal structure of the TBM mainframe coupled with errors in the calculations of the equivalent stiffness and damping.

6 Conclusions

In this study, a dynamic model that includes the cutterhead, main drive, main girder, and support-thrust system is established. The dynamic response characteristics of the TBM mainframe and the transfer trend of loads are investigated both theoretically and by field tests. The main results are summarized as follows.

• (1) In the tunneling process, the lateral, vertical, and tunneling vibrations of the TBM mainframe have the same vibration level in which the changes are similar to those of the external excitations.

• (2) Parallel conditions exist between the vibration responses of the cutterhead and main girder. The multi-directional vibration of the cutterhead is more intense than that of the main drive, main bearing, and main girder. The vibrations in the tunneling direction are more intense than those in the lateral direction. The frequencies of the cutterhead vibration energy are predominantly concentrated at approximately 0–130 Hz, and those of the main girder vibration energy are mainly concentrated at approximately 0–100 Hz. As the distance from the cutterhead increases, the vibration energy is concentrated in a lower frequency. During the design of the TBM mainframe, measurement of the vibration reduction needs to be considered to prevent fatigue damage and breakdown of the cutterhead and damage to the main bearing.

• (3) In the process of mainframe load transfer from the tunneling direction, the average load and change trend of the loads remain constant, whereas the range of the loads expands by 1.4 times with the increase in the load amplitude. As a result, when the strength of the components in the back end of the mainframe is designed and checked, the external loads from the cutterhead need to be amplified.

• (4) The lateral measured acceleration of the TBM mainframe is concentrated in the range from − 2g to + 2g, and the measured acceleration in the tunneling direction is mainly concentrated in the range from − 3g to + 3g. Comparison of the theoretical values with the actual test values from three directions in the mainframe reveals that the measured and calculated vibrations are basically the same within a relatively acceptable range of error. The results have verified the correctness of the modeling and the solution of the dynamic model, which confirm the weakest components of TBM mainframe and provide a theoretical basis for the design and evaluation of the mainframe as well as the external loads for mainframe fatigue-life analysis.
