New Hybrid AD Methodology for Minimizing the Total Amount of Information Content: A Case Study of Rehabilitation Robot Design

Abstract

Converting customer needs into specific forms and providing consumers with services are crucial in product design. Currently, conversion is no longer difficult due to the development of modern technology, and various measures can be applied for product realization, thus increasing the complexity of analysis and evaluation in the design process. The focus of the design process has thus shifted from problem solving to minimizing the total amount of information content. This paper presents a New Hybrid Axiomatic Design (AD) Methodology based on iteratively matching and merging design parameters that meet the independence axiom and attribute constraints by applying trimming technology, the ideal final results, and technology evolution theory. The proposed method minimizes the total amount of information content and improves the design quality. Finally, a case study of a rehabilitation robot design for hemiplegic patients is presented. The results indicate that the iterative matching and merging of related attributes can minimize the total amount of information content, reduce the cost, and improve design efficiency. Additionally, evolutionary technology prediction can ensure product novelty and improve market competitiveness. The methodology provides an excellent way to design a new (or improved) product.

1 Introduction

With the development of technology, an increasing number of technical measures have become available to solve engineering problems. Designers and engineers are beginning to realize that there are multiple alternative technological solutions (design parameters) for achieving specific needs (customer requirements). In the contemporary era characterized by the explosive development of technology, customer demands have become personalized and diversified, and emphasis has been placed on quality and the customer experience [1]. However, traditional research focused on finding appropriate technical solutions based on customer needs, organizing the design process, and solving practical engineering problems is hampered by information occlusion, the limited knowledge and experience of engineers, and the lack of a systematic design philosophy for guiding the design process. In other words, designers were limited by technical factors, so they focused on the process of determining design parameters.

Suh [2] suggested that the information axiom could be used in optimal selection when multiple functional requirements (FRs) exist. Suh noted that one could minimize the information content by specifying the largest allowable tolerance when stating FRs and integrating the design parameters (DPs) into a single physical variable. Evaluation of design schemes through information axioms can optimize design schemes, increase the success rate of design and development, and enhance robustness [3‒6].

In recent years, many scholars have performed extensive research to expand and improve AD theory. Emilio Sarno et al. [7] associated TRIZ and reliability-centred maintenance (RCM) with AD to obtain practical solutions. Kremer et al. [8] presented an AD, TRIZ, and mixed integer programming (MIP) method to develop innovative designs. Ko [9] modelled an AD and TRIZ hybrid approach to solve contradictions.

Although these studies have successfully provided the basic principles and conceptual framework for product innovation design and improvement, most of these studies focused on the independence of axiomatic design, especially decoupling the design matrix if it is coupled. Most research on the information axiom has concentrated on the evaluation scheme. Krishnapillai and Zeid suggested that each designer has a unique way of generating design alternatives [10]. Each design alternative has advantages and disadvantages that affect customer satisfaction [11].

A novel systematic method is lacking that can help designers minimize the total amount of information content to create innovative products that can surprise customers in the context of new trends and competitive markets.

Suh [4] suggested that the information axiom can be used in optimal selection when multiple functional requirements exist. Suh noted that one could minimize the information content by specifying the largest allowable tolerance when stating FRs and integrating the design parameters into a single physical variable.

Although Suh proposed some guidelines for minimizing the total amount of information content, there is still a lack of specific practical technology for implementing the relevant work. The theory most similar to Suh’s information axiom concept is trimming theory [12], which aims to remove or integrate parts and components while maintaining system functionality [13, 14]. However, trimming theory does not provide specific methods for identifying the design parameters that should be trimmed, does not define information content, and lacks a theoretical framework.

Therefore, we can redefine the meaning of minimizing the total amount of information content, which involves not only reducing the number of information components, the uncertainty of design parameters and the complexity of consumer operations but also enhancing robustness. This paper attempts to provide a new design model to avoid unnecessary complexity in the design system and enhance customer satisfaction and help designers simultaneously solve problems and evaluate projects.

This paper introduces the AD methodology, trimming technology, ideal final results, and evolution theory in Section 2. Section 3 presents the proposed hybrid methodology. In Section 4, a case study is investigated to justify and verify the method. Finally, the conclusions are summarized in Section 5.

2 Methodology

To meet customer requirements and improve customer satisfaction, designers need to find the best designs among the alternative designs by continuously considering the principle, effect and structure of design parameters to achieve specific functions. In this process, to cope with fierce market competition, companies must improve the customer experience at the lowest cost, so the design process becomes complex. With developments in science and technology, there are now many ways to achieve specific functions and increase the amount of information processed. However, from the customer experience perspective, it is best to achieve these functions with as few operations as possible. The methodology described below was proposed to improve the traditional axiomatic design and minimize the total amount of information content under the premise of satisfying the independence axiom constraint based on AD theory, the trimming technique, the ideal final results (IFRs), and technology evolution theory.

2.1 Axiomatic Design

Suh proposed the AD concept in 1978 to maximize the productivity of a manufacturing system in all cases. Suh showed that when axiom conditions are satisfied, the robustness, performance, and reliability of the system and corresponding organization are improved.

Axiomatic design defines the process of product design as a procession of the designer choosing appropriate design parameters (DP) to achieve specific requirements. The main theoretical framework involves mapping relationships among customers, requirements and design parameters. The process includes 4 steps: (1) abstracting the customer needs (CNs); (2) mapping the customer needs in the FR space; (3) constructing the product function structural tree and determining design parameters to achieve specific functions based on the relevant principle, effect and structure (e.g., design parameters; DPs); and (4) mapping the selected optimal solution to the production process (with process variables; PVs). Finally, a product is obtained. According to the axiomatic principle, the mapping process and areas are shown in Figure 1.

Figure 1

Mapping processes of domain sand areas (Suh, 1990)

In addition to the main theoretical framework, there are two design axioms for product design, which can be stated as follows.

Axiom 1 (the independence axiom) involves maintaining the functional requirements of independence. Specifically, when there are two or more functional requirements, every requirement should be met without affecting the others, which requires the selection of design parameters that meet the overall functional requirements as well as the individual functional requirements. When a DP changes, the corresponding FR changers and the other dependent FRs are affected.

Axiom 2 (the information axiom) involves minimizing the total amount of information content to obtain the conditions of the optimal scheme.

2.2 Trimming Technique

The trimming technique was first proposed by Litvin and Gerasimov in the mid-1990s and was first published in Russian and then in English [12]. Sheu and Ho developed a set of trimming methods with significant results [14].

Trimming is a method of deleting some components while enhancing system ideality and reducing costs [14]. Trimming can eliminate or reduce harmful effects on the system, improve maintainability, reduce the difficulty of operations, and reduce the system costs. These traits are all necessary in contemporary design. There are many complex products, and customers usually need to read complicated manuals and follow specific functions and steps. These steps can be simplified or avoided with trimming methods. Additionally, trimming can be used to minimize the total amount of information content.

2.3 Ideal Final Result

Obtaining the ideal final result (IFR) [15, 16] is one step in the TRIZ [17‒19]. The following formula can express the IFR.

$${\text{Ideality}} = \frac{{\mathop \sum \nolimits {\text{ Benefits}}}}{{\mathop \sum \nolimits {\text{Cost}} + {\text{ Harmful function}}}}.$$

(1)

The ideal solution originally proposed by Altshuller is that the system develops in the direction of improving the ideal level of the system. Moreover, the IFRs achieve the most significant degree of self-service (self-realization, self-delivery, and self-control) in the case of a minimal change in the system.

This theory can help improve the existing technical system by considering the solution to the problem and obtaining an optimal solution by overcoming traditional boundaries and seeking new technical methods.

2.4 Technology Evolution Theory

Technology evolution theory is an essential branch of TRIZ. Altshuller suggested that the evolution of a technological system is not random but follows specific objective laws [18, 19]. Many scholars have since enriched technology evolution theory [20, 21]. The eight patterns of evolution proposed by Terninko et al. [22] were considered in the paper.

3 New Hybrid Axiomatic Design Methodology

The prerequisite for minimizing information is to determine the design parameters or functions required by a given operation. We first use AD theory to map functional requirements and design parameters for structural attribute correlation calculations. First, AD is adopted to analyse the design problem, decompose the main problem into a sub-hierarchy level problem and map design parameters. Then, the attributes of the design parameters are determined to be related or not, which is the core objective and key step in information minimization. We propose the following criteria for attribute-related judgement.

• (1) Determining whether functional requirements (FRs) are relevant or not.

  The goal of this criterion is to determine whether some FRs can be achieved with a single design parameter (DP) based on an achievable index.

• (2) Determining whether design parameters (DPs) are relevant or not.

  The objective of this criterion is to determine whether some components can be replaced with an intrinsic function or other components based on an achievable index.

• (3) Calculating the total amount of information content.

  $$I = \log_{2} {\raise0.7ex\hbox{$1$} \!\mathord{\left/ {\vphantom {1 p}}\right.\kern-\nulldelimiterspace} \!\lower0.7ex\hbox{$p$}},$$

  (2)

  where I is the total amount of information content and p is probability.

The design parameters to which attributes are related should be iteratively matched and merged based on trimming techniques, the IFR, or technology evolution theory. After the above operations, we obtain the new design parameters and a new solution and then determine whether the new solution has the lowest information content. If not, the physical domain (PD) is transformed back to the functional domain (FD) based on zigzagging, which is the process of decomposing a design into hierarchies by alternating between domains and redescribing the design parameters as functional requirements. Finally, this process is repeated until the optimal solution is obtained.

An operational model is constructed to help designers conveniently use the proposed method in product design, as shown in Figure 2 (we propose a hybrid algorithm that includes mapping, zigzagging, and iterative matching and merging based on DPs, as shown in Appendix).

Figure 2

Operational model for minimizing the total amount of information content

4 Case Study

4.1 Defining the Design Problems

Many regions have ageing societies, and there are many people with ambulatory dysfunction in those regions. Moreover, many areas are facing shortages of medical workers [23]. A rehabilitation robot is regarded as one way to solve this problem [24, 25]. We worked with the China Rehabilitation Research Center (CRRC) to design a new mobile chaperonage lower limb rehabilitation training robot (MCLLRTR). The requirements of the robot are summarized as follows:

• (1) Assist impaired individuals in exercises for leg rehabilitation;

• (2) Detect and record the gait and recovery information;

• (3) Provide a flexible mechanical structure for patient security;

• (4) Have as few operational rules as possible for the lower limbs;

• (5) Have a low cost.

4.2 Innovative Process Based on the New Hybrid Methodology

• Step 1: Define the necessary level of AD syntax.

  According to the CRRC, the training content used in rehabilitation varies according to the level of dysfunction and physical condition. In this work, we mainly focused on late-stage rehabilitation training and the development of a mobile robot for rehabilitation training. The essential FR (FR₁) can be expressed as follows: the design parameters must be appropriate for a lower limb rehabilitation training robot.

  An appropriate design parameter (DP₁) is required to satisfy FR₁. Thus, DP₁ can be described based on the relevant conversion technology and structure.

  There is only one design parameter (DP₁), and there is no property-related phenomenon. Therefore, we need to decompose FR and DP continuously.

  According to DP₁, the further decomposition of FR₁ represents the following FRs:

  • FR₁₁: Provides a proper rehabilitation mechanism for rehabilitation training involving hemiplegic patients;

  • FR₁₂: Able to detect and record gait and fall information;

  • FR₁₃: Able to adjust dimensional parameters and ensure safety;

  • FR₁₄: Provide simple operations with good interactivity; and

  • FR₁₅: Have a low cost.

• The FR hierarchy is constructed from the corresponding DP hierarchy.

  The alternative solutions and various DPs are analysed based on the new hybrid methodology, as previously noted.

• Step 2: Calculate the relevance index of each domain, i and j, to determine the design parameters to which attributes are related.

  The final relevance index for each domain, i and j, is calculated based on the accumulation of weighted subrelevance indices from the abovementioned 3 criteria indices using Eq. (3).

  $$R_{ij} = \omega_{F} F_{ij} + \omega_{D} D_{ij} + \omega_{P} P_{ij} ,$$

  (3)

  where i and j are the indices of the relevance calculation and ${R}_{ij}$ is the final relevance index for DPs i and j, and its value ranges from −1 to 1. ${F}_{ij}$, ${D}_{ij}$, and ${P}_{ij}$ are the three relationship indices for i and j. These indices are related to the functional requirements, design parameters, and properties. ${\omega }_{F}$, ${\omega }_{D}$, and ${\omega }_{P}$ are the weights of the corresponding 3 indices. The weight of each factor is between 0 and 1, and the sum of the 3 weights is equal to 1.

• Step 3: Iteratively match and merge the design parameters until the DP with the lowest information content is obtained.

  We can identify the target DPs (according to the following iteration condition: if ${R}_{ij}>0.6$) that can be integrated or trimmed based on the relevance index and then iteratively combine them. According to FR₁₂, the corresponding DP₁₂ should be able to detect gait and fall information and record the training time, number of steps, and movement speed. We conducted related investigations and research on the existing gait detection technology and summarized several common methods, such as those based on image detection [26], environmental perception-based detection [27], and wearable sensor detection [28, 29].

  We can use the hybrid model to minimize the total amount of information content. We identified DP₁₂ as the target of iterative combination based on the relevance index. According to trimming technique (1), as discussed in Section 2.2, the IFRs (self-realization) and technology evolution theory (in this case, evolution rule 5: transition to a flexible system or a mobile system to improve controllability), as noted in Sections 2.3 and 2.4, we finally met some detection requirements by arranging the photoelectric sensors at specific spatial locations and applying a novel classifier algorithm. The novel classifier algorithm is detailed in another paper [30‒32]. Compared to other sensor combination methods, the use of photoelectric sensors dramatically reduces the complexity of the design. We can list the design parameters that meet the functional requirements in the design matrix and calculate the information content of the design parameters. The relevance index and total amount of information content between the FR and DP matrices are given in Table 1 based on the new hybrid methodology, as previously discussed.

  Table 1 Information content analysis based on the new hybrid axiomatic design methodology

  In this article, we use the accuracy rate of different alternative solutions as the basis for calculating the information content and set the recognition accuracy rate A_i to calculate the information content using Eq. (4):

  $$A_{i} = \frac{TP + TN}{{P + N}},$$

  (4)

  where TP+FN represents the number of samples that are positive, and P+N is the total number of samples.

  $$P_{i} = A_{i} ,$$

  (5)
  $$I_{i} = \log_{2} \frac{1}{{P_{i} }}.$$

  (6)

  As shown in Table 1, we found that for gait detection and fall detection, the solution of wearable sensors has the least information content; for step counting, detecting the training time and detecting the patient’s walking speed, the solution of photoelectric sensors has the least information content.

  To accurately recognize the various states of the patient in real time, we proposed a multi-sensor system to obtain multiple features and classify activities from different dimensions. The system board was designed with a STM32 microprocessor powered by a 5 V battery. To improve the accuracy of fall detection, we developed a tri-sensor detection system (as shown in Figure 3) for our specific rehabilitation robot. The photoelectric sensors collect the spatial distribution features of the gait for activity recognition. The tension sensors collect the directional features by sampling the difference in the same-side sensor signals. The accelerometer sensor collects kinematic information for activity recognition.

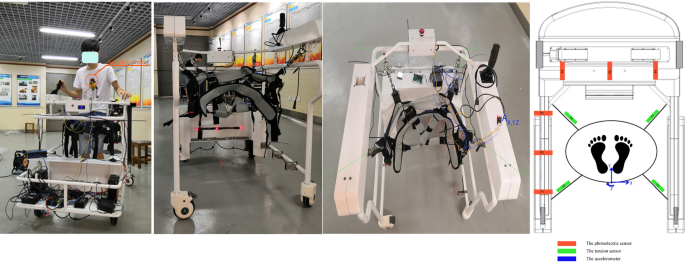

  Figure 3



  The tri-sensor detection system

  Through the new hybrid methodology, we successfully designed a new low-cost robot that meets almost all the relevant requirements. Compared to the previous rehabilitation training robots, the cost of the new rehabilitation robot is reduced by as many as 42%, and it allows patients to achieve omnidirectional actuation with straightforward manipulation, which significantly improves patient satisfaction.

5 Conclusions

• (1) Previous work has documented the effectiveness and strength of AD in the process of product design. Moreover, many scholars have performed extensive research to enrich and perfect the related theory. However, these studies did not focus on minimizing the total amount of information content, which is important for improving system ideality and customer experience. In this study, we proposed an approach for minimizing the total amount of information content based on trimming technology, IFRs, and technology evolution theory. The method can designers generate technically better solutions and create innovative products that can surprise users considering new trends and competitive markets.

• (2) This approach consists of an operational model of new hybrid methodology and related algorithms. Through the grammar structure of AD theory, the hierarchy of FRs is decomposed and mapped to the DPs to determine the design parameters for which attributes are related based on the relevance index. Finally, we reduce the total amount of information content by iteratively matching and merging the design parameters that meet the independence axiom constraint, and the attributes are related based on trimming technology, the IFRs, and technology evolution theory. The operational model can help designers simultaneously solve problems and evaluate projects.

• (3) Notably, to the best of our knowledge, this is the first study to propose a new hybrid methodology based on the iterative matching and merging of design parameters to minimize the total amount of information content. Our results provide compelling evidence for the effectiveness of this approach. However, some limitations are worth noting. The iterative matching and merging process is time intensive, and some professional knowledge is required. Future work should focus on developing an effective control method for the iterative process.
