Aerodynamic Characteristics of Isolated Loaded Tires with Different Tread Patterns: Experiment and Simulation

Abstract

The current research of tire aerodynamics mainly focus on the isolated and simplified tread tire. Compared with the real complex pattern tire, the tread pattern structure and deformed profile of a loaded tire has a greatly influence on tire aerodynamic drag. However, the mechanisms of the isolated loaded tires with different tread patterns effects on the aerodynamic drag are subjects worthy of discussion. The purpose of this study is to experimentally and computationally investigate the aerodynamic characteristics of three tires 185/65 R14 with different patterns under loaded. A wind tunnel test model was first established using three-dimensional (3D) printing with a ratio of 1:1, and the pressure coefficients Cp of the three tires with different patterns are measured. The paper then conducted computational fluid dynamics (CFD) simulations for analyzing the pressure and flow characteristics. The accuracy of CFD simulation is verified by comparing the simulation results with the test results of pressure coefficients Cp, and they are of good consistency. While, the general analysis of pressure coefficients Cp results of the three tires indicates high-pressure area on the windward surface, and occurrence of low-pressure area on the leeward surface, the pressure coefficients Cp of all three tires decreased firstly and then increased along in the air flow direction. The authors finally analyzed the effect of tread patterns on the flow field around the tire and revealed the differences between flow characteristics and aerodynamic drag. The results show that, angle of tire lateral groove has great effect on the flow field characteristics such that; the more the angle of lateral groove agrees with the air flow direction, the less the flow separation and flow vortices, and a minimum observable aerodynamic drag. The research provides a guidance for the design of low aerodynamic drag tires, and helps to illustrate the impact of tire aerodynamics on the car body in the future.

Introduction

Due to global warming, governments and manufacturers have been taking an increasing number of active steps to reduce CO2 emissions. In particular, automobile manufacturers and designers are attempting to reduce CO2 emissions because the road transport accounts for 92 percent of CO2 emissions from all transport services [1]. At high speed, overcoming aerodynamic drag is responsible for more than 50% of fuel consumption [2]. One effective measure for reducing CO2 emissions is to decrease the vehicle’s aerodynamic drag. It is reported that a 5% reduction in aerodynamic drag on a typical passenger car would result in a reduction of 1.5 g/km of CO2 [3]. Scholars have considered various cases for reducing aerodynamic drag, but most studies focus on modifications of car shape and improvements to airflow around the vehicle body [4]. Airflow can be improved with various efforts, such as optimizing side mirrors, hubcaps, and car bodies [5, 6]. These measures have been implemented effectively and CO2 emissions have declined as a result.

However, because the drag contributions from tires and wheels is about 25% of a vehicle’s overall aerodynamic drag, it cannot be ignored [7, 8]. When the wheel comes in contact with the airflow, the flow field structure undergoes a noticeable change due to tread pattern impact, and three main vortex structures occur—jetting, horseshoe, and top vortices [9]. These vortices would increase the flow separation and aerodynamic drag. To decrease the flow separation and reduce vortices, a previous study [10] presented that, a fully covered wheel blocks the flow from entering the wheel, lessens the flow separation, decreases the vortex size, and reduces drag. Wittmeier et al. [11] suggested that, the aerodynamic drag of a vehicle is reduced by more than 5% when the openings in the rim are covered using a flat surface cover. However, an enclosed wheel impedes the cooling effect of the brake and thus causes potential hazards to vehicle safety. These potential hazards limit the application domain expansion of the method while the wheel is fully covered. Therefore, extensive experimental studies have been conducted to analyze the influences of rim structures on tire aerodynamics. Vdovin [12] presented the relative importance of tire and rim designs for optimizing aerodynamic characteristics. The effects of rim coverage area, fan spokes, spoke sharpness on the flow field, and drag coefficient of a passenger vehicle were investigated by Bolzon et al. [13], and the results indicate that, rounded spoke edges can reduce the drag coefficient. Brandt et al. [14] developed a numerical model for a vehicle with various rim geometries, and elucidated the effects of certain geometric parameters of rim on the flow field and aerodynamic drag.

A tire is the first part of a vehicle that comes in contact with the outside airflow. Thus, the contour shape and tread pattern of tires have a significant influence on the flow pattern around wheel [15]. Even small differences in the tire geometry can cause significant differences in the aerodynamic drag [8]. It was reported that the measured dimensions of 205/55R16 tires differ from specifications by 10 mm, thus resulting in an increased aerodynamic drag of approximately 2% with the wider tire [16]. Landström et al. [17] compared the aerodynamic effects of different types of tires for a passenger car using a wind tunnel, and the research showed that the type of tire has a significant effect on the aerodynamic drag, it can make the overall drag of a vehicle vary in magnitude by a factor of 5–10.

Although the wind tunnel is a powerful device for investigating tire aerodynamics [15, 16, 18], a huge testing facility is required for wind tunnel testing. Moreover, it is difficult to capture some important flow field characteristics, for example the jetting phenomenon [19]. In the last decade, computational fluid dynamics (CFD) simulations are crucial for studying the flow fields of tires, and CFD simulation results can be confirmed with wind tunnel test results [20]. Axon et al. [21] used CFD simulation to calculate the flow around a wheel and referred to the experiments of Fackrell [18]. Similarly, Diasinos et al. [22] conducted an extensive CFD validation study on a wheel geometry proposed, and the overall pressure coefficient in their study closely matched the coefficient proposed by Fackrell. An unsteady RANS (URANS) simulation was conducted by McManus and Zhang [23], and they obtained a high surface pressure, lift force, and drag force, which were in agreement with those of Fackerell. Wittmeier et al. [24] used CFD to analyze the flow fields around tire with different shoulder geometries. The results showed that the aerodynamic performance of a tire can be improved by smoothing the outward shoulder. The most recent development in the prediction of the flow over an exposed wheel through CFD was published by Uddin et al. [25], who investigated the effects of tire design and operational parameters on aerodynamic performance parameters. Palin et al. [26] used a sliding mesh method to simulate tire rotation and obtained a general understanding of tire airflow characteristics. Hobeika et al. [27] used the moving reference frame approach to analyze the effects of tire pattern features on the drag of a passenger vehicle, and suggested that the rain grooves play a significant role in reducing drag. It is noted that the flow around the tire involves contributions from the tread pattern, ground contact, and rotation [28]. A tire simulation should include tread patterns and the contact patch to reflect aerodynamic characteristics around tire and to obtain the various effects of the different pattern features on aerodynamic characteristics. If the flow field around tire with complex pattern was simulated by CFD, a fine mesh should be used to resolve the lateral grooves. Otherwise, a simple rotating wall boundary condition would result in over predicted drag values [29, 30].

It should be noted that, the available related literature on aerodynamics of tire represented the contact patch by a cut tire or a convex platform, or a contact patch without tread patterns [22, 28]. These simplifications resulted in diverse influences on the flow field around the tire. To study the real effects of the tread patterns on aerodynamic characteristics of tire, tire contact behaviors, the tread pattern deformation and the sidewall bend of three tires 185/65 R14 with different tread patterns, namely; straight groove, axi-symmetrical groove and point-symmetrical groove, were obtained by the finite element analysis, and these features were used to build the three-dimensional (3D) printing model in Section 2. The aerodynamic characteristics of the three tires with different tread patterns was conducted by means of a wind tunnel test and CFD simulation in Sections 3 and 4, respectively. In Section 5, the CFD simulation is validated by the wind tunnel test, and the effects of tread pattern on the flow characteristics of the isolated loaded tires are discussed in Section 6. In the last section, the conclusions are drawn.

Experimental Model

The deformation contour and contact patch of a tire mounted on a vehicle have a considerable influence on the airflow field and separation characteristics around that tire. A study revealed that the sidewall profile and aspect ratio have a significant influence on the aerodynamic characteristics of the tire. To reflect deformation contour and contact patch, a finite element model (FEM) of a passenger car tire 185/65 R14 was established, as shown in Figure 1. Detailed information pertaining to the tire model and simulation analysis was presented by Zhou et al. [31].

Figure 1
figure1

Tire deformation under load

A radial stiffness analysis was used to validate tire model. Radial deformations of the tire were simulated under different pressures and load values. The stiffness test equipment displayed in Figure 2a was designed by our team according to the radial stiffness test method that had been illustrated in a previous study [32]. Under a load of 4000 N and an air inflation pressure of 241.3 kPa, the largest deformation section Wd values were 203.5 mm and 205.2 mm for the simulation and the experiment, the difference was within 2%. The comparison of the radial deformation results were presented in Figure 2b. It can be seen that, the simulation results are in agreement with the measured data with an error of 6.07%. This implies that, the tire model is sufficiently accurate for identifying tire deformation and can be used for subsequent aerodynamic analysis.

Figure 2
figure2

Tire stiffness test and simulation

To completely retain the details of the tire tread pattern and deformation contour while performing the wind tunnel test, the tire model was reconstructed using three-dimensional (3D) printing technology with a scale ratio of 1:1. SLA resin, which has high strength and rigidity, was used as the printing material.

A tire is mounted on a vehicle within a wheel housing. Approximately only one-third of the tire’s height is located outside the wheel housing and is therefore directly exposed to the flow; thus the lowest portion of the tire experiences relatively high air pressure and air stagnation. Although the aerodynamic characteristics of an isolated tire is not the same as those of a tire mounted on a vehicle, the jetting vortices and horseshoe vortices are always presented in the lower half of the tire [28]. What’s more, the exposed extent of an actual tire from the ground to the automobile chassis is about 150 mm, and the flow field under the vehicle is relatively stable. These results illustrate that, it is significant to analyze the aerodynamic characteristics of the lower half portion of the tire. Thus, a tire model with a height of 150 mm was used in this study. The basic features of the three tires are shown in Figure 3. The tires displayed in Figure 3a–c are tires with straight grooves, axi-symmetrical grooves and point-symmetrical grooves, respectively. The detailed sizes of the tire model are presented in Figure 3d.

Figure 3
figure3

Geometry representations of tire models

Experimental Setup

Wind Tunnel Setup

The aerodynamic experiment was conducted at the Wind Tunnel Laboratory of Yangzhou University. The diagram of the wind tunnel effect is displayed in Figure 4. The wind tunnel is a planar return all-steel structure with high-speed and low-speed testing sections that are arranged in series. The low-speed test section has a length of 7 m, width of 3 m, height of 3 m, wind speed range of 0–25 m/s, and a turntable with a diameter of 2 m. The high-speed testing section has a length of 3 m, width of 3 m, height of 1.5 m, wind speed range of 0–50 m/s, and a turntable of 1.2 m diameter. The power section is driven by a 185 kW rating AC motor with. Air temperatures were held constant at 25 ± 0.5 °C throughout the testing process.

Figure 4
figure4

Effect diagram of the wind tunnel at Yangzhou University

To fix the tire and reduce the influence of the boundary layer of the bottom wall, the tire was used to form a tire–flat plate model, as shown in Figure 5a. The tire was mounted on the flat plate, and the flat plate was fixed using four supports at the different centers. The center brackets were connected to the flat plate that was fixed with bolts. The front portion of the tire was kept at 20 mm from the edge of the flat plate, and the center portion of the tire was placed at 0.3 m from both sides (Figure 5b). The flat plate was placed at a height of 1 m from the ground. The entire experimental device was installed in the wind tunnel, as shown in Figure 5c. Foam padding was wrapped around the bracket to reduce interference with the flow field.

Figure 5
figure5

Test tire placed in the wind tunnel

Pressure Measurements

The surface pressure of the tire was tested using an electronic pressure transducer that has two modules and 128 channels in total (Figure 6a; PSI International, Inc., Virginia, USA). The transducer has a measuring range of ± 2500 Pa, maximum sampling frequency of 1200 kHz, and measurement accuracy of ± 0.05% full scale (FS). The specific arrangement of piezometric holes is displayed in Figure 6b. The holes have a diameter of 1 mm, as shown in Figure 6c. One side of the copper pipe of the transducer was mounted on the model, and the other side was connected to an electronic pressure scanning valve by using a plastic pipe.

Figure 6
figure6

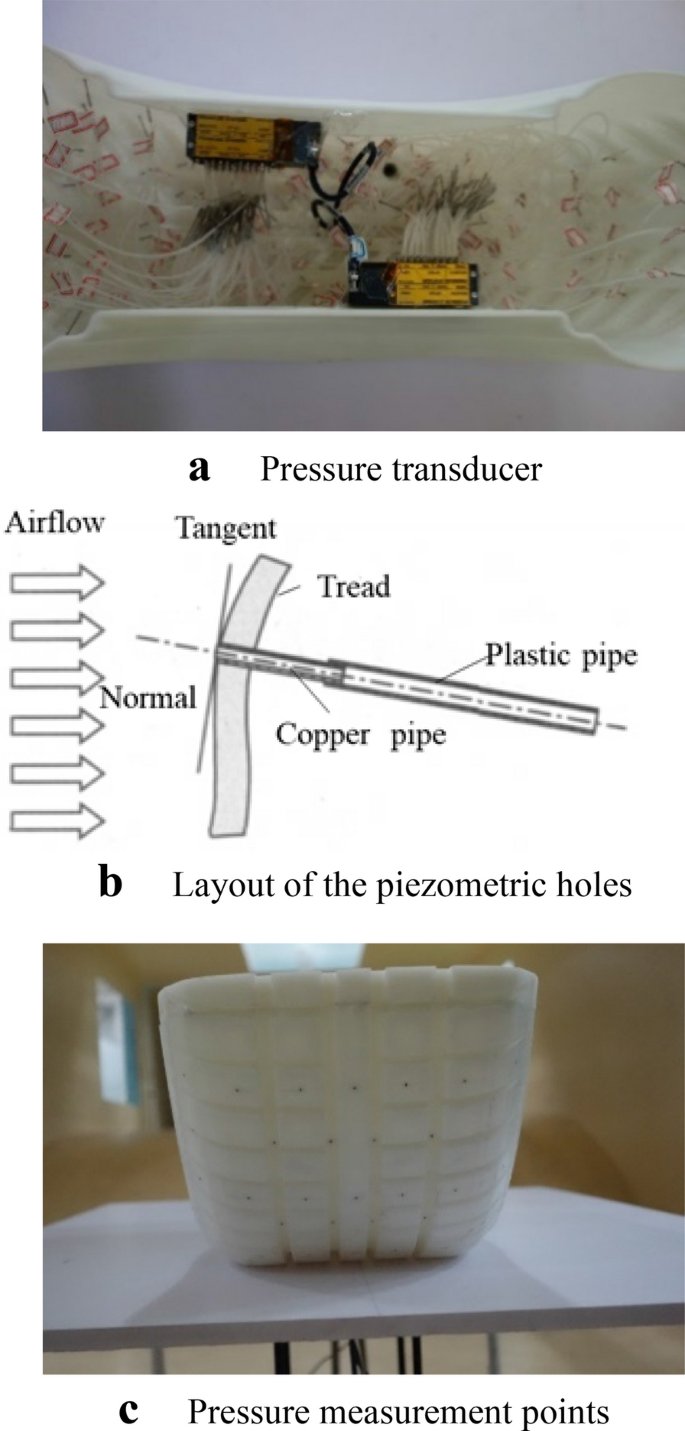

Tire surface pressure measurements

The sections with the pressure measuring points were almost identical for all three tires used in this study. Taking the straight tire as an example, the tire includes 4 longitudinal sections and 15 lateral sections for each tire model (Figure 7a). The detailed locations of each section are listed in Table 1 and Table 2. The positions of the pressure measuring points in section 1 on the Y axis are shown in Figure 7b. Moreover, the point position distribution for sections 2–4 was the same as that for section 1. Sections 5, 7, 9, 11, 13, 15, 17, and 19 were in the lateral tread, and each section of these sections included 7 pressure measuring points. Sections 6, 8, 10, 12, 14, 16, and 18 were in the lateral groove, and each of these sections included 6 pressure measuring points. The detailed position distribution for lateral sections is shown in Figure 7c–e. Due to the 14 intersection points between the longitudinal sections and the lateral sections in the grooves, the total number of pressure measuring points were 114.

Figure 7
figure7

Tire sections and pressure measuring point positions

Table 1 Section positions
Table 2 Section positions

According to the measured surface pressure of each point, the pressure coefficient Cp of each measuring point can be directly calculated. The pressure coefficient Cp is a dimensionless parameter with the following specific expression:

$$C_{p} = \frac{{p_{i} - p_{r} }}{{0.5\rho U_{r}^{2} }},$$

where Pi is the measured mean pressure, Pr is the reference pressure 101300 Pa, Ur is the wind tunnel airflow speed 15 m/s, and ρ is air density 1.293 kg/m3.

Simulation Setup

Computational Domain and Boundary Conditions

Due to the symmetry of the straight groove and the axi-symmetrical grooves, half of the tire geometry model was selected to develop the wind tunnel simulation model for improving the computational efficiency. However, a complete geometrical model was developed for the point-symmetrical grooves. The computational domain, refinement boxes, and boundary conditions are displayed in Figure 8. The computational domain was 7 m long, 1.5 m wide, and 3 m high. The inlet boundary was 3 m upstream of the tire, and the outlet boundary was 4 m downstream of the tire. One mesh refinement box was prepared to ensure that the turbulent flow around the tire was efficiently solved. The detailed setup for the boundary conditions is presented in Table 3.

Figure 8
figure8

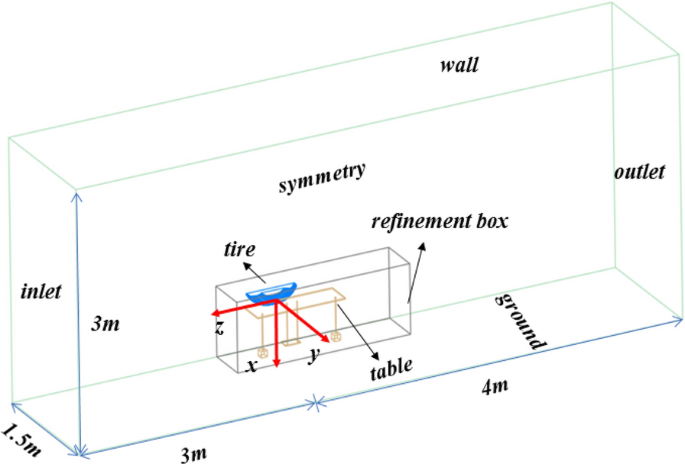

Computational domain, refinement boxes, and boundary conditions

Table 3 Boundary conditions

The computational setting was similar to the static experiment setting. A zero-pressure condition was used at the outlet boundary, and non-slip conditions were used for the tire, table, and wall surface. An air velocity inlet condition of 15 m/s was adopted at the inlet boundary. A symmetric boundary condition was used for the symmetric surface.

Numerical Method

Two turbulence models were employed for calculating the turbulent stresses, two equations of the shear stress transport (SST) kω model [33, 34], and improved delayed detached eddy simulation (IDDES) model [35]. The SST kω model is a two-equation Reynolds average Navier–Stokes (RANS) model that improves the separation prediction in the near-wall region. IDDES is hybrid RANS–LES model that provides a flexible and convenient scale-resolving simulation model for airflow with a high Reynolds number.

All numerical simulations were conducted using the double precision mode of ANSYS Fluent software. Initially, a steady state calculation was conducted using the SST turbulence model. The steady simulation was conducted until the residual errors were reduced below a normalized value of 10−4, which required approximately 2000 iterations. Then, the steady simulation results were used for initializing the computational domain for the unsteady simulation, and airflow fields were predicted using the IDDES model.

The time step Δt was set at 0.0001 s for the unsteady simulation. These simulations provided the corresponding mean and maximum Courant–Friedrichs–Lewy (CFL) numbers of 0.001 and 2, respectively. The total number of time steps was 10000. A few cells around the tire had CFL numbers larger than 1. However, the number of cells was so small that this phenomenon was considered to have a negligible influence on the flow field.

Mesh Description and Verification

The computational domain comprised meshes formed using tetrahedral elements, and all the elements were generated using the HyperMesh software. Figure 9 presents a general overview of the cell sizes used for each domain. The meshes of the key regions—tire grooves, grounding area, and wake—were refined to ensure calculation accuracy.

Figure 9

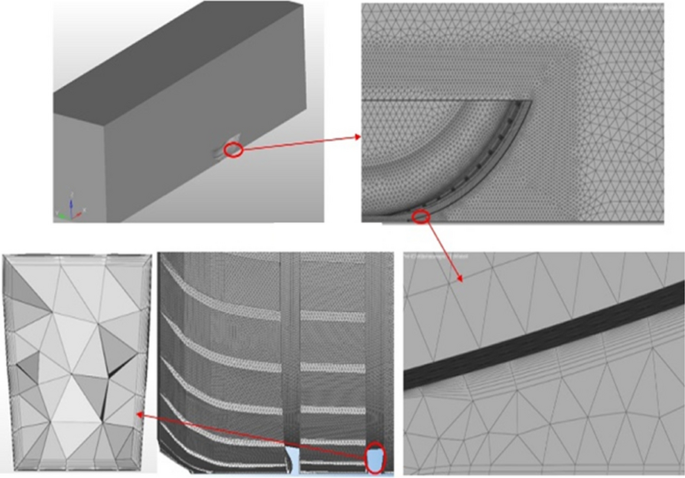

figure9

Flow domain and the point-symmetrical tire mesh

Three grids were analyzed: (a) a coarse grid with 4.201 million cells, (b) medium grid with 8.863 million cells, and (c) a fine grid with 14.56 million cells. The distance between the tire surfaces of the first cell to the wall was 0.05 mm, expansion ratio was 1.1, and total number of boundary layers was 10. This configuration provided an average non-dimensional wall distance y+ of approximately 2. The base sizes of the coarse, medium, and fine grids were 3, 1, and 0.5 mm, respectively. Moreover, the corresponding maximum sizes on the tire surface were 8, 5, and 3 mm, respectively. Table 4 presents different mesh sizes and number of cells. All meshes in the boundary layers had the same size in the normal direction. The meshes on the tire surface had different sizes in the normal direction. The generated medium mesh of the point-symmetrical tire is displayed in Figure 9.

Table 4 Mesh quality parameters for sensitivity analysis

Mesh sensitivity was investigated using three different meshes—coarse, medium, and fine. The two sections selected for testing mesh sensitivity were longitudinal section 1 and lateral section 9 of the straight tire model. The pressure coefficients Cp obtained using the IDDES model with different meshes were compared, as shown in Figure 10. Comparatively, the mesh size had few effects on the windward surface pressure, but affected the pressure on the contact patch and on the leeward surface at a higher amount. The pressure obtained using the medium mesh was consistent with that obtained using the coarse mesh in terms of magnitude and variation, which was in agreement with the experimental results. Differences were noted between pressure coefficients Cp obtained using the medium mesh and fine mesh in the contact patch. The Cp of the fine mesh obtained was higher than that obtained through experiment. The numerical approaches in the study accurately reproduced the pressure on almost all positions of section 1 except for the contact patch. A certain discrepancy between numerical and experimental results was observed in the contact patch, as shown in Figure 10a. Because the tread groove deformations in the contact patch were complex and irregular, slight differences existed between the tread groove geometry deformations used in the experiment test and CFD simulation. These differences caused the discrepancy. Figure 10b shows that the mesh size has almost no influence on the pressure distribution in section 9. Based on the aforementioned analysis, it was concluded that, the medium mesh provided nearly grid-independent results. Therefore, the medium mesh was used in the remainder of this study.

Figure 10
figure10

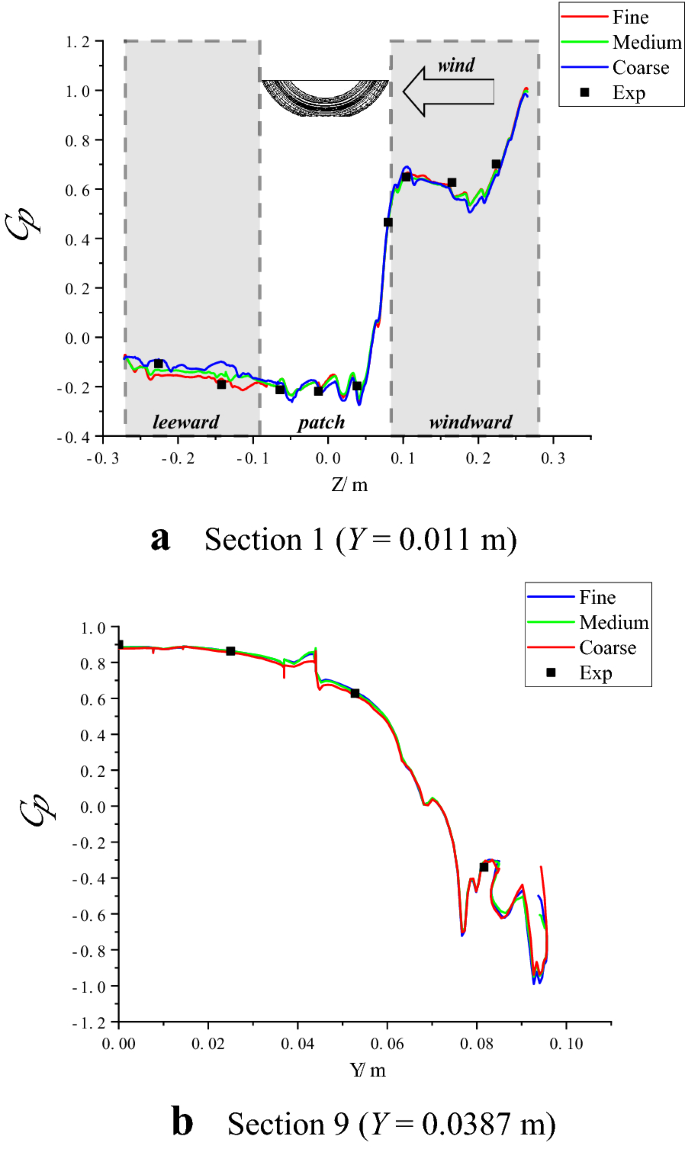

Time-averaged pressure distribution between three meshes using straight tire model

Simulation Validation

Pressure Comparison of Different Sections

The time-averaged surface pressure was computed. Figures 11, 12, and 13 display a comparison between the Cp values on each longitudinal groove (sections 1 to 4) for the three tires obtained using experimentation and numerical simulation. Because the tread grooves of the straight tire and the axi-symmetrical tire were symmetric, only the Cp values of one side (sections 1 and 2) were presented.

Figure 11
figure11

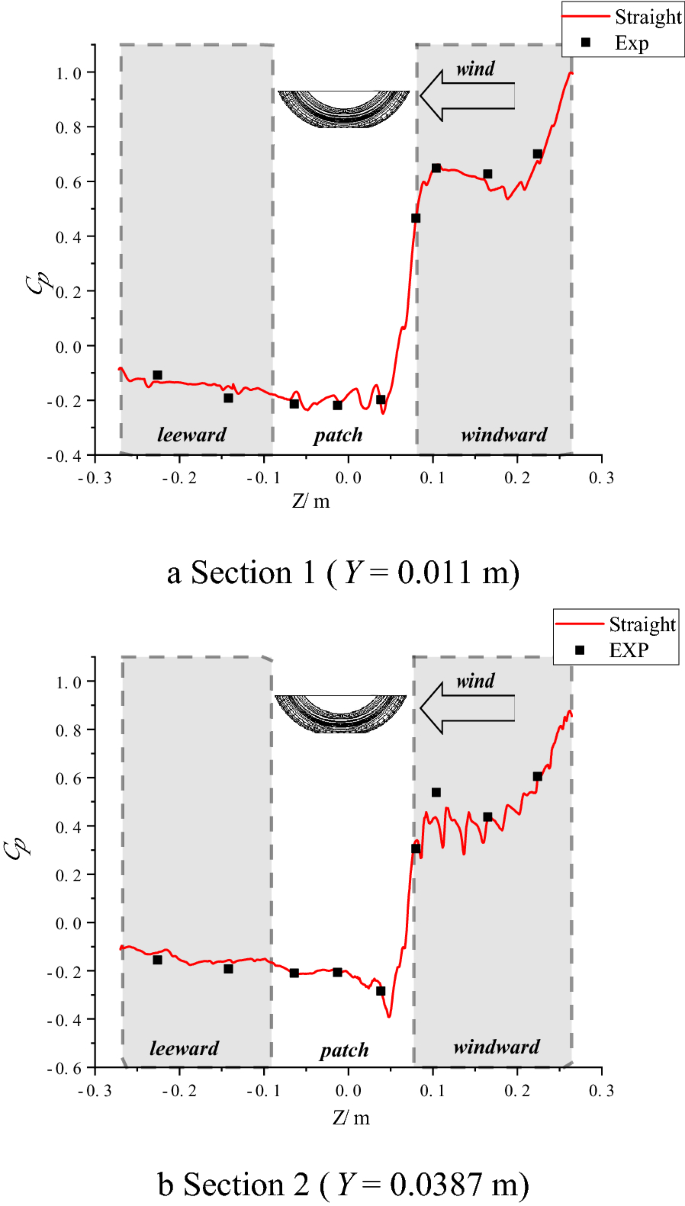

Comparison of the time-averaged pressure distribution calculated using simulations and experimentation for the straight tire

Figure 12
figure12

Comparison of the time-averaged pressure distribution calculated using simulations and experimentation for the axi-symmetrical tire

Figure 13
figure13

Comparison of the time-averaged pressure distribution calculated using simulations and experimentation for the point-symmetrical tire

The simulation results of section 1 and section 2 for the three tires revealed the same trend. That is, the high-pressure area was on the windward surface, and the low-pressure area was on the leeward surface. On the whole, first, the pressure coefficient Cp decreased negatively along the Z axis and then increased when it reached the lowest point. This coefficient finally converged on a stable value. Moreover, on the windward surface, a high-pressure was noted for the section located in the “horn effect” area of the tire-ground contact, where the clearance between the tread and the ground is small, airflow is insufficient, and pressure rises due to the reflection between the ground and the tread. However, for the axi-symmetrical and point-symmetrical tires, the Cp values of the longitudinal grooves in the central region continuously decreased on the windward surface. Such a trend does not appear in the straight tire. It is noted that the point-symmetric tread is non-symmetry in the tire width direction. When the air flow inside the point-symmetric tread grooves, the differences of the air flow characters in different positions will lead to the differences of surface pressure.

In general, the experimental test results of the straight tire were in good agreement with the simulation results. However, the simulation results of the axi-symmetrical and point-symmetrical tires revealed a slight deviation from the experimental results. The deviation mainly occurred at the front and back end of tire contact patch (Z = − 0.1 m and Z = 0.1 m), as shown in Figures 12 and 13. The primary reason for the deviation was the geometrical structure simplification applied to the grounding area of the axi-symmetrical tire for ensuring high mesh quality and the convergence of the CFD results. The small number of measuring points near the grounding area caused a difference between the experimental and simulation results. However, on the whole, the pressure coefficient Cp distributions of all the three tires were similar and exhibited similar trends. The simulation results were in good agreement with results from experiment.

Comparison of Streamline

During the wind tunnel test, a thin rope was attached at the longitudinal section ‘1’ of the point-symmetrical tire, 75 mm away from the flat plate for obtaining detailed flow field information. The motion state of the thin rope observed when the airflow in the wind tunnel is stable is displayed in Figure 14a. Figure 14b presents the CFD simulation result. The tail streamline obtained using CFD was oblique and smooth, which is in good agreement with the experimental results.

Figure 14
figure14

Comparison of the streamline on section 1 obtained by experiments and CFD

Knowles [36] conducted surface pressure measurements of planes located at 0.54, 0.60, 0.69, and 0.88 of wheel diameter in the downstream of the wheel center to determine the wake structure. This experiment was only conducted for a slick tire without investigating the effect of tread pattern on the airflow structure. The position of the plane located at a diameter of plane A in this paper is shown in Figure 15a. Figure 15b–e reveal the airflow results obtained using the CFD simulation and experimental test presented by Knowles on a plane located at a diameter of plane A. The CFD simulation reproduces the main characteristics of the flow field, which captures the main vortices. The shape of the flow structure is also consistent with the flow structure results of previous experimental studies conducted by Knowles [36], and Saddington [37], as presented in Figure 15e, f. The downward deflection of the jet stream is clearly observed to form vortices that are similar to those observed in the experimental results. For the difference in the flow field in the upper half, this study mainly analyzed the flow field in the tire grounding area and did not focus on the flow field in the upper half of the tire grounding area. Moreover, the sizes of the vortices predicted using CFD simulation were slightly different from the sizes obtained through experimentation. A reason for this difference is that, all of the aforementioned studies have been conducted using non-deformable tire. Another reason that should not be overlooked is, the tires used in this study have complex tread patterns, which can be seen from the Figure 3, and these differences would result in flow field change consistent with the conclusions form Hobeika that tread grooves have a significant effect on the flow field around tires [38].

Figure 15
figure15

Comparisons for flow filed

Comparison of the pressure distributions calculated using simulations and experimentation proves that the test results of all tires approximately match the simulation results. The flow field results are consistent with the findings of a study. The deduction from the compared results suggest that CFD simulation can accurately predict the main flow field characteristics. Hence, the next section analyzes the effect of tread patterns on flow fields by using the above computational details.

In order to ensure consistency in the analysis of aerodynamic drag between the partial tire models presented in this paper and the entire tire models, the drag coefficient Cd is computed using the CFD simulation mentioned above. The comparison of Cd shown in Figure 16 indicates that, the drag coefficient Cd of the partial model agrees well with that of the entire model. It proves that the partial model has a certain research value in the analysis of tire aerodynamics.

Figure 16
figure16

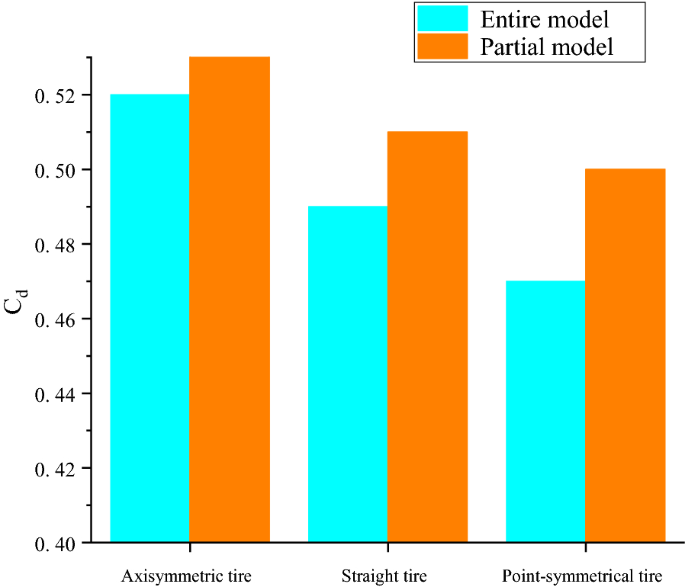

Comparison of resistance coefficient Cd for three tires

Flow Result Analysis

Traditionally, behaviors of the vortex, which can be equivalently expressed by motions of rotation, are often regarded as turbulence structures. In addition, the quantitative magnitude of the rotation can be estimated by the Q-criterion. Proposed by Hunt in 1988 [39], the Q criterion is a powerful method for examining variations in the rotation structures at a wide range. The Q criterion is one of the best methods used for identifying 3D vortices. In this study, the Q criterion was used to describe a turbulent flow field. Figure 17 presents the iso-surface of the Q=3000 of the straight, axi-symmetrical, and point-symmetrical tires, respectively. The formation of the iso-surface of the Q validates the length in the Z direction to be more suitable for developing complete flow structures.

Figure 17
figure17

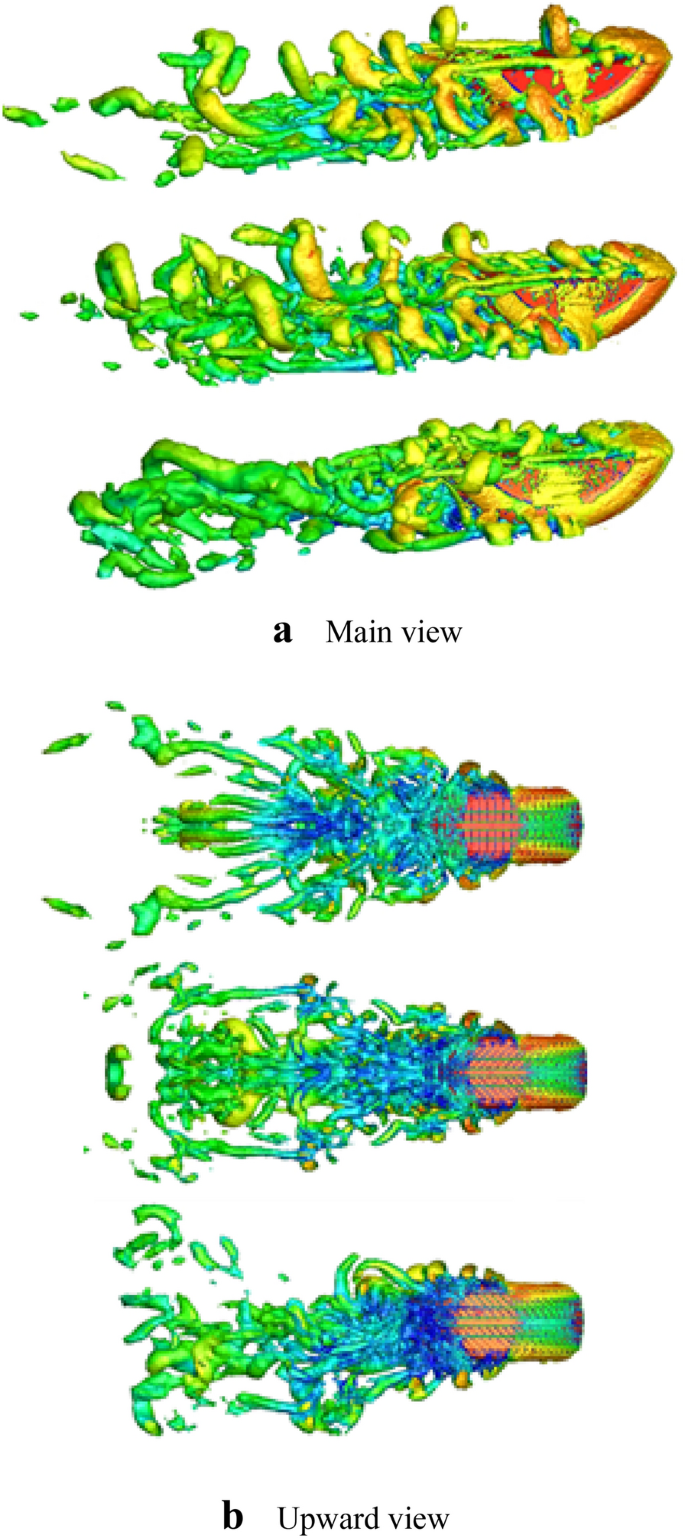

Time-averaged Q-criterion iso-surfaces (Q = 3000) colored according to the velocity

In the flow direction, air meets tire and turn flow directions close to the sidewall region. As well, air flow past tread grooves. As a result, a large number of lumps of the iso-surface of the Q are observed around the rear contact patch. It can be seen from Figure 17 that, the distribution of lumps of the iso-surface of the Q have significant differences due to the different tread pattern. The axi-symmetrical tread is apparently denser than that of the large magnitude of lumps of the iso-surface of the Q shown in the three tread patterns; on the contrary, the point-symmetrical tread has the sparsest of the magnitude of lumps of the iso-surface of the Q. The reason for this difference is that, the point-symmetrical grooves is interconnected in the air flow direction, and this makes air easier flow past it; the axi-symmetrical grooves is in the opposite direction of the incoming air flow, and this is not beneficial to air flow. Vortices develop due to the shear force when a flow passes the tires. When the airflow reaches the tire, the flow field structure performs a noticeable change and two main vortex structures around the tire occurs, i.e., jetting vortices and horseshoe vortices. Various jetting vortices were observed for all tires with all tread patterns, but the horseshoe vortices was the predominant vortex structure behind the tire contact patch, and the horseshoe vortices highly influences the global flow around the tire.

Because of the different symmetrical forms of tread patterns, straight and axi-symmetrical tires present symmetric vortices distributions. Moreover, the point-symmetrical tire presents an asymmetric vortices distribution. The weak structure of the straight tire has a wide distribution range for which the flow at the end of the wake diffuses outward. The weak structure of the axi-symmetrical tire distribution range is smaller than that of the straight tire distribution and is accumulated near the centerline. But the vortex distribution of the axi-symmetrical tire is denser than that of the straight tire. The weak structure of the point-symmetrical tire distribution range is much smaller than that of the other two tires.

The vortex is caused by the interference and separation of flow on the leeward surface. The generation of vortex is accompanied by the loss of mechanical energy. Controlling vortex shedding and wake vortices is beneficial to flow improvement and drag reduction. Combined analysis of the aerodynamic drag of the three tires reveal that the axisymmetric tread grooves to be unparalleled to the air flow, and this increases the flow separation and strengthen the generation of vortex, vortex breakdown, and with the shortest vortex line, while the drag is maximum. Combined analysis of the aerodynamic drag of three tires, the axi-symmetrical grooves is unparallel to air flow, and it increases flow separation. Oppositely, the point-symmetrical tread grooves are parallel to air flow direction, and it reduces flow separation, and the vortex line is longer, and the flow attachment over tire surface causes drag reduction.

The flow on plane A was observed; plane A was located 2 mm above the ground. Figure 18a–c display the pressure and streamlines distributions on plane A for the straight, point-symmetrical, and axi-symmetrical tires obtained using CFD simulations, respectively. The pressure distribution trends of the three tires were almost similar: the high-pressure area was at the front of grounding area and the low-pressure area was at the side in the downstream region.

Figure 18
figure18

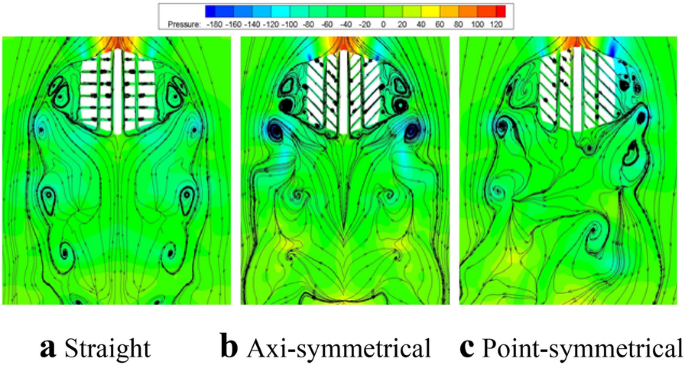

Pressure and streamline distributions on plane A for three tire models

By observing the streamline distribution presented in Figure 18, it can be seen that the three tires with different tread patterns produce a vortex on both sides of the shoulder. However, the diameter and position of the vortex core were different. Many small vortices were scattered in the straight and axi-symmetrical tires. However, few vortices were scattered in the point-symmetrical tires. The discrepancies are mainly due to the flow variations because of the lateral groove angle. The lateral groove angle of the straight tire was orthogonal to the airflow direction. Thus, the flow directly impacts the groove wall, and the vortices are generated by the shear force of the wall (Figure 18a). The flow field structure of the axi-symmetrical tire is similar, but it has obvious vortices at the outlet of the lateral grooves mainly because the direction of flow is almost opposite to that of the inflow (Figure18b). Fewer vortices are present in the right lateral grooves of the point-symmetrical tire when the right lateral grooves angle is near to the inflow direction (Figure 18c). Moreover, the straight tire produces wake vortices along the centerline. These features are obvious and are present even far away from the centerline. Conversely, the wake of the axi-symmetrical tire is larger than that of the straight tire and closer to the exit of the longitudinal groove. Compared with the other two tires, the wake vortices of the point-symmetrical tire are smaller and unevenly scattered on both sides. The vortex is caused by flow separation. The denser the vortex distribution, the greater the degree of boundary layer separation, and the higher the pressure drag. Based on the pressure contours and Bernoulli’s equation for the three tire, although a high pressure area is associated with the windward, the pressure of the axisymmetric tire in the leeward is minimum, and the pressure of the point-symmetric tire in the leeward is maximum. From a comprehensive analysis of the pressure contours with streamlines, the drag of the axisymmetric tire is maximum, whereas that of the point-symmetric tire is minimum.

Figure 19a–c display the time-averaged vorticity distributions on plane A for the straight, point-symmetrical, and axi-symmetrical tires obtained by CFD simulations, respectively. Figure 19 reveals that, there are many vortices in the groove, shoulder, and tail. This indicates that, the airflow in the grounding area is disordered and further indicates the complexity of the flow in the grounding area.

Figure 19
figure19

Time-averaged vorticity distributions on plane A for three tire models

Further analysis presents the movement of air in the grooves of the grounding areas of the three tires. Figure 19 reveals that, the movement trends of the airflow in the longitudinal grooves of the grounding areas of the three tires are relatively consistent. However, the movement patterns of the fluid particles in the lateral grooves are relatively obvious. When the fluid flows along the lateral groove, the flow direction is at an angle with the formation of the lateral grooves. Therefore, the flow in the lateral groove constantly impacts the wall. This worsens the flow instability and then leads to an increase in the dynamic pressure in the grounding area, which is not conducive to the flow movement. The evidence proves that, the closer the arrangement of lateral grooves in the grounding area is to the moving direction of fluid particles, the smaller the flow impact on the wall of lateral grooves is, and the smaller the pressure and vortices, the more stable and smooth the flow movement. On the contrary, a larger fluid impact leads to serious perturbation, and a larger area of vortex distribution on the leeward surface. The large range of vortices means that, there is a large amount of wasted energy due to flow separation, resulting in a corresponding drag increase.

The velocity distribution around the tire at different lateral sections is shown in Figure 20. On the windward surface for section 8 of the three tires, there are few differences in velocity contour lines. For the section 12 of the straight and axi-symmetrical tire, although the boundary of velocity contour lines is similar, the velocity gradient of the straight tire is obviously lower compared to the axi-symmetrical tire, indicating that, the fluid shear stress of the straight tire is smaller relative to the axi-symmetrical tire. Because the point-symmetrical tire is asymmetric grooves, the shape of the velocity contour lines of both sides is different. The flow area of low velocity air of the point-symmetrical tire is smaller than that of the straight tire. An indication that, the flow stability of point-symmetrical tire is better, and the flow vorticity is less (refer to Figure19).

Figure 20
figure20

Velocity distribution around the tires in different lateral sections (Top: section 8; Middle: section 12; Bottom: section 16)

On the leeward surface of the three tires, there are considerable differences observed in the velocity distribution shown in section 16. The velocity of the axi-symmetrical tire is greater than that of the other two tires. Based on Bernouli’s equation, the pressure of the axi-symmetrical tire on the leeward surface is smaller than the pressure recorded for the other two tires (see Figure 18). The region of low velocity of the straight tire is higher than that of the point-symmetrical tire, and more flow vortex was generated on the leeward surface, as shown in Figure 17. Also the energy dissipation of wake vortices might be enlarged.

It is well known that, the turbulent kinetic energy (TKE) directly represents the strength of the turbulent in the flow, and we compared the TKE in order to investigate the unsteady flow characteristics of flow over the longitudinal sections. Figure 21 compares the TKE of the flow over longitudinal section 1 and section 2. At the same longitudinal section, the turbulent strength of axi-symmetrical tire was the largest, and the point-symmetrical tire was the least. The contour of the TKE revealed that, the turbulent strength diminished gradually with distance on the leeward surface. However, the high TKE from the highly unsteady flow in the axi-symmetrical tire is due to lateral grooves impeding fluid flow. The effects of guides direction of point-symmetrical lateral grooves on air flow can reduce turbulent fluctuations in the longitudinal grooves, and its benefit is to reduce the generation of vortex shedding.

Figure 21
figure21

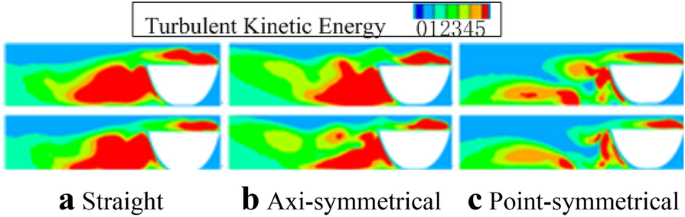

Turbulent kinetic energy around tires at different longitudinal sections (Top: section 1; bottom: section 2)

Conclusions

Wind tunnel experiments and numerical simulations were conducted in this study to investigate the aerodynamic characteristics of three tires with different patterns-straight, axi-symmetrical, and point-symmetrical patterns. The pressure coefficients of the three tires were measured in the wind tunnel experiments. In this study, CFD simulations were conducted using the steady SST kω model, followed by the unsteady DES approach.

By comparing the pressure distributions calculated using simulations and experiments from sections 1‒4, the simulation results of all three tires were found to agree well with the wind tunnel experiment results. Generally the results of the three tires indicate high-pressure area on the windward surface, and the leeward surface is characterized by low-pressure area. The pressure coefficients Cp of all three tires decreased firstly and then increased along the air flow direction. The flow field results presented the main flow characteristics, which are also consistent with previous findings. This reveals that the results of flow field calculation can be used in a follow-up study. The effects of tread pattern on the flow structure were demonstrated according to the numerical simulation results. The flow fields of the three different types of patterned tires are quite different. The closer the arrangement of lateral grooves in the grounding area is to the moving direction of fluid particles, the smaller the impact of fluid is on the wall of lateral grooves, the smaller the vortices are, and the more stable and smooth the flow of fluid is.

This study thus indicates that, the tire lateral groove angle has an effect on the flow field pressure, streamline, and vortex generated. The results demonstrates that tire’s lateral groove angle has great effect on the flow field characteristics. The more the angle of lateral groove angle agrees with the air flow direction, the lesser the surface pressure and aerodynamic drag. The numerical and experimental conclusions can offer guidance for designing low aerodynamic drag tires. However, some limitations require attention. Although the influence of the tread pattern on flow field were investigated, the flow field difference between a half tire and real wheelhouse is worth analyzing. Moreover, difference between a rotating and stationary tire was not studied here. These limitations warrant further investigation in the near future.
