Application of Uniform Experimental Design in Optimizing Excitation Parameters for Magnetic Frequency Mixing Measurements

Abstract

Excitation parameter preferences are key factors affecting the performance of magnetic frequency mixing detection. A uniform experimental design method was used to analyze this influence. Using fuzzy theory, a comprehensive model is established for evaluating the effect of magnetic frequency mixing. A polynomial is selected as the regression function to express explicitly the correlation between the excitation parameters and the frequency-mixing effect. The excitation parameters were then optimized using genetic algorithm. Magnetic frequency mixing experiments were conducted to measure the surface hardness of some ferromagnetic materials. Frequency mixing is further enhanced under the optimal settings, resulting in an improvement in the measurement sensitivity. The results of this study support the application of the magnetic frequency mixing technique in non-destructive testing.

Introduction

The frequency-mixing technique is an effective means for the extraction of weak nonlinear signals from noisy backgrounds [1, 2], and widely used in many fields, such as spectroscopy, ultrasonics, and electronics [3, 4]. The magnetic frequency mixing technology is of particular interest here [5, 6]. In experiments employing magnetic frequency mixing, a ferromagnetic material is usually exposed to an AC magnetic field consisting of two frequencies [7]. The low-frequency component of the magnetic field drives periodically the material into its saturation magnetization regime, whereas the high-frequency component is weaker and can only be dispersed near the surface of the material. Affected by the two magnetic fields, the ferromagnetic material undergoes magnetic domain rotation and domain wall motion, which results in frequency mixing [8]. Because frequency-mixing is related to the hysteretic nonlinearity of ferromagnetic materials [9, 10], the magnetic frequency mixing technique is sensitive to the microstructure evolution of ferromagnetic materials. Compared with traditional magnetic techniques, it has a higher sensitivity and better signal-to-noise ratio [11].

As frequency-mixing is generated in the nonlinear interaction between two magnetic fields and the magnetic microstructure, the excitation parameters for the two magnetic fields inevitably influence the performance of magnetic frequency mixing detection given the same test ferromagnetic material [12,13,14]. Burdin et al. [15] analyzed the influence of the frequency and amplitude of the high-frequency magnetic field on frequency mixing effect by experiment. The optimal excitation frequency for the high-frequency magnetic field was determined from frequency sweeping experiments. Rabehi et al. [16] studied the effect of the current intensity in the excitation coil on the magnetic field theoretically and experimentally. A planar micro-coil was designed subject to optimal coil-dimension constraints. However, previous research on excitation parameter preferences was limited to the effect of a single factor. The supposition was that if only one factor was varied, the preference is certainly the influence of that single variable. Clearly, this method does not reveal the combined effects of multiple factors that may be coupled [17].

Common statistical experimental design methods for multi-factor optimization include orthogonal experimental design (OED) [18, 19] and uniform experimental design (UED) [20, 21]. OED is a multi-factor experimental design method based on the orthogonal array. It selects representative points from the full factorial experiment that are distributed uniformly within the test range [22]. The OED method has been used in parameter optimizations in magnetic measurements. For example, Wu et al. [23] applied the OED method to multi-parameters optimization in magnetic flux leakage testing. The parameters include thickness, height and shielding layer of the excitation coil. Experimental results showed that the sensitivity of detection in steel cables was greatly improved using the OED method, and thereby reduces the number of required experiments and achieves significant results. However, the OED method only obtains the optimal values of representative sets of experiments, but not the optimum values over all experimental ranges. In addition, it is no longer valid when the experimental level is comparatively high.

The UED is similarly a multi-factor experimental design method but based on the quasi-Monte Carlo method of number theory [24]. The principle of UED is to replace the complete combination of all possible experimental parameters by a small number of experimental trials uniformly distributed within the parameter space [25]. The parameter values for the trials are determined using number theoretic method; therefore, the chosen trials prove that the values approximate well the complete combination of experimental parameters. Compared with conventional statistical experimental design methods, such as the Latin square design and the OED method, the UED method accommodates the largest possible number of levels for each excitation parameter among all experimental designs [24,25,26,27]. In practice, the UED method has wide applications in engineering [28, 29].

The objective of this study is to improve the performance of magnetic frequency mixing detection using excitation parameter optimization. The influence of the amplitudes and frequencies of high-frequency and low-frequency magnetic fields on the performance of magnetic frequency mixing testing was analyzed using UED. Specifically, a comprehensive model was established for evaluating the effect of magnetic frequency mixing. The regression method from the field of statistics has been used to analyze the variation of excitation parameters versus frequency-mixing effect. The excitation parameters were then optimized using genetic algorithm.

Parameters Optimization Based on Uniform Experimental Design

Generally, the magnetic frequency mixing effect is a kind of weak signal. The higher the strength of the pickup signal, the better the detection of the mechanical properties of the material. The intensity of magnetic frequency mixing effect is affected by the excitation condition. The relationship between them can be described by Figure 1. In general, there are two forms of magnetic frequency mixing effect, which are reflected as the mixing components in the spectrum and the minor hysteresis loops in the hysteresis loop. Based on the simulation, the strength of the mixing component is positively correlated with the area of the minor hysteresis loop (Figure 2). And the local hysteresis loss is proportional to the area of the minor hysteresis loop according to the hysteresis theory. Therefore, the influence of excitation conditions on magnetic frequency mixing effect can be reflected by its relationship with minor hysteresis loss.

Figure 1
figure 1

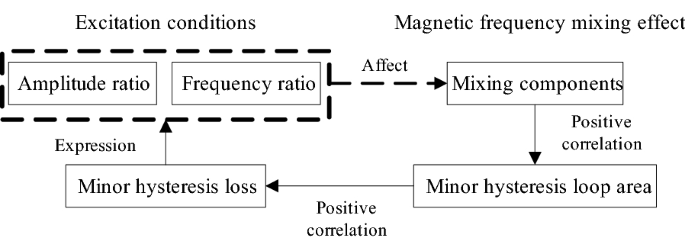

Schematic of the relationship between magnetic frequency mixing excitation conditions and frequency mixing effect

Figure 2
figure 2

Relationship between the area of minor hysteresis loop and the strength of mixing component

Generally, the total minor hysteresis loss is expressed as the sum of hysteresis loss Wh,m, excess loss Wexc,m and eddy current loss Wcl,m. The frequency-dependent dynamic loss Wexc,m and Wcl,m terms can be expression by the excitation frequency ratio and amplitude ratio. It can be written as

$$W_{\text{exc,m}} = 2\sum\limits_{i = 1}^{{m_{f} /2}} {8\sqrt {\sigma GSV_{0} J_{m,i} } J_{m,i}^{3/2} \sqrt {g_{m,i} \left( {m_{a} ,m_{f} } \right)} f_{L}^{1/2} } ,$$
(1)
$$W_{\text{cl}} = \frac{4}{3}\sigma d^{2} J_{p}^{2} g_{M} \left( {m_{a} ,m_{f} } \right)^{2} f_{L} ,$$
(2)

where σ is the conductivity, d is the thickness of specimen, G = 0.1356 is a dimensionless coefficient, S is the cross-sectional area, V0 is a parameter defining the statistics of the magnetic objects, Jp is the sum of amplitudes of high and low excitation magnetic field, ma is the ratio of high and low frequency amplitudes, mf is the ratio of high and low frequency. Jm,i, gm,i and gM written as

$$J_{m,i} = J_{p} \frac{{g_{M} \left( {m_{a} ,m_{f} } \right)}}{{g_{m,i} \left( {m_{a} ,m_{f} } \right)}},$$
(3)
$$g_{m,i} \left( {m_{a} ,m_{f} } \right) \cong \frac{{m_{f} }}{{1 - m_{a} \times \sin \left[ {2\uppi\left( {3/4 + i - 1} \right)/m_{f} } \right]}},$$
(4)
$$g_{M} \left( {m_{a} ,m_{f} } \right) \cong \frac{{m_{f} }}{{1 + 2m_{a} \times \sum\limits_{i = 1}^{{m_{f} /2}} {\sin \left[ {2\uppi\left( {3/4 + i - 1} \right)/m_{f} } \right]} }}.$$
(5)

The typical results of frequency-dependent minor hysteresis loss predicted by Eqs. (1) and (2) is shown in Figure 3.

Figure 3
figure 3

Distribution of minor dynamic loss with excitation frequencies and amplitudes

From Figure 3 we can see that the frequency-dependent minor hysteresis loss varies with the excitation amplitude ratio and the frequency ratio. If the amplitude ratio or frequency ratio is constant, the result is just a conditional extremum of the dynamic loss. The best extremum among the feasible region of four excitation parameters cannot be obtained. Therefore, it can be inferred from Figures 1, 2 and 3 that the magnetic frequency mixing effect is jointly affected by four excitation parameters. The optimization of the combination of excitation parameters is beneficial to improve the magnetic frequency mixing effect.

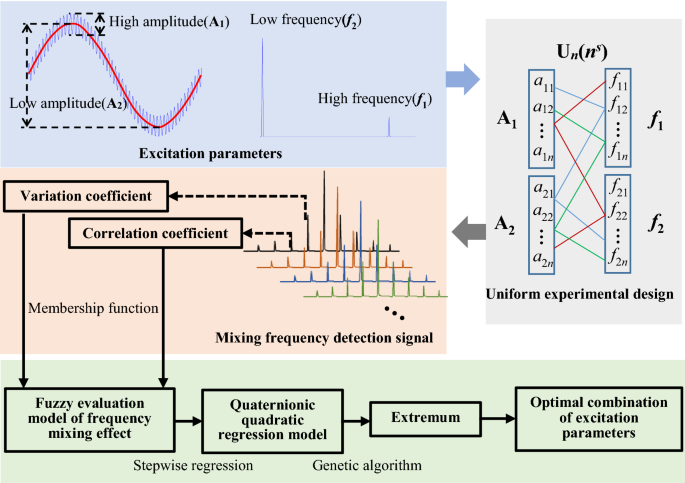

Figure 4 shows a flow diagram of the parameter optimization of magnetic frequency mixing testing using the UED method. Considering the four influencing factors, amplitudes and frequencies of the low-frequency and high-frequency components of the magnetic field, the magnetic frequency mixing experiments were arranged in accordance with the UED method. Two characteristic indexes were extracted from the measured signals, and a comprehensive model was established for evaluating the effect of magnetic frequency mixing. A multivariate equation was developed by regression analyzing the four excitation parameters, which were then optimized using the genetic algorithm.

Figure 4
figure 4

Excitation parameters optimization of magnetic frequency mixing based on uniform experimental design

Experimental System of Magnetic Frequency Mixing

An experimental verification of the optimization of the excitation parameters was obtained from magnetic frequency mixing tests of hardness of several ferromagnetic materials (Figure 5). The system includes a data acquisition board, power amplifier, magnetic frequency-mixing sensor, specimen and computer. The sensor is composed of a U-shaped magnetic core, excitation coil and pick-up coil. A superimposed electric signal with high-frequency and low-frequency components, is generated by the excitation module on the board. The superimposed signal was amplified and then applied to the excitation coil of the sensor. The alternating magnetic field generated by the coil forms a magnetic circuit between the magnetic core and specimen. The pick-up coil induces an alternating electric field in the magnetic circuit. The data sampling card samples the output of the pick-up coil that is subsequently processed by computer.

Figure 5
figure 5

Schematic diagram of the experimental setup for verification

Magnetic frequency mixing experiments were conducted on nine medium carbon steel specimens. Each specimen was of identical dimensions, 100 mm × 100 mm × 6 mm. The specimens were quenched at 1030 °C and then tempered at different temperatures to achieve different surface hardenings. The hardness of each specimen was measured by a Vickers indenter. Tables 1 and 2 show the essential component and the Vickers hardness of each specimen.

Table 1 Essential component of steel specimen (wt%)
Table 2 Vickers hardness of steel specimens

From Table 2, the surface hardness of all specimens is within a range from 194.0 HV to 595.0 HV. Moreover, with increasing tempering temperature, surface hardness decreases.

Uniform Experimental Design

The frequency and amplitude of both high and low-frequency components of the magnetic field show an effect on the performance of magnetic frequency mixing testing. With previous results from such testing, Table 3 lists the reasonable ranges and steps of four excitation parameters; Table 4 presents the UED table U15(154) of the excitation parameter preferences. For each specimen, the magnetic frequency mixing testing was conducted under different conditions (15 levels), and each measurement is repeated three times. Therefore, there are altogether 9 × 15 × 3 sets of signals, which can be used to optimize the excitation parameters.

Table 3 Reasonable ranges and steps of the excitation parameters
Table 4 UED table U15(154) for excitation parameter preferences

Model for Evaluating the Frequency-Mixing Effect

To highlight the effect of excitation parameters on the performance of magnetic frequency mixing testing, two coefficients were extracted from the measured signals, and a comprehensive model was established to evaluate the strength of magnetic frequency mixing under different excitations.

Characteristic Index of Magnetic Frequency Mixing Effect

The amplitudes of the nonlinear components at lower-order mixing frequencies are the most widely used parameters in frequency-mixing measurements [2]. The measuring sensitivity is usually affected by the strength and consistency of the nonlinear components. In accordance with statistics theory, two coefficients, a variation coefficient and a correlation coefficient were introduced and used to evaluate the performance of the magnetic frequency mixing testing. The expression for the variation coefficient D is

$$D = \frac{{\sqrt {\frac{1}{N}\sum\limits_{i = 1}^{N} {\left[ {\left( {A_{i}^{{f_{1} - 2f_{2} }} + A_{i}^{{f_{1} + 2f_{2} }} } \right) - \frac{1}{N}\sum\limits_{i = 1}^{N} {\left( {A_{i}^{{f_{1} - 2f_{2} }} + A_{i}^{{f_{1} + 2f_{2} }} } \right)} } \right]^{2} } } }}{{\frac{1}{N}\sum\limits_{i = 1}^{N} {\left( {A_{i}^{{f_{1} - 2f_{2} }} + A_{i}^{{f_{1} + 2f_{2} }} } \right)} }},$$
(6)

where \(A_{i}^{{f_{1} - 2f_{2} }}\) and \(A_{i}^{{f_{1} + 2f_{2} }}\) are the amplitudes of the nonlinear components at f1 − 2f2 and f1 + 2f2 in the ith experiment, respectively, and N the number of repeated experiments at all levels (N = 3 in this study). The variation coefficient D is a deflection minor-type function meaning that the smaller the value of D is, the higher is the strength of the nonlinear components.

Similarly, the expression for the correlation coefficient P is

$$P = \frac{{\sum\limits_{i = 1}^{M} {\left( {A_{i}^{{f_{1} - 2f_{2} }} - \bar{A}^{{f_{1} - 2f_{2} }} } \right)\left( {A_{i}^{{f_{1} + 2f_{2} }} - \bar{A}^{{f_{1} + 2f_{2} }} } \right)} }}{{\sqrt {\sum\limits_{i = 1}^{M} {\left( {A_{i}^{{f_{1} - 2f_{2} }} - \bar{A}^{{f_{1} - 2f_{2} }} } \right)^{2} } } \sqrt {\sum\limits_{i = 1}^{M} {\left( {A_{i}^{{f_{1} + 2f_{2} }} - \bar{A}^{{f_{1} + 2f_{2} }} } \right)^{2} } } }},$$
(7)

where if12f2 and if1+2f2 are the mean values of the amplitude of the nonlinear components at f1 − 2f2 and f1 + 2f2, and M is the level of uniform design tests, which is set to 15. The correlation coefficient P is a deflection major-type function meaning that the larger the value of P is, the better is the consistency of the two mixing components.

To show the effect of two coefficients on evaluating the performance of magnetic frequency mixing testing, the two coefficients were calculated from the experimental signals. Table 5 lists some typical results, which were obtained from experiments conducted on the nine samples at different levels. The variational regularity of the two coefficients with the excitation parameters were different, and the corresponding optimal excitation parameters were different. More specifically, the excitation parameter of the 6th level is optimal as determined by the variation coefficient D, whereas the excitation parameter of the 11th level is optimal as determined by the correlation coefficient P.

Table 5 Variation coefficient and correlation coefficient obtained from all samples at different levels

Furthermore, Figure 6 shows some typical results to explain the dependence of magnetic frequency mixing testing on the preferred values of the excitation parameters. Figures 6a, c and e present spectra of the detection signals obtained from sample 1 at three typical conditions; Figures 6b, d and f show the amplitudes of the lower-order nonlinear components obtained from different samples under the three typical conditions.

Figure 6
figure 6

Dependence of magnetic frequency mixing effect on excitation parameters

Obviously, the excitation parameters preference has a great influence on the performance of magnetic frequency mixing testing. For excitation conditions at the 6th level, the amplitudes of the nonlinear components are the largest, and are one order greater in magnitude than those of the other two cases. Nevertheless, the difference in amplitude of the two lower-order nonlinear components is also larger; at the 11th level, the two nonlinear components are consistent in amplitude, but their values are relatively lower, whereas at the 5th level, the amplitudes of the two nonlinear components are relative small and have weak consistency, meaning that magnetic frequency mixing is weak. Overall the two coefficients only characterizes the magnetic frequency mixing effect in two different aspects.

Fuzzy Model for Evaluating of Magnetic Frequency Mixing Effect

Based on the above two coefficients, a comprehensive model was established to evaluate the effect of magnetic frequency mixing synthetically.

Given the relationship of the two coefficients in magnetic frequency mixing, the ridge function and the Cauchy function were selected as the subordination function of the variation coefficient D and correlation coefficient P, respectively. Specifically, the step-down ridge function \(\mu_{\text{D}}^{\text{R}}\) (xD,j) is given as

$$\mu _{\rm{D}}^{\rm{R}}\left( {{x_{{\rm{D}},j}}} \right) = \left\{ {\begin{array}{*{20}{l}}{1,}&{{x_{D,j}} \le 0.001,}\\{\frac{1}{2} - \frac{1}{2}\sin \left( {\frac{{\rm{\pi }}}{{0.499}}\left( {{x_{{\rm{D}},j}}-\frac{{0.501}}{2}} \right)} \right),}&{0.001 < {x_{{\rm{D}},j}} \le 0.5,}\\{0,}&{{x_{{\rm{D}},j}} > 0.5,}\end{array}} \right.$$
(8)

where xD,j is the value of the variation coefficient obtained from the jth level of uniform experimental design (1 ≤ j ≤ 15). When xD,j ≤ 0.001, the membership degree is 1, which means that the value is completely accepted; When 0.001 < xD,j ≤ 0.5, the membership degree decreases with the value of the ridge function until \(\mu_{\text{D}}^{\text{R}}\)(xD,j) is zero (xD,j > 0.5), which means the value is not accepted.

Similarly, the step-up Cauchy function \(\mu_{\text{P}}^{C}\) (xP,j) is used to describe the membership degree distribution of the correlation coefficient P, its explicit expression being

$$\mu _{\rm{P}}^C\left( {{x_{{\rm{P}},j}}} \right) = \left\{ {\begin{array}{*{20}{l}}{\frac{1}{{1 + 1.257{{\left( {0.999 - {x_{{\rm{P}},j}}} \right)}^{0.356}}}},}&{{x_{{\rm{P}},j}} < 0.999,}\\1&{{x_{{\rm{P}},j}} \ge 0.999,}\end{array}} \right.$$
(9)

where xP,j is the value of the correlation coefficient obtained from the jth level of the UED experiment. When xP,j < 0.999, the membership degree increases with the Cauchy function until it is completely accepted. If xP,j ≥ 0.999, the membership degree is 1 signifying that the value is completely accepted. Table 6 lists the membership degree of the two coefficients at different levels; Figure 7 plots their membership degree and fitted curves. Note that both D and P values are concentrated mainly in a range with a high level of satisfaction. Therefore, the weight of these two coefficients can be expressed by the average membership degree in Table 6.

Table 6 Membership function values of two evaluation indexes at different uniform design levels
Figure 7
figure 7

Curves of the two subordination functions

With a consideration of the weights wi of the two coefficients, a fuzzy model is constructed

$$\begin{aligned} f\left( x \right) &= \sum\limits_{i = 1}^{n} {w_{i} \mu_{Ai} \left( {x_{i,j} } \right)} = w_{1} \mu_{\text{D}}^{\text{R}} \left( {x_{D,j} } \right) + w_{2} \mu_{\text{P}}^{\text{C}} \left( {x_{{{\text{P}},j}} } \right) \\ & = 0.58\left( {\frac{1}{2} - \frac{1}{2}\sin \left( {\frac{\uppi}{0.499}\left( {x_{{{\text{D}},j}} - \frac{0.501}{2}} \right)} \right)} \right) \\ & \quad + 0.42\left( {\frac{1}{{1 + 1.257\left( {0.999 - x_{{{\text{P}},j}} } \right)^{0.356} }}} \right). \\ \end{aligned}$$
(10)

The frequency-mixing effect can now be characterized more accurately using this fuzzy evaluation function.

Regression Analysis

The fuzzy evaluation function in Eq. (10) is an implicit expression of the excitation parameters, and therefore, it cannot be used directly in the optimization of the excitation parameters. In this section, a polynomial is chosen as the regression function to model explicitly the correlation between the excitation parameters and frequency-mixing effect. The above fuzzy evaluation function f(x) may be expressed as a general quadratic

$$f(x) = \beta_{0} + \sum\limits_{i = 1}^{m} {\beta_{i} x_{i} } + \sum\limits_{i = 1}^{m} {\beta_{ii} x_{i}^{2} } + \sum\limits_{i < j} {\beta_{ij} x_{i} x_{j} } ,$$
(11)

where xi denotes an independent variable, β0, βi, βii and βij are the regression coefficients of the model, and m is the number of independent variables, here set to 4. In this study, x1 and x2 (x3 and x4) are the frequency and amplitude of the low- (high-) frequency magnetic field, respectively. Then, the influence of the excitation parameters on frequency mixing is evaluated in a stepwise regression analysis. Table 7 lists the values of the correlation indices from this analysis; R is the adjustment correlation coefficient, R2 the coefficient of determination and F the overall F-statistic. If the values of R and R2 are close to 1 and the value of F is more than 0.05, the regression analysis is considered to have fully converged.

Table 7 Correlation indices of the stepwise regression analysis

The explicit expression of the fuzzy evaluation function in terms of the excitation parameters and magnetic frequency mixing is

$$\begin{array}{l} f(x) = 0.177 - 0.008x_{1} + 0.11x_{3} + 0.227x_{4} \\ \qquad \quad -\, 0.059x_{4}^{2} - 0.002x_{1} x_{3} + 0.004x_{1} x_{4} \\ \qquad \quad +\, 3.461^{ - 5} x_{2} x_{3} - 0.015x_{3} x_{4} . \end{array}$$
(12)

Given the reasonable ranges of each excitation parameter (Table 3), the excitation parameters were then optimized using the genetic algorithm. Table 8 lists these optimal results.

Table 8 Optimal excitation parameters based on regression analysis and genetic algorithm

Experimental Validation

To validate the scheme with the preferred optimal excitation parameter settings, comparison experiments under different conditions were conducted using the surface hardness measurements of specimens (Table 2). Table 9 gives the specific parameters of the experiments. Note that the first group has the optimal parameter settings obtained from the regression analysis; the other two groups were arbitrarily chosen from the UED table (Table 4).

Table 9 Excitation parameters of contrastive experiment

Similarly, Figure 8 gives some typical results to show the dependence of magnetic frequency mixing on the excitation parameter preferences. Figures 8a, c and e present spectra of the detection signals obtained from one sample at three typical conditions; Figures 8b, d and f present the amplitude of lower-order nonlinear components obtained from different samples at three typical conditions.

Figure 8
figure 8

Dependence of magnetic frequency mixing effect on excitation parameters

The results are similar to Figure 6. The excitation parameter preferences have clearly a great influence on the performance of magnetic frequency mixing detection. Specifically, when the hardness measurement was conducted using optimal excitation parameters, the amplitudes of the lower-order nonlinear components are the largest, and they are one order greater in magnitude than those of the other two instances; moreover, the two lower-order nonlinear components show greater consistency in amplitude than those of the other two instances (Figure 9). The implication is that magnetic frequency mixing is strongest under this condition. In addition, Figures 8b, d and f show the relationship between mixing amplitudes and surface hardness. The regression coefficients were also calculated. The best relation is obtained from the optimal excitation parameters. The high regression coefficients indicate the advantages of the optimized excitation parameters for hardness detection. Besides, it can be seen from the results that the error of detection results is different under different excitation conditions. Based on the first and second group of excitation parameters, the error of detection results is generally small. For the third one, the detection error of individual results is larger. Therefore, the magnetic frequency mixing testing under the optimal excitation parameter has greater sensitivity, better linearity and robustness, and is more suitable for the hardness measurement of ferromagnetic materials.

Figure 9
figure 9

Amplitudes of mixed components under different excitation parameters

Conclusions

The UED method was used to analyze the influence of excitation parameters on the performance of magnetic frequency mixing detection. These excitation parameters were optimized using a regression analysis and a genetic algorithm. The conclusions of the study can be summarized as follows:

  1. (1)

    The excitation parameters preference has a great influence on the performance of magnetic frequency mixing detection;

  2. (2)

    Frequency-mixing effect can be characterized more accurately using a multi-index fuzzy evaluation function;

  3. (3)

    Optimal excitation parameter settings for magnetic frequency mixing detection were obtained (see Table 8);

  4. (4)
