Abstract

This article reviews the status of thermomechanical analysis of the friction stir welding (FSW) process for establishing guidelines for further investigation, filling the available research gaps, and expanding FSW applications. Firstly, the advantages and applications of FSW process are introduced, and the significance and key issues for thermomechanical analysis in FSW are pointed out. Then, solid mechanic and fluid dynamic methods in modeling FSW process are described, and the key issues in modeling FSW are discussed. Different available mesh modeling techniques including the applications, benefits and shortcomings are explained. After that, at different subsections, the thermomechanical analysis in FSW of aluminum alloys and steels are examined and summarized in depth. Finally, the conclusions and summary are presented in order to investigate the lack of knowledge and the possibilities for future study of each method and each material.

1 Introduction

Friction stir welding (FSW) is a solid-state joining process that requires no melting of the materials during the process. As shown in Figure 1, a non-consumable rotating tool with a specially designed pin and shoulder is inserted into the abutting edges of plates to be joined and traversed along the joint line [1]. The heat generated by the rotational and transverse movements of the tool softens the materials and stirs it due to the friction and the plastic deformation. From the operational viewpoint, a FSW run contains four phases including plunging, dwelling, welding and retracting stages.

During FSW process, the material undergoes intense plastic deformation at elevated temperature, resulting in the generation of fine and equiaxed recrystallized grains [1]. The fine microstructure in friction stir welds produces good mechanical properties. Due to the solid-state nature, FSW has some advantages over other fusion welding methods. Without melting and solidification of base metals, FSW joints are with the absence of cracking and porosity and no loss of alloying elements. There are much less residual stresses and distortions due to the lower heat input. It is environmentally friendly (a green process) because there are no toxic fumes and radiation. Therefore, FSW has been widely used in joining high-strength aluminum alloys and other difficult welding metals in aerospace, shipbuilding, automobile and railway industries [2,3,4]. Due to the remarkable success of FSW, the friction stir concept has been further modified, improved and refurbished to develop various novel material joining and processing technologies for other sophisticated applications [5].

During FSW process, the heat generated due to friction and plastic deformation at the tool-workpiece interface and due to plastic deformation in the thermomechanically-affected zone softens the metal adjacent to the tool, and the softened metal flows around the pin, resulting in joining of the weld seam [4]. Fundamentally, heat generation and material flow are two key issues in FSW [6]. It needs to be mention that, the localized temperature variations and large plastic deformation cause a microstructural change in weld joints. The material flow also affects the formation of the defects like void and the bonding of the material. Thus, it is of critical significance to conduct thermomechanical analysis of FSW process [7].

On the other hand, thermomechanical analysis of FSW should be considered as a complicated coupled temperature–displacement nonlinear problem. Numerical simulation methods like finite element method (FEM) should be employed to conduct such analysis. Nowadays, the characterization of FSW principles and modeling of the heat generation and material flow have been investigated by using different methods including computational solid mechanics (CSM) and computational fluid dynamics (CFD) methods [8].

According to the solid-state behavior of FSW, the application of CSM approaches for simulating FSW is increasing sharply. Though lots of work has been done in this aspect, great efforts are still required to understand the highly complex underlying physics in FSW. To this end, it is necessary to classify the efficient modeling method considerations. Reviewing the existing literature about the thermal and mechanical behaviors of different materials and also different available modeling methods can assist researchers to recognize the potential research gaps and define novel and appropriate research objectives.

This review article presents an overview of the relevant literature in the thermomechanical analysis of FSW. In the first part, solid mechanical approaches and key issues for thermomechanical analysis of FSW are introduced in detail. Various aspects are addressed, including assumptions and simplifications, governing equations, boundary conditions, contact conditions, heat generation, constitutive equations, mesh generation techniques and existing solutions. Then, the specifications and adaptations of the abovementioned issues for aluminum and steel materials are summarized and categorized. Finally, the results are concluded and the possible future work and recommendations are proposed.

2 Modeling Methods

As mentioned above, computational solid mechanics (CSM) and computational fluid dynamics (CFD) methods have been used for modeling the thermomechanical behaviors in FSW. For CSM method, the tool is treated as a rigid body without deformation, and the workpiece material is treated as a deformable body. Then finite element method (Lagrange mesh) employs to analyze the FSW process. By specifying the friction model between the tool and the workpiece, the movement of the tool and the material flow on the contact interface can be calculated according to the principles of plastic mechanics. It should be noted that, when the tool geometry is simple, CSM method has higher accuracy, especially in predicting the temperature, stress and strain. Moreover, CSM method is suitable for plastic deformation with low strain rate. Due to the limitation of mesh deformation, it is difficult to deal with the tool with complex geometry.

For CFD method, the workpiece is treated as a non-Newtonian, incompressible, visco-plastic material, and Euler method can be used to describe the physical quantities such as flow velocity and temperature of materials. The grid is fixed in the whole domain, which avoids grid distortion caused by large plastic deformation. Thus, it has outstanding advantages in dealing with the tool with complex geometry. However, CFD method cannot give the stress/strain information directly. In summary, CSM and CFD methods have their own advantages and shortcomings.

2.1 CSM Method

The issues of interest in CSM based methods for FSW are some technical approaches, like achieving better qualities for the mesh, because it undergoes large plastic deformation. Thus, a three-dimensional mesh that can symbolize the complex geometry is required to carry out the computational approach for the thermomechanical analysis of the process. It needs to be noted that, the quality of the mesh is highly influenced by the forecast thermomechanical state variable values and the distributions, because the mesh quality has a significant effect on the convergence of the simulation and the computational robustness. In a typical thermomechanical analysis which is performed and based on CSM, the movement of the mesh is associated with the material, therefore the material deformation can be depicted by the mesh deformation. During FSW, the extreme mesh distortion would cause the crashing of the calculation if the typical Lagrangian domain employs. Hence, it is crucial to choose the right technology/approach to manage the extreme mesh distortion formed by the severe plastic deformation to carry out a thermomechanical analysis of FSW based on CSM [9,10,11]. The present literature demonstrates a few favorable approaches to manage distortion of the mesh. One of these methods is the employment of arbitrary Lagrangian Eulerian (ALE) method [12,13,14,15]. Fixation or the attachment of the mesh to the material is done in the ALE approach, therefore the material is permitted to easily move across the mesh. On the other hand, another suitable alternative for thermomechanical analysis of FSW was described by some researchers [16,17,18] which was adopted Lagrangian domain with intermittent re-meshing in three dimensions. Due to the material movement across the mesh in the Lagrangian technique, the re-meshing approaches can form a novel mesh method with a better quality of the conservation for the evaluated thermo-mechanical state along with the computation. Recently, Ref. [19] gave a proposal to employ the coupled Eulerian–Lagrangian (CEL) or pure Eulerian methods to study the thermomechanical behavior. In the CEL method, the workpiece governing equations were discretized using the Eulerian formulation, while the welding tool was considered as a Lagrangian domain. It should be noted that, on the basis of the immersed boundary method, the implementation of the tool/workpiece interaction is done in the CEL approach [20]. Recently, the studies have described more about the FSW analysis based on the CEL method, which were employed for analogous processes [21,22,23]. In the pure Eulerian method, the workpiece mesh was maintained constant and the movement of the material across the mesh can be done freely (without distorting the mesh) [24]. Thus, it is suitable for modeling thermomechanical behavior and material flow.

2.2 CFD Method

Based on CFD method, Refs. [25,26,27,28] conclusively proved the established of the thermomechanical analysis for FSW, in which the analysis of the 3-D heat transfer and flow of the material were done by resolving mass conservation, momentum, and energy equations. During the calculations of the CFD method and the Eulerian technique, with the flow or the deformation of the material, the computational mesh will not deform. Hence, the material movement does not depend on the mesh movement. In the initial steps of the analysis, for spatial discretization, a constant mesh should be employed. Then, a moving mesh method for the process analysis or a dynamic mesh needs to be used. In the abovementioned method of the simulation, a dynamic geometric model allows the acquire transient behavior. A CFD-based analysis was proposed by Yu et al. [29] for examining the attributes of the heat transient flow and the mass equations. In the research, the material could move across the mesh including the geometric model variation, the transitional and the tool rotating movements. Ref. [30] permitted the mesh revolution in examining the impact of the pin profile during the thermomechanical analysis of FSW. A CFD-based analysis was also recommended for inspecting the generation of the heat, temperature distribution, and material movement [31]. Ref. [32] used a moving mesh technique for finding the pin thread impact on the flow of the material. In the paper, the material which is located in the pin thread channels is considered as an extra fluid volume moving mesh and as a transient phenomenon, moving mesh approaches for the CFD-based FSW analysis were considered.

2.3 Comparison of Governing Equations for CSM and CFD Methods

A category of computational mechanics that use the computational methods for examining the situation under the control of the solid mechanics materials called computational solid mechanical (CSM) based methods in which high-temperature severe plastic deformation, model forming, and simulating the thermo-mechanical condition in material manufacturing processes can be widely done [33, 34]. During the use of CSM for FSW analysis, the elasto-viscoplastic body will be employed. In general, the governing equations are solved on the basis of the CSM approach to obtain thermal and mechanical responses. The differential form of the motion-equation can be employed to resolve the displacement vector (u) which is the governing equation in the CSM based approach for the mechanical response.

On the other hand, a non-Newtonian fluid should be considered for the workpiece in CFD models. The analysis of the thermo-mechanical attributes in FSW employs the conservation equations of mass, momentum, and energy. It should be mention that, in the CFD-based analysis, the simple form of the governing equations for the material movement without considering the elastic term is the momentum conservation equation.

In order to understand and investigate the governing equations for different situations and calculations, the following equations are described for the CSM (Lagrangian) and CFD (Eulerian) methods [35].

Conservation of energy

Equations for CSM	Equations for CFD
$\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i} + \eta S_{ij} \dot{\varepsilon }_{ij}^{pl}$	$\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i} + \eta S_{ij} \dot{\varepsilon }_{ij}^{pl} - u_{i} \left( {\rho c_{p} T} \right)_{,i}$	(1)
where $\rho$ is density (kg/m³), $c_{p}$ is the specific heat (J/(kg·K)), $\dot{T}$ is temperature derivative taken with respect to time, $\left( {kT_{,i} } \right)_{,i}$ is the thermal conductivity along the direction, $S_{ij}$ is the interfacial heat generation rate, $\dot{\varepsilon }_{ij}^{pl}$ is the strain rate tensor, $\eta$ is mechanical efficiency and $u$is velocity vector components.

Momentum equations

Equations for CSM	Equations for CFD
$\rho \ddot{u}_{i} = \sigma_{ji,j} + p_{i}$	$\frac{{\partial (p\dot{u}_{i} )}}{\partial t} = \sigma_{ji,j} + p_{i} - \rho \left( {\dot{u}_{j} \dot{u}_{i} } \right)_{,j}$	(2)
where stress tensor is $\sigma$ and p is pressure.

Mass equations

Equations for CSM	Equations for CFD
There is no equation for explicit analysis	$\dot{\rho } = - (\rho u_{i} )_{,i}$	(3)

Thermal models (Energy with source term)

Equations for CSM	Equations for CFD
$\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i} + \dot{Q}^{m}$	$0 = \left( {kT_{,i} } \right)_{,i} + \dot{Q}^{m} - u_{i} \left( {\rho c_{p} T} \right)_{,i}$	(4)
where $\dot{Q}^{m}$ is the heat source.

Energy equation without source term (The surface prescribed heat)

Equations for CSM	Equations for CFD
$\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i}$	$0 = \left( {kT_{,i} } \right)_{,i} - u_{i} \left( {\rho c_{p} T} \right)_{,i}$	(5)

Flow and residual stresses equations

Equations for CSM	Equations for CFD
(Dynamic equilibrium, using ALE) $\rho \ddot{u}_{i} = \sigma_{ji,j} + p_{i}$	The equation of dynamic equilibrium is not relevant	(6)
Statical equilibrium for implicit flow formulation $\sigma_{ji,j} + p_{i} = 0$	Statical equilibrium for a quasi-static thermomechanical analysis $\sigma_{ji,j} + p_{i} = 0$	(7)

Strain and displacements

The theory of the large strains	The theory of the small strains
$\varepsilon_{ij}^{tot} = \frac{1}{2}\left( {u_{i,j} + u_{j,i} + u_{k,i} u_{k,j} } \right)$	$\varepsilon_{ij}^{tot} = \frac{1}{2}\left( {u_{i,j} + u_{j,i} } \right)$	(8)

Total strain

Rigid viscoplastic behavior	The independent plasticity rate
$\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{vp}$ Explicit ALE $\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{el} + \varepsilon_{ij}^{pl} + \varepsilon_{ij}^{vp} + \varepsilon_{ij}^{th}$	$\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{el} + \varepsilon_{ij}^{pl} + \varepsilon_{ij}^{th}$	(9)

Thermal strain

$\varepsilon_{ij}^{th} = \delta_{ij} \mathop \int \limits_{{T_{1} }}^{{T_{2} }} a\left( T \right){\text{d}}T$	(10)

Constitutive law

Equivalent stress
$\bar{\sigma } = \left( {\frac{3}{2}\sigma_{ij} \sigma_{ij} } \right)^{{\frac{1}{2}}}$	$\bar{\sigma } = \left( {\frac{3}{2}\sigma_{ij} \sigma_{ij} } \right)^{{\frac{1}{2}}}$	(11)
The equivalent of the total strain rate for the rigid viscoplastic law $\dot{\bar{\sigma }}^{total} = \left( {\frac{2}{3}\dot{\varepsilon }_{ij}^{total} \dot{\varepsilon }_{ij}^{total} } \right)^{{\frac{1}{2}}}$	The plastic strain rate equivalent $\overline{\epsilon }^{pl} = \left( {\frac{2}{3}\varepsilon_{ij}^{pl} \varepsilon_{ij}^{pl} } \right)^{{\frac{1}{2}}}$	(12)
General formulation for yield stress
$\sigma_{y} = \sigma_{y} \left( {T,\dot{\bar{\sigma }}^{pl} } \right)$ $\sigma_{y} \to 0$ $T \to T_{cut - off} \sim T_{sol}$	$\sigma_{y} = \sigma_{y} \left( {T,\dot{\bar{\sigma }}^{pl} } \right)$ $\sigma_{y} \to 0$ $T \to T_{cut - off} \sim T_{sol}$	(13)
Norton power law $\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}$	The hardening law (Ramberg–Osgood) $\bar{\varepsilon }^{total} = \frac{\sigma }{E} + \alpha \frac{{\sigma_{y} }}{E}\left( {\frac{\sigma }{{\sigma_{y} }}} \right)^{n}$	(14)
Inverse hyperbolic sine $\sigma_{y} = \frac{1}{\alpha }{ \sinh }^{ - 1} \left( {\frac{Z}{A}} \right)^{{\frac{1}{n}}}$ $Z = \overline{{\dot{\varepsilon }}} e^{{\frac{Q}{RT}}}$ $m = \frac{{\partial ln\bar{\sigma }}}{{\partial ln\bar{\varepsilon }}}$	…	(15)
Johnson–Cook $\sigma_{y} = \left( {A + B\bar{\varepsilon }^{n} } \right) \left( {1 + Cln\frac{{\overline{{\dot{\varepsilon }}} }}{{\dot{\varepsilon }_{0} }}} \right) \times\left( {1 - \left( {\frac{{T - T_{ref} }}{{T_{sol} - T_{ref} }}} \right)^{m} } \right)$	Elasticity Hooke’s generalized law $\sigma_{ij} = \frac{E}{1 + v} \left(\varepsilon_{ij}^{el} + \frac{v}{1 - v}\delta_{ij} \varepsilon_{ij}^{el} \right)$	(16)

Fluid mechanics equations for flow

Momentum
Steady-state	Steady-state and Stokes flow	(17)
$0 = \sigma_{ji,j} + p_{i} - \rho \left( {\dot{u}_{j} \dot{u}_{i} } \right)_{,j}$	$0 = \sigma_{ji,j} + p_{i}$
Strain rates and the displacement rates
$\dot{\varepsilon }_{ij}^{tot} \frac{1}{2}\left( {\dot{u}_{i,j} + \dot{u}_{j,i} } \right)$		(18)

Constitutive law

Incompressible Newtonian law $\sigma_{ij} = - \delta_{ij} P + 2\mu \dot{\varepsilon }_{ij}$	Incompressible Non-Newtonian law $\sigma_{ij} = - \delta_{ij} P + \mu_{eff} 2\dot{\varepsilon }_{ij}$	(19)
The equivalent for stress and strain rate $\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}$ (m = 1)	The equivalent for stress and strain rate $\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}$	(20)
…	General effective viscosity $\mu_{eff} = \frac{{\bar{\sigma }}}{{3\dot{\bar{\varepsilon }}}} = > \mu_{eff} = \mu \sqrt 3^{m - 1} \dot{\bar{\varepsilon }}^{m - 1}$	(21)
…	The power law for the effective viscosity $\mu_{eff} = \frac{1}{3}K\dot{\bar{\varepsilon }}^{m - 1}$	(22)
…	The effective viscosity for hyperbolic sine $\mu_{eff = } \frac{{\frac{1}{\alpha }\sinh^{ - 1} \left\{ {\frac{1}{A}\overline{{\dot{\varepsilon }}} e^{{ - \frac{Q}{RT}}} } \right\}^{{\frac{1}{n}}} }}{{3\overline{{\dot{\varepsilon }}} }}$	(23)
Cut off temperature $\sigma_{y} \to 0$ $T \to T_{cut - off} \sim T_{sol}$	Cut off temperature $\mu_{eff} \to 0$ $T \to T_{cut - off} \sim T_{sol}$	(24)

2.4 Computational Approaches

It is anticipated to find and calculate thermomechanical variables distributions with a suitable spatial determination. In the computational examination, spatial determination relies on the mesh size. It can be summarized that in the CSM-based analyses, the region near the tool has more attention and the mesh size near the tool area was found to be in the range of 0.2 to 1.0 mm [17, 36,37,38,39]. For CFD based analyses the values of 0.1 to 0.2 mm were reported [40, 41]. Based on the recent publications, it can be seen that there is a significant change for the microstructure almost 0.1 mm away from the stirring zone [9, 42]. Therefore the mesh size should be equal or less than 0.1 mm. Even though a lot of methods were proposed for FSW analysis, however the bulk mesh ending up in deficient spatial resolution remains as an existing issue. Moving forward, more analysis on the basis of CSM model is needed to use smaller sizes for the mesh which leads to the enhancement of the accuracy. Thus, the level of the computation needs to be enhanced to permit an improved spatial resolution for developing thermomechanical analysis of FSW. At the same time, the computation of the equivalent strategies is needed for a tremendous increase in the computation efficiency and shorten the computational costs. A note is made that the presently accessible computational capacity permits the employment of smaller size for the mesh during CFD-based simulations compared to the CSM based modeling. This issue happens in the CFD-based models due to the simplification of the governing equation which has neglected the terms of the elasticity. Furthermore, the stress calculations are only dependent on the velocity gradient, therefore in a large extent, the computational costs for the CFD models are less than CSM models [43]. Presented CFD-based FSW analysis permits the improvement of the spatial resolution, hence much complicated geometrical features can be simulated by CFD based models [32]. Whereas, the mean stress also called the forecast pressure has more ambiguity in the CFD based analyses, due to the negligence of elasticity [9].

It is obvious that, rising the element numbers rises the time taken to perform the calculations. Moreover, the use of the explicit algorithm in solving governing equations makes the analysis slower due to the conditional stability nature of the algorithm. To avoid this and decreasing the simulation time, the mass of the elements should be artificially increased. There is a specific activation called the ‘scaling procedure’ in which the time increment is below a certain limit. In CSM, the explicit central difference approach is employed to integrate the equations in time. It should be noted that, in this method, the mass matrix which is employed in the equilibrium equations plays a significant role in both computational efficiency and the model accuracy. As mentioned earlier, the process has a dynamic nature, assumed that the workpiece material should have rate-dependent properties, so the natural time scale needs to be considered in the computational analysis. Besides, it should be mention that, in the initial trial runs the stable time increments substantially is less than the average values, because the pin contains few small elements. This issue leads to a very small-time increment for the entire structure.

2.5 Finite Element Modeling Boundary Conditions

2.5.1 Thermal Boundary Conditions

During the FSW, both the frictional force and the plastic deformation generate heat which propagates quickly into the whole of the workpiece. It needs to be mentioned that, on the workpiece upper and bottom surfaces, the radiation and the convection account for the heat loss into the ambient should be considered. Moreover, on the bottom surface, the backing plate or the clamp the conduction losses occur. The available data in the previous studies [44,45,46,47] suggested that the film condition for different sides of the workpiece should be presumed, except for the bottom surface which can be assumed to have an adiabatic behavior. In addition, the room temperature of 25 °C can be considered in the model as the initial temperature. It should be noted that, the friction coefficient highly influences the results of the temperature. The higher coefficient rises the final temperature values because at higher coefficients the lower percentage of the heat will be lost by the radiation.

2.5.2 Mechanical Boundary Conditions

For the mechanical boundary condition side, the workpiece is clamped like a fixture. During the beginning steps of the welding, every node in the tool must be strained in the right angle direction and in all directions the workpiece clamp portions should be constrained, and all workpiece bottom nodes should be fixed in the perpendicular direction. The next step is the model assembly and the specification of the starting point for the midpoint of the source of heat. Basically, the FSW process contains four different phases and the process loads consist of three initial periods. Plunging step in which the tool plunges gradually into the workpiece at a very shallow depth while it is rotating in order to generate heat. The dwelling step is available in some cases for the better stirring of the material. In the dwelling step, the tool/workpiece friction results in the generation of the heat. This step can be defined as the initial tool position that should be continued until the workpiece temperature gives the value needed for the transverse velocity, where the rotating tool moves across the welding line. In the transverse period, the temperature of the welding line would increase, however the highest temperature values did not cross the melting temperature of the workpiece. Finally, the tool plunges out and withdrawn from the workpiece. As mentioned earlier, although, in the traverse step, the welding seam temperature increases, however the welding maximum temperature will not surpass to the workpiece material melting temperature. When the temperature declines and the workpiece cools down, a solid continuous joint will appear in the welding seam. It should be mention that, the depth and rotating speeds are two critical parameters for reaching the required welding temperatures. Moreover, the analysis type should be dynamic temperature-displacement explicit and the mass scaling type can be considered as the semi-automatic target time increment. Consequently, each step should be considered as a separate load, while in some cases, for simplifying the loads the tool defines as a rigid constraint surface.

2.6 Sliding and Sticking Conditions at the Contact Interface

Friction between solid objectives involves a complicated behavior, thus to achieve a high accuracy modeling of the process during complex welding conditions the implementation of an accurate contact condition is required [48,49,50,51]. The first important point in implementing an appropriate contact condition during FSW process is the selection of the contact model. Different studies have posited that the employment of the Coulomb friction model could result in achieving accurate and excellent prediction of the temperature distributions. This is because, the friction coefficient in the model should be considered as a function of the temperature and the strain rate. It makes this law suitable for solving problems encountered during couple temperature displacement problems. Consequently, as discussed above due to the Coulomb friction law capabilities, an excellent agreement was found and many researchers have chosen the classical Coulomb friction law [12, 14, 52] in coupled thermomechanical FE models for defining the interaction between interfaces.

Zhang et al. [53] adopted two different contact conditions to study the material flow and heat generation during the process. In the research, a comparison between the conventional and the modified Coulomb friction models was done and it was found that the contact pressure directly controls the friction force and the temperature pattern. Furthermore, it was investigated that unlike the Coulomb contact model, the friction coefficient in the Norton friction law is affected by the welding forces and the tool temperatures. The study also showed that in Norton law there is a need to incorporate the temperature profile, rendering and accurate measurements of the forces into the computed values and also there is a need to calculate the temperature changes at the surface. It is also notable that, the slight friction variation is the primary cause of these changes, hence, the lack of the data when the Norton law is using leads to achieve unrealistic results [54].

In a FE model, Chao and Qi et al. [55,56,57] employed a moving heat source for modeling the residual stresses, the transient evolution of temperature and the residual distortions during the FSW process. In the model, it was presumed that, the heat comes from the sliding friction between the tool and the workpiece. Moreover, Coulomb friction model was used to estimate the friction force. In addition, at the tool surface interface, the pressure was set constant and it was observed that a radially dependent surface heat flux distribution produced by the shoulder. However, the effect of the pin in the heat generation was neglected. Comparisons between the experimental and the numerical observations of temperatures and shear stress in global and local scales were established for investigating the strain and the stress during the welding of post-buckled stiffened panels. Moreover, in the models, the evaluation of the failure criteria during the FSW was studied.

A similar method was used to find the fracture mechanics-based methods for predicting the skin-stiffener separation using a 3-D model in commercial ABAQUS/Explicit^® software. In the model, ALE, Johnson–Cook material model, and Coulomb friction model were used to find the influence of the friction force in the generated heat. Moreover, the slip rate in relative to the workpiece was related to the generated heat by the friction, while the generated heat by the plastic deformation was related to the material velocity [58]. In a FE model, the surface of the rigid back-plate was modeled separately to predict friction forces by using Coulomb frictional law. Besides, the heat which is produced by both the frictional force and the plastic deformation during the process were considered. The steps of the dwelling and the welding phases have been modeled using a constant contact conductance. In addition, sticking and sliding conditions were used in the model to investigate the generated heat in the pin side, the shoulder bottom and the pin bottom. The model could also successfully predict the velocity of the material, the plastic strains and the temperature. A main limitation in the model was the long processing time for reaching the steady-state condition. In fully coupled thermomechanical models, the classical and the modified Coulomb laws were used for modeling the FSW process [51, 59]. The gap between numerical models was not wide at lower rotational velocities. However, at higher rotational velocities the classical model failed, because of the shear stress limitations at the welding interfaces, while the modified model in a semi-analytical thermal condition could successfully simulate the process [60].

By using average values of the consistency and the strain rate in Norton–Hoff visco-plastic constitutive equation, the FSW process was modeled. The calculated streamlines were compared with the visualization of the material flow experimentally (a marker inserted in the along the welding center line). The correlation between the results was developed by modeling of the effective sheet thickness and defining the realistic material properties in which the material properties were defined as a function of temperature. Moreover, more accurate prescription of the velocity boundary conditions and refining the mesh in the HAZ zone aided to increase the model accuracy. Furthermore, for achieving high accuracy results, the influence of the pin thread and shoulder thread were considered. Finally, the outcomes were found in a good correlation when the results compared with experimental measurements. Based on the friction model calibrations, a three-dimensional model was used by employing both Eulerian and ALE formulations. In the paper, Norton and Coulomb friction laws were employed for modeling the interactions at the welding interfaces of aluminum 6061-T6. It was determined that, the coefficient of the friction in Norton friction model is influenced by the welding forces and the welding temperatures. It was also reported that, there is a need to incorporate into computed values such as accurate calibrations of forces, proper rendering of the temperature profile and considering the changes (caused by slight friction variations) of the contact interfaces. Finally, a good correlation was found between the simulation and experimental tests [54].

Moreover, there are two important input parameters in the contact condition definition i.e., the values of the friction coefficient and the slip rate. Basically, in the procedure of the FSW, the material must be stirred and deformed by the friction force. To accomplish this, the friction force has to overcome the force keeping the interfaces held together. The friction coefficient as a dimensionless value is defined as the relationship between the above-mentioned forces (the friction force and the forces held interfaces together). Therefore, one of the most important input parameters of the contact condition is the coefficient of friction.

Several research [45, 61,62,63,64,65,66] have documented various values ranging from 0.3 to 0.5. It should be noted that in the previous studies, the experimental measurements of the normal pressure and the tool torque have been used to estimate the values [64, 65]. Levenberg–Marquardt (LM) model was also used for simulating nonflat estimation of the friction coefficient and the material adhesion amount in the heat transfer and the fluid flow models [67]. It should be noted that, for simplifications, the coefficient of the heat transfer in the bottom side of the weld and the viscous dissipation amount converted into heat. Additionally, in a considerable amount of literature [68,69,70], the researchers have assumed the conditions of full sticking, full sliding and partial sticking/sliding for simulating the FSW process.

The material under the condition of full sliding is not moving close to the tool. Moreover, in this condition, the extrusion of the material will be only done by the pin. This condition (sliding) occurs when the material yield stress is more than the material shear stress. Besides, in the sliding condition, the intensity of the shear stress on the workpiece segments trends to follow a regular rate of the deformation which has a flat pattern. The condition of full sliding during FSW process was considered in some FE models, while the influence of the pin depth was neglected [45, 62, 68]. As a result, the contact area was not realistic in these studies. Thus, the gap between the experiments and the finite element model in the temperature profile was extensive.

To investigate the distribution of the temperature under the sliding condition at the workpiece/tool interface, the literature [69] presumed that the shear stress has a uniform pattern. Furthermore, for correlating the measured torque amounts with the heat flux, the input parameters of the power of the FSW machine were employed. In order to find the mechanical behavior, kinematics and thermal profile in the sliding condition, contact behavior of the process was developed by Lorrain et al. [71]. FSW thermal modeling was done by Hamilton et al. [70, 72], however, to simplify the finite element model, conditions of full sliding for the contact area were used.

In the research which has been done by Colegrove, Ulysse [73] and Shercliff [27] the deformation of the workpiece during FSW was measured under the assumption of the unique heat source. The model contact condition and the sliding condition were studied successfully in the abovementioned papers. Heurtier et al. [74] considered two techniques for the heat generation methods under the conditions of full sticking and full sliding, however because of the process complexity and the diverse local phenomena both models were uncoupled. It was claimed that, under the condition of full sticking, the material circumferential velocity at the interfaces of the tool is the same as the velocity of the tool. In addition, when the workpiece yield stress is less than the shear stress of the contact area, the surface of the workpiece would stick to the tool segments. The rate of the acceleration of the workpiece under this condition will remain equal to the velocity of the tool until the condition of equilibrium between the shear stress of the contact area and the internal shear stress of the workpiece achieves.

Transient and fully coupled thermo-fluid finite difference models were used to minimize the calibration of parameters by Nikiforakis [75]. In the model, an overlapping grid method was employed to handle the tool rotational movement. Moreover, a rigid-visco-plastic material model in a sticking contact condition at the interface between the tool and the workpiece was presumed for simplifying the model. Additionally, due to the limitations of sticking condition only the generated heat by the plastic deformation was calculated. In a full sticking condition, a 3-D heat flow model was employed for predicting the temperature field during the FSW by the literature [76,77,78]. Stick and slip settings at the interface between the tool and the workpiece in two and three-dimensional models were created in FLUENT^® software to study the influence of the pin shapes in the material flow and the welding forces. The results related to pressure and related to forces indicated that the gap between the stick and slip conditions is small. However, because the isothermal conditions have been assumed and only the tool pin was modeled, the model accuracy was limited.

Parametric studies of variations in material properties and temperature profiles were simulated in thermal modeling by Reynolds et al. [79]. In the model, the total torque was separated to the shoulder, the pin bottom and the pin side surfaces. Input parameters of the model were total input power, thermo-physical properties of the welding material, welding speeds, boundary conditions and tool geometry. Moreover, the Zener-Hollomon parameter was used for defining the deviatoric flow stress and a non-slip boundary condition at the contact interfaces was considered. In the model, the effect of the material properties in the weldability, potential mechanisms of defect formation, hardness and microstructure distributions were studied. It was explained that, basically when the velocity of the segments of the workpiece is smaller than the rotational velocity of the tool, a mixed state of sticking and sliding conditions will be appeared. To more clearly, when the workpiece internal yield stress is equal to the shear stress of the contact area, the equilibrium condition will be achieved. Therefore, the plastic deformation generates heat under the condition of full sliding, while in the condition of full sticking, the friction between interfaces produces the heat.

As cited earlier, during FSW, the plastic deformation and the friction is present. Thus, a condition of partial sticking sliding needs to be considered in the model. In this light, Schmidt et al. [80] proposed a contact condition that represents the slip rate variable ($\delta$) at the tool/ workpiece interface. In this model, $\delta$ = 1 represents the full sticking conditions, $\delta$ = 0 represents the full sliding conditions and 0 < $\delta$ < 1 represents a partial sliding/sticking condition. Other studies that modeled the FSW procedure include the research done by Gerlish et al. [81] and Schmidt et al. [82]. Cho et al. [83] and DebRoy et al. [84, 85] presented finite element models (3D models) for measuring the plastic deformation. In the models, the slip rate and the friction coefficient were determined using the assumptions of the cross-wedge rolling process. The following formulations are proposed for calculating the friction coefficient and the slip rate by Refs. [30, 86].

In the full sliding ($\delta$ = 0) and full sticking ($\delta$ = 1) conditions, the shear stress can be calculated as follows:

$$\tau_{fric} = \mu P_{0} \quad {\text{when}}\quad \delta = 0,$$

(25)

$$\tau_{shear} = \tau_{y} \quad {\text{when}}\quad \delta = 1,$$

(26)

where µ is the friction coefficient, $\tau$ is the shear stress and $P_{0}$ is the axial pressure at the shoulder bottom and the pin bottom area which can be written as,

$$P_{0} = \frac{{F_{N} }}{{\pi R_{S}^{2} }},$$

(27)

where $F_{N}$ is the normal force and $R_{S}$ is the radius of the shoulder.

For a partial sliding/sticking condition the contact shear stress at the shoulder bottom and the pin bottom surfaces can be written as [30, 86],

$$\tau_{0} = \delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0}.$$

(28)

For the pin side region, the shear stress can be calculated as,

$$\tau_{1} = \mu P_{0} { \sin }\alpha \quad {\text{when}}\quad \delta = 0,$$

(29)

$$\tau_{1} = \tau_{y} \quad {\text{when}}\quad \delta = 1,$$

(30)

where α is the tool pin angle.

And in the partial sliding/sticking condition the shear stress for the pin side region can be explained as,

$$\tau_{1} = \delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0} { \sin }\alpha.$$

(31)

By employing Eqs. (28) and (31) and resolving a linear system of two equations and two variables the values of the friction coefficient can be measured as,

$$\mu = \frac{{\tau_{0} - \tau_{1} }}{{\left( {1 - \delta } \right)P_{0} \left( {1 - { \sin }\alpha } \right)}}.$$

(32)

By incorporating Eq. (32) into Eq. (28) or (31) the values of the slip rate can be calculated as below,

$$\delta = \frac{{\tau_{1} - \tau_{0} { \sin }\alpha }}{{\left( {1 - { \sin }\alpha } \right)\tau_{y} }}.$$

(33)

Thus, the final equation for measuring the values of the friction coefficient can be calculated as below,

$$\mu = \frac{{\tau_{0} - \tau_{1} }}{{\left( {1 - \frac{{\tau_{1} - \tau_{0} { \sin }\alpha }}{{\left( {1 - { \sin }\alpha } \right)\tau_{y} }}} \right)P_{0} \left( {1 - { \sin }\alpha } \right)}}.$$

(34)

2.7 Heat Generations

First of all, there is a need for analytical estimating of the heat generation. As can be observed in Figure 2 and confirmed by Refs. [56, 80, 87], the heat generation has a very complicated behavior.

To illustrate, the tool geometry, the rotational speed, the transverse speed, etc., are some initial parameters that have a significant influence on the heat generation. As the welding continues, some other factors will affect the heat generation, like the temperature, the friction coefficient, the contact pressure, the shear stress.

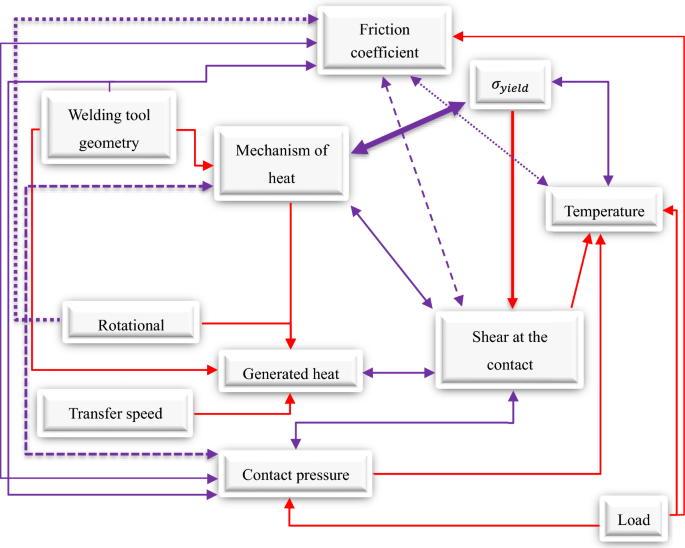

The presented flowchart in Figure 3 confirms that, the main reasons for the heat generation are the frictional force and the plastic deformation. These sources produce shear stress at the welding area, the shear stress causes the welding forces, the forces produce torque and finally, the torque will generate the heat.

In the Coulomb friction model, the frictional shear stress ($\tau_{fric }$) can be calculated as [88],

$$\tau_{fric } = \mu P_{0} \quad {\text{when}}\quad \delta = 0,$$

(35)

where μ is the friction coefficient, $P_{0}$ is the axial contact pressure and $\delta$ is the slip rate.

As the welding temperature increases, von Mises shear stress criterion ($\tau_{y}$) should be applied for the plastic deformation as follows [80],

$$\tau_{y} = \frac{{\sigma_{y} }}{\sqrt 3 }\quad {\text{when}}\quad \delta = 1,$$

(36)

where $\sigma_{y}$ is the yield stress.

As mentioned earlier, for estimating the generation of the heat during the process in a partial sliding/sticking condition the shear stress at the shoulder and the pin bottom areas can be calculated as,

$$\tau_{0} = \delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0}.$$

(37)

And the shear stress at the pin side area can be written as,

$$\tau_{1} = \delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0} { \sin }\alpha.$$

(38)

Due to the different values of the shear stress at the shoulder and the pin bottom areas and the pin side area, a ratio for the shear stress ($\dot{\tau }$) can be written,

$$\dot{\tau } = \frac{{\tau_{0} }}{{\tau_{1} }},$$

(39)

$$\dot{\tau } = \frac{{\delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0} }}{{\delta \tau_{y} + \left( {1 - \delta } \right)\mu P_{0} { \sin }\alpha }}.$$

(40)

According to Ref. [89], this ratio has a relationship with the pin angle as follows:

$$1 < \dot{\tau } < {\frac{1}{{{ \sin }\alpha }}, \quad \alpha } > 0.$$

(41)

The values of the torque can be indicated by $T_{total}$, containing 3 sections including torque of the shoulder ($T_{S}$), the torque of the pin bottom ($T_{Pb}$) and the torque of the pin side ($T_{PS}$) as follows:

$$T_{total} = T_{S} + T_{Pb} + T_{PS},$$

(42)

$$T_{total} = \mathop {\oint }\limits_{{A_{S} }}^{ } \tau_{0} {\text{d}}A_{S} + \mathop {\oint }\limits_{{A_{Pb} }}^{ } \tau_{0} {\text{d}}A_{Pb} + \mathop {\oint }\limits_{{A_{PS} }}^{ } \tau_{1} {\text{d}}A_{PS},$$

(43)

where the shoulder area is $A_{S}$, the pin bottom area is $A_{Pb}$ and the pin side area is $A_{PS}$.

Hence, the summarization of the aforementioned values is the overall quantity of heat generated during FSW. It can be finalized that the contact area geometry, speed of rotation, the force and the shear stress will impact the heat generated.

2.8 Plasticity Modeling

In this process, the influence of the strain rate and the temperature have to be considered in terms of plasticity modeling. In order to avoid large plastic deformation problems and distortion of mesh an elastic-plastic Johnson–Cook material law which was proposed by G. R. Johnson and H. Cook [90] can be used as follows:

$$\begin{aligned} \sigma_{y} & = \left[ {D_{1} + D_{2} \exp \left( {D_{3} \frac{P}{{\bar{\sigma }}}} \right)} \right]\left[ {1 + D_{4} ln\left[ {\frac{{\dot{\varepsilon }_{P} }}{{\dot{\varepsilon }_{0} }}} \right]} \right] \\ & \quad \times \left[ {1 + D_{5} \left( {\frac{{T_{FSW} - T_{room} }}{{T_{melt} - T_{room} }}} \right)} \right], \\ \end{aligned}$$

(44)

where $\sigma_{y}$ depends on the equivalent plastic strain rate ($\dot{\varepsilon }_{P}$), the ratio ($\frac{{\dot{\varepsilon }_{P} }}{{\dot{\varepsilon }_{0} }}$), the ratio of hydrostatic pressure to equivalent stress $\left( {\frac{P}{{\bar{\sigma }}}} \right)$ and the FSW temperature. The values of damage constants ($D_{i}$ where 1 ≤ i ≥ 5) are given from the literature as listed in Table 1.

Table 1 Different parameters for the Johnson-Cook material [91,92,93,94,95,96]

Full size table

2.9 Mesh Modeling

There are different methods for modeling the mesh (Figure 4) which each of them has its own application, in this part comparisons between these methods are done in order to find the best method for different types of modeling of the process.

2.9.1 Lagrangian Method

This method is significantly used in solid and structural combination elements. Ref. [24] took into considerations that this method can give results with higher accuracy at the global level. As aforementioned, the nodes travel with the material and can trace the deformation of the material. Hence, there is no material pass between elements making the method appropriate to investigate the process during small mesh distributions (outside the welding zone). Concluding, it was seen that this method permits smooth interface and surface motion into the materials. In addition, it facilitates the treatment of materials with history-dependent constitutive relations. However, the limitation is the inability of the following large deformations of the computational domain without an alternative frequent remeshing (Figure 5).

2.9.2 Eulerian Method

As alleged by the research workers [24, 97], this method was not often employed for analysis of the thermal process as it has an immovable mesh (unlike the Lagrangian method). Hence, this method was mostly employed in the fluid mechanic process in which the material moves through the mesh (Figure 6). In addition, the range of the application is limited for the large plastic deformation modeling, due to the requirement of proper explanation of the convection term, properties of the materials, and the geometry of the components in this formulation [98]. Overall, this technique has been mostly used for the fluid dynamics issues, due to the fixed mesh and easy movement of the fluid through the mesh. Additionally, the large movements of the fluids are handled in this method, however there are few limitations at the flow detail resolution and the precise interface definition.

2.9.3 Arbitrary Lagrangian–Eulerian (ALE)

The Lagrangian and the Eulerian methods are not advantageous for local-level analysis, because the divergence occurs inside the HAZ due to high material deformation and large mesh deformations, thus there is a necessity for continuously remeshing [99, 100]. A suitable method for local-level analysis is the Arbitrary Lagrangian–Eulerian (ALE) as the mesh inside the domains are enabled to move promptly in order to optimize the shapes of the elements (Figure 7) [101]. To demonstrate this, in this method the mesh on the domain boundaries and interfaces are enabled to move with the materials to accurately trace the boundaries interfaces. In general, ALE has the Lagrangian part for solving large displacements and the Eulerian part for solving the advection issues of velocities. Thus, the major objective of this method can be the local level simulation (inside the HAZ area) [102]. At the local level simulation, the impact of the speed of welding (transverse and rotational), the mechanisms of contact, the shape of the pin, the size of the stir zone, and the material flow inside the stirring zone can be studied with very high accuracy [103, 104]. In addition, the ALE method has an extra degree of freedom than the Lagrangian and Eulerian methods. This extra degree reduces the issues faced in the classical kinematic descriptions, because it joins the merits in an advantageous manner. These features make ALE appropriate for explaining the interface interaction and also for large plastic deformation modeling.

3 FSW Analysis Results for Different Materials

As mentioned earlier, plastic deformation and frictional force are two key sources for the heat generation [105]. Past studies [106, 107] claimed that the maximum temperature in this process could reach up to 60%–80% of the melting temperature of the base material. Therefore, researchers [108,109,110] had adapted temperature-dependent material properties for simulating the FSW process. It should be mentioned that, the FSW process should be modeled as a fully coupled thermomechanical analysis. Thus, some other literature was also focused on the stress and strain distributions [111]. Since the application of FSW is increasing in different industries, the need for thermomechanical analysis of FSW for different materials is increasing. In order to investigate the lack of knowledge and find the possibility of future work, the following sections have been classified as the previous literature according to the finite element modeling of FSW of aluminum and steel materials.

3.1 Thermomechanical Analysis of FSW for Aluminum Alloys

In this section, the selected literature results for different significant aspects of the FSW simulation are presented including the implementation of the contact condition, stress and strain distributions and temperature-dependent material properties. In each part, a number of related papers have been described for indicating some specific and significant information about modeling of FSW, i.e., the assumptions, simplifications, neglections, etc. for different series of aluminum. It needs to be mentioned that some selected Figures and graphs have been presented and described in order to dig down deep into the literature, and determining the significant and key issues.

3.1.1 Influence of the Contact Condition on the Temperature

Firstly, the definition and the implementation of the interaction behavior can be considered as a significant part. A study done by Zhang [53] adopted two different contact conditions to study the heat generation, the deformation and the material flow during FSW of AA6061-T6 at different welding rotational velocities by using a thermomechanical model. The comparisons between the conventional and the modified Coulomb friction models as well as the Norton model were done and it was investigated that, in Norton friction model the welding forces and the welding temperature affect the friction coefficient. Thus, the need for proper rendering of the temperature profile and accurate experimental measurements of the forces was stipulated. It was also summarized that the calculation of the changes in the contact surface which is caused by slight friction variations is imperative. Comparisons with the literature [14, 52, 54, 112] showed that, the results will be unrealistic if a lack of data happens during the implementation of the contact condition in a fully coupled thermomechanical. Finally, Coulomb friction law could provide more realistic and better results in the investigation of the thermomechanical behavior for AA6061-T6, because the law considers the variable on the temperature and the strain rate and deformations (Figures 8 and 9), which makes this law suitable for solving couple temperature displacement problems. To illustrate, in the literature it was mentioned that the tool pushes the material upward and deforms the tool side sections. This issue can be observed in Figures 8 and 9 (the highlighted sections). Therefore, due to the accurate employment of the contact area, a good and accurate prediction of the deformation behavior is done. In order to describe the relationship between the accurate implementation of the contact condition and the temperature distribution Figure 10 has been presented. As can be seen, the welding temperature has an asymmetrical pattern and the temperature of 400 °C is achieved as the peak temperature (below the shoulder). Moreover, it was observed that the backside of the pin has higher temperature and a “V” shape pattern for the temperature is observed which shows the implementation of accurate applying contact condition and the interaction parameters.

Studies by Ulysse et al. [73] and Colegrove and Shercliff [27] investigated the contact condition to measure the workpiece plastic deformation in a unique heat source condition for AA 7050-T7451 while Heurtier et al. [74] considered two heat generation methods in full sliding and full sticking conditions for AA2024-T351. Hamilton et al. [72] proposed a FSW thermal model in which a full sliding contact was used, because of the assumptions of the finite element model. Different rotational speeds including 225, 250, 300 and 400 r/min and constant values of the transverse speed have been considered for the model. In addition, the relationship between the yield strength and the temperature was obtained (Figure 11) and as can be seen with the increase of the temperature the yield strength is decreased. It should be noted that the Johnson–Cook material law (the values are highlighted in Figure 11) was employed for welding material modeling. The welding contour including the plates and the back plate also is available in Figure 12 which confirms that most of the heat is generated by the shoulder and the maximum temperature of 388 °C was obtained during the process. It was investigated that due to the use of accurate sliding condition, the welding energy also decreased when the temperature of the welding is increased.

Gerlich et al. [81] investigated two different types of aluminum (Al 5754 and Al 6061) separately and Schmidt et al. [82] model showed that the contact condition in the FSW process has a partial sliding/sticking condition, especially for high strength aluminum alloys like AA2024-T3. Figure 13 shows the welding thermal cycle at the rotational velocity of 3000 r/min which indicates the highest values of the temperature (814 °C).

Some studies [45, 68] presented FE models for modeling the heat during FSW of AA2195 at the cold condition during high welding velocity and the normal condition in which the welding velocity was considered to be low (Figure 14). Authors considered the full sliding condition for the interaction behavior between the tool and the workpiece, however due to the simplifications, in these studies the contact area was unrealistic and there was a wide gap between the experimental measurements and the numerical model. Finally, it was seen that the higher values of the welding speed create higher temperature gradients.

In a fully coupled thermomechanical model, the classical and the modified Coulomb laws were employed [59] for modeling the FSW process during different welding rotational velocities. Additionally, the gap between the results of different numerical models was not wide at lower rotational velocities. However, at higher rotational velocities the classical model failed, because of the shear stress limitations at the welding interfaces, while the modified model in a semi-analytical thermomechanical condition could successfully simulate the process [60]. After applying the modified model it was observed that during higher values of the rotational velocities the deformation of the welding material at the top and the bottom surfaces becomes almost similar.

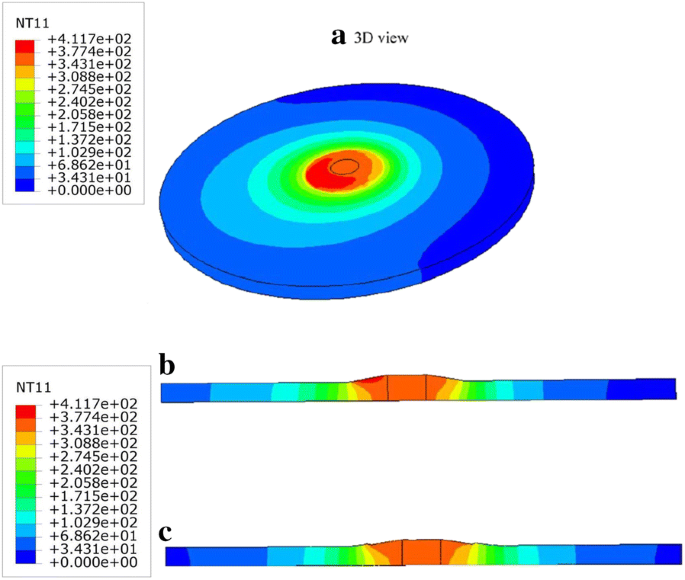

In Ref. [113], AA6063 was used as the welding material with a thickness of 8 mm using a constant rotational speed of 600 r/min and transverse speed of 400 mm/min. Besides, by using Norton frictional law, the surface of the rigid back-plate was modeled separately to predict friction forces. The steps of the dwelling and the welding phases have been modeled using a constant contact conductance. Sticking and sliding conditions were assumed in the model to investigate the generated heat in the pin side, the shoulder bottom and the pin bottom. The heat which is produced by both the frictional force and the plastic deformation during the process were considered in the simulation. Moreover, the evaluation of the failure criteria during the FSW was studied. The fracture mechanics-based methods also used for predicting the skin-stiffener separation. The model could also successfully predict the velocity of the material, the plastic strains and the temperature. A major limitation in the model was the long processing time for achieving the steady-state condition. Figure 15 indicates the distribution of the temperature at different sides of the welding. As can be seen an accurate prediction for the contact condition was done successfully.

The peak temperature of 428 °C and 472 °C was obtained in the interface between the shoulder and the pin (Figure 16) and the tool surfaces (Figure 17). It can be seen that, the temperature circles found to have a confined pattern close to the welding tool. It can be extracted that, far from the welding zone the circle line distance increases [73].

3.1.2 Stress and Strain Distributions

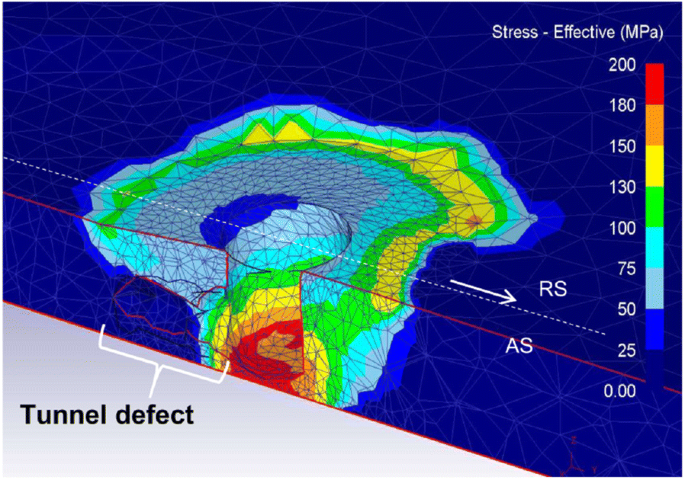

Chen et al. and Hamilton et al. [62, 72, 114] thermomechanically studied the influence of the rotational (225 r/min, 250 r/min, 300 r/min, 400 r/min and 1000 r/min) and transverse speeds on the temperature and the stress–strain distributions during the FSW process on AA 6061-T6. It was investigated that the sliding condition happens when the contact shear stress is less than the yield stress of the workpiece material. The presented results indicated that the temperature has a significant influence on the strain–stress curve and as the welding temperature increases the increasing rate of the curve increases as well. The results for the residual stress distribution was also presented (Figure 18) at different values of the transverse velocities (150 and 350 mm/min).

Riahi and Nazari [115] introduced material characteristics into a FE model for the welding of aluminum 6061-T6. The influence of the tool moving speed which is linked to the residual stress and the heat distribution was simulated accurately. Figure 19 indicates that the impact of the heat was also analyzed to predict the stress and residual stress during the rotational speed of 1250 r/min and the transverse velocity of 280 mm/min. The results obtained showed that the stress asymmetrically distributed across the thickness. Figure 20 also indicates the longitudinal and the transverse values of the residual stress at 280, 530 and 787 mm/min at the cross-section. The outcomes of the residual stress showed that the distribution of the heat across the thickness varies and has an almost irregular pattern. It was shown that, the stress across the cross-section direction increases with the increase of the welding speed and the tool movement and the form of the stress behavior at the pin area changes significantly (as highlighted in Figure 20). This happens because the heat could cause minor differences in the result of the simulation and the outcome of an actual experiment.

For the welding of AA6061-T6, the stress and strain distributions inside the string zone was reported to be around 533 °C (Figures 21 and 22) [116]. It was described that the welding stress at the pin bottom area is around 200 MPa, while inside the heat-affected zone it was recorded to be around 130 MPa and in the base of the material it was measured that the stress is around 50 MPa. As can be seen in Figure 22, the strain distributions at the cross-section of the welding (advancing side and the retreating side) are not symmetrical. To illustrate, in the advancing side the material pushed upward due to the influence of the shoulder on the movement of the material.

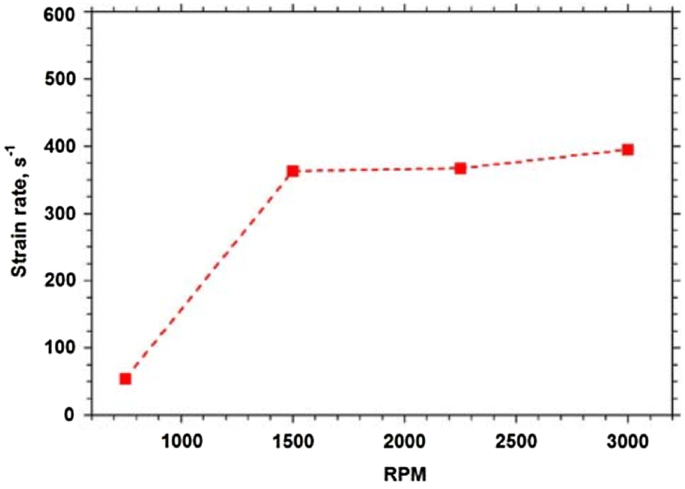

Figure 23 was presented to explain the measured values of the strain rate at different rotational speeds and it was concluded that as the rotational speed increases the values of the strain rate increases as well, however the rate of the increase is getting slower after applying the rotational speed of 1500 r/min [82]. To explain the issue, after the rotational speed of 1500 r/min, an almost constant pattern for the strain rate was achieved, while a sharp increase between the rotational speed of 700 r/min to 1300 r/min has been obtained.

3.1.3 Material Flow Investigation

The values of the strain rate, the magnitude and vectors of the velocity were described during the friction stir welding with different tool pin geometries (Figure 24). It can be seen that near the pin/shoulder interface area, the maximum values for the material velocity are found (in the bonding area). Moreover, the relationship between the temperature values and the history of the particles was investigated and plotted in the paper in order to find and predict the maximum values of the temperature and also the final position of the material (Figure 25). As can be seen, the maximum values of the temperature (501 °C) are achieved between the values of 0.5 s to 1 s and after 1 s the values decreased gradually.

Comparisons between the experimental and the numerical observations of the temperatures and the shear stress in global and local scales were established for investigating the material movement, the strain, and the stress during the welding of post-buckled stiffened panels [117]. The thickness of the plate was considered to be 1.8 mm at the constant welding parameter of 500 r/min and 5 mm/s. As can be seen in Figure 26, the flow of the material in the initial configuration and the welding step is compared with the experiments. Figure 27 also shows that, the particle locations at the mid-height of the pin for different welding time were also plotted in the research. The particle positions in a three-dimensional viewpoint can be seen in Figure 28 and it was observed that the material final position is located behind the tool and the movement of the material in the pin bottom section is higher than the pin side, thus an asymmetrical behavior for the material movement is achieved. This issue happens because during higher rotational speeds, at the pin, the displacements of the particles in the Z-axis are smaller than X and Y axes. In addition, an upward pattern for the material is observed at the pin side area. It can be also shown that, there is a good agreement between the results and the experiments.

3.1.4 Temperature-Dependent Material Properties

For finding and investigating the influence of the material temperature on the mechanical behavior during FSW modeling of 6061 aluminum alloy [108, 118,119,120,121] temperature-dependent material properties were adopted. These studies found that firstly the temperature increases smoothly (during heating), then decreases sharply (during cooling). It was mentioned that applying temperature-dependent material mechanical and thermal properties like density, Poisson ratio, Young’s modulus, thermal conductivity, the coefficient of thermal expansion, specific heat capacity, friction coefficient and slip rate will highly increase the accuracy of the model [100, 122].

Lastly, it should be noted that, specific properties of aluminum like high thermal conductivity or the wide-ranging of melting temperatures which cause the porosity, highly affect the quality of the welding. As a summary, the fluctuations of the heat input, the investigation of the presence of the voids and cracks, the study of the temperature, stress and strain distributions have been some significant objectives for thermomechanical analysis of FSW.

3.2 Thermomechanical Analysis of FSW for Steels

One of the main challenges for FSW of steels is the high melting temperature. Moreover, FSW of steel requires high values of force, because its resistance is much higher than aluminum, thus the numerical investigation of the FSW tool should be considered as a critical aspect. To illustrate, high expenses of the tool coating methods encourage researchers to use finite element methods for simulating the FSW of steel. In this regard, numerical investigation of the process parameters, temperature and material flow behaviors assists researchers to control the process temperature, improve the material flow, optimize the welding condition, decrease the welding forces and also enhance the welding quality.

3.2.1 Material Flow

For investigating the heat and the material flow through FSW of different types of steel, Cho et al. [83] (ferritic stainless steel) and Nandan et al. [84] (mild steel) presented three-dimensional numerical models that were used to examine the material movement, the plastic deformation and the temperature of the workpiece. Figure 29 indicates the stream trace of the flow near the pin. It needs to be mention that, the backside was considered to be as the inlet and the front side was selected to be the outlet. As can be seen, the streamlines are almost straight far from the welding region, while near the tool a circular confined closed pattern was seen. Additionally, recirculate plastic flow also was observed near the pin and the streamlines occupied bigger regions at the shoulder surface.

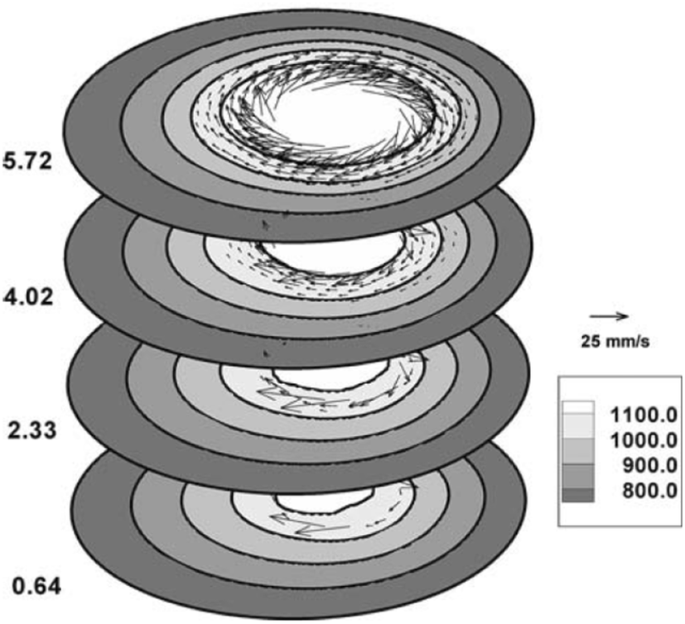

Figure 30 shows the plot of the temperature and the velocity vectors at different welding planes [84]. It can be seen that the velocity values near the pin area (upper surfaces) are higher compared to the places far from the welding centerline (lower surfaces). It needs to be mentioned that the rotational speed of 450 r/min and the transverse velocity of 0.42 mm/s have been applied in the model.

Figure 31 shows the movement of the material in different 0.25 rd/mm and 2 rd/mm ration conditions (the ratio between the radius of the shoulder and the transverse velocity). As can be seen, the width of 16 mm is considered for the workpiece. It was found that at lower ratio (0.25), the material moves below the shoulder, while at higher ratio (0.5), the material has a spare form across the welding seam [74]. It can be seen that in the welding retreating side a confined pattern for the material movement is seen, while the gap between the lines in the advancing side is getting wider.

Previous studies [123, 124] have used a poly-crystal plasticity model to investigate texture evolution through the FSW of stainless steel. By specifically monitoring of the evolving crystallographic texture at different points, different welding parameters and different thread geometries (Figure 32), the measurements have done accurately. These studies also examined the impact of the frictional conditions at the tool pin and the shoulder on the flow of the material across the thickness direction. The texture strengthening and weakening trends relative to the rate of the deformation and spin were also highlighted. Furthermore, the authors compared the computed textures with the measurement of the electron backscatter diffraction based on their distribution as well as the primary texture components along the fiber orientation.

Meanwhile, another study [15] used a rate-dependent constitutive model to simulate the 3D material flows of the FSW process of 1018 steel under different welding conditions. The outcomes of the model demonstrated that the flow of the material near the shoulder-plate interface is affected by the shoulder border. In this light, increasing the angular velocity or reducing the welding speed could improve the combination of the material in the lower half of the weld. However, it was observed that the error could happen when a relatively high angular velocity or low translational velocity is available.

Meanwhile, other previous studies [125, 126] modeled the FSW of stainless steel employing a steady-state Eulerian formula. The formula could be used for solving the 3D coupled viscoplastic flow and the heat transfer. The method was also employed to determine the distribution of the temperature and the velocity field to resolve the model equations while the improved Petrov–Galerkin formulation was applied to stabilize the temperature.

Figure 33 indicates the flow of the material around the tool. It should be noted that, the tool backside is assumed to be as the inlet, while the front side is defined to be as the outlet. It can be observed that at the retreating side of the weld the largest values of the strain rate and material flow are happening [125, 126]. It can be seen that, TMAZ can be considered as the second affected part because of the tool movement. Furthermore, far from the welding side at the base material, a slight movement has been achieved.

3.2.2 Friction Behavior

The influence of the slip rate and the friction coefficient on the radial distance was studied in a model (Figure 34) [83]. It can be observed that, there is an increasing rate for the values of the slip rate with the increase of the radial distance from the axis. It was detected that, the area below the curve during lower values of the slip rate (0.3) is larger. As can be seen in Figure 34b, the values of the friction coefficient decreases as the distance from the radial axis increases. Unlike the behavior of the slip rate, the area below the curve during higher friction coefficient values is larger.

Heurtier et al. [74] considered two techniques for the heat generation under the conditions of full sticking and full sliding for welding of AISI 1018 steel, however because of the process complexity and the diverse local phenomena both models were uncoupled. It should be noted that the tilt angle is applied in order to increase the quality of the weld; however, a complete contact condition was assumed for the interface between the workpiece and the tool. Furthermore, the friction at the pin side was neglected and only the shoulder contact interface was assumed, because it was claimed that the majority of the heat during the process is produced by the tool shoulder surface.

3.2.3 Temperature Distribution

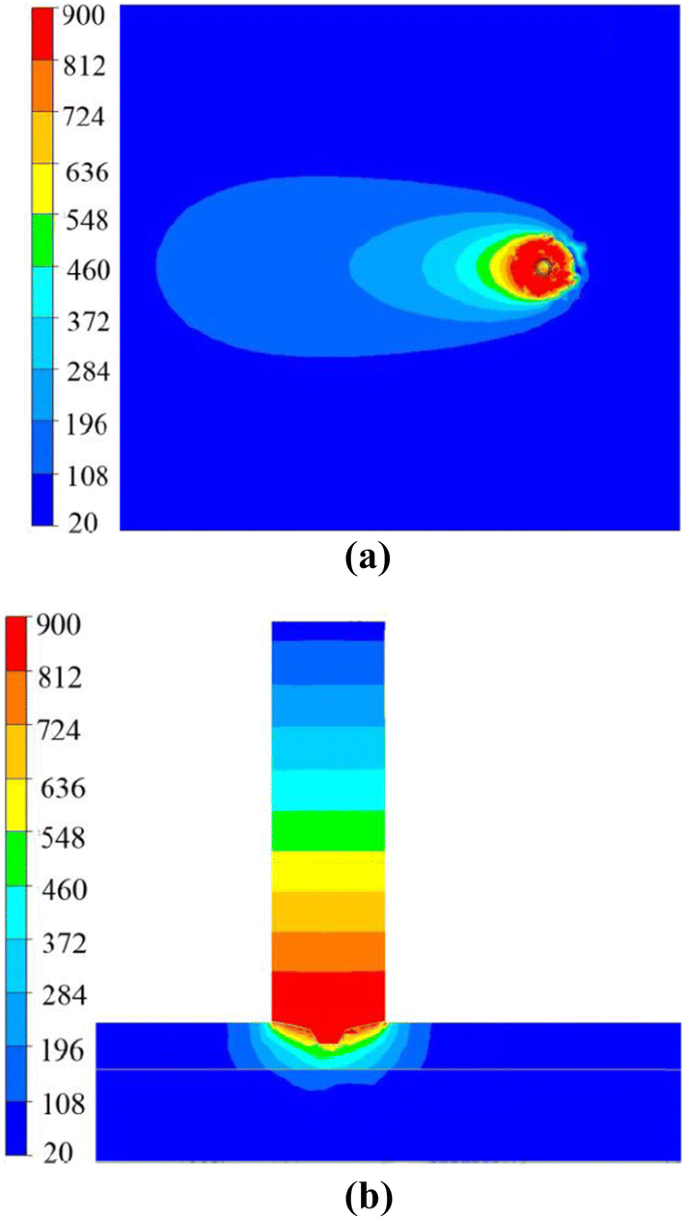

The results of the literature from a solid mechanic model [83] for the temperature field in the advancing side and the retreating side is reported in Figure 35. As can be seen, the shoulder produces the highest temperature and a confined pattern for the temperature were obtained. It can be obtained that, an almost symmetric pattern for the temperature across the cross-section and the top surface has been achieved. Additionally, the peak temperature of 1030 K is reached in the workpiece for stainless steel.

In the meantime, Ref. [127] adopted a simplified heat input model to study the distribution of the transient temperature and thermal cycle curve feature points for a 4 mm Q235A steel FSW butt joints. The study verified the heat input model and the simulation technique by making a comparison between the results of the feature point temperature curve which was measured by thermocouples and the calculated outcomes of the simulations. As the constitutive law, the Johnson-Cook material model was used because it is dependent on the strain rate and the temperature values. Here, the model heat comes from the friction between the material, the pin and the shoulder of the tool, as well as the heat which is produced by the plastic deformation. It was observed that the peak temperature of 550 °C is achieved in the welding (below the shoulder) [74].

One study presented a FE model using WELDSIM code which was specifically established to create 3D nonlinear thermal and thermo-mechanical simulations for FSW of 304L stainless steel material [44, 128]. The distribution of the temperature at the interface of the tool and the workpiece in the top viewpoint and the transverse direction (including the tool) of the workpiece is shown in Figure 36. As can be seen, the peak temperature of 900 °C is obtained at the tool. The study also analyzed two cases with the rotation velocities of 300 and 500 r/min. Subsequently, the transient temperature found at different positions during the FSW process and used to develop as an inverse analysis technique for thermal modeling. Afterward, for determining the temperature field, and identifying the residual stresses on the FSW plate, a 3D elastic-plastic thermo-mechanical simulation was employed.

Ref. [129] found a good agreement between the experiments and the simulated model by ABAQUS^® for FSW of L80 steel. Figure 37 indicates the measured maximum temperature of 1050 °C that was obtained for the thermal model and 920 °C which was recorded for the simulated model. Contour for the temperature distribution can be seen in Figure 38. It can be concluded that in the warming up step the source of the heat has been fixed and the heat conduction was obtained to be the same at the heat source, while after moving the tool, the source of the heat regularly expands.

Nandan et al. [84] experimentally and theoretically investigated the 3D viscoplastic flow and the heat transfer through the FSW of mild steel during different welding conditions (350, 450, 550 and 650 r/min and 0.02, 0.06, 0.1 and 0.14 mm/s). Figure 39 indicates the temperature values across the shoulder diameter at different sides of the welding. It was reported that a “V” shape form for the temperature is shaped across the cross-section and the transverse direction, while at the top side near the shoulder confined circles were obtained. Spatially variable thermo-physical properties, as well as the method adapted from another well-established work in fusion welding, were used to provide a 3D solution for solving governing equations that include mass conservation, momentum, and energy. Besides, the study calculated Non-Newtonian viscosity for measuring the flow of the material. The temperature and flow stress were also determined by measuring the strain rate. Susceptible viscoplastic flow near the tool surface was calculated, and it was obtained that the convection is the main heat transfer mechanism in this region.

Ref. [130] presented a continuum-based FE model for FSW of steels that was utilized to predict temperature, strain, strain rate distribution as well as the thermal and the mechanical loads on the welding tool at different primary process parameters. The maximum temperature of the FSW at the tool interfaces (460 °C) was measured in the numerical simulation (Figure 40) and the maximum values of 940 °C at the shoulder interface was obtained. As can be seen, the highest values of the temperature were obtained in the shoulder region. It can be seen that the uniform pattern for the temperature below the shoulder is obtained, thus a regular pattern for the behavior of the temperature across the tool is observed.

A reference model [130] presented a 3D Lagrangian implicit, coupled and rigid viscoplastic simulation (Figure 41) for studying the temperature and strength simulations. It needs to be noted that, a regular pattern for the temperature is achieved for different sides of the welding. As can be seen, the influence of the pin was neglected, therefore no temperature pattern for the pin area was reported. The peak values of the temperature for the shoulder side area was observed (1400 K). However, from section b of Figure 41, it was observed that, the strength only happened across the welding seam and some limited areas nearby. It is clear that for the strength the pin effect is abandoned, hence no report for the pin area was described.

3.2.4 Stress and Strain

As can be seen in Figures 42 and 43 the variation of the viscosity with the strain (Figure 44) and the temperature and the strain rate at different locations of the workpiece were investigated. It was reported that, the maximum strain rate of 400 s⁻¹ was obtained for different ranging of the temperature from 800 K to 1300 K for the mild steel. It needs to be mention that, these values are almost similar to the maximum temperature for the stainless steel that was presented in Ref. [83]. It was observed that the values of the strain rate across the welding line are reduced, however, the pattern for 5.72 s⁻¹ is completely different from others. The comparisons between the velocity contours also were obtained in the paper and it was concluded that the computed morphology of the viscosity is almost similar to the welding region. From the highlighted section of Figure 44, it can be seen that, the advancing side has an almost regular pattern, while for the retreating side the pattern is different, therefore an almost irregular pattern has been achieved.

It was reported that, the main sources of the heat are located near the welding tool-workpiece interface and the maximum flow of the material is located in the retreating side of the welding. Refs. [131, 132] were focused on the prediction of thermomechanical histories, temperature profile and residual stresses distortion during the FSW of different types of steel material. However, there are still some challenges in simulating complicated problems in which three-dimensional components are available. Figure 45 indicates the residual stress values across the transverse direction of the workpiece and it can be concluded that the advancing side has higher values.

Residual stress values after releasing were calculated at different parts of the plate at the rotational speed of 300 r/min (Figure 46). From the plot, it can be seen that the distance between the upper surface and the lower surface after and before releasing the fixture is not very wide. In some points (highlighted sections by the red mark) the values after and before releasing the fixture are almost the same. Moreover, experimental test data have been reported in order to verify the model. It can be seen that a good correlation between the predicted values by the model and the experimental tests is obtained.

The results for the strain and strain rate distributions can be seen in Figure 47 [130]. As can be seen, the maximum values were found at the shoulder region due to the higher influence of the shoulder for deforming the material. It is observed from the results that an unbalanced behavior for the deformation is obtained between the advancing side and the retreating side. The outcomes were observed to be appropriate because of the accurate applying of the material property and suitable mesh modeling technique and mesh size (smaller mesh size inside the welding seam) for the welding (Figure 48). The results for the tunnel defect across the cross-sectional of the welding was also reported for indicating the quality of the welding and investigating the formation of the defect in the welding seam (Figure 49).

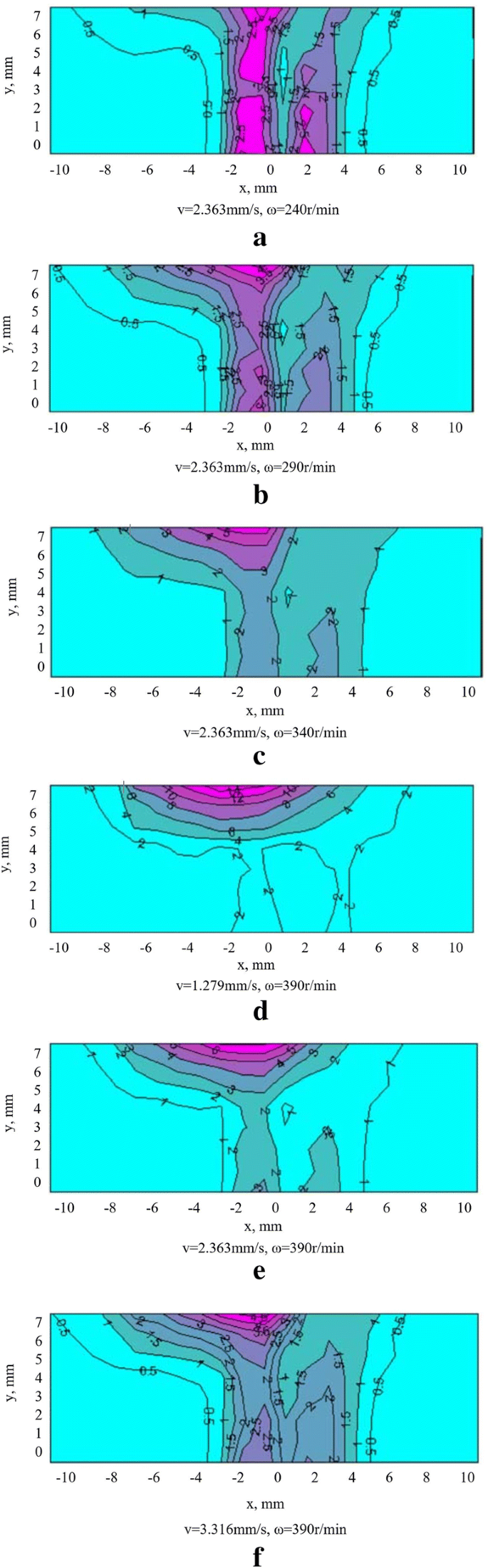

The distribution of the equivalent plastic strain for different welding speeds (transverse speed of 1.279, 2.363 and 3.316 mm/s and rotational speed of 240, 290 and 390 r/min) is shown in Figure 50 [15]. As can be seen, the rotational speed variations have a significant influence on the material mechanical deformation inside the welding zone. Increasing the transverse speed also observed to have an effect on the deformation of the material which is located far from the welding region. To explain more, during the transverse speed of 2.363 mm/s and 3.316 mm/s the highest influence on the behavior of the shape (production of an unbalanced shape) and the size of the welding zone was obtained. Figure 51 indicates the equivalent plastic strain distribution across the cross-section of the weld and it was concluded that there is a severe deformation of the material inside the nugget zone compared to the stirring zone which this issue makes the grain size of the stirring zone smaller.

Figure 52 [74] shows the plot of the predicted values of the strain rate at the cross-section (a) and the transverse direction (b) respectively. It can be concluded that there is an asymmetrical pattern for the strain distribution between the advancing and the retreating sides of the weld (as highlighted in Figure 52). As a drawback for the model, it needs to be mention that a uniform pattern for the mesh was considered which this issue affects the accuracy of the results. To illustrate, smaller sizes of the mesh increase the computational time, while coarse mesh sizes decrease the accuracy of the model, thus for an accurate and appropriate simulation, optimized mesh size should be considered. Furthermore, the maximum value of the equivalent strain rate is reported to be around 6.

Figure 53 indicates the computed values of the flow stress which shows that FSW process induces both the large strain and higher values of the temperature [125, 126]. As can be seen, at all different conditions a regular and uniform increasing rate is obtained and the highest value of 170 MPa is achieved during the lowest value of the parameter (1 s⁻¹). It needs to be mention that, a scalar state variable strain hardening was incorporated to demonstrate the isotropic strength caused by the deformation as the material travels along the flow field streamlines [125, 126]. The study also modeled the influence of the pin threads on the frictional behavior at the tool/workpiece interface using the axial tractions to supplement the tangential tractions along the interface of the pin and the pitch threads.

Predicted streamlines in an Eulerian domain of the flow and the effective (a) and mean (arithmetic meaning for the maximum and minimum values) stress (b) distributions can be seen in Figure 54 [125, 126]. As can be seen, the majority of the concentration for the stress is around the pin area. For the effective stress distribution, an almost regular pattern is obtained, however in the case of mean stress a scattered shape was achieved. It needs to be mention that, the distribution of the temperature (peak temperature of 1400 K) and the strength during the welding were also obtained successfully.

4 Conclusions

Compared to the conventional metal joining process, FSW has many effective advantages, thus it has been widely used in industries like aerospace, automotive, maritime engineering, etc. This article reviews the recent publications on the thermomechanical analysis of FSW for aluminum and steel materials. The main findings are summarized as follows.

The governing equation for mechanical problems is the momentum balance equation and assuming the quasi-static mechanical analysis can be done for solving this equation.
The frictional contact conditions including frictional model (Coulomb friction model, Norton thermo-frictional contact model, etc.), the governing equations and different modeling methods (penalty-based methods direct elimination or Lagrange multipliers methods) for transferring the heat due to the thermal contact at the interface and the thermal impenetrability are considered as significant issues in thermomechanical analysis of FSW.
In CSM, the optimization of the mesh size, its shape, and its distortion are some serious challenges.
Conservation of momentum energy and mass are explained to be appropriate for the Lagrangian and Eulerian frameworks.
The radiation and the convection, the conduction losses and the film condition are significant issues that need to be considered for the FSW thermal boundary condition.
Mechanical boundary conditions are clamping the workpiece for explicit dynamic temperature-displacement. Moreover, the tool can be considered as a rigid body in order to simplify the model.
The mass scaling technique can be used to decrease the computation time, but it is significant to note that the quality of the results can be corrupted when there is extreme mass scaling.
The Lagrangian technique is seen to be suitable for modeling the global level simulation as in this method, the position of the material points is linked to the nodes.
In contrast, the Eulerian technique is found to be appropriate for modeling the material flow, because the nodes are fixed and the material can move inside the mesh. Thus, scholars used the Eulerian technique to model the material flow, evaluate the temperature, density, and material mixing inside the welding zone.
Furthermore, coupling models assist researchers in reducing or avoiding remeshing; thus a kinematic setting which can combine the Eulerian and the Lagrangian frameworks (called arbitrary Eulerian-Lagrangian (ALE)) can be used as an appropriate method.
Although ALE permits to account for the arbitrary and complicated behavior of the material, however it does not necessarily prevent remeshing. Consequently, ALE is appropriate to perform local-level analysis (inside the stirring zone).
The microstructure, temperature and stress comparisons with the experimental tests assist to verify and validate the model.

5 Future Work

For the future work, the following items are suggested:

As FSW is an economical and environment-friendly welding process with huge industrial potential, there is a growing interest in expanding the applications of FSW in different engineering materials, hence more advanced control techniques for continuous welding and the development of FSW process parameters is needed.
Because of the complexity of the material modeling for aluminum metal matrix composites (MMC), these materials also have the possibility to be studied more by researchers since the researchers have mostly focused on homogeneous materials. It should be noted that user-defined subroutines can help in this issue to solve complicated material behavior problems.
Because of the high expenses of the tool coating methods for welding of steel alloys and aluminum metal matrix composites, numerical modeling can help to investigate the welding more in detail, therefore there will be an opportunity for further research on the tool behavior and tool life analysis.
It should be noted that, in recent years, welding materials with high melting temperatures, high strength and hardening are becoming more in demand; therefore the tool design and the tool itself become one of the main features.
There is a need to find a proper mathematical or theoretical model regarding the FSW process parameters performance such as the tool shape, tool speed, feed rate, and axial force.
Choosing suitable input parameters to obtain the desired output for different welding materials is required.
It will be proposed that the distribution of the residual stresses could affect the weld quality, because it is the main reason for the formation of cracks, propagation, and failure of the material due to fatigue crack propagation (FCP), thus for increasing the weld quality further study on the residual stress can be done.
FSW of curved plates is done for similar materials with low penetration of the pin inside the workpiece. Hence, for both similar and dissimilar materials, the thermomechanical analysis and the study of the material flow of the curved plates with an appropriate penetration of the tool can be studied.
There is a lack of knowledge in modeling high-speed FSW, due to the difficulty and the high chance of the divergence problem caused by the mesh distortion during finite element modeling.
There is a need to classify and categorize the previous studies and the literature for FSW of different similar (like copper, magnesium, titanium, etc.) and dissimilar materials (steel to aluminum, aluminum to magnesium, etc.).

References

R S Mishra, Z Ma. Friction stir welding and processing. Materials Science and Engineering: R: Reports, 2005, 50: 1-78.
Article Google Scholar
X C Liu, Y F Sun, T Nagira, et al. Experimental evaluation of strain and strain rate during rapid cooling friction stir welding of pure copper. Science and Technology of Welding and Joining, 2019, 24: 352-359, 2019/05/19.
X C Liu, Y F Sun, T Nagira, et al. Evaluation of dynamic development of grain structure during friction stir welding of pure copper using a quasi in situ method. Journal of Materials Science & Technology, 2019, 35: 1412-1421, 2019/07/01.
R Nandan, T DebRoy, H Bhadeshia. Recent advances in friction-stir welding–process, weldment structure and properties. Progress in Materials Science, 2008, 53: 980-1023.
Article Google Scholar
G Padhy, C Wu, S Gao. Friction stir based welding and processing technologies-processes, parameters, microstructures and applications: A review. Journal of Materials Science & Technology, 2018, 34: 1-38.
Article Google Scholar
R S Mishra, P S De, N Kumar. Friction stir welding and processing: science and engineering. Springer, 2014.
Y Zhu, G Chen, Q Chen, et al. Simulation of material plastic flow driven by non-uniform friction force during friction stir welding and related defect prediction. Materials & Design, 2016, 108: 400-410, 2016/10/15.
A Simar, Y Bréchet, B De Meester, et al. Integrated modeling of friction stir welding of 6xxx series Al alloys: process, microstructure and properties. Progress in Materials Science, 2012, 57: 95-183.
Article Google Scholar
G Chen, S Zhang, Y Zhu, et al. Thermo-mechanical analysis of friction stir welding: A review on recent advances. Acta Metallurgica Sinica (English Letters), 2019: doi:10.1007/s40195-019-00942-y.
B Meyghani. Thermomechanical analysis of friction stir welding (FSW) on curved plates by adapting calculated temperature dependent properties. Malaysia: Universiti Teknologi PETRONAS, 2018.
Google Scholar
B Meyghani, M Awang, C Wu. Thermal analysis of friction stir welding with a complex curved welding seam (technical note). International Journal of Engineering, 2019, 32: 1480-1484.
Google Scholar
H Schmidt, J Hattel. A local model for the thermomechanical conditions in friction stir welding. Modelling and Simulation in Materials Science and Engineering, 2004, 13: 77.
Article Google Scholar
Z Zhang, Q Wu. Numerical studies of tool diameter on strain rates, temperature rises and grain sizes in friction stir welding. Journal of Mechanical Science and Technology, 2015, 29: 4121-4128.
Article Google Scholar
Z Zhang, Y Liu, J Chen. Effect of shoulder size on the temperature rise and the material deformation in friction stir welding. The International Journal of Advanced Manufacturing Technology, 2009, 45: 889.
Article Google Scholar
Z Zhang, J Chen. The simulation of material behaviors in friction stir welding process by using rate-dependent constitutive model. Journal of Materials Science, 2008, 43: 222-232.
Article Google Scholar
G Buffa, J Hua, R Shivpuri, et al. A continuum based fem model for friction stir welding—model development. Materials Science and Engineering: A, 2006, 419: 389-396.
Article Google Scholar
Z Wan, Z Zhang, X Zhou. Finite element modeling of grain growth by point tracking method in friction stir welding of AA6082-T6. The International Journal of Advanced Manufacturing Technology, 2017, 90: 3567-3574.
Article Google Scholar
L Long, G Chen, S Zhang, et al. Finite-element analysis of the tool tilt angle effect on the formation of friction stir welds. Journal of Manufacturing Processes, 2017, 30: 562-569.
Article Google Scholar
F Al-Badour, N Merah, A Shuaib, et al. Coupled Eulerian Lagrangian finite element modeling of friction stir welding processes. Journal of Materials Processing Technology, 2013, 213: 1433-1439.
Article Google Scholar
L Zhu, C S Peskin. Simulation of a flapping flexible filament in a flowing soap film by the immersed boundary method. Journal of Computational Physics, 2002, 179: 452-468.
Article MathSciNet MATH Google Scholar
K Li, F Jarrar, J Sheikh-Ahmad, et al. Using coupled Eulerian Lagrangian formulation for accurate modeling of the friction stir welding process. Procedia Engineering, 2017, 207: 574-579.
Article Google Scholar
V Shokri, A Sadeghi, M Sadeghi. Thermomechanical modeling of friction stir welding in a Cu-DSS dissimilar joint. Journal of Manufacturing Processes, 2018, 31: 46-55.
Article Google Scholar
X Liu, S Lan, J Ni. Thermal mechanical modeling of the plunge stage during friction-stir welding of dissimilar Al 6061 to TRIP 780 steel. Journal of Manufacturing Science and Engineering, 2015, 137: 051017.
Article Google Scholar
B Meyghani, M B Awang, S S Emamian, et al. A comparison of different finite element methods in the thermal analysis of friction stir welding (FSW). Metals, 2017, 7: 450.
Article Google Scholar
G Chen, Q Shi, Y Li, et al. Computational fluid dynamics studies on heat generation during friction stir welding of aluminum alloy. Computational Materials Science, 2013, 79: 540-546, 2013/11/01.
P A Colegrove, H R Shercliff. 3-Dimensional CFD modelling of flow round a threaded friction stir welding tool profile. Journal of Materials Processing Technology, 2005, 169: 320-327.
Article Google Scholar
P Colegrove, H Shercliff. CFD modelling of friction stir welding of thick plate 7449 aluminium alloy. Science and Technology of Welding and Joining, 2006, 11: 429-441.
Article Google Scholar
R Nandan, G Roy, T Lienert, et al. Numerical modelling of 3D plastic flow and heat transfer during friction stir welding of stainless steel. Science and Technology of Welding and Joining, 2006, 11: 526-537.
Article Google Scholar
Z Yu, W Zhang, H Choo, et al. Transient heat and material flow modeling of friction stir processing of magnesium alloy using threaded tool. Metallurgical and Materials Transactions A, 2012, 43: 724-737.
Article Google Scholar
H Su, C S Wu, M Bachmann, et al. Numerical modeling for the effect of pin profiles on thermal and material flow characteristics in friction stir welding. Materials & Design, 2015, 77: 114-125.
Article Google Scholar
L Shi, C Wu. Transient model of heat transfer and material flow at different stages of friction stir welding process. Journal of Manufacturing Processes, 2017, 25: 323-339.
Article Google Scholar
G Chen, H Li, G Wang, et al. Effects of pin thread on the in-process material flow behavior during friction stir welding: A computational fluid dynamics study. International Journal of Machine Tools and Manufacture, 2018, 124: 12-21.
Article Google Scholar
A E Tekkaya. State-of-the-art of simulation of sheet metal forming. Journal of Materials Processing Technology, 2000, 103: 14-22.
Article Google Scholar
J Zhou, L Li, J Duszczyk. Computer simulated and experimentally verified isothermal extrusion of 7075 aluminium through continuous ram speed variation. Journal of Materials Processing Technology, 2004, 146: 203-212.
Article Google Scholar
J H Hattel, H N B Schmidt, C Tutum. Thermomechanical modelling of friction stir welding. ASM Proceeding of International Conference: Trends in Welding Researches, 2009: 1-10.
X Yang, W Feng, W Li, et al. Numerical modelling and experimental investigation of thermal and material flow in probeless friction stir spot welding process of Al 2198-T8. Science and Technology of Welding and Joining, 2018, 23: 704-714.
Article Google Scholar
P Chauhan, R Jain, S K Pal, et al. Modeling of defects in friction stir welding using coupled Eulerian and Lagrangian method. Journal of Manufacturing Processes, 2018, 34: 158-166.
Article Google Scholar
Z Zhang, Q Wu, M Grujicic, et al. Monte Carlo simulation of grain growth and welding zones in friction stir welding of AA6082-T6. Journal of Materials Science, 2016, 51: 1882-1895.
Article Google Scholar
Z Sun, C Wu. A numerical model of pin thread effect on material flow and heat generation in shear layer during friction stir welding. Journal of Manufacturing Processes, 2018, 36: 10-21.
Article Google Scholar
G Chen, Q Ma, S Zhang, et al. Computational fluid dynamics simulation of friction stir welding: A comparative study on different frictional boundary conditions. Journal of Materials Science & Technology, 2018, 34: 128-134.
Article Google Scholar
H Su, C S Wu, A Pittner, et al. Thermal energy generation and distribution in friction stir welding of aluminum alloys. Energy, 2014, 77: 720-731.
Article Google Scholar
Y Zhong, C Wu, G Padhy. Effect of ultrasonic vibration on welding load, temperature and material flow in friction stir welding. Journal of Materials Processing Technology, 2017, 239: 273-283.
Article Google Scholar
P Bussetta, É Feulvarch, A Tongne, et al. Two 3D thermomechanical numerical models of friction stir welding processes with a trigonal pin. Numerical Heat Transfer, Part A: Applications, 2016, 70: 995-1008.
Article Google Scholar
X Zhu, Y Chao. Numerical simulation of transient temperature and residual stresses in friction stir welding of 304L stainless steel. Journal of Materials Processing Technology, 2004, 146: 263-272.
Article Google Scholar
Y J Chao, X Qi, W Tang. Heat transfer in friction stir welding—experimental and numerical studies. Journal of Manufacturing Science and Engineering, 2003, 125: 138-145.
Article Google Scholar
Z Sun, C Wu. Influence of tool thread pitch on material flow and thermal process in friction stir welding. Journal of Materials Processing Technology, 2020, 275: 116281.
G Chen, Z Feng, Y Zhu, et al. An alternative frictional boundary condition for computational fluid dynamics simulation of friction stir welding. Journal of Materials Engineering and Performance, 2016, 25: 4016-4023, 2016/09/01.
F Lu, H-P Wang, A B Murphy, et al. Analysis of energy flow in gas metal arc welding processes through self-consistent three-dimensional process simulation. International Journal of Heat and Mass Transfer, 2014, 68: 215-223.
Article Google Scholar
N Dialami, M Chiumenti, M Cervera, et al. Numerical simulation and visualization of material flow in friction stir welding via particle tracing. Numerical Simulations of Coupled Problems in Engineering, Springer, 2014: 157-169.
Z Saldi, A Kidess, S Kenjereš, et al. Effect of enhanced heat and mass transport and flow reversal during cool down on weld pool shapes in laser spot welding of steel. International Journal of Heat and Mass Transfer, 2013, 66: 879-888.
Article Google Scholar
B Meyghani, M Awang, S Emamian. A mathematical formulation for calculating temperature dependent friction coefficient values: application in Friction Stir Welding (FSW). Defect and Diffusion Forum, 2017: 73-82.
Z Zhang, H Zhang. A fully coupled thermo-mechanical model of friction stir welding. The International Journal of Advanced Manufacturing Technology, 2008, 37: 279-293.
Article Google Scholar
Z Zhang. Comparison of two contact models in the simulation of friction stir welding process. Journal of Materials Science, 2008, 43: 5867-5877.
Article Google Scholar
X He, F Gu, A Ball. A review of numerical analysis of friction stir welding. Progress in Materials Science, 2014, 65: 1-66.
Article Google Scholar
S Zhang, G Chen, Q Liu, et al. Numerical analysis and analytical modeling of the spatial distribution of heat flux during friction stir welding. Journal of Manufacturing Processes, 2018, 33: 245-255, 2018/06/01.
Y J Chao, X Qi. Thermal and thermo-mechanical modeling of friction stir welding of aluminum alloy 6061-T6. Journal of Materials Processing and Manufacturing Science, 1998, 7: 215-233.
Article Google Scholar
Y Chao, X Qi. Heat transfer and thermo-mechanical analysis of friction stir joining of AA6061-T6 plates. 1st International Symposium on Friction Stir Welding, 1999: 14-16.
M V Darko, M P Rakin, M M Perovi, et al. Heat generation during plunge stage in friction stir welding. Thermal Science, 2013, 17: 489-496.
Article Google Scholar
Z Zhang, H Zhang. Effect of contact model on numerical simulation of friction stir welding. Acta Metallurgica Sinica-Chinese Edition-, 2008, 44: 85. (in Chinese)
Google Scholar
P Ferro, F Bonollo. A semianalytical thermal model for fiction stir welding. Metallurgical and Materials Transactions A, 2010, 41: 440-449.
Article Google Scholar
H B Schmidt, J H Hattel. Thermal modelling of friction stir welding. Scripta Materialia, 2008, 58: 332-337.
Article Google Scholar
C Chen, R Kovacevic. Finite element modeling of friction stir welding—thermal and thermomechanical analysis. International Journal of Machine Tools and Manufacture, 2003, 43: 1319-1326.
Article Google Scholar
M Song, R Kovacevic. Thermal modeling of friction stir welding in a moving coordinate system and its validation. International Journal of Machine Tools and Manufacture, 2003, 43: 605-615.
Article Google Scholar
K J Colligan, R S Mishra. A conceptual model for the process variables related to heat generation in friction stir welding of aluminum. Scripta Materialia, 2008, 58: 327-331.
Article Google Scholar
K Kumar, C Kalyan, S V Kailas, et al. An investigation of friction during friction stir welding of metallic materials. Materials and Manufacturing Processes, 2009, 24: 438-445.
Article Google Scholar
M Awang, V Mucino, Z Feng, et al. Thermo-mechanical modeling of friction stir spot welding (FSSW) process: use of an explicit adaptive meshing scheme. SAE Technical Paper 0148-7191, 2005.
S Pereyra, G Lombera, S Urquiza. Modelado numérico del proceso de soldadura FSW incorporando una técnica de estimación de parámetros. Revista Internacional de Métodos Numéricos para Cálculo y Diseño en Ingeniería, 2014, 30: 173-177.
Article Google Scholar
M Song, R Kovacevic. Numerical and experimental study of the heat transfer process in friction stir welding. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2003, 217: 73-85.
Article Google Scholar
M Khandkar, J A Khan, A P Reynolds. Prediction of temperature distribution and thermal history during friction stir welding: input torque based model. Science and Technology of Welding & Joining, 2003, 8: 165-174.
Article Google Scholar
C Hamilton, S Dymek, A Sommers. A thermal model of friction stir welding in aluminum alloys. International Journal of Machine Tools and Manufacture, 2008, 48: 1120-1130.
Article Google Scholar
O Lorrain, J Serri, V Favier, et al. A contribution to a critical review of friction stir welding numerical simulation. Journal of Mechanics of Materials and Structures, 2009, 4: 351-369.
Article Google Scholar
C Hamilton, A Sommers, S Dymek. A thermal model of friction stir welding applied to Sc-modified Al–Zn–Mg–Cu alloy extrusions. International Journal of Machine Tools and Manufacture, 2009, 49: 230-238.
Article Google Scholar
P Ulysse. Three-dimensional modeling of the friction stir-welding process. International Journal of Machine Tools and Manufacture, 2002, 42: 1549-1557.
Article Google Scholar
P Heurtier, M Jones, C Desrayaud, et al. Mechanical and thermal modelling of friction stir welding. Journal of Materials Processing Technology, 2006, 171: 348-357.
Article Google Scholar
N Nikiforakis. Towards a whole system simulation of FSW. Proceedings of the 2nd FSW Modelling and Flow Visualisation Seminar, GKSS Forschungszentrum, Geesthacht, Germany, January, 2005.
P Colegrove. Three dimensional ow and thermal modelling of thermomechanical performance of Friction Stir Welding. The 2nd International Symposium on Friction Stir Welding, 2000.
P Colegrove, H Shercliff. Modelling the friction stir welding of aerospace alloys. Proceedings of the 5th International Friction Stir Welding Symposium, 2004.
Frigaard, Grong, O Midling. A process model for friction stir welding of age hardening aluminum alloys. Metallurgical and Materials Transactions A, 2001, 32: 1189-1200.
A P Reynolds, Z Khandkar, T Long, et al. Utility of relatively simple models for understanding process parameter effects on FSW. Materials Science Forum, 2003: 2959-2964.
H Schmidt, J Hattel, J Wert. An analytical model for the heat generation in friction stir welding. Modelling and Simulation in Materials Science and Engineering, 2003, 12: 143.
Article Google Scholar
A Gerlich, M Yamamoto, T North. Strain rates and grain growth in Al 5754 and Al 6061 friction stir spot welds. Metallurgical and Materials Transactions A, 2007, 38: 1291-1302.
Article Google Scholar
H N B Schmidt, T Dickerson, J H Hattel. Material flow in butt friction stir welds in AA2024-T3. Acta Materialia, 2006, 54: 1199-1209.
Article Google Scholar
H-H Cho, S-T Hong, J-H Roh, et al. Three-dimensional numerical and experimental investigation on friction stir welding processes of ferritic stainless steel. Acta Materialia, 2013, 61: 2649-2661.
Article Google Scholar
R Nandan, G Roy, T Lienert, et al. Three-dimensional heat and material flow during friction stir welding of mild steel. Acta Materialia, 2007, 55: 883-895.
Article Google Scholar
A Arora, R Nandan, A P Reynolds, et al. Torque, power requirement and stir zone geometry in friction stir welding through modeling and experiments. Scripta Materialia, 2009, 60: 13-16.
Article Google Scholar
S Sulaiman, S Emamian. 6.13 - Optimum speed of friction stir welding on 304L stainless steel by finite element method A2 - Hashmi, Saleem. Comprehensive Materials Processing, G F Batalha, C J V Tyne, B Yilbas, eds. Oxford: Elsevier, 2014: 227-236.
J E Gould, Z Feng. Heat flow model for friction stir welding of aluminum alloys. Journal of Materials Processing and Manufacturing Science, 1998, 7: 185-194.
Article Google Scholar
W Li, S Shi, F Wang, et al. Numerical simulation of friction welding processes based on ABAQUS environment. Journal of Engineering Science and Technology Review, 2012, 5: 10-19.
Article Google Scholar
B Meyghani, M Awang, S Emamian, et al. Developing a finite element model for thermal analysis of friction stir welding by calculating temperature dependent friction coefficient. 2nd International Conference on Mechanical, Manufacturing and Process Plant Engineering, 2017: 107-126.
G R Johnson, W H Cook. A constitutive model and data for metals subjected to large strains, high strain rates and high temperatures. Proceedings of the 7th International Symposium on Ballistics, 1983: 541-547.
M Agmell, A Ahadi, J-E Ståhl. A fully coupled thermomechanical two-dimensional simulation model for orthogonal cutting: formulation and simulation. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2011, 225: 1735-1745.
Article Google Scholar
O Pantalé, J-L Bacaria, O Dalverny, et al. 2D and 3D numerical models of metal cutting with damage effects. Computer Methods in Applied Mechanics and Engineering, 2004, 193: 4383-4399.
Article MATH Google Scholar
D R Lesuer, G Kay, M LeBlanc. Modeling large strain, high rate deformation in metals. Engineering Research, Development and Technology, 1999.
Google Scholar
M Agmell, A Ahadi, J E Ståhl. A numerical and experimental investigation of the deformation zones and the corresponding cutting forces in orthogonal cutting. Advanced Materials Research, 2011: 152-161.
E-G Ng, D K Aspinwall. Modelling of hard part machining. Journal of Materials Processing Technology, 2002, 127: 222-229.
Article Google Scholar
L E Schwer, C Windsor. Aluminum plate perforation: a comparative case study using Lagrange with erosion, multi-material ALE, and smooth particle hydrodynamics. 7th European LS-DYNA Conference, 2009.
B Meyghani, M Awang, S Emamian, et al. Thermal modelling of friction stir welding (FSW) using calculated Young’s modulus values. The Advances in Joining Technology, Springer, 2019: 1-13.
B Meyghani, M Awang, S Emamian, et al. A comparison between temperature dependent and constant Young’s modulus values in investigating the effect of the process parameters on thermal behaviour during friction stir welding: Vergleich zwischen den temperaturabhängigen und konstanten Elastizitätsmodulwerten in der Untersuchung der Prozessparameter auf die Wärmewirkung beim Rührreibschweißen,” Materialwissenschaft und Werkstofftechnik, 2018, 49: 427-434.
Article Google Scholar
B Meyghani, M Awang. Developing a finite element model for thermal analysis of friction stir welding (FSW) using hyperworks. Advances in Material Sciences and Engineering, Springer, 2020: 619-628.
B Meyghani, M B Awang. Prediction of the temperature distribution during friction stir welding (FSW) with a complex curved welding seam: Application in the automotive industry. MATEC Web of Conferences, 2018: 01001.
M Awang. The advances in joining technology. Springer, 2019.
B Meyghani, M Awang. A comparison between the flat and the curved friction stir welding (FSW) thermomechanical behavior. Archives of Computational Methods in Engineering, 2019: 1-14.
B Meyghani, M B Awang, M Momeni, et al. Development of a finite element model for thermal analysis of friction stir welding (FSW). IOP Conference Series: Materials Science and Engineering, 2019: 012101.
B Meyghani, M B Awang, R G M Poshteh, et al. The effect of friction coefficient in thermal analysis of friction stir welding (FSW). IOP Conference Series: Materials Science and Engineering, 2019: 012102.
J A Roubidoux, P F Mendez. Modeling friction stir welding through advanced scaling techniques. Proceedings of 2006 NSF Design, Service, and Manufacturing Grantees and Research Conference, St. Louis, Missouri, 2006.
M Awang, S R Khan, B Ghazanfar, et al. Design, fabrication and testing of fixture for implementation of a new approach to incorporate tool tilting in friction stir welding. MATEC Web of Conferences, 2014: 04020.
B Meyghani, M B Awang. Prediction of the temperature distribution during friction stir welding (FSW) with a complex curved welding seam: Application in the automotive industry. MATEC Web Conferences, 2018, 225: 01001.
Article Google Scholar
D Maisonnette, D Bardel, V Robin, et al. Mechanical behaviour at high temperature as induced during welding of a 6xxx series aluminium alloy. International Journal of Pressure Vessels and Piping, 2017, 149: 55-65.
Article Google Scholar
B Meyghani, M Awang, S Emamian. A comparative study of finite element analysis for friction stir welding application. ARPN Journal of Engineering and Applied Sciences, 2016, 11: 12984-12989.
Google Scholar
Y Su, W Li, V Patel, et al. Formability of an AA5083 aluminum alloy T-joint using SSFSW on both corners. Materials and Manufacturing Processes, 2019: 1-8.
T Nakamura, T Obikawa, I Nishizaki, et al. Friction stir welding of non-heat-treatable high-strength alloy 5083-O. Metals, 2018, 8: 208.
Article Google Scholar
Z Zhu, M Wang, H Zhang, et al. A finite element model to simulate defect formation during friction stir welding. Metals, 2017, 7: 256.
Article Google Scholar
D Andrade, C Leitão, N Dialami, et al. Thermomechanical analysis of the friction stir welding process. AIP Conference Proceedings, 2019: 050003.
T Nakamura, T Obikawa, E Yukutake, et al. Tool temperature and process modeling of friction stir welding. Modern Mechanical Engineering, 2018, 8: 78.
Article Google Scholar
M Riahi, H Nazari. Analysis of transient temperature and residual thermal stresses in friction stir welding of aluminum alloy 6061-T6 via numerical simulation. The International Journal of Advanced Manufacturing Technology, 2011, 55: 143-152.
Article Google Scholar
R Jain, S Pal, S Singh. Finite element simulation of temperature and strain distribution in Al2024 aluminum alloy by friction stir welding. 5th Int. 26th All India Manuf. Technol. Des. Res. Conf.(AIMTDR 2014), 2014: 3-7.
N Dialami, M Chiumenti, M Cervera, et al. Material flow visualization in friction stir welding via particle tracing. International Journal of Material Forming, 2015, 8: 167-181.
Article Google Scholar
P Threadgill, A Leonard, H Shercliff, et al. Friction stir welding of aluminium alloys. International Materials Reviews, 2009, 54: 49-93.
Article Google Scholar
P F Mendez, K ETello, T J Lienert. Scaling of coupled heat transfer and plastic deformation around the pin in friction stir welding. Acta Materialia, 2010, 58: 6012-6026.
B Meyghani, M Awang. Developing a finite element model for thermal analysis of friction stir welding (FSW) using hyperworks. Advances in Material Sciences and Engineering, Singapore, 2020: 619-628.
S Kumar. Ultrasonic assisted friction stir processing of 6063 aluminum alloy. Archives of Civil and Mechanical Engineering, 2016, 16: 473-484.
Article Google Scholar
B Meyghani, M B Awang, S Emamian, et al. A comparison between temperature dependent and constant Young’s modulus values in investigating the effect of the process parameters on thermal behaviour during friction stir welding. Materialwissenschaft und Werkstofftechnik, 2017, 49: 427-434.
Article Google Scholar
J-H Cho, P R Dawson. Modeling texture evolution during friction stir welding of stainless steel with comparison to experiments. Journal of Engineering Materials and Technology, 2008, 130: 011007.
Article Google Scholar
J-H Cho, D E Boyce, P R Dawson. Modeling strain hardening and texture evolution in friction stir welding of stainless steel. Materials Science and Engineering: A, 2005, 398: 146-163.
Article Google Scholar
J Cho, D Boyce, P Dawson. Modelling of strain hardening during friction stir welding of stainless steel. Modelling and Simulation in Materials Science and Engineering, 2007, 15: 469.
Article Google Scholar
J-H Cho, P R Dawson. Investigation on texture evolution during friction stir welding of stainless steel. Metallurgical and Materials Transactions A, 2006, 37: 1147-1164.
Article Google Scholar
X J Wang, Y X Lu, Z K Zhang, et al. The temperature field test and numerical simulation of steel’s friction stir welding process. Advanced Materials Research, 2013: 370-374.
M P Miles, T W Nelson, C Gunter, et al. Predicting recrystallized grain size in friction stir processed 304L stainless steel. Journal of Materials Science & Technology, 2019, 35: 491-498, 2019/04/01.
W Gan, Z Li, S Khurana. Tool materials selection for friction stir welding of L80 steel. Science and Technology of Welding and Joining, 2007, 12: 610-613.
Article Google Scholar
G Buffa, L Fratini. Friction stir welding of steels: process design through continuum based FEM model. Science and Technology of Welding and Joining, 2009, 14: 239-246.
Article Google Scholar
D Berglund. Simulation of welding and stress relief heat treating in the development of aerospace components. Luleå tekniska universitet, 2001.
P Bouchard. The NeT bead-on-plate benchmark for weld residual stress simulation. International Journal of Pressure Vessels and Piping, 2009, 86: 31-42.
Article Google Scholar

Download references

Acknowledgements

The authors would like to acknowledge the Postdoctoral Fellowship of China Postdocral Council and Shandong University.

Funding

Supported by National Natural Science Foundation of China (Grant Nos. 51475272, 51842507) and Key R&D Program of Shandong Province in China (Grant No. 2018GGX103001).

Author information

Authors and Affiliations

Institute of Materials Joining, Shandong University, Jinan, 250061, China
Bahman Meyghani & Chuansong Wu

Authors

Bahman Meyghani
View author publications
You can also search for this author in PubMed Google Scholar
Chuansong Wu
View author publications
You can also search for this author in PubMed Google Scholar

Contributions

BM wrote the manuscript; CW proposed the outlines and modified the manuscript. Both authors read and approved the final manuscript.

Authors’ Information

Bahman Meyghani was born in 1988. He obtained his PhD degree in mechanical engineering from Universiti Teknologi PETRONAS (UTP), Malaysia. He is currently working at Institute of Materials Joining, Shandong University, China. He is doing research in Materials Welding and Joining. His current research field is “Experimental and Numerical Investigation of Friction Stir Welding for Similar and Dissimilar Materials”.

Chuansong Wu currently works at Institute of Materials Joining, Shandong University, China. Prof. Wu does research in Materials Welding and Joining. He is the Fellow of American Welding Society, and Humboldtian Scholar in Germany. His research interests include the physics of welding, numerical simulation and experimental sensing & control of various welding processes. He is the member of Editorial Board of Science and Technology of Welding and Joining (Taylor & Francis), and the Vice Chair of the Editorial Board of Chinese Journal of Mechanical Engineering (Springer).

Corresponding author

Correspondence to Chuansong Wu.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Meyghani, B., Wu, C. Progress in Thermomechanical Analysis of Friction Stir Welding. Chin. J. Mech. Eng. 33, 12 (2020). https://doi.org/10.1186/s10033-020-0434-7

Download citation

Received: 31 October 2019
Revised: 14 January 2020
Accepted: 22 January 2020
Published: 12 February 2020
DOI: https://doi.org/10.1186/s10033-020-0434-7

Equivalent stress
\(\bar{\sigma } = \left( {\frac{3}{2}\sigma_{ij} \sigma_{ij} } \right)^{{\frac{1}{2}}}\)	\(\bar{\sigma } = \left( {\frac{3}{2}\sigma_{ij} \sigma_{ij} } \right)^{{\frac{1}{2}}}\)	(11)
The equivalent of the total strain rate for the rigid viscoplastic law \(\dot{\bar{\sigma }}^{total} = \left( {\frac{2}{3}\dot{\varepsilon }_{ij}^{total} \dot{\varepsilon }_{ij}^{total} } \right)^{{\frac{1}{2}}}\)	The plastic strain rate equivalent \(\overline{\epsilon }^{pl} = \left( {\frac{2}{3}\varepsilon_{ij}^{pl} \varepsilon_{ij}^{pl} } \right)^{{\frac{1}{2}}}\)	(12)
General formulation for yield stress
\(\sigma_{y} = \sigma_{y} \left( {T,\dot{\bar{\sigma }}^{pl} } \right)\) \(\sigma_{y} \to 0\) \(T \to T_{cut - off} \sim T_{sol}\)	\(\sigma_{y} = \sigma_{y} \left( {T,\dot{\bar{\sigma }}^{pl} } \right)\) \(\sigma_{y} \to 0\) \(T \to T_{cut - off} \sim T_{sol}\)	(13)
Norton power law \(\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}\)	The hardening law (Ramberg–Osgood) \(\bar{\varepsilon }^{total} = \frac{\sigma }{E} + \alpha \frac{{\sigma_{y} }}{E}\left( {\frac{\sigma }{{\sigma_{y} }}} \right)^{n}\)	(14)
Inverse hyperbolic sine \(\sigma_{y} = \frac{1}{\alpha }{ \sinh }^{ - 1} \left( {\frac{Z}{A}} \right)^{{\frac{1}{n}}}\) \(Z = \overline{{\dot{\varepsilon }}} e^{{\frac{Q}{RT}}}\) \(m = \frac{{\partial ln\bar{\sigma }}}{{\partial ln\bar{\varepsilon }}}\)	…	(15)
Johnson–Cook \(\sigma_{y} = \left( {A + B\bar{\varepsilon }^{n} } \right) \left( {1 + Cln\frac{{\overline{{\dot{\varepsilon }}} }}{{\dot{\varepsilon }_{0} }}} \right) \times\left( {1 - \left( {\frac{{T - T_{ref} }}{{T_{sol} - T_{ref} }}} \right)^{m} } \right)\)	Elasticity Hooke’s generalized law \(\sigma_{ij} = \frac{E}{1 + v} \left(\varepsilon_{ij}^{el} + \frac{v}{1 - v}\delta_{ij} \varepsilon_{ij}^{el} \right)\)	(16)

Equations for CSM	Equations for CFD
\(\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i} + \eta S_{ij} \dot{\varepsilon }_{ij}^{pl}\)	\(\rho c_{p} \dot{T} = \left( {kT_{,i} } \right)_{,i} + \eta S_{ij} \dot{\varepsilon }_{ij}^{pl} - u_{i} \left( {\rho c_{p} T} \right)_{,i}\)	(1)
where \(\rho\) is density (kg/m³), \(c_{p}\) is the specific heat (J/(kg·K)), \(\dot{T}\) is temperature derivative taken with respect to time, \(\left( {kT_{,i} } \right)_{,i}\) is the thermal conductivity along the direction, \(S_{ij}\) is the interfacial heat generation rate, \(\dot{\varepsilon }_{ij}^{pl}\) is the strain rate tensor, \(\eta\) is mechanical efficiency and \(u\)is velocity vector components.

Equations for CSM	Equations for CFD
\(\rho \ddot{u}_{i} = \sigma_{ji,j} + p_{i}\)	\(\frac{{\partial (p\dot{u}_{i} )}}{\partial t} = \sigma_{ji,j} + p_{i} - \rho \left( {\dot{u}_{j} \dot{u}_{i} } \right)_{,j}\)	(2)
where stress tensor is \(\sigma\) and p is pressure.

Equations for CSM	Equations for CFD
(Dynamic equilibrium, using ALE) \(\rho \ddot{u}_{i} = \sigma_{ji,j} + p_{i}\)	The equation of dynamic equilibrium is not relevant	(6)
Statical equilibrium for implicit flow formulation \(\sigma_{ji,j} + p_{i} = 0\)	Statical equilibrium for a quasi-static thermomechanical analysis \(\sigma_{ji,j} + p_{i} = 0\)	(7)

The theory of the large strains	The theory of the small strains
\(\varepsilon_{ij}^{tot} = \frac{1}{2}\left( {u_{i,j} + u_{j,i} + u_{k,i} u_{k,j} } \right)\)	\(\varepsilon_{ij}^{tot} = \frac{1}{2}\left( {u_{i,j} + u_{j,i} } \right)\)	(8)

Rigid viscoplastic behavior	The independent plasticity rate
\(\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{vp}\) Explicit ALE \(\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{el} + \varepsilon_{ij}^{pl} + \varepsilon_{ij}^{vp} + \varepsilon_{ij}^{th}\)	\(\varepsilon_{ij}^{tot} = \varepsilon_{ij}^{el} + \varepsilon_{ij}^{pl} + \varepsilon_{ij}^{th}\)	(9)

Incompressible Newtonian law \(\sigma_{ij} = - \delta_{ij} P + 2\mu \dot{\varepsilon }_{ij}\)	Incompressible Non-Newtonian law \(\sigma_{ij} = - \delta_{ij} P + \mu_{eff} 2\dot{\varepsilon }_{ij}\)	(19)
The equivalent for stress and strain rate \(\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}\) (m = 1)	The equivalent for stress and strain rate \(\sigma_{y} = K\dot{\bar{\varepsilon }}^{m}\)	(20)
…	General effective viscosity \(\mu_{eff} = \frac{{\bar{\sigma }}}{{3\dot{\bar{\varepsilon }}}} = > \mu_{eff} = \mu \sqrt 3^{m - 1} \dot{\bar{\varepsilon }}^{m - 1}\)	(21)
…	The power law for the effective viscosity \(\mu_{eff} = \frac{1}{3}K\dot{\bar{\varepsilon }}^{m - 1}\)	(22)
…	The effective viscosity for hyperbolic sine \(\mu_{eff = } \frac{{\frac{1}{\alpha }\sinh^{ - 1} \left\{ {\frac{1}{A}\overline{{\dot{\varepsilon }}} e^{{ - \frac{Q}{RT}}} } \right\}^{{\frac{1}{n}}} }}{{3\overline{{\dot{\varepsilon }}} }}\)	(23)
Cut off temperature \(\sigma_{y} \to 0\) \(T \to T_{cut - off} \sim T_{sol}\)	Cut off temperature \(\mu_{eff} \to 0\) \(T \to T_{cut - off} \sim T_{sol}\)	(24)

Progress in Thermomechanical Analysis of Friction Stir Welding

Abstract

1 Introduction

2 Modeling Methods

2.1 CSM Method

2.2 CFD Method

2.3 Comparison of Governing Equations for CSM and CFD Methods

2.4 Computational Approaches

2.5 Finite Element Modeling Boundary Conditions

2.5.1 Thermal Boundary Conditions

2.5.2 Mechanical Boundary Conditions

2.6 Sliding and Sticking Conditions at the Contact Interface

2.7 Heat Generations

2.8 Plasticity Modeling

2.9 Mesh Modeling

2.9.1 Lagrangian Method

2.9.2 Eulerian Method

2.9.3 Arbitrary Lagrangian–Eulerian (ALE)

3 FSW Analysis Results for Different Materials

3.1 Thermomechanical Analysis of FSW for Aluminum Alloys

3.1.1 Influence of the Contact Condition on the Temperature

3.1.2 Stress and Strain Distributions

3.1.3 Material Flow Investigation

3.1.4 Temperature-Dependent Material Properties

3.2 Thermomechanical Analysis of FSW for Steels

3.2.1 Material Flow

3.2.2 Friction Behavior

3.2.3 Temperature Distribution

3.2.4 Stress and Strain

4 Conclusions

5 Future Work

References

Acknowledgements

Funding

Author information

Authors and Affiliations

Contributions

Authors’ Information

Corresponding author

Ethics declarations

Competing interests

Rights and permissions

About this article

Cite this article

Share this article

Keywords
