Multi-Branch Cable Harness Layout Design Based on Genetic Algorithm with Probabilistic Roadmap Method

Abstract

Current studies on cable harness layouts have mainly focused on cable harness route planning. However, the topological structure of a cable harness is also extremely complex, and the branch structure of the cable harness can affect the route of the cable harness layout. The topological structure design of the cable harness is a key to such a layout. In this paper, a novel multi-branch cable harness layout design method is presented, which unites the probabilistic roadmap method (PRM) and the genetic algorithm. First, the engineering constraints of the cable harness layout are presented. An obstacle-based PRM used to construct non-interference and near to the surface roadmap is then described. In addition, a new genetic algorithm is proposed, and the algorithm structure of which is redesigned. In addition, the operation probability formula related to fitness is proposed to promote the efficiency of the branch structure design of the cable harness. A prototype system of a cable harness layout design was developed based on the method described in this study, and the method is applied to two scenarios to verify that a quality cable harness layout can be efficiently obtained using the proposed method. In summary, the cable harness layout design method described in this study can be used to quickly design a reasonable topological structure of a cable harness and to search for the corresponding routes of such a harness.

Introduction

Cable harnesses are widely used in complex mechatronics products as the transmission medium of power and digital signals. Thus, the running statement of a cable harnesses significantly affects the running of the mechatronics products. The running statement of cable harnesses is directly related to the layout of the harnesses. A cable harness layout design relies on human experience [1,2,3], which requires significant resources and time. To reduce the workloads of the cable harness layout design, methods for designing a cable harness layout have received significant attention. These methods should be used to efficiently and intelligently design the structure and route of the cable harness with respect to the engineering constraints reflecting the influence on the quality of cable harnesses and the effect of the cable harnesses itself. Under the consideration of such engineering constraints, many researchers have focused on studies of the cable harness layout design.

In 1991, Zhu et al. [4] regarded the pipe route design as a path planning problem with multiple constraints and used the cell composition to search the pipe route. In 1996, Conru [5] proposed a method based on the genetic algorithm (GA) to search for the configuration and route of a cable harnesses. This method put forward a fitness function and proved the advantage of the GA used in the branch cable harness layout design. In 2001, Schafer et al. [6] proposed a method to fill an orthogonal search space of high density with routes using a domain decomposition analysis. In 2006, Ma et al. presented an optimization algorithm for a cable harness layout design based on a two-level GA [7]. This algorithm searches for the shortest route of the cable harness with no constraints at the first level and removes unqualified routes at the second level. In 2007, Kabul et al. [8] presented a method for developing a cable harness layout design in a complex environment. With this method, a roadmap is constructed using the probabilistic roadmap method (PRM), the roadmap around the obstacles is sampled, and finally, the cable harness route is optimized by using adaptive forward dynamics to acquire the cable harness route under geometric and physical constraints. In 2015, Chungwei Lin and his team put up the wire route optimization algorithm, and the method regards the wire route optimization as the smallest Steiner tree problem. To solve this problem, the Kou–Markowsky–Berman algorithm is used to construct the smallest Steiner tree [9]. With this method, the optimization object is the lightest weight of all wires. In 2016, Hermansson et al. [10] presented a unifying method for routing a cable harness with geometric design constraints. This method first searches for a nominal configuration of the cable harness that is collision-free and satisfies the functional and manufacturing constraints, and then calculates the accurate configuration of the cable harness by using the Cosserat rod theory. Xu et al. [11] presented two types of cable harness layout design methods for planning multi-branch cable harness layouts. The first method is based on the co-evolutionary algorithm and the improved rapidly exploring random tree (RRT) algorithm [12]. The second method is based on the Steiner minimal tree and the improved low dispersion and obstacle based PRM [13]. The above methods focused on searching the branch point of the cable harness. Wang et al. [14] presented a cable harness layout method based on a multi-scale chaotic mutation particle swarm optimization algorithm. This method focused on obtaining the optimal solution of the cable harness layout. Wu et al. [15] presented a path-planning method for the cable harness layout based on an improved ant colony optimization algorithm. The aim of this method is to improve the efficiency path planning of the cable harness layout. Although the current methods supplied different solutions for the cable harness layout, they focused on the route searching problem or the branch point searching problem of the cable harness layout design. These methods ignored the connectivity of the endpoints and branch points as well as the number of branch points of a cable harness. Thus, these methods cannot be used to design a cable harness that may have numerous branch points.

To design the topological structure of the cable harness with many branch points, we present a multi-branch cable harness layout method by uniting the PRM with the GA. The multi-branch cable harness routes are designed using the PRM, and the topological structure and routes of the multi-branch cable harness are planned using the GA. In this paper, an improved GA is presented to increase the efficiency of the method. A prototype system of a multi-branch cable harness was developed, and the efficiency of the algorithm was tested.

The description of the concept and constraint are given in Section 2. In Section 3, the algorithm framework is presented. In Sections 4 and 5, the PRM and GA applied to the problem in this paper are presented. Two scenarios are implemented in Section 6. The findings of this study are presented in Section 7.

Concept and Constraint Description

The concepts used in this study are defined based on the characteristics of the cable harnesses for application to the cable harness layout design algorithm. In addition, the engineering constraints of the cable harness layout are analyzed for mathematical descriptions of the constraints. The method described in this paper is based on these concepts and constraint descriptions.

Concept

A cable harness is typically assembled with several wires that connect the electric terminals, and the wires are bundled together.

Concept 1. Branch point - According to the above description, a branch point exists in the cable harness because of the assembly process of the wires. The bifurcations in a cable harness are defined as branch points. Instances of branch points are shown in Figure 1, as marked by a star.

Figure 1
figure1

Cable harness branches and branch points

Concept 2. Cable harness branch - The bundle that connects a branch point with a branch point, or a branch point with an endpoint, is defined as a branch. Cable harness branches, indicated by the black circles, are shown in Figure 1.

Concept 3. Branch structure - The branch structure of a cable harness is the connection mode of all endpoints and branch points of a cable harness. An instance of the branch structure of a cable harness having four endpoints is shown in Figure 2, and this cable harness has seven connection modes, i.e., seven branch structures. The mathematical expression of the branch structure is an adjacent list of branch points and endpoints. In the adjacent list, the endpoints are represented by Ei, and the branch points are represented by Ti. An adjacent list instance is described in Eq. (1):

$$list\left\{ {T_{i} |T_{j} ,E_{k} } \right\}.$$
(1)
Figure 2
figure2

Branch structures with 4 endpoints

In this study, the cross section of the cable is simplified as a circular cross section. Thus, the configuration of the cable harness is defined as follows.

Concept 4. Configuration - A configuration of a cable harness consists of the branch structure, branch points, and central line equations and the radii of cable harness branches. The configuration is expressed by Eq. (2):

$$q: \to \left\{ {list\left\{ {T_{i} |T_{j} ,E_{k} } \right\},T_{j} ,r_{i} ,CE_{i} } \right\}.$$
(2)

In Eq. (2), q represents the configuration, ri represents the radii of the cross section, and CEi represents the central lines, which are a curve fitted by several points. In this study, the fitted curve is a B-spline curve.

Constraint Description

The universal constraints used in this study are discussed as follows.

Constraint 1. Non-interference - A cable harness is not allowed to collide with any other models. The mathematical expression of the non-interference is represented by \(d_{pt} \ge d_{ob}\), where \(d_{pt}\) represents the distance between the point on the cable harness and the surface of the structures, and \(d_{ob}\) indicates the minimum distance between the point on the cable harness and the surface of the structures.

Constraint 2. Attachment to the surface - The cable harness should be attached to the surface of the models. The mathematical expression of the attachment to the surface is represented by \(d_{pt} \le d_{sur}\), where \(d_{sur}\) represents the maximum distance between the point on the cable harness and the surface of the structures.

Constraint 3. Area constraint - The structures designed for the cable harness layout are the necessary area constraints, and the structures not allowed for the cable harness layout are the forbidden area constraints. The area constraints can be artificially settled for the cable harness layout trends. The necessary area constraints are represented by \(\left\{ {KS_{i} } \right\}\), and the forbidden area constraints are represented by \(\left\{ {FS_{i} } \right\}\).

Framework

In this paper, we combine the PRM with the GA to construct a novel cable-harness layout design algorithm. This algorithm starts with the input of the CAD models and the electric connections, and first constructs a roadmap that is satisfied with the non-interference and attachment to the surface by the PRM. After construction of the roadmap, the branch structure and branch points are determined using the GA. Then, each cable harness branch route is searched using the PRM and constrained by the area constraints. Finally, the cable harness routes are adjusted according to the minimum bending radius. The algorithm ends with the output of the cable harness configuration. The framework of the algorithm is shown in Figure 3.

Figure 3
figure3

The framework of the algorithm used in this paper

Roadmap Construction Based on PRM

To satisfy both non-interference and an attachment to the surface, it is necessary to construct a roadmap that is free of interference and attached to the surfaces. The roadmap can be constructed using PRM or the variants PRM [16].

In the basic PRM, a complete roadmap is constructed by two phases: the sampling phase and the connection phase [17]. In the sampling phase, the points of the roadmap are sampled randomly and tested for interference occurrence. In the connection phase, the points that are obtained in the sampling phase are connected by a certain rule. However, the basic PRM simply constructs a non-interference roadmap that may not be satisfied with attachment to surfaces. To obtain a roadmap attached to the surfaces, a type of variant PRM called an obstacle-based PRM (OBRPM) can be used [16]. There are several variants of obstacle-based sampling, including OBPRM [18], Gaussian sampling [19], a bridge test [20], and uniform OBPRM (UOBPRM) [21].

The UOBPRM can be used to construct a uniform roadmap satisfies non-interference and surface attachment as compared variants. In this study, the roadmap construction is based on the sampling strategy of UOBPRM, and the UOBPRM is adjusted to complete the roadmap connection.

In the sampling phase, new points of the roadmap are obtained using the pseudocode in Algorithm 1. First, point pt is uniformly sampled within the whole space, regardless of interference. Next, a random segment s of length l is generated with the center at pt along a random direction \(\overrightarrow {d}\). Then, the segment s is checked for intersections with obstacles using the pseudocode in Algorithm 2. In Algorithm 2, a loop is executed lt times, where l is the length of the segment s, and Δt is the user-defined step size. In each loop step, two points \(pt_{i}\) and \(pt_{i + 1}\) along the segment s are generated, and two points are checked for interference. When two points are under different conditions, the non-interference point in the roadmap is selected, as shown in Figure 4.

Figure 4
figure4

Process of Algorithm 2 (The non-solid circles are the invalid points, and the solid circles are the valid points. The solid circles are added to the set of points SP)

In the connection phase, the nearest-m strategy is chosen to connect the points in Set P. Referring to Ref. [22], in comparison to other strategies, the nearest-m strategy is the most efficient. According to the nearest-m strategy, the points are connected to the nearest m points in the graph.

figurea
figureb

Branch Structure Design and Branch Point Determination Based on the Genetic Algorithm

The GA is suitable for designing the branch structure and determining the branch points because the better part of the optimal branch structure and branch points in each iteration can be saved through the operations of the GA [5]. In Ref. [5], the authors simply prove why the GA is suitable for solving these two problems, but it did not supply details of the algorithm. This paper provides the details of the GA for a branch structure design and branch point determination.

Encoding Rules

The solution in this section is the branch structure and the positions of the branch points. The solution cannot be encoded using classical encoding rules, such as bit string encoding [23], Gray encoding [24], float point encoding [25], or real-value encoding [26]. Thus, in this paper, specialized encoding rules for encoding the branch structure and the positions of the branch points are presented.

According to Section 2, the branch structure is represented by an adjacent list \(list\left\{ {T_{i} |T_{j} ,E_{k} } \right\}\). The branch point position can be represented by a vector quantity \(\left( {x,y,z} \right)\). Based on these two representations, the solution can be represented by the following formula:

$$list\left\{ {T_{i} \left( {x_{i} ,y_{i} ,z_{i} } \right)|T_{j} ,E_{k} } \right\},\quad i < j.$$
(3)

The serial number of points in the adjacent list should be in order of coordinates from small to large, as shown in Figure 5(a). Each point should be used once in the adjacent list, as shown in Figure 5(b).

Figure 5
figure5

Encoding rules of the branch structure and the branch point: a The subscript serial numbers of the branch points and endpoints are ordered by the coordinate sequence; b The points in the adjacent list, i.e., the blue items, are used only once

Population Initialization

The branch structure design and branch point position determination problem is similar to the travel salesman problem (TSP). They are both graph search problems, and thus the population initialization method of both problems can be dealt with in a similar way. A k-means clustering strategy can improve the quality of the initial population in the TSP [22], and thus the population initialization in this paper can also add a clustering strategy. An initial population can be generated as follows.

Step 1. A total of N branch points are randomly generated within the bounds of the endpoints.

Step 2. In the order of the coordinates, every branch point needs to find one endpoint, except for the first branch point and the last branch point. The first branch point and the last branch point both need to find two endpoints by distance.

Step 3. The N branch points cluster into K groups with \(K=\left[\sqrt{N}+0.5\right]\), and in order of coordinates, \(\left[N/K\right]\) branch points are gathered as a point set by the distance.

Step 4. In order of the subscript serial number, only one point of each set is selected for connection.

Repeating the above steps, all populations can be generated. The process of population initialization is shown in Figure 6.

Figure 6
figure6

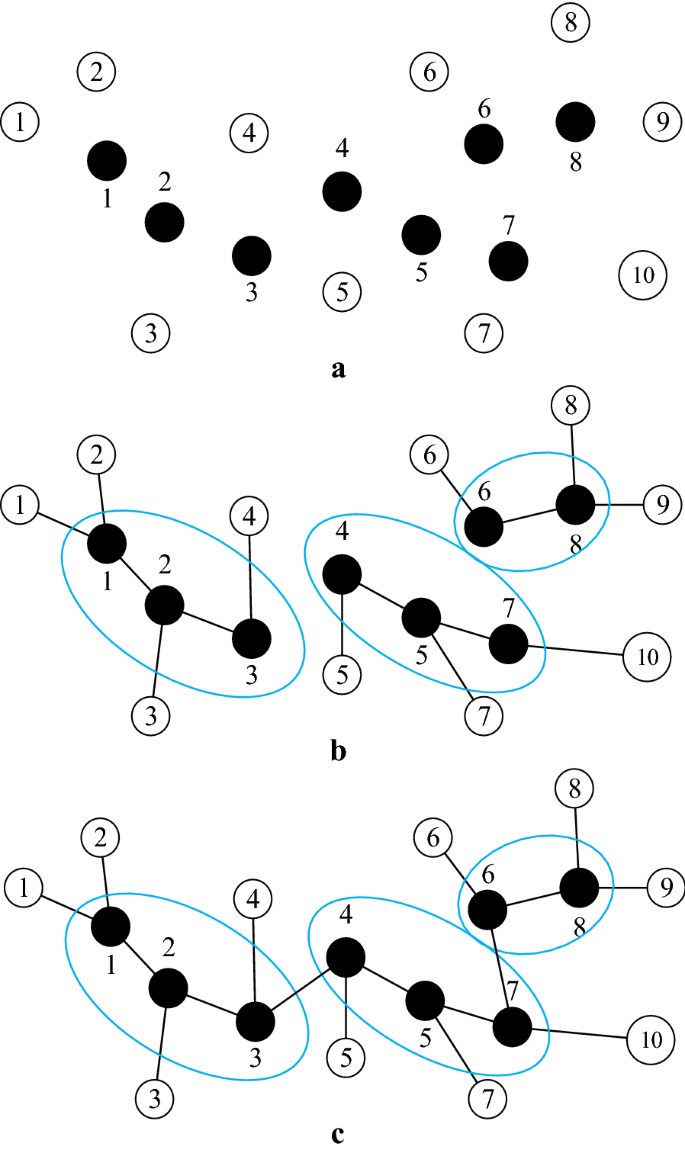

Process of the population initialization: a Randomly generate the branch points; b Divide the branch points into [N/K] sets; c Randomly choose one point of sets to be connected

Operator

In routing problems such as the TSP and vehicle routing problem, the crossover operator does not provide any improvements to the GA [28]. For the routing problem, the mutation operator and the selection operator are the key parts of the GA. Based on the facts above, the process of the GA in this study is different from the process of the classical genetic algorithm. The mutation operator is executed before the crossover operation, and the mutation probability pm is close to 1 initially, whereas the crossover probability pc is close to zero. In addition, pm and pc vary with the iteration process, and are determined by the qualities of individuals in each generation. Referring to Refs. [29,30,31], the variations in pm and pc can be calculated using a method based on the adaptive strategy.

The process of the GA is shown in Figure 7. In particular, the mutation operator is executed before the crossover operator, and the selectin operator is executed after the above two operators. In each iteration, new individuals are generated by the mutation and crossover operators, and new and old individuals are then compared for selecting the next generation of individuals.

Figure 7
figure7

Process of the GA in this paper

Mutation Operator

In each iteration, \({p}_{m}\) should be calculated first to determine whether the mutation operator is executed. When the mutation operator is executed, the branch structure and branch point modification should be executed in this phase.

The value of pm is calculated using Eq. (4). In Eq. (4), t is the generation number, f(t) is the fitness value of this generation, and f(t−1) is the fitness value of the last generation. The curve chart of the pm variation with f(t)/f(t−1) indicates that the large variation in the generation fitness value will make pm close to 1, that is, the mutation operator will more likely be executed

$$p_{m} (t) = \left| {\exp \left( {f\left( t \right)/f\left( {t - 1} \right) - 1} \right) - 1} \right|.$$
(4)

The mutation operator consists of three operations: the first is to change the number of branch points, the second is to change the position of the branch points, and the third is to change the adjacent list structure.

The first operation is as follows: the individuals are divided into three parts on average. The branch points the first part decrease by one point, the branch points of the second part increase by one point, and the branch points of the third part remain the same. In addition, the number of branch points is not below one and is not more than Nmax, which is the number of endpoints minus 2. The incremental point is randomly generated, whereas the removed point is randomly deleted.

The second operation is as follows: each branch point moves to an adjacent position in the roadmap. In addition, the branch points are not over the bounds of the endpoints.

The third operation is as follows: if the branch points of an individual decrease, the endpoint connected to the removed branch point will be connected to the nearest branch point. If the branch points of an individual increase, the endpoint that is closest to the incremental point will be connected to the new branch point. All individuals will be changed in the following way. The K branch points are randomly selected, and the endpoint and other branch points that the selected branch points are connected with are changed.

Crossover Operator

During each iteration, pc is calculated using Eq. (5). The value of pc is close to zero initially, and when f(t)/f(t−1) is close to 1, pc is close to 1. In this case, when the variation in the fitness value is extremely small, the crossover operator is used to improve the quality of the individuals.

$$p_{c} (t) = 1 - p_{m} (t).$$
(5)

The crossover operator is as follows: an instance of the crossover operator is shown in Figure 8.

Figure 8
figure8

Crossover operation instance

Step 1. Couple the individuals that have the same branch point number.

Step 2. Compare each branch fitness value \(f_{{E_{i} }} \left( t \right)\), and find the optimal cable harness branch and the worst cable harness branch.

Step 3. Exchange the corresponding cable branch harness and save the better cable branch harness.

Step 4. According to the encoding rules, adjust the branch structure and generate a new individual.

Selection Operator

During each iteration, new individuals are generated by the mutation operator and the crossover operator. The number of individuals will be over the population size. To maintain the population size, the selection operator needs to be executed. The classical selection operators consist of a proportionate roulette wheel selection [23], linear ranking selection [32], exponential ranking selection [33], and tournament selection [34], among others. In particular, the elitist selection [35] is a practical variant, and selects the best individuals from the current generation to the next generation. In this study, elitist selection is used to conduct the selection operation. During each iteration, the individuals are ordered by their fitness values, and the best individuals equal in number to the population size are selected for the next generation.

Fitness Function and Termination

Referring to Ref. [6], the fitness function can be written as

$$f = \sum\nolimits_{i = 1}^{\# branches} {g_{i} \left( {nwb_{i} } \right) \cdot lb_{i} } ,$$
(6)

where \(nwb_{i}\) is the number of wires in branch i; \(lb_{i}\) is the length of branch i; \(g_{i}\) is the unit fitness value for branch i \(= 5 + nwb\).

As the termination condition in this study, the number of iterations reaches the maximum or \(f_{\min } /\overline{f} > 0.9\).

Branch Route Search

To meet the minimum bending radius constraint and the area constraint, the branch route needs to be sought using the area constraint and needs to be adjusted to meet the minimum bending radius.

Search

The branch route search problem is a shortest path problem, and thus the method for the shortest path problem can be used in the branch route search. The classical algorithm is Dijkstra’s algorithm, which searches the shortest path by minimizing the sum of the point cost. In this study, except for the distance cost, the area constraint should be converted into the cost. The cost of \(\left\{ {KS_{i} } \right\}\) should be set by half the distance cost, whereas the cost of \(\left\{ {FS_{i} } \right\}\) should be set by 10-times the distance cost.

In this study, the Dijkstra algorithm is applied to search a cable harness branch route by the following steps:

  1. 1.

    We define two point sets \(\left\{ {VP} \right\}\) and \(\left\{ {UVP} \right\}\), where \(\left\{ {VP} \right\}\) is the point set that includes the visited points that are closest to the start point, and \(\left\{ {UVP} \right\}\) is the point set that includes the unvisited points.

  2. 2.

    Initially, the start point is added in \(\left\{ {VP} \right\}\), and the remaining points of the roadmap are added in \(\left\{ {UVP} \right\}\).

  3. 3.

    Search the closest point to the current point from \(\left\{ {UVP} \right\}\), and added in \(\left\{ {VP} \right\}\) and erased from \(\left\{ {UVP} \right\}\).

  4. 4.

    Update the distances of the points in \(\left\{ {VP} \right\}\).

  5. 5.

    Repeat steps 3 and 4 until the end point is added to \(\left\{ {VP} \right\}\) and the route between the start point and the end point is found.

Adjustment

Although the branch route above is a polyline, the cable harness branch is a continuous curve. Thus, the branch route should be adjusted for transformation into a continuous curve. The fitting curve of the branch route is a B-spline curve. The points of the branch route searched using Dijkstra’s algorithm are substituted into the B-spline curve equation to obtain the parameters of the B-spline curve equation.

After the above adjustment, the branch route is judged on the bending radius, and when the bending radius of the branch route is greater than the minimum bending radius, the branch route should be adjusted to satisfy the minimum bending radius.

Implementation

The method was tested and validated under two scenarios. The first scenario is used to compare the PRM and the GA applied in this study with their original algorithms based on the efficiency and quality of the cable harness layout. The second scenario is used to test the method in a complex environment. The first scenario is shown in Figure 9(a), and the second scenario is shown in Figure 9(b). All implementations were conducted on a desktop PC with an Intel Core i5 CPU at 3.2 GHz.

Figure 9
figure9

Scenarios using the method

The first scenario is tested on the original PRM and UOBPRM. The computation time, number of points, and number of edges determined by the two types of algorithms are shown in Table 1. The roadmaps in the first scenario constructed by the two algorithms are shown in Figure 10(a) and (b). The roadmap constructed by this algorithm is close to the surfaces of the mechanical parts and is evenly distributed. Compared with the former roadmap, the roadmap constructed using the original PRM is too densely distributed and there are too many points that are remote from the surfaces of the mechanical parts. The former roadmap is more suitable for searching the route of the branch.

Table 1 Results of the PRM for the two scenarios
Figure 10
figure10

Roadmaps used in the first scenarios: a roadmap constructed by the UOBPRM, b roadmap constructed by the original PRM

The first scenario is tested on the original GA and the GA applied in this study. In the simple scenario, a cable harness with five endpoints should be designed. Figure 11 shows the position of the endpoints of the cable harness in the first scenario. The computation time, the number of iterations, and the average fitness value of the last generation and the optimal fitness value of the last generation based on the two algorithms are shown in Table 2. In Figure 12(a) and (b), the final configurations of the cable harness in the first scenario designed using the two algorithms are presented. Obviously, the layout result planned using our algorithm is more reasonable than the layout result planned using the traditional GA, which is reflected in the branch point position.

Figure 11
figure11

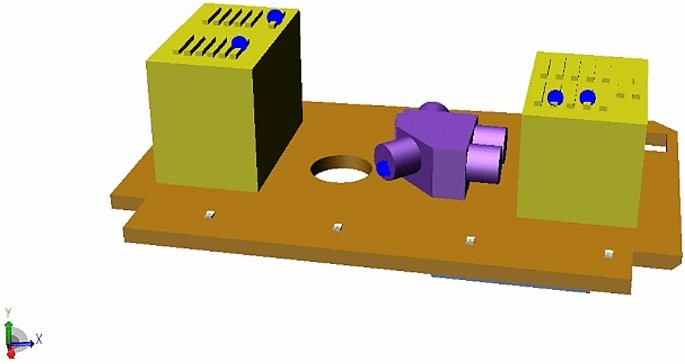

Endpoints in the first scenarios

Table 2 Results of the GA
Figure 12
figure12

The configuration of the cable harnesses: a configuration of the cable harness designed by the GA in this paper, b configuration of the cable harness designed by the original GA

In the second scenario, a cable harness with 10 endpoints should be designed, as shown in Figure 13. The roadmap in the second scenario is shown in Figure 14, and the result of the second scenario is shown in Figure 15. A roadmap that is close to the surfaces and evenly distributed was constructed. The branch structure of the cable is reasonable, and the route of the cable is as expected.

Figure 13
figure13

Endpoints in the second scenario

Figure 14
figure14

Roadmap in the second scenario

Figure 15
figure15

Configuration of the cable harness in the second scenario

Conclusions

In this paper, a new method using the union of the PRM and the GA is proposed for planning the branch structure and the route of the cable harness. The main contributions described herein are as follows.

  1. (1)

    The area constraint is first presented to guide the route tendency of the cable harness, which is defined as the necessary area constraint and the forbidden area constraint.

  2. (2)

    The new genetic algorithm is proposed to plan the branch structure of the cable harness. Compared with the traditional GA, the order of the crossover operation and the mutation operation is exchanged.

  3. (3)

    The probability formulas of the crossover operation and mutation operation are proposed to promote the efficiency of the genetic algorithm.

This method can be used to efficiently design a good layout of the multiple branch cable harness, and the performance of the method was tested and validated in this study. In the future, the extension of the method will include two aspects. One is to efficiently improve the algorithm by adjusting the parameters of the GA, and the other is to solve the layout problem of the cable harness within the entire machine.
