Effect of Axial Deformation on Elastic Properties of Irregular Honeycomb Structure

Abstract

Irregular honeycomb structures occur abundantly in nature and in man-made products, and are an active area of research. In this paper, according to the optimization of regular honeycomb structures, two types of irregular honeycomb structures with both positive and negative Poisson’s ratios are presented. The elastic properties of irregular honeycombs with varying structure angles were investigated through a combination of material mechanics and structural mechanics methods, in which the axial deformation of the rods was considered. The numerical results show that axial deformation has a significant influence on the elastic properties of irregular honeycomb structures. The elastic properties of the structure can be considered by the enclosed area of the unit structure, the shape of the unit structure, and the elastic properties of the original materials. The elastic properties considering the axial deformation of rods studied in this study can provide a reference for other scholars.

Introduction

Honeycomb structures have many excellent characteristics, such as a higher elastic modulus [1], higher shear modulus [2], and higher energy absorption [3,4,5,6]. Therefore, negative Poisson’s ratio materials are widely used in aerospace [7, 8], automobiles, ships [9, 10], and other fields. Zhang et al. [11] studied a hierarchical regular hexagonal honeycomb structure. Mukhopadhyay and Adhikari [12] found that the elastic modulus of irregular honeycombs was highly influenced by the structural irregularity in auxetic honeycombs. Yang and Deng [13] reviewed the development of materials and structures with a negative Poisson’s ratio and the prospect development of porous materials. Lan et al. [14] analyzed a thin-walled honeycomb structure and investigated the effects of its structural and material parameters. Upreti et al. [15] studied honeycomb sandwich composites with a hexagonal honeycomb core and found that deformation decreased with increasing face sheet thickness. Thus, honeycomb structures have always been of profound interest to the research community.

Compared with traditional regular structures, irregular structures are more widely used in engineering applications owing to their better compressibility [16, 17] and higher buckling [18, 19]. Other important research areas related to the study of different honeycomb structures are their thermal and acoustic properties [20,21,22,23]. Therefore, much research has been carried out to predict the elastic properties of irregular honeycombs [24, 25]. Deng and Yang [26] investigated the behaviors of functionally graded structures in three different types of elastic moduli. In the numerical results, it was found that Poisson’s ratio exhibits appreciable effects on bearing capacity, which indicates that static properties can be improved by optimal design of cell shape material distribution and computational methodology. Hu et al. [27] studied the Poisson’s ratio of re-entrant honeycombs using numerical and structural methods. Huang et al. [28] presented a novel zero in-plane Poisson’s ratio honeycomb designed for large out-of-plane deformations and studied the relationship between in-plane stiffness and geometric parameters. Wang et al. [29] analyzed the elastic modulus and Poisson’s ratio of the re-entrant auxetic cellular structure in two principal directions. Bubert et al. [30] fabricated a skin supported by an accordion honeycomb and analyzed the in-plane equivalent elastic moduli in two directions without discussing the modulus in the third direction. Li et al. [31] studied the dynamic crushing response of irregular honeycomb structures and found that the propagation velocity of the stress wave is different in different honeycomb structures. Liu et al. [32] analyzed the effect of Poisson’s ratios on the crashworthiness of in-plane honeycombs. Therefore, honeycomb structures [33], especially irregular structures [34], have wide research prospects.

In this study, the equivalent elastic modulus and Poisson’s ratio of an irregular honeycomb in the \(\sigma_{{1}}\) and \(\sigma_{{2}}\) directions are derived using Castigliano’s second theorem, and the internal bending moment, axial deformation, and Poisson’s ratio of the original material are considered. Finally, the results in this paper are verified with the results reported in Ref. [24], and the effects of different structural shapes and axial deformation of rods on the elastic properties are analyzed. The results show that when considering the axial deformation, the absolute value of Poisson’s ratio is lower than that without considering the axial deformation, and the variation in the structural shape has a slight influence on the elastic properties.

Irregular Honeycomb Structure

Figure 1 shows two types of regular structures: (a) and (b) are regular honeycomb structures with both positive and negative Poisson’s ratios. Figure 2 shows two types of irregular structures: (a) and (b) are irregular honeycomb structures with both positive and negative Poisson’s ratios.

Figure 1
figure1

Regular structures

Figure 2
figure2

Irregular structures

Irregular Honeycomb Structures with Positive Poisson’s Ratio

Figure 3 shows irregular honeycomb structures loaded in two different directions, where \(\sigma_{{1}}\) and \(\sigma_{{2}}\) are uniformly distributed loads in two mutually perpendicular directions.

Figure 3
figure3

Applied tensile stresses in the (a) \(\sigma_{1}\) and (b) \(\sigma_{{2}}\) directions

Elastic Modulus in the \(\sigma_{{1}}\) Direction

Figure 4 shows the structural parameters and force analysis of rod AB, where b is the thickness of the unit structure, t is the depth of the unit structure, \(l_{i}\) and h are the lengths of the inclined cell walls with inclination angle \(\theta\) and the length of the vertical rod, respectively. The moment \(M_{{1}}\) of rod AB can be expressed as

$$ M_{{1}} { = }\frac{{P_{1} l_{1} \sin \theta_{1} }}{2}, $$
(1)
Figure 4
figure4

Irregular structure diagram and force analysis of rod AB

where \(P_{1} = \sigma (h + l_{1} \sin \theta_{1} )b\) is the force in the \(\sigma_{{1}}\) direction.

From the standard beam theory [33], the deflection \(\delta_{AB}\) of rod AB can be expressed as

$$ \delta_{AB} = \frac{{p_{1} l_{{1}}^{3} \sin \theta_{1} }}{12EI}. $$
(2)

Axial force \(F^{\prime}\) along rod AB is

$$ F^{\prime} = p_{1} \cos \theta_{1} . $$
(3)

Axial deformation \(\Delta l\) can be expressed as

$$ \Delta l = \frac{{F^{\prime}L}}{EA} = \frac{{p_{1} \cos \theta_{1} l_{1} }}{Ebt}, $$
(4)

where E is the elastic moduli of the original materials, and the total deformation \(\delta_{1}\) of rod AB along the \(\sigma_{{1}}\) direction is

$$ \delta_{1} = \delta_{AB} \sin \theta_{1} + \Delta l\cos \theta_{1} = \frac{{p_{1} l_{{1}}^{3} \sin^{2} \theta_{1} }}{12EI} + \frac{{p_{1} \cos^{2} \theta_{1} l_{1} }}{Ebt}. $$
(5)

Similarly, the total deformation \(\delta_{{2}}\) of rod BC along the \(\sigma_{{1}}\) direction can be expressed as follows:

$$ \delta_{2} = \delta_{BC} \sin \theta_{2} + \Delta l\cos \theta_{2} = \frac{{p_{1} l_{2}^{3} \sin^{2} \theta_{2} }}{12EI} + \frac{{p_{1} \cos^{2} \theta_{2} l_{2} }}{Ebt}. $$
(6)

Combing Eqs. (2)–(6), the strain \(\varepsilon_{1}\) parallel to the \(\sigma_{{1}}\) direction is given by

$$ \varepsilon_{1} = \frac{{\delta_{1} + \delta_{2} }}{{l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} }} = \frac{\sigma \gamma }{{l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} }}, $$
(7)

where

$$ \gamma = b\left[ {(h + l_{1} \sin \theta_{1} )\left( {\frac{{l_{{1}}^{3} \sin^{2} \theta_{1} }}{12EI} + \frac{{\cos^{2} \theta_{1} l_{1} }}{Ebt}} \right) + (h + l_{2} \sin \theta_{2} )\left( {\frac{{l_{2}^{3} \sin^{2} \theta_{2} }}{12EI} + \frac{{\cos^{2} \theta_{2} l_{2} }}{Ebt}} \right)} \right]. $$
(8)

Thus, the elastic modulus \(E_{1U}\) in the \(\sigma_{{1}}\) direction can be expressed as follows:

$$ E_{1U} = \frac{{(l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )}}{\gamma }. $$
(9)

Elastic Modulus in the \(\sigma_{2}\) Direction

To derive the expression of the transverse elastic modulus, stress \(\sigma_{{2}}\) is applied, as shown in Figure 3(b). Figure 5 shows that the deflection of rod BD consists of two parts: bending deformation and rotational deformation. The bending deformation \(\delta_{{{2}vb}}\) caused by the moment \(M_{{1}}\) in the \(\sigma_{{2}}\) direction can be expressed as

$$ \delta_{2vb} = \left( {\frac{{w\cos \alpha \left( {\frac{{s_{1} }}{\sin \alpha }} \right)^{3} }}{3EI}} \right)\cos \alpha , $$
(10)
Figure 5
figure5

Force analysis of rod BD

where

$$ \left\{ \begin{aligned} &w = \sigma_{2} (l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b, \hfill \\ &I = {{bt^{3} } \mathord{\left/ {\vphantom {{bt^{3} } {12,}}} \right. \kern-\nulldelimiterspace} {12,}} \hfill \\ & M_{1} = ws_{1} \cot \alpha . \hfill \\ \end{aligned} \right. $$
(11)

Because the rotation angles of the three rods connected to point B are identical, the rotation angle \(\phi\) of joint B can be written as

$$ \phi = \frac{{M_{1} l_{1} }}{{l_{1} + l_{2} }}\frac{{l_{1} }}{6EI}. $$
(12)

Thus, the deformation \(\delta_{{{2}vr}}\) of the cell wall with an inclination angle \(\alpha\) in the \(\sigma_{{2}}\) direction is given by:

$$ \delta_{2vr} = \phi \left( {\frac{{s_{1} }}{\sin \alpha }} \right)\cos \alpha . $$
(13)

Therefore, the total deformations of rod BD and rod FH in the \(\sigma_{{2}}\) direction are

$$ \delta_{2BD} = \left( {\frac{{w\cos \alpha \left( {\frac{{s_{1} }}{\sin \alpha }} \right)^{3} }}{3EI}} \right)\cos \alpha + \frac{{M_{1} l_{1} }}{{l_{1} + l_{2} }}\frac{{l_{1} }}{6EI}\left( {\frac{{s_{1} }}{\sin \alpha }} \right)\cos \alpha , $$
(14)
$$ \delta_{v2FH} = \left( {\frac{{w\cos \beta \left( {\frac{{s_{2} }}{\sin \beta }} \right)^{3} }}{3EI}} \right)\cos \beta + \frac{{M_{1} l_{4} }}{{l_{3} + l_{4} }}\frac{{l_{4} }}{6EI}\left( {\frac{{s_{2} }}{\sin \beta }} \right)\cos \beta . $$
(15)

Now, the axial deformations of rod BD and rod FH in the \(\sigma_{{2}}\) direction can be expressed as

$$ \Delta l_{2BD} = \frac{{ws_{1} }}{Ebt}\sin \alpha , $$
(16)
$$ \Delta l_{2FH} = \frac{{ws_{2} }}{Ebt}\sin \beta . $$
(17)

The deflections \(\delta_{vBD} {\kern 1pt}\) and \(\delta_{vGF} {\kern 1pt}\) of rods AB and GF (Figure 6) in the \(\sigma_{{2}}\) direction can be expressed as

$$ \delta_{vAB} = \frac{{\left( {\frac{{l_{1} w}}{{l_{1} + l_{2} }}\cos \theta_{1} } \right)l_{1}^{3} }}{12EI}\cos \theta_{1} , $$
(18)
$$ \delta_{vGF} = \frac{{\left( {\frac{{l_{4} w}}{{l_{3} + l_{4} }}\cos \theta_{4} } \right)l_{4}^{3} }}{12EI}\cos \theta_{4} . $$
(19)
Figure 6
figure6

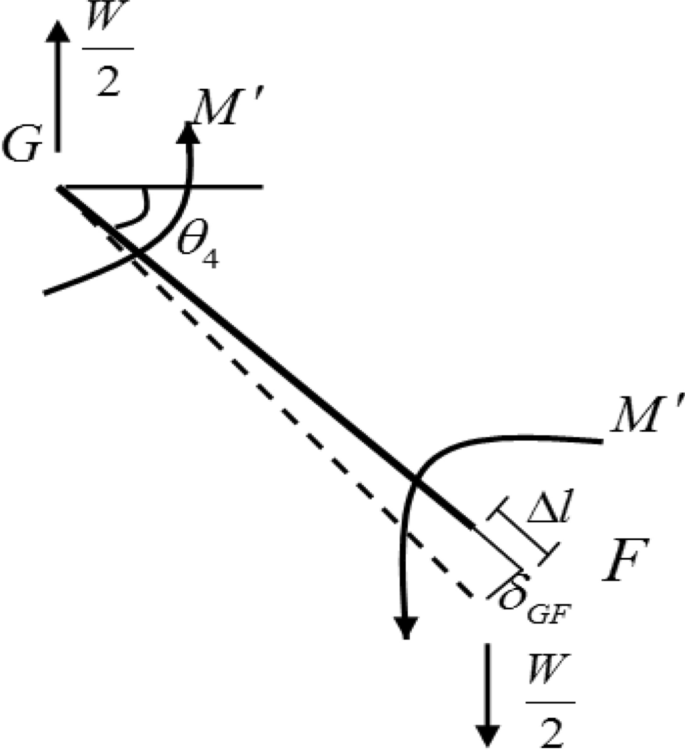

Force analysis of rod GF

The axial deformation of rods AB and GF in the \(\sigma_{{2}}\) direction can be expressed as

$$ \Delta l^{\prime}_{2} = \frac{{\frac{{l_{1} w}}{{l_{1} + l_{2} }}\sin \theta_{1} l_{1} }}{Ebt}\sin \theta_{1} , $$
(20)
$$ \Delta l^{\prime}_{3} = \frac{{\frac{{l_{4} w}}{{l_{3} + l_{4} }}\sin \theta_{4} l_{4} }}{Ebt}\sin \theta_{4} . $$
(21)

Thus, the total deformation \(\delta_{2} {\kern 1pt}\) of the structure in the \(\sigma_{{2}}\) direction can be expressed as

$$ \delta_{{2}} = \delta_{v2BD} + \delta_{v2FH} + \Delta l_{2BD} + \Delta l_{2FH} + \delta_{vAB} + \delta_{vGF} + \Delta l^{\prime}_{2} + \Delta l^{\prime}_{3} , $$
(22)

while Eq. (22) can be rewritten as follows:

$$ \delta_{{2}} = w\varphi , $$
(23)

where

$$ \begin{aligned} \varphi &= \left[ {\left( {\frac{{\cos \alpha \left( {\frac{{s_{1} }}{\sin \alpha }} \right)^{3} }}{3EI}} \right)\cos \alpha + \frac{{{\text{s}}_{1} \cot \alpha l_{1} }}{{l_{1} + l_{2} }}\frac{{l_{1} }}{6EI}\left( {\frac{{s_{1} }}{\sin \alpha }} \right)\cos \alpha } \right. \hfill \\ & \quad + \left( {\frac{{\cos \beta \left( {\frac{{s_{2} }}{\sin \beta }} \right)^{3} }}{3EI}} \right)\cos \beta + \frac{{{\text{s}}_{1} \cot \alpha l_{4} }}{{l_{3} + l_{4} }}\frac{{l_{4} }}{6EI}\left( {\frac{{s_{2} }}{\sin \beta }} \right)\cos \beta \hfill \\ & \quad+ \frac{{s_{1} }}{Ebt}\sin \alpha + \frac{{s_{2} }}{Ebt}\sin \beta + \frac{{\left( {\frac{{l_{1} }}{{l_{1} + l_{2} }}\cos \theta_{1} } \right)l_{1}^{3} }}{12EI}\cos \theta_{1} \hfill \\ & \quad \left. { + \frac{{\left( {\frac{{l_{4} }}{{l_{3} + l_{4} }}\cos \theta_{4} } \right)l_{4}^{3} }}{12EI}\cos \theta_{4} + \frac{{\frac{{l_{1} }}{{l_{1} + l_{2} }}\sin \theta_{1} l_{1} }}{Ebt}\sin \theta_{1} + \frac{{\frac{{l_{4} }}{{l_{3} + l_{4} }}\sin \theta_{4} l_{4} }}{Ebt}\sin \theta_{4} } \right], \hfill \\ \end{aligned} $$
(24)

Strain \(\varepsilon_{2} {\kern 1pt}\) in the \(\sigma_{{2}}\) direction can be obtained as

$$ \varepsilon_{2} = \frac{{\delta_{2} }}{{h + s_{1} + s_{2} + l_{1} \sin \theta_{1} + l_{4} \sin \theta_{4} }} = \frac{w\varphi }{{h + s_{1} + s_{2} + l_{1} \sin \theta_{1} + l_{4} \sin \theta_{4} }}, $$
(25)

where \(w = \sigma_{2} (l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b{\kern 1pt}\); thus, the elastic modulus in the \(\sigma_{{2}}\) direction of the structure can be expressed as

$$ E_{2U} = \frac{{\sigma_{2} }}{{\varepsilon_{2} }} = \frac{{h + s_{1} + s_{2} + l_{1} \sin \theta_{1} + l_{4} \sin \theta_{4} }}{{(l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b\varphi }}. $$
(26)

Poisson’s Ratio \(v_{{{12}}}\)

Poisson’s ratios were calculated by taking the negative ratios of strains normal to and parallel to the loading direction. Poisson’s ratio \(v_{{{12}}}\) of the unit structure can be defined as

$$ v_{12} = - \frac{{\varepsilon_{2} }}{{\varepsilon_{1} }}, $$
(27)

where \(\varepsilon_{{1}}\) and \(\varepsilon_{{2}}\) are strains in the \(\sigma_{{1}}\) and \(\sigma_{2}\) directions, respectively, due to the load in the \(\sigma_{{1}}\) direction. In addition, \(\varepsilon_{{1}}\) can be obtained from Eq. (7) and \(\varepsilon_{{2}}\) can be expressed as

$$ \varepsilon_{2} = - \frac{{\delta^{\prime}_{1} + \delta^{\prime}_{2} }}{{h + s_{1} + s_{2} + l_{1} \sin \theta_{1} + l_{4} \sin \theta_{4} }}, $$
(28)

where

$$ \left\{ {\begin{array}{*{20}l} {\delta^{\prime}_{1} = \delta_{AB} \cos \theta_{1} + \Delta l\sin \theta_{1} = \frac{{p_{1} l_{{1}}^{3} \sin \theta_{1} \cos \theta_{1} }}{12EI} + \frac{{p_{1} l_{1} \sin \theta_{1} \cos \theta_{1} }}{Ebt},} \hfill \\ {\delta^{\prime}_{2} = \delta_{GF} \cos \theta_{4} + \Delta l\sin \theta_{4} = \frac{{p_{2} l_{4}^{3} \sin \theta_{4} \cos \theta_{4} }}{12EI} + \frac{{p_{2} l_{4} \sin \theta_{4} \cos \theta_{4} }}{Ebt}.} \hfill \\ \end{array} {\kern 1pt} } \right. $$
(29)

The Poisson’s ratio of a structure in the \(\sigma_{{1}}\) direction can be expressed as

$$ v_{12} = \frac{{\left( {\delta^{\prime}_{1} + \delta^{\prime}_{2} } \right)\left( {l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} } \right)}}{{\left( {\delta_{1} + \delta_{2} } \right)\left( {h + s_{1} + s_{2} + l_{2} \sin \theta_{2} + l_{3} \sin \theta_{3} } \right)}}. $$
(30)

Poisson’s Ratio \(v_{21}\)

Poisson’s ratio of a structure for loading in the \(\sigma_{{2}}\) direction can be expressed as

$$ v_{21} = - \frac{{\varepsilon^{\prime}_{1} }}{{\varepsilon^{\prime}_{2} }}, $$
(31)

where \(\varepsilon_{{1}}^{\prime }\) and \(\varepsilon_{{2}}^{\prime }\) are the strains in the \(\sigma_{{1}}\) and \(\sigma_{{2}}\) directions, respectively. \(\varepsilon_{{2}}^{\prime }\) can be obtained from Eq. (23) as

$$ \varepsilon^{\prime}_{2} = \frac{w\varphi }{{h + s_{1} + s_{2} + l_{1} \sin \theta_{1} + l_{4} \sin \theta_{4} }}, $$
(32)

where \(w = \sigma_{2} (l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b{\kern 1pt}\), and \(\varepsilon_{{1}}^{\prime }\) can be obtained as

$$ \varepsilon^{\prime}_{1} = - \frac{{\delta_{vAB1} + \delta_{vBC1} }}{{l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} }} = - \frac{{w\varphi^{\prime}}}{{l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} }}, $$
(33)

where \(\delta_{vAB1}\) and \(\delta_{vBC1} {\kern 1pt}\) are the deformations in the \(\sigma_{{1}}\) direction due to the load in the \(\sigma_{{2}}\) direction

$$ \begin{gathered} \varphi^{\prime} = \frac{{\left( {\frac{{l_{1} }}{{l_{1} + l_{2} }}\cos \theta_{1} } \right)l_{1}^{3} }}{12EI}\sin \theta_{1} + \frac{{\left( {\frac{{l_{2} }}{{l_{1} + l_{2} }}\cos \theta_{2} } \right)l_{2}^{3} }}{12EI}\sin \theta_{2} \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + \frac{{\frac{{l_{1} }}{{l_{1} + l_{2} }}\sin \theta_{1} }}{{E{\text{bt}}}}\cos \theta_{1} + \frac{{\frac{{l_{2} }}{{l_{1} + l_{2} }}\sin \theta_{2} }}{{E{\text{bt}}}}\cos \theta_{2} . \hfill \\ \end{gathered} $$
(34)

Thus, Poisson’s ratio \(v_{{{21}}} {\kern 1pt}\) of a structure in the \(\sigma_{{2}}\) direction can be expressed as

$$ v_{21} = \frac{{\varphi^{\prime}\left( {h + s_{1} + s_{2} + l_{2} \sin \theta_{2} + l_{3} \sin \theta_{3} } \right)}}{{\varphi \left( {l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} } \right)}}. $$
(35)

Irregular Honeycomb Structure with Negative Poisson’s Ratio

Figure 7 shows the irregular honeycomb structures loaded in two different directions. \(\sigma_{{1}}\) and \(\sigma_{{2}}\) are uniformly distributed loads in two mutually perpendicular directions.

Figure 7
figure7

Tensile stresses along the (a) \(\sigma_{1}\) and (b) \(\sigma_{{2}}\) directions

Elastic Modulus in \(\sigma_{1}\) Direction

Figure 8 shows the force analysis of rods AB and GF in the \(\sigma_{1}\) and \(\sigma_{2}\) directions, respectively. \(E_{{1}}^{\prime }\) is the elastic modulus of an irregular structure with a negative Poisson’s ratio and has the same value as an irregular structure with a positive Poisson’s ratio. The elastic modulus \(E_{{1}}^{\prime }\) in the \(\sigma_{{1}}\) direction can be obtained as described in Section 3.1:

$$ E^{\prime}_{1} = \frac{{(l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )}}{\gamma }, $$
(36)
Figure 8
figure8

Force analysis of rods AB and GF in the \(\sigma_{{1}}\) and \(\sigma_{2}\) directions, respectively

where

$$ \gamma = b\left[ {(h - l_{1} \sin \theta_{1} )\left( {\frac{{l_{{1}}^{3} \sin^{2} \theta_{1} }}{12EI} + \frac{{\cos^{2} \theta_{1} l_{1} }}{Ebt}} \right) + (h - l_{2} \sin \theta_{2} )\left( {\frac{{l_{2}^{3} \sin^{2} \theta_{2} }}{12EI} + \frac{{\cos^{2} \theta_{2} l_{2} }}{Ebt}} \right)} \right]. $$
(37)

Elastic Modulus in the \(\sigma_{{2}}\) Direction

The elastic modulus of structures with a negative Poisson’s ratio can be obtained as described in Section 3.2. Thus, the strain \(\varepsilon_{{{21}}}\) in the \(\sigma_{{2}}\) direction can be obtained as follows:

$$ \varepsilon_{21} = \frac{\delta }{{h + s_{1} + s_{2} - l_{1} \sin \theta_{1} - l_{4} \sin \theta_{4} }} = \frac{w\varphi }{{h + s_{1} + s_{2} - l_{1} \sin \theta_{1} - l_{4} \sin \theta_{4} }}, $$
(38)

where \(w = \sigma_{2} (l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt}\).

Thus, the elastic modulus of \(E_{{2}}^{\prime }\) in the \(\sigma_{{2}}\) direction can be expressed as

$$ E^{\prime}_{2} = \frac{{\sigma_{21} }}{{\varepsilon_{21} }} = \frac{{h + s_{1} + s_{2} - l_{1} \sin \theta_{1} - l_{4} \sin \theta_{4} }}{{(l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} )b\varphi }}, $$
(39)

where

$$ \begin{aligned} \varphi &= \left[ {\left( {\frac{{\cos \alpha \left( {\frac{{s_{1} }}{\sin \alpha }} \right)^{3} }}{3EI}} \right)\cos \alpha + \frac{{{\text{s}}_{1} \cot \alpha l_{1} }}{{l_{1} + l_{2} }}\frac{{l_{1} }}{6EI}\left( {\frac{{s_{1} }}{\sin \alpha }} \right)\cos \alpha } \right. \hfill \\ & \quad+ \left( {\frac{{\cos \beta \left( {\frac{{s_{2} }}{\sin \beta }} \right)^{3} }}{3EI}} \right)\cos \beta + \frac{{{\text{s}}_{1} \cot \alpha l_{4} }}{{l_{3} + l_{4} }}\frac{{l_{4} }}{6EI}\left( {\frac{{s_{2} }}{\sin \beta }} \right)\cos \beta \hfill \\ & \quad + \frac{{s_{1} }}{Ebt}\sin \alpha + \frac{{s_{2} }}{Ebt}\sin \beta + \frac{{\left( {\frac{{l_{1} }}{{l_{1} + l_{2} }}\cos \theta_{1} } \right)l_{1}^{3} }}{12EI}\cos \theta_{1} \hfill \\ & \quad \left. { + \frac{{\left( {\frac{{l_{4} }}{{l_{3} + l_{4} }}\cos \theta_{4} } \right)l_{4}^{3} }}{12EI}\cos \theta_{4} + \frac{{\frac{{l_{1} }}{{l_{1} + l_{2} }}\sin \theta_{1} l_{1} }}{Ebt}\sin \theta_{1} + \frac{{\frac{{l_{4} }}{{l_{3} + l_{4} }}\sin \theta_{4} l_{4} }}{Ebt}\sin \theta_{4} } \right] \hfill \\ \end{aligned} $$
(40)

Poisson’s Ratio \(v_{{{12}}}^{\prime }\)

To derive Poisson’s ratio for an irregular structure, the mechanics formula is calculated to obtain Poisson’s ratio in the \(\sigma_{{1}}\) direction:

$$ v^{\prime}_{12} = - \frac{{\varepsilon^{\prime\prime}_{2} }}{{\varepsilon^{\prime\prime}_{1} }}, $$
(41)

where \(\varepsilon_{{1}}^{\prime \prime }\) and \(\varepsilon_{{2}}^{\prime \prime }\) are strains in the \(\sigma_{{1}}\) and \(\sigma_{{2}}\) directions, respectively, due to the load in the \(\sigma_{{1}}\) direction. \(v_{{{12}}}^{\prime }\) is Poisson’s ratio in the \(\sigma_{{1}}\) direction, \(\varepsilon_{{1}}^{\prime \prime }\) can be obtained from Eq. (7), and \(\varepsilon_{{2}}^{\prime \prime }\) can be expressed as

$$ \varepsilon^{\prime\prime}_{2} = \frac{{\delta^{\prime\prime}_{1} + \delta^{\prime\prime}_{2} }}{{h + s_{1} + s_{2} - l_{2} \sin \theta_{2} - l_{3} \sin \theta_{3} }}, $$
(42)

where \(\delta_{{1}}^{\prime \prime }\) and \(\delta_{{2}}^{\prime \prime }\) can be expressed as

$$ \left\{ {\begin{array}{*{20}l} {\delta^{\prime\prime}_{1} = \delta_{AB} \cos \theta_{1} + \Delta l\sin \theta_{1} = \frac{{p_{1} l_{{1}}^{3} \sin \theta_{1} \cos \theta_{1} }}{12EI} + \frac{{p_{1} l_{1} \sin \theta_{1} \cos \theta_{1} }}{Ebt},} \hfill \\ {\delta^{\prime\prime}_{2} = \delta_{GF} \cos \theta_{4} + \Delta l\sin \theta_{4} = \frac{{p_{2} l_{4}^{3} \sin \theta_{4} \cos \theta_{4} }}{12EI} + \frac{{p_{2} l_{4} \sin \theta_{4} \cos \theta_{4} }}{Ebt}.} \hfill \\ \end{array} {\kern 1pt} } \right. $$
(43)

Thus, Poisson’s ratio \(v^{\prime}_{{{12}}}\) of a structure in the \(\sigma_{{1}}\) direction can be expressed as

$$ v^{\prime}_{12} = - \frac{{\left( {\delta^{\prime\prime}_{1} + \delta^{\prime\prime}_{2} } \right)\left( {l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} } \right)}}{{\left( {\delta_{1} + \delta_{2} } \right)\left( {h + s_{1} + s_{2} - l_{2} \sin \theta_{2} - l_{3} \sin \theta_{3} } \right)}}. $$
(44)

Poisson’s Ratio \(v^{\prime}_{{{21}}}\)

Poisson’s ratio \(v^{\prime}_{{{21}}}\) of a unit structure in the \(\sigma_{{2}}\) direction can be obtained from Section 3.4, as follows:

$$ v^{\prime}_{21} = - \frac{{\varphi^{\prime}\left( {h + s_{1} + s_{2} - l_{2} \sin \theta_{2} - l_{3} \sin \theta_{3} } \right)}}{{\varphi \left( {l_{1} \cos \theta_{1} + l_{2} \cos \theta_{2} } \right)}}, $$
(45)

where

$$ \begin{aligned} \varphi^{\prime} & = \frac{{\left( {\frac{{l_{1} }}{{l_{1} + l_{2} }}\cos \theta_{1} } \right)l_{1}^{3} }}{12EI}\sin \theta_{1} + \frac{{\left( {\frac{{l_{2} }}{{l_{1} + l_{2} }}\cos \theta_{2} } \right)l_{2}^{3} }}{12EI}\sin \theta_{2} \hfill \\ & \quad + \frac{{\frac{{l_{1} }}{{l_{1} + l_{2} }}\sin \theta_{1} }}{Ebt}\cos \theta_{1} + \frac{{\frac{{l_{2} }}{{l_{1} + l_{2} }}\sin \theta_{2} }}{Ebt}\cos \theta_{2} . \hfill \\ \end{aligned} $$
(46)

Results and Discussions

In this study, the geometric configuration of the unit structure with a fixed enclosed area is defined, as shown in Figure 9.

Figure 9
figure9

Structure parameter geometry with the same enclosed area

Figure 9 shows two structures: a positive and a negative Poisson’s ratio structure, which are analyzed with the same enclosed area, where b = 0.01 m, t = 0.01 m, the original material is aluminum, and the elastic modulus is \(70 \times 10^{9} \;{\text{Pa}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt}\). To obtain the elastic properties, the enclosed area of the structure is fixed in this study, so the variation in \(\theta_{{1}}\) can only influence the structure shape. According to the structure in Figure 9, when the value of \(\theta_{{1}}\) is 30°, 34.3°, 40.9°, 45°, and 49.1°, \(\theta_{{2}}\) becomes 90°, 75°, 60°, 53.8°, and 49.1°, respectively, and the irregular structure becomes symmetrical when \(\theta_{{1}} = \theta_{{2}} =\) 49.1°, which has the same structure as the regular honeycomb structure.

Elastic Properties of Structure with Positive Poisson’s Ratio

The equivalent elastic modulus of the positive Poisson’s ratio structure due to changes in \(\theta_{{1}}\) is shown in Figure 10, where \(E_{{1}}\) is the equivalent elastic modulus in the \(\sigma_{{1}}\) direction, \(E_{x}\) is the equivalent elastic modulus of the regular structure obtained from Ref. [24], and \(E_{{{1}x}}\) is the equivalent elastic modulus without considering axial deformation of rods. It can be seen that when \({\theta_{1}} = {\theta_2} = {49.1^{ \circ}}\) (structure becomes regular), the equivalent elastic modulus reaches the maximum value, and \(E_{{{1}x}}\) has the same value as \(E_{x}\). Because the structures are identical when \({\theta_{1}} = {\theta_2} = {49.1^{ \circ}}\), the correctness of the results obtained in this study is verified. When the axial deformation of the rods is considered, the elastic modulus in the \(\sigma_{{1}}\) direction is lower than that without considering the axial deformation of the rods. When \(\theta_{{1}}\) changes, the values of the elastic modulus of the regular structure are higher than those of the irregular structure.

Figure 10
figure10

Elastic modulus \(E_{{1}}\) with variation of angle \(\theta_{{1}}\) in the \(\sigma_{{1}}\) direction

Figure 11 shows the equivalent elastic modulus of the positive Poisson’s ratio structure due to changes in \(\theta_{{1}}\) in the \(\sigma_{{2}}\) direction. \(E_{y}\) is the equivalent elastic modulus of the regular structure obtained from Ref. [24]. \(E_{{{2}y}}\) is the equivalent elastic modulus calculated without considering the axial deformation in the \(\sigma_{{2}}\) direction. When the \(\theta_{{1}}\) angle is 49.1° (structure becomes a regular structure), the equivalent elastic modulus reaches the maximum value and \(E_{{{2}y}} {\kern 1pt} {\kern 1pt}\) has the same value with \(E_{y}\); this proves the validity of the calculation results of this study. With the increase of structural irregularity, differences between \(E_{y}\) and \(E_{{{2}y}} {\kern 1pt} {\kern 1pt}\) decrease gradually. It can be seen that structure shape and axial deformation have a significant influence on elastic modulus.

Figure 11
figure11

Elastic modulus \(E_{{2}}\) with varying \(\theta_{{1}}\) angle in the \(\sigma_{{2}}\) direction

Poisson’s ratio in the \(\sigma_{{1}}\) direction with variation in \(\theta_{{1}}\) is shown in Figure 12. \(v_{x}\) is the Poisson’s ratio of the regular structure obtained from Ref. [24]. \(v_{{{12}x}}\) is the Poisson’s ratio without considering axial deformation in the \(\sigma_{{1}}\) direction. When the \(\theta_{{1}}\) angle is 49.1° (structure becomes regular), \(v_{{{12}x}}\) has the same value as \(v_{x}\) and the results obtained from Ref. [24] are the same as the values obtained in this study; this verifies the correctness of the obtained results. It can be seen that when \(\theta_{{1}}\) is lower than 49.1°, Poisson’s ratio gradually decreases. Axial deformation has a significant influence on Poisson’s ratio, and when the \(\theta_{{1}}\) angle is 49.1°, the Poisson’s ratio of the structures reaches the minimum value.

Figure 12
figure12

Poisson’s ratio \(v_{12}\) with varying \(\theta_{{1}}\) angle in the \(\sigma_{{1}}\) direction

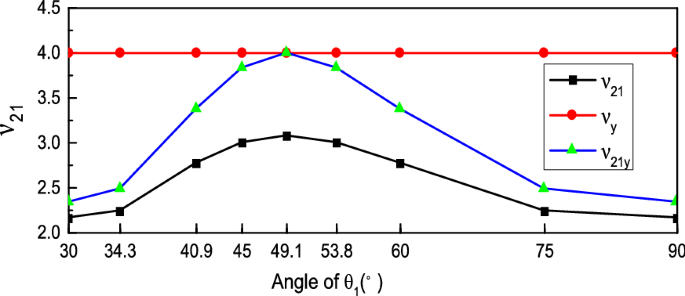

Figure 13 shows the variation of \(v_{{2{1}}}\) with different structural shapes in the \(\sigma_{{2}}\) direction. \(v_{y}\) is the Poisson’s ratio of the regular structure obtained from Ref. [24]. \(v_{{{21}y}} {\kern 1pt} {\kern 1pt}\) is the Poisson’s ratio without considering the axial deformation in the \(\sigma_{{2}}\) direction. When the \(\theta_{{1}}\) angle is 49.1° (structure becomes regular), \(v_{{{21}y}} {\kern 1pt} {\kern 1pt}\) and \(v_{y}\) have the same value; this verifies the validity of this study. It can be observed that cell angle \(\theta_{{1}}\) influences \(v_{{2{1}}}\). Poisson’s ratio considering axial deformation is lower than that without considering axial deformation, and positive Poisson’s ratio structures reach the maximum value in 49.1 °.

Figure 13
figure13

Poisson’s ratio with varying \(\theta_{{1}}\) angle in the \(\sigma_{{2}}\) direction

Elastic Properties of Structure with Negative Poisson’s Ratio

The equivalent elastic modulus of the positive Poisson’s ratio structure due to changes in \(\theta_{{1}}\) is shown in Figure 14, where \(E^{\prime}_{x}\) is the equivalent elastic modulus of the regular structure obtained from Ref. [24], \(E^{\prime}_{1x}\) is the equivalent elastic modulus of the irregular structure without considering axial deformation, and \(E^{\prime}_{1}\) is the equivalent elastic modulus of an irregular structure considering axial deformation. It can be seen that \(E^{\prime}_{1x}\) and \(E^{\prime}_{x}\) have the same value when \(\theta_{{1}} {\kern 1pt} {\kern 1pt}\) = \(\theta_{2} {\kern 1pt} {\kern 1pt}\) = 49.1°, which verifies the correctness of the results in this study, and the equivalent elastic modulus of the structures reaches the maximum value at \(\theta_{{1}} {\kern 1pt} {\kern 1pt}\) = 49.1°. When the \(\theta_{{1}}\) angle changes, the elastic modulus decreases with an increase in structural irregularity.

Figure 14
figure14

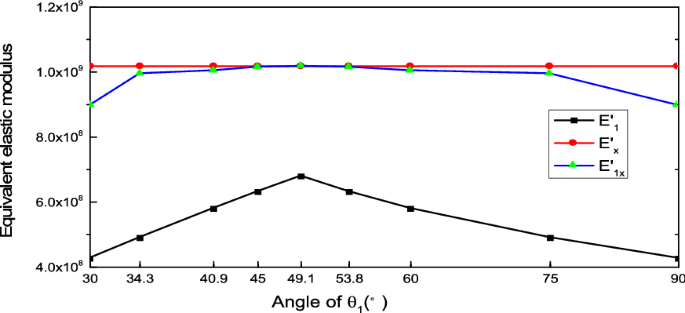

Elastic modulus \(E^{\prime}_{{1}}\) with varying \(\theta_{{1}}\) angle in the \(\sigma_{{1}}\) direction

Figure 15 shows the equivalent elastic modulus of the negative Poisson’s ratio structure due to changes in \(\theta_{{1}}\) in the \(\sigma_{{2}}\) direction. \(E^{\prime}_{y}\) is the equivalent elastic modulus of the regular structure obtained from Ref. [24]. \(E^{\prime}_{2y} {\kern 1pt} {\kern 1pt}\) is the equivalent elastic modulus calculated without considering axial deformation in the \(\sigma_{{2}}\) direction. When the \(\theta_{{1}}\) angle is 49.1°, the equivalent elastic modulus reaches the maximum value and \(E^{\prime}_{2y} {\kern 1pt} {\kern 1pt}\) is the same value with the result reported in Ref. [24]; this verifies the correctness of the results obtained in this study. The elastic modulus considering axial deformation is lower than that without considering axial deformation, and the difference between them reaches the maximum value when \(\theta_{{1}} {\kern 1pt} {\kern 1pt}\) = 49.1°. Whether or not the axial deformation of the rod is considered has a great influence on the equivalent elastic modulus.

Figure 15
figure15

Elastic modulus \(E^{\prime}_{{2}}\) with varying \(\theta_{{1}}\) angle in the \(\sigma_{{2}}\) direction

The Poisson’s ratio of the negative Poisson’s ratio structure in the \(\sigma_{{1}}\) direction is shown in Figure 16. \(v^{\prime}_{x}\) is the Poisson’s ratio of the regular structure obtained from Ref. [24]. \(v^{\prime}_{{{12}x}}\) is the Poisson’s ratio without considering the axial deformation in the \(\sigma_{{1}}\) direction. \(v^{\prime}_{{{12}}}\) is the Poisson’s ratio considering the axial deformation in the \(\sigma_{{1}}\) direction. When \(\theta_{{1}} = \theta_{{2}} = {\kern 1pt}\) 49.1°, the Poisson’s ratios of the structure reaches the maximum value and \(v^{\prime}_{{{12}x}}\) has the same value as \(v^{\prime}_{x}\), verifying the correctness of the results obtained in this study. The consideration of axial deformation has a negligible influence on Poisson’s ratio in the \(\sigma_{{1}}\) direction. When the \(\theta_{{1}}\) angle is lower than 49.1°, \(v^{\prime}_{{{12}x}}\) increases with an increase in the \(\theta_{{1}}\) angle, and when \(\theta_{{1}}\) is higher than 49.1°, \(v^{\prime}_{{{12}x}}\) decreases with an increase in the \(\theta_{{1}}\) angle.

Figure 16
figure16

Poisson’s ratio with the variation of angle \(\theta_{{1}}\) in \(\sigma_{{1}}\) direction

Figure 17 shows the variation in \(v_{{2{1}}}\) with different structural shapes in the \(\sigma_{{2}}\) direction. \(v^{\prime}_{y}\) is the Poisson’s ratio of the regular structure obtained from Ref. [24]. \(v^{\prime}_{12y} \, \) is the Poisson’s ratio without considering the axial deformation in the \(\sigma_{{2}}\) direction. When the cell angle \(\theta_{{1}}\) is 49.1°, \(v^{\prime}_{{{21}}}\) and \(v^{\prime}_{12y} \, \) reach their minimum values. The value of \(v^{\prime}_{12y} \, \) without considering axial deformation is the same as the results of Ref. [24] at an angle of 49.1°. Figure 17 also shows that the Poisson’s ratio considering axial deformation is higher than that without considering axial deformation, and the difference between them reaches the maximum value when \(\theta_{{1}}\) = 49.1°.

Figure 17
figure17

Poisson’s ratio with varying \(\theta_{{1}}\) angle in the \(\sigma_{{2}}\) direction

Figure 18 shows the equivalent elastic moduli of the irregular structures in the \(\sigma_{1}\) and \(\sigma_{{2}}\) directions. \(E_{1} \, \), \(E_{1x} \, \), \(E_{2} \, \), \(E_{1y} \, \), \(E^{\prime}_{1} \, \), \(E^{\prime}_{1x} \, \), \(E^{\prime}_{2} \, \) and \(E^{\prime}_{2y} \, \) are the equivalent elastic moduli obtained from Figures 10, 11, 12, 13, 14, 15, 16 and 17. It can be seen that the equivalent elastic moduli in the \(\sigma_{{2}}\) direction is higher than those in the \(\sigma_{1}\) direction. When \(\theta_{{1}} {\kern 1pt} {\kern 1pt}\) = \(\theta_{2} {\kern 1pt} {\kern 1pt}\) = 49.1°, the equivalent elastic moduli in the \(\sigma_{{2}}\) direction reach the maximum value, and \(E^{\prime}_{2y} \, \) is the same value with \(E_{1y} {\kern 1pt}\). The axial deformation of rods has a significant influence on the equivalent elastic moduli. The equivalent elastic moduli in the \(\sigma_{1}\) direction have insignificant variation when \(\theta_{{1}}\) varies.

Figure 18
figure18

Equivalent elastic modulus of two structures in the \(\sigma_{1}\) and \(\sigma_{{2}}\) directions

Figure 19 shows the Poisson’s ratio of the irregular structures in the \(\sigma_{1}\) and \(\sigma_{{2}}\) directions. \(v_{12} \, \), \(v_{12x} \, \), \(v_{21} \, \), \(v_{21y} \, \), \(v^{\prime}_{12} \, \), \(v^{\prime}_{12x} \, \),\(v^{\prime}_{21} \, \), and \(v^{\prime}_{21y} \, \) are the equivalent elastic moduli obtained from Figures 10, 11, 12, 13, 14, 15, 16 and 17. Notably, the value of \(v_{21y} \, \) is higher than the rest. The absolute value of the Poisson’s ratio in two structures reaches the maximum value. Moreover, \(v_{12} \, \), \(v_{12x} \, \) and \(v^{\prime}_{12} \, \), \(v^{\prime}_{12x} \, \) have similar values, respectively. Whether or not the axial deformation is considered has little influence on the Poisson’s ratio of the structure.

Figure 19
figure19

Poisson’s of two structures in the \(\sigma_{1}\) and \(\sigma_{{2}}\) directions

Conclusions

In this study, two types of irregular honeycomb structures were studied using material mechanics and structural mechanics methods. Considering axial deformation of rods, the elastic properties of irregular structures with different structure shapes were studied. Compared with the results reported in Ref. [24], the results were in good agreement.

The results show that when the enclosed area of the irregular honeycomb structure is fixed, the equivalent elastic modulus and Poisson’s ratio of the structure will vary with varying structure shape. The \(\theta_{{1}}\) angle has a significant influence on the equivalent elastic modulus. When the structure is regular, the absolute value of the elastic modulus and Poisson’s ratio in the \(\sigma_{{2}}\) direction reaches the maximum value, and the Poisson’s ratio in the \(\sigma_{{1}}\) direction reaches the minimum value. The elastic properties of the structure considering axial deformation are higher than those without considering the axial deformation. Therefore, the elastic properties of irregular structures can be achieved by the axial deformation of the rods, structural shapes, and original materials.

References

  1. [1]

    D H Chen, L Yang. Analysis of equivalent elastic modulus of asymmetrical honeycomb. Composite Structures, 2011, 93(2): 767-773.

    Article  Google Scholar

  2. [2]

    X Huang, S Blackburn. Developing a new processing route to manufacture honeycomb ceramics with negative Poisson’s ratio. Key Engineering Materials, 2001, 206: 201-204.

    Article  Google Scholar

  3. [3]

    J J Zhang, G X Liu, Z You. Large deformation and energy absorption of additively manufactured auxetic materials and structures: A review. Composite Part B: Engineering, 2020, 201(15): 108340.

  4. [4]

    D X Qing, Q Y Liu, C W He, et al. Impact energy absorption of functionally graded chiral honeycomb structures. Extreme Mechanics Letters, 2020, 32: 568-568.

    Google Scholar

  5. [5]

    J W Xiang, J X Du. Energy absorption characteristics of bi-inspired honeycomb structure under axial impact loading. Materials Science and Engineering: A, 2017, 696(1): 283-289.

    Article  Google Scholar

  6. [6]

    L L Yan, K Y Zhu, N Chen, et al. Energy-absorption characteristics of tube-reinforced absorbent honeycomb sandwich structure. Composite Structure, 2021, 255(1): 112946.

  7. [7]

    M Dhaheri, K A Khan, R Umer, et al. Process-induced deformation in U-shaped honeycomb aerospace composite structures. Composite Structure, 2020, 248(15): 112503.

  8. [8]

    O A Ganilova, M P Cartmell, A Kiley. Experimental investigation of the thermoelastic performance of an aerospace aluminium honeycomb composite panel. Composite Structure, 2021, 257(1): 113159.

  9. [9]

    Z D Ma, H Bian, C Sun, et al. Functionally-grand NPR(Negative Poisson’s Ratio) material for a blast-protective deflector. Dearborn, Michigan: DTIC Document, 2010: 1109.

  10. [10]

    D Q Yang, T Ma, G L Zhang. A new honeycomb side protection structure with macroscopically negative Poisson’s ratio effect. Explosion and Shock Waves, 2015, 25(2): 243-248. (in Chinese)

    Google Scholar

  11. [11]

    D H Zhang, Q G Fei, J Z Liu, et al. Crushing of vertex-based hierarchical honeycombs with triangular substructures. Thin-Walled Structures, 2020, 146: 106436.

  12. [12]

    T Mukhopadhyay, S Adhikari. Effective in-plane elastic properties of auxetic honeycombs with spatial irregularity. Mechanics of Materials, 2016, 95: 204-222.

    Article  Google Scholar

  13. [13]

    Z C Yang, Q T Deng. Research and application of mechanical properties in materials and structures with negative Poisson’s ratio. Advances in Mechanics, 2011, 41(3): 87-102. (in Chinese)

    Google Scholar

  14. [14]

    L H Lan, J Sun, F L Hong, et al. Nonlinear constitutive relations of thin-walled honeycomb structure. Mechanics of Materials, 2020, 149: 103556.

  15. [15]

    S Upreti, V K Singh, S K Karmal, et al. Modelling and analysis of honeycomb sandwich structure using finite element method. Materials: Proceedings, 2020, 25(4): 620-625.

  16. [16]

    Y H Wang, J Y R Liew, S C Lee. Experimental and numerical studies of non-composite Steel–Concrete–Steel sandwich panels under impulsive loading. Materials & Design, 2015, 5(33): 104-112.

    Article  Google Scholar

  17. [17]

    Z Li, T Wang, Y Jiang, L M Wang, et al. Design-oriented crushing analysis of hexagonal honeycomb core under in-plane compression. Composite Structures, 2017, 12(66): 429-438.

    Google Scholar

  18. [18]

    D Asprone, F Auricchio, C Menna, et al. Statistical finite element analysis of the buckling behavior of honeycomb structures. Composite Structures, 2013, 105: 240-255.

    Article  Google Scholar

  19. [19]

    D Okumura, N Ohno, H Noguchi. Post-buckling analysis of elastic honeycombs subject to in-plane biaxial compression. International Journal of Solids and Structures, 2002, 39(13): 3487-3503.

    Article  Google Scholar

  20. [20]

    K Wei, Y Peng, W B Wen, et al. Tailorable thermal expansion of lightweight and robust dual-constituent triangular lattice material. Journal of Applied Mechanics-Transactions of ASME, 2017, 84(10): 101006.

  21. [21]

    X L Wang, D Y Bai. Thermal expansion and thermal fluctuation effects in a binary granular mixture. International Journal of Heat and Mass Transfer, 2018, 116: 84-92.

    Article  Google Scholar

  22. [22]

    J Zhang, H Zhai, Z H Wu, et al. Enhanced performance of photovoltaic thermoelectric coupling devices with thermal interface materials. Energy Reports, 2020, 6: 116-122.

    Article  Google Scholar

  23. [23]

    H Xu, A Farag, D Pasini. Multilevel hierarchy in bi-material lattices with high specific stiffness and unbounded thermal expansion. Acta Materialia, 2017, 134(1): 155-166.

    Article  Google Scholar

  24. [24]

    T Mukhopadhyay, S Adhikari. Equivalent in-plane elastic properties of irregular honeycombs: An analytical approach. International Journal of Solids and Structures, 2016, 91: 169-184.

    Article  Google Scholar

  25. [25]

    C Li, H S Hui, H Wang. Nonlinear bending of sandwich beams with functionally graded negative Poisson’s ratio honeycomb core. Composite Structure, 2019, 134(79): 1140.

    Google Scholar

  26. [26]

    Q T Deng, Z C Yang. Effects of Poisson’s ratio on functionally graded cellular structure. Material Express, 2016, 6(6).

  27. [27]

    L L Hu, Z R Luo, Q Y Yin. Negative Poisson's ratio effect of re-entrant anti-trichiral honeycombs under large deformation. Thin-Walled Structures, 2019, 141: 283-292.

    Article  Google Scholar

  28. [28]

    J Huang, X B Gong, Q H Zhang, et al. In-plane mechanics of a novel zero Poisson’s ratio honeycomb core. Composite Part B: Engineering, 2016, 89(15): 67-76.

    Article  Google Scholar

  29. [29]

    T Wang, L M Wang, Z D Ma, et al. Elastic analysis of auxetic cellular structure consisting of re-entrant hexagonal cells using a strain-based expansion homogenization method. Materials and Design, 2018, 160(15): 284-293.

    Article  Google Scholar

  30. [30]

    E A Bubert, B K S Woods, K Lee, et al. Design and fabrication of a passive 1D morphing aircraft skin. Journal of Intelligent Material Systems and Structures, 2010, 21(17): 1699-1717.

    Article  Google Scholar

  31. [31]

    K Li, X L Gao, J Wang. Dynamic crushing behavior of honeycomb structures with irregular cell shapes and non-uniform cell wall thickness. International Journal of Solids and Structures, 2007, 44(14): 5003-5026.

    Article  Google Scholar

  32. [32]

    J F Liu, W S Chen, H Hao, et al. In-plane crushing behaviors of hexagonal honeycombs with different Poisson’s ratio induced by topological diversity. Thin-Walled Structures, 2021, 159: 107223.

    Article  Google Scholar

  33. [33]

    R J Roark. Formulas for stress and strain. Journal of Applied Mechanics, 1989, 43(3): 624.

    Google Scholar

  34. [34]

    W Y Liu, N L Wang, J L Huang, et al. The effect of irregularity, residual convex units and stresses on the effective mechanical properties of 2D auxetic cellular structure. Materials Science and Engineering: A, 2014, 609(15): 26-33.

    Article  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

Supported by Fundamental Research Funds for the Central Universities (Grant No. 310812161003) and Natural Science Basic Research Plan in Shaanxi Province of China (Grant No. 2016JM5035).

Author information

Affiliations

Authors

Contributions

NW and QD were in charge of the whole analysis; NW and QD wrote the manuscript. All authors read and approved the final manuscript.

Authors’ Information

Ning Wang, born in 1995, is currently MD candidate at School of Science, Chang’an University, China. His research interests include cellular structures.

Qingtian Deng, born in 1980, is currently an associate professor at Chang’an University, China. He received his PhD degree on Solid Mechanics from Hunan University, China, in 2008.

Corresponding author

Correspondence to Qingtian Deng.

Ethics declarations

Competing Interests

The authors declare no competing financial interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Wang, N., Deng, Q. Effect of Axial Deformation on Elastic Properties of Irregular Honeycomb Structure. Chin. J. Mech. Eng. 34, 51 (2021). https://doi.org/10.1186/s10033-021-00574-3

Download citation

Keywords

  • Axial deformation
  • Elastic modulus
  • Positive Poisson’s ratio
  • Negative Poisson’s ratio
  • Irregular honeycombs
