Novel Ring Compression Test Method to Determine the Stress-Strain Relations and Mechanical Properties of Metallic Materials

Abstract

Although there are methods for testing the stress-strain relation and strength, which are the most fundamental and important properties of metallic materials, their application to small-volume materials and tube components is limited. In this study, based on energy density equivalence, a new dimensionless elastoplastic load-displacement model for compressed metal rings with isotropy and constitutive power law is proposed to describe the relations among the geometric dimensions, Hollomon law parameters, load, and displacement. Furthermore, a novel test method was developed to determine the elastic modulus, stress-strain relation, yield and tensile strength via ring compression test. The universality and accuracy of the method were verified within a wide range of imaginary materials using finite element analysis (FEA), and the results show that the stress-strain curves obtained by this method are consistent with those inputted in the FEA program. Additionally, a series of ring compression tests were performed for seven metallic materials. It was found that the stress-strain curves and mechanical properties predicted by the method agreed with the uniaxial tensile results. With its low material consumption, the ring compression test has the potential to be as an alternative to traditional tensile test when direct tension method is limited.

Introduction

Various tubular structures are widely applied in engineering due to their high strength and stiffness to weight ratios, and high energy absorption to weight ratios, such as the fuel-cladding tubes in nuclear reactor [1, 2] and energy absorbers [3, 4]. Therefore, the mechanical properties such as stress σ–strain ε relation and strength of their materials must be accurately evaluated and carefully considered in the design of these structures. However, it is difficult or impossible to perform tensile tests for small-volume materials and tube components. Accordingly, a new test method for non-traditional small specimens, such as small rings, is needed.

Ring specimens are easy sample preparation and simple operation, obtaining the mechanical properties via ring test has been the focus of research works over the last forty years. Wang et al. [5] proposed a ring hoop tension test method to acquire the hoop σε relations of nuclear fuel cladding tubes. In this test, a dog-bone specimen was machined on a ring extracted from the tube. Next, the ring was placed over two loading D-blocks that were parted by a testing machine. However, the method is not suitable for thin-walled rings, and the results are affected by the friction between the test specimen and loading D-blocks. Reddy and Reid [6,7,8] introduced a simple theory to obtain the yield strength via a ring compression test (RCT). The load P-displacement h curve is obtained by applying a lateral load to the ring specimen through two rigid platens, and then the yield stress is determined according to a linear relation between the yield load and stress. However, for most metallic materials with constitutive power law, this method is not universally applied. With the development of simulation technology, Nemat-Alla [9] developed an experimental-numerical method to acquire the σε curves of compressed rings. In this method, an imaginary σε curve is inputted in the finite element analysis (FEA) program to predict the Ph curve. Then, the test and analysis curves are compared to adjust the inputted σε relation until they agree. This method cannot be used extensively owing to the complicated iterative calculations involved. Based on the work of Nemat-Alla, Vincent et al. [10] evaluated the mechanical properties of oxidized Zircaloy-4 cladding materials and a valid accordance was presented. Chen and Cai [11,12,13,14] proposed a theoretical model for compressed rings under plane-stress conditions based on energy density equivalence. This model can predict the σε curves of metallic materials with constitutive power law; however, it does not give details about the elastic modulus test method, and the thickness effect of ring specimen is not considered. The longitudinal RCT has been described as “the unofficial standard” friction test method and is widely used to study the friction behavior of bulk metal forming analytically [15, 16], experimentally [17, 18] and numerically [19, 20]. In addition, the energy absorption properties of ring structures [21,22,23,24,25,26,27] have been widely investigated, however, the potential of the RCT in these studies has not been highlighted due to the lack of an elastoplastic solution for compressed rings.

Hence, the main purpose of this investigation is to develop a method for three-dimensional rings that can acquire the mechanical properties of metallic materials through RCT. To achieve this, a dimensionless elastoplastic load-displacement model for compressed rings (EPLD–Ring) is proposed based on energy density equivalence. Solving this model using the information contained in the Ph curves yielded the elastic modulus, σε relation, and strength of the tested material. Finally, the model is verified via FEA with a wide range of imaginary materials and through experiments with seven metallic materials.

Theoretical Model for Ring Compression

Energy Density Equivalence Method

For an unidirectionally loaded ring specimen, as shown in Figure 1, assuming that a geometric point M exists in the effective deformation region Ω and that the energy density of the representative volume element (RVE) at M is equal to the average energy density of all RVEs in Ω, we have

$$u_{{\text{M}}} { = }\int_{0}^{{\varepsilon_{{\text{ij - M}}} }} {\sigma_{{{\text{ij}}}} {\text{d}}\varepsilon_{{{\text{ij}}}} } = U/V_{{{\text{eff}}}} ,$$
(1)
Figure 1
figure1

Schematic of the RCT

where uM, σij and εij are the energy density, stress tensor and strain tensor in the RVE at M, respectively; εij-M is the strain tensor in the RVE at M in a deformation state; Veff is the effective volume of Ω; U is the total deformation energy of Ω, which is given by

$$U = \iiint_{\Omega } {u\left( {x,y,z} \right){\text{d}}x{\text{d}}y{\text{d}}z},$$
(2)

According to the von-Mises equivalence principle, the energy density of the RVE at M in a complex stress state is equivalent to that in a uniaxial stress state:

$$u_{{\text{M}}} = \int_{0}^{{\varepsilon_{{\text{ij - M}}} }} {\sigma_{{{\text{ij}}}} {\text{d}}\varepsilon_{{{\text{ij}}}} } = \int_{0}^{{\varepsilon_{{\text{eq - M}}} }} {\sigma_{{{\text{eq}}}} {\text{d}}\varepsilon_{{{\text{eq}}}} } ,$$
(3)

where εeq-M is the equivalent strain in the RVE at M in a deformation state; σeq and εeq are the equivalent stress and strain, respectively.

Combining Eqs. (1) and (3), the total deformation energy is expressed as

$$U{ = }V_{{{\text{eff}}}} \int_{0}^{{\varepsilon_{{\text{eq - M}}} }} {\sigma_{{{\text{eq}}}} {\text{d}}\varepsilon_{{{\text{eq}}}} } .$$
(4)

Elastoplastic Load-displacement Model

For most isotropic, homogeneous, and power law hardening metallic materials, the equivalent σε relations are almost consistent with the Hollomon model:

$$\sigma_{{{\text{eq}}}} = \left\{ \begin{gathered} E\varepsilon_{{{\text{eq}}}} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \varepsilon_{{{\text{eq}}}} \le \varepsilon_{{\text{y}}} , \hfill \\ K\varepsilon_{{{\text{eq}}}}^{n} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \varepsilon_{{{\text{eq}}}} > \varepsilon_{{\text{y}}} , \hfill \\ \end{gathered} \right.$$
(5)

where K is the strain-hardening coefficient (\(K{ = }E^{n} \sigma_{y}^{1 - n}\)); E and n are the elastic modulus and strain-hardening exponent, respectively; σy and εy are the nominal yield stress and strain, respectively, related by σy = Eεy.

Substituting Eq. (5) into Eq. (4), the total deformation energy U is derived as follows:

$$U = \left\{ \begin{aligned} &\frac{{EV_{{{\text{eff}}}} }}{2}\varepsilon_{{\text{eq - M}}}^{2}& \quad \varepsilon_{{\text{eq - M}}} \le \varepsilon_{{\text{y}}} , \hfill \\ &\frac{{KV_{{{\text{eff}}}} }}{n + 1}\left( {\varepsilon_{{\text{eq - M}}}^{n + 1} - \frac{1 - n}{2}\varepsilon_{{\text{y}}}^{n + 1} } \right)&\quad \varepsilon_{{\text{eq - M}}} > \varepsilon_{{\text{y}}} . \hfill \\ \end{aligned} \right.$$
(6)

When εeq-M is much larger than εy, the value of \((1 - n)\varepsilon_{y}^{n + 1} /2\) is small compared with that of \(\varepsilon_{{\text{eq - M}}}^{n + 1}\) and can be ignored. Next, Eq. (6) is simplified as follows:

$$U{ = }\left\{ \begin{gathered} \frac{{EV_{{{\text{eff}}}} }}{2}\varepsilon_{{\text{eq - M}}}^{2} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \varepsilon_{{\text{eq - M}}} \le \varepsilon_{{\text{y}}} , \hfill \\ \frac{{KV_{{{\text{eff}}}} }}{n + 1}\varepsilon_{{\text{eq - M}}}^{n + 1} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \varepsilon_{{\text{eq - M}}} \gg \varepsilon_{{\text{y}}} . \hfill \\ \end{gathered} \right.$$
(7)

Under linear elastic and elastoplastic conditions, the following assumptions can be made:

$$\left\{ \begin{aligned} &\frac{{V_{{{\text{eff}}}} }}{{V^{*} }}\varepsilon_{{\text{eq - M}}}^{2} = k_{{0}} \left( {\frac{h}{{h^{*} }}} \right)^{2} & \quad {\text{Linear elastic,}} \hfill \\ &\left\{ \begin{aligned} & \frac{{V_{{{\text{eff}}}} }}{{V^{*} }} = k_{1} \left( {\frac{h}{{h^{*} }}} \right)^{{k_{2} }} \hfill \\ &\varepsilon_{{\text{eq - M}}} = k_{3} \left( {\frac{h}{{h^{*} }}} \right)^{{k_{4} }} \hfill \\ \end{aligned} \right. & \quad {\text{Elastoplastic,}} \hfill \\ \end{aligned} \right.$$
(8)

where V* is the characteristic volume, and V* = A*h*; A* and h* are the characteristic area and length, respectively; A* = βBD(1−ρ2), and h* = D, where B and D are the thickness and diameter, respectively; ρ is the diameter ratio; β is the thickness effect coefficient; k0 is the elastic deformation coefficient; k1 and k2 are the effective volume coefficient and exponent, respectively; k3 and k4 are the equivalent strain coefficient and exponent, respectively.

Substituting Eq. (8) into Eq. (7), U is derived as follows:

$$U = \left\{ \begin{aligned} &\frac{{EV^{*} }}{2}k_{{0}} \left( {\frac{h}{{h^{*} }}} \right)^{2} & \quad {\text{Linear elastic,}} \hfill \\ &\frac{{KV^{*} }}{n + 1}k_{1} k_{3}^{{n{ + 1}}} \left( {\frac{h}{{h^{*} }}} \right)^{{k_{4} \left( {n + 1} \right) + k_{2} }} & \quad {\text{Elastoplastic}}{.} \hfill \\ \end{aligned} \right.$$
(9)

According to the work-energy principle, W = U, taking the derivative of the displacement with respect to both sides of Eq. (9), the load-displacement relation is deduced as follows:

$$P = \left\{ \begin{aligned} & EA^{*} k_{{0}} \frac{h}{{h^{*} }} & \quad {\text{Linear elastic,}} \hfill \\& KA^{*} \frac{{k_{1} k_{3}^{{n{ + 1}}} \left[ {k_{4} \left( {n + 1} \right) + k_{2} } \right]}}{n + 1}\left( {\frac{h}{{h^{*} }}} \right)^{{k_{4} \left( {n + 1} \right) + k_{2} - 1}} & \quad {\text{Elastoplastic}}{.} \hfill \\ \end{aligned} \right.$$
(10)

The rearrangement of Eq. (10) is expressed as follows:

$$\left\{ \begin{aligned}& \frac{P}{{P^{*} }}{ = }\left\{ \begin{aligned}& \xi_{{\text{e}}} \frac{h}{{h^{*} }} & \quad {\text{Linear elastic,}} \hfill \\ & \xi_{{{\text{ep}}}} \left( {\frac{h}{{h^{*} }}} \right)^{m} & \quad {\text{Elastoplastic,}} \hfill \\ \end{aligned} \right. \hfill \\& \left\{ \begin{aligned}& P^{*} = EA^{*} , \hfill \\ &\xi_{{\text{e}}} = k_{0} , \hfill \\ &\xi_{{{\text{ep}}}} = \frac{K}{E}\frac{{k_{1} k_{3}^{n + 1} \left( {m + 1} \right)}}{n + 1}, \hfill \\& m = k_{4} \left( {n + 1} \right) + k_{2} - 1, \hfill \\ \end{aligned} \right. \hfill \\ \end{aligned} \right.$$
(11)

where P* is the characteristic load; ξe is the dimensionless Ph deformation coefficient under linear elastic deformation; ξep and m are the dimensionless Ph deformation coefficient and exponent under elastoplastic deformation, respectively. Eq. (11) is called the elastoplastic load-displacement model for compressed ring (EPLD-Ring).

Moreover, according to Eq. (11), for compressed rings under ideal linear-elastic loading conditions, the loading stiffness SL (= P/h) is expressed as follows:

$$S_{{\text{L}}} = \beta k_{0} B\left( {1 - \rho^{2} } \right)E.{\kern 1pt} {\kern 1pt}$$
(12)

Parameter Determination

The EPLD-Ring model is a dimensionless equation that correlates the geometric dimensions of ring (D, ρ, B), Hollomon law parameters (E, σy, n), load, and displacement. The six constants contained in the model can be directly determined via FEA for ring compression specimens with various geometric dimensions and Hollomon law parameters.

FEA Model

FEA for ring compression was conducted using commercial software ANSYS14.5. Considering the symmetry of the ring, a 1/4 three-dimensional FEA model was established, as shown in Figure 2. The imaginary materials inputted in the FEA program were assumed homogenous and isotropic hardening; they satisfied the von-Mises criteria, and only linear elastic deformation occurred in the dies with elastic modulus Ep. Target172 and Contact173 elements were used to establish a contact pair between the lower surface of the die and the outer surface of the ring, and a Solid185 element was used for the main parts of the ring and die. The cross-section of the ring and the left cross-section of the die were subjected to a symmetry constraint, and a displacement load was applied to the upper surface of the die. The influence of mesh size on the FEA model results was analyzed using various geometric rings, and the mesh size that stabilized the calculation results of the Ph curves was selected.

Figure 2
figure2

FEA model for ring compression

According to the EPLD-Ring model, the Ph curves can be normalized by a normalized load, P/BD(1−ρ2), and a dimensionless displacement, h/D, as shown in Figure 3. Thus, the diameter of the rings was fixed to 10 mm during the subsequent parameter determination steps.

Figure 3
figure3

Normalized load–dimensionless displacement curves for various dimeters

Thickness Effect Coefficient

β is closely related to the characteristic thickness, B/D, of ring specimens, and the unit thickness loading capacity of the specimens increases with the increase in B/D. For various B/D values, P/Bh/D curves are obtained via FEA, as shown in Figure 4. Table 1 lists the FEA conditions.

Figure 4
figure4

Unit thickness Ph curves for various B/D values

Table 1 FEA conditions for determine β

In the dimensionless displacement (h/D) range from 0.05 to 0.15, fitting the P/Bh/D curves of various B/D values with the power law yielded the data array, {B/D, CB/D}, where CB/D is the fitting coefficient and C = βξepED(1–ρ2). Using β = 1 for B/D = 0.1, β values for other B/D values can be obtained using β B/D = CB/D/C0.1. The β versus B/D curve shown in Figure 5 and the relation between them is expressed as an arctangent equation:

$$\beta = b_{1} \arctan \left[ {b_{2} \left( \frac{B}{D} \right){ + }b_{3} } \right] + b_{4} ,$$
(13)
Figure 5
figure5

β versus B/D

where b1 to b4 are the fitting constants (see Table 2).

Table 2 Fitting constants of the EPLD-Ring model parameters

Elastic Deformation Coefficient k 0

k0 is related to the die elastic modulus, Ep, and the diameter ratio of ring specimen, and can be obtained by fitting the P/P*h/D curves with a linear equation under linear elastic deformation. The k0 versus 1−ρ curve was obtained via FEA with Ep fixed at 400 GPa, as shown in Figure 6(a); the relation between k0 and 1-ρ can be described by the following power law equation: k0 = a1(1− ρ) a2, where a1 and a2 are the fitting coefficient and exponent, respectively. We defined Ep* = 400 GPa as the characteristic elastic modulus and k0* = a1(1− ρ)a2 as the characteristic elastic deformation coefficient. Subsequently, the Ep/Ep* versus k0/k0* curve shown in Figure 6(b) was obtained via FEA with ρ fixed at 0.6; the relation between Ep/Ep* and k0/k0* can be described by the following power law equation: k0/k0* = a3(Ep/Ep*)a4, where a3 and a4 are the fitting coefficient and exponent, respectively. Thus, the relation between k0, Ep, and ρ is expressed as follows:

$$k_{0} = c_{01} \left( {1 - \rho } \right)^{{c_{02} }} \left( {E_{{\text{p}}} /E_{{\text{p}}}^{*} } \right)^{{c_{03} }} ,$$
(14)
Figure 6
figure6

Fitting relations between (Ep, ρ) and k0

where c01, c02, and c03 are the fitting constants, and c01 = a1a3, c01 = a2, and c03 = a4 (see Table 2).

Elastoplastic Deformation Coefficients k 1 to k 4

Because the influence of Ep on the elastoplastic Ph curves is limited, k1 to k4 are only related to the diameter ratio, ρ, of ring specimens. For the ring specimens with a fixed ρ, these deformation constants can be determined by fitting the elastoplastic Ph curves with various n values. Table 3 shows the FEA conditions used to determine k1 to k4 for the ring specimen with a ρ of 0.6.

Table 3 FEA conditions for determining k1 to k4 (ρ = 0.6)

In the dimensionless displacement ranging from 0.05 to 0.15, fitting the P/P*h/D curves of various n values with the power law yielded data arrays {n, ξep} and {n, m}. Data arrays {n+1, ξepE(n+1)/K(m+1)}, and {n+1, m+1} were acquired by combining the FEA conditions and Eq. (11). By fitting the relation between n+1 and ξepE(n+1)/K(m+1) with an exponent equation, k1 and k3 were determined. k2 and k4 were determined by fitting the relation between n+1 and m+1 with a linear equation.

Similarly, k1 to k4 could be directly determined for various ρ values (0.625 to 0.7), as shown in Figure 7. The relations between k1 to k4 and ρ are as follows:

$$\left\{ \begin{gathered} k_{1} = c_{11} \rho^{{c_{12} }} , \hfill \\ k_{2} = c_{21} \rho^{{c_{22} }} , \hfill \\ k_{3} = c_{31} + c_{32} \rho , \hfill \\ k_{4} = c_{41} + c_{42} \rho + c_{43} \rho^{2} , \hfill \\ \end{gathered} \right.$$
(15)
Figure 7
figure7

Fitting relations between k1 to k4 and ρ

where c11, c12, c21, c22, c31, c32 and c41 to c43 are the fitting constants (see Table 2).

In summary, the fitting constants of the EPLD-Ring model parameters are valid for rings with thickness B within [0.1D, 0.4D] and diameter ratio ρ within [0.6, 0.7]. If the geometric dimensions (D, ρ, B) of a ring is measured, then β and k0 to k4 can be calculated by combining Eqs. (13)–(15) and the parameters in Table 2. In fact, by re-calibrating parameters β and k0 to k4, the EPLD-Ring model can be appropriate for rings whose dimensions are not within the aforementioned range.

Novel Ring Compression Test Method

Elastic Modulus Test Method

During the RCT, because of the interference of the initial contact nonlinearity, geometric dimension errors, and other factors, the linear elastic condition in initial loading stage of the Ph curves is difficult to satisfy; therefore, the elastic modulus E obtained through the initial loading stiffness SL of the P–h test curve is difficult to realize. Using the initial unloading stiffness Su during the loading–unloading test to calculate E is common in elastoplastic indentation problem [28, 29]. Accordingly, this method was applied in our investigation.

In the loading–unloading test for ring compression, the power-law equation, Pu = ahut, was used to fit the data points of the unloading-stage Puhu curve. Su is expressed as follows:

$$S_{u} = \frac{{{\text{d}}P_{u} }}{{{\text{d}}h_{u} }}\left| {_{{h_{u} = h_{u\max } }} } \right. = ath_{u\max }^{t - 1} ,$$
(16)

where a and t are the fitting coefficient and exponent of the Puhu curve, respectively, and humax is the displacement at initial unloading point of the Puhu curve. Results show that a proportional relation exists between SL and Su:

$$S_{L} = \alpha S_{u} ,$$
(17)

where α is the stiffness ratio, which can be determined via a multilevel loading–unloading test for rings with known E.

Multilevel loading–unloading tests were performed on 30Cr2Ni4MoV with E is 202 GPa and 7075Al with E is 72 GPa. The Ph curves, and α values for various h/D values are shown in Figure 8. The results show that α is approximately constant in the dimensionless displacement (h/D) range of 0.01 to 0.05, and the average value αm is 0.967. Thus, according to Eqs. (12) and (17), E can be derived as follows:

$$E = \frac{{\alpha_{{\text{m}}} S_{{\text{u}}} }}{{\beta k_{0} B\left( {1 - \rho^{2} } \right)}}{\kern 1pt} {\kern 1pt} ,$$
(18)

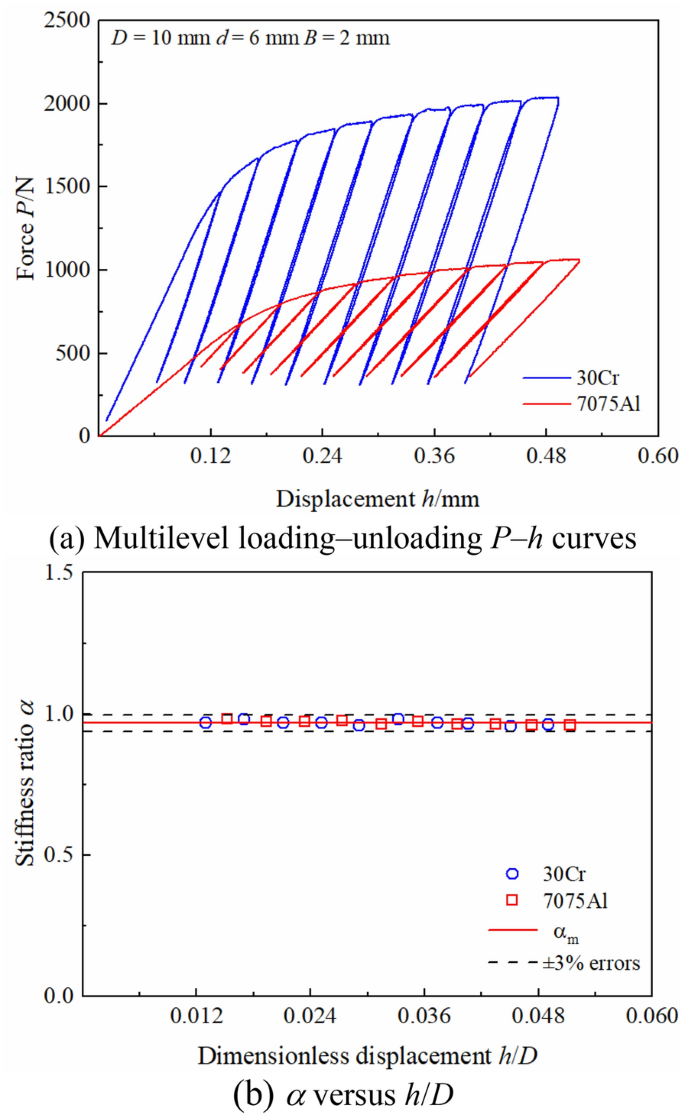

Figure 8
figure8

Multilevel loading–unloading tests to determine α

where β and k0 can be calculated with Eq. (13), Eq. (14), and the parameters in Table 2.

Elastic Modulus Test Method

According to Eq. (11), σy and n are derived as follows:

$$\left\{ \begin{gathered} \sigma_{{\text{y}}} = \left[ {\frac{{\xi_{{{\text{ep}}}} E^{1 - n} \left( {n + 1} \right)}}{{k_{1} k_{3}^{n + 1} \left( {m + 1} \right)}}} \right]^{{1/\left( {1 - n} \right)}} , \hfill \\ n = \frac{{\left( {m + 1} \right) - k_{2} - k_{4} }}{{k_{4} }}, \hfill \\ \end{gathered} \right.{\kern 1pt}$$
(19)

where k1 to k4 can be calculated with Eq. (15) and Table 2.

For steels, ξep and m are obtained using the power law equation to fit the Ph curves obtained via the RCT within the h/D range of 0.05–0.15; for light alloys, the fitting range is 0.07–0.15. Next, according to Eq. (19), the Hollomon law parameters σy and n are acquired. Additionally, the strain-hardening coefficient K and σε curve can be obtained according to Eq. (5). The yield strength Rp0.2 is determined by referring to the method recommended in the ISO 6892 standard, and the tensile strength [30] is calculated from the Hollomon law parameters as follows:

$$R_{{\text{m}}} = K\left( {n/{\text{e}}} \right)^{n} ,$$
(20)

where e is the natural constant, and e = 2.718.

Results and Discussion

FEA Verification

To verify the universality and accuracy of the novel RCT model, a wide range of imaginary materials with given constitutive relations were inputted in the FEA program for rings with various geometric dimensions. Using the method proposed in Section 4.2, the Hollomon law parameters could be acquired by fitting the Ph curves obtained using FEA, and then the inputted σ–ε curves and the predicted curves are compared and shown in Figure 9. For rings with various geometric dimensions (D, ρ, B) and Hollomon law parameters (εy, n), the goodness of fit between the predicted σε curves and the constitutive relations inputted in the FEA program were better than 99% in most case, with the lowest being 97.2% for n = 0.4, as shown in Figure 9(c).

Figure 9
figure9

Comparison between the predicted σε curves and those inputted into the FEA program

Experimental Verification

Experimental Conditions

The traditional tensile tests and RCTs were carried out on seven metallic materials, including five steels, one titanium alloy, and one aluminum alloy. Both tests were performed on an MTS 809 testing machine, an MTS 634.11F-24 extensometer was used to measure the displacement of ring specimen, as shown in Figure 10. Four specimen types were machined and the nominal dimensions of these specimens were {D, d, B} (Unit: mm): A—{6, 4, 1}, B—{8, 5, 1}, C—{10, 6, 1}, and D—{10, 6, 2}, a micrometer was used to accurately measure the dimensions of specimens before tests. The dies material was 40Cr with Ep = 210 GPa. The basic mechanical properties and Hollomon law parameters of the seven metallic materials obtained by the tensile test are listed in Table 4.

Figure 10
figure10

RCT set-up

Table 4 Basic mechanical properties and Hollomon law parameters of seven metallic materials

Experimental Results and Discussion

Ring compression tests were carried out at a constant displacement rate of 0.18 mm/min. Four specimens were tested for each experimental condition, one for determining the elastic modulus E using a loading–unloading test, and the remaining three for determining the Hollomon law parameters (σy, n) using a monotonic loading test. The Ph curves of both tests are shown in Figures 11 and 12, respectively.

Figure 11
figure11

Load–displacement curves of loading–unloading tests

Figure 12
figure12

Load–displacement curves of monotonic ring compression tests

Through the method proposed in Section 4.1, the elastic moduli E of the seven materials were calculated and listed in Table 5. It can be seen that the elastic moduli predicted via ring compression test method are all close to those obtained via traditional tensile tests, and that the relative error between the two results is less than 3% for most cases, with the maximum error being 5.6%. Additionally, multiple loading–unloading test for a single specimen can also be used to determine the elastic modulus and the average value taken as the final result.

Table 5 Comparison between the predicted elastic moduli and those obtained by traditional tensile tests

Figure 12 clearly show that the Ph curves of three parallel specimens with the same geometric dimensions and material are consistent; thus, according to Section 4.2, the average predicted values of the three parallel specimens is taken as the final test result, as shown in Figure 13. The predicted σ–ε curves of the seven metallic materials are in a good agreement with the traditional tensile test results, the goodness of fit between the two curves were better than 99% in most case, with the lowest being 95.4% for 16MnR, as shown in Figure 13(a).

Figure 13
figure13

Comparison between the predicted σ–ε relations u and those obtained by traditional tensile tests

Based on the method proposed in Section 4.2, the yield and tensile strengths of the seven metallic materials were obtained, as shown in Figure 14. It can be seen that the errors of yield strengths Rp0.2 obtained by RCTs and traditional tensile tests were mostly within 3% and individually within 8% for six metallic materials, except for Q345E with errors of approximately 16%. The reason for this difference is that the constitutive model adopted in this study cannot be adequately describe the σ–ε relations near the yield plateau. The tensile strengths Rm obtained by RCTs and traditional tensile tests were within 3%.

Figure 14
figure14

Comparison between the predicted yield and tensile strengths and those obtained by traditional tensile tests

In summary, for isotropic material with constitutive power law, the novel ring compression test method proposed in this study can effectively predict the elastic modulus, strengths and σ–ε relation, and for the material whose σ–ε relation has an obviously yield plateau, this method can used as a reference.

Conclusions

  1. (1)

    In the present study, a dimensionless elastoplastic load–displacement model for three-dimensional compressed rings is proposed based on energy density equivalence. The six constants contained in the model can be determined via FEA.

  2. (2)

    The compression test results for two metal rings show that the initial theoretical ring stiffness is proportional to the unloading stiffness at the unloading point of the P–h curve in the h/D range of 0.01 to 0.05. Accordingly, a novel ring compression method was developed to obtain the elastic modulus, stress–strain relation, and strengths of metallic material. The method is verified via FEA with a wide range of imaginary materials and through experiments with seven metallic materials, and a valid accordance was presented.

  3. (3)

    Because of their low material consumption, millimeter ring specimens have the potential to determine the mechanical properties of small-volume materials and tube components.
