Wire Arc Additive Manufactured CuMn₁₃Al₇ High-Manganese Aluminium Bronze

Abstract

In this work, high-manganese aluminium bronze CuMn₁₃Al₇ samples were prepared by arc additive manufacturing technology. The phase composition, microstructure, and crystal structure of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufactured samples were analysed using direct-reading spectrometer, metallographic microscope, scanning electron microscope, and transmission electron microscope. The micro-hardness tester, tensile tester, impact tester, and electrochemical workstation were also used to test the performance of the CuMn₁₃Al₇ samples. By studying the microstructure and properties of the CuMn₁₃Al₇ samples, it was found that preparation of the samples by the arc additive manufacturing technology ensured good forming quality, almost no defects, and good metallurgical bonding inside the sample. The metallographic structure (α + β + point phase) mainly comprises the following: the metallographic structure in the equiaxed grain region has an obvious grain boundary α; the metallographic structure in the remelting region has no obvious grain boundary α; the thermal influence on the metallographic structure produced a weaker grain boundary α than the equiaxed grain region. The transverse and longitudinal cross sections of the sample had uniform microhardness distributions, and the average microhardness values were 190.5 HV_0.1 and 192.7 HV_0.1, respectively. The sample also had excellent mechanical properties: yield strength of 301 MPa, tensile strength of 633 MPa, elongation of 43.5%, reduction of area by 58%, Charpy impact value of 68 J/cm² at – 20 ℃, and dynamic potential polarisation curve test results. Further, it was shown that the average corrosion potential of the sample was – 284.5 mV, and the average corrosion current density was 4.1×10^–3 mA/cm².

1 Introduction

Additive manufacturing is also called as three-dimensional (3D) printing and is different from traditional subtractive (cutting) processing technologies as it uses a 3D data model of the parts [1,2,3,4]. Based on the principle of discrete layering or stacking, different heat sources (laser beam, ion beam, electron beam, arc, ultraviolet light, etc.) are used to apply raw materials (powder, wire, liquid materials, etc.) in a layer by layer manner to manufacture parts. Compared with traditional processing technologies, additive manufacturing has outstanding features, including short manufacturing cycle, lower production costs for some parts, high material utilisation, high degree of design/manufacturing integration, and design of component structure. Optimisation techniques available in this process are especially suitable for manufacturing parts and components with complex structures and high added value of raw materials. Additive manufacturing thus has broad prospects in aviation, aerospace, automotive, biomedical, educational, and mould manufacturing applications, among others [5,6,7,8,9].

Additive manufacturing technology is mainly divided into metal and non-metallic additive manufacturing based on the types of materials used. Metal additive manufacturing technologies mainly include laser, electron beam, plasma, and electric arc additive manufacturing based on the heat source [10,11,12,13]. Compared with other additive manufacturing technologies, arc additive manufacturing has high production efficiency and is suitable for large-scale component manufacturing [14]. The disadvantage of using electric arc as the heat source is that the manufacturing accuracy is not as good as that obtained with lasers and electron beams [15,16,17,18]. Arc additive manufacturing technology has received widespread attention in aerospace, mechanical equipment production and other fields in recent years [19,20,21].

High-manganese aluminium bronze is a high-strength copper alloy that is based on ordinary aluminium bronze. By adding multiple elements, such as manganese, aluminium, iron, nickel, and titanium and with rare earth modification treatment, the matrix structure is strengthened. The phases are uniformly distributed in a tough matrix, and a type of alloy is formed with enhanced strength without reduction of plasticity. High-manganese aluminium bronze materials have high strength, hardness, toughness, and wear resistance, and their comprehensive mechanical properties are reported to be good [22, 23]. The high-manganese aluminium bronze material has good corrosion resistance when exposed to the atmosphere, fresh water, and seawater. It resists high-speed seawater erosion and has high corrosion fatigue strength. Because the high-manganese aluminium bronze material has a higher electrode potential, the surface energy is important. A strong alumina film is formed, and if this film is damaged, it can be self-healed as well as re-formed and covered, so that the corrosion resistance is improved [24]. Further, high-manganese aluminium bronze alloys have good casting properties and can be welded. Therefore, high-manganese aluminium bronze materials are one of the main materials used in large propellers in various countries around the world. Manganese aluminium bronze materials are also widely used in steel rolling equipment and other metallurgical machinery to manufacture sliders, slides, bearings, bushings, nuts, etc. (generally referred to as metallurgical spare parts), which can adequately meet the requirements of production conditions [25, 26]. However, cast high-manganese aluminium bronze suffers from reduced seawater corrosion resistance owing to the coarse structure, component segregation, and casting defects [27]. Therefore, it is of great significance to research new manufacturing processes for high-manganese aluminium bronze parts.

To the best of the authors’ knowledge, there are no reports on research involving additive manufacturing of high-manganese aluminium bronze. Therefore, this study uses the arc additive manufacturing technology and CuMn₁₃Al₇ welding wire to investigate high-manganese aluminium bronze arc additive manufacturing technology. It is expected that this study can provide theoretical and data support for popularisation and application of the additive manufacturing technology.

2 Experimental Setup and Analysis Procedure

The wire used in these experiments was a high-manganese aluminium bronze CuMn₁₃Al₇ supporting welding material produced by Newland (Tianjin) Welding Material Co., Ltd., with a grade of CuMn₁₃Al₇ M and diameter of 1.2 mm. The chemical composition (wt%) of the CuMn₁₃A_l7 wire is shown in Table 1. The arc additive manufacturing equipment uses TPS4000 cold metal transfer (CMT) advanced power supply, KUKA six-axis robot KR 10R1420 and IungoPNT robot arc additive manufacturing software. The experimental substrate was Q235 steel of dimensions 300 mm × 100 mm × 12 mm. Before the experiment, the substrate was polished with a hand-held grinding wheel to remove rust and scale on the surface of the steel plate. In order to reduce the amount of deformation of the substrate during the additive manufacturing process, the steel plate was fixed to the base steel plate using a designed fixture. In this research, the arc additive manufacturing process adopts the CMT mode, and single-layer single-pass, single-layer multi-pass, and multi-layer multi-pass tests are performed in the early stages of testing; further, the preferred additive manufacturing process parameters are selected according to the shape of the bead. In order to control the forming accuracy of the additive manufacturing sample, a Fluke F59 infrared thermometer was used to detect the interlayer temperature during the manufacturing process. The process parameters selected for this research are as follows: current 115 A, voltage 11.4 V, wire feed speed 4.5 m/min, shielding gas 100% Ar, shielding gas flow 18 L/min, and interlayer temperature not exceeding 150 ℃. The specific process parameters are summarised in Table 2.

Table 1 Chemical composition (wt%) of the CuMn₁₃Al₇ wire

Table 2 Wire arc additive manufacturing parameters

The size of the printed sample (thin wall) using arc additive manufacturing in this research is approximately 150 mm × 20 mm × 60 mm. Using a band saw and wire cutters, samples were obtained from the middle of the manufactured sample for metallographic analysis (hardness test, scanning electron microscopy (SEM) analysis), transmission electron microscopy (TEM), and chemical composition analysis. Tensile tests were conducted on both sides of the sample in directions parallel and perpendicular to the deposition direction and on impact specimens. The chemical composition analysis test was carried out according to GB/T 5121.27-2008, using a PRODIGY XP ICP-OES. The tensile tests of the sample were carried out according to the standard GB/T228.1-2010. The room temperature tensile performance was evaluated using a 100 kN material testing machine (SINTECH20 / G). Displacement control was used during the stretching, and the initial strain rate of the sample was 0.005 min^–1. The sample impact test was performed according to GB/T229-2007 using a pendulum impact tester (ZBC2302-C); the test temperature was – 50 °C, and three samples were tested in each group. The metallographic and SEM samples were cut, ground, and polished, and then etched with a saturated iron nitrate alcohol solution. The OLYMPUS GX71 metallographic microscope was used to observe the microstructure of the metallographic samples based on the standard GB/T 13298-2015 “Metal microstructure inspection method”. ZEISS EVO-18 and Quanta650 scanning electron microscope were used to observe the microstructure of the metallographic sample at high magnification and corrosion morphology after the electrochemical corrosion test, respectively. The Genesis Apex2 X-ray spectrometer attached to the scanning electron microscope was used for component analysis. The TEM sample was cut from a 0.5 mm slice from the block sample, and ground to a thickness of about 120 μm; three wafers were punched out, and finely ground to about 50 μm. A 4% perchloric acid solution was used as the electrolyte, and a perforated film sample was obtained by double-spray electrolysis at − 20 °C. The electrolysis voltage was set to 75 V, and the Gatan691 ion thinner was used on the argon ions for 0.5 h to reduce their thickness. The TEM sample was used to observe the crystal structure with a JEM-2100 transmission electron microscope, and the acceleration voltage was 200 kV. According to the GB/T 4340.1-2009 “Vickers hardness test for metallic materials-Part 1: Test method” standard, the micro Vickers hardness is measured with a test force of 100 g, and the tests are conducted from the upper part of the weld (2 mm) to the lower part. Ten points were measured at equal distances (1 mm apart), and a microhardness tester VMH-104 was used. The Gill AC Bi-STAT electrochemical workstation was used to test the polarisation curves of the samples; the test conditions were room temperature (~25 °C) and 3.5% NaCl aqueous solution (neutral). After the sample was connected to the wire, it was sealed with a sealant, and a surface of 10 mm × 10 mm was reserved as the test surface. Before the test, the surface was polished with sandpaper until there were no obvious scratches on the surface. The three-electrode system was used for the test: the reference electrode was a saturated calomel electrode, a platinum electrode was the auxiliary electrode, and the sample was the working electrode (the potentials in the report are relative to the saturated calomel electrode unless specified otherwise). First the open-circuit potential was measured for 30 min, and then the potentiodynamic polarisation curve test was performed. When the polarisation curve was tested, the scanning range used was – 150 to + 600 mV (relative to the open-circuit potential), and the scanning rate was 20 mV/min. After completion of the test, the results were processed with software to obtain the final data.

3 Results and Discussion

3.1 CuMn₁₃Al₇ Additive Manufacturing Forming Characteristics

Figure 1 shows a sample of the CuMn₁₃Al₇ thin wall printed by arc additive manufacturing technology. It can be seen from the sample picture that the thin-walled CuMn₁₃Al₇ printed by the CMT power supply is adequately formed without collapse, and the welding wire splashing is small during the forming process. In addition, from the sample cross-sectional view (metallographic sample) given in Figure 2, it can be seen that there are almost no defects inside the sample and that the metallurgical bonding is good, which further illustrates that CuMn₁₃Al₇ has good forming performance by arc additive manufacturing.

Figure 1

Sample of CuMn₁₃Al₇ high-manganese aluminium bronze prepared by wire arc additive manufacturing

Figure 2

Cross-sectional view of the CuMn₁₃Al₇ high-manganese aluminium bronze prepared by wire arc additive manufacturing

3.2 High-Manganese Aluminium Bronze CuMn₁₃Al₇ Additive Manufacturing Composition and Microstructure Characteristics

Table 3 shows the chemical composition analysis results of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing samples. Compared to the chemical composition of the raw silk materials given in Table 1, it can be seen that the main alloying element Mn in the arc additive manufacturing sample has a burning loss of 6.1%. The decrease in relative content is more pronounced, which indicates that the arc additive manufacturing process has better protection and better deoxidation performance in the molten pool.

Table 3 Chemical composition (wt%) of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing

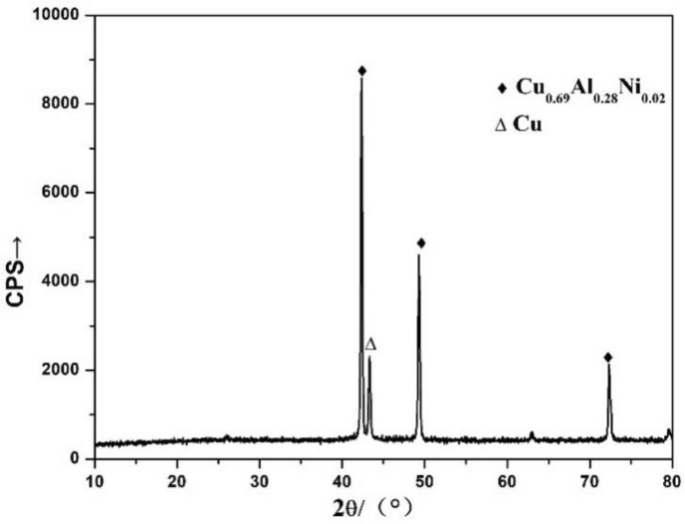

Figure 3 is an X-ray diffraction (XRD) pattern of a high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample, and the main phase composition of the sample is Cu_0.69Al_0.28Ni_0.02 and Cu.

Figure 3

XRD pattern of CuMn₁₃Al₇ high-manganese aluminium bronze prepared by wire arc additive manufacturing

Figure 4 shows the metallographic pictures of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing samples at different locations. The low magnification metallographic structure is shown in Figure 4a, and the equiaxed crystal region is shown below that. The entire sample is mainly composed of equiaxed crystal regions, and there are fewer columnar crystals. The middle strip is the remelting zone, and the heat-affected zone is above the remelting zone. From Figures 4b and c, it can be seen that the metallographic structure of the equiaxed grain region of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample is α + β + point phase, and the grain boundary α is obvious. The sample metallographic structure in the remelting zone is α + β + point phase with no obvious grain boundary α (see Figures 4d and e). The metallographic structure of the sample heat-affected zone is α + β + dot-like phase, and the grain boundary α is weaker than that in the equiaxed grain region (see upper part in Figures 4d and f). In addition, it can be seen from the low magnification metallographic photograph in Figure 4a that no cracks, holes, solid inclusions, unfused, unwelded, poorly shaped or sized, and other defects are found, indicating that the internal quality of the CuMn₁₃Al₇ steel arc additive manufacturing is good. Figure 5 shows a high magnification SEM image of the metallographic sample. No small defects were found in the high magnification SEM image. The sample mainly had a fine needle-like structure inside the equiaxed crystal region under high magnification SEM.

Figure 4

Microstructures of the specimens: a 50×, b equiaxed grain zone 100×, c equiaxed grain zone 500×, d remelting zone 100×, e remelting zone 500×, and f heat-affected zone 500×

Figure 5

SEM image of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing

To further analyse the crystal structure of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample, Figure 6 shows the TEM image of the sample and the EDS composition of the corresponding particles. From the TEM image (Figure 6a), it can be seen that there is a granular reinforcing phase in the slab-like matrix of the sample crystal structure at high magnification. The EDS analysis results corresponding to Figures 6b–e show that the main elemental composition of the large particle reinforcing phase is Fe, Mn, Al, and the main elemental composition of the small particle reinforcing phase is Cu, Mn, Fe, Al. The light and dark matrix phases are mainly composed of Cu, Mn, Al, and Fe, which are consistent with the elemental composition of the samples obtained by chemical analysis.

Figure 6

Microstructure data of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing: a overall morphology, b small particles and corresponding EDS, c dark matrix phase and corresponding EDS, d large particles and corresponding EDS, and e light matrix phase and corresponding EDS

Figure 7 shows the crystal structure and corresponding selected area electron diffraction pattern of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample. Figure 7a is a high-magnification image of the large particle enhanced phase in Figure 6a and the corresponding selected area electron diffraction pattern. From the analysis of the pattern, it can be seen that the corresponding phase is the Fe₂MnAl phase. The EDS elemental composition results of the large particle enhanced phase are consistent, but there is no obvious Fe₂MnAl phase diffraction peak in the XRD pattern of the sample in Figure 3. This may be attributable to the fact that XRD analysis is generally considered for phases with a relative content of less than 5%. The diffraction peak is not seen clearly in the entire spectrum, so no Fe₂MnAl phase was found in the XRD pattern of the sample. Figure 7b shows the morphology of the matrix phase and the corresponding selected area electron diffraction pattern. From the analysis of the results, it can be seen that the corresponding phase is Cu_0.69Al_0.28Ni_0.02, which is in accordance with the XRD (Figure 3) results and the figure of the sample. The results obtained from the analysis of Figures 6c and e are also completely consistent in this regard. In addition, TEM analysis revealed that particle-reinforced phases + twins (Figure 8a) and particle-reinforced phases + dislocations (Figure 8b), particle-reinforced phases, twins, and dislocations also existed in the sample. The appearance of such components is beneficial for increasing the strength of the sample.

Figure 7

Microstructures of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing: a matrix and corresponding SAED, b matrix phase and corresponding SAED

Figure 8

TEM image of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing: a particles + twin, b particles + dislocation

3.3 Performance of High-Manganese Aluminium Bronze CuMn₁₃Al₇ Additive Manufacturing Samples

Figure 9 shows the microhardness distribution of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing samples. During the test, measurements are obtained from the upper part of the weld (2 mm) to the lower part, and from the left (2 mm) to the right. Results were obtained at 10 uniformly spaced points (1 mm apart). From the microhardness distribution chart, it can be seen that the hardness distribution of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample ranges from 173 to 220 HV_0.1, and the hardness distribution is relatively uniform. The average microhardness of the longitudinal cross section of the sample is 192.7 HV_0.1, the average microhardness of the transverse cross section of the sample is 190.5 HV_0.1, and the difference between the average microhardness of the longitudinal and transverse cross sections is small. The fluctuation of the microhardness is mainly caused by the change in the microstructure. From the cross-sectional morphology of the high-manganese aluminium bronze CuMn₁₃Al₇ formed sample produced by arc additive manufacturing shown in Figure 2, it can be seen that the formed sample is a multi-layer and multi-pass surfaced structure. The effects of thermal cycling of the weld bead generally includes the original columnar crystal zone, remelting zone, and heat-affected zone. Different regions have different microhardness values owing to different microstructures (grain size, precipitates, etc.), so the sample cross-section hardness is expected to fluctuate by nominal amounts.

Figure 9

Microhardness distribution of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing

The test results of the mechanical properties of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample are shown in Table 4. Figure 10 shows the tensile curve of the CuMn₁₃A_l7 sample made by wire arc additive manufacturing. From the results, it can be seen that the sample has excellent mechanical properties, yield strength of 301 MPa, tensile strength of 633 MPa, elongation of 43.5%, reduction in area of 58%, and Charpy impact value of 68 J/cm² at − 20 °C.

Table 4 Mechanical properties of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing

Figure 10

Tensile curve of the CuMn₁₃Al₇ sample made by wire arc additive manufacturing

In order to analyse the fracture mechanism of the sample, Figure 11 shows the tensile fracture morphology of the high-manganese aluminium bronze CuMn₁₃Al₇ arc additive manufacturing sample. It can be clearly seen from the overall morphology of the tensile fracture in Figure 11a that there are no obvious defects in the tensile specimen, which is in accordance with the experimental results of the tensile elongation and section shrinkage of the tensile specimen, as shown in Table 4. Figures 11b, c, and d are the morphologies of the tensile fracture fibre zone, radiation zone, and secondary fibre zone, respectively. From the figure, it can be seen that there is a large number of dimples in the fracture, indicating that the sample is stretched. The fracture mechanism is mainly ductile fracturing, and the radiation area has a river-like dissociation surface morphology.

Figure 11

Tensile fracture morphology of the CuMn₁₃Al₇ sample made by wire arc additive manufacturing: a fracture appearance, b fibrous zone, c radical zone, d shear lip zone

Figure 12 shows the kinetic potential polarisation curve of the sample. It can be seen from the figure that the anodic polarisation curve of the sample is divided into two distinct stages. The anode current density rapidly increases in the interval between the corrosion potential (EC) and point A, indicating that no obvious passivation behaviour has occurred on the sample surface. Controlled by activation and mass transfer processes, the maximum current and slower increase of current in the interval A ~ B indicate that the reaction in this interval is controlled by the mass transfer process. The corrosion potential and corrosion current density of the samples obtained by software fitting are shown in Table 5. Figure 13 shows the corrosion morphology of the sample after the potentiostatic polarisation test. It can be seen from the figure that the electrochemical corrosion mechanism of the sample is mainly intergranular corrosion.

Figure 12

Potentiodynamic polarisation curves of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing in 3.5 wt% NaCl solution

Table 5 Potentiodynamic polarisation results

Figure 13

Corroded morphologies of the CuMn₁₃Al₇ sample formed by wire arc additive manufacturing in 3.5 wt% NaCl solution

4 Conclusions

• (1) High-manganese aluminium bronze CuMn₁₃Al₇ samples were prepared by the arc additive manufacturing technology. The forming quality of the sample was found to be good, with no large defects being present, and the metallurgical bonding inside the sample was also good. The metallographic structure is mainly the α + β + point phase.

• (2) The micro-hardness distribution of the transverse and longitudinal sections of the sample were relatively uniform, and the average micro-hardness values were 190.5 HV_0.1 and 192.7 HV_0.1, respectively. The mechanical properties of the samples were excellent, with yield strength of 301 MPa, tensile strength of 633 MPa, elongation of 43.5%, reduction in area of 58%, and Charpy impact value of 68 J/cm² at – 20 ℃.

• (3) The results of the kinetic potential polarisation curve test show that the average corrosion potential of the sample was – 284.5 mV and average corrosion current density was 4.1 × 10^–3 mA/cm². The research presented in this paper is expected to provide theoretical and data support for the application of additive manufacturing technology in the manufacture of high-manganese aluminium bronze parts in the future.
