Resolution Enhancement in Ultrasonic TOFD Imaging by Combining Sparse Deconvolution and Synthetic Aperture Focusing Technique (Sparse-SAFT)

Chinese Journal of Mechanical Engineering volume 35, Article number: 94 (2022) Cite this article

Abstract

The shallow subsurface defects are difficult to be identified and quantified by ultrasonic time-of-flight diffraction (TOFD) due to the low resolution induced by pulse width and beam spreading. In this paper, Sparse-SAFT is proposed to improve the time resolution and lateral resolution in TOFD imaging by combining sparse deconvolution and synthetic aperture focusing technique (SAFT). The mathematical model in the frequency domain is established based on the l1 and l2 norm constraints, and the optimization problem is solved for enhancing time resolution. On this basis, SAFT is employed to improve lateral resolution by delay-and-sum beamforming. The simulated and experimental results indicate that the lateral wave and tip-diffracted waves can be decoupled with Sparse-SAFT. The shallow subsurface defects with a height of 3.0 mm at the depth of 3.0 mm were detected quantitatively, and the relative measurement errors of flaw heights and depths were no more than 10.3%. Compared to conventional SAFT, the time resolution and lateral resolution are enhanced by 72.5 and 56% with Sparse-SAFT, respectively. Finally, the proposed method is also suitable for improving resolution to detect the defects beyond dead zone.

1 Introduction

Ultrasonic testing is widely used to inspect material properties and estimate defects quantitatively [1, 2]. Time-of-flight diffraction (TOFD) is an ultrasonic testing technique with high inspection speed and accurate size measurement, and B-scan image is the common mode for presenting detection results [3,4,5,6,7]. However, ultrasonic signals are received in the wide range due to beam spreading, inducing that the tip-diffracted waves are displayed as hyperbolic arcs in the B-scan image. Meanwhile, the detectable range by TOFD is more than 7.0 mm in general [8]. The shallow subsurface defects located in dead zone are hard to be identified because of the superposition between lateral wave and tip-diffracted waves [8,9,10]. Therefore, it is necessary to improve lateral resolution and time resolution in TOFD detection image by combining signal processing techniques.

The deconvolution techniques are beneficial to improving time resolution. Compared to conventional Weiner filter, the Weiner filter followed by autoregressive spectral extrapolation is more suitable to separate overlapped signals by the specific combination of multiple frequency windows [11, 12]. This method was employed by ultrasonic TOFD technique to quantitatively evaluate the near-surface notch with 3.0 mm depth [13]. In contrast, the sparsity reflecting the limited number of spikes in reflection sequence is the powerful prior information in ultrasonic testing. Some sparsity-based methods are developed to obtain the sparse signals with high time resolution by introducing l1-norm constraint rather than extending the frequency band [14,15,16,17,18,19]. For example, the sparsity constraint is imposed on the overlapped TOFD signals from defect, realizing the improvement of time resolution and the quantitative estimation of 0.5 μs time difference [18].

The delay-and-sum (DAS) beamforming algorithms, e.g., synthetic aperture focusing technique (SAFT), are well-known for improving the lateral resolution in ultrasonic imaging [20]. Meanwhile, SAFT is employed to enhance signal-to-noise ratio (SNR) and quantify defects by imaging the ultrasonic signals with low directivity [21,22,23,24,25,26]. Based on the relative position between defect and TOFD probes [27], the lateral resolution of B-scan images is improved to identify defects by using SAFT. On this basis, the combination of SAFT and phase coherence imaging (PCI) provides better lateral resolution and SNR level [28]. It should be noted that the methods mentioned above focus on the enhancement of lateral resolution or time resolution. When the to-be-detected defects are located in the dead zone, the ideal lateral resolution and time resolution are difficult to be obtained by the single method simultaneously. It is necessary to combine different methods for realizing resolution enhancement.

In this paper, Sparse-SAFT is proposed to enhance the resolution in TOFD imaging. First, the sparsity of reflection sequence is applied to processing the TOFD signals. Then, the l1 and l2 norm constraints are combined to construct the objective function in the frequency domain, weakening the influence of the pulse width and beam spreading of original signals. Finally, SAFT is used to obtain the high-resolution image, and to size the defects in dead zone. Section 2 presents the theories of TOFD inspection and Sparse-SAFT. The simulated and experimental results are described in Section 3. Section 4 is the discussion, and the conclusions are presented in Section 5.

2 Theories

2.1 TOFD Inspection

The schematic diagram of ultrasonic TOFD inspection is presented in Figure 1(a), where the transmitter (T) and receiver (R) are a pair of probes connected with the wedges having the same angle [28,29,30,31]. The received signal y(n) is modeled as

$$y(n) = w(n) * r(n) + n(n),$$
(1)
Figure 1
figure 1

Schematic diagrams of ultrasonic TOFD inspection and B-scan image: (a) ultrasonic TOFD inspection, (b) A-scan signal at position i and B-scan image

Full size image

where * represents convolution, w(n) is input pulse, r(n) is reflection sequence, and n(n) is the noise.

The B-scan is obtained by using the TOFD probes scanning with a step of Δs from position 1 to position M, where the probe center spacing (PCS) is 2S. The point coordinates of transmitter and receiver at position i (1≤i≤M) are respectively defined as (iΔs, 0) and (iΔs+2S, 0), and the corresponding received signal is denoted as yi(n). Therefore, the B-scan image, i.e., signal matrix Braw=[y1(n), …, yi(n), …, yM(n)], is consisted of M-number A-scan signals, as schematically presented in Figure 1(b).

As shown in Figure 1(b), the received signal yi(n) contains lateral wave and tip-diffracted waves. There is a near-surface dead zone with a depth of D due to the pulse width of lateral wave, as given by

$$D{ = [}c_{l}^{2} {(}\frac{{t_{p} }}{2}{)}^{2} { + }c_{l} St_{p} {]}^{1/2} ,$$
(2)

where tp is the pulse width of lateral wave, and cl is the longitudinal wave velocity in specimen.

The dead zone leads to the difficulty in calculating the defect depth d and height h with Eqs. (3) and (4).

$$d = \sqrt {(S + c_{l} \Delta t_{1} /2)^{2} - S^{2} } ,$$
(3)
$$h = \sqrt {(S + c_{l} \Delta t_{2} /2)^{2} - S^{2} } - d,$$
(4)

where Δt1 and Δt2 are the time differences between the lateral wave and the diffracted waves from upper and lower tips, respectively.

In addition, the diffracted waves from defect tips are displayed as hyperbolic arcs in the B-scan image presented in Figure 1(b). The low lateral resolution influences the quantitative estimation of defect depth and size.

2.2 Sparse-SAFT

In this paper, Sparse-SAFT is proposed to enhance resolution by combining sparse deconvolution and SAFT. First, the TOFD inspection model is converted into the mathematical model in the frequency domain to construct an objective function.

The expression of Eq. (1) in the frequency domain is given by

$${\varvec{Y}}(f) = {\varvec{W}}(f){\varvec{R}}(f) + {\varvec{N}}(f),$$
(5)

where Y(f), R(f), W(f), and N(f) are the corresponding frequency spectrums of y(n), r(n), w(n), and n(n), respectively.

The frequency spectrum R(f) is estimated by Wiener filter.

$${\varvec{R}}(f) = \frac{{{\varvec{Y}}(f){\varvec{W}}^{*} (f)}}{{\left| {{\varvec{W}}(f)} \right|^{2} + Q}},$$
(6)

where W* is the conjugate of W, the noise desensitizing factor Q is often approximated as 0.01max(|W(f)|2) [11, 19].

Meanwhile, the discrete reflection sequence r(n) can also be expressed as Eq. (7) [11, 19].

$$r(n) = \sum\limits_{i = 1}^{N} {r_{i} \delta (n - t_{i} )} ,$$
(7)

where ri is the amplitude at the ith point; N is the length of r(n), and ti is the corresponding time interval between the ith point and the 1st point.

The expression of Eq. (7) in the frequency domain is given by

$${\varvec{R}}(f) = \sum\limits_{k = 1}^{N} {[r(t_{k} )\cos (2\uppi ft_{k} )]} - j\sum\limits_{k = 1}^{N} {[r(t_{k} )\sin (2\uppi ft_{k} )]} .$$
(8)

Therefore, Eq. (9) is deduced by combining Eqs. (6) and (8).

$$\begin{gathered} \frac{{{\varvec{Y}}(f){\varvec{W}}^{*} (f)}}{{\left| {{\varvec{W}}(f)} \right|^{2} + Q}} \hfill \\ { = }\sum\limits_{k = 1}^{N} {\left[ {r(t_{k} )\cos (2\uppi ft_{k} )} \right]} - j\sum\limits_{k = 1}^{N} {\left[ {r(t_{k} )\sin (2\uppi ft_{k} )} \right]} . \hfill \\ \end{gathered}$$
(9)

Eq. (9) is rearranged as Eq. (10) according to the equivalence of the real parts and imaginary parts on both sides.

$${\varvec{A}}_{2N \times 1} = {\varvec{C}}_{2N \times N} {\varvec{R}}_{N \times 1} ,$$
(10)

where A=[real(R(f1)),…, real(R(fN)), img(R(f1)), …, img(R(fN))]; C=[cos(2πf1t1), … cos(2πf1tN),…,cos(2πfNt1), …, cos(2πfNtN), sin(2πf1t1), …sin(2πf1tN), …, sin(2πfNt1), …, sin(2πfNtN)]; R=[r(t1),…,r(tN)]. real{} is the real part, and img{} is the imaginary part. More details are described in Ref. [13]. It is obvious that the problem given by Eq. (10) has multiple solutions.

Subsequently, l1 norm constraint is imposed on R based on the sparsity of reflection sequence. The high-resolution signal can be obtained by solving the following problem.

$$\text{min}\left\| \varvec{R} \right\|_{1} \,\text{s.t.}\,\varvec{A} = \varvec{CR}.$$
(11)

The constraint problem in Eq. (11) is transformed into the unconstraint problem in Eq. (12) by combining l2 and l1 norm constraints.

$${\varvec{X}}(n) = {\text{arg}}\mathop {\min }\limits_{R} \{ \left\| {{\varvec{CR}} - {\varvec{A}}} \right\|_{2} + \mu \left\| {\varvec{R}} \right\|_{1} \} ,$$
(12)

where μ is the regularization parameter.

On this basis, the interior-point method [32] is employed to solve Eq. (12), and the sparse signal matrix Bsparse is obtained by processing every A-scan signal in matrix Braw.

$${\varvec{B}}_{{\text{sparse}}} = [X^{1} (n),...,X^{i} (n),...,X^{M} (n)].$$
(13)

Finally, SAFT is implemented on the matrix Bsparse to improve lateral resolution. The delay time ΔTi corresponding to position i and an arbitrary point (x, z) in the region of interest is given by

$$\begin{gathered} \Delta T_{i} {(}x{,}z{)} = (\sqrt {(i\Delta s - x)^{2} + z^{2} } + \sqrt {(i\Delta s - x + 2S)^{2} + z^{2} } \hfill \\ \, - 2\sqrt {S^{2} + z^{2} } )/c_{l} . \hfill \\ \end{gathered}$$
(14)

The DAS calculation is performed on every processed A-scan signal Xi(n) to obtain the reconstructed image BSparse-SAFT(x, z).

$${\varvec{B}}_{{\text{Sparse - SAFT}}} {(}x{,}z{)} = \sum\limits_{i = 1}^{M} {X^{i} (\Delta T_{i} {(}x{,}z{)})} .$$
(15)

The flow chart of Sparse-SAFT is presented in Figure 2.

Figure 2
figure 2

Flow chart of Sparse-SAFT

Full size image

3 Simulation and Experiments

3.1 Simulation

Figure 3 presents the schematic diagram of the carbon steel model established in the CIVA software platform, and the longitudinal wave velocity cl in carbon steel is equal to 5890 m/s. The shallow subsurface cracks #1–#3 with height h = 3.0 mm were set at the depth d =3.0, 3.5 and 4.0 mm, respectively. TOFD inspection was implemented by using a pair of probes with 5 MHz center frequency, 70° refraction angle, and 30.0 mm PCS. Therefore, the depth of dead zone was 6.1 mm for the tp=0.4 μs.

Figure 3
figure 3

Schematic diagram of detecting shallow subsurface cracks with ultrasonic TOFD

Full size image

Figures 4(a) and 5(a) present the original B-scan image and A-scan signals corresponding to the three cracks, respectively. On the one hand, the time differences between lateral wave and tip-diffracted waves are difficult to be determined due to signal superposition. On the other hand, the beam spreading induces the tip-diffracted waves presented as hyperbolic arcs in the image, influencing the identification of defect characteristics.

Figure 4
figure 4

Original image and reconstructed images by simulation: (a) original B-scan image, (b) reconstructed image by conventional SAFT, (c) reconstructed image by Sparse-SAFT

Full size image
Figure 5
figure 5

A-scan signals corresponding to the three cracks in different images: (a) in the original image, (b) in the reconstructed image by conventional SAFT, (c) in the reconstructed image by Sparse-SAFT

Full size image

Figures 4(b) and 5(b) show the reconstructed image and A-scan signals by using conventional SAFT, respectively. The lateral resolution is enhanced in comparison with Figure 4(a), but there is no obvious improvement in time resolution. The arrival times of lateral wave and tip-diffracted waves are unable to be obtained from the image and A-scan signals.

On this basis, the Sparse-SAFT was employed to process the signal matrix Braw. The frequency spectrum R(f) was estimated by Wiener filter, and norm constraints were imposed based on the sparsity for deducing the optimization problem given by Eq. (12). Subsequently, the interior-point method was applied to solve the problem, obtaining the sparse signal matrix Bsparse. Finally, SAFT was implemented by DAS calculation to reconstruct the high-resolution image BSparse-SAFT. Figures 4(c) and 5(c) present the reconstructed image and A-scan signals by Sparse-SAFT. Compared to Figures 4(a) and (b), the time resolution and lateral resolution in Figure 4(c) are both improved significantly, and the lateral wave and tip-diffracted waves are distinguished clearly.

Table 1 lists the crack depths and heights calculated with Eqs. (3) and (4) based on the time differences Δt1 and Δt2 read from Figure 5(c). The relative measurement errors are no more than 9.3%.

Table 1 Calculated crack depths and heights and relative errors by Sparse-SAFT
Full size table

3.2 Experiments

Figure 6 presents the carbon steel specimen used for experiments. An artificial defect with a height of 3.0 mm was machined at the depth of 3.0 mm. The longitudinal wave velocity cl was 5890 m/s. Ultrasonic TOFD inspection was implemented using a pair of probes with 5.0 MHz center frequency and 30.0 mm PCS. Therefore, the defect was located in the dead zone (D=6.1mm).

Figure 6
figure 6

Carbon steel specimen with an artificial defect machined at the depth of 3.0 mm

Full size image

Figure 7 presents the original B-scan image and the reconstructed images by conventional SAFT and Sparse-SAFT. The A-scan signals corresponding to the defect in reconstructed images are shown in Figure 8. The lateral resolution is improved by conventional SAFT in comparison with the original image. However, there is no enhancement in time resolution, as shown in Figure 8(a). In contrast, the time resolution and lateral resolution are both significantly improved in the reconstructed image by Sparse-SAFT. Figure 8(b) demonstrates that the lateral wave and tip-diffracted waves are feasible to identify from the decoupled signals. The flaw depth (d=2.83 mm) and height (h=3.31 mm) are calculated with Eqs. (3) and (4) by the time differences Δt1 and Δt2 in Figure 8(b). The relative measurement errors are no more than 10.3%.

Figure 7
figure 7

Original image and reconstructed images by experiments: (a) original B-scan image, (b) reconstructed image by conventional SAFT, (c) reconstructed image by Sparse-SAFT

Full size image
Figure 8
figure 8

A-scan signals corresponding to the defect in different experimental reconstructed images: (a) in the image by conventional SAFT, (b) in the image by Sparse-SAFT

Full size image

4 Discussion

The low time resolution and lateral resolution restrict the identification and quantitation of shallow subsurface defects from TOFD images. In this paper, the l1 and l2 norm constraints are introduced to solving the frequency-domain optimization problem for improving time resolution, and SAFT is employed to enhance lateral resolution by DAS calculation. It should be noted that the DAS images by conventional SAFT are reconstructed based on the original ultrasonic A-scan signals. The signals with wide pulse-width contain redundant information of non-defects, resulting in the overlapping of lateral wave and tip-diffracted waves. There is no improvement in time resolution by conventional SAFT, and the arrival times of the lateral wave and tip-diffracted waves are hard to be determined from the reconstructed images. In contrast, Sparse-SAFT is proposed to decouple overlapped signals and reconstruct images. The pulse widths of lateral wave and tip-diffracted waves are greatly reduced. In addition, the improvement of time resolution for array signals is beneficial to the enhancement of lateral resolution in reconstructed images with the delay-and-sum beamforming method, e.g., SAFT and TFM [33]. The introduction of sparse deconvolution increases the focusing effects of SAFT. The reconstructed images by Sparse-SAFT contain less redundant information, realizing the identification and location of near-surface defects. Therefore, the combination of sparse deconvolution and SAFT is helpful for enhancing the time and lateral resolution of ultrasonic TOFD images and has higher resolution in comparison with conventional SAFT.

Experimental results demonstrate that Sparse-SAFT has the ability to realize the resolution enhancement in TOFD imaging as shown in Figures 7 and 8. On the one hand, the distinguishable time interval Δt is as small as 0.11 μs, which is reduced by 72.5% compared to the pulse width tp=0.4 μs. On the other hand, the full-width at half-maximum (FWHM) for the flaw tip in B-scan image is decreased significantly by Sparse-SAFT. Figure 9 presents the transverse profile graphs corresponding to the lower tip of the artificial defect in the different reconstructed images. The measured FWHM in Figure 9(b) is 44% of that in Figure 9(a) processed by conventional SAFT, i.e., the lateral resolution is improved by 56%.

Figure 9
figure 9

Transverse profile graphs corresponding to the lower tip of the artificial defect in different reconstructed images: (a) SAFT image, (b) Sparse-SAFT image

Full size image

Simulated and experimental results indicate that Sparse-SAFT is suitable for identifying shallow subsurface defects by enhancing image resolution. Meanwhile, the small defects beyond dead zone can also be detected by Sparse-SAFT. Figure 10(a) presents another artificial defect with a height of 3.0 mm at the depth of 11.0 mm in carbon steel specimen. Two 5.0 MHz probes with 52.0 mm PCS are adopted to perform ultrasonic TOFD inspection. The original B-scan image and reconstructed image by Sparse-SAFT are shown in Figure 10(b) and (c), respectively. The time resolution and lateral resolution are enhanced significantly by Sparse-SAFT, and the time differences Δt1=0.76 μs and Δt2=1.23 μs are obtained from Figure 10(c). The calculated flaw depth and height are respectively equal to 11.0 and 3.2 mm, whose relative errors are no more than 6.7%.

Figure 10
figure 10

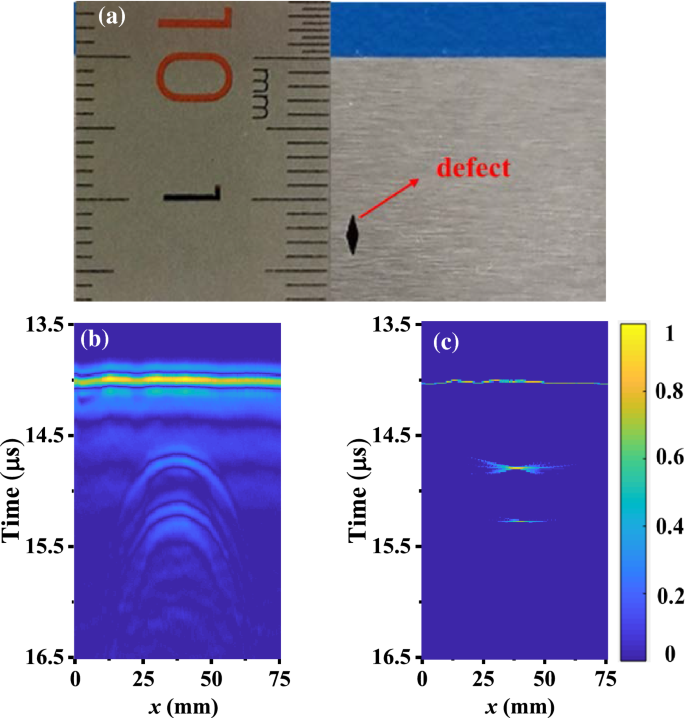

Carbon steel specimen and TOFD images: (a) carbon steel specimen with an artificial defect beyond dead zone, (b) original TOFD B-scan image, (c) reconstructed image by Sparse-SAFT

Full size image

5 Conclusions

  1. (1)

    Sparse-SAFT is proposed by combining sparse deconvolution and SAFT to weaken the influence of pulse width and beam spreading on the time resolution and lateral resolution in TOFD imaging.

  2. (2)

    Simulated and experimental results demonstrate that the time resolution and lateral resolution are respectively enhanced by 72.5% and 56% with Sparse-SAFT compared to conventional SAFT.

  3. (3)

    The depths and heights of the defects located in and beyond dead zone are determined by Sparse-SAFT with no more than 10.3% measurement error.
