Research on the Pressure Regulator Effect on a Pneumatic Vibration Isolation System

Abstract

The pneumatic vibration isolator (PVI) plays an increasingly important role in precision manufacturing. In this paper, aiming to detect the performance of the pressure regulator in the PVI system, a PVI testing system with a pressure regulator is designed and developed. Firstly, the structure of the pneumatic spring is presented and analyzed, and the nonlinear stiffness is obtained based on the ideal gas model and material mechanics. Then, according to the working principle and continuity equations of ideal airflow, a dynamic model of the PVI system with a pressure regulator is established. Through the simulation analysis, the vibration isolation performance is improved with the efficient and precise pressure regulator. The average values of both the vibration velocity and transmission rate decrease when the vibration is set to 4, 10, 20 and 40 Hz, respectively. The experiments demonstrate the reliability and effectiveness of the pressure regulator. This achievement will become an important basis for future research concerning precision manufacturing.

Introduction

In recent years, vibration isolation technology plays an increasingly important role in precision manufacturing [1, 2], precision instruments [3, 4] and automatic suspension [5,6,7]. Compared to other vibration isolation devices, the pneumatic vibration isolator (PVI) has the advantages of low natural frequency [8], variable stiffness rate [9], long life and high energy storage [10, 11]. For the precision industry, especially optical equipment [12], the pneumatic vibration isolation platform system is usually supported by several PVI to attenuate vibration transmitted from the vibration source to the platform. The passive PVI is a simple method for high frequency vibration isolation. The stiffness could be changed with the payload, and the PVI model is widely analyzed, such as the Nishimura model [13], Simpack-based model [14], Vampire-based model [15], and the Berg model [16, 17].

The passive PVI usually maintains high vibration isolation performance for vibration disturbances above 10 Hz, but below 10 Hz vibration isolation performance will decrease and resonance will occur near the system's natural frequency [18]. Active PVI keeps the system stable by using precision servo valves to control the gas in and out of the air spring [19,20,21,22]. However, these precision pneumatic servo systems are usually very expensive. In addition, many vibration isolation platforms operate at frequencies greater than the system's natural frequency. Therefore, to reduce costs, the stabilizing effect of the pressure regulator on vibration-induced pressure changes in the air spring cavity is considered in low-frequency vibration control. The pneumatic pressure regulator takes compressed gas as the working medium to convert the high pressure at the inlet into the low pressure at the outlet and maintains the stability of the outlet pressure. The pressure regulating principle is that the air flows through the opening of the valve core to throttle and depressurize. When the upstream input gas pressure fluctuates or the flow of the pressure regulator changes, the function of the pressure regulator is realized by keeping the valve opening at a certain opening relying on the feedback regulation of the pressure regulator itself. As a basic part, the engineering application level of the pressure regulator is much higher than the level of theoretical research. Hos et al. [23] established a mathematical model of a spring-load pressure relief valve and proved that the simplified models can predict the occurrence of flutter instability in oscillation valves. Prescott et al. [24] built several models to represent the behaviour of pressure regulators, then, the scope and effect of the model are analyzed. Kato et al. [25] designed a high precision, quick response pneumatic pressure regulator which consists of an isothermal chamber, a servo valve, a pressure sensor, a quick response laminar flow sensor (QFS), and a pressure differential sensor. Wang et al. [26] designed an accurate self-tuning pressure regulator for pneumatic-pressure-load systems. The dynamic characteristics of pneumatic proportional regulator in pneumatic loading system were also analyzed [27].

In order to verify the reliability and effectiveness of the pressure regulator, the structure of the pneumatic spring is presented and analyzed, and the nonlinear stiffness is obtained based on the ideal gas model [28, 29], and finite element method [30, 31]. Then, according to the working principle and continuity equations of ideal air flow, a dynamic model of the PVI system with the pressure regulator was established. The simulation under the Simulink environment is applied to analyze the performance of the pressure regulator. The PVI testing system with a pressure regulator is designed and developed to verify the results of the simulation. Finally, a summary of the results and conclusions is presented.

Pneumatic Vibration Isolation System

Structure Parameters of the Pneumatic Spring

The structure of the pneumatic spring is presented as shown in Figure 1. It is comprised of a fixed bogie, a moving platform, an air chamber, an air inlet and a rubber connector. The fixed bogie is a rigid part connected with the vibration platform by the flange. The moving platform is also a rigid component to support the loads from the isolation platform. The rubber connector connects the moving platform and the fixed bogie, which performs a conical surface. The air chamber is an envelope space surrounded by the fixed bogie, rubber connector and floating platform. The air inlet is a hole in the fixed bogie for air pressure adjustment.

Figure 1
figure 1

Structure of the pneumatic spring

Parameters of the Pneumatic Spring

Vertical stiffness is important for the dynamic characteristic of the pneumatic spring. As can be seen in Figure 1, L1 is the length of the air chamber, D1 and dm stand for the outer and inner diameters of the rubber connector, and lm is the length of the floating displacement inside the air chamber. H denotes the floating height. The stiffness model is a parallel combination of two parts: the stiffness model of internal compressed air and the stiffness model of the rubber connector. In a sealed container, the ideal gas equation is shown as Eq. (1).

$${P_g}{V^\lambda } = const,$$
(1)

where \(\lambda\) is the polytrophic coefficient. If the internal temperature is constant, then \(\lambda\) = 1. If part of the gas cannot complete the heat exchange process within a short time or there is not much heat exchange and it is regarded as an adiabatic process, then \(\lambda\) is recorded as 1.4. The volume of the air spring could be divided into two parts: the constant part and the variable part. The constant part could be calculated as:

$${V_{{\text{con}}}} = \frac{{\uppi {D_1}^2{L_1} - \uppi {d_{\text{m}}}^2{l_{\text{m}}}}}{4}.$$
(2)

As can be seen in Figure 2, the volume of the air chamber changes with the floating height H. The variable part could be approximately calculated as:

$${V_{{\text{var}}}} = \left\{ {\begin{array}{*{20}{c}} {\int_0^H {{{\uppi}}{{\left( {\frac{{{d_{\text{m}}}}}{2} + \left( {\frac{{{D_1} - {d_{\text{m}}}}}{2H}} \right)h} \right)}^2}{\text{d}}h{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} H > 0,} } \\ { - \int_H^0 {\uppi{{\left( {\frac{{{d_{\text{m}}}}}{2} + \left( {\frac{{{D_1} - {d_{\text{m}}}}}{2H}} \right)h} \right)}^2}{\text{d}}h{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} H \leqslant 0.} } \end{array}} \right.$$
(3)
Figure 2
figure 2

The change of the moving platform

Through the integral, the variable volume could be simplified as:

$${V_{\operatorname{var} }} = \frac{{{{\uppi}}H}}{12}\left( {{D_1}^2 + {D_1}{d_m} + {d_m}^2} \right).$$
(4)

The total volume could be calculated as:

$$\begin{aligned} V & = {V_{{\text{con}}}} + {V_{\operatorname{var} }} \\ & = \frac{{{{\uppi}}{D_1}^2{L_1} - {{\uppi}}{d_m}^2{l_m}}}{4} + \frac{{{{\uppi}}H}}{12}\left( {{D_1}^2 + {D_1}{d_m} + {d_m}^2} \right). \\ \end{aligned}$$
(5)

In order to analyze the relationship of the parameters, new indexes ε1, ε2 are introduced in the model. ε1= dm/D1, ε2 = lm/L1. And Eq. (5) could be simplified as:

$$V = \frac{{{{\uppi}}{D_1}^2}}{12}\left( {3{L_1}\left( {1 - {\varepsilon_1}^2{\varepsilon_2}} \right) + H\left( {1 + {\varepsilon_1} + {\varepsilon_1}^2} \right)} \right).$$
(6)

The derivative of the pressure Pg concerning the height H could be derived from Eq. (1), and the derivative is obtained as:

$$\frac{{\partial {P_{\text{g}}}}}{\partial H} = - \frac{{{P_{\text{g}}}\lambda }}{V}\frac{\partial V}{{\partial H}} = - \frac{{{{\uppi}}{D_1}^2\lambda {P_{\text{g}}}\left( {{\varepsilon_1}^2 + {\varepsilon_1} + 1} \right)}}{12V}.$$
(7)

The force produced by the pneumatic spring could be described as:

$${F_{\text{g}}} = \left( {{P_{\text{g}}} - {P_0}} \right) \cdot \frac{{{\uppi}}}{4}{D_1}^2,$$
(8)

where P0 is the pressure of the atmosphere. In this pneumatic spring model, the effective area is defined as \({A_{{\text{ef}}}} = {{\pi {D_1}^2} \mathord{\left/ {\vphantom {{\pi {D_1}^2} 4}} \right. \kern-\nulldelimiterspace} 4}\). Referring to Eqs. (7) and (8), the stiffness of the air can be expressed as:

$${k_{\text{g}}} = \frac{{\partial {F_{\text{g}}}}}{\partial H} - \frac{{{P_{\text{g}}}\lambda {A_{{\text{ef}}}}^2\left( {{\varepsilon_1}^2 + {\varepsilon_1} + 1} \right)}}{4V}.$$
(9)

Parameters Model of the Rubber Connector

The vertical elastic stiffness of the rubber kx could be analyzed based on the finite element. In the pneumatic spring structure, rubber shapes a conical surface. It is assumed that the rubber material presents a smooth characteristic. Based on the finite element analysis, the rubber connector could be divided into small elements. As shown in Figure 3, a rubber connector is a composition of the parallel element rubber stick. Each stick could be recognized as a series of rubber pieces. The elastic stiffness of the rubber connector is a series and parallel structure of the rubber pieces.

Figure 3
figure 3

The parameter model of the rubber connector

It is assumed that the rubber material presents a smooth characteristic. Based on the material mechanics, the stiffness of the rubber can be integrated as:

$${k_{\text{x}}} = \int_0^{{2\uppi }} {\frac{\sin \alpha }{{\int_0^L {\frac{{{\text{d}}l}}{{E \cdot {\text{d}}S}}} }}} = \int_0^{{2\uppi }} {\frac{\sin \alpha }{{\int_0^L {\frac{{{\text{d}}l}}{{E \cdot \left( {\frac{{{D_1}l - {d_m}l + {d_m}L}}{L}} \right)\delta \cdot \Delta \theta }}} }}},$$
(10)

where E denotes Young’s modulus of the rubber, L means the elongation length of the rubber and \(H = L\sin \alpha\), δ is the thickness of the rubber. Through integral, the stiffness of the rubber could be calculated as:

$${k_{\text{x}}} = - \frac{{E\delta \times {{\uppi}} \times \left( {\frac{1}{{\varepsilon_1}} - 1} \right){d_{\text{m}}}H}}{{\left( {{H^2} + {{\left( {\frac{{{D_1} - {d_{\text{m}}}}}{2}} \right)}^2}} \right) \times \ln \frac{1}{{\varepsilon_1}}}}.$$
(11)

It is assumed that h0 is the activating length of the rubber spring, which is 10 mm. The rubber spring will not work if the parameter H does not reach h0. Thus, the stiffness of the pneumatic spring can be determined from the aforementioned equations as Eq. (12).

$$k = \left\{ {\begin{array}{*{20}{c}} {{k_{\text{g}}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} H \leqslant {h_0},} \\ {{k_{\text{x}}} + {k_{\text{g}}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} H > {h_0}.{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} } \end{array}} \right.$$
(12)

Natural Frequency Analysis of the Testing System

Based on the dynamic analysis, this is the free vibration of the coulomb damping system. Coulomb damping has no effect on the natural frequency of the simple harmonic vibration, the natural frequency would be obtained as:

$$\omega = \frac{1}{2\uppi }\sqrt {\frac{k}{{m_0}}} ,$$
(13)

where k is the stiffness of the system, and could be expressed as:

$$k = {k_g} + {k_x}.$$
(14)

Vibration Transmission Rate Analysis

The vibration isolation effect of a nonlinear vibration isolation system is evaluated using its transmission rate, which is defined as the ratio of corresponding vibration energy before and after the vibration isolation system [32]. The expression can be presented as:

$${T_{\text{d}}} = \sqrt {E\left[ {{{\dot x}^2}} \right]/E\left[ {{{\dot x}_{{b}}}^2} \right]} ,$$
(15)

where \(E\left[ {{{\dot x}^2}} \right]\) and \(E\left[ {{{\dot x}_b}^2} \right]\) denote the mean square of the frame and pavement velocity.

A schematic diagram of the pneumatic vibration isolation using a pressure regulator is shown in Figure 4. The compressor provides enough high-pressure gas, and the stabilized gas cylinder stabilizes the air pressure output by the air compressor to eliminate the effect of motor and environmental changes on the air pressure. Subsequently, the compressed air enters the new air spring through the pressure regulator, relying on the pressure stabilization effect of the pressure regulator to reduce the vibration generated by the exciter and realize the vibration isolation of the load.

Figure 4
figure 4

Vibration isolation schematic of a pneumatic pressure regulator

Model of Pressure Regulator

Structure of the Pressure Regulator

As shown in Figure 5, the diaphragm pressure regulator mainly includes the following parts: pressure regulating spring, relief hole, diaphragm, main spool and main spool spring. The working principle of the diaphragm pressure regulator is as shown in Figure 5.

Figure 5
figure 5

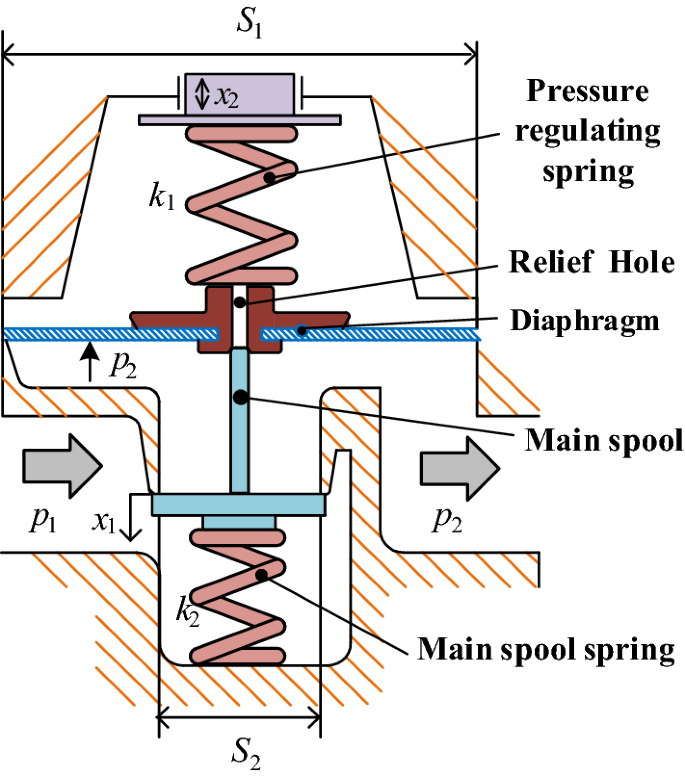

Structure of the diaphragm pressure regulator

The pressure regulating spring is compressed to push the diaphragm down, and the main spool is open. The inlet pressure p1 is throttled and depressurized through the orifice. Output pressure p2 rises and generates an upward thrust on the diaphragm. When this thrust is balanced with the force of the pressure regulating spring, the outlet pressure will stabilize at a certain value. The balance function could be calculated as:

$${F_1} + {S_2}{p_2} = {S_1}{p_2} + {S_2}{p_1} + {F_2},$$
(16)

where F1 is the pre-force of the pressure regulating spring, F2 is the pre-force of the main spool spring, S1 is the area of the diaphragm, and S2 is the area of pressure regulator inlet port.

When setting the pressure (rotary adjustment thread), the main spool opening x1 is 0, the flow through the pressure regulator is 0, and the outlet pressure can be derived as:

$${p_2} = \frac{{{F_1} - {F_2} - {S_2}{p_1}}}{{{S_1} - {S_2}}}.$$
(17)

The pressure rises instantaneously by Δp1, the outlet pressure also rises, and the thrust acting on the diaphragm increases by Δp2. The diaphragm moves up and compresses the pressure regulating spring by Δx. If the outlet pressure reaches the set threshold, the overflow will flow through the relief hole in the middle of the diaphragm. The outlet pressure drops back until a new balance reaches. The new balance function could be calculated as:

$$\begin{aligned} & {F_1} + {k_2}\Delta x + {S_2}\left( {{p_2} + \Delta {p_2}} \right) \\ & \quad = {S_1}\left( {{p_2} + \Delta {p_2}} \right) + {S_2}\left( {{p_1} + \Delta {p_1}} \right) + {F_2} - {k_1}\Delta x .\\ \end{aligned}$$
(18)

Referring to Eqs. (16) and (17), the increased pressure Δp2 could be calculated as:

$$\Delta {p_2} = \frac{{\left( {{k_2} + {k_1}} \right)\Delta x - {S_2}\Delta {p_1}}}{{{S_1} - {S_2}}}.$$
(19)

Airflow of the Pressure Regulator

The flow of the valve is determined by the inlet pressure pi and outlet pressure p0. The ratio p0/pi in different cases determines the different airflow equations with restriction and could be indicated in the continuity equations of ideal airflow:

$$q = \left\{ {\begin{array}{*{20}{c}} {\frac{{{s_{{\text{ep}}}}{p_i}}}{{\sqrt {T_i} }}\sqrt {\frac{2\kappa }{{R\left( {\kappa - 1} \right)}}\left[ {{{\left( {\frac{{{p_{\varvec{0}}}}}{{p_i}}} \right)}^{\frac{2}{\kappa }}} - {{\left( {\frac{{{p_{\varvec{0}}}}}{{p_i}}} \right)}^{\frac{\kappa + 1}{\kappa }}}} \right]} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \frac{{p_0}}{{p_i}} > 0.528{\kern 1pt} {\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} } \\ {\frac{{{s_{{\text{ep}}}}{p_i}}}{{\sqrt {T_i} }}{{\left( {\frac{2}{\kappa + 1}} \right)}^{\frac{1}{\kappa - 1}}}\sqrt {\frac{2\kappa }{{R\left( {\kappa + 1} \right)}}} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \frac{{p_0}}{{p_i}} \leqslant 0.528,} \end{array}} \right.$$
(20)

where Sep means the effective area of the pneumatic intake and exhaust port, mm2; κ stands for specific heat ratio; and Ti means the upstream side temperature, K.

Design of the Pneumatic Spring Testing System

Simulation Analysis of the Vibration Isolation System

The dynamic model of the vibration isolation system with pressure regulator could be established in Figure 6. The main spool opening affects the area of the inlet port. The area of the valve inlet port could be calculated as:

$${s_i} = {x_1} \cdot \uppi {d_2}.$$
(21)
Figure 6
figure 6

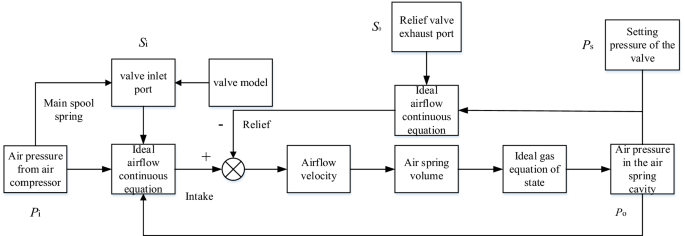

The dynamic analysis of vibration isolation system with pressure regulator

For the relief part, S0 is the area of the relief port. Based on the dynamic model, the simulation of the testing system is established under Matlab/Simulink environment. The initial parameters of the pneumatic spring are presented in Table 1.

Table 1 Initial parameters of the pressure regular

In the simulation, five computing modules are established, which are pressure regulator model, pneumatic spring dynamic model, rubber stiffness model, transmission rate analysis and pressure regulator. The evaluating values such as vibration velocity, pneumatic pressure of the spring and transmission rate are the outputs of the system.

The payload is set as 30 kg, and the amplitude of the vibration is 5 mm. The pressure regulator system and without pressure regulator system are simulated with the same conditions respectively. From Ref. [33], the ideal air pressure is set as 0.16 MPa. In order to analyze the pressure influence, the setting pressure of the pneumatic and input pressure are respectively set as 0.16 MPa and 0.2 MPa with the pressure regulator. For another system, the initial pressure is set as 0.16 MPa. In the first simulation, the frequency of the signal is set as 4 Hz. The simulation time is 5 s, and the simulation results are shown in Figure 7.

Figure 7
figure 7

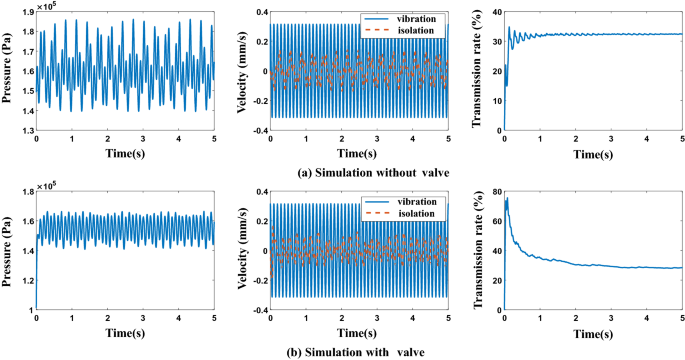

Simulation results comparison of pressure, velocity and transmission rate under 4 Hz vibration

As can be seen in Figure 7, the pressure inside the pneumatic spring shows smooth performance with the pressure regulator. The maximum pressure fluctuation is 0.063 MPa without a valve and 0.023 MPa with the valve respectively. The mean range velocity of the isolation is 0.71 mm/s without a valve and 0.51 mm/s with the valve. The stable transmission rate is 226% without a valve and 191% with the valve respectively.

In the second simulation, the frequency of the signal is set as 10 Hz, shown as Figure 8. The pressure inside the pneumatic spring shows smooth performance with the pressure regulator. The maximum pressure fluctuation is 0.047 MPa without a valve and 0.025 MPa with the valve respectively. The mean range velocity of the isolation is 0.25 mm/s without a valve and 0.20 mm/s with valve. The stable transmission rate is 32.4% without a valve and 28.3% with the valve respectively.

Figure 8
figure 8

Simulation results comparison of pressure, velocity and transmission rate under 10 Hz vibration

In the third simulation, the frequency of the signal is set as 20 Hz, shown in Figure 9. The pressure inside the pneumatic spring shows smooth performance with the pressure regulator. The maximum pressure fluctuation is 0.044 MPa without valve and 0.025 MPa with the valve respectively. The mean range velocity of the isolation is 0.21 mm/s without valve and 0.18 mm/s with valve. The stable transmission rate is 14.9% without a valve and 13.2% with the valve respectively.

Figure 9
figure 9

Simulation results comparison of pressure, velocity and transmission rate under 20 Hz vibration

In the fourth simulation, the frequency of the signal is set as 40 Hz, shown as Figure 10. The pressure inside the pneumatic spring shows smooth performance with the pressure regulator. The maximum pressure fluctuation are 0.044 MPa without valve and 0.025 MPa with the valve respectively. The mean range velocity of the isolation are 0.19 mm/s without valve and 0.16 mm/s with valve. The stable transmission rate are 7.9% without valve and 5.2% with the valve respectively.

Figure 10
figure 10

Simulation results comparison of pressure, velocity and transmission rate under 40 Hz vibration

From the simulations above, as can be seen in Figure 11, the following conclusions can be drawn. The pressure regulator can improve the stability of air pressure and reduce the vibration velocity and transmission rate in the spring chamber with 4, 10, 20 and 40 Hz vibration frequency. The pressure regulator performs better in low frequency vibration. The pressure regulator in the system could not isolate the low frequency vibration such as 4 Hz vibration. Based on the natural frequency analysis, the natural frequency of the experimental system is around 4 Hz, and the vibration is amplified by the vibration isolation system.

Figure 11
figure 11

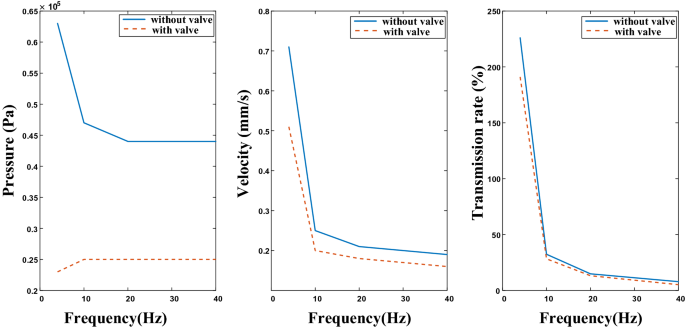

Simulation results comparison conclusion

Comparison Between Simulation and Experiment of the Testing System

Scheme of the Experiment System

The pneumatic vibration isolation testing system is shown in Figure 12. Payload stands for the effective mass above the platform, and pressure regulator is a control component of the vibration isolation system. An accelerometer is applied to measure the data of the source and vibration isolation platform. As the main vibration damping element, the gas spring acts between the vibration source and the table. Exciters are used to simulate random vibration sources in the environment. A fixed frame is used to support vibration and isolation platform. Two linear bearings ensure that the transitive vibration direction is vertical. The vibration platform and isolation platform are detected to prove the performance of the pneumatic spring. Besides, air compressors and regulator bottles, as well as some pneumatic ducts, are used to provide air with stable pressure and transmission pressure.

Figure 12
figure 12

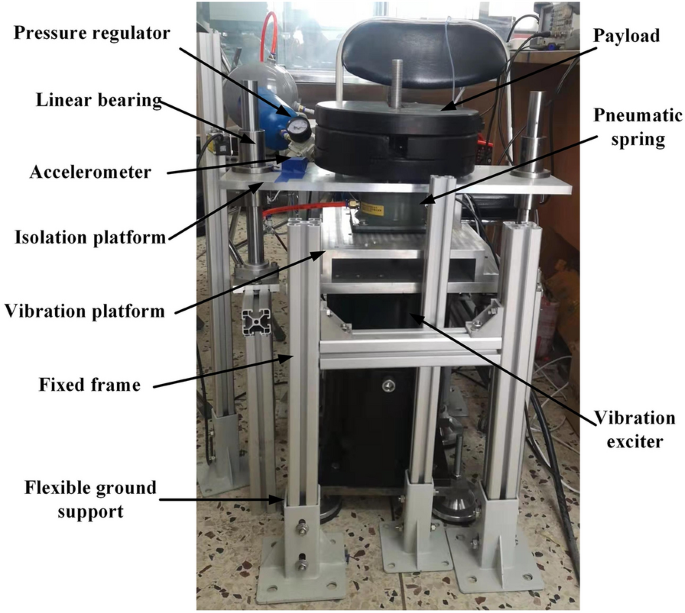

Pneumatic vibration isolation testing system

The testing system could realize the parameter detection of under multi-band frequency. The air pressure of the spring and the frequency of the stimulated vibration are variable. The system could test the performance of the springs under different conditions.

Result and Discussion

The payload ranges from 10 to 50 kg with step size 10 in the pneumatic vibration isolation testing system. From Ref. [34], 10 and 50 kg payloads are analyzed, and 30 kg performs the most stable under the vibration from 20 to 100 Hz. In the experiment, the payload is set as 30 kg, and the vibration frequency is set as 4, 10, 20 and 40 Hz respectively. The condition of the experiment fits that of the simulation. Based on the integral of the acceleration, the velocity comparison is presented as Figure 13. The transmission rate comparison is shown in Figure 14. With the pressure regulator, the stable transmission rates are 331.1%, 43.3%, 3.6% and 2.9% under 4, 10, 20 and 40 Hz respectively. Compared with the simulation result, the results of the experiment are as follows.

  1. (1)

    From the transmission rate results under 4, 10, 20 and 40 Hz, the pneumatic spring proves to be effective under the high vibration frequency. For low-frequency vibration such as 4 Hz, this pneumatic spring loses effectiveness. The experimental results agree with the simulation results.

  2. (2)

    Compared with the simulation results, the experiment results show more efficient under the high frequency vibration, and less efficient under the low frequency vibration. The reason might due to the damping of the linear bearing.

  3. (3)

    Adding a pressure regulator, the high-frequency vibration is slightly better than the passive effect. But if the pressure of the pressure regulator is not adjusted properly, it will have the opposite effect.

Figure 13
figure 13

Isolator performance under different frequency vibration in the second simulation

Figure 14
figure 14

Isolator performance under different frequency vibration in the second simulation

Conclusions

  1. (1)

    A pneumatic spring with a conical rubber connector is presented. The stiffness of the pneumatic spring is analyzed based on the ideal gas model and finite element method. According to the working principle and continuity equations of ideal airflow, a dynamic model of the PVI system with pressure regulator is established.

  2. (2)

    Simulation is established in the Matlab/Simulink environment. Through the analysis of the simulation, the pressure control performance is improved with the pressure regulator. Mean vibration velocity and transmission rate decrease under 4, 10, 20 and 40 Hz vibration. But the system with pressure regulator could not achieve the effect of the low frequency vibration isolation such as 4 Hz vibration.

  3. (3)

    A multi-frequency band testing system with different payloads is designed and established to detect the performance of the pressure regulator. A comparison between the simulation and the experiment is obtained. The experimental results agree with the simulation results. The error might be caused by the damping of the linear bearing.

For future research, this structure can be converted into an active pneumatic spring for low frequency vibration isolation. If so, this would become an important basis for improving precision manufacturing under low frequency vibration and a fundamental theory for the precise control of pneumatic springs.
