Dynamic Recrystallization Behavior of Q370qE Bridge Steel
Chinese Journal of Mechanical Engineering volume 36, Article number: 114 (2023)
Abstract
Bridge steel has been widely used in recent years for its excellent performance. Understanding the hightemperature Dynamic Recrystallization (DRX) behavior of highperformance bridge steel plays an important role in guiding the thermomechanical processing process. In the present study, the hot deformation behavior of Q370qE bridge steel was investigated by hot compression tests conducted on a Gleeble 3800GTC thermalmechanical physical simulation system at temperatures ranging from 900 ℃ to 1100 ℃ and strain rates ranging from 0.01 s^{−1} to 10 s^{−1}. The obtained results were used to plot the true stressstrain and workhardening rate curves of the experimental steel, with the latter curves used to determine the critical strains for the initiation of DRX. The ZenerHollomon equation was subsequently applied to establish the correspondence between temperature and strain rate during the hightemperature plastic deformation of bridge steel. In terms of the DRX volume fraction solution, a new method for establishing DRX volume fraction was proposed based on two theoretical models. The good weathering and corrosion resistance of bridge steel lead to difficulties in microstructure etching. To solve this, the MTEX technology was used to further develop EBSD data to characterize the original microstructure of Q370qE bridge steel. This paper lays the theoretical foundation for studying the DRX behavior of Q370qE bridge steel.
1 Introduction
Highperformance bridge steel is widely used in crosssea highways, highspeed railroads, and other projects due to its excellent properties, including high strength, high toughness, a low flexural strength ratio, easy welding, and corrosion resistance [1,2,3]. Bridge steel is mainly produced through a hightemperature rolling process. As the main softening mechanism in the process of the hightemperature plastic deformation of metal materials, dynamic recrystallization (DRX) is affected by the coupling interaction of temperature, strain rate, and strain. In turn, this coupling interaction determines the internal microstructure of the material, such as the grain size and morphology. DRX behavior significantly affects the mechanical properties of the product [4,5,6]. Therefore, the study of DRX behavior of the hightemperature plastic deformation of metallic materials plays an important role in revealing the mechanism of rolling microstructure evolution.
In recent years, the study of DRX behavior has received increasing attentions. Sellars et al. [7, 8] were the first to apply the Gleeble thermalmechanical physical simulation machine to conduct a large number of experiments to establish a DRX model based on the Avrami function during the hightemperature rolling of metallic materials. Siciliano et al. [9] demonstrated the importance of the DRX of the hightemperature austenite phase in the hot rolling process for grain refinement. ElShenawy et al. [10] verified the feasibility of the Gleeble3500 physical simulation machine to simulate the microstructure transformation of materials during the rolling process. The researchers simulated the complex continuous rolling process via hot simulation experiments, showing that the physical simulation could effectively reduce the experiment and production costs. Fan et al. [11] studied the controlled rolling and cooling process of bridge steel. The results indicate that the microstructure is primarily composed of nonequiaxed ferrite grains with a martensite/austenite (M/A) constituent dispersed at the grain boundaries in specimens with heattreatment online process temperature. The authors mainly focused on the phase transformation process during the rolling process of bridge steel and did not investigate the recrystallization behavior.
Duan et al. [12] investigated the DRX behavior of 34CrNiMo6 steel and developed a kinetic model for the DRX of the material based on the Avrami function. The researchers applied optical microscopy to characterize the microstructure evolution of the material during hightemperature deformation, and then predicted the DRX behavior of the material during hightemperature hot deformation using the deform finite element simulation. The results showed that the finite element simulation provides a theoretical guidance and process optimization for the metal materialforming process. Zhang et al. [13] studied the DRX behavior of magnesiumaluminum alloy during hightemperature plastic deformation, established a DRX volume fraction model based on traditional methods, and applied EBSD technology to analyze the microstructure transformation mechanism of DRX of magnesiumaluminum alloy. The researchers concluded that the type of DRX is related to the deformation temperature, and then applied Abaqus finite element simulation technology to simulate the grain size change law of magnesiumaluminum alloy during hightemperature plastic deformation. The results showed that the established model could better predict the microstructure change during material deformation. Wang et al. [14] studied the DRX behavior of 15V38 steel, determined the critical strain for DRX by analyzing the flow stress, and established the correspondence of DRX critical conditions using the ZenerHolloman equation. In addition, the researchers established the DRX volume fraction model and simulated the DRX volume fraction of the material by finite element simulation for the multipass rolling process. The results showed that the DRX volume fraction increased significantly with the increase of the deformation temperature. However, the researchers did not study the microstructure transformation mechanism under the hightemperature hot deformation of the material using the microstructure characterization technique.
Research on the recrystallization behavior of hightemperature plastic deformation of metallic materials has been mainly focused on the combination of kinetic modeling, microstructure characterization, and numerical simulation to study the DRX behavior of materials in hightemperature deformation process. Therefore, in this paper, the hightemperature flow behavior of bridge steel under different hot deformation parameters was obtained by hot compression experiments. Then, kinetic modeling was performed to predict the DRX volume fraction of bridge steel under different hot deformation parameters. The microstructure characterization of bridge steel was carried out using MTEX technology. This study provides a scientific basis for the design and optimization of the rolling process of bridge steel.
2 Experimental Materials and Methods
The material used in this experiment was commercial bridge steel Q370qE. The chemical composition and original microstructure of the experimental steel are shown in Table 1 and Figure 1, respectively. As shown in Figure 1, the original microstructure consisted of similarly sized grains. The average grain size was measured to be about 35 μm by using the intercept method. The Ac1 and Ac3 temperatures were determined from the dilatometric data obtained by the dilatometer DIL 402. As shown in Figure 2, Ac1 and Ac3 of the strip were determined to be 706 ℃ and 837 ℃, respectively. The experimental temperature was determined based on the obtained critical transition temperature. The equivalent substitution method was used to physically simulate the flexible rolling process with different rolling reductions. To study the material flow behavior during the hightemperature plastic deformation of the experimental steel, cylindrical specimens of 12 mm height and 8 mm diameter were cut from the strip. The flow behavior was measured in uniaxial compression using the Gleeble 3800GTC thermalmechanical physical simulation system. Prior to the experiment, the molybdenum disulfide lubricant was applied to both sides of the cylindrical sample. Tantalum foil with a thickness of 0.1 mm was placed between the anvil and specimen to reduce friction, avoid adhesion, and improve the stability and uniformity during deformation. The graphite was cut to a disc with a diameter 2 mm larger than the initial diameter of the specimen. Then, the disc was inserted between the anvil and the specimen to increase the electric resistance at the interface to achieve temperature uniformity over the specimen axis. A K type thermocouple was placed in the longitudinal center of the specimen to measure the temperature. The thermal simulation experimental procedure is shown in Figure 3a. The specimens were heated to 1150 ℃ at a heating rate of 10 ℃/s and held for 240 s to ensure the microstructure was uniformly austenitized. Then, the specimens were cooled to the deformation temperature at a cooling rate of 5 ℃/s and held for 60 s to eliminate the temperature gradient. Subsequently, the specimens were subjected to unidirectional hot compression experiments in an argon atmosphere with a reduction of 53%. Five temperatures (900 ℃, 950 ℃, 1000 ℃, 1050 ℃, and 1100 ℃) and four strain rates (0.01 s^{‒1}, 0.1 s^{‒1}, 1 s^{‒1}, and 10 s^{‒1}) were selected in the hot compression test to simulate the flexible rolling process, as shown in Figure 3b. To reserve the hightemperature initial austenite microstructure, the specimens were quenched immediately to room temperature after holding. The samples were cut along the axial direction. After mounting and polishing, the samples were vibrationally polished in the silica suspension solution for 2 h. The processed samples were analyzed using a Zeiss Sigma 500 scanning electron microscope (SEM) equipped with a HKL Channel 5 EBSD system to determine the morphologies and distributions of the grain boundaries. Due to the low carbon and phosphorus content of the specimen, it was difficult to etch the austenite grain boundaries using BechetBeaujard method. In this paper, the MTEX methodology was used to further analyze the EBSD data to characterize the initial austenite microstructure.
3 Results and Discussion
3.1 Flow Stress Behavior

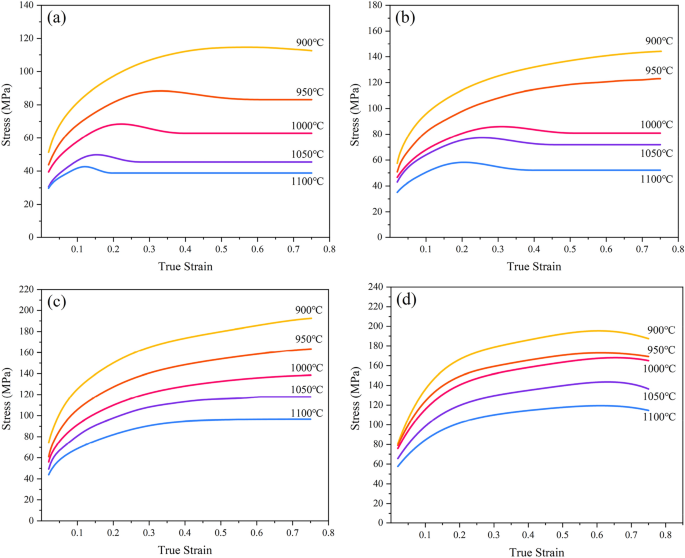

Figure 4 shows the flow stress curves of the experimental steel with different deformation conditions. From the figure, the flow stress varies with the deformation temperature and the strain rate. Under some deformation conditions, the flow stress curve had a peak stress, i.e., as the strain increased, the flow stress curve did not continue to increase, but instead tended to decrease and then reach a steady state. These results are consistent with the conclusions obtained from recent studies [15]. From Figure 4, the flow stress gradually decreased with the increase of the deformation temperature at a certain strain rate, and increased with the increase of the strain rate at a certain deformation temperature. For example, the peak stress decreased from 114.6 MPa at 900 °C to 42.6 MPa at 1100 °C with a strain rate of 0.01 s^{‒1}. The peak stress increased from 114.6 MPa at 0.01 s^{‒1} to 195.2 MPa at 10 s^{‒1} with a deformation temperature of 900 °C. Some studies have shown that the DRX behavior of the material can be seen in the flow stress curves [16, 17]. To better understand the DRX behavior of materials on the flow stress curve, the material’s flow stress curves during hot processing are shown in Figure 5. The workhardening (WH), dynamic recovery (DRV), and dynamic recrystallization (DRX) behavior of the material during thermomechanical processing can be observed in Figure 5. DRV and DRX are the dynamic softening process during a thermomechanical processing process. In the early stages of deformation, due to the workhardening effect, the stress increases rapidly with the increase of the strain. When the deformation reaches the critical state of dynamic recovery, dynamic recovery softening occurs, which is manifested as a slower rate of stress increase. When the deformation increases to the critical state of the DRX \({\varepsilon }_{c}^{DRX}\), the DRX softening occurs. After the flow stress reaches the peak stress \({\sigma }_{p}\), the flow stress decreases with an increase of strain. Finally, the flow stress reaches a stable state \({\sigma }_{ss}\), which indicates that the work hardening and dynamic softening have reached the dynamic equilibrium state. The DRX has the most significant softening effect on the material during hot processing. Therefore, understanding the DRX behavior of the material plays an important role in optimizing the rolling process and distributing the mill load.

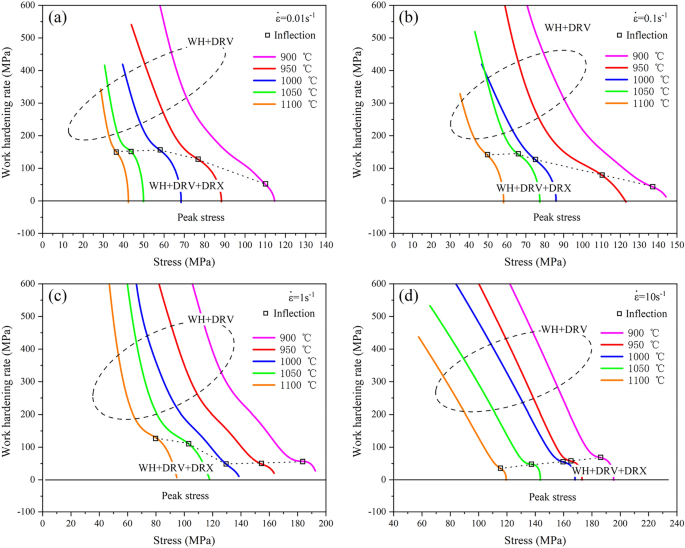

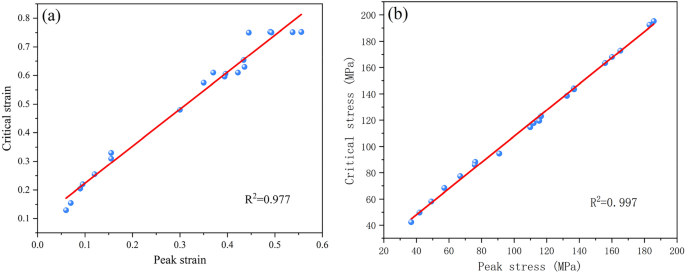

From above analysis, the critical strain is a key parameter of the DRX. The critical strain mainly depends on the accumulated energy of the deformation process. In recent years, several methods have been proposed to identify the critical strain of the DRX [18,19,20]. Here, the mathematical modeling method was used to obtain the critical strain \({\varepsilon }_{c}\) for the DRX. The procedure for deriving the critical strain involves drawing the workhardening rate \(\left\mathrm{d}\sigma /\mathrm{d}\varepsilon \right\) versus the \(\sigma\) curve. Then, the derivative of the workhardening rate \(\left\mathrm{d}\theta /\mathrm{d}\sigma \right\) versus \(\sigma\) is calculated, and the minimum value is the inflection point of \(\left\mathrm{d}\sigma /\mathrm{d}\varepsilon \right\sigma\). Following this method, the critical strains of the DRX under different deformation conditions are shown in Figure 6. In the initial stage of the deformation, the material was mainly affected by the workhardening rate and dynamic recovery, and the flow stress decreased slowly. This period represents the formation process of the subgrain microstructure [21]. When the strain reaches the DRX critical strain, the softening effect is greater, and the flow stress decreases rapidly. The DRX is the main softening mechanism of hightemperature plastic deformation, which results in a faster decrease in the flow stress until the workhardening rate is zero, i.e., the peak stress \({\sigma }_{p}\) is obtained. From Figure 6, the critical strain of the DRX decreased with the increase of the deformation temperature. When the critical strain is determined, the critical stress can be determined as well. From Figure 7, linear relationships between \({\sigma }_{p}\) and \({\sigma }_{c}\), \({\varepsilon }_{p}\) and \({\varepsilon }_{c}\) can be observed at different deformation conditions.
During the hightemperature plastic deformation of materials, the hot deformation parameters (strain, stress, and strain rate) have an important influence on the DRX behavior [22,23,24]. The thermally activated storage energy during hightemperature plastic deformation is a key parameter to induce the DRX behavior of the material. Arrheniustype models were used to illustrate the relationship between the thermally activated storage energy and the deformation behavior. The ZenerHollomon (Z) parameter was designed to represent the coupling effect of the deformation temperature and the strain rate [25]:
Sellars et al. [26, 27] proposed a hyperbolic sine function to indicate the relation among the thermodynamic parameters:
where \({A}_{1}\), \({A}_{2}\), \(A\), \(n\), \({n}_{1}\), and \(\beta\) are the materials constants; \(\alpha\) is the stress multiplier, \(\alpha \approx \beta /{n}_{1}\); \(Q\) is the activation energy for deformation (kJ/mol)\(; \dot{\varepsilon }\) is the strain rate (s^{‒1}); \(T\) is the absolute temperature (K); \(R\) is the gas constant (8.314 J/mol); and \(\sigma\) is the flow stress (MPa). To facilitate the acquisition and calculation, the peak stress \({\sigma }_{p}\) is generally used to represent \(\sigma\). All the parameters in Eqs. (1)−(2) can be obtained using the natural algorithm method described in Refs. [25, 28, 29]. There are linear relationships between \(\mathrm{ln}\dot{\varepsilon }\mathrm{ln}{\sigma }_{p}\) and \(\mathrm{ln}\dot{\varepsilon }{\sigma }_{p}\), \(\mathrm{ln}\left[\mathrm{sinh}\left(\alpha {\sigma }_{p}\right)\right]1/T\) and \(\mathrm{ln}\dot{\varepsilon }\mathrm{ln}\left[\mathrm{sinh}\left(\alpha {\sigma }_{p}\right)\right]\), as shown in Figure 8. The average slopes between \(\mathrm{ln}\dot{\varepsilon }\) and \(\mathrm{ln}{\sigma }_{p}\), \(\mathrm{ln}\dot{\varepsilon }\) and \({\sigma }_{p}\) were calculated: the material constant \({n}_{1}=7.998\), \(\beta =0.073 \; {\text{MP}}{\text{a}}^{1}\). Then, \(\alpha\) was obtained as 0.009. The activation energy Q for a constant strain rate can be expressed as:

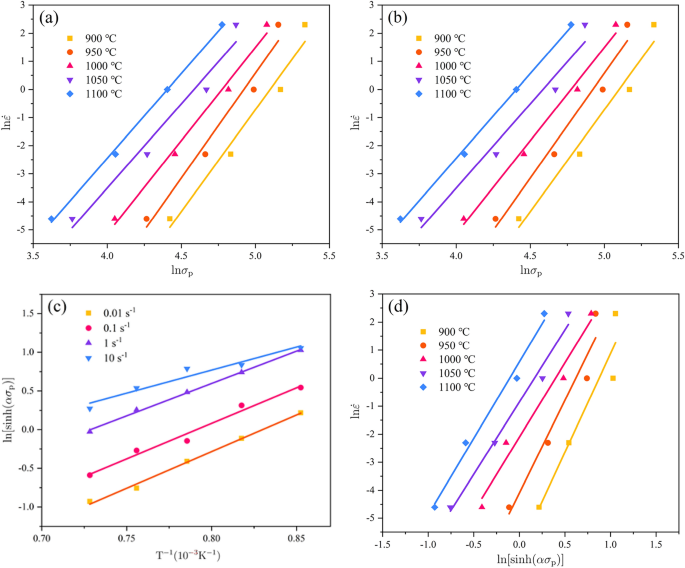

The average slopes between \(\mathrm{ln}\left[\mathrm{sinh}\left(\alpha \sigma \right)\right]\) and \(1/T\), and between \(\mathrm{ln}\dot{\varepsilon }\) and \(\mathrm{ln}\left[\mathrm{sinh}\left(\alpha \sigma \right)\right]\) were fitted out, as shown in Figure 8. The Q value was calculated to be 404.806 kJ/mol.
The natural logarithm function was used to calculate the last material constants \(A\) and \(n\), which can be obtained based on the linear correlation between \(\mathrm{ln}Z\) and \(\mathrm{ln}\left[\mathrm{sinh}\left(\alpha {\sigma }_{p}\right)\right]\), as shown in Figure 9.
The values of \(A\) and \(n\) were found to be \(A=4.79\times {10}^{15}\) and \(n=5.789\), respectively. Eqs. (1) and (2) can be expressed as:
3.2 Establishment of the DRX Volume Fraction Model
DRX is a dynamic softening mechanism during the hightemperature plastic deformation of materials. There are many published studies on the calculation of DRX volume fraction [30,31,32,33,34]. Different physical parameters in DRX models represent different meanings, as explained in the above mentioned model calculation section, and it is noteworthy that some studies have used peak stress \({\sigma }_{p}\) instead of saturation stress \({\sigma }_{sat}\) [35, 36]. As discussed in the analysis in Section 3.1, the initiation point of the DRX is at the critical strain, and replacing the saturation stress \({\sigma }_{sat}\) with the peak stress \({\sigma }_{p}\) causes errors. In the model prediction analysis, the higher prediction DRX model depends on the internal softening mechanism of the DRX grains from the onset to the final evolution of the DRX. Therefore, it is appropriate to use the difference between the DRV saturation stress and steady stress as the DRX driving force. In this paper, a new DRX volume fraction model was proposed in combination with the methods proposed by Zahiri et al. [37] and Jonas et al. [38], as shown in Eq. (6):
where \({X}_{\text{DRX}}\) is the DRX experimental volume fraction, \({\sigma }_{recov}\) is the DRV stress, \(\sigma\) is the flow stress, \({\sigma }_{sat}\) is the saturation stress, and \({\sigma }_{ss}\) is the steady state stress. \(\sigma\) and \({\sigma }_{ss}\) can be determined from the flow stress curves. \({\sigma }_{recov}\) can be calculated by the following equations:
where \({\theta }_{c}\) is the workhardening rate corresponding to the critical stress. Then, \({\sigma }_{recov}\) is estimated:
The \({X}_{\text{DRX}}\) can be calculated from the above equations to further develop the predicted DRX volume fraction. The following equation can be used to predict the DRX volume fraction under different deformation conditions [39]:
where \(k\) and \(b\) are constants under different deformation conditions. Combining Eq. (11) with Eq. (6), the following equation can be obtained for the natural logarithms on both sides:

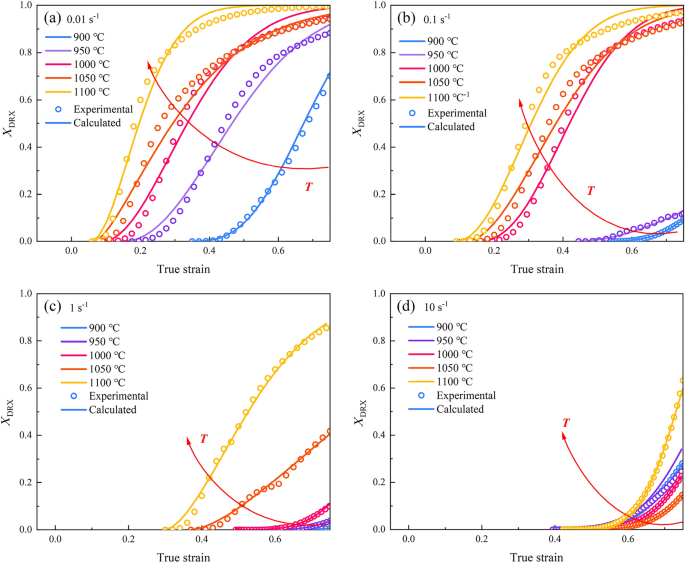

The above mathematical model allows to obtain the experimental and predicted DRX volume fraction under different deformation conditions. As shown in Figure 10, the predicted values were all highly consistent with the experimental value of the theoretical model. Figure 10, the DRX volume fraction was higher at lower strain rates. At a certain temperature, the DRX volume fraction gradually decreased with the increasing strain rate. The DRX volume fraction increased with the increasing temperature at a certain strain rate. At a lower strain rate and high temperature, the DRX volume fraction increased from 0 to 100%, indicating that a stable DRX process occurred. The increasing DRX volume fraction increasing rate underwent three stages: (1) The DRX volume fraction increased slowly with the increase of strain, (2) the DRX volume fraction rapidly increased, and (3) the DRX volume fraction increasing rate gradually decreased when the DRX volume fraction was close to 100%. For this kind of bridge steel, the deformed material acquires sufficient DRX behavior only at lower strain rates and higher temperatures. In this paper, the test steel exhibited significant DRX at the strain rate of 0.01 s^{−1}. Therefore, the average values of \(k\) and \(b\) were calculated from these deformation conditions [14]. The value of \(k\) was 2.2 and \(b\) was 1.6. Then, the predicted DRX model can be derived and expressed as:
4 Conclusions
This paper investigated the Q370qE DRX behavior of bridge steel under different deformation conditions. The following conclusions were obtained:

(1)
The flow stress curves of the experimental steel show that the DRX type curves were obtained at lower strain rates and higher temperatures. The peak stress of the flow stress curves varied with the hot deformation parameters.

(2)
The critical strain \({\varepsilon }_{c}\) and critical stress \({\sigma }_{c}\) for DRX can be obtained from the workhardening rate versus the stress curves during hightemperature plastic deformation. There are a linear relationships between the critical strain and peak strain, critical stress and peak stress.

(3)
The average activation energy at the specified deformation conditions was 404.806 kJ/mol. The ZenerHollomon equation was developed to describe the deformation behavior of the material with the coupling effect of the strain rate and temperature during hightemperature plastic deformation.\(Z=\dot{\varepsilon }\mathrm{exp}\left(\frac{404806}{RT}\right)=4.79\times {10}^{15}{\left[\mathrm{sinh}\left(0.009\sigma \right)\right]}^{5.789}\).

(4)
A new predicted DRX model was proposed by combining the theoretical models. The experimental and predicted \({X}_{\text{DRX}}\) values were compared. The new predicted DRX model has a formula of \({X}_{\text{DRX}}=1\mathrm{exp}\left(1.6{\left(\frac{\varepsilon {\varepsilon }_{c}}{{\varepsilon }_{p}}\right)}^{2.2}\right)\), which in a good agreement with the experimental results.
