Method for Evaluating Bolt Competitive Failure Life Under Composite Excitation
Chinese Journal of Mechanical Engineering volume 36, Article number: 86 (2023)
Abstract
In this study, the competitive failure mechanism of bolt loosening and fatigue is elucidated via competitive failure tests on bolts under composite excitation. Based on the competitive failure mechanism, the mode prediction model and “load ratio—life prediction curve” (ξ–N curve) of the bolt competitive failure are established. Given the poor correlation of the ξ–N curve, an evaluation model of the bolt competitive failure life is proposed based on Miner’s linear damage accumulation theory. Based on the force analysis of the thread surface and simulation of the bolt connection under composite excitation, a theoretical equation of the bolt competitive failure life is established to validate the model for evaluating the bolt competitive failure life. The results reveal that the proposed model can accurately predict the competitive failure life of bolts under composite excitation, and thereby, it can provide guidance to engineering applications.
1 Introduction
Bolt connection is widely used in construction, rail vehicles, automobiles, and ships. When a bolt connection is subjected to impact, vibration, thermal stress, and random loading, the clamping force can easily decrease, which results in two failure modes: bolt loosening and fatigue fracture [1,2,3]. The initial stage of bolt loosening potentially does not affect the normal operation of mechanical equipment. However, with further aggravation of loosening, it can result in the failure of the entire structure. Additionally, bolt fatigue failure leads to severe consequences because bolt fatigue fracture is sudden and cannot be prevented easily [4,5,6]. Therefore, it is extremely important to examine bolt loosening and fatigue failure for engineering applications.
Research on bolt loosening has shown that the transverse cyclic load perpendicular to the screw is the main factor that leads to bolt loosening [7,8,9,10]. The local slippage of the thread surface is a precondition for bolt loosening, and the overall slippage of the pressurebearing surface under the bolt head is a necessary condition for bolt loosening [11]. Yang et al. [12] found that there are three stages in the process of bolt loosening through the Junker test under transverse cyclic loading, and normalized the loosening clamping force curve of bolts to a single mathematical equation, that is, a phenomenological model. Gao et al. [13] found that the stress under bolt pretightening is mainly concentrated on the contact part of the bolt’s head and bar. Under the transverse displacement load, the sliding of the bolt can be divided into three stages: full contact, viscous contact, and full slip. Fan et al. [14] found that fatigue wear is the main wear mechanism of bolts through the bolt loosening test under transverse displacement load, and the increase in the amplitude of cyclic transverse displacement worsens the thread damage and increases the loosening degree of bolted structures. It can be seen that the current research on bolt loosening is mainly focused on establishing the “transverse displacement—loosening life” curve (D–N curve) of bolts by performing the transverse vibration test [15, 16], simulating the loosening process via finite element simulation [17, 18] and solving the critical loosening load via numerical calculation [19, 20].
Research on bolt fatigue shows that an axial cyclic load parallel to the screw is the main factor that leads to bolt fatigue [21, 22]. The most commonly used standards for assessing bolt fatigue are VDI 22302003 [23], JIS B 10811997 [24], and GB/T 136821992 [25]. In addition to the aforementioned standards, Table 1 and Figure 1 provide several design specifications, namely, ANSI/AISC 36016 [26], AISCLRFD 99 [27], AASHTO:2012 [28], BS 7608 [29], EN 199319 [30], and AS 4100 [31], which also consider the S–N curve of steel bolts. The tension and shear S–N curves of the bolts specified in BS 7608 are the most stringent, followed by those in EN 199319, AS 4100, ANSILRFD 99, and ANSI/AISC 36016, which are relatively conservative in estimating the fatigue life of bolts under tension and shear loading. In addition, Zhang et al. [32] obtained the fatigue failure modes of the bolts under cyclic displacement with constant amplitude and the fatigue life based on the tensile capacity degradation from the fatigue tests, and proposed a fatigue life prediction method based on cyclic displacement amplitude, equivalent stress amplitude and local plastic strain. Li et al. [33] found that the wear mechanisms of bolts are fatigue wear, oxidation wear and abrasive wear on threads through the fatigue tests of bolts under axial excitation, and the smaller the stress amplitude on the section of the screw, the longer the fatigue life of the bolt connection. Maljaars and Mathias [34] obtained the S–N curve of bolts through thousands of bolt fatigue tests and updated the European standard EN 199319. Based on the residual slip strain development, Xue et al. [35] proposed a nonlinear inverted Sshaped cumulative fatigue damage model of bolts for different upper stress levels. It can be seen that the current research on bolt fatigue is mainly focused on establishing bolt SN curve based on axial vibration tests, establishing bolt fatigue evaluation method through numerical analysis, and simulating the fatigue process through a finite element model.

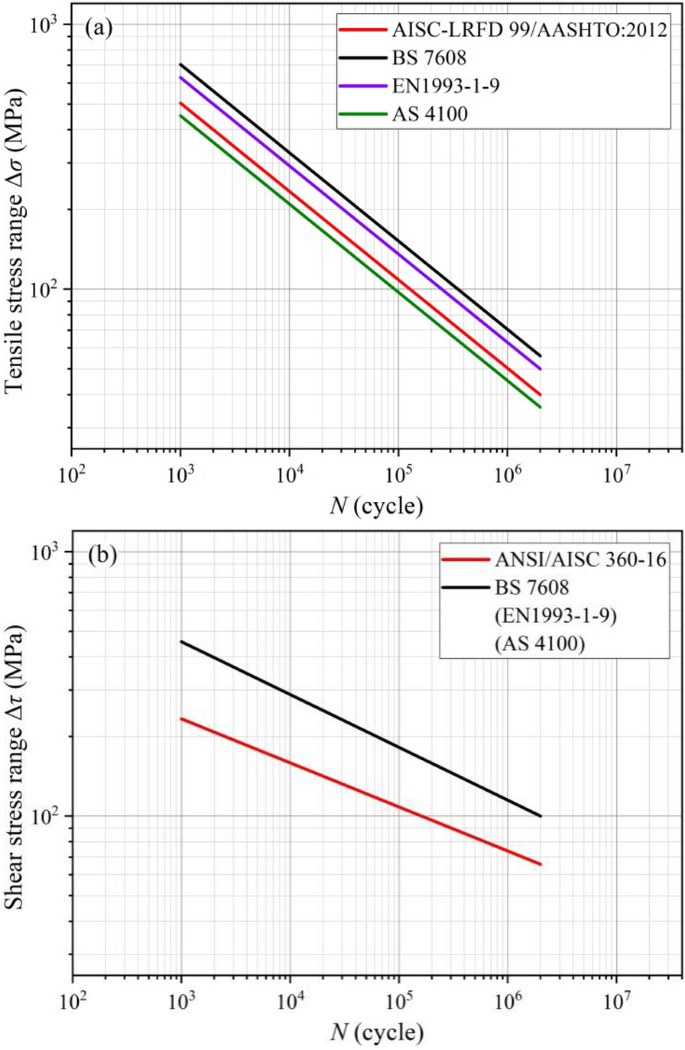

In engineering applications, although bolt connections are subjected to strict transverse vibration loosening tests and axial vibration fatigue tests, in accordance with relevant vibration standards, bolt loosening and fatigue fracture are still common problems. This is due to the fact that bolt loosening and fatigue tests are conducted separately; therefore, the actual combined vibration mode of the bolt is not considered. Generally, bolt loosening is due to transverse loads, whereas bolt fatigue is due to axial loads [7,8,9,10, 21, 22]. When the bolt connection is subjected to composite excitation (simultaneous application of transverse and axial loads), the axial load aggravates bolt loosening failure, while the transverse load aggravates bolt fatigue failure [36, 37]. Hence, bolt loosening and fatigue are not independent processes under composite excitation, but rather a competitive relationship exists between the two failure modes [38, 39]. At present, experts and scholars have made great contributions to the failure mechanism of bolt loosening or fatigue, failure life prediction methods, simulation methods, test methods, and analysis of influencing factors. However, the research on the competitive failure mechanism, mode prediction method and life evaluation method of bolt loosening and fatigue under composite excitation is still insufficient. Therefore, it is necessary to study the method for evaluating bolt competitive failure life under composite excitation, which is of great scientific and engineering significance for optimizing bolt connection parameters, preventing sudden fatigue fracture failure, and ensuring the safe operation of mechanical equipment.
In this study, the competitive failure mechanism of bolt loosening and fatigue was elucidated via a bolt competitive failure test, and the mode prediction model and “load ratio – life prediction” curve (ξ–N curve) of the bolt competitive failure were established. Given the poor correlation of the ξ–N curve, a model for evaluating the bolt competitive failure life was proposed. Subsequently, the theoretical equation of the bolt competitive failure life was established and used to validate the bolt competitive failure life evaluation model by performing force analysis of the thread surface and simulation analysis of the bolt connection under composite excitation.
2 Competitive Failure Tests on Bolts
2.1 Test Details

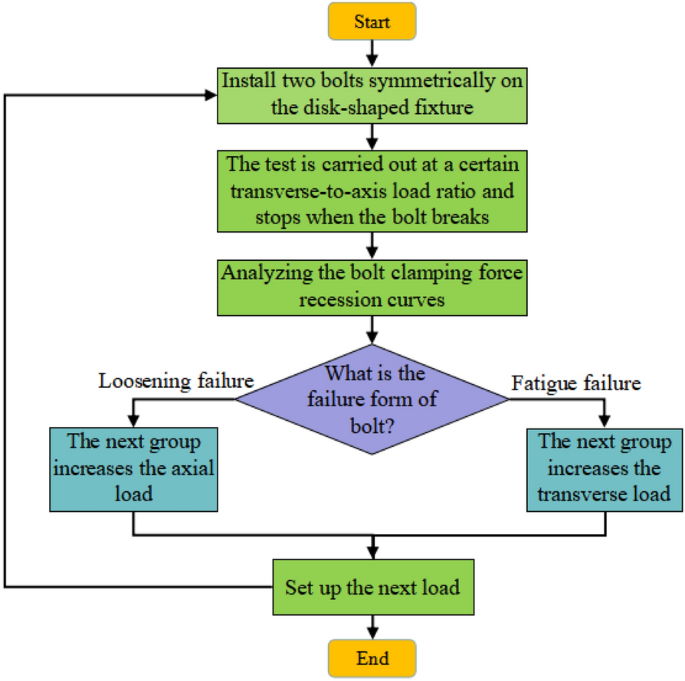

As shown in Figure 2, competitive failure tests with regard to bolt loosening and fatigue were performed using an MTS 809 tensile–torsional testing machine. The fixture was designed as a diskshaped symmetrical structure that can apply composite excitation (transverse and axial loads) to the bolt. The bolt connection was a slipcritical connection with 8.8 grade M8 × 1.25 × 70 highstrength bolts. The mechanical properties of bolts are shown in Table 2. To ensure that the load was not eccentric, two bolts were installed at symmetrical positions of the fixture at each time [40]. The transverse and axial loads were loaded in sinusoidal form with a phase difference of 90°, and the test frequency was 10 Hz. The axial load was controlled by the force, and the load ratio was zero. The transverse load was controlled by the angular displacement, and the load ratio was −1 [36,37,38,39]. The initial preload of the bolt was 14.05 kN, and the clamping force of the bolt was recorded using an EVT14T310T pressure sensor and a DH5983 portable dynamic collector.
The amplitude range of the transverse load applied in the test was 0–1666.7 N, and the maximum axial load range was 0–14400 N. The composite excitation combinations of the competitive failure tests of the bolts are listed in Table 3 (F_{T,a} denotes the transverse load amplitude, F_{A,a} denotes the maximum axial load, ξ denotes the transversetoaxial load ratio, ξ = F_{T,a}/F_{A,a}). Given that the bolts exhibit different failure modes under different transversetoaxial load ratios, the load sequence of the bolt competitive failure tests adopted the upanddown method, and the test was stopped when the bolt failed. The test process is illustrated in Figure 3.
2.2 Mechanism of Competitive Failure of the Bolt
The realtime clamping force recession curve of the bolt was obtained using a pressure sensor. As shown in Figure 4, the typical bolt clamping force recession curve can be divided into three stages: the material loosening stage (0–N_{M}), the structural loosening stage (N_{M}–N_{T}), and the fatigue fracture stage (N_{T}–N_{E}). Point N_{M} denotes the dividing point between the material loosening and structural loosening stages. Given that the bolt will not fail during the material loosening stage, N_{M} is not specified in this study. The intersection of the midline of the clamping force recession curve and 45° tangent (point N_{T} in Figure 4) can be used as the dividing point between the structural loosening and fatigue fracture stages. When the clamping force was reduced to 80% of the initial preload, the bolt entered a structural loosening stage. Therefore, the moment corresponding to when the clamping force was reduced to 80% of the initial preload (point N_{F} in Figure 4) was considered as the evaluation criterion for the complete loosening of the bolt [36,37,38,39]. The essence of bolt loosening under transverse load or bolt fatigue under axial load is the result of damage. The difference is that the damage leading to bolt loosening is mainly caused by transverse load, while the damage leading to bolt fatigue is mainly caused by axial load. The failure mode of bolts is determined by the proportion of loosening damage and fatigue damage in the whole stresstime history, and the specific external performance is the recession process of bolt clamping force. The criteria for assessing the bolt competitive failure mode based on the clamping force recession curve corresponds to the relative position of the point when the clamping force is reduced to 80% of the initial preload and intersection point of the 45° tangent, i.e., the relative positions of N_{F} and N_{T}. If N_{F} < N_{T}, the proportion of loosening damage is relatively large, and the bolt is considered to have undergone loosening failure; if N_{F} > N_{T}, the proportion of fatigue damage is relatively large, and the bolt is considered to have undergone fatigue failure [40].

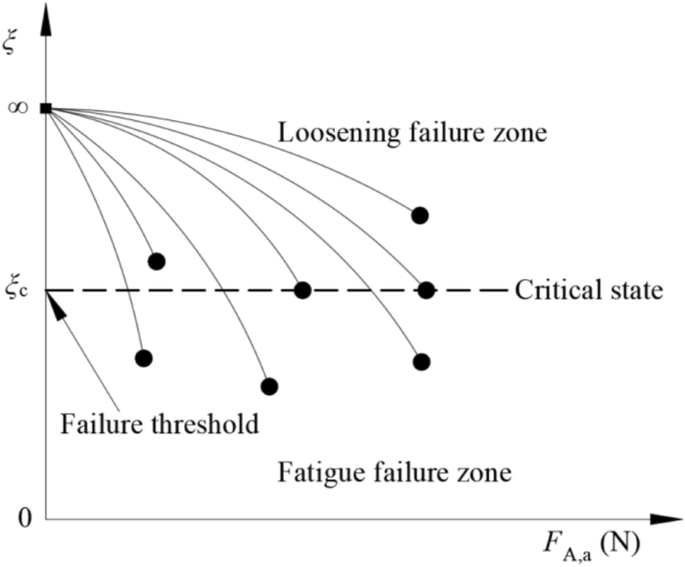

Based on the criterion for assessing the boltcompetitive failure mode, the relative positions of N_{F} and N_{T} in the clamping force recession curves of all bolts were divided, and the failure modes of all bolts were obtained. As shown in Figure 5(a), a single transverse load (1000–0, ξ = ∞) led to bolt loosening failure, while a single axial load (0–14400, ξ = 0) led to bolt fatigue failure. Further, it was verified that the transverse cyclic load is the main factor that causes bolt loosening, while the axial cyclic load is the main factor that causes bolt fatigue. Additionally, as shown in Figure 5, the bolts exhibited different failure modes with different transversetoaxial load ratios. Therefore, there is an obvious competitive failure relationship between the loosening and fatigue of bolts under composite excitation. When ξ was large (ξ > 0.125), the proportion of loosening damage was relatively large, and the bolts exhibited obvious loosening failure; when ξ was small (ξ < 0.125), the proportion of fatigue damage was relatively large, and the bolts exhibited obvious fatigue failure. Therefore, under composite excitation, the transversetoaxial load ratio is the main factor for determining the bolts’ competitive failure mode. Additionally, when ξ = 0.125, the bolt was in the critical state of loosening or fatigue failure, and ξ was the critical transversetoaxial load ratio (ξ_{c}). Notably, ξ_{c} is an inherent property of the bolt, and it is related to the bolt material, size parameters, and assembly method. However, it is irrelevant to the load [37].
2.3 Model for Predicting Bolt Competitive Failure Mode
With respect to the product failure mechanism, system failure is generally classified into degradation failure and sudden failure. Competitive failure occurs between degradation failure and sudden failure based on the relative relationship between the degradation degree and failure threshold. The analysis presented in Section 2 reveals that the transversetoaxial load ratio under composite excitation is the main factor for determining the competitive failure mode of bolts. Its essence is that the failure mode of bolts is determined by the proportion of loosening damage and fatigue damage in the whole stresstime history. As F_{A,a} increases, ξ gradually decreases. Therefore, in the competitive failure relationship between degradation failure and sudden failure, ξ is considered as the degradation degree and ξ_{c} is considered as the failure threshold of bolt loosening and fatigue competitive failure. The assessment standard of the mode prediction model of the bolt competitive failure is the relative size of ξ and ξ_{c}. If ξ < ξ_{c}, the degradation degree does not reach the failure threshold, and the proportion of fatigue damage is relatively large, so the bolt is considered to have undergone fatigue failure; if ξ = ξ_{c}, the degradation degree is equal to the failure threshold and bolt is in a critical state of loosening or fatigue failure; if ξ > ξ_{c}, the degradation degree exceeds the failure threshold, and the proportion of loosening damage is relatively large, so the bolt is considered to have undergone loosening failure. Figure 6 shows the modeprediction model of bolt loosening and fatigue competitive failure.
3 Evaluation of Bolt Competitive Failure Life
3.1 Load RatioLife Prediction Curve
Currently, the prediction of the bolt loosening life under single transverse excitation is generally based on the D–N curve, and the prediction of the bolt fatigue life under a single axial excitation is generally based on the S–N curve. Based on the prediction curve of the bolt loosening life and fatigue life, the ξ–N curve can be established for predicting bolt loosening and fatigue competitive failure life under composite excitation. As shown in Figure 7, the ξ–N curve of the bolt competitive failure was obtained based on the transversetoaxial load ratio and life of each bolt competitive failure test. As shown, the test data are highly dispersed, and certain test data points exceed the lifespan by five times (hereinafter referred to as 5×lifespan). The square of the correlation coefficient (R^{2}) of the ξ–N curve obtained by fitting the test data based on the least squares method is 0.4422, which indicates that the correlation between the transversetoaxial load ratio of the composite excitation and competitive failure life is very poor. This is because the failure mode of bolts is determined by the proportion of loosening damage and fatigue damage in the whole stresstime history, while the transversetoaxial load ratio ξ cannot reflect the damage characteristics of the bolt. Therefore, it is impossible to directly predict the competitive failure life of bolts under composite excitation based on the ξ–N curve.
3.2 Method for Evaluating Bolt Competitive Failure Life
Given the poor correlation of the ξ–N curve, it is necessary to establish a more general method for evaluating the bolt competitive failure life. Jiao et al. [41] used the modified Miner linear cumulative damage theory to estimate the fatigue life of 40Cr highstrength bolts. It was found that the error between the theoretical estimated life and the test life was not large, which proved that Miner's linear damage accumulation theory was suitable for the failure life prediction of bolts. According to Miner’s linear damage accumulation theory, the assessment of fatigue damage is based on the following relationship:
where D denotes the total damage, N_{i} denotes the life under each constantamplitude stress cycle, and n_{i} denotes the number of cycles under each constantamplitude stress.
The method for evaluating the bolt competitive failure life under composite excitation is based on Miner’s linear damage accumulation theory. Composite excitation is considered as the cumulative result of transverse excitation and axial excitation, respectively, and the linear cumulative life ratio of the bolt can be obtained as follows [36]:
where G denotes the linear cumulative life ratio, N_{i–0} denotes the life under a single transverse excitation, N_{0–j} denotes the life under a single axial excitation, and N_{i–j} denotes the life under composite excitation.
The equation for calculating the linear cumulative life ratio of the bolt included the bolt failure lives under a single transverse excitation, a single axial excitation and composite excitation. These failure lives were obtained under the combined action of load mean and load amplitude. Therefore, the average stress effect of loads was considered in the model for evaluating the bolt competitive failure life. By substituting the competitive failure life of bolts corresponding to single transverse excitation, single axial excitation, and composite excitation in Table 3 into Eq. (2), the uncorrected G–F_{T,a} curve of the bolt competitive failure is established as shown in Figure 8(a). As shown, G is in the range of 0.8–1, which proves that the bolt competitive failure life under composite excitation can be approximated based on Eq. (2). However, different transversetoaxial load ratios lead to certain data point dispersion; therefore, the influence of ξ cannot be ignored. Hence, a correction term for ξ and the life ratio is introduced into Eq. (2), and the corrected linear cumulative life ratio can be obtained as follows:
where G_{ξ} denotes the corrected linear cumulative life ratio, and K(ξ) denotes the correction coefficient related to ξ.

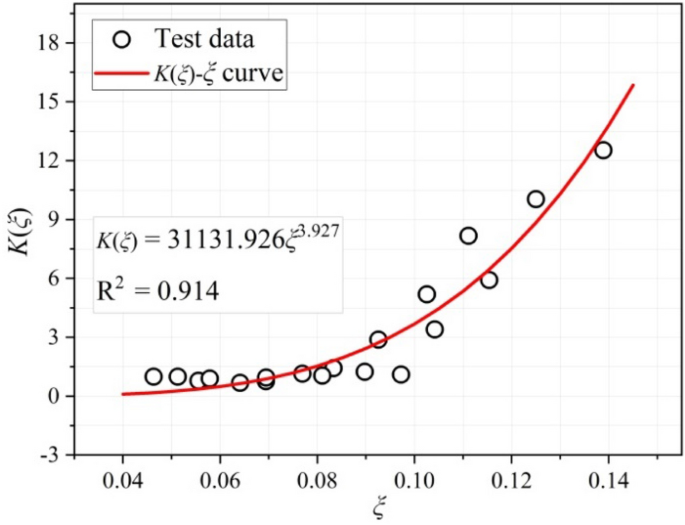

Assuming that G_{ξ} denotes the most ideal case, i.e., G_{ξ} = 1, the fitting curve of K(ξ)–ξ can be obtained as shown in Figure 9, where it can be observed that K(ξ) is a power function with respect to ξ, R^{2} = 0.914, with high correlation, and K(ξ) can be accurately predicted. The G–F_{T,a} curve corrected by K(ξ) is shown in Figure 8(b). It can be seen that the corrected G is in the range of 0.92–1.1, which is closer to the ideal situation G_{ξ} = 1. It is proved that the corrected linear cumulative life ratio has a better prediction effect. Therefore, the evaluation method for the bolt competitive failure life can be obtained using Eq. (4). If the bolt life under single transverse and single axial excitations is known, the competitive failure life of the bolt under composite excitation can be predicted based on the proposed life evaluation model. This can provide a useful reference for engineering applications.
4 Validation of Method for Evaluating Bolt Competitive Failure Life
4.1 Theoretical Equation of Bolt Competitive Failure Life
To verify the accuracy and reliability of the method for evaluating the bolt competitive failure life, a theoretical equation of the bolt competitive failure life was established via the force analysis of the thread surface. As shown in Figure 10, a screw thread is placed along the center (point O) of a crosscutting circle of the bolt, and the overall coordinate system xyz is established with point O as the origin. The x direction is the action direction of F_{T,a}, and z direction is the reverse direction of the additional axial maximum load (F_{SA,a}) of the bolt; F_{P} denotes the bolt preload, and M denotes the additional bending moment generated by F_{T,a}. The unit length microelement is considered point P, and the local coordinate system bτn is established. Specifically, S_{i} denotes the transverse force generated by F_{T,a}, and S_{j} denotes the resultant force generated by F_{P}, M, and F_{SA,a} in the microelement. Furthermore, S_{b}, S_{τ}, and S_{n} are the radial, tangential, and normal stresses, respectively, along the thread. Eqs. (5)–(7) can be obtained based on the relationship between the global coordinate system xyz and local coordinate system bτn and the balance conditions of the x, y, and z coordinate axes [40].
where β denotes the lead angle, α denotes half of the thread angle, and θ denotes the angle between the radial direction of the screw crosssection at point P and direction of the transverse load at this position.
According to the balance conditions of x, y, and z coordinate axes, the following relationships can be obtained:
where \(S_{{\text{i}}} = \frac{{F_{{{\text{T}},{\text{a}}}} \cos \alpha }}{{N_{k} A_{{{\text{slip}}}} }}\), \(S_{{\text{j}}} = \frac{{F_{{{\text{SA}},{\text{a}}}} }}{{N_{k} A_{{{\text{slip}}}} }} + \frac{{F_{{\text{P}}} }}{{N_{k} A_{{{\text{slip}}}} }} + \frac{{Md_{2} \cos \theta }}{{2I_{{{\text{by}}}} \cos \alpha }}\), \(M \approx \frac{1}{2}F_{{{\text{T}},{\text{a}}}} l_{2}\), N_{k} denotes the number of turns of the effective meshing thread; A_{slip} denotes the contact area of a single thread, and \(A_{{{\text{slip}}}} = \frac{{\uppi (d^{2}  d_{1}^{2} )}}{4}\), where d denotes the major diameter of the thread; d_{1} denotes the minor diameter of the thread; d_{2} denotes the pitch diameter of the thread; I_{by} denotes the moment of inertia of the bolt crosssection with respect to the yaxis, and l_{2} denotes the screw clamping length.
Then, the resultant force on the micro element can be expressed as follows:
By substituting Eq. (7) into Eq. (8), the following equation is obtained:
For the bolt specimen, β = 3°, α = 30°, and θ = [0°, 360°]; therefore, the following equation is obtained:
The condition under which the thread does not produce a relative slip is when the tangential resultant force of the external load along the thread surface is less than or equal to the friction, i.e., when the following relationship holds [17, 19, 20, 40]:
where μ_{s} denotes the friction coefficient of the thread surface.
From Eq. (11), the extreme value (θ_{0}) of θ that prevents the thread from slipping can be obtained [19, 40]. By substituting θ_{0} into Eq. (10), it can be observed that S_{ij} denotes a function of S_{i}, S_{j}, F_{T,a}, and F_{SA,a}. Given that ξ = F_{T,a}/F_{A,a}, the correction coefficient f(ξ) for ξ is introduced into Eq. (9), and the following equation is obtained as follows:
The S–N curves of the bolts under single transverse excitation, single axial excitation, and composite excitation are as follows:
By substituting Eq. (13) into Eq. (12), the theoretical equation of the bolt competitive failure life can be obtained as follows:
4.2 Simulation Analysis
The stresses of bolt S–N curves under single transverse excitation, single axial excitation, and composite excitation were obtained via finite element simulation. As shown in Figure 11, the solid finite element model of the bolt connection is established using the HyperMesh software. The element type was set as SOLID185, the mesh size of the model was 2.5–0.04 mm, in which the mesh size of the fixture was 2.5 mm, and the mesh of the thread was refined to 0.04 mm. The load and boundary conditions were consistent with the test conditions. The upper plate of the clamped parts was fully constrained, while the lower plate was solely constrained in the translational degrees of freedom along the yaxis. Axial excitation was applied in the zaxis and transverse excitation was applied in the xaxis. Four contact pairs, namely, the “bolt head–upper plate,” “upper plate–lower plate,” “nut–lower plate,” and “screw thread–nut thread” were established, and the friction coefficient was set to 0.2 [37]. The bolt and nut material corresponded to bilinear elasticplastic steel. The preload elements were set on the nodes in the middle of the bolt, and the preload value was 14.05 kN [38].

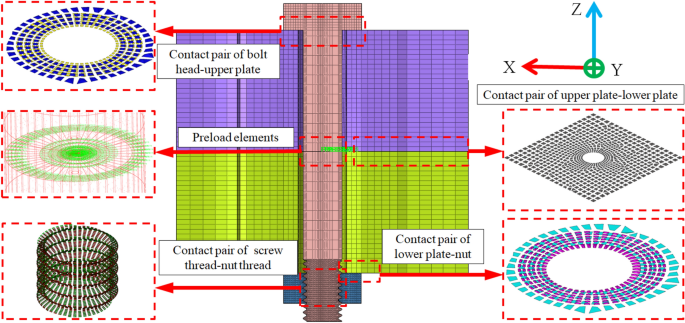

The finite element model is calculated via ANSYS software, and the simulated stress cloud diagram with composite excitation of 1000–12000 (F_{T,a} = 1000 N, F_{A,a} = 12000 N) is obtained as shown in Figure 12. According to the simulated stress and test life of the bolt, the S–N curves of the bolt under single transverse excitation, single axial excitation, and composite excitation were obtained as shown in Eq. (15).
The simulated stresses of the bolt under single transverse excitation, single axial excitation, and composite excitation are denoted by S_{i}, S_{j}, and S_{ij}, respectively. Eq. (16) can be obtained based on Eq. (12). It can be observed that f(ξ) can be obtained when S_{i}, S_{j} and S_{ij} are known. By fitting the data of S_{i}, S_{j} and S_{ij}, it is observed that f(ξ) is a power function with respect to ξ as shown in Figure 13.
4.3 Validation of the Life Evaluation Method

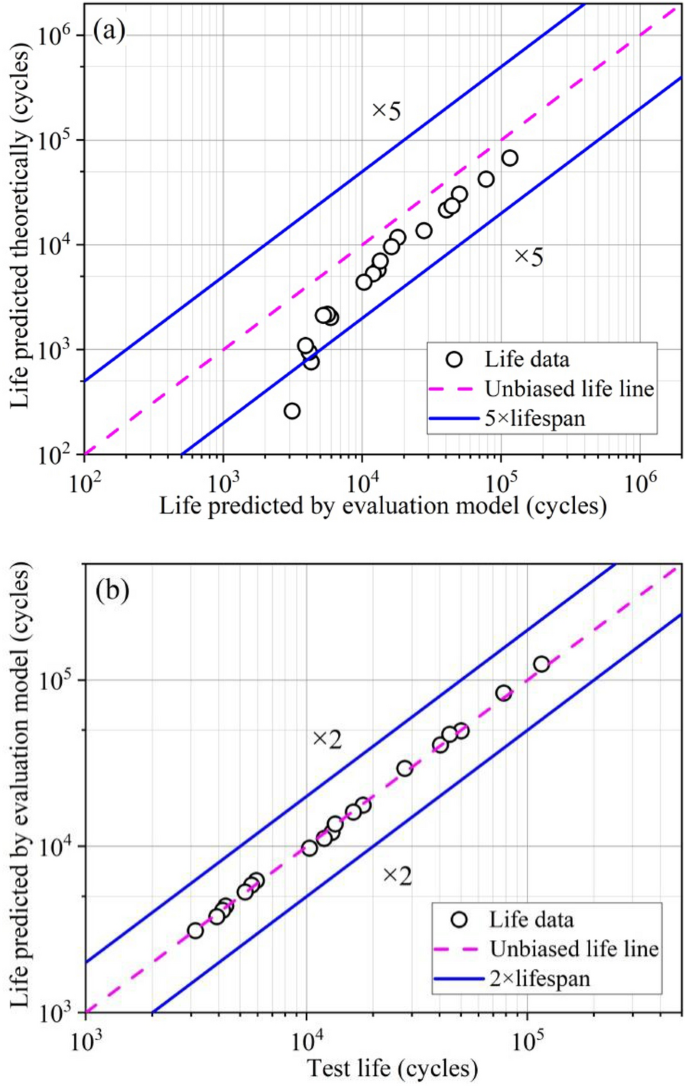

Based on the aforementioned simulation analysis, the theoretical equations of bolt loosening and fatigue competitive failure life were obtained as expressed by Eqs. (14) and (15), respectively. By substituting the test lives N_{i–0} and N_{0–j} into Eq. (14), the theoretically predicted life N_{i–j} of the bolt under composite excitation was obtained. Additionally, G_{ξ} in Eq. (4) was assumed as 1, and test lives N_{i–0} and N_{0–j} were substituted into Eq. (4) to predict life N_{i–j} based on the model for evaluating the competitive failure life of the bolt. A comparison of the two predicted lives is shown in Figure 14(a). As shown, most data points are within the 5×lifespan, which proves that the theoretically predicted life is very close to that predicted via the evaluation model, and this in turn validates the evaluation model. Figure 14(b) shows a comparison between the bolt test life and life predicted by the evaluation model. As shown, all data points are within 2×lifespan. This further proves that the model for the evaluation of the bolt competitive failure life can accurately predict the competitive failure life of bolts under composite excitation.
5 Conclusions
In this study, the competitive failure mechanism of bolt loosening and fatigue was elucidated, and the mode prediction model and life evaluation model of bolt competitive failure were established. The accuracy of the life evaluation model was verified using the theoretical equation of the bolt competitive failure life. The following conclusions were drawn based on the results.

(1)
The degradation degree of the mode prediction model of bolt competitive failure under composite excitation corresponds to the transversetoaxial load ratio, the failure threshold corresponds to the critical transversetoaxial load ratio, and the assessment standard of the mode prediction model of bolt competitive failure is the relative size of ξ and ξ_{c}.

(2)
The correlation between the transversetoaxial load ratio of the composite excitation and competitive failure life is very poor, and it is impossible to directly predict the competitive failure life of bolts under composite excitation based on the ξ–N curve.

(3)
A model for evaluating the bolt competitive failure life is proposed based on Miner’s linear damage accumulation theory. The proposed model can predict the bolt competitive failure life under composite excitation based on the bolt life under single transverse and single axial excitation.
Based on the force analysis of the thread surface and simulation analysis of the bolt connection under composite excitation, a theoretical equation of the bolt competitive failure life was established, and the model for evaluating the bolt competitive failure life was validated using this theoretical equation. The findings of this study can provide a useful reference for engineering applications.
Data availability statement
The data are available from the corresponding author on reasonable request.
References
Q X Pan, R P Pan, C Shao, et al. Research review of principles and methods for ultrasonic measurement of axial stress in bolts. Chinese Journal of Mechanical Engineering, 2020, 33(1): 11.
S Aldana, K J Moore. Dynamic interactions between two axially aligned threaded joints undergoing loosening. Journal of Sound and Vibration, 2022, 520: 116625.
B A Wang, N A Noda, X Liu, et al. How to improve both antiloosening performance and fatigue strength of bolt nut connections economically. Engineering Failure Analysis, 2021, 130: 105762.
J S Qu, W J Wang, Z Y Dong, et al. Simulation analysis and verification of temperature and stress of wheelmounted brake disc of a highspeed train. Chinese Journal of Mechanical Engineering, 2022, 35(1): 99.
H Bartsch, B Hoffmeister, M Feldmann. Fatigue analysis of welds and bolts in end plate connections of Igirders. International Journal of Fatigue, 2020, 138: 105674.
H Gong, J H Liu, H H Feng. Research review on loosening mechanisms and antiloosening method of threaded fastener. Journal of Mechanical Engineering, 2022, 58(10): 326–347. (in Chinese)
G H Junker. New criteria for selfloosening of fasteners under vibration. SAE Transactions, 1969, 78: 314335.
Y Y Jiang, M Zhang, T W Park, et al. An experimental study of selfloosening of bolted joints. Journal of Mechanical Design, 2004, 126(5): 925931.
H J Li, Y Tian, Y G Meng, et al. Experimental study of the loosening of threaded fasteners with transverse vibration. Journal of Tsinghua University (Science and Technology), 2016, 56(2): 171175. (in Chinese)
H Gong, J H Liu, X Y Ding. Study on the critical loosening condition toward a new design guideline for bolted joints. Proceedings of the Institution of Mechanical Engineers Part Cjournal of Mechanical Engineering Science, 2019, 233(9): 33023316.
G Dinger, C Friedrich. Avoiding selfloosening failure of bolted joints with numerical assessment of local contact state. Engineering Failure Analysis, 2011, 18(8): 21882200.
M Yang, S M Jeong, J Y Lim. A phenomenological model for bolt loosening characteristics in bolted joints under cyclic loading. International Journal of Precision Engineering and Manufacturing, 2023, 24(5): 825835.
D W Gao, J C Gong, Z L Tian, et al. Research on bolt pretightening and relaxation mechanism under transverse load. Advances in Mechanical Engineering, 2020, 12(12): 1687814020975919.
J F Fan, H C Li, Y Q Zhang, et al. Failure behaviour of bolted structures under cyclic transverse displacement. Tribology International, 2023, 178: 108030.
G W Yang, C J Che, S N Xiao, et al. Experimental study and life prediction of bolt loosening life under variable amplitude vibration. Shock and Vibration, 2019: 2036509.
S L Jiang, G W Yang, S N Xiao, et al. Experimental study on the loosening life of bolts. Journal of Mechanical Strength, 2019, 41(5): 10601065. (in Chinese)
N G Pai, D P Hess. Threedimensional finite element analysis of threaded fastener loosening due to dynamics shear load. Engineering Failure Analysis, 2002, 9(4): 383402.
J G Du, Y Y Qiu, Z Q Wang, et al. A threestage criterion to reveal the bolt selfloosening mechanism under random vibration by strain detection. Engineering Failure Analysis, 2022, 133: 105954.
M Y Zhang, L T Lu, M M Tang, et al. Research on numerical calculation method of critical load for bolt loosening under transverse loading. Journal of Mechanical Engineering, 2018, 54(5): 173178. (in Chinese)
W Q Jiang, Z Mo, L Q An, et al. Computing method of bolted joint critical loosening load with flexible thread. Journal of Mechanical Engineering, 2020, 56(15): 238248. (in Chinese)
J Y Yang, C Ling, P Wu, et al. Analysis of fracture reason of high strength bolt. Hot Working Technology, 2019, 48(20): 173176. (in Chinese)
X J Feng, X S Lin, W Pan, et al. Fatigue behavior of space grid with bolt sphere joints under suspended crane loading. Journal of Building Structures, 1995, (4): 312. (in Chinese)
VDI 2230 Part 1. Systematic calculation of high duty bolted joints, joints with one cylindrical bolt. Verein Deutscher Ingenieure, 2003.
JIS B 10811997. Threaded fastenersAxial load fatigue testingTest methods and evaluation of results. Japanese Standards Association, 1997. (in Japanese)
GB/T 136821992. Axial load fatigue testing for threaded fasteners. Standard Press of China, 1992. (in Chinese)
ANSI/AISC 36016. Specifications of structural steel buildings. American Institute of Steel Construction, 2016.
AISCLRFD 99. Load and resistance factor design specification for structural steel buildings. American Institute of Steel Construction, 1999.
AASHTO:2012. AASHTO LRFD bridge design specifications. American Association of State Highway and Transportation Officials, 2012.
BS 7608. Guide to fatigue design and assessment of steel products. British Standards Institution, 2014.
EN 199319. Eurocode 3: Design of steel structures, Part 19: Fatigue, CEN. European Committee for Standardization, 2005.
AS 4100. Steel structures. Standards Association of Australia, 1998.
W Y Zhang, J Y Xie, T X Li, et al. Tensile lowcycle fatigue performance and life prediction of highstrength bolts. Journal of Constructional Steel Research, 2022, 197: 107468.
H C Li, Y Zhao, J Y Jiang, et al. Effect of frequency on the fatigue performance of bolted joints under axial excitation. Tribology International, 2022, 176: 107933.
J Maljaars, E Mathias. Fatigue SN curves of bolts and bolted connections for application in civil engineering structures. International Journal of Fatigue, 2021, 151(14): 106355.
F Xue, T Y Zhao, X W Feng, et al. Fatigue deformation and damage characteristics of bolting system under stresscontrolled cyclic pullout. Construction and Building Materials, 2021, 285: 122910.
L Yang, B Yang, G W Yang, et al. Analysis of competitive failure life of bolt loosening and fatigue. Engineering Failure Analysis, 2021, 129: 105697.
G W Yang, L Yang, S N Xiao, et al. Competitive failure of loosening and fatigue of bolts under composite excitation. Shock and Vibration, 2021: 1441122.
L Yang, B Yang, G W Yang, et al. Research on influencing factors of bolt loosening and fatigue competitive failure under composite excitation. Journal of Constructional Steel Research, 2022, 189: 107110.
G W Yang, L Yang, J S Chen, et al. Competitive failure of bolt loosening and fatigue under different preloads. Chinese Journal of Mechanical Engineering, 2021, 34(1): 141.
L Yang, B Yang, G W Yang, et al. Criticalload calculation method of bolt competitive failure under composite excitation. International Journal of Fatigue, 2022, 156: 106660.
