Precompensation of Friction for CNC Machine Tools through Constructing a Nonlinear Model Predictive Scheme
Chinese Journal of Mechanical Engineering volumeÂ 36, ArticleÂ number:Â 119 (2023)
Abstract
Nonlinear friction is a dominant factor affecting the control accuracy of CNC machine tools. This paper proposes a friction precompensation method for CNC machine tools through constructing a nonlinear model predictive scheme. The nonlinear frictioninduced tracking error is firstly modeled and then utilized to establish the nonlinear model predictive scheme, which is subsequently used to optimize the compensation signal by treating the frictioninduced tracking error as the optimization objective. During the optimization procedure, the derivative of compensation signal is constrained to avoid vibration of machine tools. In contrast to other existing approaches, the proposed method only needs the parameters of Stribeck friction model and an additional tuning parameter, while finely identifying the parameters related to the presliding phenomenon is not required. As a result, it greatly facilitates the practical applicability. Both air cutting and real cutting experiments conducted on an inhouse developed openarchitecture CNC machine tool prove that the proposed method can reduce the tracking errors by more than 56%, and reduce the contour errors by more than 50%.
1 Introduction
In the feed drive system of CNC machine tools, friction, which is from the ballscrew and the linear motion guide, is one of the most crucial factors that restrict the positioning accuracy of machine tools [1]. At the velocity reversal points, the reversals of friction cause large tracking errors. To improve the positioning accuracy of the feed drives, various friction compensation techniques have been proposed.
The friction compensation methods can be classified into two groups, i.e., the modelfree and the modelbased friction compensation methods [2]. The modelfree friction compensation method usually treats the friction as a disturbance, and develops various advanced controllers to suppress the adverse effect of friction [3]. Papageorgiou et al. [4, 5] implemented and experimentally compared several frictionresilient controllers. Ren et al. [6] estimated the friction with a reducedorder extended state observer, and designed a supertwisting sliding mode controller to control the threewheeled omnidirectional mobile robot. Tian et al. [7] treated the friction as a rapidly changing disturbance during velocity reversal, and proposed an adaptive switchinggain slidingmodeassisted disturbance observer to suppress the frictioninduced tracking error. Su et al. [8] proposed a robust output feedback nonlinear proportionalderivative (PD) controller for the positioning of uncertain motion systems subject to the unknown friction with consideration of the actuator constraint.
The modelbased friction compensation, which can be realized in the feedback or feedforward manner [9], cancels the friction torque by applying an additional drive torque according to the friction model. ArmstrongH\(\acute{\text{e}}\)louvry et al. [10] made a survey on the friction modeling and compensation, and proposed the wellknown Stribeck curve to describe the friction characteristic of the lubricated metallic surfaces. The friction is divided into four regimes, i.e., the static friction, the boundary lubrication, the partial fluid lubrication and the full fluid lubrication. However, because the friction predicted by the Stribeck friction model is not continuous around zero velocity [11], the Stribeck friction model cannot be directly used in the friction compensation of precision motion control.
To realize the continuous and precise friction compensation, various friction models and compensation methods have been developed. The existing friction compensation methods can be classified into the static friction modelbased methods and the dynamic friction modelbased methods [12]. In terms of the static friction modelbased methods, Makkar et al. [13] proposed a continuously differentiable friction model by expressing friction as the sum of three tanh functions and a linear function with respect to velocity. Based on this model, researchers developed various controllers, e.g., adaptive prescribed performance motion controller [14], robust adaptive tracking controller [15] and risebased controller [16]. Xi et al. [17] proposed a twostage tracking errorbased static friction compensation method through expressing the compensation signal as a function of tracking error and velocity. Feng et al. [18] used a trapezoidal compensation pulse to compensate the frictioninduced errors, and designed a generalized regression neural network algorithm to generate the optimal pulse amplitude function. Verbert et al. [19] expressed the friction force as a timevarying coefficient multiplied by the sign of velocity, and designed an online updating law to estimate this coefficient based on the position and velocity errors. Yang et al. [20] proposed a method to distinguish the boundary between the presliding and sliding regimes, and proposed a two stage friction model that uniformly expresses the friction corresponding to the presliding and sliding regimes as functions of velocity. Huang et al. [21] deduced an analytical formulation to distinguish the breakaway point between the presliding and sliding stages, and proposed a triplestage friction compensation method to cancel the effect of static friction.
In terms of the dynamic friction modelbased methods, Dahl [22] presented a friction model that describes the presliding friction as an elastic deflection of surface asperities. However, this model did not incorporate the Stribeck effect. Canudas de Wit et al. [23] proposed the wellknown LuGre model, which captures most of the friction behaviours including the Stribeck effect, hysteresis, springlike characteristics of friction, and varying breakaway force. Yao et al. [24] proposed a continuously differentiable version of the LuGre model. Based on the LuGre model and its modifications, researchers developed parameter estimation and compensation method [25], neural networkbased adaptive funnel sliding mode controller [26], adaptive barrier controller [27], adaptive compensator [28, 29], observerbased friction compensator [30], distributed friction compensator [31], and adaptive load friction compensator [32]. Dupont et al. [33] proposed the elastoplastic friction model for the control applications involving small displacements and velocities. Based on this model, Keck et al. [34] developed a friction parameter identification and compensation method. AlBender et al. [35] proposed the generalized Maxwellslip (GMS) model. Based on the GMS model, various modifications [36, 37] and controllers [38] were developed. Bui et al. [39] proposed a new friction model, which combines the conventional Coulombviscous friction model and a nonlinear sinusoidal component, to better describe the friction in case of high speed motion or insufficient lubration. Guo et al. [40] proposed a neural networkbased friction model, which takes the position and velocity information as input to predict the friction.
The above methods can realize precise prediction and compensation of friction. However, in order to obtain continuous compensation signal at the velocity reversal points, both the static and dynamic modelbased methods usually introduce preslidingrelated parameters besides the Stribeck model parameters [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40]. For example, the boundary between presliding and sliding is required for the static modelbased methods [17, 20, 21]. The stiffness and damping coefficients of the bristles [23,24,25,26,27,28, 30,31,32] are required for the LuGre modelbased methods. The attraction parameters are required for the GMS modelbased methods [35,36,37,38]. Identifications of these parameters depend on the position measurements by rotary encoders or linear scales [21]. If the resolutions of rotary encoders or linear scales are high and the measurement noise is small [11], those preslidingrelated parameters can be precisely identified. However, if the resolutions of rotary encoders or linear scales are low or the measurement noise is relatively large, those parameters are difficult to be precisely identified whether by offline [20, 41,42,43,44] methods or online methods [19, 27, 28, 30,31,32]. This fact limits the scope of application of the existing methods.
To avoid the identification of the fine parameters related to presliding, this paper proposes a nonlinear model predictive scheme for friction precompensation of CNC machine tools based on Stribeck friction model. Through taking the frictioninduced tracking error as the optimization objective, the optimal compensation signal is computed with the help of nonlinear model predictive scheme. The derivative of the compensation signal is constrained to avoid the vibration of the machine tool. The advantages of the proposed method are threefolds.

(1)
Besides the parameters of the Stribeck model, the proposed method only introduces one additional parameter, i.e. the bound of the derivative of the compensation signal, which can be experimentally tuned to minimize the tracking errors. Although the parameters of some existing methods can be tuned in the same way, they usually introduce more than one parameter [17, 20, 21, 23,24,25,26,27,28, 30,31,32, 35,36,37,38]. By introducing only one parameter, the proposed method greatly reduces the complexity of experimentally tuning operation.

(2)
The basic controller of the proposed method is the commonly used ProportionalProportional Integral (PPI) controller with velocity feedforward in the commercial CNC machine tools. This allows the proposed method to be easily integrated into the CNC system of machine tools.

(3)
Since the proposed method directly takes the frictioninduced tracking error as the optimization objective to calculate the optimal compensation signal, the proposed method is expected to have good tracking performance.
The contributions of this paper are threefolds. First, a precise prediction model of the nonlinear frictioninduced tracking error of the PPI controller with velocity feedforward is established, as described in Section 2. Second, the nonlinear model predictive friction precompensation method is developed with the constraining of derivative of compensation signal, as described in Section 3. Third, both air cutting and real cutting experiments are conducted to validate the proposed method, as presented in Section 4. Section 5 gives the conclusions.
2 Modeling of the FrictionInduced Tracking Error
In this section, the prediction model of the frictioninduced tracking error is established, which includes the following three steps. First, the model of the actual feed drive system with nonlinear friction and compensation signal is developed. Second, the model of the ideal feed drive system without friction is developed. Third, through calculating the difference between the predicted position of the actual feed drive system and that of the ideal feed drive system, the frictioninduced tracking error is obtained.
Since the proposed method is aimed to compensate the friction, the frictioninduced tracking error is adopted as the optimization target. If the aim is to directly reduce the tracking error, the tracking error can be directly taken as the optimization target.
2.1 Modeling of the Feed Drive System under Friction and Compensation Signal
Figure 1 shows the block diagram of the feed drive system of a concerned axis. The feed drive is controlled by the commonly used ProportionalProportional Integral (PPI) controller [45] with velocity feedforward in the commercial CNC machine tools.
The mechanical system can be written as the following continuous state space equation:
where \(\omega\) is the angular velocity of the screw. The dot â€˜.â€™ means the derivative operation.
The continuous state space equation in Eq. (1) is transformed into the discrete domain with zeroorder holder:
Because of the integration in the velocity loop, the closed loop system model is one order higher than the open loop system model in Eq. (2). Therefore, an additional state variable q, which is shown in Figure 1, is introduced. According to the block diagram shown in Figure 1, the state variable q can be expressed as follows:
where \(e_{\text{v}}\) is the tracking error of velocity loop, which is expressed as follows:
The control signal u is expressed as follows:
Substituting Eqs. (3), (4) and (5) into Eq. (2), the closed loop system model can be obtained as follows:
Armstrong et al. [10] made an indepth survey of the physics behind the friction phenomenon. The typical friction characteristic for the lubricated metallic surfaces in contact is described as the Stribeck curve. Based on this model, the expression for the nonlinear friction d is written as follows [11]:
where \(u_\text{a}(k)=u(k)+u_\text{c}(k)\) is the total control signal. \(\Omega _\omega\) is the threshold of zero angular velocity. \(d_\text{s}^+\) and \(d_\text{s}^\) are the static frictions in the positive and negative directions. \(d_\text{c}^+\) and \(d_\text{c}^\) are the coulomb frictions in the positive and negative directions. \(\Omega _1^+\), \(\Omega _2^+\), \(\Omega _1^\) and \(\Omega _2^\) are parameters of the Stribeck friction model. The friction model in Eq. (7) is shown in Figure 2.

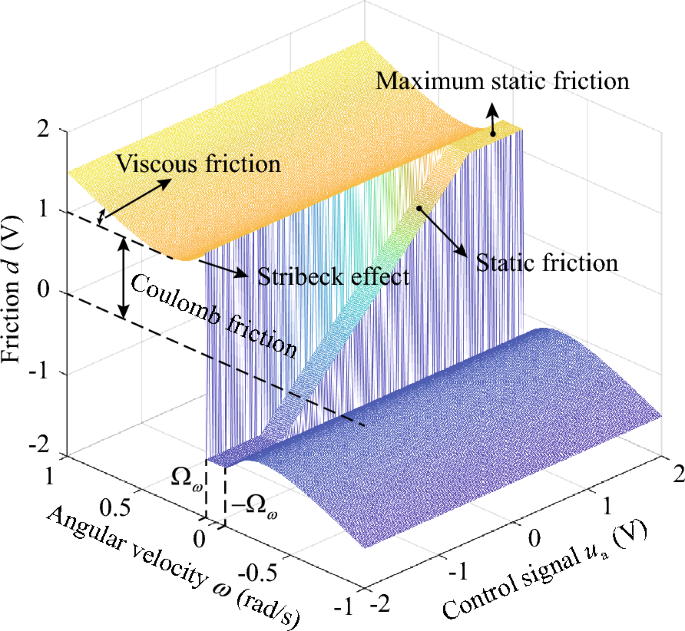

Please note that the viscous friction term is shown in Figure 2 but is omitted in Eq. (7), since it has been integrated into the damping coefficient B. The parameters in relation to the Stribeck friction model can be identified by the method reported in Ref. [11].
According to Eqs. (4) and (5), the total control signal \(u_\text{a}(k)\) can be expressed as a function of the state variable:
2.2 Prediction of the FrictionInduced Tracking Error
Through replacing the friction term d(k) and the compensation term \(u_\text{c}(k)\) in Eq. (6) by 0, the actual position of the ideal servo system free from friction can be predicted as follows:
where the superscript â€˜*â€™ means the variables for the ideal servo system free from friction. The frictioninduced tracking error can thus be obtained through calculating the difference between the actual position P(k) disturbed by friction and the actual position \(P^*(k)\) free from friction.
where \(e_\text{d}\) is the frictioninduced tracking error.
3 Construction of the Nonlinear Model Predictive Scheme

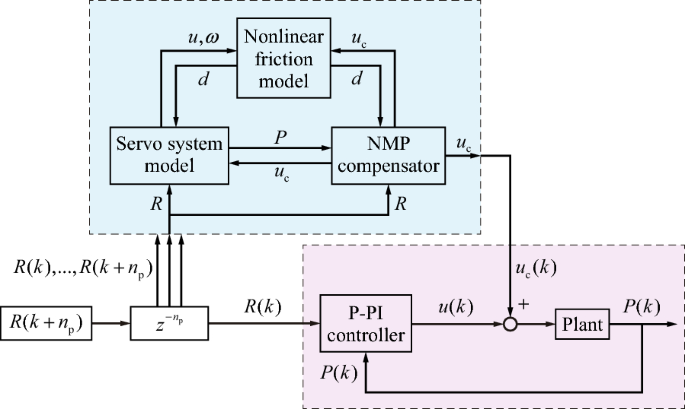

Figure 3 shows the block diagram of the proposed nonlinear model predictive friction precompensation method.
The compensation signals generated by the NMPFP at time step k can be denoted by
where \(n_\text{c}\) is the control horizon. According to the compensation signals, the frictioninduced tracking error \(\mathcal {E}_k\) can be predicted by Eq. (10):
where \(n_\text{p}\ge n_\text{c}\) is the prediction horizon. The compensation signals beyond the control horizon and within the prediction horizon are chosen to be the same as \(u_\text{c}(k+n_\text{c}1)\), i.e.,
The following objective function is chosen to minimize the frictioninduced tracking error:
If this objective function is directly applied without constraints, the optimal solution of \(\mathcal {U}_k\) will be a sharp step signal, as shown in Figure 4. This signal will impact the ball screw and cause the vibration of the machine tool.
Therefore, the derivative of the compensation signal needs to be constrained. However, the derivative of the compensation signal is not convenient to be constrained for the system model given in Eq. (6). Therefore, the system model in Eq. (6) is updated by the following incremental model.
where \(\Delta u_\text{c}(k)=u_\text{c}(k+1)u_\text{c}(k)\) is the incremental compensation signal of friction. Correspondingly, the compensation signals and the predicted tracking errors are updated by
To avoid sharp change of the compensation signal, the incremental compensation signal \(\Delta u_\text{c}(k)\) needs to be constrained:
where \(\Delta \overline{u_\text{c}}\) is the upper bound of the incremental compensation signal. The nonlinear optimization problem at time step k can be summarized as follows:
The optimization problem in Eq. (18) can be solved by the interiorpoint method [46] or trustregion method [47].
4 Simulation and Experimental Verifications
To evaluate the performance of the proposed method, simulations, air cutting experiments and realcutting experiments are conducted. The experiments are conducted on an inhouse developed openarchitecture CNC machine tool, as shown in Figure 5.

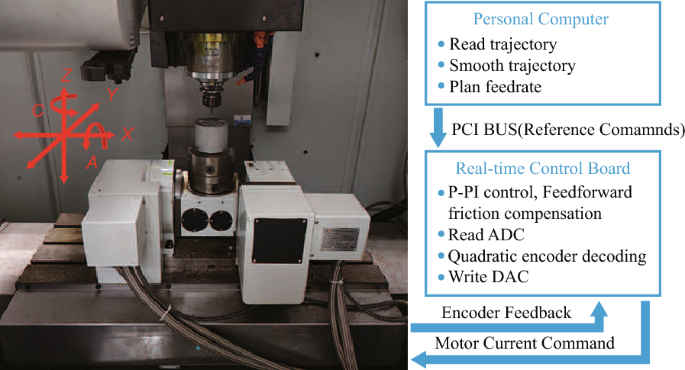

The machine tool is controlled by a realtime control board, where various controllers can be implemented. The sampling frequency is set as 1000 Hz. The servo model parameters and friction model parameters of each axis are identified utilizing the method reported in Ref. [11]. The results are listed in Table 1.
The PPI controller with velocity feedforward shown in Figure 1 is implemented on the realtime control board. The parameters of the PPI controllers of each axis are tuned to minimize the tracking errors without causing vibration, and the parameters are listed in Table 1.

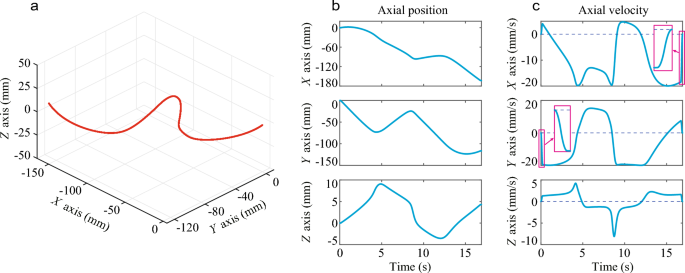

Three common trajectories, i.e., the 3D circular trajectory, the fanshaped trajectory, and the butterfly trajectory, are adopted to validate the controlling performance in both ideal and complex cases. All the trajectories are planned under a maximum feedrate of 20 mm/s, a maximum acceleration of 200 mm/s\(^2\) and a maximum jerk of 2000 mm/s\(^3\) by using the Sshaped feedrate planning method reported in Ref. [45].
4.1 Validation and Comparison with the Existing Methods: 3D Circular Trajectory

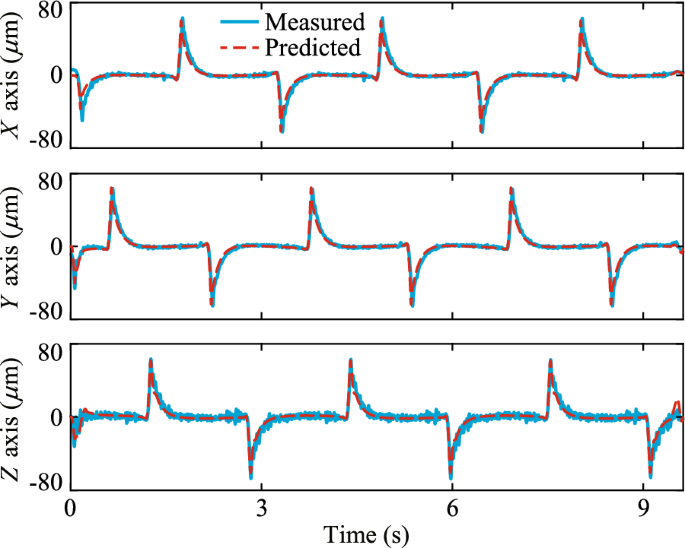

First, the developed tracking error prediction model is validated. The 3D circular trajectory is applied, as shown in Figure 6.

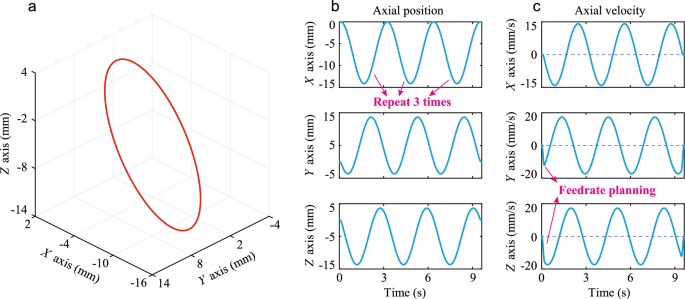

The circular trajectory is repeated 3 times to verify the repeating performance of the proposed method. The prediction accuracy of tracking error depends on the identification accuracy of the servo model and friction model. In the experiment, the identification accuracy is improved through carrying out the identification for several times with the method reported in Ref. [11] and taking the average value. The predicted and measured tracking errors of the X, Y and Z axes without friction compensation are shown in Figure 7.Â It can be seen that the tracking errors can be precisely predicted.
Next, the following four methods are implemented and compared.

PPI, which is a PPI controller with velocity feedforward. The friction is not compensated.

PPI + TEFC, which is a PPI controller with velocity feedforward and with the tracking errorbased friction compensation (TEFC) method reported in Ref. [17].

PPI + LFC, which is a PPI controller with velocity feedforward and with the LuGre modelbased friction compensation (LFC) method reported in Ref. [31].

PPI + NMPFP, which is a PPI controller with velocity feedforward and with the proposed nonlinear model predictive friction precompensation (NMPFP) method.
To ensure a fair comparison, the parameters of the PPI controllers of the four methods are the same, and are listed in Table 1. The experimental tuning result of the upper bound \(\Delta \overline{u_\text{c}}\) is 0.03. The control horizon \(n_\text{p}\) and the prediction horizon \(n_\text{c}\) are set as 100. For each optimization, the first 10 control signals in the control horizon are adopted. The virtual CNC system developed in Ref. [48] is adopted in the simulation. The system considers the second order rigid body dynamic model of feed drive, the saturation of actuation system, the quantization error, the measurement noise, the stribeck friction model and the backlash. The model parameters are identified with the method reported in Ref. [11] and the identification results are shown in Table 1. The simulation and experimental tracking errors of the four methods for circular trajectory are shown in Figure 8.

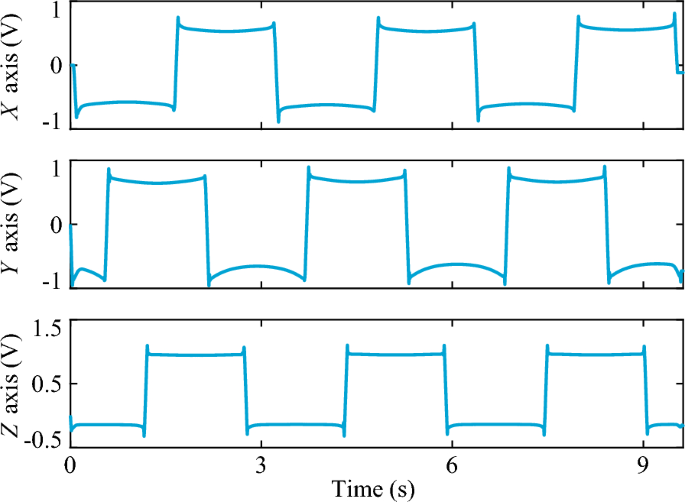

The compensation signals of the proposed method are shown in Figure 9.Â It can be seen that the proposed PPI + NMPFP method obtains the smallest tracking errors in both simulations and experiments. Two performance indexes, i.e., the maximum absolute tracking errors and the rootmeansquare value of tracking errors, are calculated for each method. The results are listed in Table 2.
Compared with the PPI controller without friction compensation, the proposed method reduces the maximum absolute tracking errors by 66.8% for X axis, 70.0% for Y axis and 72.9% for Z axis. The tracking errors are not just due to friction, but also due to the velocity, acceleration and jerk of trajectory, and the vibration, measurement noise, backlash and other factors of the machine tool. However, friction is the main factor causing tracking errors, especially at the velocity reversal points. Therefore, the tracking errors can be greatly reduced by the proposed friction compensation method.
The contour errors of the four methods are calculated and shown in Figure 10.
The maximum absolute contour errors and the rootmeansquare value of contour errors are listed in Table 2. It can be seen that the proposed method obtains the smallest contour error. Compared with the PPI controller without friction compensation, the proposed method reduces the maximum contour error by 69.0%, and reduces the rootmeansquare value of contour error by 70.4%.
4.2 Analysis of the Robustness: FanShaped Trajectory
The robustness means the maintenance of the controlling performance when the model parameters are not precisely known [49]. Good robustness can greatly improve the practicality of the controller. In this section, the robustness of the proposed friction compensation method is investigated. Among all the parameters listed in Table 1, the controller parameters are precisely known by the designers of the control systems of CNC machine tools. The current amplification factor (\(K_\text{a}\)), the torque amplification factor (\(K_\text{t}\)), the lead screw gain (\(r_\text{g}\)) can be obtained by referring to the manuals of the servo motors and the lead screws. Only the equivalent inertia (J), the viscous damping (B) and the friction model parameters are not precisely known, and need to be identified. Therefore, it is necessary to test the robustness of the proposed method in terms of J, B and the friction model parameters.
First, the robustness in terms of the equivalent inertia J and the viscous damping B is investigated. The fanshaped trajectory shown in Figure 11 is adopted.Â 90%, 100% and 110% of the J and B are utilized in the proposed algorithm to simulate the cases where J and B are not precisely identified. The corresponding tracking errors are shown in Figure 12.Â It can be seen that for different nominal J and B, the tracking errors are more or less the same. When J and B are inaccurate, the tracking errors only increase by 1 or 2 Î¼m. This proves that the proposed method has good robustness in terms of J and B.
Next, the robustness in terms of the friction parameters is investigated. 90%, 100% and 110% of the predicted frictions are utilized in the proposed algorithm to simulate the cases where the friction parameters are not precisely identified. The tracking errors are shown in Figure 13.

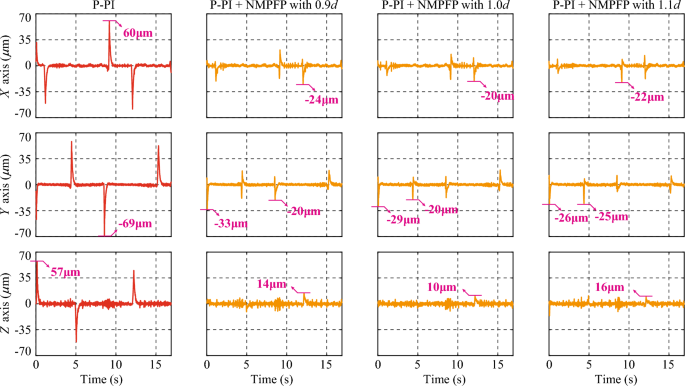

Compared with the PPI controller without friction compensation, the proposed method with 100% of the predicted friction can reduce the maximum tracking error by 66.7% for X axis, 60.0% for Y axis, and 82.5% for Z axis, while the proposed method with 90% of the predicted friction can reduce the maximum tracking error by 60.0% for X axis, 52.2% for Y axis, and 75.4% for Z axis. It can be seen that the proposed method can still achieve good performances when the friction parameters are not accurate. This proves that the proposed method has good robustness in terms of friction parameters.
4.3 Real Cutting Experiment: Butterfly Trajectory
To further investigate the performance of the proposed method, real cutting experiments are carried out. The butterfly trajectory shown in Figure 14 is adopted.
The material of the workpieces are Aluminium 7075. The tool is a fourfluted mill with the diameter of 5 mm and helix angle of 45\(^\circ\). The spindle speed is selected as 3000 r/min. The maximum feedrate is 20 mm/s, as shown in Figure 14. The axial depth of cut is 0.5 mm. An image of a workpiece after cutting is shown in Figure 15.

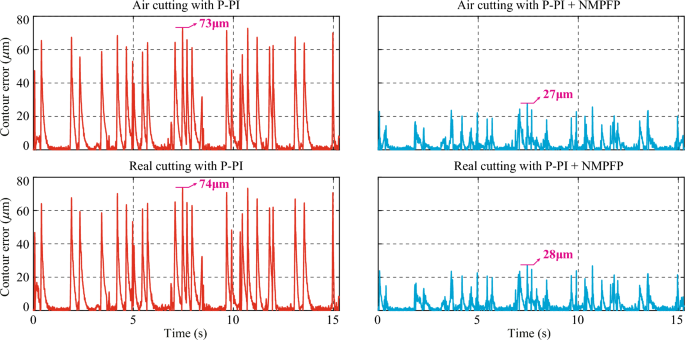

Both air cutting and real cutting experiments are conducted for the PPI controllers without friction compensation and with the proposed NMPFP method. The tracking error and contour error results are shown in Figures 16 and 17.Â It can be seen that in both air cutting and real cutting, the proposed method realizes considerable reduction of tracking errors. Also, it can be seen that the tracking errors for air cutting and real cutting are more or less the same. This is due to the following two reasons. (1) Compared to the drive torque, the cutting torque disturbance caused by the cutting force is much smaller. Therefore, the tracking error caused by the cutting torque disturbance is small. (2) The integral term in the PPI controller has the disturbance suppression ability. The cutting force disturbance can be well suppressed.
5 Conclusions
This paper proposes a nonlinear model predictive scheme to precompensate the friction for CNC machine tools. The developed method aims at improving the practical applicability through avoiding fine identification of the parameters in relation to presliding, since these parameters are usually difficult to be accurately identified because of the small displacement of presliding, the quantization error and noise of position measurement. Besides the model parameters of the Stribeck friction, the proposed approach only introduces a single parameter, i.e., the boundary of the derivative of compensation signal. This makes the proposed method easy to be parameterized.
The developed method is experimentally validated by evaluating its tracking and contouring performances, the robustness in terms of the uncertainties of model parameters, and the performance in the real cutting processes. Experiments show that compared with the PPI controller without friction compensation, the proposed method can reduce the maximum tracking error by 56% to 81%, and reduce the maximum contour error by 50% to 69% for different trajectories. It is also validated that the proposed method has good robustness in terms of the uncertainties of servo model parameters and friction model parameters. For fluctuations of Â± 10% in the servo model parameters J and B, the tracking errors are only 12 \(\mathrm{\upmu }\)m larger. For fluctuations of Â± 10% in the friction model parameters, the tracking errors can still be reduced by more than 52%. Furthermore, experiments demonstrate that the proposed method shows similar tracking and contouring error reductions in real cutting as those in air cutting.
Since the nonlinear model predictive control method takes a relatively long time to calculate and is difficult to calculate online, the friction compensation signals are precalculated offline. However, this method lacks adaptivity to model parameter uncertainties and unknown disturbances. In the future research, the calculation speed of the algorithm can be improved to realize online compensation.
References
Y Altintas, A Verl, C Brecher, et al. Machine tool feed drives. CIRP Annals  Manufacturing Technology, 2011, 60: 779â€“796.
S Huang, W Liang, K K Tan. Intelligent friction compensation: A review. IEEE/ASME Transactions on Mechatronics, 2019, 24(4): 1763â€“1774.
L Nechak. Nonlinear state observer for estimating and controlling of frictioninduced vibrations. Mechanical Systems and Signal Processing, 2020, 139: 106588.
D Papageorgiou, M Blanke, H H Niemann, et al. Frictionresilient position control for machine tools  Adaptive and slidingmode methods compared. Control Engineering Practice, 2018, 75: 69â€“85.
D Papageorgiou, M Blanke, H H Niemann, et al. Adaptive and sliding mode frictionresilient machine tool positioning  Cascaded control revisited. Mechanical Systems and Signal Processing, 2019, 132: 35â€“54.
C Ren, X Li, X Yang, et al. Extended state observer based sliding mode control of an omnidirectional mobile robot with friction compensation. IEEE Transactions on Industrial Electronics, 2019, 66(12): 9480â€“9489.
D Tian, R Xu, E Sariyildiz, et al. An adaptive switchinggain slidingmodeassisted disturbance observer for highprecision servo control. IEEE Transactions on Industrial Electronics, 2021, 69(2): 1762â€“1772.
Y Su, C Zheng, P Mercorelli. Velocityfree friction compensation for motion systems with actuator constraint. Mechanical Systems and Signal Processing, 2021, 148: 107132.
L Liu, S Tian, D Xue, et al. Industrial feedforward control technology: A review. Journal of Intelligent Manufacturing, 2019, 30: 2819â€“2833.
B ArmstrongH\(\acute{\rm e}\)louvry, P Dupont, C C D Wit. A survey of models, analysis tools and compensation methods for the control of machines with friction. Automatica, 1994, 30(7): 1083â€“1138.
K Erkorkmaz, Y Altintas. High speed CNC system design. Part II: modeling and identification of feed drives. International Journal of Machine Tools and Manufacture, 2001, 41: 1487â€“1509.
F Marques, L Woli\(\acute{\rm n}\)ski, M Wojtyra, et al. An investigation of a novel LuGrebased friction force mode. Mechanism and Machine Theory, 2021, 166: 104493.
C Makkar, W E Dixon, W G Sawyer, et al. A new continuously differentiable friction model for control systems design. Proceedings of the 2005 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, 2005: 600â€“605.
J Na, Q Chen, X Ren, et al. Adaptive prescribed performance motion control of servo mechanisms with friction compensation. IEEE Transactions on Industrial Electronics, 2014, 61(1): 486â€“494.
S Wang, H Yu, J Yu. Robust adaptive tracking control for servo mechanisms with continuous friction compensation. Control Engineering Practice, 2019, 87: 76â€“82.
J Yao, Z Jiao, D Ma. Risebased precision motion control of DC motors with continuous friction compensation. IEEE Transactions on Industrial Electronics, 2014, 61(12): 7067â€“7075.
X C Xi, A N Poo, G S Hong. Tracking errorbased static friction compensation for a biaxial CNC machine. Precision Engineering, 2010, 34: 480â€“488.
B Feng, D Zhang, J Yang, et al. A novel timevarying friction compensation method for servomechanism. Mathematical Problems in Engineering, 2015: 269391.
K A J Verbert, R T\(\acute{\rm o}\)th, R Babu\(\check{\rm s}\)ka. Adaptive friction compensation: A globally stable approach. IEEE/ASME Transactions on Mechatronics, 2016, 21(1): 351â€“363.
M Yang, J Yang, H Ding. A twostage friction model and its application in tracking error precompensation of CNC machine tools. Precision Engineering, 2018, 51: 426â€“436.
X Huang, F Zhao, X Mei, et al. A novel triplestage friction compensation for a feed system based on electromechanical characteristics. Precision Engineering, 2019, 56: 113â€“122.
P R Dahl. A solid friction model. The Aerospace Corporation, Report No TOR 0158(310718)1, 1968.
C C D Wit, H Olsson, K J Astrom, et al. A new model for control of systems with friction. IEEE Transactions on Automatic Control, 1995, 40(3): 419â€“425.
J Yao, W Deng, Z Jiao. Adaptive control of hydraulic actuators with LuGre modelbased friction compensation. IEEE Transactions on Industrial Electronics, 2015, 62(10): 6469â€“6477.
C S Huang, S S Yeh, P L Hsu. Estimation and compensation of the LuGre friction model in highspeed micromotion control. International Journal of Automation and Smart Technology, 2017, 7: 101â€“109.
S Wang, Q Chen, X Ren, et al. Neural networkbased adaptive funnel sliding mode control for servo mechanisms with friction compensation. Neurocomputing, 2020, 377: 16â€“26.
S Wang, H Yu, X Gao, et al. Adaptive barrier control for nonlinear servomechanisms with friction compensation. Complexity, 2018: 8925838.
J Huang, X Zhang, G Wang, et al. Adaptive friction compensation of electromechanical servo system based on LuGre model. 2018 13th IEEE Conference on Industrial Electronics and Applications (ICIEA), 2018: 2596â€“2600.
M Wan, J Dai, W H Zhang, et al. Adaptive feedforward friction compensation through developing an asymmetrical dynamic friction model. Mechanism and Machine Theory,Â 2022:Â https://doi.org/10.1016/j.mechmachtheory.2021.104691.
F Du, M Zhang, Z Wang, et al. Identification and compensation of friction for a novel twoaxis differential microfeed system. Mechanical Systems and Signal Processing, 2018, 106: 453â€“465.
W Lee, C Y Lee, Y H Jeong, et al. Distributed component friction model for precision control of a feed drive system. IEEE/ASME Transactions on Mechatronics, 2015, 20(4): 1966â€“1974.
W Lee, C Y Lee, Y H Jeong, et al. Friction compensation controller for load varying machine tool feed drive. International Journal of Machine Tools and Manufacture, 2015, 96: 47â€“54.
P Dupont, V Hayward, B Armstrong, et al. Single state elastoplastic friction models. IEEE Transactions on Automatic Control, 2002, 47(5): 787â€“792.
A Keck, J Zimmermann, O Sawodny. Friction parameter identification and compensation using the ElastoPlastic friction model. Mechatronics, 2017, 47: 168â€“182.
F AlBender, V Lampaert, J Swevers. The generalized maxwellslip model: A novel model for friction simulation and compensation. IEEE Transactions on Automatic Control, 2005, 50(11): 1883â€“1887.
Y Liu, D Du, N Qi, et al. A distributed parameter maxwellslip model for the hysteresis in piezoelectric actuators. IEEE Transactions on Industrial Electronics, 2019, 66(9): 7150â€“7158.
T Piatkowski. GMS friction model approximation. Mechanism and Machine Theory, 2014, 75: 1â€“11.
S Kang, H Yan, L Dong, et al. Finitetime adaptive sliding mode force control for electrohydraulic load simulator based on improved GMS friction model. Mechanical Systems and Signal Processing, 2018, 102: 117â€“138.
B D Bui, N Uchiyama, K R Simba. Contouring control for threeaxis machine tools based on nonlinear friction compensation for lead screws. International Journal of Machine Tools and Manufacture, 2016, 108: 95â€“105.
K Guo, Y Pan, H Yu. Composite learning robot control with friction compensation: A neural networkbased approach. IEEE Transactions on Industrial Electronics, 2019, 66(10): 7841â€“7851.
T Piatkowski. Dahl and LuGre dynamic friction models  The analysis of selected properties. Mechanism and Machine Theory, 2014, 73: 91â€“100.
R H A Hensen, M R J G vanÂ de Molengraft, M Steinbuch. Frequency domain identification of dynamic friction model parameters. IEEE Transactions on Control Systems Technology, 2002, 10(2): 191â€“196.
Y Y Chen, P Y Huang, J Y Yen. Frequencydomain identification algorithms for servo systems with friction. IEEE Transactions on Control Systems Technology, 2002, 10(5): 654â€“665.
T N Do, T Tjahjowidodo, M W S Lau, et al. Nonlinear friction modelling and compensation control of hysteresis phenomena for a pair of tendonsheath actuated surgical robots. Mechanical Systems and Signal Processing, 2015, 6061: 770â€“784.
M T Lin, M S Tsai, H T Yau. Development of a dynamicsbased NURBS interpolator with realtime lookahead algorithm. International Journal of Machine Tools and Manufacture, 2007, 47: 2246â€“2262.
R A Waltz, J L Morales, J Nocedal, et al. An interior algorithm for nonlinear optimization that combines line search and trust region steps. Mathematical Programming, 2006, 107: 391â€“408.
R H Byrd, J C Gilbert, J Nocedal. A trust region method based on interior point techniques for nonlinear programming. Mathematical Programming, 2000, 89: 149â€“185.
C H Yeung, Y Altintas, K Erkorkmaz. Virtual CNC system. Part I. System architecture. International Journal of Machine Tools and Manufacture, 2006, 46: 1107â€“1123.
X Yin, L Pan. Enhancing trajectory tracking accuracy for industrial robot with robust adaptive control. Robotics and ComputerIntegrated Manufacturing, 2018, 51: 97â€“102.
