Variable Curvature Modeling Method of Soft Continuum Robots with Constraints
Chinese Journal of Mechanical Engineering volumeÂ 36, ArticleÂ number:Â 148 (2023)
Abstract
The inherent compliance of continuum robots holds great promise in the fields of soft manipulation and safe humanâ€“robot interaction. This compliance reduces the risk of damage to the manipulated object and its surroundings. However, continuum robots possess theoretically infinite degrees of freedom, and this high flexibility usually leads to complex deformations when subjected to external forces and positional constraints. Describing these complex deformations is the main challenge in modeling continuum robots. In this study, we investigated a novel variable curvature modeling method for continuum robots, considering external forces and positional constraints. The robot configuration curve is described using the developed mechanical model, and then the robot is fitted to the curve. A tensection continuum robot prototype with a length of 1 m was developed in order to validate the model. The feasibility and accuracy of the model were verified by the ability of the robot to reach target points and track complex trajectories with a load. This work was able to serve as a new perspective for the design analysis and motion control of continuum robots.
1 Introduction
Continuum robots have garnered significant interest in the field of robotics, owing to their high intrinsic compliance, environmental adaptability, and operational safety [1, 2]. A large number of researchers have conducted related research [3, 4], resulting in the development of various new continuum robots. Renda et al. [5, 6] designed cabledriven continuum robots. Marchese et al. [7,8,9] developed pneumatic continuum robots. Gu et al. [10, 11] developed dielectric elastomerdriven continuum robots. Kim and Lin conducted research on magnetic actuationbased soft robotics [12, 13]. These continuum robots show great potential across a wide array of applications, including medical equipment, unstructured environment exploration and soft manipulation [14,15,16]. However, continuum robots possess a theoretically infinite number of degrees of freedom (DOF), and this high flexibility allows complex deformations of the robot in response to external forces and positional constraints. Therefore, accurately and efficiently modeling continuum robots with external forces remains a challenging task [17, 18].
Unlike traditional rigid rod robots, continuum robots achieve movement by deforming themselves. Therefore, the kinematics of continuum robots can be replaced by mechanical analysis. When solving the model, continuum robots are usually discretized into a series of points. Mathematically, a spatial curve can be determined by these positions of points. The objective is to fit the continuum robots as closely as possible to these spatial curves [19, 20]. The calculation methods for spatial curves mainly include the constant curvature approach and variable curvature approach.
The constant curvature approach is a simplified approach for modeling continuum robots, assuming that the curvature of the curve between discrete points is the same. The advantages of closed kinematics and ease of solution make this method widely used in continuum robot modeling. In order to improve the accuracy and dexterity, Jones et al. [21] developed a geometrical approach for modeling a constant curvature continuum robot, leading to a closedform model. Freixedes et al. [22] established an optimization framework for continuum robots based on the constant curvature assumption and derived optimized structural parameters. They proposed a kinematic model to describe the deflection characteristics of the contactâ€“assisted continuum robot and conducted the experimental verification. Webster et al. [23] unified the kinematics and differential kinematics results of singlesegment and multisegment continuous robots with constant curvature within a common coordinate system and symbol setting. Della et al. [24] analyzed the limitations of constant models and proposed an alternative state representation to solve these issues. Simulation cases were used to support the theoretical analysis. In order to simulate interactions with the environment, Schiller et al. [25] extended the constant curvature method based on energy minimization techniques, and the proposed model exhibited effective robot kinematics.
Due to constant curvature approaches do not completely match all the characteristics of continuum robots, various variable curvature approaches have been developed. Based on the Lagrangian polynomial series solution method, Ritz and RitzGalerkin methods, Hadi et al. [26] minimized the configuration of the continuum robot to the geometric positions of a few physical points. Singh et al. [27], using Pythagorean hodograph (PH) curves, proposed a quantitative modeling method to obtain threedimensional reconstructions of the configurations of a continuum robot with variable curvature. Gonthina et al. [28] proposed a crosssectional modeling method for variable curvature continuum robots based on Eulerian spiral curves. They compared the simulation results with the constant curvature method, proving that the proposed method significantly better matched various hardware configurations of the robot. The modeling approach described above provides a good description of the forward and inverse kinematics of a soft continuous robot with variable curvature, with a primary focus on the geometric description of the robot, without considering the effect of external forces. Therefore, additional visual or displacement sensors are necessary to measure the realtime robot configuration. Some scholars have considered the influence of external forces and proposed meaningful modeling methods. Godage et al. [29] simulated the transient and steady state dynamics of a continuum robot prototype based on the lumped parameter model. Renda et al. [30] established a mechanical model for a short thick continuum robot under the influence of external forces using the Cosserat theory. The experiment verified the most typical movements of the octopus: bending, stretching and grasping. Based on the finite element method (FEM), Bieze et al. [31] obtained the kinematics of two different continuum robots with complex structural geometries. Lumped parameter models are known for reducing model complexity, albeit at the cost of accuracy. Cosserat theory and finite element method are typically computationally intensive. In summary, this study was motivated by the ongoing challenge of performing rapid simulations for continuum robot setups.
This paper proposed a novel modeling method for continuum robots based on the principles of virtual work and vector mechanics, enabling quick and accurate calculation of continuum robot configurations. First, the equilibrium equations for continuum robots were developed, and discretized using the finite difference method (FDM). Subsequently, the least squares method was applied to transform the equation solution into an optimization problem. A 10section continuum robot driven by pneumatic artificial muscles (PAMs) was developed, and the accuracy of the model was experimentally verified.
The rest of this paper is organized as follows. Section 2 presents a variable curvature model for continuum robots, considering external forces and positional constraints. Section 3 details two sets of experiments: one involving movement to target points with a load, and the other focusing on complex trajectory tracking with a load, serving to validate the model. Finally, the conclusion is presented in Section 4.
2 Modeling
2.1 Main Model
The model is applicable to many types of continuum robots driven by different mechanisms. Because we used a pneumatic continuum robot for our experiments, we modeled the pneumatic continuum robot as an example. In general, the structure of pneumatic continuum robots had a central backbone and multiple sections [32], as shown in Figure 1(a). Each section was composed of three PAMs and a constraint disk, enabling a 2DOF bending motion. The motion of the robot can be achieved by deformation of the backbone, leading to a bend in threedimensional space by adjusting the lengths of the driving PAMs. Therefore, the configurations of the backbone serve as the configurations of the robot, and the robot model mainly focuses on analyzing the backbone.
The backbone is discrete into n elements, and \(N_{i}\) represents the \(i\text{th}\) nodes. There are m constraint disks, and the segment between \(disk_{i  1}\) and \(disk_{i}\) is called \(Seg_{i}\), which length is \(\Delta s\). A static analysis was performed on the micro element \(Seg_{i}\) of the robot in the inertial coordinate system \(O  \xi \eta \zeta\), as shown in Figure 1(b). The spindle coordinate system of \(N_{i}\) is \(p_{i}  x_{i} y_{i} z_{i}\). The vector of node \(N_{i}\) with respect to O are \({\varvec{r}}_{i}\). The internal force at \(N_{i}\) are \({\varvec{F}}_{i}\). The gravity distribution force is \({\varvec{f}}_{g}\). The relative rotation angle between the sections of adjacent nodes is \(\Delta {\varvec{\phi}}\). Evidently, there are a (\(a = n/m\)) nodes in \(Seg_{i}\). The length of \(PAM_{j}\) in \(Seg_{i}\) is \(l_{i,j}\). The external load force at the endpoint of the robot is \({\varvec{F}}_{load}\).
Suppose the projection vector of the zaxis unit vector in \(O  \xi \eta \zeta\) is \(T\). The backbone configuration can be obtained from Eq. (1):
where \(\delta\) denotes the integral variable.
Suppose the rate of section angular displacement \({\varvec{\phi}}\) with respect to arc coordinate s is \({\varvec{\omega}}\):
Using the infinitesimal rotation theory of a rigid body, the relationship between \({\varvec{\omega}}\) and quaternions \((q_{1} ,q_{2} ,q_{3} ,q_{4} )\) can be derived:
Writing Eq. (3) in matrix form,
where \(\user2{q^{\prime}} = \frac{{{\text{d}}{\varvec{q}}}}{{{\text{d}}s}}\), and \({\varvec{\varGamma}}\) is denoted as
The total energy \(E_{t}\) of the backbone includes elastic strain energy \(E_{e}\) and external force potential energy \(E_{p}\). When the robot is in balance,
The elastic strain energy \(E_{e}\) of the backbone is
where L denotes the length of the robot, and \((k_{x} ,k_{y} ,k_{z} )\) represents the bending stiffness around the coordinate axis, and \((\omega_{\xi }^{0} ,\omega_{\eta }^{0} ,\omega_{\zeta }^{0} )\) represents the initial state of \({\varvec{\omega}}\)
The variation of Eq. (7) is
Writing Eq. (9) in matrix form,
where \({\varvec{\omega}}^{0} = \left( {\begin{array}{*{20}c} {\omega_{x}^{0} } & {\omega_{y}^{0} } & {\omega_{z}^{0} } \\ \end{array} } \right)^{{\text{T}}}\), \({\varvec{K}} = {\text{diag}}\left( {\begin{array}{*{20}c} {k_{x} } & {k_{y} } & {k_{z} } \\ \end{array} } \right)\).
The variation of Eq. (4) is
Substituting Eq. (11) into Eq. (10), we obtain
The external force potential energy \(E_{p}\) can be expressed by the internal force F as
In the \(O  \xi \eta \zeta\), the force balance of \(Seg_{i}\) is
Dividing the sides of Eq. (14) by \(\Delta s\), and considering the condition \(\Delta s \to 0\), we obtain
In the spindle coordinate system \(p  xyz\), Eq. (15) needs to be rewritten as
2.2 Discretization of the Equations
The quaternions at node \(N_{i}\) is denoted as \({\varvec{q}}_{i}\), where \({\varvec{q}}_{i} = \left[ {\begin{array}{*{20}c} {q_{1,i} } & {q_{2,i} } & {q_{3,i} } & {q_{4,i} } \\ \end{array} } \right]^{{\text{T}}}\). By performing linear interpolation in \(Seg_{i}\), the quaternions and their derivatives in \(Seg_{i}\) are as follows:
The quaternions at nodes \(N_{i  1}\) and \(N_{i}\) are combined into an 8order array, denoted as
Then, Eq. (17) can be expressed as
where \({\varvec{\varPsi}}_{4}\) and \({\varvec{\varPhi}}_{4}\) are \(4 \times 8\) matrices composed of a 4order unit matrix \({\varvec{E}}_{4}\)
The average and derivative of \({\varvec{\varGamma}}\) in \(Seg_{i}\) are denoted as \({\varvec{\varGamma}}_{i}\) and \(\varvec{\varGamma}^{\prime}_{i}\), respectively.
where
The average and derivative of \({\varvec{\omega}}\) in \(Seg_{i}\) are denoted as \(\overline{\user2{\omega }}_{i}\) and \(\user2{\omega^{\prime}}_{i}\), respectively:
Substituting Eq. (19) into Eq. (23), we obtain
Eq. (12) can be discretized as
Eq. (25) can be simplified as
where
where \({\varvec{A}}_{i}\) is arranged diagonally, and each matrix is moved 4 rows and 4 columns to the upper left, with overlapping elements added to form matrix A. Similarly, \({\varvec{B}}_{i}\) is arranged horizontally, and each matrix is moved four columns to the left, with overlapping elements added to form matrix B. Eq. (25) can be expressed as
where \({\varvec{q}} = \left[ {\begin{array}{*{20}c} {{\varvec{q}}_{0}^{{\text{T}}} } & {{\varvec{q}}_{1}^{{\text{T}}} } & {...} & {{\varvec{q}}_{n}^{{\text{T}}} } \\ \end{array} } \right]^{{\text{T}}}\).
The projection of T in \(O  \xi \eta \zeta\) can be expressed by quaternions as
where \({\varvec{T}}_{i}\) can be discretized as
Then, \({\varvec{T}}_{i}\) can be expressed by \({\varvec{S}}_{i}\) as
where
The average and derivative of F in \(Seg_{i}\) are denoted as \(\overline{\user2{F}}_{i}\) and \(\user2{F}_{i}^{\prime}\), respectively.
where \({\varvec{F}}_{i} = \left[ {\begin{array}{*{20}c} {F_{x,i} } & {F_{y,i} } & {F_{z,i} } \\ \end{array} } \right]^{{\text{T}}}\).
The internal force \({\varvec{F}}_{i  1}\) and \({\varvec{F}}_{i}\) at nodes \(N_{i  1}\) and \(N_{i}\) are combined into a 6order array, which is denoted as
Then, Eq. (35) can be expressed as
where \({\varvec{\varPsi}}_{3}\) and \({\varvec{\varPhi}}_{3}\) are \(3 \times 6\) matrices composed of a 3order unit matrix \({\varvec{E}}_{3}\):
Eq. (13) can be discretized as
Let
Matrices \({\varvec{U}}_{i}\) are arranged horizontally, where each matrix is moved by four columns to the left to form matrix \({\varvec{U}}\). Then, Eq. (39) can be abbreviated as
where \({\varvec{F}} = \left[ {\begin{array}{*{20}c} {{\varvec{F}}_{0}^{{\text{T}}} } & {{\varvec{F}}_{1}^{{\text{T}}} } & {...} & {{\varvec{F}}_{n}^{{\text{T}}} } \\ \end{array} } \right]^{{\text{T}}}\).
Substituting Eqs. (28) and (41) into Eq. (6), the variation of \(E_{t}\) is as
Eq. (43) can be obtained from Eq. (6):
Eq. (16) can be discretized as
Eqs. (43) and (44) are the discrete balance equations.
2.3 Boundary Conditions
According to Eq. (1), the coordinate of any point on the backbone is
where \(\sigma\) denotes the integral variable.
Eq. (45) can be discretized by Eq. (30) as
It is typically necessary to control the endpoint's movement to a specified position when a continuum robot is in operation, so the position of the endpoint needs to be limited. Assuming the inclusion point of the robot is at the origin O, we obtain:
where \((P_{n,\xi } ,P_{n,\eta } ,P_{n,\zeta } )\) is the desired coordinate of the endpoint.
In addition, the poses of the robot at the initial and end points also need to be constrained:
where \((Q_{1,0} ,Q_{2,0} ,Q_{3,0} ,Q_{4,0} )\) and \((Q_{1,n} ,Q_{2,n} ,Q_{3,n} ,Q_{4,n} )\) represent the desired quaternions of the initial and end points, respectively.
When the robot has a load, it is also necessary to add an endpoint force boundary condition
Eqs. (47)â€“(49) constitute the boundary conditions of the continuous robot model.
2.4 Constraint Model
The continuum robot model, composed of Eqs. (43), (44), (47), (48) and (49), can be expressed as
By using the least square method, Eq. (50) can be transformed into an optimization problem:
where u is the dimension of h,

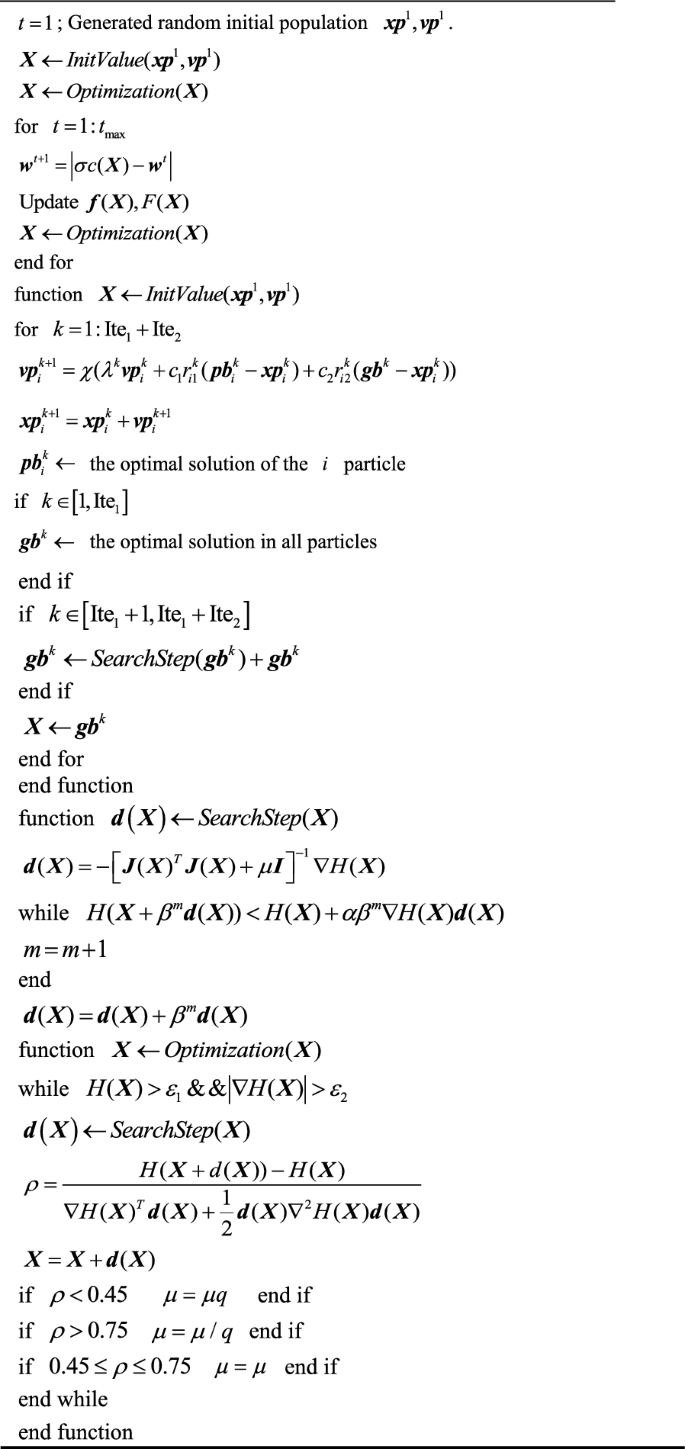

The Particle Swarm Optimization (PSO) algorithm and the LevenbergMarquardt (LM) algorithm are used to solve Eq. (51). The PSO algorithm exhibits strong global optimization capabilities but weaker local optimization abilities, while the LM algorithm exhibits the opposite characteristics. Therefore, our approach initially involves using the PSO algorithm to determine an appropriate iteration initial value, and the value is subsequently fed into the LM algorithm to optimize the solution. The process of finding the initial iteration value involves two steps: the first step utilizes the PSO algorithm, and the second step employs the gradient descent method to modify the particle velocity term in PSO algorithm. This twostep process allows for the acquisition of a more suitable initial iteration value. The detailed procedure is shown in Algorithm 1.
3 Results
3.1 Experimental Preparation

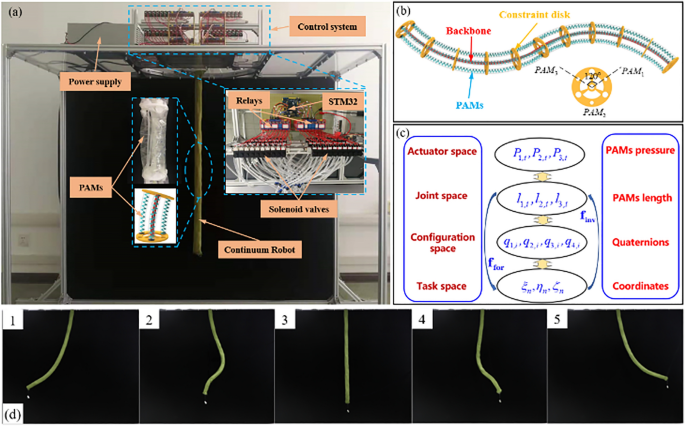

A tensection prototype of a continuum robot, driven by PAMs, was developed, as shown in Figure 2(a). The structure of the prototype is shown in Figure 2(b). The backbone is an elastic rod, and each section is driven by three PAMs. By changing the length of the PAMs, which can be achieved by inflating and deflating [33, 34], the robot can be controlled to bend in a threedimensional space. The control system is composed of an upper computer (PC), a lower computer (STM 32), relays and solenoid valves. Communication between the upper computer and the lower computer occurred via Bluetooth. Commands are transmitted from the upper computer to the lower computer, and the opening and closing times of the solenoid valve are controlled by the relay to control the durations of inflation and deflation, thereby adjusting the length of the PAMs.
The analysis of the robot was performed in four main spaces: the actuator space, the joint space, the configuration space and the task space. For the pneumatic continuum robot, the actuator space refers to the air pressure of the PAMs, the joint space refers to the length of the PAMs, the configuration space is determined by the discrete point quaternions, and the task space refers to the coordinates of the robot endpoint. The mapping from joint space to task space is known as forward kinematics (\({\text{f}}_{{{\text{for}}}}\)) and the reverse mapping is inverse kinematics (\({\text{f}}_{{{\text{inv}}}}\)), as shown in Figure 2(c). By adjusting the air pressure of the PAMs, the robot can be controlled to bend in space with a load, as shown in Figure 2(d). The length of the PAMs is proportional to the internal air pressure, but precise control of the air pressure is challenging. When the inflation velocity is fixed, the length of the PAMs is proportional to the inflation/deflation time. Therefore, we control the length of the PAMs by controlling the inflation/deflation time, which can be achieved by controlling the switching time of the solenoid valves. The relationship between these variables is shown in Figure 3.

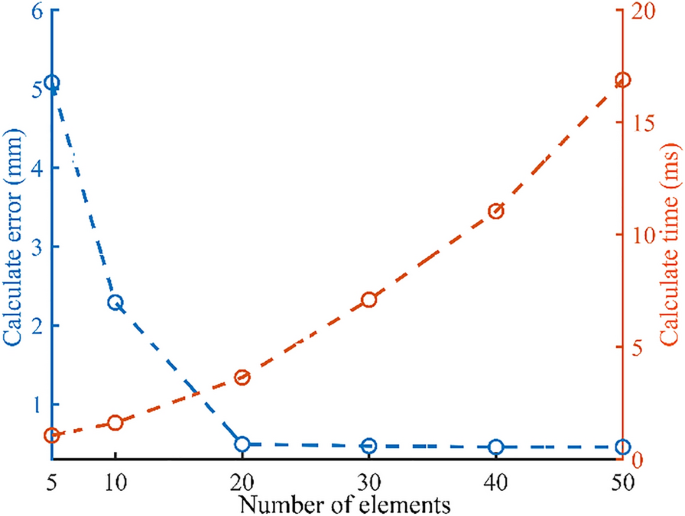

Unlike traditional link robots, the model of a continuum robot typically yields numerical solutions rather than analytical solutions. When solving the continuum robot model, the difference format and optimization algorithm will inevitably introduce computational errors, and the number of discrete elements usually has a significant impact on these errors. We compare the computational errors of different discrete elements and observe that when the number of elements increases from 5 to 20, the computational errors gradually decrease, and when they increase from 20 to 50, the computational errors stabilize. At the same time, the computation time is directly proportional to the number of elements. When the number of elements is 20, the computation time is 5 ms, as shown in Figure 4. Therefore, we have determined that 20 is the appropriate number of discrete elements.
3.2 Experimental Results
In practical application scenarios, continuum robots often need to move along certain trajectories, and these trajectories could be discretized into a series of target points. Therefore, the accuracy of the model can be analyzed by calculating the error (\(e\)) between the robot endpoint position and the target point. The ratio of \(e\) to the robot length is defined as the model error. Three sets of experiments were conducted to verify the model accuracy, each involving the robot endpoint with a different load.

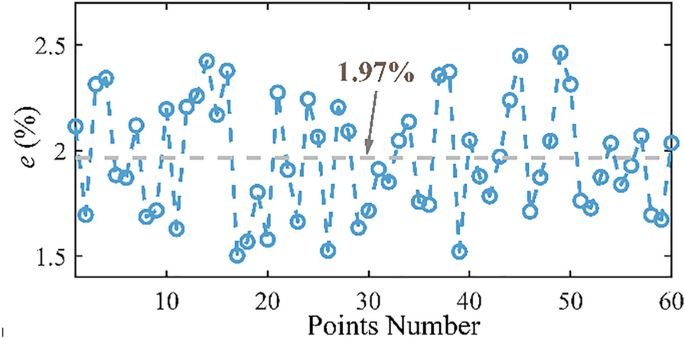

The robot endpoint, when not carrying any load, followed the pentagram trajectory, which was discretized into 60 target points. The movement of the robot endpoint was controlled based on the model. The target points and the actual endpoint positions are shown in Figure 5, and the position error of the robot endpoint is shown in Figure 6. When there is no load at the robot endpoint, the average position error is 1.97%.

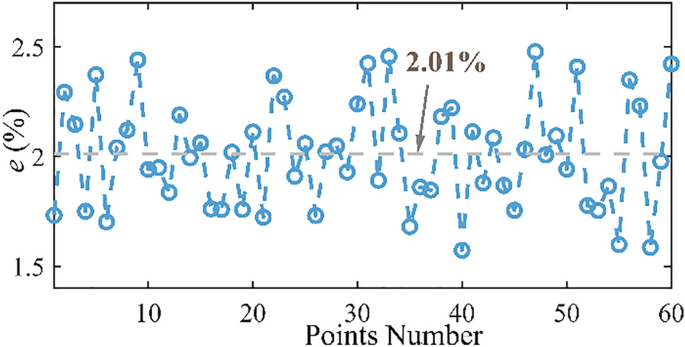

The robot endpoint, with a 30 g load, followed a circular trajectory, which was also discretized into 60 target points. The comparison between the simulation and experimental results is shown in Figure 7, and the position error of the endpoint is shown in Figure 8. When the robot endpoint with a 30 g load, the average position error is 2.01%.

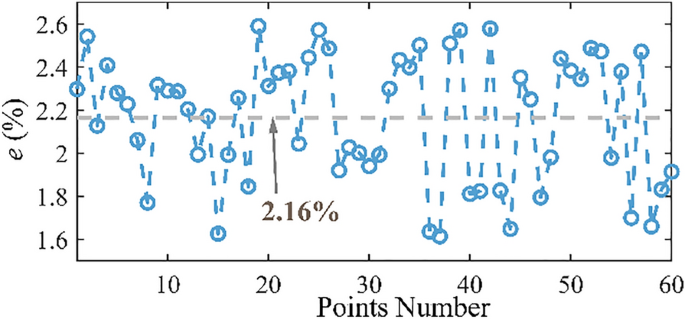

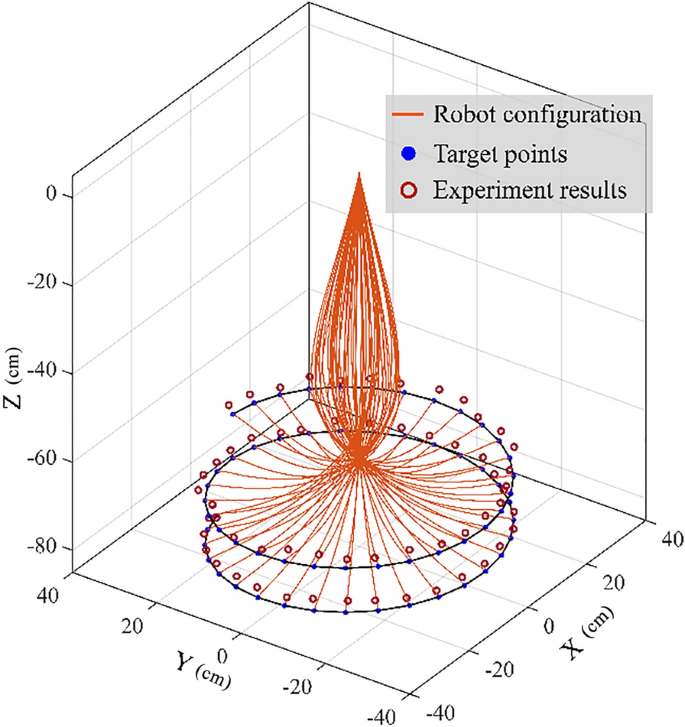

The robot endpoint with a 60 g load followed the space spiral trajectory, which was also discrete into 60 target points. The comparison between the simulation and experimental results is shown in Figure 9, and the position error of the endpoint is shown in Figure 10. When the robot endpoint with a 60 g load, the average position error is 2.16%.
4 Conclusions
The conclusion of this study is summarized as follows.

(1)
Based on the principle of virtual work and vector mechanics, a continuum robot modeling method is proposed, considering external loads and position constraints. The model is then numerically solved using an optimization algorithm after the equations are discretized using the finite difference technique.

(2)
Three sets of experiments are conducted to validate the model. The experimental results show that with the proposed model, the configuration can be accurately predicted, and the robot can be effectively controlled to follow the desired trajectory. The average position errors of the robot endpoint when the loads are 0 g, 30 g and 60 g are 1.97%, 2.01% and 2.16%, indicating that the model error increases with the load. This work offers a new perspective on the design, kinematic analysis and motion planning of continuum robots.
Data availability
The data that support the findings of this study are available from the corresponding author upon reasonable request.
