Design of A Novel Wheel-Legged Robot with Rim Shape Changeable Wheels


The wheel-legged hybrid structure has been utilized by ground mobile platforms in recent years to achieve good mobility on both flat surfaces and rough terrain. However, most of the wheel-legged robots only have one-directional obstacle-crossing ability. During the motion, most of the wheel-legged robots’ centroid fluctuates violently, which damages the stability of the load. What’s more, many designs of the obstacle-crossing part and transformation-driving part of this structure are highly coupled, which limits its optimal performance in both aspects. This paper presents a novel wheel-legged robot with a rim-shaped changeable wheel, which has a bi-directional and smooth obstacle-crossing ability. Based on the kinematic model, the geometric parameters of the wheel structure and the design variables of the driving four-bar mechanism are optimized separately. The kinetostatics model of the mobile platform when climbing stairs is established to determine the body length and angular velocity of the driving wheels. A prototype is made according to the optimal parameters. Experiments show that the prototype installed with the novel transformable wheels can overcome steps with a height of 1.52 times of its wheel radius with less fluctuation of its centroid and performs good locomotion capabilities in different environments.

1 Introduction

Mobile platforms determine the motion performance of robots. Especially in the fields of military reconnaissance, disaster rescue and extra-terrestrial exploration, the obstacle-crossing ability is highly demanded. At present, ground mobile platforms can be divided into wheel type, leg type and crawler type according to their motion mode.

Among them, wheel-based locomotion is the simplest and most efficient [1]. Therefore, wheeled robots are widely used in the design of road-carrying robots (such as unmanned intelligent vehicles) [2, 3] and indoor robots [4, 5]. However, if the wheeled robot encounters an obstacle with a height greater than the radius of its wheel, it will not be able to pass it [6]. Therefore, the application in the complex terrain of the wheeled robot is limited by its poor obstacle-crossing ability. With the help of bionic walking gaits, the legged robot has good motion performance on uneven surfaces [7, 8]. However, due to the complexity of the control strategy of the leg mechanism [9] and the need for terrain prediction and collection information [10], their moving speed is much slower than that of the wheeled robots. At the same time, the fluctuation of the centroid and the collision between the foot and the ground [11] lead to low energy utilization efficiency.

The wheel-legged hybrid robot is another important research direction. The early wheel-legged hybrid structure is fixed. WHEGS’s [12] rimless wheel has three spokes with hooks at the end of them. It mimics the barbs on the insects’ legs and overcomes rocks by hooking on their edges. Rhex [13] adopts the half-circular rim as legs to expand the motion range. RoMiRAMT [14] uses rotating wheels with six legs and adds a spine to lift or lower the body, which allows the robot to climb higher obstacles. This kind of wheel-legged hybrid robot with a fixed structure sacrifices the ability to move quickly on flat ground in exchange for the ability to cross complex terrain. At the same time, some scholars have proposed another design idea of wheel-legged robot, which attaches a round wheel to the end of the leg. For example, Alduro [15], PAW [16], Hylos [17], Shrim and others have adopted this design method, which enables the robot to move on flat ground smoothly with round wheels, and to pass through obstacles on unstructured terrain with the help of the characteristics of discrete landing points of the leg mechanisms. But since both the legs and wheels of this kind of robot have degrees of freedom, the number of driving motors needs to be increased. This will lead to the complexity of its control strategy and possible damage on harsh terrain.

Over the past few years, in order to make the robot transform between the wheel mode and leg mode so as to combine the advantages of both types [18, 19], many scientists have studied transformable wheel-legged mobile platforms. The surface of Impass's [20] wheel is full of holes. The gear mechanism drives the rack on the spoke in the hole so that the spoke can extend out of the hole. Furthermore, the structure can switch between the round wheel and the spoke wheel. Quattroped’s [21] wheel can be separated into two semicircular legs with obstacle-crossing capability. Lee [22] Proposed a transformable wheel based on composite membrane origami which can bear more than 10 kN load. The proposed design rule and thick membrane are suitable for high-payload applications. QuadRunner [23] is a novel transformable quasi-wheel-legged robot that combines quadruped and wheel locomotion using a semicircular leg-wheel design with a Trotting Wheel gait. WheeLeR [24] uses the center gear to open or close the wheel rim. When opened, the rim can hook the edge of the obstacle and lift the robot to cross the obstacle. FUHAR [25] uses a four-bar linkage to drive the circular wheel rim into six claws. Dynamic and simulation models are established to verify its obstacle-crossing performance. Ryu et al. [26] proposes a shape-morphing wheel for high-speed step climbing in mobile robots, extending wheel shape to overcome obstacles using centrifugal force.

Most of these wheel-legged hybrid robots adopt structure similar to a claw to hook the edge of obstacles and cross over them, which lead to violent fluctuations of the mobile platform’s centroid and damage the stability of the load. At the same time, due to the asymmetry of the mechanism, most of the wheel-legged structures only have one-directional obstacle-crossing ability, which limits their application in complex terrain. Moreover, the geometrical parameters of the wheel determine its obstacle-crossing ability and the design variables of the driving mechanism determine the difficulty of transformation. But these two design parts are highly coupled generally, which limits the optimal performance in both aspects.

In this paper, a novel wheel-legged robot with rim shape changeable (RSC) wheels is designed, which has the ability of bi-directional obstacle-crossing. During the climbing process, the rim contacts the obstacle’s surface smoothly to reduce the centroid fluctuation of the mobile platform. Different from the previous design in which the geometric shape of the wheel is highly coupled with mechanism configuration, the kinematic model of the RSC wheel is first established, and the relationship between its geometric parameters and climbing ability is revealed. On this basis, the optimal geometric parameters of the wheel meeting the obstacle-crossing requirements are selected, and then the design variables of the driving four-bar mechanism are optimized to improve the transformation efficiency. The kinetostatics model of the mobile platform when climbing stairs is established to determine the body length and angular velocity of the driving wheels. Experiments show that the prototype is able to traverse rough terrain steadily.

The organization of this paper is as follows: Section 2 presents the kinematic model of the RSC wheel when crossing obstacles. The optimal design parameters of the driving four-bar mechanism are formulated in Section 3. Kinetostatics of the whole wheel-legged mobile platform is modeled to select the robot platform parameters in Section 4. Section 5 conducts the prototype experiment to verify the obstacle-crossing stability and terrain adaptability of the robot, and Section 6 has concluding remarks.

2 Kinematic Model of the Transformable Wheel in Obstacle Crossing Process

The wheel with the shape changeable rim is essentially an equally divided circle, and the arc after equal division rotates around a point on it. As shown in Figure 1, take the wheel rim divided into three parts as an example to model the kinematics of the climbing process. The structure of the RSC wheel is determined by \(r,n, \theta\) and \(\delta\), which correspond to the wheel radius, the number of equally divided arcs, the rotation angle of each arc, and the central angle of each arc between their endpoint and the rotation point respectively.

Figure 1

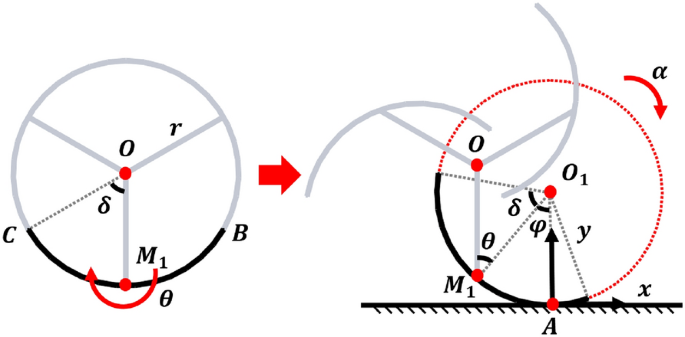

figure 1

The RSC wheel and its motion coordinate system

The RSC wheel rotates periodically on the flat surface, and each period includes two stages: the arc rolling stage and tip rotating stage. As shown in Figure 2(a), the former stage is the rotation of the circle in which arc \(\widehat{BC}\) in contact with the ground is located, and the trajectory of any point on the RSC wheel is the cycloid.

Figure 2

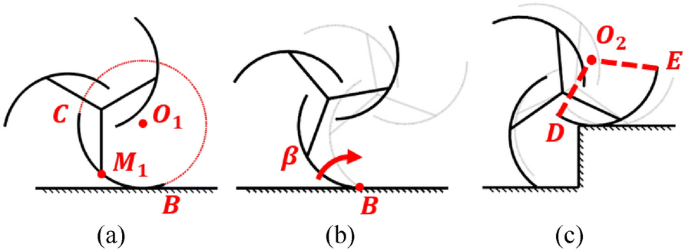

figure 2

Movement process of the RSC wheel. Stage of (a) Arc rolling, (b) Tip rotating, (c) Contacting the obstacle surface

Assuming that at the beginning, the contact point between \(\widehat{BC}\) and the ground is A, and \(\overline{O{M }_{1}}\) is vertical. The center angle of the arc rotation point \({M}_{1}\) and contact point \(A\) is \(\varphi\). Take \(A\) as the origin and establish the coordinate system. The rotation angle of circle \({O}_{1}\) is \(\alpha\), and the trace of \({O}_{1}\) is

$$\left\{ \begin{gathered} O_{1x} = r\alpha , \hfill \\ O_{1y} = r. \hfill \\ \end{gathered} \right.$$

And the trace of \({M}_{1}\) is cycloid, which has the initial phase angle \(\varphi\). The trace of \({M}_{1}\) can be written as

$$\left\{ \begin{gathered} M_{1x} = r((\alpha + \varphi ) - \sin (\alpha + \varphi )) + r\varphi , \hfill \\ M_{1y} = r(1 - \cos (\alpha + \varphi )). \hfill \\ \end{gathered} \right.$$

By rotating \({O}_{1}{M}_{1}\) counterclockwise around \({M}_{1}\) at the transform angle \(\theta\), the trace of the wheel center \({\varvec{O}}\) in the first stage can be written as

$$\left[ \begin{gathered} O_{x} \hfill \\ O_{y} \hfill \\ \end{gathered} \right] = \left[ \begin{gathered} M_{1x} \hfill \\ M_{1y} \hfill \\ \end{gathered} \right] + {\varvec{R}}_{{1}} \left[ \begin{gathered} O_{1x} - M_{1x} \hfill \\ O_{1y} - M_{1y} \hfill \\ \end{gathered} \right],$$

where \({{\varvec{R}}}_{1}\) is the rotation matrix:

$${\varvec{R}}_{{1}} = \left[ {\begin{array}{*{20}c} {\cos \theta } & { - \sin \theta } \\ {\sin \theta } & {\cos \theta } \\ \end{array} } \right].$$

As shown in Figure 2(b), when the rotation angle is:

$$\alpha = {{360^\circ } \mathord{\left/ {\vphantom {{360^\circ } n}} \right. \kern-0pt} n} - \delta - \varphi ,$$

where \(\delta \le {{{180}^\circ } \mathord{\left/ {\vphantom {{{180}^\circ } n}} \right. \kern-0pt} n}\), the arc \(\widehat{BC}\)’s endpoint \(B\) contacts the ground, and the wheel enters the tip rotating stage. At this time, all the points on the wheel rotate the angle of \(\beta\) around \(B\). The trace of \({O}_{1}\) and \({M}_{1}\) can be expressed as

$$\left[ \begin{gathered} M_{1x} \hfill \\ M_{1y} \hfill \\ \end{gathered} \right] = \left[ \begin{gathered} B_{x} \hfill \\ B_{y} \hfill \\ \end{gathered} \right] + {\varvec{R}}_{{2}} \left[ \begin{gathered} M_{1x} - B_{x} \hfill \\ M_{1y} - B_{y} \hfill \\ \end{gathered} \right],$$
$$\left[ \begin{gathered} O_{1x} \hfill \\ O_{1y} \hfill \\ \end{gathered} \right] = \left[ \begin{gathered} B_{x} \hfill \\ B_{y} \hfill \\ \end{gathered} \right] + {\varvec{R}}_{{2}} \left[ \begin{gathered} O_{1x} - B_{x} \hfill \\ O_{1y} - B_{y} \hfill \\ \end{gathered} \right],$$

where \({{\varvec{R}}}_{2}\) is the rotation matrix:

$${\varvec{R}}_{{2}} = \left[ {\begin{array}{*{20}c} {\cos \beta } & {\sin \beta } \\ { - \sin \beta } & {\cos \beta } \\ \end{array} } \right].$$

Similarly, the trace of the wheel center \(O\) at this stage can be obtained from Eq. (3). This paper evaluates the obstacle-crossing ability by taking climbing stairs as an example. As shown in Figure 2(c), the height of the step is \(H\), the arc \(\widehat{DE}\) will touch the step surface before contacting the ground. When \(\widehat{DE}\) is tangent to the step surface, the following condition is satisfied:

$$O_{2y} - r - H = 0.$$

Thus, the height of the step that can be climbed is:

$$H = O_{2y} - r.$$

If the number of equally divided arcs is \(n\), the center angle of each arc is \({360}^\circ /n\). That is, the angle between \(\overline{O{O }_{1}}\) and \(\overline{{OO }_{2}}\) is \({360}^\circ /n\). The coordinate of \({O}_{2}\) in Eq. (10) can be described as

$$\left[ \begin{gathered} O_{2x} \hfill \\ O_{2y} \hfill \\ \end{gathered} \right] = \left[ \begin{gathered} O_{x} \hfill \\ O_{y} \hfill \\ \end{gathered} \right] + {\varvec{R}}_{3} \left[ \begin{gathered} O_{1x} - O_{x} \hfill \\ O_{1y} - O_{y} \hfill \\ \end{gathered} \right],$$

where \(\varvec{R}_{3}\) is the rotation matrix:

$$\varvec{R}_{{3}} = \left[ {\begin{array}{*{20}c} {\cos (\frac{{2\uppi }}{n})} & { - \sin (\frac{{2\uppi }}{n})} \\ {\sin (\frac{{2\uppi }}{n})} & {\cos (\frac{{2\uppi }}{n})} \\ \end{array} } \right].$$

By adopting the above obstacle climbing method, the rim can smoothly and rapidly move on the step’s surface once it contacts the step. When \(H=15\) cm, \(r=10\) cm, \(n=3\), \(\delta = 60^\circ\) and \(\theta =50^\circ\), the trace of the wheel center \(O\) during the process of climbing steps can be derived by combining Eqs. (3) and (10), which is shown in Figure 3.

Figure 3
figure 3

Obstacle climbing process when \(H=15\) cm, \(r=10\) cm, \(n=3\), \(\delta =60^\circ\) and \(\theta =50^\circ:\) (a) Bi-direction trajectory of the wheel center O, (b) The change of trajectory slope

The RSC wheel experiences the arc rolling stage on the ground and the rotation stage around the end of the arc (\({P}_{1}\,\text{to}\, {P}_{2}\)) - contacting the step (at \({P}_{2}\)) - the arc rolling stage on the step (\({P}_{2} \,\text{to}\, {P}_{3}\)) as shown in Figure 3(a). At the beginning (at \({P}_{1}\)) and the end (at \({P}_{3}\)) of this process, the height of the wheel center \(O\) is consistent with the height of the center of the round wheel on the ground and the step, that is, 10 cm and 25 cm respectively. With the completion of climbing, the RSC wheel moves 24.6 cm in the horizontal direction. The motion range of the centroid is between 10cm and 25 cm during the whole process.

Figure 3(b) shows the change of the trajectory slope. Except at \({P}_{2}\), the slope changes continuously, and the maximum value does not exceed 1.5. The slope change at \({P}_{2}\) is 1.45, and it is always positive throughout the process. The centroid of the wheel fluctuates mildly in the whole process, and the motion stability is good.

3 Design of Transformable Wheel Mechanism

Based on the kinematic model mentioned in Section 2, this paper proposes a method for the separation design of the obstacle-crossing structure and the driving mechanism.

The wheel structure is designed first to promote the obstacle-crossing ability and the driving mechanism is designed later to make the transformation process easier. The schematic diagram of our proposed design framework is illustrated in Figure 4.

Figure 4
figure 4

Schematic diagram of the proposed two-stage design framework of transformable wheel mechanism

3.1 Concept of the Wheel Mechanism

The obstacle-crossing capability can be indicated by the ratio of the maximum height of the obstacle the wheel can overcome \({H}_{m}\) to the wheel radius in round shape \(r\) [27], and it depends on the geometric parameters of the RSC wheel. The mathematical expression of \({H}_{m}/r\) is analyzed by taking the RSC wheel which has four divided legs as an example. As shown in Figure 5, when overcoming the obstacle with maximum height, the arc’s endpoint \(B\) should be at the intersection of the ground and the vertical surface of the step.

Figure 5
figure 5

The position of the RSC wheel with four legs when overcoming the obstacle with maximum height

The geometric constraint in this position is:

$$B_{x} = O_{2x} .$$

Considering reducing the structure complexity, the number of arcs in RSC wheel is set to be no more than 6. Due to the symmetry of the structure, both the rotation angle of each arc \(\theta\) and the central angle of each arc between their endpoint and the rotation point \(\delta\) vary from 0\(^\circ\) to 90\(^\circ\). Based on these range limits, the relationship between \({H}_{m}/r\) and \(n, \delta , \theta\) can be derived by substituting Eq. (13) into the kinematic model in Section 2, which is shown in Figure 6.

Figure 6

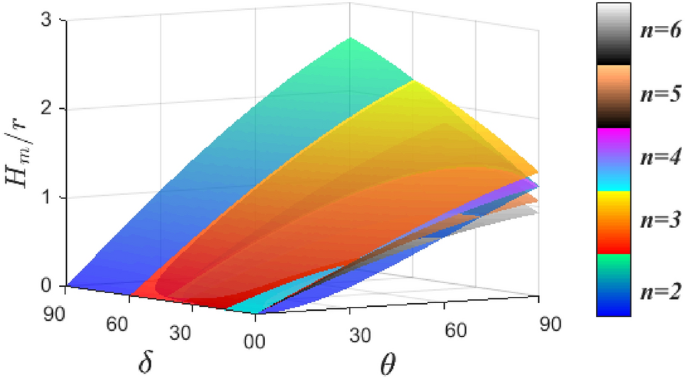

figure 6

Relationship between \(n\), \(\theta\), \(\delta\) and the obstacle crossing ability \({H}_{m}/r\)

Figure 6 illustrates that regardless of the number of equally divided legs \(n\), \({H}_{m}/r\) increases with \(\theta\) and \(\delta\). As mentioned above, the maximum value of \(\delta\) is \({180}^\circ /n\). In this case, \(\delta\) is half of the central angle corresponding to each arc and the configuration of the wheel is symmetrical. Thus, \(\delta\) is determined as \({180}^\circ /n\) to obtain bi-directional barrier-overcoming capacity. From Figure 6, the relationship between \(n\), \(\theta\) and \({H}_{m}/r\) can be derived in Figure 7.

Figure 7
figure 7

Relationship between \(n\), \(\theta\) and the obstacle-crossing ability \({H}_{m}/r\) when \(\delta ={180}^\circ /n\)

Figure 7 illustrates that under the same \(\theta\), the obstacle- crossing performance is strongest when \(n=\) 3, slightly weaker when \(n=\) 2, and gets worse when \(n>\) 3 as \(n\) increases. Therefore, the structure with three legs after transformation is chosen as shown in Figure 8.

Figure 8
figure 8

The RSC wheel driven by the four-bar mechanism: (a) Schematic diagram of the mechanism, (b) Free body diagram of the wheel during the transformation process

As shown in Figure 8(a), based on the optimal structure, the transformation driving part will be designed in the following. For compactness and reliability, three planar four-bar mechanisms are used to drive the transformation of the wheel, in which the rocker \({l}_{1}\) provides the driving force.

3.2 Selection of Design Variables Based on Kinematics

The design variables, especially the length of linkage \({l}_{1}, {l}_{2}, {l}_{3}\), are analyzed and properly selected based on the kinematic model in this part. Figure 6 reveals that the larger the transformation angle \(\theta\), the stronger the barrier-crossing capability. Therefore, an optimization problem with the maximum \(\theta\) as the objective can be constructed.

Considering the clockwise transformation of the rim, the relationship between \({\theta }_{m}\) and the length of each linkage is:

$$\theta_{m} = \arccos \frac{{l_{3}^{2} + r^{2} - (l_{1} + l_{2} )^{2} }}{{2l_{3} r}} + \arcsin \frac{{l_{3} }}{2r} - 90^\circ .$$

The next step is to perform the dimensional synthesis of the mechanism. The lengths of the three links need to satisfy some constraints. The condition for the existence of the four-bar mechanism is:

$$\left\{ \begin{gathered} l_{1} + l_{2} + l_{3} > r, \hfill \\ r + l_{2} + l_{3} > l_{1} , \hfill \\ l_{1} + r + l_{3} > l_{2} , \hfill \\ l_{1} + l_{2} + r > l_{3} . \hfill \\ \end{gathered} \right.$$

The dimension parameters of the linkages are also limited by the size of the structure to avoid motion interference:

$$\left\{ \begin{gathered} r < l_{1} + l_{2} < r + l_{3} , \hfill \\ l_{3} < 2r\sin \frac{\delta }{2}, \hfill \\ l_{1} + r > l_{2} + l_{3} . \hfill \\ \end{gathered} \right.$$

Besides, the torque required for transformation should be small to ensure the successful shape change of the rim. After the gear reduction, there is maximum torque \({T}_{M}\le\) 3 N \(\cdot\) m. As shown in Figure 7(b), by the principle of virtual work, the following equation can be obtained:

$$T_{m} {\text{d}}\gamma \, = \,F_{N} \,\cos \,\mu {\text{d}}B^{\prime}.$$

By combining Eqs. (14) to (17), the optimization variable space can be drawn as Figure 9.

Figure 9
figure 9

Relationship between the \({\theta }_{m}\) and the length of linkages under the constraints. The red dot indicates the location of the optimal parameters

In Figure 9, the red dot indicates the optimal four-bar mechanism parameters satisfying the constraints within the variable space, which are:

\({l}_{1}=\) 0.625 \(r\), \({l}_{2}=\) 0.880 \(r\), \({l}_{3}=\) 0.735 \(r\).

The maximum height of the step is set as 15 cm. From Figure 7, the corresponding minimum radius of the wheel \({r}_{min}=\) 9.09 cm. Taking the machining error and the stability margin into account, \(r\) is designed as 10 cm. Thus, the optimized design variables are

\({l}_{1}=\) 6.25 cm, \({l}_{2}=\) 8.80 cm, \({l}_{3}=\) 7.35 cm.

The mechanism with optimized design variables is shown in Figure 10. The Maximum clockwise transformation angle \({\theta }_{m}\) reaches 50.4 \(^\circ\) and \({H}_{m}/r\) reaches 1.52. Each leg is connected to the center turning disk so that the whole transformation can be driven by just one motor. Active bar \({l}_{1}\) rotates clockwise or counterclockwise to change the wheel into forward or backward direction motion mode respectively, thus providing the mobile platform with a bi-directional obstacle-crossing capability.

Figure 10
figure 10

The wheel mechanism with optimum design variables

4 Design of Mobile Platform

To design the mobile platform equipped with the RSC wheel, there are other parameters that need to be determined, such as the body length. In addition, in order to select the type of driving motor, it is necessary to estimate the rotation speed of the RSC wheel. The optimization of these parameters will be carried out based on a kinetostatics model.

4.1 Kinetostatics Analysis of the Mobile Platform

The free body diagram (FBD) of the mobile platform installed with the RSC wheel is shown in Figure 11. The robot consists of three parts: the RSC wheel, the body and the passive assistant wheel. Only the former two parts are analyzed, which ignores the influence of the structure of the passive assistant wheel. Considering the symmetry of the structure, the FBD of the RSC wheel and body is planar.

Figure 11

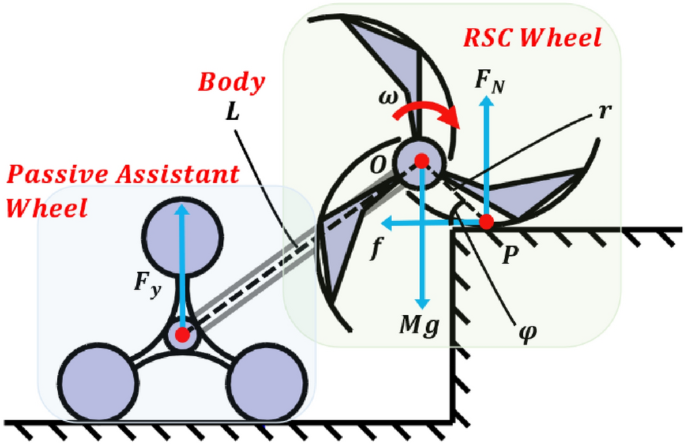

figure 11

The free body diagram of the mobile platform during the obstacle-crossing process

Since the transformation driving motor and the motion driving motor are arranged on the axis of the RSC wheel and the mass of the body is quite small compared to the mass of the RSC wheel, it is assumed that the mass of the robot is approximately concentrated in the RSC wheel center. The wheel rotation can be regarded as quasi-statically [28] due to its slow and constant speed. Also, the friction force on the passive assistant wheel is ignored, so there is only vertical support force \({F}_{y}\) applied to the body. Based on the above assumptions, the kinetostatics analysis of the wheel and the body can be carried out. Table 1 explains the parameters of the kinetostatics model.

Table 1 Parameters of the kinetostatics model

The success of the step-climbing depends largely on \({F}_{N}\) and \(f\). The greater \({F}_{N}\), the more stable the mobile platform will be. And large \(f\) ensures that the robot will not slip during this process. Since this process is relatively gentle, based on the D'Alembert principle, the kinetostatics equations of the robot on point \(O\) can be obtained to optimize the design variables:

$$\left\{ \begin{gathered} f = - M\omega^{2} r\cos \varphi , \hfill \\ F_{y} + F_{N} - Mg = - M\omega^{2} r\sin \varphi , \hfill \\ fr\sin \varphi - F_{N} r\cos \varphi + F_{y} \sqrt {L^{2} - (H + R\sin \varphi )^{2} } = 0. \hfill \\ \end{gathered} \right.$$

The expression of support force on the active wheel at P can be written by revising Eq. (18) as

$$F_{N} = \frac{{M\left( {g - r\omega^{2} \sin \varphi - \frac{{r^{2} \omega^{2} \sin \varphi \cos \varphi }}{{\sqrt {L^{2} - (H + r\sin \varphi )^{2} } }}} \right)}}{{1 + \frac{r\cos \varphi }{{\sqrt {L^{2} - (H + r\sin \varphi )^{2} } }}}}.$$

Equation (19) can be used to study the influence of body length \(L\) and the angular velocity of the drive motor \(\omega\) on the obstacle-crossing performance. The mass of the robot \(M\) and the RSC wheel radius \(r\) (in wheel mode) is constant. According to the kinematic model in Section 2, in the extreme case, the initial angle between \(\overline{OP }\) and the step surface is 50\(^\circ\). And when the robot is on the step, \(\overline{OP }\) is vertical to the step surface. Thus, \(\varphi\) varies from 50\(^\circ\) to 90\(^\circ\) during the step-climbing process. The relationships between \({F}_{N}\) and \(L,\varphi\) (when \(\omega =\) 1 rad/s) and the relationships between \({F}_{N}\) and \(\omega ,\varphi\) (when \(L=\) 0.3 m) are shown in Figure 12.

Figure 12
figure 12

Influence of \(L\) and \(\omega\) on the obstacle-climbing performance of the mobile platform: (a) Relationship between \({F}_{N}\) and \(L,\varphi\) when \(\omega =\) 1 rad/s (Red line represents that \(L\) is finally chosen as 0.35 m), (b) Relationship between \({F}_{N}\) and \(\omega ,\varphi\) when \(L=\) 0.3 m (Red line represents that \(\omega\) is finally chosen as 1 rad/s)

Figure 12(a) illustrates that the increase in body length contributes to the stability of the robot during the obstacle-overcoming process. The reason is that if the passive assistant wheel is away from the centroid of the robot, the possibility of body overturning can be reduced. At the same time, a long platform provides more space to carry the load. Figure 12(b) illustrates that when the motor power is a certain value, the angular velocity should be as small as possible. Considering the overall size limitations, \(L\) is designed as 0.35 m and \(\omega\) is chosen as 1 rad/s.

4.2 Prototype Design

Based on the previous design, the prototype with two RSC wheels is developed as shown in Figure 13. The overall size of the prototype is 46 \(\times\) 40 \(\times\) 24 cm3. The rotation of the wheel is driven by DC encoder motors, with the model CHR-42GP-775 and a reduction ratio of 1:92. The transformation of the RSC wheel is driven by brushless DC motors. The model of the motor is CHW-GW4632-370 and the reduction ratio of 1:32.

Figure 13

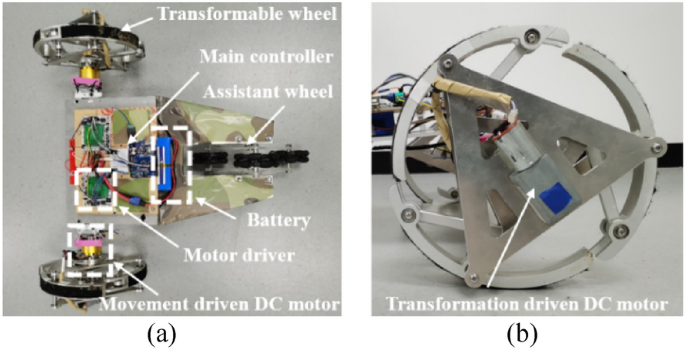

figure 13

Prototype of the wheel-legged robot: (a) Top view of the prototype, (b) Side view of the RSC wheel

The control system of the robot consists of a main controller and two motor drivers. The model of the main controller is Arduino UNO, and the two motor drivers are both dual H-bridge 60A motor drive modules, which control the motion drive motor and the transformation drive motor respectively. The whole system is powered by a lithium battery with a capacity of 9800 mhA, which provides 12 V voltage to the controller and the motor drivers. It can ensure one-hour continuous operation for the robot. The specific parameters of the prototype are listed in Table 2.

Table 2 Parameters of the robot prototype

Before the experiments, in order to verify whether the maximum transformation angle of the RSC wheel can reach 50\(^\circ\), a sensitivity analysis of the obstacle-crossing capability to the dimensions of the transformation driving mechanism was carried out to exclude the effect of machining errors on the performance of the prototype. Take partial derivatives on both sides of Eq. (14):

$$\frac{{\partial \theta_{m} }}{\partial l}\, = \,\left[ {\begin{array}{*{20}c} {\frac{{\partial \theta_{m} }}{{\partial l_{1} }}} & {\frac{{\partial \theta_{m} }}{{\partial l_{2} }}} & {\frac{{\partial \theta_{m} }}{{\partial l_{3} }}} \\ \end{array} } \right]^{\text{T}}.$$

Equation (20) can be used to analyze the relationship between the change of the obstacle-crossing ability and the change of the length of three transformation driving links. When one of the lengths of the linkage \({l}_{1}, {l}_{2}, {l}_{3}\) changes by ten thousandths (m) and the other two remain unchanged, while the three parameters still satisfy the constraint relations of Eqs. (15) to (17), Figure 14 can be obtained. In Figure 14, the red dots indicate the most sensitive location to the change of design parameters.

Figure 14
figure 14

Sensitivity of RSC wheel’s transformation angle \({\Delta \theta }_{m}\) to driving mechanism’s linkage lengths: (a) \({l}_{1}\) changes 0.0001 m, while \({l}_{2}, {l}_{3}\) remain unchanged, (b) \({l}_{2}\) changes 0.0001 m, while \({l}_{1}, {l}_{3}\) remain unchanged, (c) \({l}_{3}\) changes 0.0001 m, while \({l}_{1}, {l}_{2}\) remain unchanged

In Figure 14, the red dots indicate the most sensitive location to the change of design parameters. It can be obtained that under the currently designed parameters, \({\theta }_{m}\) can be affected by the length of the linkages to the maximum extent as:

$$\left( {\frac{{\partial \theta_{m} }}{\partial l}} \right)_{\max } \, = \,\left[ {\begin{array}{*{20}c} {1.3} & {1.3} & {0.7} \\ \end{array} } \right]^{{\text{T}}} \,\left( {^{ \circ } /{\text{mm}}} \right).$$

Then, according to the relationship between the transformation angle and the maximum height that the RSC wheel can cross shown in Figure 7, we can obtain:

$$\left( {\frac{{\partial H_{m} }}{\partial l}} \right)_{\max } \, = \,[\begin{array}{*{20}c} {4.4} & {4.4} & {2.4]^{{\text{T}}} } \\ \end{array} .$$

Equation (22) shows that every 1 mm machining error of the three linkages \({l}_{1}, {l}_{2}, {l}_{3}\) will reduce the maximum obstacle-crossing height by 4.4 mm, 4.4 mm and 2.4 mm, respectively. The material of the linkages in the prototype is aluminum alloy and its machining accuracy is 0.02 mm, so the effect on the obstacle-crossing height is basically negligible. By measurement, the maximum transformation angle of the RSC wheel in the prototype is actually 50.2°.

5 Experiments

To verify the obstacle-crossing ability and stability of the prototype and test whether the kinematics and kinetostatics model established above are correct, the experiments are carried out in the real environment shown in Figure 15. The surface of the RSC wheel is pasted with a common tire material to increase the friction between it and the ground. The prototype was free from human interference throughout the obstacle-crossing process.

Figure 15

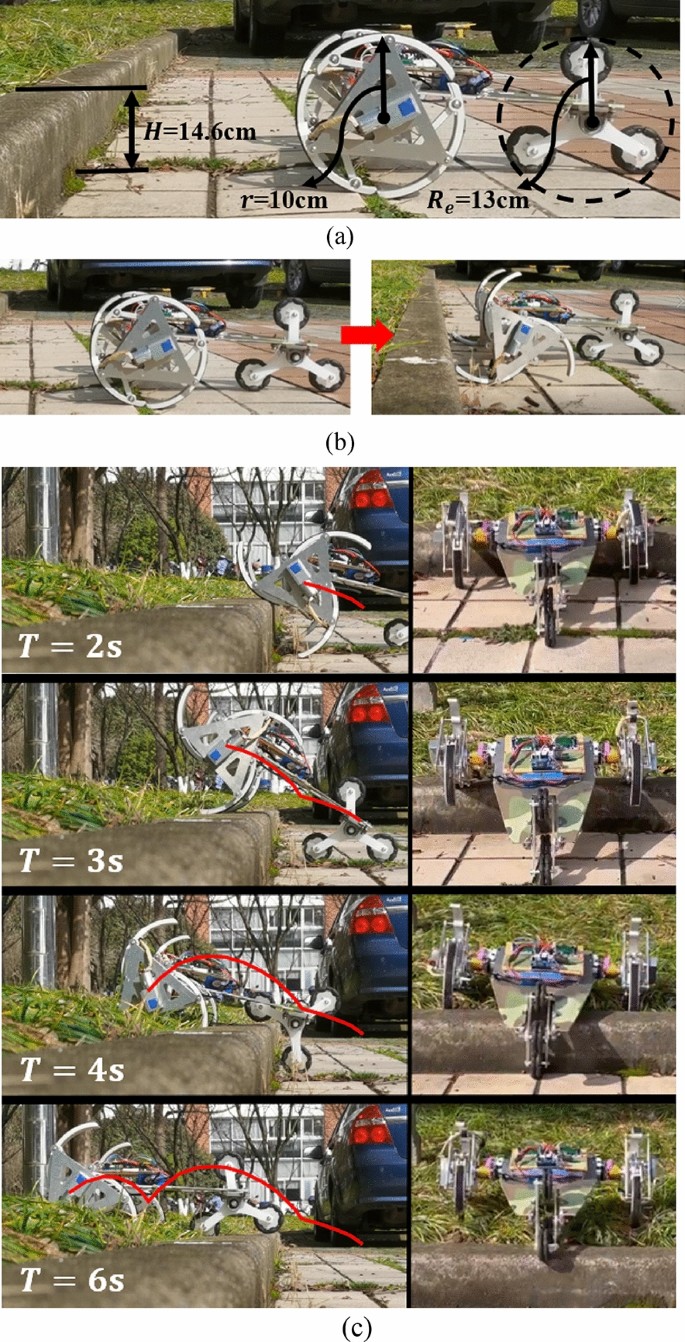

figure 15

Obstacle-crossing experiment of the prototype: (a) Environment of the experiment, (b) Robot switches motion modes in front of the step, (c) Step-climbing process

In Figure 15(a), the robot is in wheel mode, and its speed can reach a maximum of 1.67 m/s (3.63 robot lengths per second), which can meet the efficient locomotion requirement on flat ground. The height of the step in front of the robot is 14.6 cm, and the ratio of the step height to the radius of the RSC wheel \(H/r\) is 1.46. The equivalent radius of the passive assistant wheel is 13 cm.

In Figure 15(b), when encountering an obstacle, the robot will switch from wheel mode to leg mode, in which the transformation angle of the wheel rim is 50\(^\circ\). The whole transformation process can be completed in less than 1 s.

In Figure 15(c), the prototype easily overcomes the step as calculated before. Both the RSC wheel and the passive assistant wheel have the shape of three legs in the prototype. Figure 16(a) illustrates the maximum height of the obstacle that the passive assistant wheel can climb, which is \({H}_{m}=\sqrt{3{l}^{2}-{r}^{2}}\). Here, \(l=9\) cm, \(r=4\) cm and \({H}_{m}=15.07\) cm. The equivalent radius of the passive assistant wheel is \({R}_{e}=l+r=13\) cm, so the obstacle-crossing ability can be evaluated by \({H}_{m}/{R}_{e}=1.16\). This value is 1.52 for the RSC wheel and 0.5 for the round wheel as shown in Figure 16(b), which proves that the RSC wheel possesses a better obstacle-crossing performance.

Figure 16
figure 16

The comparison of the step-climbing capacity: (a) The step with maximum height that the passive assistant can climb, (b) The \({H}_{m}/r\) value of the rim shape changeable (RSC) wheel, the passive assistant wheel and the round wheel

Figure 15(c) also records the centroid trajectory of the robot (approximately considered to be concentrated at the center of the RSC wheel) during the step-climbing process. As shown in Figure 17, taking the initial wheel center position as the origin, the height variation range of the centroid is always within 15 cm and the maximum absolute value of the track slope is 1.0079 in the whole process. Similar to the kinematic analysis in Section 2, before \(T=3\) s, that is, the RSC wheel completely climbs the obstacle, and the trajectory slope is always positive. The fluctuation of the centroid is slight, which proves that the robot has good stability during the obstacle-crossing process.

Figure 17

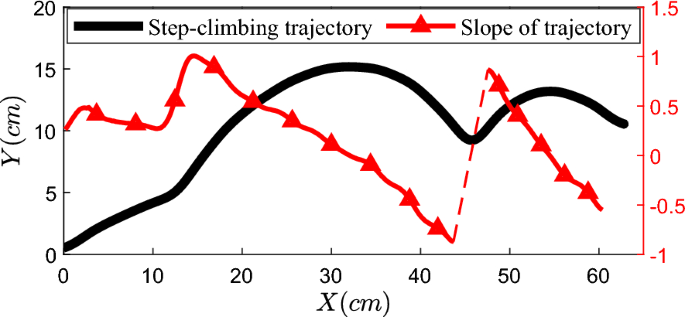

figure 17

Obstacle-crossing trajectory and the change of slope

In addition, as shown in Figure 18, the rough surface locomotion ability and the bi-directional obstacle-crossing performance of the prototype are also examined. It is shown in Figure 18(a) that the prototype can smoothly pass through rough terrain with complex features such as stones and pits, and has strong terrain adaptability. In Figure 18(b), the arrows indicate the direction of motion of the robot. In the narrow space between two cars, it is difficult for the robot to turn around. However, the RSC wheel can transform into forward or backward direction motion mode, allowing the mobile platform to pass through the narrow space in both directions without turning.

Figure 18

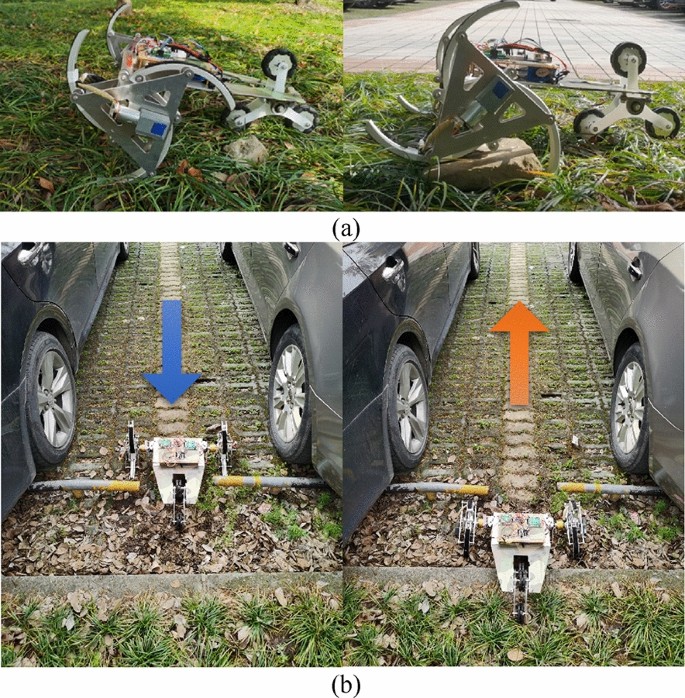

figure 18

Experiment of traversing different terrains: (a) The robot traverses on rough terrain, (b) The robot passes through the narrow space in both directions without turning

6 Conclusions

This work proposes a novel wheel-legged robot with RSC wheels that can switch between wheel mode and leg mode based on a four-bar mechanism. The main contributions are as follows:

  1. (1)

    A novel transformable mechanism, enabling the robot to maintain both high mobility in flat ground and bi-directional obstacle-crossing performance in rough roads.

  2. (2)

    A design process that gets rid of the coupling between the geometric structure and the transformation driving mechanism. Based on that, the geometric parameters of the RSC wheel and the design variables of the driving four-bar mechanism are optimized separately to enhance the obstacle-crossing performance and reduce the difficulty of transformation.

  3. (3)

    A robot with good mobile performance. Experiments show that the prototype equipped with the new wheel mechanism can overcome obstacles with a maximum height of 1.52 times its wheel radius, and run smoothly in rough terrains.

In future research, the passive assistant wheel will be substituted with the active RSC wheel to achieve better bi-directional obstacle-crossing ability. In addition, a vision module will be added to identify the height of obstacles. The rim of the wheel will be transformed into different angles to adapt to different terrains, which can reduce the energy consumption of the robot when performing missions. At the same time, the robot can determine whether the obstacle-crossing is completed based on visual information, thereby switching back from the leg mode to the wheel mode timely to avoid centroid fluctuations in the leg mode shown in Figure 1 where the X coordinate is about 42 cm.

The design process and the transformable mechanism proposed in this paper can provide a reference for the design of the wheel-legged robot. The stable and efficient obstacle-crossing performance of the mobile platform will expand its application in fields such as detection and rescue, and improve the success rate of the missions in complex terrains.
