PathDependent Progressive Failure Analysis for 3DPrinted Continuous Carbon Fibre Reinforced Composites
Chinese Journal of Mechanical Engineering volume 37, Article number: 72 (2024)
Abstract
In order to predict the damage behaviours of 3Dprinted continuous carbon fibre (CCF) reinforced composites, when additional short carbon fibre (SCF) composite components are employed for continuous printing or special functionality, a novel pathdependent progressive failure (PDPF) numerical approach is developed. First, a progressive failure model using Hashin failure criteria with continuum damage mechanics to account for the damage initiation and evaluation of 3Dprinted CCF reinforced polyamide (PA) composites is developed, based on actual fibre placement trajectories with physical measurements of 3Dprinted CCF/PA constituents. Meanwhile, an elasticplastic model is employed to predict the plastic damage behaviours of SCF/PA parts. Then, the accuracy of the PDPF model was validated so as to study 3Dprinted CCF/PA composites with either negative Poisson’s ratio or high stiffness. The results demonstrate that the proposed PDPF model can achieve higher prediction accuracies in mechanical properties of these 3Dprinted CCF/PA composites. Mechanism analyses show that the stress distribution is generally aggregated in the CCF areas along the fibre placement paths, and the shear damage and matrix tensile/compressive damage are the key damage modes. This study provides a new approach with valuable information for characterising complex 3Dprinted continuous fibrematrix composites with variable mechanical properties and multiple constituents.
1 Introduction
Fibre reinforced composites and especially continuous carbon fibre (CCF) reinforced composites are wellestablished as advanced materials with excellent stiffness and strengthtoweight ratios for a wide range of industrial applications [1, 2]. Conventional manufacturing technologies are sometimes inconvenient, expensive and even incapable for producing CCF composites of extraordinary configurations to satisfy new design purposes and requirements, while 3D printing technology (i.e., additive manufacturing) has become increasingly important and effective to easily achieve new CCF composites with complex configurations and constituents. However, unlike conventionally manufactured CCF composites, as mentioned, usually 3Dprinted CCF composites not only have complex structural geometries but also nonuniform fibre paths with variable mechanical properties and multiple constituents, which impedes their effective modelling and analysis for engineering applications.
Currently, research work for modelling 3Dprinted CCF composites is increasing but still limited, though numerical analysis demonstrates strong advantages for investigating structural/material responses and minimising experimental cost. For instance, macroscale [3,4,5], mesoscale [6, 7] and multiscale models [8,9,10] were utilised for the numerical modelling of 3Dprinted CCF composites. In this context, several recent studies have been attracting researchers’ attention to simulations. For instance, Abadi et al. [11] used finite element analysis to characterise the performance of 3Dprinted continuous fibre reinforced composites. Majko et al. [4] performed numerical approaches based on the commercial software ADINA to analyse 3Dprinted composite laminates reinforced with different fibre categories, i.e., continuous aramid, carbon and glass fibres. Van de Werken et al. [5] developed a numerical model to calculate the damage condition based on TsaiWu failure indices of a 3Dprinted CCF composite dog bone specimen under tensile loading. Zhang et al. [12, 13] simulated 3Dprinted continuous fibre reinforced composite plates with a central hole when subjected to tension and shearing. Recently, Avanzini et al. [14] proposed an embeddedelements technique to simulate the 3Dprinted composite parts with complex geometry realised by continuous fibres. A comparative study of the embeddedelements approach with conventional analytical or numerical methods for stiffness assessment was performed, showing an accurate prediction of stiffness with the additional ability to model complex fibre deposition patterns when using the embeddedelements approach. This approach may deal with the predictions for 3D printed composites with complex fibre paths but is only available within the elastic domain, i.e., for predicting the structure’s stiffness.
Hence, numerical modelling of thermoplasticmatrix specimens reinforced with continuous fibres obtained by 3D printing, i.e., fused filament fabrication (FFF), is still in its infancy [15]. Besides, most designed continuous fibre paths are complicated and additional material components are sometimes essential for continuous printing or special functionality of 3Dprinted CCF reinforced composites. This has led to variable mechanical properties and multiple constituents [16, 17], while few relevant reports on such modelling methods are available, especially when damage states and analyses were considered.
In this study, a pathdependent progressive failure (PDPF) approach is proposed to predict and characterise 3Dprinted CCF reinforced polyamide (PA) composites, i.e., two topologicallydesigned CCF composite structures with particular properties: Negative Poisson’s ratio and high stiffness. In these, short carbon fibre reinforced PA (SCF/PA) components are additional constituents. Numerical models are based on continuum damage mechanics for progressive failure analysis of 3Dprinted CCF/PA composites. These are developed by defining the physical fibre placement trajectories as the longitudinal fibre directions within the CCF areas. An elasticplastic failure model for SCF/PA components based on experimental characterisation is also performed. The prediction results, in terms of the stiffness, peak force and energy absorption of 3Dprinted CCF composites, are experimentally and numerically validated.
2 Specimen Preparation and Experiments
Structures with specific performance can be usually acquired via topological design [18,19,20]. In this study, the specimens functionalised with either negative Poisson’s ratio/auxetic performance or high stiffness were obtained based on topological and fibre placement design using CCFs, as reported in Ref. [21]. A Markforged® MII 3D printer was utilised to additively manufacture the CCF/PA functional composites where some areas were printed with SCF/PA (deposited with ± 45° configurations, i.e., + 45° and − 45°, alternatively) for the sake of continuous printing [17]. The final CCF printing trajectories for the specimens with negative Poisson’s ratio and high stiffness are shown in Figure 1(a) and (b), respectively. The CCF/PA and SCF/PA filaments for 3D printing were commercially acquired from Markforged Inc. For the 3Dprinted composites, the singlelayer thickness was 0.125 mm to form 64 layers with a total thickness of 8 mm. The printing paths in each layer are the same as seen in Figure 1(a) or (b), except for the upper and bottom surface layers which were deposited with SCF/PA under a compulsory default setup in Markforged system.
Based on ASTM D638, tensile tests were conducted using an Instron 3366 universal testing machine with a quasistatic constant displacement rate of 5.0 mm/min and a strain gauge with a gauge length of 12.5 mm to measure the effective stressstrain relation of the 3Dprinted SCF/PA composite materials (deposited in ±45° configurations).
Compression tests were conducted on the 3Dprinted CCF reinforced specimens using an MTS 810 material testing machine with a data acquisition system to record the forcedisplacement curves. The displacement rate was set at 2.0 mm/min for all the compressive tests, as shown in Figure 1(c). During characterisation, the stiffness and peak force can be directly extracted while the energy absorption can be integrated from the forcedisplacement curve.
A digital image correlation (DIC) technique was employed to characterise the deformation and mechanical performance of the 3Dprinted composites. For the DIC analysis, a whitecoloured coating was sprayed on the surface of the planar lattice followed by the application of a uniform pattern of black dots applied using an embossed inkcovered roller. These black dots could be captured by the DIC camera to enable the determination of the displacements or strains. The accuracy of the measured displacement was approximately ±0.02%.
3 A PathDependent Progressive Failure Analysis
As mentioned before, the complex curvilinear fibre trajectories of 3Dprinted continuous fibre composites, such as those shown in Figure 1(a) and (b), lead to variable mechanical properties which are difficult to be accurately modelled using a conventional progressive failure (CPF) model based on approximated fibre orientations with continuum damage mechanics [16, 22]. In this study, a novel numerical modelling method, i.e., a PDPF analysis model, is proposed and developed to predict and analyse the progressive failure response of 3Dprinted CCF composites.
First, the actual fibre deposition trajectories are straightforwardly extracted from the Eiger system of the Markforged printer. Then, the basic width of consolidated CCF/PA filaments is experimentally measured and determined as shown in Figure 2(a), leading to a width value of around 0.72 mm for the 3Dprinted CCF/PA in the fibre rich areas. The fibre rich area is where the fibre filaments are deposited back and forth without any gap and within which there are no other material parts (i.e., SCF/PA). Besides, the mechanical properties in the rich area are the same as those of 3Dprinted CCF/PA standard tensile specimens that can be experimentally characterised, as reported in Refs. [23, 24].
Numerically, in this study, the volume of 3Dprinted filaments is calculated based on the rectangular shaped 3D printed filaments other than the fact of ovallike shaped filaments by FFF. Taking the CCF composites with negative Poisson’s ratio as an example, based on the basic fibre width of 0.72 mm and fibre trajectories of Figure 1(a), the areas of 3Dprinted CCF/PA parts with their fibre placement directions can be determined as presented in Figure 2(a), where the deposited two adjacent layers then lead to 1.44 mm width for numerical modelling. Meanwhile, the curved areas of 3Dprinted CCF composites may possess a lower fibre volume fraction due to fibre loss during printing [25]. Therefore, the curved sections were generally reduced or marginally adjusted within a basic range of 0.6−0.85 mm based on experimental measurement of filament widths including those in fibre rich, curved and other areas, until the final volume of deposited CCF/PA filaments meets that given by the Eiger system.
3.1 Progressive Failure of 3DPrinted CCF/PA Composite
The damage behaviours of CCF composites are complicated. They comprise intralaminar damage, e.g., continuous fibre fracture/rupture, matrix cracking/crushing and interlaminar damage/delamination [26]. To date, continuum damage mechanics is of great advantage in calculating the intralaminar damage of CCF composites in a damage accumulation manner based on the damage variables ranging from 0 to 1, for the description of a damage initial state and the progressive development process. In the PDPF model, the orthogonal material constitutive equations were developed based on continuum elements in an Abaqus simulation platform, and the corresponding failure criteria were utilised for calculating the damage initiation and propagation. Among several failure criteria [27,28,29,30,31], one of the mostly utilised methods for unidirectional CCF composites, namely, Hashin criterion [28, 29], was employed to predict the failure responses of the 3Dprinted CCF composites.
Details for the constitutive equations and failure criteria for 3Dprinted CCF/PA composites are presented in Appendix A. The basic mechanical properties were obtained from Refs. [16, 24] for the same 3Dprinted CCF/PA composites, with a nominal CCF volume fraction of 31.4% and a void content of 7.5% [24]. With these previous characterisations, the basic mechanical properties are summarised in Table 1. In this study, the interlaminar damage/delamination was observed as an insignificant behaviour [16], hence the interfaces between the printed layers have not been taken into account.
As mentioned, in the PDPF model, the 3Dprinted CCF/PA filaments in composite layers were calculated using orthotropic material constitutive properties, shown in Table 1, where the fibre longitudinal direction was defined along the CCF filament trajectories, i.e., as marked in Figure 2(a). Specifically, in Abaqus, the primary axis direction, i.e., the fibre longitudinal direction, as exhibited in Figure 2(a), was defined using an “Edges” option by choosing the CCF filament trajectories when setting up the orientation for composite layups, meanwhile the normal axis direction, i.e., the throughthickness direction was set along the x direction according to Figure 2, so the fibre transverse direction was then automatically determined since it is perpendicular to the longitudinal and throughthickness directions.
3.2 ElasticPlastic Behaviour of SCF/PA Composite
As previously mentioned, SCF/PA was utilised as additional material components filling the space where CCF/PA placement was difficult in continuous printing, so once the CCF/PA placement areas have been determined using the approach as shown in Section 3.1, the remaining sections will be defined as SCF/PA composites for simulation. SCF/PA was selected because of its better performance than the PA counterpart [17]. As introduced in Section 2, the SCF/PA filament was placed in ±45° configurations in all printing, and the nominal volume fraction was ~10% [16], leading to an increment of elastic modulus of PA but providing no big improvement in tensile strength. Hence, for modelling purposes, it was treated as an isotropic material for numerical analysis, though it has minor orthotropy [16].
The mechanical properties of 3Dprinted SCF/PA composites were specifically characterised in this study. According to ASTM D638, tensile tests were conducted for type IV dog bone SCF/PA specimens (deposited with ±45° path configurations), using a universal testing machine with a quasistatic constant velocity of 5.0 mm/min and a strain gauge with a gauge length of 10 mm to obtain the effective or engineering stressstrain relation.

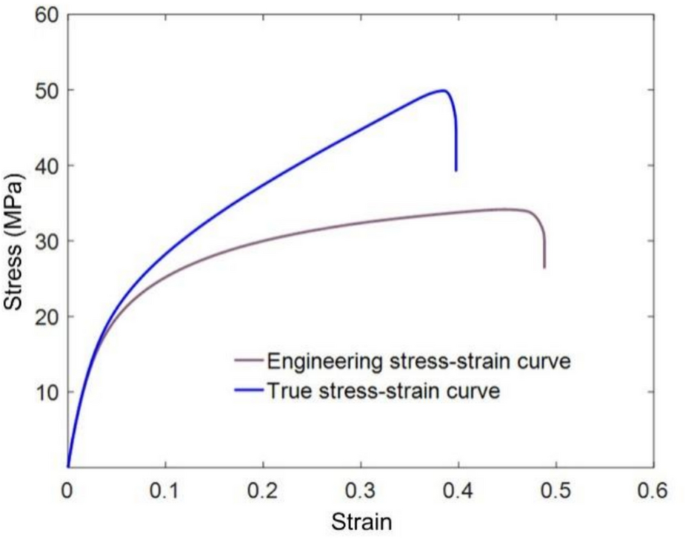

The mean results of the experimental stressstrain curves of standard specimens produced by repetitive testing were extracted and converted into the true stressstrain curve for modelling [32], as shown in Figure 3. Then, an elasticplastic model was established using the true stressstrain curve. A summary of its basic properties is depicted: The density is 1160 kg/m^{3}, tensile modulus is 898 MPa, tensile strength is 50 MPa and failure strain is 0.4. In failure analysis, the equivalent plastic strain (PEEQ) describing an accumulation of the plastic deformation during the process was utilised for characterising the plastic deformation. This was done because of PEEQ’s wide applications with benefits for comprehensive and effective evaluation using a scalar rather than a complex strain tensor [33, 34]. In addition, a ductile criterion in Abaqus was applied to determine the final failure of SCF/PA materials using a predefined failure strain (=0.4) based on the elasticplastic model, to exhibit the materials’ fracture behaviour.
3.3 Numerical Definitions and Boundary Conditions
As shown in Figure 2(b), the throughthickness distribution of sixtytwo layers of 3Dprinted CCF/PA with additional SCF/PA parts and two layers of complete SCF/PA was numerically built, where the two SCF/PA layers of the upper and bottom surfaces are compulsory options because of using the Markforged printer. Hence, the specimens consisted of sixtyfour plies and each ply had the same thickness of 0.125 mm, based on the printing setup. In each layer, the continuous fibre longitudinal directions, as mentioned, were defined to be the same as those of printing trajectories as shown in Figure 1(a). With the Markforged printer, there is one single wall of SCF/PA, as the casing around a printed profile, which was ignored in the simulation, due to its very limited volume fraction and insignificant effects on characterisation.
The numerical models were developed using Abaqus/Explicit to calculate the structural responses and materials failure. Under compression, 8node quadrilateral continuum shell elements (SC8R) were applied for the 3Dprinted composites to guarantee accurate modelling and to improve the calculation’s efficiency [2]. The moving and fixed plates were modelled with conventional shell elements (S4R). After a convergence study on mesh and velocity, a constant displacement rate of 100 mm/s was applied for the moving plate (so that the dynamic effect would be insignificant when the velocity was below 500–1000 mm/s [2] to improve the calculation efficiency) and a uniform mesh with the element size of 0.9 mm was used for modelling the 3Dprinted specimens [16].
The meshwork of 3Dprinted CCF/PA auxetic composite and specific boundary conditions are exhibited in Figure 2(c). A general contact algorithm was deployed to calculate and simulate the general interaction between the elements [32]. The friction coefficients for the contact interfaces were generally defined as 0.3. During the simulation, in accordance with the failure criteria for CCF/PA and the failure strain for SCF/PA, the totally failed elements were removed for further calculation. The same numerical definitions were performed for modelling the high stiffness 3Dprinted CCF composites.
4 Results and Discussion
4.1 Case Study 1: Auxetic Composites
The first case is a 3Dprinted auxetic composite with fibre deposition trajectories as shown in Figure 1(a) and subjected to inplane compression as introduced previously. The absolute fibre volume fraction is 3.7% [21]. The experiments show that these CCF/PA composite structures demonstrate a negative Poisson’s ratio from − 0.2 to − 0.1 as the compression displacement progresses from 0 mm to 4 mm within the effective displacement [16] (so the DIC photographic analysis and numerical modelling were performed at 4 mm).
Their forcedisplacement curves are presented in Figure 4. We can see that the force increases from zero to around 500 N where the surfaces of upper and bottom unit cells were contacted at about 2 mm, then the force is further increased to peak at about 2000 N, and afterwards it gradually decreases when the compressive displacement is over 4 mm. In comparison, the predicted forcedisplacement curve of the PDPF model agrees well with those of experiments, though discrepancies can be also captured. The reasons can be concluded as follows: the ignorance of the practical interface properties between CCF/PA and SCF/PA sections and the materials’ orthotropic characteristics during modelling for SCF/PA materials. Additionally, the discrepancies can be also attributed from the initial stress and fibre damage in experimental specimens when there were 3Dprinted curved sections [16]. Basically, the models are acceptable in predicting the key mechanical features of 3Dprinted CCF composite structures.
The compression behaviours captured for horizontal displacement, i.e., the displacement along the x direction, U_{xx}, by DIC and simulation at Point B of 4 mm are depicted on the righthand side of Figure 4. It can be found that when the compression displacement is 4 mm, the structure undergoes a horizontal shrinkage along the x direction, where its left and right parts deform positively and negatively, respectively, indicating an evident auxetic behaviour in both experiments and simulation.
Based on experimental/numerical observation and forcedisplacement curves of Figure 4, the CCF/PA specimen has already been failed and is about to confronting outofplane bending behaviour which is not our focus, so the investigation is performed within 4 mm of Point B. Then, the deformation and damage process before 4 mm captured by DIC photographic analysis of horizontal strain by experiments and von Mises stress by simulation for 3Dprinted CCF/PA auxetic composites are shown in Figure 5. The DIC results demonstrate that, as the plate compresses to Point B, both positive and negative horizontal strain ε_{xx} are intersectionally aggregated in the CCF/PA auxetic composites, contributing to their auxetic behaviours. Accordingly, from the stress analysis and CCF trajectories presented in Figure 1(a), it can be seen that Mises stresses are mainly concentrated in the CCF areas along the fibre placement paths, especially in those vertical CCFs against the compression loading, where the maximum stress is 283.9 MPa when the displacement is 4 mm. During the compression process, the stress/strain analyses at the marked circles in Figure 5 show that the material failure locally occurs at ligaments within each unit cell along the vertical CCF trajectories.
Further, failure mechanism analyses were performed for 3Dprinted CCF/PA auxetic composite with respect to the CCF/PA damage characteristics (Hashin criteria) and SCF/PA plastic deformations (PEEQ) at displacement Point B of 4 mm when under inplane compression. The results are shown in Figure 6. It is found that fibre damage is not predominant for the 3Dprinted CCF/PA auxetics. Shear damage and matrix tensile/compressive damage can be observed at the ligaments within each unit cell, which is attributed to the auxetic behaviours of each unit cell under compression. In terms of the plastic deformation for the SCF/PA parts, slight damage is observed at local contact areas near the moving and fixed plates.

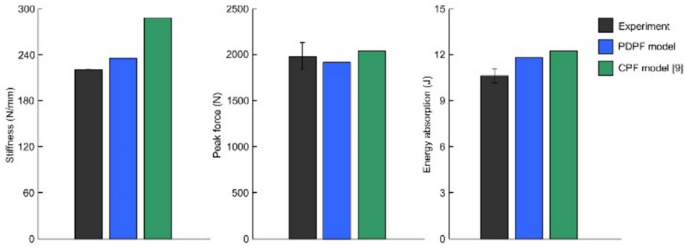

In order to investigate the mechanical performance and model effectiveness for the 3Dprinted CCF/PA auxetic composite under inplane compression, its stiffness, peak force and energy absorption calculated by experiments, PDPF model and CPF model are shown in Figure 7. By experiments, the (mean) stiffness of 3Dprinted CCF/PA composite auxetics is 219.7 N/mm, while the predicted results by the PDPF and CPF models are 254.4 N/mm and 289 N/mm, respectively. This indicates that the accuracy using the PDPF model has been improved by 16% as compared to that using the CPF model. The peak forces predicted by PDPF and CPF models are almost at the same level, with a variation of − 3.9% and 3.5%, respectively, from the experimental (mean) peak force of 1982.6 N. Finally, the (mean) energy absorption of 3Dprinted CCF/PA auxetic was experimentally measured as 10.6 J, which is 10.8% and 13.4% smaller than those predicted by PDPF and CPF models, respectively. Therefore, the accuracy using the PDPF method has been enhanced by 2.6%. Apparently, the PDPF model is more accurate in the prediction of mechanical performance of 3Dprinted auxetic composites.
4.2 Case Study 2: High Stiffness Composites
The second case is a topologicallydesigned 3Dprinted CCF/PA high stiffness composite with a structural configuration and fibre placement trajectories as shown in Figure 1(b). The basic structural size (80 mm×80 mm×8 mm) and boundary conditions were the same as those of CCF/PA auxetic composites. The absolute fibre volume fraction is 7.6% [21]. By experiments and simulation, the compressive forcedisplacement curves with the compressive responses of 3Dprinted CCF/PA high stiffness composites are shown in Figure 8. The force of CCF/PA has a rapid increment to over 12000 N before the displacement is 2 mm; subsequently, the force decreases steadily to below 6000 N. In comparison, the force propagation trend is well predicted by the PDPF model. The horizontal displacement by DIC photographic analysis and simulation at Point B of 2 mm for 3Dprinted CCF/PA high stiffness composites is also presented in Figure 8, where both DIC and simulation results show severe negative and positive displacements on the left and right edges, respectively, along the horizontal direction, demonstrating the structures’ apparent expansion behaviour.
As well, the CCF/PA specimen with outofplane bending behaviour after the displacement reaches 2 mm is not concentrated, such that the study is performed within 2 mm. By observation of the compressive behaviours, i.e., the deformation and damage process, as shown in Figure 9, the local strain concentration can be seen at the contact areas nearing the plates as denoted by the marked circles, which is also reflected by the stress distribution in the simulation results, as especially when the compression continues from Point A to B. In addition, the stress distribution is generally aggregated in the CCF areas along the fibre placement paths, with the maximum stress reaching 904.7 MPa when the displacement is 2 mm at Point B.

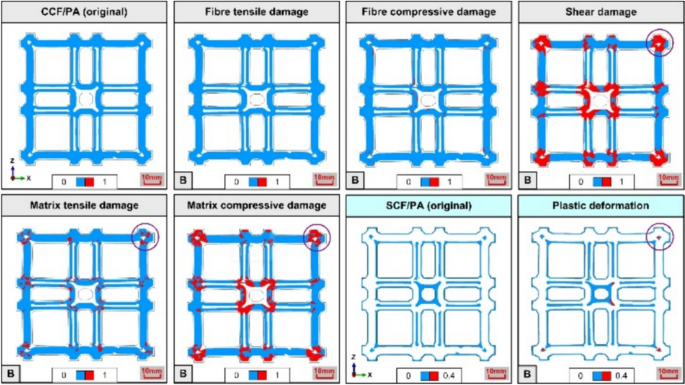

As shown in Figure 10, failure analyses show that the shear damage and matrix tensile/compressive damage are still the key damage mechanisms for CCF/PA parts. However, the damage magnitude of the 3Dprinted CCF/PA high stiffness composite is much more severe than that of the CCF/PA auxetic composite. Further, the damage mainly occurred at the four corners and central area, where either fibre shortage or discontinuity generally existed, as indicated by the fibre trajectories shown in Figure 1(b). While the plastic deformation is also basically located around the four corners and the central area, it is locally concentrated with insignificant distributions.

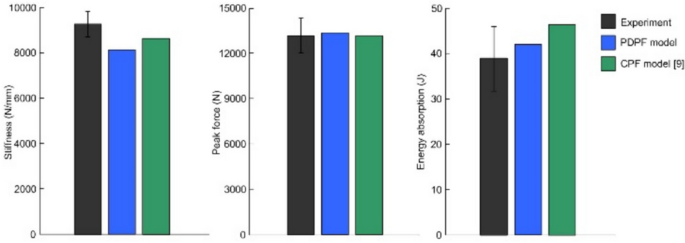

The mechanical performance of 3Dprinted CCF/PA high stiffness composites by experiments and simulation are presented in Figure 11. The (mean) stiffness and peak force in experiments are 9301.7 N/mm and 13197.2 N, respectively, which are accordingly around 10% and under 2% of difference to those predicted using either PDPF or CPF model. However, the experimental (mean) energy absorption is 38.5 J, with a variation of 9.5% and 21.6% from those predicted by the PDPF and CPF models, respectively, indicating that the modelling accuracy is improved by 12% when using the PDPF model. The conclusion can be drawn that the PDPF model has higher modelling accuracy than the CPF model for 3Dprinted CCF composites.
5 Conclusions

(1)
A PDPF analysis method using the orthogonal material constitutive relations with continuum damage mechanics was developed to predict the damage initiation and evaluation of 3Dprinted CCF/PA composites. Two cases on 3Dprinted CCF/PA composites, one with negative Poisson’s ratio and the other with high stiffness were calculated for validation and characterisation.

(2)
The results demonstrated that the PDPF model can well predict not only the forcedisplacement curves but also the damage behaviours of multiple constituents, i.e., CCF/PA and SCF/PA, in both cases. Besides, as compared to the CPF modelling method, the current PDPF model generally had higher prediction accuracies, such as a 16% and 12% improvement in the prediction of the stiffness of 3Dprinted CCF/PA composite auxetics and the energy absorption of 3Dprinted CCF/PA high stiffness composites, respectively.

(3)
Mechanism analyses showed that the stress distribution was generally aggregated in the CCF areas along the fibre placement paths, and the shear damage and matrix tensile/compressive damage were the key damage mechanisms for both 3Dprinted CCF/PA auxetic and high stiffness composites. However, the damage magnitude of the 3Dprinted CCF/PA high stiffness composite was much more severe than that of the CCF/PA auxetic composite. In contract, plastic deformation was basically locally concentrated with insignificant distributions.

(4)
In this study, we established and proved a new effective modelling method for 3Dprinted CCF/PA composites, providing valuable choices and information for predicting continuous fibrematrix composites with complex fibre paths, variable mechanical properties and multiple constituents. This model should be also available for the prediction of those continuous fibrematrix composites made by other manufacturing techniques, e.g., vacuum assisted resin infusion (VARI) processing.
Data availability
Data will be made available on request.
References
Y Sun, Z B Cai, S B Wu, et al. Effect of cycling low velocity impact on mechanical and wear properties of CFRP laminate composites. Chin. J. Mech. Eng., 2018, 31: 112.
Y Chen, L Ye, K K Fu. Progressive failure of CFRP tubes reinforced with composite sandwich panels: Numerical analysis and energy absorption. Compos. Struct., 2021, 263: 113674.
M Galati, M Viccica, P Minetola. A finite element approach for the prediction of the mechanical behaviour of layered composites produced by continuous filament fabrication (CFF). Polym. Test., 2021, 98: 107181.
J Majko, M Saga, M Vasko, et al. FEM analysis of longfibre composite structures created by 3D printing. Transportation Research Procedia, 2019, 40: 792–799.
N Van de Werken, J Hurley, P Khanbolouki, et al. Design considerations and modeling of fiber reinforced 3Dprinted parts. Compos. Part B Eng., 2019, 160: 684–92.
E Zappino, M Filippi, A Pagani, et al. Experimental and numerical analysis of 3D printed openhole plates reinforced with carbon fibers. Composites Part C: Open Access, 2020, 2: 100007.
S Sangaletti, I G García. Fracture tailoring in 3D printed continuous fibre composite materials using the phase field approach for fracture. Compos. Struct., 2022, 300: 116127.
E Polyzos, D Van Hemelrijck, L Pyl. Modeling elastic properties of 3D printed composites using real fibers. Int. J. Mech. Sci., 2022, 232: 107581.
Y T Fu, X F Yao. Multiscale analysis for 3D printed continuous fiber reinforced thermoplastic composites. Compos. Sci. Technol., 2021, 216: 109065.
Y T Fu, Y Kan, X Fan, et al. Novel designable strategy and multiscale analysis of 3D printed thermoplastic fabric composites. Compos. Sci. Technol., 2022, 222: 109388.
H A Abadi, H T Thai, V PatonCole, et al. Elastic properties of 3Dprinted fibrereinforced structures. Compos. Struct., 2018, 193: 8–18.
H Q Zhang, D M Yang, Y Sheng. Performancedriven 3D printing of continuous curved carbon fibre reinforced polymer composites: A preliminary numerical study. Compos. Part B Eng., 2018, 151: 256–64.
H Q Zhang, A N Dickson, Y Sheng, et al. Failure analysis of 3Dprinted woven composite plates with holes under tensile and shear loading. Compos. Part B Eng., 2020, 186: 107835.
A Avanzini, D Battini, L Giorleo. Finite element modelling of 3D printed continuous carbon fiber composites: Embedded elements technique and experimental validation. Compos. Struct., 2022, 292: 115631.
E Polyzos, D V Hemelrijck, L Pyl. Numerical modelling of the elastic properties of 3Dprinted specimens of thermoplastic matrix reinforced with continuous fibres. Compos. Part B Eng., 2021, 211: 108671.
Y Chen, L Ye, Y X Zhang, et al. Compression behaviours of 3Dprinted CF/PA metamaterials: Experiment and modelling. Int. J. Mech. Sci., 2021, 206: 106634.
Y Chen, L Ye. Topological design for 3Dprinting of carbon fibre reinforced composite structural parts. Compos. Sci. Technol., 2021, 204: 108644.
B L Zhu, X M Zhang, M Liu, et al. Topological and shape optimization of flexure hinges for designing compliant mechanisms using the level set method. Chin. J. Mech. Eng., 2019, 32: 13.
J Gao, M Xiao, Y Zhang, et al. A comprehensive review of isogeometric topology optimization: Methods, applications and prospects. Chin. J. Mech. Eng., 2020, 33: 87.
Y Chen, L Ye, C Xu, et al. Multimaterial topology optimisation of microcomposites with reduced stress concentration for optimal functional performance. Mater. Design., 2021, 210: 110098.
Y Chen, L Ye. Designing and tailoring effective elastic modulus and negative Poisson’s ratio with continuous carbon fibres using 3D printing. Compos. Part A Appl. Sci. Manuf., 2021, 150: 106625.
Y L He, J P Davim, H Q Xue. 3D progressive damage based aacro‑mechanical FE simulation of machining unidirectional FRP composite. Chin. J. Mech. Eng., 2018, 31: 51.
Q He, Z Y Man, L Chang, et al. On structuremechanical and tribological property relationships of additive manufactured continuous carbon fiber/polymer composites. Structure and Properties of Additive Manufactured Polymer Components. Woodhead Publishing, 2020.
M Iragi, C PascualGonzález, A Esnaola et al. Ply and interlaminar behaviours of 3Dprinted continuous carbon fibre reinforced thermoplastic laminates; Effects of processing conditions and microstructure. Addit. Manuf., 2019, 30: 100884.
H Shiratori, A Todoroki, M Ueda, et al. Compressive strength degradation of the curved sections of 3Dprinted continuous carbon fiber composite. Compos. Part A Appl. Sci. Manuf., 2021, 142: 106244.
X Wang, X Y Tian, Q Lian, et al. Fiber traction printing: A 3D printing method of continuous fiber reinforced metal matrix composite. Chin. J. Mech. Eng., 2020, 33: 31.
S W Tsai. Strength theories of filamentary structures fundamental aspects of fibre reinforced plastic composites. New York: WileyInterscience, 1968: 3–11.
Z Hashin, A Rotem. A fatigue failure criterion for fiber reinforced materials. J. Compos. Mater., 1973, 7: 448–64.
Z Hashin. Failure criteria for unidirectional fiber composites. J. Appl. Mech., 1980, 47(2): 329–34.
J P Hou, N Petrinic, C Ruiz, et al. Prediction of impact damage in composite plates. Compos. Sci. Technol., 2000, 60(2): 228–73.
A Puck, H Schürmann. Failure analysis of FRP laminates by means of physically based phenomenological models. Compos. Sci. Technol., 2002, 62: 1633–62.
Y Chen, L Ye, X Han. Experimental and numerical investigation of zero Poisson’s ratio structures achieved by topological design and 3D printing of SCF/PA. Compos. Struct., 2022, 293: 115717.
J Y Zheng, X Y Shu, Y Z Wu, et al. Investigation on the plastic deformation during the stamping of ellipsoidal heads for pressure vessels. Thin. Wall. Struct., 2018, 127: 135–144.
F K Xia, T X Yu, Y Durandet, et al. Triangular corrugated sandwich panels under longitudinal bending. Thin. Wall. Struct., 2021, 169: 108359.
Acknowledgements
The authors appreciate the invitation from professor Shantung Tu and professor Guoyan Zhou for submission of our research work to Chinese Journal of Mechanical Engineering.
Funding
Supported by National Natural Science Foundation of China (Grant No. 12302177), Guangdong Provincial Basic and Applied Basic Research Foundation of China (Grant No. 2024A1515010203), Shenzhen Science and Technology Program of China (Grant No. JCYJ20230807093602005), Shenzhen Key Laboratory of Intelligent Manufacturing for Continuous Carbon Fibre Reinforced Composites of China (Grant No. ZDSYS20220527171404011).
Author information
Authors and Affiliations
Contributions
YC and LY were in charge of the whole trial; YC and LY wrote the manuscript; YC assisted with sampling and laboratory analyses. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Competing Interests
The authors declare no competing financial interests.
Appendix
Appendix
1.1 Progressive Failure Criteria for Modelling 3DPrinted CCF/PA Composites
When modelling the continuous fibre, i.e., CCF/PA composites, the material constitutive relations is presumed to be a plane stress orthotropic material with linear elasticity, by which the constitutive response of the material can be calculated based on continuum damage mechanics as follows:
where ε is the elastic strain and ε = (ε_{11}, ε_{22}, ε_{12})^{T}, σ is the stress vector and σ = (σ_{11}, σ_{22}, σ_{12})^{T}, and C_{d} is the damagevariable based stiffness matrix,
where d_{f}, d_{m} and d_{s} = 1−(1–d_{f})(1–d_{m})v_{12}v_{21} are the continuous fibre, matrix and shear damage variables, respectively, varying from 0 (undamaged) to 1 (completely damaged) to reflect the material modulus degradation. E_{11}, E_{22} and G_{12} are the Young’s moduli while v_{12} and v_{21} are the Poisson ratios. Thus, the damage variables determine the reduction of elastic properties and influence the stress propagation and residual strength in the plies. For the failure calculation, based on Hashin’s method [28, 29], the initiation failure criteria in the progressive failure modelling are presented below.
Once any the four failure initiation modes in Table 2 have been reached, the corresponding damage are evaluated by calculating equivalent stress and strain in a linear degradation as follows.
Fibre tension (\(\sigma_{{{11}}} \ge {0}\), \(\varepsilon_{{{11}}} \ge {0}\)):
Fibre compression (\(\sigma_{{{11}}} { < 0}\), \(\varepsilon_{{{11}}} < {0}\)):
Matrix tension (\(\sigma_{22} \ge {0}\), \(\varepsilon_{22} \ge {0}\)):
Matrix compression (\(\sigma_{22} < {0}\), \(\varepsilon_{22} < {0}\)):
where L_{c}, the characteristic length, is determined by the element geometry and introduced to normalise the elements with different size ranges and ε_{11}, ε_{22} and ε_{12} are the elastic strain. Accordingly, such a bilinear equivalent stressstrain model for the failure initiation and evolution of the 3Dprinted CCF/PA composites is then applied with continuum damage mechanics in current modelling.
