Optimization of Uncertain Structures with Interval Parameters Considering Objective and Feasibility Robustness

  • Jin Cheng1,
  • Zhen-Yu Liu2Email author,
  • Jian-Rong Tan1,
  • Yang-Yan Zhang1, 3,
  • Ming-Yang Tang1 and
  • Gui-Fang Duan1, 2, 3
Chinese Journal of Mechanical Engineering201831:38

https://doi.org/10.1186/s10033-018-0244-3

Received: 19 July 2017

Accepted: 17 April 2018

Published: 6 May 2018

Abstract

For the purpose of improving the mechanical performance indices of uncertain structures with interval parameters and ensure their robustness when fluctuating under interval parameters, a constrained interval robust optimization model is constructed with both the center and halfwidth of the most important mechanical performance index described as objective functions and the other requirements on the mechanical performance indices described as constraint functions. To locate the optimal solution of objective and feasibility robustness, a new concept of interval violation vector and its calculation formulae corresponding to different constraint functions are proposed. The mathematical formulae for calculating the feasibility and objective robustness indices and the robustness-based preferential guidelines are proposed for directly ranking various design vectors, which is realized by an algorithm integrating Kriging and nested genetic algorithm. The validity of the proposed method and its superiority to present interval optimization approaches are demonstrated by a numerical example. The robust optimization of the upper beam in a high-speed press with interval material properties demonstrated the applicability and effectiveness of the proposed method in engineering.

Keywords

Robust optimizationUncertain structureInterval violation vectorFeasibility robustnessObjective robustnessNested genetic algorithm

1 Introduction

The uncertainties in material properties, geometric dimensions, load conditions and so on are ubiquitous for engineering structures [1]. The optimal solutions to the optimization models of engineering structures that neglect these uncertainties may be infeasible because their mechanical performance indices will fluctuate under the uncertainties [2]. Hence these uncertainties must be considered in handling the optimization problems of uncertain engineering structures [3, 4]. Robust design optimization is a frequently-utilized methodology to improve the robustness of structures and reducing the sensitivities of their mechanical performance indices to uncertain factors [58]. In the construction of various robust optimization models, the objective robustness is often achieved by simultaneously optimizing the mean of the objective mechanical performance index and minimizing its variation under uncertainties while the constraint robustness is to ensure the satisfaction of constraints when the constraint performance indices fluctuate under the influences of uncertain parameters [9].

Most researches on robust design optimization were conducted based on the assumption that the probabilistic distributions of uncertain factors were known [10, 11]. For instance, Doltsinis et al. [12] applied the perturbation technique and the incremental loading procedure for the response analysis of path-dependent non-linear structural systems with random parameters, and evaluated the sensitivities of the mean and variance of the structural performance function by direct differentiation in the framework of stochastic finite element analysis. Tang and Périaux [13] proposed a robust optimization method capable of locating Pareto and Nash equilibrium solutions. Zhao and Wang [14] proposed an efficient approach for solving the robust topology optimization problem of structures under loading uncertainty based on linear elastic theory and orthogonal diagonalization of symmetric matrices. Sahali et al. [15] proposed an efficient genetic algorithm (GA) for multi–objective robust optimization of machining parameters considering random uncertainties. Martínez–Frutos et al. [16] proposed a robust shape optimization approach of continuous structures via the level set method, which modeled the uncertainty in loads and material as random variables with different probability distributions as well as random fields. However, it is often difficult or computationally expensive to determine the probabilistic distributions of uncertain factors in many engineering problems [17].

In order to realize the robust optimization of uncertain structures in the absence of the probabilistic distribution information of uncertainties, several non-probabilistic methods have been proposed in recent years to account for the uncertainties [18, 19]. Au et al. [20] proposed a robust design method based on the convex model and achieved the robustness of the objective function by minimizing the worst value of unsatisfactory degree functions of the uncertain parameters and ensured the feasibility robustness by a sub-optimization conducting the worst-case analysis. Takewaki and Ben–Haim [21] represented the uncertainties in the power spectral density of load and the parameters of the structure’s vibration model by info-gap models, and proposed a robust—satisficing methodology for the info-gap robust design of uncertain structures. However, the above methods are very complex when the parameter numbers are large. Sun et al. [22] proposed a bi-level mathematical model with interval objective and constraint functions for robust design optimization. The single objective function was converted into two objective functions for minimizing the mean and variation while the constraint functions were reformulated with the acceptable robustness level. However, the so-called robust solution obtained by their method cannot ensure the robustness of all constraints. Karer and Skrjanc [23] proposed a robust optimization framework for PID controllers by describing the uncertain dynamics of the process as an interval model, which was firstly transformed into a deterministic model and then solved by a particle swarm optimization algorithm. Li et al. [24] proposed an actuator placement robust optimization method for active vibration control system with interval parameters. Both nominal value and radius of the performance index were considered in the interval optimization model, which was also transformed into a deterministic one by weighted processing and then solved by GA.

To sum up, present non-probabilistic robust optimization approaches have difficulties in ensuring the robustness of all constraints and achieving the globally optimal robust solutions to real engineering problems. Moreover, the solution algorithms employed in the present robust optimization approaches based on interval models are indirect ones. That is, they firstly transformed the interval models into deterministic ones and then solved the resulting deterministic models by conventional deterministic optimization algorithms. The shortcomings of such indirect robust optimization approaches are similar to the indirect ones for solving general interval optimization models [25, 26]. Specifically, different acceptable robustness levels or satisfactory degrees of interval constraints prescribed in model transform process will lead to different optimal solutions. Additionally, the transformation of interval models into deterministic ones also deviates from the original intention of uncertainty modeling.

To avoid the limitations of indirect algorithms for solving interval optimization models, we have proposed a direct interval optimization algorithm for uncertain structures by introducing the concept of the degree of interval constraint violation (DICV) [27] based on Hu’s “center first halfwidth next” interval order relation [28]. Specifically, a design vector x has zero DICV for constraint \(g\left( {{\varvec{x}},{\varvec{U}}} \right) \le B = [b^{L} ,b^{R} ] = \left\langle {b^{C} ,b^{W} } \right\rangle\) when \(g^{C} \left( \varvec{x} \right) < b^{C}\) or \(g^{C} \left( \varvec{x} \right) = b^{C}\) and \(g^{W} \left( \varvec{x} \right) \le b^{W} ;\) otherwise, the DICV is nonzero for the constraint (where \(g\left( {{\varvec{x}},{\varvec{U}}} \right)\) is the mechanical performance index of a structure under the influence of interval parameter U, B is the given interval constant, superscripts L, R, C, W indicate the left bound, right bound, center and halfwidth of an interval). The feasibility of a design vector x is determined by the total DICV of all its interval constraints and a design vector x is regarded as feasible when its total DICV is zero. And finally the design vectors are directly sorted according to the DICV–based preferential guidelines. However, there may be \(g^{L} \left( {\varvec{x}} \right) \le b^{L}\) or/and \(g^{R} \left( {\varvec{x}} \right) \ge b^{R}\) when \(g_{{}}^{C} \left( {\varvec{x}} \right) \le b_{{}}^{C}\). That is, the constraint \(g\left( {{\varvec{x}},{\varvec{U}}} \right) \le B\) may be violated although design vector x is regarded as feasible when \(g_{{}}^{C} \left( {\varvec{x}} \right) \le b_{{}}^{C}\) according to the definition of DICV. Consequently, the DICV–based direct interval optimization algorithm cannot ensure the constraint robustness of the optimal solution.

The purpose of this paper is to put forward a direct robust optimization approach for uncertain structures with interval parameters, which can achieve the optimal solutions of objective and feasibility robustness. A novel concept of interval violation vector is proposed for describing the feasibility robustness of a design vector, which comprises two components that describe the violation degrees of the left and right bounds of an interval mechanical performance index in a constraint function. The mathematical formulae for calculating the interval violation vectors of a design vector corresponding to various constraint functions are provided. Then the objective and feasibility robustness indices of various design vectors can be calculated based on their values of total interval violation vectors. And finally, the design vectors of an uncertain structure are sorted according to the robustness-based preferential guidelines, which is realized by integrating the Kriging technique and nested GA.

2 Robust Optimization Model of an Uncertain Structure with Interval Parameters

The mechanical performance indices of an uncertain structure are described as the functions of both design variables and interval parameters. The center and halfwidth of the most important mechanical performance index of the uncertain structure are described as the objective functions while the requirements on the other mechanical performance indices are described as constraint functions. Then the robust optimization model of an uncertain structure with interval parameters is described as
$$\mathop {\hbox{min} }\limits_{{\varvec{x}}} \left\{ {f^{C} \left( {\varvec{x}} \right),f^{W} \left( {\varvec{x}} \right)} \right\},$$
(1)
where
$$\begin{aligned} f^{C} \left( {\varvec{x}} \right) = {{\left( {f^{R} \left( {\varvec{x}} \right) + f^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {f^{R} \left( {\varvec{x}} \right) + f^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2} = {{\left( {\mathop { \hbox{max} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right) + \mathop { \hbox{min} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {\mathop { \hbox{max} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right) + \mathop { \hbox{min} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right)} \right)} 2}} \right. \kern-0pt} 2}; \hfill \\ {{f^{W} \left( {\varvec{x}} \right) = \left( {f^{R} \left( {\varvec{x}} \right) - f^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{f^{W} \left( {\varvec{x}} \right) = \left( {f^{R} \left( {\varvec{x}} \right) - f^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2} = {{\left( {\mathop { \hbox{max} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right) - \mathop { \hbox{min} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {\mathop { \hbox{max} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right) - \mathop { \hbox{min} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right)} \right)} 2}} \right. \kern-0pt} 2}. \hfill \\ \end{aligned}$$
s.t.,
$$\begin{array}{*{20}l} {} \hfill \\ {g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le \left( \ge \right)B_{i} = \left[ {b_{i}^{L} ,b_{i}^{R} } \right], \, i = 1,2, \cdots ,p;} \hfill \\ {\varvec{x}} = \left( {x_{1} ,x_{2} , \cdots ,x_{n} } \right); \hfill \\ {\varvec{U}} = \left( {U_{1} ,U_{2} , \cdots ,U_{q} } \right); \hfill \\ \hfill \\ {U_{j} = \left[ {u_{j}^{L} ,u_{j}^{R} } \right],j = 1,2, \cdots ,q.} \hfill \\ \end{array}$$
where x is an n-dimensional design vector, U is a q-dimensional interval parameter vector;\(f\left( {{\varvec{x}},{\varvec{U}}} \right)\) is the most important performance index while \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) is the ith performance index with restriction. Both \(f\left( {{\varvec{x}},{\varvec{U}}} \right)\) and \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) are nonlinear continuous functions about x and U, but the mechanical performance indices \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) in constraints may degenerate into deterministic ones, such as \(g_{i} \left( {\varvec{x}} \right)\). \(\, f^{C} \left( {\varvec{x}} \right)\) and \(f^{W} \left( {\varvec{x}} \right)\) are the center and halfwidth of \(f\left( {{\varvec{x}},{\varvec{U}}} \right)\) while \(\, f^{L} \left( {\varvec{x}} \right)\) and \(f^{R} \left( {\varvec{x}} \right)\) are the left and right bounds of \(f\left( {{\varvec{x}},{\varvec{U}}} \right)\). B i is the given interval constant for the ith constraint, which may degenerate into a real number.
The left and right bounds of the mechanical performance index \(\, g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) in the ith interval constraint function of Eq. (1) can be computed by
$$\begin{array}{c} g_{i}^{L} \left( {\varvec{x}} \right) = \mathop { \hbox{min} }\limits_{{\varvec{U}}} g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right); \hfill \\ g_{i}^{R} \left( {\varvec{x}} \right) = \mathop { \hbox{max} }\limits_{{\varvec{U}}} g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right); \hfill \\ i = 1,2, \cdots ,p, \hfill \\ \end{array}$$
(2)
where p is the number of constraint functions.

3 Definition of the Interval Violation Vector and its Calculation

3.1 Definition of the Interval Violation Vector for an Interval Constraint

For the ith interval constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) in Eq. (1), there are a total of six positional relations between \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) = [g_{i}^{L} \left( {\varvec{x}} \right),g_{i}^{R} \left( {\varvec{x}} \right)]\) and \(B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) as shown in Figure 1. It is obvious that the interval constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) is fully satisfied when the positional relation of the mechanical performance index \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) and the given interval constant B i is illustrated as Figure 1(a) when \(b_{i}^{L} - g_{i}^{L} \left( {\varvec{x}} \right) \ge g_{i}^{R} \left( {\varvec{x}} \right) - g_{i}^{L} \left( {\varvec{x}} \right)\) and \(b_{i}^{R} - g_{i}^{R} \left( {\varvec{x}} \right) \ge b_{i}^{R} - b_{i}^{L}\), including the case that \(g_{i}^{R} \left( {\varvec{x}} \right){ = }b_{i}^{L}\). Correspondingly, the violation degrees for both the left and right bounds of the interval mechanical performance index \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) are zero in the case shown in Figure 1(a).
Figure 1
Figure 1

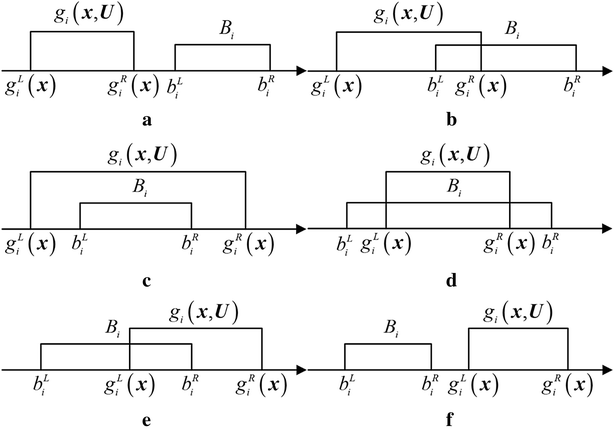

Six positional relations between the interval performance index g i (x, U) and given interval constant B i

Therefore, the following concept of interval violation vector is introduced to describe the violation degree of a design vector for an interval constraint.

Definition 1 (Interval violation vector)

The interval violation vector of an interval constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) is a two-dimensional vector, the components of which describe the violation degrees of the left and right bounds of the interval mechanical performance index \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) of an uncertain structure under the influence of interval parameter vector U.

Specifically, the interval violation vector of constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) is
$${\varvec{v}}_{i} \left( {\varvec{x}} \right) = \left( {v_{i}^{L} \left( {\varvec{x}} \right),v_{i}^{R} \left( {\varvec{x}} \right)} \right),$$
(3)
where \(v_{i}^{L} \left( {\varvec{x}} \right)\) and \(v_{i}^{R} \left( {\varvec{x}} \right)\) are the violation degrees of the left and right bounds of \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\), and there is
$$\begin{aligned} v_{i}^{L} \left( {\varvec{x}} \right) = \hbox{max} \left( {0,\frac{{\left( {g_{i}^{R} \left( {\varvec{x}} \right) - g_{i}^{L} \left( {\varvec{x}} \right)} \right) - \left( {b_{i}^{L} - g_{i}^{L} \left( {\varvec{x}} \right)} \right)}}{{\left| {g_{i}^{R} \left( {\varvec{x}} \right) - g_{i}^{L} \left( {\varvec{x}} \right)} \right| + \left| {b_{i}^{L} - g_{i}^{L} \left( {\varvec{x}} \right)} \right|}}} \right) \\ = \hbox{max} \left( {0,\frac{{g_{i}^{R} \left( {\varvec{x}} \right) - b_{i}^{L} }}{{g_{i}^{R} \left( {\varvec{x}} \right) - g_{i}^{L} \left( {\varvec{x}} \right) + \left| {b_{i}^{L} - g_{i}^{L} \left( {\varvec{x}} \right)} \right|}}} \right), \\ \end{aligned}$$
(3a)
$$\begin{aligned} v_{i}^{R} \left( {\varvec{x}} \right) = \hbox{max} \left( {0,\frac{{\left( {b_{i}^{R} - b_{i}^{L} } \right) - \left( {b_{i}^{R} - g_{i}^{R} \left( {\varvec{x}} \right)} \right)}}{{\left| {b_{i}^{R} - b_{i}^{L} } \right| + \left| {b_{i}^{R} - g_{i}^{R} \left( {\varvec{x}} \right)} \right|}}} \right) \\ = \hbox{max} \left( {0,\frac{{g_{i}^{R} \left( {\varvec{x}} \right) - b_{i}^{L} }}{{b_{i}^{R} - b_{i}^{L} + \left| {b_{i}^{R} - g_{i}^{R} \left( {\varvec{x}} \right)} \right|}}} \right). \\ \end{aligned}$$
(3b)
As can be seen from Eq. (3), the interval violation vector \({\varvec{v}}_{i} \left( {\varvec{x}} \right) = \left( {v_{i}^{L} \left( {\varvec{x}} \right),v_{i}^{R} \left( {\varvec{x}} \right)} \right)\) of interval constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) has the following properties:
  1. (1)

    There are \(0 \le v_{i}^{L} \left( {\varvec{x}} \right) \le 1\) and \(0 \le v_{i}^{R} \left( {\varvec{x}} \right) \le 1\) for any design vector x.


  2. (2)

    There is \(v_{i} \left( {\varvec{x}} \right) = \left( {0,0} \right)\) when \(g_{{_{i} }}^{R} \left( {\varvec{x}} \right) \le b_{i}^{L}\) as shown in Figure 1(a).


  3. (3)

    There is \(v_{i}^{L} \left( {\varvec{x}} \right) = 1\) when \(g_{{_{i} }}^{L} \left( {\varvec{x}} \right) \ge b_{i}^{L}\), see Figures 1(d)–(f).


  4. (4)

    There is \(v_{i}^{R} \left( {\varvec{x}} \right) = 1\) when \(g_{{_{i} }}^{R} \left( {\varvec{x}} \right) \ge b_{i}^{R}\), see Figures 1(c), (e), (f).



3.2 Calculation of the Interval Violation Vector for Various Constraints

For a mechanical performance index independent of interval parameters, there is \(g_{i} \left( {\varvec{x}} \right) = g_{{_{i} }}^{L} \left( {\varvec{x}} \right) = g_{{_{i} }}^{R} \left( {\varvec{x}} \right)\), and the constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) in Eq. (1) degenerates as \(g_{i} \left( {\varvec{x}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) correspondingly. Then the formula for calculating the interval violation vector of such a constraint should be adjusted as Eq. (4).

In engineering, the interval constant \(B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) in Eq. (1) may also degenerate into a real number, namely, there is \(b_{i} = b_{i}^{L} = b_{i}^{R}\). In this case, the constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) in Eq. (1) degenerates as \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le b_{i}\) and the formula for calculating the interval violation vector of such a constraint should be adjusted as Eq. (5).

Furthermore, the constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\)in Eq. (1) will degenerate as \(g_{i} \left( {\varvec{x}} \right) \le b_{i}\) when the mechanical performance index is independent of the interval parameters and the interval constant degenerates into a real number. And then the formula for calculating the interval violation vector for such a constraint will be simplified as Eq. (6).

As can be observed from Eqs. (3)–(6), there are \({\varvec{v}}_{i} \left( {\varvec{x}} \right) = \left( {0,0} \right)\) when \(g_{i} \left( {\varvec{x}} \right) = b_{i}^{L}\) or \(b_{i} = g_{{_{i} }}^{R} \left( {\varvec{x}} \right)\) or \(g_{i} \left( {\varvec{x}} \right) = b_{i}\), otherwise, the values of \({\varvec{v}}_{i} \left( {\varvec{x}} \right)\) can be calculated by Eq. (3). Consequently, the formula for calculating the interval violation vector of constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) can be concluded as Eq. (7).

Similarly, the formula for calculating the interval violation vector of constraint \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \ge B_{i} = [b_{i}^{L} ,b_{i}^{R} ]\) can be deduced as Eq. (8), the detailed derivation of which is not provided here for space–saving sake.
$$v_{i} \left(\varvec{x} \right) = \left\{ {\begin{array}{*{20}l} {\left( {\hbox{max} \left( {0,\;\frac{{g_{i} \left(\varvec{x} \right) - b_{i}^{L} }}{{\left| {b_{i}^{L} - g_{i} \left(\varvec{x} \right)} \right|}}} \right),\;\hbox{max} \left( {0,\;\frac{{g_{i} \left(\varvec{x} \right) - b_{i}^{L} }}{{b_{i}^{R} - b_{i}^{L} + \left| {b_{i}^{R} - g_{i} \left(\varvec{x} \right)} \right|}}} \right)} \right),{\text{ when}}\quad g_{i} \left(\varvec{x} \right) \ne b_{i}^{L} ;} \\ {\left( {0,\;0} \right),\qquad \qquad \qquad \qquad \qquad \qquad \qquad \quad\,\,{\text{ when}}\quad g_{i} \left(\varvec{x} \right) = b_{i}^{L} .} \\ \end{array} } \right.$$
(4)
$$\varvec{v}_{i} \left(\varvec{x} \right) = \left\{ {\begin{array}{*{20}l} {\left( {\hbox{max} \left( {0,\;\frac{{g_{i}^{R} \left(\varvec{x} \right) - b_{i} }}{{g_{i}^{R} \left(\varvec{x} \right) - g_{i}^{L} \left(\varvec{x} \right) + \left| {b_{i} - g_{i}^{L} \left(\varvec{x} \right)} \right|}}} \right),\;\hbox{max} \left( {0,\;\frac{{g_{i}^{R} \left(\varvec{x} \right) - b_{i} }}{{\left| {b_{i} - g_{i}^{R} \left(\varvec{x} \right)} \right|}}} \right)} \right),{\text{ when}}\quad b_{i} \ne g_{{_{i} }}^{R} \left(\varvec{x} \right);} \\ {\left( {0,\;0} \right),\qquad \qquad \qquad \qquad \qquad \qquad \qquad \qquad\quad {\text{ when}}\quad b_{i} = g_{{_{i} }}^{R} \left(\varvec{x} \right).} \\ \end{array} } \right.$$
(5)
$$\varvec{v}_{i} \left(\varvec{x} \right) = \left\{ {\begin{array}{*{20}l} {\left( {\hbox{max} \left( {0,\;\frac{{g_{i} \left(\varvec{x} \right) - b_{i} }}{{\left| {b_{i} - g_{i} \left(\varvec{x} \right)} \right|}}} \right),\;\hbox{max} \left( {0,\;\frac{{g_{i} \left(\varvec{x} \right) - b_{i} }}{{\left| {b_{i} - g_{i} \left(\varvec{x} \right)} \right|}}} \right)} \right),{\text{ when}}\quad g_{i} \left(\varvec{x} \right) \ne b_{i} ;} \\ {\left( {0,\;0} \right), \qquad \qquad \qquad \qquad \qquad \qquad\,\,\,{\text{ when}}\quad g_{i} \left(\varvec{x} \right) = b_{i} .} \\ \end{array} } \right.$$
(6)
$$\varvec{v}_{i} \left(\varvec{x} \right) = \left\{ {\begin{array}{*{20}c} {\left( {0,0} \right),{\text{ when }}\text{sign} \left( {\left| {\left( {g_{i}^{L} \left(\varvec{x} \right) - g_{i}^{R} \left(\varvec{x} \right)} \right) \times \left( {b_{i}^{L} - b_{i}^{R} } \right)} \right|} \right) + \text{sign} \left( {\left| {g_{i}^{R} \left(\varvec{x} \right) - b_{i}^{L} } \right|} \right) = 0;} \\ {\left( {\hbox{max} \left( {0,\frac{{g_{i}^{R} \left(\varvec{x} \right) - b_{i}^{L} }}{{g_{i}^{R} \left(\varvec{x} \right) - g_{i}^{L} \left(\varvec{x} \right) + \left| {b_{i}^{L} - g_{i}^{L} \left(\varvec{x} \right)} \right|}}} \right),\hbox{max} \left( {0,\frac{{g_{i}^{R} \left(\varvec{x} \right) - b_{i}^{L} }}{{b_{i}^{R} - b_{i}^{L} + \left| {b_{i}^{R} - g_{i}^{R} \left(\varvec{x} \right)} \right|}}} \right)} \right),{\text{otherwise}}.} \\ \end{array} } \right.$$
(7)
$$\varvec{v}_{i} \left(\varvec{x} \right) = \left\{ {\begin{array}{*{20}c} {\left( {0,0} \right),{\text{ when }}\text{sign} \left( {\left| {\left( {b_{i}^{L} - b_{i}^{R} } \right) \times \left( {g_{i}^{L} \left(\varvec{x} \right) - g_{i}^{R} \left(\varvec{x} \right)} \right)} \right|} \right) + \text{sign} \left( {\left| {b_{i}^{R} - g_{i}^{L} \left(\varvec{x} \right)} \right|} \right) = 0;} \\ {\left( {\hbox{max} \left( {0,\;\frac{{b_{i}^{R} - g_{i}^{L} \left(\varvec{x} \right)}}{{b_{i}^{R} - b_{i}^{L} + \left| {g_{i}^{L} \left(\varvec{x} \right) - b_{i}^{L} } \right|}}} \right),\;\hbox{max} \left( {0,\;\frac{{b_{i}^{R} - g_{i}^{L} \left(\varvec{x} \right)}}{{g_{i}^{R} \left(\varvec{x} \right) - g_{i}^{L} \left(\varvec{x} \right) + \left| {g_{i}^{R} \left(\varvec{x} \right) - b_{i}^{R} } \right|}}} \right)} \right),\;{\text{otherwise}}.} \\ \end{array} } \right.$$
(8)

4 Preferential Guidelines Considering Objective and Feasibility Robustness

In order to directly solve the robust optimization model in Eq. (1), two robustness indices are introduced to evaluate the objective and feasibility robustness of a design vector. The feasibility robustness index is utilized to evaluate the acceptability of a design vector as far as the constraint functions are concerned while the objective robustness index is utilized to evaluate the superiority and robustness of a design vector as far as the objective mechanical performance index is concerned. Then the robustness–based preferential guidelines are proposed for realizing the direct ranking of various design vectors.

4.1 Feasibility Robustness Index and its Calculation

The feasibility robustness index can be calculated from the total interval violation vector of all the constraints in the robust optimization model considering that the total interval violation vector reversely reflects the feasibility robustness of a constraint function. Specifically, the total interval violation vector corresponding to design vector x can be calculated by Eq. (9) as far as the interval violation vectors of all constraints \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right) \le \left( \ge \right)B_{i} \left( {i = 1,2, \cdots ,p} \right)\) are calculated by Eq. (7) or Eq. (8):
$${\varvec{v}}_{\text{T}} \left( {\varvec{x}} \right) = \sum\limits_{i = 1}^{p} {{\varvec{v}}_{i} \left( {\varvec{x}} \right),i = 1,2, \cdots ,p.}$$
(9)
Then design vector x is regarded as feasible robust when \({\varvec{v}}_{\text{T}} \left( {\varvec{x}} \right) = \left( {0,0} \right)\) and it is not when \({\varvec{v}}_{\text{T}} \left( {\varvec{x}} \right) > \left( {0,0} \right)\). And the feasibility robustness index of design vector x can be calculated by
$$\begin{array}{l} I_{\text{FR}} \left( {\varvec{x}} \right) = 1 - {{\left| {{\varvec{v}}_{\text{T}} \left( {\varvec{x}} \right)} \right|} \mathord{\left/ {\vphantom {{\left| {{\mathbf{v}}_{\text{T}} \left( {\varvec{x}} \right)} \right|} {\sqrt 2 }}} \right. \kern-0pt} {\sqrt 2 }}p = \hfill \\ \quad\quad\quad\quad1 - {{\sqrt {\left( {\varvec{v}_{\text{T}}^{L} \left( {\varvec{x}} \right)} \right)^{2} + \left( {\it{v}_{\text{T}}^{R} \left( {\varvec{x}} \right)} \right)^{2} } } \mathord{\left/ {\vphantom {{\sqrt {\left( {\it{v}_{\text{T}}^{L} \left( {\varvec{x}} \right)} \right)^{2} + \left( {\it{v}_{\text{T}}^{R} \left( {\varvec{x}} \right)} \right)^{2} } } {\sqrt 2 }}} \right. \kern-0pt} {\sqrt 2 }}p. \hfill \\ \end{array}$$
(10)
As can be seen from Eq. (10), the larger total interval violation vector will lead to the smaller feasibility robustness index for a design vector. Moreover, the feasibility robustness index for a design vector has the following properties.
  1. (1)

    For a feasible robust design vector x, there is \(I_{\text{FR}} \left( {\varvec{x}} \right) = 1\).


  2. (2)

    For a design vector x that is not feasible robust, there is \(0 \le I_{\text{FR}} \left( {\varvec{x}} \right) < 1\).


  3. (3)

    The larger feasibility robustness index indicates the better acceptability of a design vector as far as the constraints are concerned.



4.2 Objective Robustness Index and its Calculation

The center and halfwidth of the objective mechanical performance index should be regarded as equally important in the robust optimization of an uncertain structure regardless of their possible difference in orders of magnitude. To achieve this aim, all the feasible robust design vectors are sorted according to their corresponding values of \(f^{C} \left( {\varvec{x}} \right)\) and \(f^{W} \left( {\varvec{x}} \right)\) with the rank numbers obtained as \(r^{C} \left( {\varvec{x}} \right)\), \(r^{W} \left( {\varvec{x}} \right)\) respectively. A design vector with the smaller objective value is assigned a larger rank number and the design vector with the largest objective value is assigned the rank number of 1. Then the rank vector of design vector x are generated as \({\varvec{r}}\left( {\varvec{x}} \right) = \left( {r^{C} \left( {\varvec{x}} \right),r^{W} \left( {\varvec{x}} \right)} \right)\). And finally, the objective robustness index of design vector x is calculated by
$$I_{\text{OR}} \left( {\varvec{x}} \right) = \sqrt {\left( {r^{C} \left( {\varvec{x}} \right)} \right)^{2} + \left( {r^{W} \left( {\varvec{x}} \right)} \right)^{2} } .$$
(11)

It is obvious from Eq. (11) that the objective robustness index is positive for any design vector, and the larger objective robustness index indicates the better and more robust of a design vector as far as the objective mechanical performance index is concerned.

4.3 Preferential Guidelines for Ranking Various Design Vectors

As far as their objective and feasibility robustness indices are calculated by Eq. (10) and Eq. (11), all of the alternative design vectors can be ranked according to the following preferential guidelines:
  1. (1)

    A feasible robust design vector is always superior to an infeasible one. That is, design vector x1 is superior to design vector x2 when \(I_{\text{FR}} \left( {{\varvec{x}}_{1} } \right) = 1\) and \(I_{\text{FR}} \left( {{\varvec{x}}_{2} } \right) < 1\).


  2. (2)

    The infeasible design vectors are ranked according to their corresponding values of feasibility robustness indices. Specifically, infeasible design vector x1 is superior to infeasible design vector x2 when \(I_{\text{FR}} \left( {{\varvec{x}}_{1} } \right) > I_{\text{FR}} \left( {{\varvec{x}}_{2} } \right)\).


  3. (3)

    The feasible robust design vectors are ranked according to their objective robustness indices. Specifically, feasible design vector x1 is superior to feasible design vector x2 when \(I_{\text{OR}} \left( {{\varvec{x}}_{1} } \right) > I_{\text{OR}} \left( {{\varvec{x}}_{2} } \right)\).



5 Integrated Algorithm for Directly Solving the Interval Robust Optimization Model

A robust optimization algorithm integrating Kriging models and nested GA is proposed to directly solve the constrained interval robust optimization model of the uncertain structure. The Kriging model is utilized here to replace finite element analysis (FEA) for efficiently computing the mechanical performance indices of the uncertain structure. For the mechanical performance index influenced by n-dimensional design vector x and q-dimensional interval vector U, such as \(f\left( {{\varvec{x}},{\varvec{U}}} \right)\) and \(g_{i} \left( {{\varvec{x}},{\varvec{U}}} \right)\) in Eq. (1) is concerned, the sample points for constructing the Kriging model should be generated in the (n+q)-dimensional space determined by n design variables and q interval parameters based on Latin hypercube sampling (LHS). To ensure the prediction accuracy of Kriging models, the adaptive resampling technology proposed in our previous work [29] is also adopted. Specifically, the construction of every Kriging model is an iterative process until the achievement of satisfactory local and global precision evaluated by multiple correlation coefficient R2 and relative maximum absolute error (RMAE). The inner layer GAs integrated with Kriging models calculate in parallel the intervals of the mechanical performance indices under the influence of uncertain parameters while the outer layer GA realizes the direct sorting of various design vectors according to the robustness-based preferential guidelines and locates the optimal solution to the constrained interval robust optimization model.

The flowchart of the proposed direct interval robust optimization algorithm is illustrated in Figure 2, the implementation of which proceeds as follows.
Figure 2
Figure 2

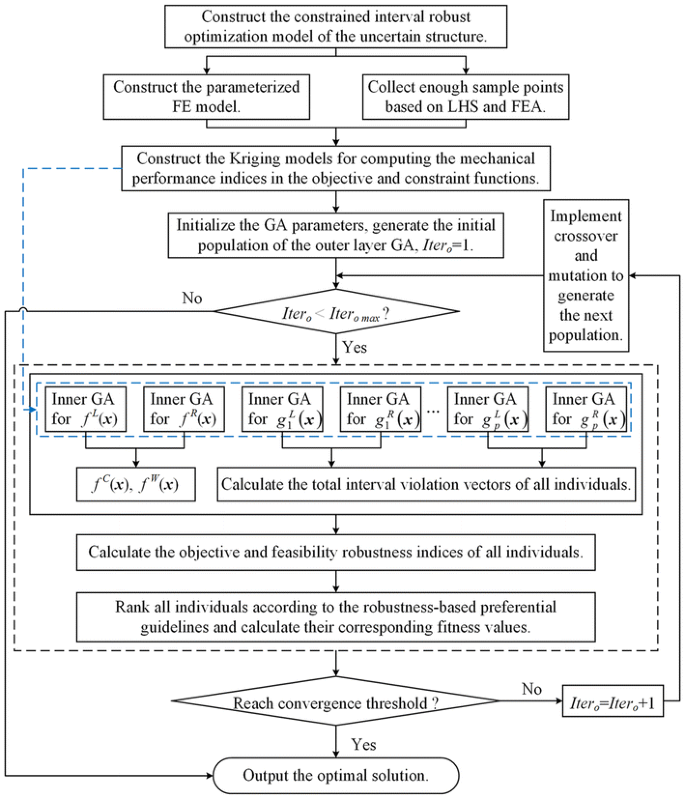

Flowchart of the proposed direct interval robust optimization algorithm

Step 1::

Construct the robust optimization model of an uncertain structure with interval parameters. The mechanical performance indices of the uncertain structure are described as the functions of design variables and interval parameters. The center and halfwidth of the most important mechanical performance index are described as objective functions while the requirements of the other mechanical performance indices are described as constraint functions.

Step 2::

Construct the Kriging models for efficiently computing the mechanical performance indices of the uncertain structure based on finite element (FE) model, LHS and adaptive resample technology.

Step 3::

Initialize the GA parameters involved in the nested optimization, including the population sizes, maximum iteration numbers, crossover and mutation probabilities of the inner and outer layer GAs. Set the iteration number of the outer layer GA as 1 and generate the initial population.

Step 4::

Rank the individuals in the current population of outer layer GA according to the robustness-based preferential guidelines and calculate their fitness values, during the process of which inner layer GAs integrated with Kriging models constructed in Step 2 are implemented in parallel for computing the left and right bounds of the mechanical performance indices.

Step 5::

Output the design vector with the largest fitness value if the convergent threshold or maximum iteration number of the outer layer GA is reached. Otherwise, increase the iteration number of the outer layer GA by 1 and go to Step 4.

6 Illustrative Examples

Two illustrative examples are investigated in this section to verify the effectiveness of the proposed approach for directly solving interval robust optimization problems and its applicability in engineering practice. The construction of Kriging models is unnecessary for the first example since its objective and constraint functions are analytical. It is obvious that the proposed robust interval optimization algorithm has the same advantages as our previous one in realizing the direct solution of interval optimization problems and avoiding the complicated model transformation process. Consequently, the optimization results obtained by the proposed algorithm are only compared with those obtained by the direct one hereinafter.

6.1 Numerical Example

The constrained interval robust optimization model in Eq. (12) is utilized as a benchmark example, which is firstly solved by the proposed algorithm with the GA parameters listed in Table 1. Besides the maximum iteration number given as a stop criterion, the outer layer GA evolution is terminated when the absolute difference of \(f^{C} \left( {\varvec{x}} \right)\) between the optimal solution and the average of current population is less than 10−3.
Table 1

GA parameters for numerical example in Eq. ( 12 )

GA

Population size

Crossover probability

Mutation probability

Maximum iteration number

Outer layer

100

0.90

0.05

200

Inner layer

50

0.99

0.05

150

$$\left\{ {\begin{array}{*{20}l} \mathop {\hbox{min} }\limits_{{\varvec{x}}} \left\{ {f^{C} \left( {\varvec{x}} \right),f^{W} \left( {\varvec{x}} \right)} \right\} = \hfill \\ \, \mathop {\hbox{min} }\limits_{{\varvec{x}}} \left\{ {{{\left( {f^{R} \left( {\varvec{x}} \right) + f^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {f^{R} \left( {\varvec{x}} \right) + f^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2},{{\left( {f^{R} \left( {\varvec{x}} \right) - f^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {f^{R} \left( {\varvec{x}} \right) - f^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2}} \right\} \hfill \\ {\text{where }}f^{R} \left( {\varvec{x}} \right) = \mathop { \hbox{max} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right),f^{L} \left( {\varvec{x}} \right) = \mathop { \hbox{min} }\limits_{{\varvec{U}}} f\left( {{\varvec{x}},{\varvec{U}}} \right); \hfill \\ \, f\left( {{\varvec{x}},{\varvec{U}}} \right) = U_{1}^{2} (x_{1} + 2){ + }U_{2} x_{2}^{2} { + }U_{3}^{2} x_{3}^{2} \hfill \\ {\text{s}} . {\text{t}} . ,\hfill \\ { \, g_{1} \left( {{\varvec{x}},{\varvec{U}}} \right) = U_{1} x_{1}^{2} - U_{2}^{2} x_{2} + U_{3} x_{3} \ge [8.0,10.0];} \hfill \\ \, g_{2} \left( {{\varvec{x}},{\varvec{U}}} \right) = U_{1} x_{1} + U_{2} x_{2} + U_{3}^{2} x_{3}^{2} + 1.0 \ge [4.5,5.0]. \hfill \\ \, x_{1} \in [1,10],x_{2} \in [0,9],x_{3} \in [2,8]. \hfill \\ { \, U_{1} = \left[ {0.8,1.0} \right],U_{2} = \left[ {0.9,1.1} \right],U_{3} = \left[ {1.0,1.2} \right].} \hfill \\ \end{array} } \right.$$
(12)
Figure 3 illustrates the convergent curves of numerical example obtained by the proposed algorithm. The objective value of the optimal solution converges at the 78th generation. The optimal solution is \({\varvec{x}}^{\text{o}} = \left( {3.17,\;0.02,\;2.00} \right),\) the corresponding objectives and constraints of which are \(f^{C} \left( {{\varvec{x}}^{\text{o}} } \right) = 9.11,\) \(f^{W} \left( {{\varvec{x}}^{\text{o}} } \right) = 1.80,\)\(g_{1} \left( {{\varvec{x}}^{\text{o}} ,\;{\varvec{U}}} \right) = [10.00,\;12.41]\) and\(g_{2} \left( {{\varvec{x}}^{\text{o}} ,\;{\varvec{U}}} \right) = [7.55,\;9.94]\) respectively. It is obvious that both constraints in Eq. (12) are fully satisfied at \({\varvec{x}}^{\text{o}} = \left( {3.17,\;0.02,\;2.00} \right)\), demonstrating the feasibility robustness of two constraints.
Figure 3
Figure 3

Convergent curves of numerical example obtained by the proposed algorithm

The robust optimization model in Eq. (12) is also solved by our previous algorithm [27] with the GA parameters and convergent threshold prescribed the same as those in the proposed one. The objective values of the optimal solution converge at the 86th generation, with the optimal solution obtained as \({\varvec{x}}^{*} = \left( {3.11,\;0.20,\;2.08} \right)\) and the convergent curves illustrated in Figure 4.
Figure 4
Figure 4

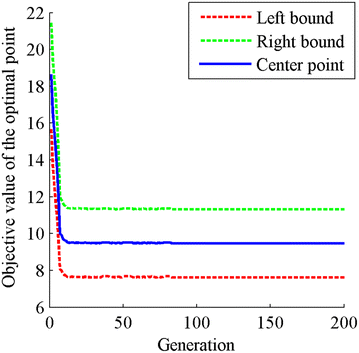

Convergent curves of numerical example obtained by our previous algorithm

Table 2 lists the optimization results of the numerical example obtained by two algorithms. As can be seen from Table 2, the 2nd constraint function \(g_{2} \left( {{\varvec{x}},{\varvec{U}}} \right) \ge [4.5,5.0]\) is fully satisfied at both the optimal solutions. But the 1st constraint function \(g_{1} \left( {{\varvec{x}},{\varvec{U}}} \right) \ge [8.0,10.0]\) may be violated at the optimal solution \({\varvec{x}}^{*} = \left( {3.11,0.20,2.08} \right)\) obtained by our previous algorithm while it is always satisfied at the optimal solution \({\varvec{x}}^{\text{o}} = \left( {3.17,0.02,2.00} \right)\) obtained by the proposed algorithm. That is, the optimal solution x* obtained by our previous algorithm is not a robust one as far as the constraints are concerned while the optimal solution xo obtained by the proposed algorithm is. The improvement is gained from the definition of interval violation vector and the robustness-based preferential guidelines. Specifically, the interval constraint \(g_{1} \left( {{\varvec{x}},{\varvec{U}}} \right) \ge [8.0,10.0]\) at x* is regarded as feasible according to the “center first halfwidth next” interval order relation for evaluating the feasibility of a constraint in our previous algorithm since \(g_{1}^{C} \left( {{\varvec{x}}^{*} } \right) = 10.79 > 9.0\) but x* is obviously not feasible robust according to the definition of interval violation vector in Section 3. Consequently, the proposed algorithm can yield a more robust solution than our previous one as far as the constraint functions are concerned.
Table 2

The optimization results of numerical example obtained by proposed and previous algorithms

Algorithm

Optimal solution

Objective functions

Constraint functions

[f L , f R ], \(\left\langle {f^{C} ,f^{W} } \right\rangle\)

[g 1 L , g 1 R ]

[g 2 L , g 2 R ]

Proposed

x o = (3.17, 0.02, 2.00)

[7.31,10.92], \(\left\langle {9.11,\;1.80} \right\rangle\)

[10.00, 12.41]

[7.55, 9.94]

Previous

x * = (3.11, 0.20, 2.08)

[7.62,11.31], \(\left\langle {9.47,\;1.84} \right\rangle\)

[9.58, 12.00]

[7.98, 10.53]

It is also clear from Table 2 that both objective functions of the optimal solution obtained by the proposed algorithm are smaller than those obtained by our previous one, which demonstrates that the proposed algorithm can obtain a better and more robust solution than the previous one as far as the objective functions are concerned. Moreover, the convergent curves in Figures 3, 4 demonstrate that the proposed algorithm can locate the optimal solution more efficiently than the previous one.

6.2 Engineering Example

The upper beam of an ultra–precision high-speed press is utilized to verify the applicability of the proposed method in the robust optimization of practical engineering structures with interval parameters. Figure 5 illustrates the 3D solid model and cross section of the upper beam. The geometrical parameters h1, h2, l1, l2, l3 in Figure 5(b) are chosen as design variables while its material density ρ and elastic modulus E are interval parameters.
Figure 5
Figure 5

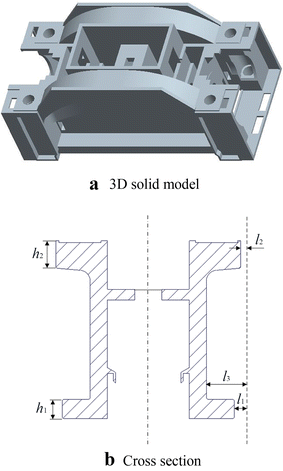

The upper beam in an ultra-precision high-speed press

According to the performance requirements of the upper beam, the maximum deformation reflecting stiffness is the most important mechanical performance index, the center and halfwidth of which are described as the objective functions. With the weight and maximum equivalent stress described as constraint functions, the robust optimization model of the upper beam is constructed as
$$\begin{array}{l} \mathop {\hbox{min} }\limits_{{\varvec{x}}} \left\{ {d^{C} \left( {\varvec{x}} \right),d^{W} \left( {\varvec{x}} \right)} \right\}, \hfill \\ {\text{ where }}d^{C} \left( {\varvec{x}} \right){ = }{{\left( {d^{R} \left( {\varvec{x}} \right) + d^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {d^{R} \left( {\varvec{x}} \right) + d^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2}, \hfill \\ \, \quad\quad\,\, d^{W} \left( {\varvec{x}} \right) = {{\left( {d^{R} \left( {\varvec{x}} \right) - d^{L} \left( {\varvec{x}} \right)} \right)} \mathord{\left/ {\vphantom {{\left( {d^{R} \left( {\varvec{x}} \right) - d^{L} \left( {\varvec{x}} \right)} \right)} 2}} \right. \kern-0pt} 2} ; { } \hfill \\ \, \quad\quad d^{R} \left( {\varvec{x}} \right) = \mathop { \hbox{max} }\limits_{{\varvec{U}}} d\left( {{\varvec{x}},{\varvec{U}}} \right), \, d^{L} \left( {\varvec{x}} \right) = \mathop { \hbox{min} }\limits_{{\varvec{U}}} d\left( {{\varvec{x}},{\varvec{U}}} \right); \hfill \\ {\text{s}} . {\text{t}} . , { }w(\varvec{x},\;U_{1} ) = w(\varvec{x},\rho ) \le [5000,\;5010]\;{\text{kg}}; \hfill \\ \;\;\;\;\delta (\varvec{x},\;\varvec{U}) \le [45,\;46]\;{\text{MPa}}. \hfill \\ \,\quad \varvec{x} = \left( {h_{1} ,\;h_{2} ,\;l_{1} ,\;l_{2} ,\;l_{3} } \right),\;\varvec{U} = \left( {U_{1} ,\;U_{2} } \right); \hfill \\ \;\;\;\;210\;{\text{mm}} \le h_{1} \le 250\;{\text{mm}},\;250\;{\text{mm}} \le h_{2} \le 300\;{\text{mm,}} \hfill \\ \;\;\;\;80\;{\text{mm}} \le l_{1} \le 120\;{\text{mm}},\;25\;{\text{mm}} \le l_{2} \le 55\;{\text{mm}}, \hfill \\ \, \;\;\;330\;{\text{mm}} \le l_{3} \le 390\;{\text{mm;}} \hfill \\ \, \;\;\;U_{1} = \rho = [7280,\;7320]\;{\text{kg}}/{\text{m}}^{3} ,U_{2} = E = [126,\;154]\;{\text{GPa}} .\hfill \\ \end{array}$$
(13)
where x is the design vector while U is the interval parameter vector; d(x, U) is the maximum deformation; d C (x) and d W (x) are the center and halfwidth of d(x, U) while d L (x) and d R (x) are the left and right bounds of d(x, U); w(x, U1) and δ(x, U) are the weight and maximum equivalent stress respectively.
As far as the initial design of the upper beam is concerned, there is x = (230, 270, 100, 50, 350) mm. The mechanical performance indices of the initial design under interval parameters E and ρ are listed in Table 3. It is obvious from Table 3 that neither constraint is satisfied for the initial design of the upper beam.
Table 3

Mechanical performance indices of the initial design scheme of the upper beam

[w L , w R ] kg

[δ L , δ R ] MPa

[d L , d R ] mm, \(\left\langle {d^{C} ,d^{W} } \right\rangle \;{\text{mm}}\)

[5216.2, 5232.3]

[45.21, 50.00]

[0.1716, 0.2114], \(\left\langle {0.1915,\;0.0199} \right\rangle\)

6.2.1 Optimization Results Obtained by Proposed Algorithm

Figure 6 illustrates the 1/4 FE model of the upper beam. A pressure of 800 kN is exerted at every joint between the upper beam and driving oil cylinder. A bearing load of 250 kN is applied on the end bearing hole while a bearing load of 500 kN is applied on the mid bearing hole.
Figure 6
Figure 6

1/4 FE model of the upper beam: loads and constraints

Based on the Kriging models constructed by the adaptive resampling technology with the same precision requirements as Ref. [30] (namely, R2>0.95 and RMAE<0.05), the robust optimization model in Eq. (13) can be directly solved by the proposed algorithm with the GA parameters listed in Table 4. The outer layer GA evolution is terminated when the absolute difference of \(d^{C} \left( {\varvec{x}} \right)\) between the optimal solution and the average of the current population is less than 10−4.
Table 4

GA parameters for the robust optimization of the upper beam

GA

Maximum iteration number

Population size

Crossover probability

Mutation probability

Inner layer

150

60

0.99

0.05

Outer layer

300

120

0.90

0.01

The convergent curves corresponding to the weight, maximum equivalent stress and maximum deformation of the upper beam obtained by the proposed algorithm are illustrated in Figure 7, which converge at the 121st generation. The optimal solution is obtained as xo = (238.89, 280.22, 81.61, 32.73, 386.21), the corresponding objective values of which are d C (xo) = 0.2027, d W (xo) = 0.0193 while the weight and maximum equivalent stress in constraints are w(xo, U1) = [4983.9, 5000.0] and δ(xo, U) = [40.16, 44.95] respectively. It is obvious that both constraints in Eq. (13) are fully satisfied at xo and the feasibility robustness is improved after optimization. A comparison on the objective values of the optimal solution xo with that of the initial design demonstrates that the objective robustness is also improved since d W is decreased after optimization.
Figure 7
Figure 7

Convergent curves of the upper beam’s mechanical performance indices obtained by the proposed algorithm

6.2.2 Comparison with Previous Algorithm

The constrained interval robust optimization model in Eq. (13) is also solved by our previous algorithm [27] with the GA parameters and convergent threshold settled the same as those in the proposed algorithm. The objective values of the optimal solution converge at the 146th generation, with the optimal solution obtained as x* = (248.03, 296.28, 85.31, 30.31, 387.89). Figure 8 illustrates the convergent curves of the mechanical performance indices of the upper beam obtained by our previous algorithm, a comparison of which with those in Figure 7 demonstrates that the proposed algorithm can locate the optimal solution more efficiently than the previous one.
Figure 8
Figure 8

Convergent curves of the upper beam’s mechanical performance indices obtained by our previous algorithm

Table 5 compares the optimization results obtained by the proposed and our previous algorithm [27], which shows that the 2nd constraint function \(\delta (\varvec{x},\varvec{U}) \le [45,46]{\text{ MPa}}\) is fully satisfied at both optimal solutions. But the 1st constraint function \(w(\varvec{x},U_{1} ) = w(\varvec{x},\rho ) \le [5000,5010]{\text{ kg}}\) may be violated at x* = (248.03, 296.28, 85.31, 30.31, 387.89) obtained by our previous algorithm but it is always satisfied at xo = (238.89, 280.22, 81.61, 32.73, 386.21) obtained by the proposed algorithm. This is due to the fact that the 1st constraint function is regarded to be satisfied at x* according to the “center first halfwidth next” interval order relation in our previous algorithm since there is \(w_{1}^{C} \left( {{\varvec{x}}^{*} } \right) = 5000.6\;{\text{kg}} \le 5005\;{\text{kg}}\) but its corresponding interval violation vector is \({\varvec{v}}_{w} \left( {{\varvec{x}}^{*} } \right) = \left( {0.26,0.80} \right)\) according to Definition 1 in Section 3. At the same time, the optimal solution obtained by the proposed algorithm has the smaller center and halfwidth of the maximum deformation in the objective functions than those generated by the previous algorithm. Hence the proposed algorithm can yield a better and more robust solution than the previous one. This is due to the improved criteria for evaluating the violation degrees of various constraints and the robustness-based preferential guidelines utilized in the proposed algorithm.
Table 5

Comparison of the optimization results of the upper beam obtained by the proposed and previous algorithms

Algorithm

Optimal solution (h1, h2, l1, l2, l3) mm

Mechanical performance indices of the upper beam

[w L , w R ] kg

[δ L , δ R ] MPa

[d L , d R ] mm, \(\left\langle {d^{C} ,d^{W} } \right\rangle \;{\text{mm}}\)

Proposed

(238.89,280.22,81.61,32.73,386.21)

[4983.9, 5000.0]

[40.16, 44.95]

[0.1834, 0.2220], \(\left\langle {0.2027,\;0.0193} \right\rangle\)

Previous

(248.03,296.28,85.31,30.31,387.89)

[4992.3, 5008.9]

[38.64, 43.56]

[0.1976, 0.2366], \(\left\langle {0.2171,\;0.0195} \right\rangle\)

7 Conclusions

To improve the mechanical performance indices of an uncertain structure with interval parameters and ensure their satisfaction with performance requirements when fluctuating under uncertainties, a constrained interval robust optimization model was constructed with both the center and halfwidth of the most important mechanical performance index described as objective functions and the other mechanical performance indices included in constraint functions. A novel concept of interval violation vector was proposed for evaluating the feasibility robustness of a design vector, the mathematical formulae for calculating the interval violation vectors of various constraint functions were also provided. Then the robustness–based preferential guidelines were proposed for directly ranking various design vectors and an algorithm integrating Kriging technique and nested GA was put forward to realize the direct solution of the constrained interval robust optimization problem.

The proposed direct interval robust optimization algorithm has the same advantage as our previous one [27] in avoiding the complex model transformation process from interval to deterministic. The optimization results of the numerical example demonstrated that the proposed algorithm was more efficient and effective than our previous one. The robust optimization of the upper beam in a high-speed press with interval material density and elastic modulus demonstrated the feasibility and validity of the proposed method in engineering practice.

Declarations

Authors’ Contributions

JC, Z-YL and J-RT were in charge of the whole trial; JC wrote the manuscript; Y-YZ, M-YT and G-FD assisted with sampling and laboratory analyses. All authors have read and approved the final manuscript.

Authors’ Information

Jin Cheng, born in 1978, is currently an associate professor at State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, China. She received her PhD degree from Zhejiang University, China, in 2005. Her research interests include uncertainty modeling, structural optimization and intelligent design. Tel: +86-571-87951273; E-mail: cjinpjun@zju.edu.cn.

Zhen-Yu Liu, born in 1974, is currently a professor at State Key Laboratory of CAD & CG, Zhejiang University, China. He received his PhD degree from Zhejiang University, China, in 2002. His research interests include CAD, virtual prototyping, virtual-reality-based simulation and robotics. E-mail: liuzy@zju.edu.cn.

Jian-Rong Tan, born in 1954, is currently an academician of the Chinese Academy of Engineering, professor at State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, China. His research interests include CAD &CG, mechanical design and theory, digital design and manufacture. E-mail: egi@zju.edu.cn.

Yang-Yan Zhang, born in 1993, is currently a master candidate at State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, China. Her research interest is uncertainty optimization of engineering structures. E-mail: zyyzjz1116@163.com.

Ming-Yang Tang, born in 1991, received his master’s degree from Zhejiang University, China, in 2017. His research interest is uncertainty optimization of engineering structures. E-mail: 861658082@qq.com.

Gui-Fang Duan, born in 1979, is currently an associate professor at State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, China. His research interests include CAD &CG, digital design and manufacture. E-mail: gfduan@zju.edu.cn.

Competing Interests

The authors declare that they have no competing interests.

Ethics Approval and Consent to Participate

Not applicable.

Funding

Supported by National Natural Science Foundation of China (Grant Nos. 51775491, 51475417, U1608256, 51405433).

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, Hangzhou, China
(2)
State Key Laboratory of CAD & CG, Zhejiang University, Hangzhou, China
(3)
Key Laboratory of Micro-systems and Micro-structures Manufacturing of Ministry of Education, Harbin Institute of Technology, Harbin, China

References

  1. B Y Liu, S X Huang, W H Fan, et al. Data driven uncertainty evaluation for complex engineered system design. Chinese Journal of Mechanical Engineering, 2016, 29(5): 889–900.View ArticleGoogle Scholar
  2. J Cheng, Y X Feng, Z Q Lin, et al. Anti-vibration optimization of the key components in a turbo-generator based on heterogeneous axiomatic design. Journal of Cleaner Production, 2017, 141: 1467–1477.View ArticleGoogle Scholar
  3. C Yang, S Tangaramvong, W Gao, et al. Interval elastoplastic analysis of structures. Computers & Structures, 2015, 151: 1–10.View ArticleGoogle Scholar
  4. X Y Long, C Jiang, C Yang, et al. A stochastic scaled boundary finite element method. Computer Methods in Applied Mechanics Engineering, 2016, 308: 23–46.MathSciNetView ArticleGoogle Scholar
  5. Y P Ju, C H Zhang. Robust design optimization method for centrifugal impellers under surface roughness uncertainties due to blade fouling. Chinese Journal of Mechanical Engineering, 2016, 29(2): 301–314.MathSciNetView ArticleGoogle Scholar
  6. T Ma, W G Zhang, Y Zhang, et al. Multi-parameter sensitivity analysis and application research in the robust optimization design for complex nonlinear system. Chinese Journal of Mechanical Engineering, 2015, 28(1): 55–62.View ArticleGoogle Scholar
  7. F Y Li, G Y Sun, X D Huang, et al. Multiobjective robust optimization for crashworthiness design of foam filled thin–walled structures with random and interval uncertainties. Engineering Structures, 2015, 88: 111–124.View ArticleGoogle Scholar
  8. X Guo, X F Zhao, W S Zhang, et al. Multi-scale robust design and optimization considering load uncertainties. Computer Methods in Applied Mechanics Engineering, 2015, 283: 994–1009.MathSciNetView ArticleGoogle Scholar
  9. Z Kang, B Song. On robust design optimization of truss structures with bounded uncertainties. Structural and Multidisciplinary Optiomization, 2013, 47(5): 699–714.MathSciNetView ArticleMATHGoogle Scholar
  10. N Changizi, M Jalalpour. Robust topology optimization of frame structures under geometric or material properties uncertainties. Structural and Multidisciplinary Optimization, 2017, 56(4): 791–807.MathSciNetView ArticleGoogle Scholar
  11. J D Deng,W Chen. Concurrent topology optimization of multiscale structures with multiple porous materials under random field loading uncertainty. Structural and Multidisciplinary Optimization, 2017, 56(1): 1–19.MathSciNetView ArticleGoogle Scholar
  12. I Doltsinis, Z Kang, G D Cheng, Robust design of non-linear structures using optimization methods, Computer Methods in Applied Mechanics Engineering, 2005, 194(12–16): 1779–1795.View ArticleMATHGoogle Scholar
  13. Z L Tang, J Périaux. Uncertainty based robust optimization method for drag minimization problems in aerodynamics. Computer Methods in Applied Mechanics Engineering, 2012, 217–220(1): 12–24.MathSciNetView ArticleMATHGoogle Scholar
  14. J P Zhao, C J Wang. Robust topology optimization under loading uncertainty based on linear elastic theory and orthogonal diagonalization of symmetric matrices. Computer Methods in Applied Mechanics Engineering, 2014, 273: 204–218.MathSciNetView ArticleMATHGoogle Scholar
  15. M A Sahali, I Belaidi, R Serra. Efficient genetic algorithm for multi–objective robust optimization of machining parameters with taking into account uncertainties. International Journal of Advanced Manufacturing Technology, 2015, 77: 677–688.View ArticleGoogle Scholar
  16. J Martínez–Frutos, D Herrero–Pérez, M Kessler, et al. Robust shape optimization of continuous structures via the level set method. Computer Methods in Applied Mechanics Engineering, 2016, 305: 271–291.MathSciNetView ArticleGoogle Scholar
  17. J L Wu, Z Luo, Y Q Zhang, et al. Interval uncertain method for multibody mechanical systems using Chebyshev inclusion functions. International Journal for Numerical Methods Engineering, 2013, 95(7): 608–630.MathSciNetView ArticleMATHGoogle Scholar
  18. D Wu, W Gao, G Lib, et al. Robust assessment of collapse resistance of structures under uncertain loads based on Info–Gap model. Computer Methods in Applied Mechanics Engineering, 2015, 285: 208–227.MathSciNetView ArticleGoogle Scholar
  19. S X Guo, Z Z Lu. A non–probabilistic robust reliability method for analysis and design optimization of structures with uncertain–but–bounded parameters. Applied Mathematical Modelling, 2015, 39: 1985–2002.MathSciNetView ArticleGoogle Scholar
  20. F T K Au, Y S Cheng, L G Tham, et al. Robust design of structures using convex models. Computers & Structures, 2003, 81(28–29): 2611–2619.View ArticleGoogle Scholar
  21. Takewaki, Y Ben–Haim. Info–gap robust design with load and model uncertainties. Journal of Sound and Vibration, 2005, 288(3): 551–570.View ArticleGoogle Scholar
  22. W Sun, R M Dong, H W Xu. A novel non–probabilistic approach using interval analysis for robust design optimization. Journal of Mechanical Science and Technology, 2009, 23: 319–3208.MathSciNetGoogle Scholar
  23. G Karer, I Skrjanc. Interval–model–based global optimization framework for robust stability and performance of PID controllers. Applied Soft Computing, 2016, 40: 526–543.View ArticleGoogle Scholar
  24. Y L Li, X J Wang, R Huang, et al. Actuator placement robust optimization for vibration control system with interval parameters. Aerospace Science and Technology, 2015, 45: 88–98.View ArticleGoogle Scholar
  25. F Y Li, Z Luo, G Y Sun, et al. Interval multi–objective optimization using Kriging model: Interval multi–objective optimisation of structures using adaptive Kriging approximations. Computers & Structures, 2013, 119(1): 68–84.View ArticleGoogle Scholar
  26. J Cheng, G F Duan, Z Y Liu, et al. Interval multiobjective optimization of structures based on radial basis function, interval analysis, and NSGA–II. Journal of Zhejiang University–Science A, 2014, 15(10): 774–788.View ArticleGoogle Scholar
  27. J Cheng, Z Y Liu, Z Y Wu, et al. Direct optimization of uncertain structures based on degree of interval constraint violation. Computers & Structures, 2016, 164: 83–94.View ArticleGoogle Scholar
  28. B Q Hu, S Wang. A novel approach in uncertain programming part I: New arithmetic and order relations for interval numbers. Journal of Industrial and Management Optimization, 2006, 2(4): 351-371.MathSciNetView ArticleMATHGoogle Scholar
  29. J Cheng, Z Y Liu, Z Y Wu, et al. Robust optimization of structural dynamic characteristics based on Kriging model and CNSGA. Structural and Multidisciplinary Optimization, 2015, 51(2): 423–437.View ArticleGoogle Scholar
  30. J Cheng, M Y Tang, Z Y Liu, et al. Direct reliability–-based design optimization of uncertain structures with interval parameters. Journal of Zhejiang University–Science A, 2016, 17(11): 841–854.View ArticleGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
