Udwadia–Kalaba Equation for Constrained Mechanical Systems: Formulation and Applications

Abstract

There are many achievements in the field of analytical mechanics, such as Lagrange Equation, Hamilton’s Principle, Kane’s Equation. Compared to Newton–Euler mechanics, analytical mechanics have a wider range of applications and the formulation procedures are more mathematical. However, all existing methods of analytical mechanics were proposed based on some auxiliary variables. In this review, a novel analytical mechanics approach without the aid of Lagrange’s multiplier, projection, or any quasi or auxiliary variables is introduced for the central problem of mechanical systems. Since this approach was firstly proposed by Udwadia and Kalaba, it was called Udwadia–Kalaba Equation. It is a representation for the explicit expression of the equations of motion for constrained mechanical systems. It can be derived via the Gauss’s principle, d’Alembert’s principle or extended d’Alembert’s principle. It is applicable to both holonomic and nonholonomic equality constraints, as long as they are linear with respect to the accelerations or reducible to be that form. As a result, the Udwadia–Kalaba Equation can be applied to a very broad class of mechanical systems. This review starts with introducing the background by a brief review of the history of mechanics. After that, the formulation procedure of Udwadia–Kalaba Equation is given. Furthermore, the comparisons of Udwadia–Kalaba Equation with Newton–Euler Equation, Lagrange Equation and Kane’s Equation are made, respectively. At last, three different types of examples are given for demonstrations.

1 Introduction

Classical mechanics is divided into Newton–Euler mechanics [1] and analytical mechanics (i.e., Lagrangian mechanics) [2, 3]. In 1687, Sir Isaac Newton proposed three fundamental laws of motion for a hypothetical object called particle, which is the physical foundation of classical mechanics. In the 18th century, Euler extended Newton’s laws to rigid bodies. In Newton–Euler mechanics, forces are divided into internal forces (originating wholly from within the system) and external forces (originating from outside the system).

Lagrange divided the forces into constraint forces (depending exclusively on the constraints) and given (or impressed) forces (depending on physical coefficients). Generalizing the d’Alembert’s principle [4, 5] for statics, Lagrange formulated the analytical mechanics via the notions of “virtual displacement” and “virtual work” in 1788. Lagrange introduced “generalized coordinates” (also called Lagrange coordinates) to reduce the number of equations of both motion and constraints. In Lagrange’s equation of motion, the Lagrange multiplier part is added to describe the motion of the constrained system [6, 7]. However, Lagrange multipliers are not explicitly represented as functions of the generalized coordinates and generalized velocities.

Subsequent to Lagrange, Hamilton developed analytical mechanics with his well-known Hamilton’s Principle [8] in 1834, which provides an alternative derivation of Lagrange’s equations. Hamilton’s equation of motion [9] is founded on a relation between momentum and kinetic energy. In the 1840’s, Jacobi proposed an integration theory of dynamics to describe the motion of the system, which we call Jacobi’s integral [10]. In the 1870’s, Routh’s method for ignorable coordinates was presented as an alternative elimination procedure to obtain the equation of motion [10]. Gauss Principle [11] for inequality constraints and Appell’s equations for unconstrained systems were founded in 1879. Soon afterwards Appell explored the dynamics of nonholonomic systems under linear (or Pfaffian) velocity constraints [12]. Between 1910’s and 1930’s, Appell and Hamel explored the dynamics of nonholonomic systems under nonlinear velocity constraints [10, 13]. Hamel’s method of formulating the constrained equation of motion embedded the constraint into the kinetic energy of the unconstrained motion directly [14]. Quasi variables in Hamel’s method are not physically measurable [15]. This method seemed to be simple, intuitive, but not always available [16, 17]. In the 1960’s, Kane developed an equation based on the use of quasi-velocities [18, 19].

Despite all these great developments in classical mechanics and principles of mechanics [5, 20,21,22,23], there had been one missing piece. For systems subject to nonholonomic constraints, the analytical expressions of the equations of motion were still either not available or practical. All existing methods only provided the equation of motion in terms of some auxiliary variables (such as the Lagrange multiplier or other quasi variables [24,25,26]), in addition to the generalized coordinates. This had hindered certain fundamental explorations, such as stability, chaos, bifurcation, which are mostly performed based on the analytic expressions. Hence, the research of this ultimate analytical form of the equations of motion of constrained systems continued.

A major breakthrough was made in the 1990’s. Udwadia and Kalaba proposed a novel approach to this central problem in classical mechanics [27,28,29,30,31]. It can be proved via the Gauss principle, d’Alembert’s principle, or extended d’Alembert’s principle [32,33,34,35]. This creative approach provides the analytical expression of the equation of motion of a constrained mechanical system, where the constraints can be holonomic and/or nonholonomic. The constraint force is represented in closed form: only based on the generalized coordinates/velocities. No other auxiliary variables are needed. This is by far the simplest form and completed the quest which lasted for more than 200 years (since 1788).

In this review paper, we present the Udwadia–Kalaba Equation in a straightforward and approachable manner. We utilize examples to further illustrate the Udwadia–Kalaba Equation. These will demonstrate the applicability of the equation to a very broad range of engineering problems.

2 Equation of Motion of Unconstrained System

Consider an unconstrained mechanical system described by an n dimensional coordinate $q \in \varvec{R}^{n} ,$ velocity $\dot{q} \in {\varvec{R}}^{n} ,$ and acceleration $\ddot{q} \in {\varvec{R}}^{n}$. The dynamic model of the unconstrained mechanical system can be represented by

$$M(q,\;t)\ddot{q} = F(q,\;\dot{q},\;t),$$

(1)

where $M(q,\;t) \in \varvec{R}^{n \times n}$ is the inertia matrix, $F(q,\;\dot{q},\;t) \in {\varvec{R}}^{n}$ includes the given force (also called the impressed force), Coriolis/centrifugal force, and gravitational force [7]. The functions $M( \cdot ):{\varvec{R}}^{n} \times {\varvec{R}} \to {\varvec{R}}^{n \times n}$ and $F( \cdot ):{\varvec{R}}^{n} \times {\varvec{R}}^{n} \times {\varvec{R}} \to {\varvec{R}}^{n}$ are continuous.

Remark 1.

Equation (1) can be obtained through the use of Newton–Euler mechanics or analytical mechanics. We omit the details since this is often discussed in standard mechanics books (for example, Refs. [1, 7]).

We now demonstrate this via examples.

Example 1.

Consider a particle m that makes a horizontal projectile motion under the influence of gravity.

With respect to a Cartesian coordinate system which is rigidly attached to an inertial reference frame, let x denote the horizontal coordinate and y denote the vertical coordinate. The equation of motion is given by

$$\left[ {\begin{array}{*{20}l} m &\; 0 \\ 0 &\; m \\ \end{array} } \right]\left[ {\begin{array}{*{20}l} {\ddot{x}} \\ {\ddot{y}} \\ \end{array} } \right] = \left[ {\begin{array}{*{20}l} 0 \\ { - mg} \\ \end{array} } \right],$$

(2)

where g is the gravitational constant. This is in the form of Eq. (1) with $q = [x\;y]^{\text{T}} ,$ the inertia matrix $M = \left[ {\begin{array}{*{20}c} m & 0 \\ 0 & m \\ \end{array} } \right]$, and the given force $F = \left[ {\begin{array}{*{20}c} 0 \\ { - mg} \\ \end{array} } \right]$.

With respect to polar coordinate, we let r denote the radial coordinate or radius, θ denote the angular coordinate. The relation between Cartesian coordinate and polar coordinate is followed by

$$\left\{ \begin{aligned} x = r \cos\theta \hfill \\ y = r \sin\theta . \hfill \\ \end{aligned} \right.$$

(3)

Differentiating Eq. (3) with respect to t yields

$$\left\{ \begin{aligned} \dot{x} & = \dot{r} \cos\theta - r\dot{\theta } \sin\theta , \\ \dot{y} & = \dot{r}sin\theta + r\dot{\theta } \cos\theta . \\ \end{aligned} \right.$$

(4)

After continue differentiating Eq. (4), we obtain

$$\left\{ \begin{aligned} \ddot{x} & = (\ddot{r} - r\mathop {\dot{\theta }}\nolimits^{2} ) \cos\theta - (r\ddot{\theta } + 2\dot{r}\dot{\theta }) \sin\theta , \\ \ddot{y} & = (\ddot{r} - r\mathop {\dot{\theta }}\nolimits^{2} ) \sin\theta + (r\ddot{\theta } + 2\dot{r}\dot{\theta }) \cos\theta . \\ \end{aligned} \right.$$

(5)

Combining Eqs. (2) and (5) leads to

$$\left\{ \begin{aligned} (\ddot{r} - r\mathop {\dot{\theta }}\nolimits^{2} ) \cos\theta - (r\ddot{\theta } + 2\dot{r}\dot{\theta }) \sin\theta & = 0, \\ (\ddot{r} - r\mathop {\dot{\theta }}\nolimits^{2} ) \sin\theta + (r\ddot{\theta } + 2\dot{r}\dot{\theta }) \cos\theta & = - g. \\ \end{aligned} \right.$$

(6)

After multiplying by $\cos\theta$ on the first equation of Eq. (6) and by $\sin\theta$ on the second equation of Eq. (6) and adding them, we have

$$\ddot{r} = r\mathop {\dot{\theta }}\nolimits^{2} - g \sin\theta .$$

(7)

After multiplying by $\sin\theta$ on the first equation in Eq. (6) and by $\cos\theta$ on the second equation in Eq. (6) and subtracting them, we have

$$\ddot{\theta } = \frac{{ - 2\dot{r}\dot{\theta } - g \cos\theta }}{r}.$$

(8)

Therefore, the equation of motion in polar coordinate is given by

$$\left[ {\begin{array}{*{20}c} m &\; 0 \\ 0 &\; m \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {\ddot{r}} \\ {\ddot{\theta }} \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {mr\mathop {\dot{\theta }}\nolimits^{2} - mg \sin\theta } \\ {\frac{{ - 2m\dot{r}\dot{\theta } - mg \cos\theta }}{r}} \\ \end{array} } \right],$$

(9)

where $q = [r\;\theta ]^{\text{T}} ,$ the inertia matrix $\varvec{M} = \left[ {\begin{array}{*{20}c} m & 0 \\ 0 & m \\ \end{array} } \right]$, the given force $\varvec{F} = \left[ {\begin{array}{*{20}c} {mr\mathop {\dot{\theta }}\nolimits^{2} - mg \sin\theta } \\ {\tfrac{{ - 2m\dot{r}\dot{\theta } - mg \cos\theta }}{r}} \\ \end{array} } \right]$.

3 Constraints

In practice, the motions of mechanical systems are always constrained in some way [36,37,38,39].

Definition 1.

A constraint of the form $f(q,t) = 0$, or reducible to that form, is called a holonomic constraint. Every constraint not of this form, or not reducible to it, is called nonholonomic [1].

According to whether the holonomic constraints depend explicitly on time or not, they can be classified into scleronomic or rheonomic.

Definition 2.

A holonomic constraint of the form $f(q) = 0$, or reducible to it, is called scleronomic. Every holonomic constraint not of this form (hence in the form of $f(q,t) = 0$), or not reducible to it, is called rheonomic [1].

In analytical mechanics, it is traditionally crucial to identify the holonomicity of constraints. The following lemma is introduced firstly, which will be used latter.

Lemma 1.

Consider the following Pfaffian form of constraint (in which $q = [x\;y\;z]^{\text{T}}$) [1]

$$\alpha {\text{d}}x + \beta {\text{d}}y + \gamma {\text{d}}z = 0.$$

(10)

The constraint is holonomic if and only if

$$\alpha \left( {\frac{\partial \beta }{\partial z} - \frac{\partial \gamma }{\partial y}} \right) + \beta \left( {\frac{\partial \gamma }{\partial x} - \frac{\partial \alpha }{\partial z}} \right) + \gamma \left( {\frac{\partial \alpha }{\partial y} - \frac{\partial \beta }{\partial x}} \right) = 0,$$

(11)

where α, β, and γ are functions of x, y, and z.

This is a necessary and sufficient condition. If the constraint is not holonomic, then it is nonholonomic. Different types of constraints can be seen in the following three examples. Here, we assume x, y, z are the coordinates.

Example 2: (Scleronomic constraint)

Consider a constraint

$$\dot{x} + 2y\dot{y} + \dot{z} = 0.$$

(12)

It shows that Eq. (12) is scleronomic. Take the integral of Eq. (12) with respect to the time t, then we reformulate the equation as

$$x + y^{2} + z + L = 0,$$

(13)

where L is a constant. According to Definitions 1 and 2, we know that constraint Eq. (12) is not only holonomic but also scleronomic.

Example 3: (Rheonomic constraint)

Consider a constraint

$$\dot{x} + 2y\dot{y} + \dot{z} = 1.$$

(14)

It shows that Eq. (14) is rheonomic. Take the integral of Eq. (14) with respect to the time t, then we reformulate the equation as

$$x + y^{2} + z - t + L = 0,$$

(15)

where L is a constant. According to Definitions 1 and 2, we know that constraint Eq. (14) is not only holonomic but also rheonomic.

Example 4: (Nonholonomic constraint)

Consider a constraint

$$\dot{x} + 2z\dot{y} + \dot{z} = 0,$$

(16)

with $\alpha = 1$, $\beta = 2z$, $\gamma = 1$, we have

$$\alpha \left( {\frac{\partial \beta }{\partial z} - \frac{\partial \gamma }{\partial y}} \right) + \beta \left( {\frac{\partial \gamma }{\partial x} - \frac{\partial \alpha }{\partial z}} \right) + \gamma \left( {\frac{\partial \alpha }{\partial y} - \frac{\partial \beta }{\partial x}} \right) = 1 \ne 0.$$

(17)

According to Lemma 1, we conclude that the constraint Eq. (16) is nonholonomic.

The standard second order form of constraints in Udwadia and Kalaba’s setting [27] is given by

$$A(q,\dot{q},t)\ddot{q} = b(q,\dot{q},t),$$

(18)

where $A(q,\dot{q},t) \in \varvec{R}^{m \times n}$, $b(q,\dot{q},t) \in {\varvec{R}}^{n}$.

Assumption 1.

(i) Rank $A(q,\dot{q},t) \ge 1$. (ii) The second order constraint Eq. (18) is consistent. That is, for given $A(q,\dot{q},t)$ and $b(q,\dot{q},t)$, there exists at least one solution $\ddot{q}$ to Eq. (18).

The constraint Eq. (18) encompasses a very broad variety of constraints [40]. It includes both holonomic and nonholonomic constraints. For example, the holonomic constraints of the form $f(q,t) = 0$ can be taken the second-order derivative with respect to time t while nonholonomic constraints of the form $f(q,\dot{q},t) = 0$ can be taken once with respect to time t to obtain the form of Eq. (18).

The standard form of the constraint in Example 2 can be reformulated as

$$\left[ {\begin{array}{*{20}c} 1 & {2y} & 1 \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {\ddot{x}} \\ {\ddot{y}} \\ {\ddot{z}} \\ \end{array} } \right] = - 2\mathop {\dot{y}}\nolimits^{2} ,$$

(19)

where $\varvec{A} = [1\;\;2y\;\;1],$ $\varvec{q} = [x\;y\;z]^{\text{T}} ,$$b = - 2\mathop {\dot{y}}\nolimits^{2} .$ The standard form of the constraint in Example 3 is the same as Eq. (19). The standard form of the constraint in Example 4 can be reformulated as

$$\left[ {\begin{array}{*{20}c} 1 & {2z} & 1 \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {\ddot{x}} \\ {\ddot{y}} \\ {\ddot{z}} \\ \end{array} } \right] = - 2\dot{y}\dot{z},$$

(20)

where $\varvec{A} = [1\;\;2z\;\;1],$ $\varvec{q} = [x\;y\;z]^{\text{T}} ,$ $b = - 2\dot{y}\dot{z}.$ We now generalize our results in the following two cases.

Case I.

Suppose the system is restricted by $m$ constraints in the first order form (Pfaffian representation) of

$$\sum\limits_{j = 1}^{n} A_{ij} (q,t){\text{d}}q_{j} + c_{i} (q,t){\text{d}}t = 0,\;\;\;i = 1,2, \ldots ,m,$$

(21)

or equivalently in the form of

$$\sum\limits_{j = 1}^{n} A_{ij} (q,t)\mathop {\dot{q}}\nolimits_{j} + c_{i} (q,t) = 0,\quad i = 1,2, \ldots ,m.$$

(22)

Taking the derivative of Eq. (22) yields

$$\sum\limits_{j = 1}^{n} A_{ij} (q,t)\mathop {\ddot{q}}\nolimits_{j} + \sum\limits_{j = 1}^{n} \frac{\text{d}}{{{\text{d}}t}}A_{ij} (q,t)\mathop {\dot{q}}\nolimits_{j} + \frac{\text{d}}{{{\text{d}}t}}c_{i} (q,t) = 0,$$

(23)

where

$$\frac{\text{d}}{{{\text{d}}t}}A_{ij} (q,t) = \sum\limits_{k = 1}^{n} \,\frac{{\partial A_{ij} (q,t)}}{{\partial q_{k} }}\mathop {\dot{q}}\nolimits_{k} + \frac{{\partial A_{ij} (q,t)}}{\partial t},$$

(24)

and

$$\frac{\text{d}}{{{\text{d}}t}}c_{i} (q,t) = \sum\limits_{k = 1}^{n} \,\frac{{\partial c_{i} (q,t)}}{{\partial q_{k} }}\mathop {\dot{q}}\nolimits_{k} + \frac{{\partial c_{i} (q,t)}}{\partial t}.$$

(25)

Let

$$b_{i} (q,\dot{q},t): = - \sum\limits_{j = 1}^{n} \,\tfrac{\text{d}}{{{\text{d}}t}}A_{ij} (q,t)\mathop {\dot{q}}\nolimits_{j} - \tfrac{\text{d}}{{{\text{d}}t}}c_{i} (q,t),$$

we can reformulate Eq. (23) in the form of

$$\sum\limits_{j = 1}^{n} \,A_{ij} (q,t)\mathop {\ddot{q}}\nolimits_{j} = b_{i} (q,\dot{q},t),\quad i = 1,\text{2,} \ldots ,m.$$

(26)

Expressing Eq. (26) in matrix form with $\varvec{A} = [A_{ij} ]_{m \times n}$ and $\varvec{b} = [b_{1} \quad b_{2} \quad \cdots \quad b_{m} ]^{\text{T}}$, leads to the standard second order form Eq. (18).

Case II.

Suppose the system is restricted by $m$ constraints in the form of

$$f_{i} (q,t) = 0,\quad i = 1,2, \ldots ,m.$$

(27)

Taking the derivative of Eq. (27) leads to

$$\sum\limits_{j = 1}^{n} \,\frac{{\partial f_{i} (q,t)}}{{\partial q_{j} }}\mathop {\dot{q}}\nolimits_{j} + \frac{{\partial f_{i} (q,t)}}{\partial t} = 0,$$

(28)

or equivalently in the Pfaffian form

$$\sum\limits_{j = 1}^{n} \,\frac{{\partial f_{i} (q,t)}}{{\partial q_{j} }}{\text{d}}q_{j} + \frac{{\partial f_{i} (q,t)}}{\partial t}{\text{d}}t = 0.$$

(29)

Notice that Eq. (28) is in the form of Eq. (22) with

$$A_{ij} (q,t) = \tfrac{{\partial f_{i} (q,t)}}{{\partial q_{j} }},\quad c_{i} (q,t) = \tfrac{{\partial f_{i} (q,t)}}{\partial t}.$$

Then we take the same procedure as in Case I to obtain the standard form Eq. (18).

Remark 2.

In Udwadia–Kalaba’s setting, it considers only those constraints which can be expressed as linear equality relations with respect to the accelerations of the particles of the system. That is, the constraint of the form Eq. (18), or that can be differentiated to it, is applied to Udwadia–Kalaba Equation.

4 Moore–Penrose (MP) Inverse

We start with introducing the mathematical preliminaries.

Definition 3.

Consider a matrix $\varvec{W} \in \varvec{R}^{p \times q}$ with rank $r \ge 1$. Its singular values are given by $\delta_{1} \ge \delta_{2} \ge \cdots \ge \delta_{r} > 0$. Suppose that its singular-value decomposition is given by ${\varvec{U\Delta V}}^{\text{T}} ,$ where both ${\varvec{U}} = \left\{ {u_{1} , \cdots ,u_{r} } \right\} \in \varvec{R}^{p \times r}$ and ${\varvec{V}} = \left\{ {v_{1} , \cdots ,v_{r} } \right\} \in {\varvec{R}}^{q \times r}$ are unitary matrices [10]:

$${\varvec{W}} = {\varvec{U\Delta V}}^{\text{T}} = \sum\limits_{i = 1}^{r} \,d_{i} u_{i} v_{i}^{\text{T}} ,$$

(30)

with ${\varvec{\Delta}} = [{\text{diag}}(\delta_{i} )]_{r \times r} .$. Here, $\left\{ {u_{1} , \cdots ,u_{r} } \right\}$ and $\left\{ {v_{1} ,} \right.\left. { \cdots ,v_{r} } \right\}$ are orthonormal sets of vectors in ${\varvec{R}}^{p}$ and ${\varvec{R}}^{q}$, respectively. The Moore–Penrose inverse ${\varvec{W}}^{ + } \in {\varvec{R}}^{q \times p}$ of W is given by

$${\varvec{W}}^{ + } = {\varvec{V\Delta }}^{ - 1} {\varvec{U}}^{\text{T}} .$$

(31)

Lemma 2.

The $q \times p$ matrix $\varvec{W}_{0}$ is the MP inverse ${\varvec{W}}^{ + }$ of W if and only if the following conditions hold [41]:

$$\varvec{WW}_{\text{0}} \varvec{W = W}\text{,}$$

(32)

$$\varvec{W}_{0} \varvec{WW}_{0} = {\varvec{W}}_{0} ,$$

(33)

$${\varvec{WW}}_{0} = ({\varvec{WW}}_{0} )^{\text{T}} ,$$

(34)

$${\varvec{W}}_{0} {\varvec{W}} = ({\varvec{W}}_{0} {\varvec{W}})^{\text{T}} .$$

(35)

Moreover, $\varvec{W}^{ + }$ is unique. Conditions (34) and (35) imply that the matrices ${\varvec{WW}}_{0}$ and $\varvec{W}_{0} {\varvec{W}}$ are symmetric.

Some propositions of MP inverse are provided as follows to help with finding the MP inverse [27, 42, 43].

Proposition 1.

$({\varvec{\lambda A}})^{ + } = {\varvec{A}}^{ + } /{\varvec{\uplambda}}$, where ${\varvec{\lambda}}$ is a nonzero scalar.

Proposition 2.

If a is a nonzero 1 by n row vector, then ${\varvec{a}}^{ + } = {\varvec{a}}^{\text{T}} /({\varvec{aa}}^{\text{T}} )$.

Proposition 3.

If a is a nonzero n by 1 column vector, then ${\varvec{a}}^{ + } = {\varvec{a}}^{\text{T}} /({\varvec{a}}^{\text{T}} {\varvec{a}})$.

Proposition 4.

If a is a nonzero 1 by n vector, then $({\varvec{a}}^{\text{T}} {\varvec{a}})^{ + } = ({\varvec{a}}^{\text{T}} {\varvec{a}} ) /({\varvec{aa}}^{\text{T}} )^{2}$.

Proposition 5.

If ${\varvec{A}} = \left[ {\begin{array}{*{20}c} B & 0 \\ 0 & C \\ \end{array} } \right]$, then ${\varvec{A}}^{ + } = \left[ {\begin{array}{*{20}c} {B^{ + } } & 0 \\ 0 & {C^{ + } } \\ \end{array} } \right]$, where B and C are modules of matrix A.

5 Udawadia–Kalaba Equation

We consider the mechanical system (1) is subject to the constraint (18).

Assumption 2.

The inertia matrix ${\varvec{M}}(q,t)$ is positive definite: For each $(q,t) \in {\varvec{R}}^{n} \times {\varvec{R}}$, ${\varvec{M}}(q,t) > 0$.

Subject to Assumptions 1 and 2, the Udawadia–Kalaba Equation of the corresponding constrained mechanical system is given by [27]

$$\left\{ \begin{aligned} & {\varvec{M}}(q,t)\ddot{q} = {\varvec{F}}(q,\dot{q},t) + {\varvec{F}}^{C} (q,\dot{q},t) \\ & {\varvec{F}}^{C} (q,\dot{q},t) = {\varvec{M}}^{{\tfrac{1}{2}}} (q,t)[{\varvec{A}}(q,t){\varvec{M}}^{{ - \tfrac{1}{2}}} (q,t)]^{ + } \\ & \;\;\;\;\;\;\; \times [{\varvec{b}}(q,\dot{q},t) - {\varvec{A}}(q,t){\varvec{M}}^{ - 1} (q,t){\varvec{F}}(q,\dot{q},t)]. \\ \end{aligned} \right.$$

(36)

Here ${\varvec{F}}^{C} (q,\dot{q},t) \in {\varvec{R}}^{n}$ is the constrained force.

Subject to Assumptions 1 and 2, the constraint force $F^{C}$ always exists. The constrained mechanical system Eq. (36) meets the constraint Eq. (18). The constraint force is obtained in closed form (i.e., analytical form).

This Udawadia–Kalaba Equation can be derived via the Gauss principle [44], d’Alembert’s principle [45], or extended d’Alembert’s principle [46, 47].

So far, the Udawadia–Kalaba Equation is the only equation that is without the use of Lagrange multiplier, projection, or any quasi or auxiliary variables. It does not increase the dimension of the original unconstrained system. All it takes is to find the MP inverse of the designated matrix. Therefore, it is simple, straightforward, and practical. The equation can be applied to a very broad range of problems. Its applications can be found in, e.g., Refs. [48,49,50,51,52,53].

6 Comparison with Other Methods

The Udwadia–Kalaba Equation provides a novel approach of describing the motion of discrete mechanical systems, which is different from other methods such as Newton–Euler Equation, Lagrange Equation [54], Maggi approach [55] or Kane’s Equation [19]. Next, we will compare Udwadia–Kalaba Equation with some of these approaches.

6.1 Comparison with Newton–Euler Equation

Consider a rigid body ${\mathcal{B}}$. With respect to a coordinate system, rigidly attached to ${\mathcal{B}}$, whose origin is a point P and not necessarily coincident with the center of mass of ${\mathcal{B}}$, the Newton–Euler Equation is in the form of

$$\begin{aligned} & \left[ {\begin{array}{*{20}l} {mI_{z} } & { - m[c]^{ \times } } \\ { - m[c]^{ \times } } & {I_{cm} - m[c]^{ \times } [c]^{ \times } } \\ \end{array} } \right]\left[ {\begin{array}{*{20}l} {a_{P} } \\ \alpha \\ \end{array} } \right] \\ & + \left[ {\begin{array}{*{20}l} {m[c]^{ \times } [c]^{ \times } c} \\ {[\omega ]^{ \times } (I_{cm} - m[c]^{ \times } [c]^{ \times } )\omega } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}l} F \\ {\tau_{P} } \\ \end{array} } \right]. \\ \end{aligned}$$

(37)

Here

$$\;[c]^{ \times } = \left[ {\begin{array}{*{20}c} 0 & { - c_{z} } & {c_{y} } \\ {c_{z} } & 0 & { - c_{x} } \\ { - c_{y} } & {c_{x} } & 0 \\ \end{array} } \right]$$

(38)

and

$$[\omega ]^{ \times } = \left[ {\begin{array}{*{20}c} 0 & { - \omega_{z} } & {\omega_{y} } \\ {\omega_{z} } & 0 & { - \omega_{x} } \\ { - \omega_{y} } & {\omega_{x} } & 0 \\ \end{array} } \right]$$

(39)

denote skew-symmetric cross product matrices, c is the location of the center of mass, m is the mass, $a_{P}$ is the acceleration, $I_{cm}$ is the moment of inertia, $\omega$ is the angular velocity, $\alpha$ is the angular acceleration, F is the total force (including internal and external), $\tau_{P}$ is the total moment.

There are two major differences with the Udwadia–Kalaba Equation.

First, the Newton–Euler Equation is typically represented in terms of physical coordinates (such as Cartesian, cylindrical, or spherical), while Udwadia–Kalaba Equation can be formulated, in addition to physical coordinates, generalized coordinates.

Second, forces in Newton–Euler Equation are divided into internal forces (originating wholly from within the system) and external forces (originating from outside the system). Forces in Udwadia–Kalaba Equation are divided into given (or impressed) forces (depending on physical coefficients) and constraint forces (depending exclusively on the constraints). It is emphasized that internal/external distinction of forces is different from given/constraint distinction. That is to say, in general, the constraint force is not the same as internal force and the given force is not the same as external force. The number of internal forces, despite of the characterization of the Newton’s third law, is often greater than the constraints, hence cannot be uniquely determined. That makes the Newton–Euler Equation hard to formulate when the system is subject to constraints. The constraint force, on the other hand, can be solved analytically in Udwadia–Kalaba Equation.

6.2 Comparison with Lagrange Equation

Although the Udwadia–Kalaba Equation is similar to Lagrange Equation in the classification of forces and the use of constraints, their representations of constraint forces are totally different. There is no Lagrange’s multiplier, projection, or any quasi or auxiliary variables in the Udwadia–Kalaba Equation. Comparing to Lagrange Equation, Udwadia–Kalaba Equation is simpler. It provides the closed-form constraint force for a large classes of constrained mechanical systems, which is subject to the d’Alembert’s principle (i.e., the totality of the virtual work done by the constraint force is zero [1]) and drives the mechanical systems to follow the constraints.

Consider the same mechanical system Eq. (1) in Section 2. Notice that, in Lagrange Equation, the coordinate ${\varvec{q}} \in {\varvec{R}}^{n}$ is a generalized coordinate, which can be denoted as ${\varvec{q}} = [q_{1} \quad q_{2} \quad \cdots \quad q_{n} ]^{\text{T}}$. Suppose that the system is under $m( < n)$ constraints Eq. (22), or equivalently in the matrix form of

$${\varvec{A}}(q,t)\dot{q} = {\varvec{c}}(q,t),$$

(40)

where ${\varvec{A}} = [A_{ij} ]_{m \times n} ,$$c = [c_{1} \; c_{2} \; \cdots \; c_{m} ]^{\text{T}} .$ Let ${\varvec{Q}}(q,\dot{q},t) = [Q_{1} \; Q_{2} \; \cdots \; Q_{n} ]^{\text{T}}$ denote the generalized force, ${\varvec{Q}}^{c} = [Q_{1}^{c} \; Q_{2}^{c} \; \cdots \; Q_{n}^{c} ]^{\text{T}}$ denote the constraint force, $\delta q = [\delta q_{1} \; \delta q_{2} \; \cdots \; \delta q_{n} ]^{\text{T}}$ denote the virtual displacement. The virtual displacement $\delta q$ is governed by

$$\sum\limits_{j = 1}^{n} {A_{ij} (q,t)\delta q_{j} } \, = 0,\;\;\;i = 1, \ldots ,m.$$

(41)

According to Ref. [13], for each $j = 1,2, \ldots ,n$, we have

$$\frac{\text{d}}{{{\text{d}}t}}\frac{{\partial T(q,\dot{q},t)}}{{\partial \mathop {\dot{q}}\nolimits_{j} }} - \frac{{\partial T(q,\dot{q},t)}}{{\partial q_{j} }} = Q_{j} (q,\dot{q},t) + Q_{j}^{c} .$$

(42)

Adopting the Lagrange’s form of d’Alembert’s principle (also called the fundamental equation) yields

$$\sum\limits_{j = 1}^{n} \,\left[ {\frac{\text{d}}{{{\text{d}}t}}\frac{{\partial T(q,\dot{q},t)}}{{\partial \mathop {\dot{q}}\nolimits_{j} }} - \frac{{\partial T(q,\dot{q},t)}}{{\partial q_{j} }} - Q_{j} (q,\dot{q},t)} \right]\delta q_{j} = 0,$$

(43)

or in the matrix form

$$\mathop {\left[ {\frac{\text{d}}{{{\text{d}}t}}\frac{{\partial T(q,\dot{q},t)}}{{\partial \dot{q}}} - \frac{{\partial T(q,\dot{q},t)}}{\partial q} - Q(q,\dot{q},t)} \right]}\nolimits^{\text{T}} \delta q = 0.$$

(44)

After the use of the Principle of Relaxation of the constraints [14], for each $j = 1,2, \cdots ,n,$ the resulting Lagrange Equation is given in the form of

$$\frac{\text{d}}{{{\text{d}}t}}\frac{{\partial T(q,\dot{q},t)}}{{\partial \mathop {\dot{q}}\nolimits_{j} }} - \frac{{\partial T(q,\dot{q},t)}}{{\partial q_{j} }} = Q_{j} (q,\dot{q},t) + \sum\limits_{i = 1}^{m} \,A_{ij} (q,t)\lambda_{i} ,$$

(45)

where $\lambda_{i}$ denote the Lagrange’s multiplier. The constraint force component $Q_{j}^{c} = \sum\nolimits_{i = 1}^{m} \,A_{ij} (q,t)\lambda_{i}$. Rewriting Eq. (45) in the matrix form yields

$$\frac{\text{d}}{{{\text{d}}t}}\frac{{\partial T(q,\dot{q},t)}}{{\partial \dot{q}}} - \frac{{\partial T(q,\dot{q},t)}}{\partial q} = Q(q,\dot{q},t) + {\varvec{A}}^{\text{T}} (q,t)\lambda ,$$

(46)

where ${\varvec{\lambda}} = [\lambda_{1} \; \lambda_{2} \; \cdots \; \lambda_{m} ]^{\text{T}} ,$ ${\varvec{A}}^{\text{T}} (q,t){\varvec{\lambda}}$ denotes the constraint force ${\varvec{Q}}^{c}$.

According to Ref. [1], the kinetic energy of the system in the terms of generalized coordinates is given by

$${\varvec{T}}(q,\dot{q},t) = \frac{1}{2}\mathop {{\dot{\varvec{q}}}}\nolimits^{\text{T}} {\varvec{M}}(q,t){\dot{\varvec{q}}} + {\varvec{N}}(q,t){\dot{\varvec{q}}} + {\varvec{P}}(q,t),$$

(47)

where ${\varvec{M}}(q,t) = {\varvec{M}}^{\text{T}} (q,t),$${\varvec{N}}(q,t)$ is an $1$ by n vector, ${\varvec{P}}(q,t)$ is a scalar. Substituting Eq. (47) into Eq. (46), then we have

$${\varvec{M}}(q,t)\ddot{q} = {\varvec{F}}(q,\dot{q},t) + {\varvec{A}}^{\text{T}} (q,t){\varvec{\uplambda}},$$

(48)

$$\begin{aligned} {\varvec{F}}(q,\dot{q},t) = & \; {\varvec{Q}}(q,\dot{q},t) + \frac{{\partial {\varvec{T}}(q,\dot{q},t)}}{\partial q} \\ & - \frac{{{\text{d}}{\varvec{M}}(q,t)}}{{{\text{d}}t}}\dot{q} - \frac{{{\text{d}}{\varvec{N}}^{\text{T}} (q,t)}}{{{\text{d}}t}}. \\ \end{aligned}$$

(49)

Here the Lagrange multiplier $\lambda$ is in general solved numerically (with the exception of highly simplified examples) based on given initial condition $q(t_{0} )$ and $\dot{q}(t_{0} )$ together with the constraint Eq. (40). The term ${\varvec{A}}^{\text{T}} (q,t){\varvec{\lambda}}$ corresponds to the constraint force ${\varvec{F}}^{c} (q,\dot{q},t)$ in the Udwadia–Kalaba Equation. Since Eq. (40) can be obtained the form of Eq. (18) after taking derivative with respect to time t, the Udwadia–Kalaba Equation of the mechanical system Eq. (1) constrained by Eq. (40) is given by Eq. (36).

Comparing Udwadia–Kalaba Equation with Lagrange Equation, there are three major distinctions. First, the Lagrange multiplier λ should be solved numerically in general for each initial condition and constraint. The constraint force ${\varvec{F}}^{c} (q,\dot{q},t)$ in Udwadia–Kalaba Equation can always be represented in analytic form (i.e., closed form). Second, for a given constraint force ${\varvec{F}}^{c} (q,\dot{q},t)$, the Lagrange multiplier is in fact non-unique (unless with more provision on the matrix ${\varvec{A}}^{\text{T}} (q,t)$). It is just that ${\varvec{A}}^{\text{T}} (q,t){\varvec{\lambda}}$ is unique. Third, the Udwadia–Kalaba Equation is represented by $q$ and $\dot{q}$, no new variables are introduced and used. The Lagrange Equation, in addition to $q$ and $\dot{q}$, requires the extra Lagrange multiplier $\lambda \in {\varvec{R}}^{m}$, hence raising the dimension of the system from n to n + m.

6.3 Comparison with Kane’s Equation

The Kane’s equation was proposed by Thomas R. Kane [18]. It has been widely applied to many engineering systems for modeling, analysis, and control. If S is a simple nonholonomic system possessing c degrees of freedom in reference frames N, then the Kane’s equation

$$\mathop {\tilde{F}}\nolimits_{r} + \mathop {\tilde{F}}\nolimits_{r}^{{ \star }} = 0,\quad \quad r = 1,2, \cdots ,c,$$

(50)

govern all motions of S in any reference frame. Here the generalized forces $\mathop {\tilde{F}}\nolimits_{r}$ and $\mathop {\tilde{F}}\nolimits_{r}^{{ \star }}$ are obtained by using generalized speeds, inertia force, characteristics of the constraints, other kinematic quantities, etc. [18]. The generalized speeds (this is not to be confused with generalized velocities) are not necessarily physical quantities. Comparing Udwadia–Kalaba Equation with Kane’s Equation, one notable difference is that the former is always based on $q$ and $\dot{q}$. No pseudo variables are needed. Furthermore, the Udwadia–Kalaba Equation does not distinguish holonomic constraints from nonholonomic constraints.

7 Formulation Procedure

We show the procedure of formulating the Udwadia–Kalaba Equation by the following flow chart. As shown in Figure 1, the procedure can be summarized as follows.

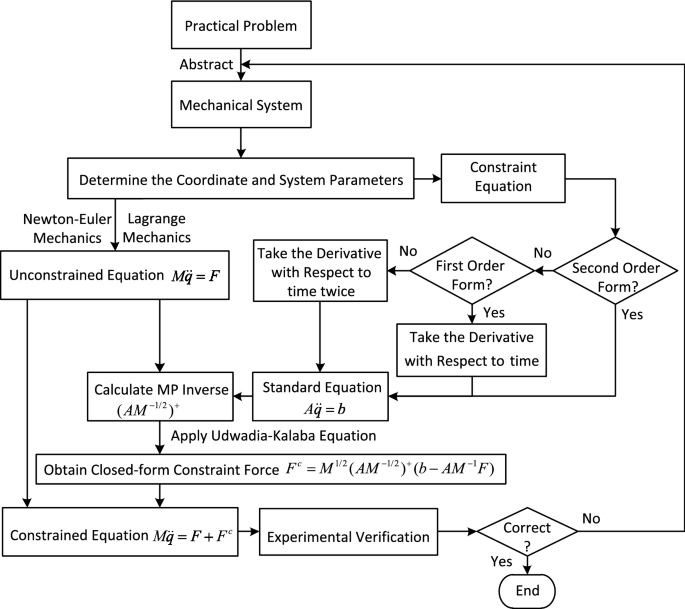

Figure 1

Formulation procedure of Udwadia–Kalaba Equation

• (1) Abstract and simplify the practical problem to mechanical system.

• (2) Determine the proper coordinate and system parameters.

• (3) Establish the unconstrained equation of motion based on the knowledge of Newton–Euler or Lagrange mechanics.

• (4) Establish the constraint equation.

• (5) Transform the constraint equation into standard form (second order form).

• (6) Obtain the closed-form constraint force.

• (7) Establish the constrained equation of motion.

8 Illustrative Examples

In previous sections, the procedure of establishing the equation of constrained motion through Udwadia–Kalaba Equation has been shown in details. In Sections 8.1 and 8.2, we will give examples to further illustrate this approach. The advantages of Udwadia–Kalaba Equation are not only in the modeling of constrained system, but also in the control design for constrained mechanical system [56,57,58,59,60,61]. For this point, we give an example in Section 8.3.

8.1 Motion of Constrained Particle

Consider a particle of unit mass moving along a logarithmic spiral orbit. The unconstrained motion is described by Eq. (9). Since the particle is of unit mass, the equation of unconstrained motion can be simplified to be

$$\left[ {\begin{array}{*{20}c} {\ddot{r}} \\ {\ddot{\theta }} \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {r\mathop {\dot{\theta }}\nolimits^{2} - g \sin\theta } \\ {\frac{{ - 2\dot{r}\dot{\theta } - g \cos\theta }}{r}} \\ \end{array} } \right],$$

(51)

Let

$${\varvec{a}}_{0} = \left[ {\begin{array}{*{20}c} {r\mathop {\dot{\theta }}\nolimits^{2} - g \sin\theta } \\ {\frac{{ - 2\dot{r}\dot{\theta } - g \cos\theta }}{r}} \\ \end{array} } \right].$$

(52)

The constraint is described by

$$\left\{ \begin{aligned} r & = e^{0.1\theta } \\ \theta & = - t + 30, \\ \end{aligned} \right.$$

(53)

where r is the radius, θ is the angle, e is the Euler’s number ($e = \text{lim}_{n \to \infty } (1 + 1/n)^{n}$, $e \approx 2.71828$). The first order derivative of Eq. (53) is given by

$$\left\{ \begin{aligned} \dot{r} & = 0.1e^{0.1\theta } \dot{\theta } \\ \dot{\theta } & = - 1. \\ \end{aligned} \right.$$

(54)

Taking the second order derivative of Eq. (53), we have the second order constraint

$$\left[ {\begin{array}{*{20}c} 1 & { - 0.1e^{0.1\theta } } \\ 0 & 1 \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {\ddot{r}} \\ {\ddot{\theta }} \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {0.01e^{0.1\theta } \mathop {\dot{\theta }}\nolimits^{2} } \\ 0 \\ \end{array} } \right],$$

(55)

where ${\varvec{A}} = \left[ {\begin{array}{*{20}c} 1 & { - 0.1e^{0.1\theta } } \\ 0 & 1 \\ \end{array} } \right]$, ${\varvec{b}} = \left[ {\begin{array}{*{20}c} {0.01e^{0.1\theta } \mathop {\dot{\theta }}\nolimits^{2} } \\ 0 \\ \end{array} } \right]$. Substituting $m = 1$ to Eq. (36), the constraint force yields

$$\begin{aligned} {\varvec{F}}^{C} (q,\dot{q},t) & = {\varvec{M}}^{{\tfrac{1}{2}}} (q,t)[{\varvec{A}}(q,t){\varvec{M}}^{{ - \tfrac{1}{2}}} (q,t)]^{ + } \\ & \quad \times [{\varvec{b}}(q,\dot{q},t) - {\varvec{A}}(q,t){\varvec{M}}^{ - 1} (q,t){\varvec{F}}(q,\dot{q},t)] \\ & ={\varvec{A}}^{ + } (b - Aa_{0} ). \\ \end{aligned}$$

(56)

Hence, the Udwadia–Kalaba Equation is given by

$$\left[ {\begin{array}{*{20}c} {\ddot{r}} \\ {\ddot{\theta }} \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {r\mathop {\dot{\theta }}\nolimits^{2} - g \sin\theta } \\ {\frac{{ - 2\dot{r}\dot{\theta } - g \cos\theta }}{r}} \\ \end{array} } \right] + {\varvec{A}}^{ + } (b - Aa_{0} ).$$

(57)

For simulations, we choose the initial condition $r(0) = e^{3}$, $\theta (0) = 30$, $\dot{r}(0) = - 0.1e^{3}$, $\dot{\theta }(0) = - 1$. Then we simulate the equation of motion Eq. (57) via MATLAB. Define the errors as

$$\varepsilon_{1} : = \sqrt {(r - e^{0.1\theta } )^{2} + (\theta + t - 30)^{2} } ,$$

(58)

$$\varepsilon_{2} : = \sqrt {(\dot{r} - 0.1e^{0.1\theta } \dot{\theta })^{2} + (\dot{\theta } + 1)^{2} } .$$

(59)

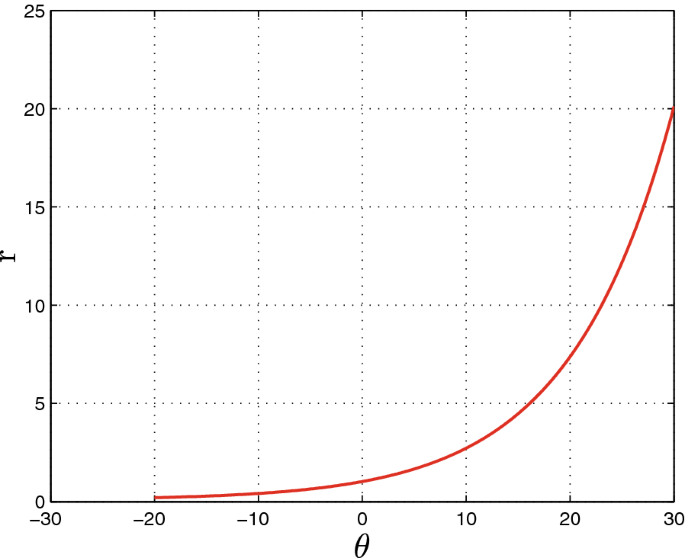

Figure 2 depicts the relation between r and θ. The radius r decreases with the decreasing of θ. Figure 3 shows the time histories of r and θ, respectively. We notice that r settles to a very small magnitude after $t \ge 20$, while θ can be described as a linear function with respect to t. By using the relationship Eq. (3) between Cartesian and polar coordinates, we have Figure 4 to show the trajectories of the constrained particle. Point G in Figure 4 is the starting point. Starting at G, the particle moves inward along the spiral. Figure 5 depicts the errors $\varepsilon_{1}$ and $\varepsilon_{2}$.

Figure 2

Relation between r and θ in constrained system Eq. (57)

Figure 3

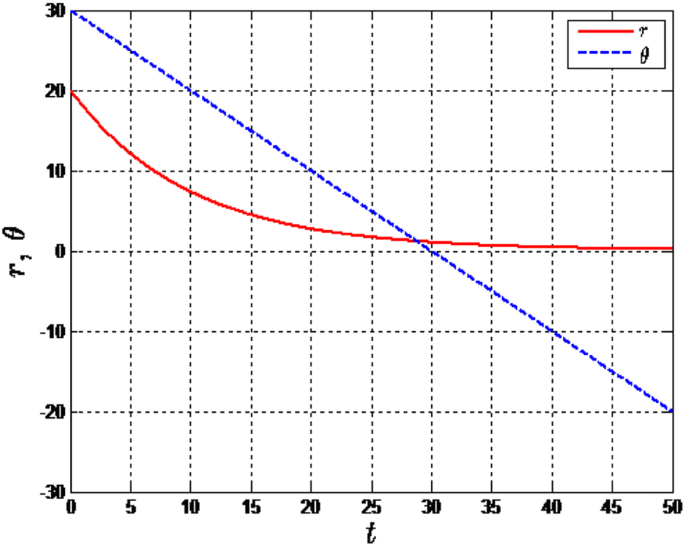

Histories of the particle in constrained system Eq. (57)

Figure 4

Trajectory of the particle in constrained system Eq. (57)

Figure 5

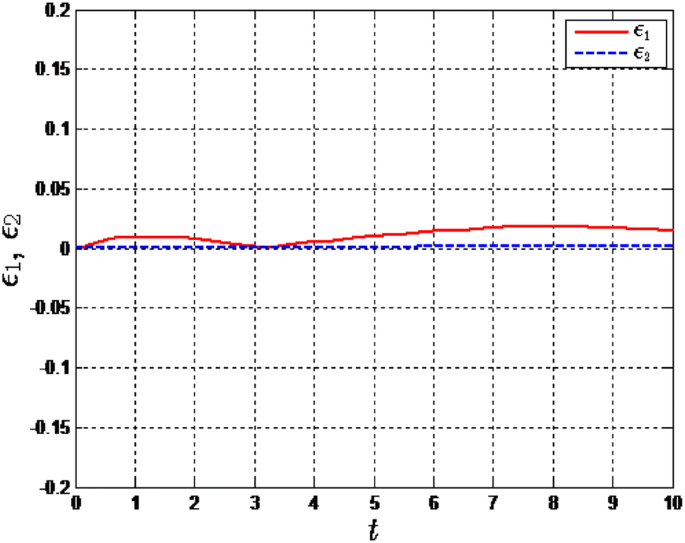

Error of the constrained system Eq. (57)

8.2 Motion of Swarm Robotic System

Consider a swarm system consisting of five mobile robots moving in a horizontal road as shown in Figure 6. The equation of motion of the robot i is given by

$$M_{i} \mathop {\ddot{q}}\nolimits^{i} = F_{i} + F_{i}^{c} ,$$

(60)

where $M_{i} = \left[ {\begin{array}{*{20}c} {m_{i} } & 0 \\ 0 & {m_{i} } \\ \end{array} } \right]$, $q^{i} = [x_{i} \quad y_{i} ]^{\text{T}}$. In such a system, each robot has an interaction with another. Through the agent–agent interaction, the robots swarm system mimics a collective behavior. Each agent is constrained by

$$\mathop {\dot{q}}\nolimits^{i} (t) = - \sum\limits_{j = 1,j \ne i}^{N} \nabla_{{q^{i} }} G_{ij} (q^{i} (t),q^{j} (t)),$$

(61)

Figure 6

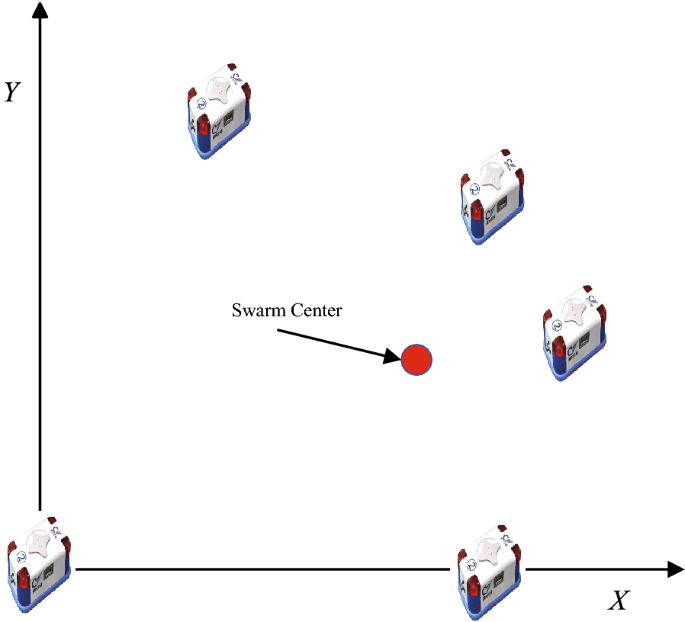

A swarm system consisting of five mobile robots

Subject to the swarm properties [51], we choose the function $G_{ij}$ in the form of

$$G_{ij} = - 0.5\sqrt {\mathop {\left\| {q^{i} - q^{j} } \right\|}\nolimits^{2} } + \frac{1}{2}\mathop {\left\| {q^{i} - q^{j} } \right\|}\nolimits^{2} + 50.$$

(62)

Differentiating Eq. (61) with respect to time t yields

$$\begin{aligned} \mathop {\ddot{q}}\nolimits^{i} = & - \sum\limits_{j = 1,j \ne i}^{N} \,\left\{ {\left[ {\begin{array}{*{20}c} {\mathop {\dot{x}}\nolimits_{i} - \mathop {\dot{x}}\nolimits_{j} } \\ {\mathop {\dot{y}}\nolimits_{i} - \mathop {\dot{y}}\nolimits_{j} } \\ \end{array} } \right]\left( {1 - \frac{0.5}{{\sqrt {(x_{i} - x_{j} )^{2} + (y_{i} - y_{j} )^{2} } }}} \right)} \right. \\ & \quad + 0.5\left[ {\begin{array}{*{20}c} {x_{i} - x_{j} } \\ {y_{i} - y_{j} } \\ \end{array} } \right]\mathop {\left[ {(x_{i} - x_{j} )^{2} + (y_{i} - y_{j} )^{2} } \right]}\nolimits^{{ - \tfrac{3}{2}}} \\ & \quad \times \left[ {\left( {x_{i} - x_{j} } \right)\left( {\mathop {\dot{x}}\nolimits_{i} - \mathop {\dot{x}}\nolimits_{j} } \right) + \left( {y_{i} - y_{j} } \right)\left( {\mathop {\dot{y}}\nolimits_{i} - \mathop {\dot{y}}\nolimits_{j} } \right)} \right] \\ & {=:}\; \varphi_{i} . \\ \end{aligned}$$

(63)

Adopting Udwadia–Kalaba’s Equation of Motion, the constraint force of agent i is given by

$$F_{i}^{c} = M_{i}^{{\tfrac{1}{2}}} [A_{i} M_{i}^{{ - \tfrac{1}{2}}} ]^{ + } [b_{i} - A_{i} M_{i}^{ - 1} F_{i} ],$$

(64)

here $A_{i} = I_{i}$, $b_{i} = \varphi_{i}$. Let

$$\beta_{i} (t) = \mathop {\dot{q}}\nolimits^{i} (t) + \sum\limits_{j = 1,j \ne i}^{N} \,\nabla_{{q^{i} }} G_{ij} (q^{i} (t),q^{j} (t)),$$

(65)

here $\beta_{i}$ can represent the error of the agent i relative to the ideal performance Eq. (61). If $\beta_{i} = 0$, the agent i behaves exactly identical to the ideal performance Eq. (61). If $\beta_{i} \ne 0$, then the behavior of agent i deviates from the ideal performance. Let ${\varvec{\upbeta}} = [\beta_{1} \quad \beta_{2} \quad \beta_{3} \quad \beta_{4} \quad \beta_{5} ]^{\text{T}}$ denote the swarm system performance error.

For simulations, we choose $m_{i} = 2\;{\text{kg,}}$ $F_{i} = [0\quad 0]^{\text{T}}$. The initial conditions are listed in Table 1. Figure 7 shows the trajectories of five robots under the constraint (61). The marked dots denote the robots’ initial positions. From Figure 7, we can see that, the robots never collide, which aggregate towards the swarm center when they are far away from the swarm center and they move apart when they are too close with each other. Figure 8 depicts the error magnitude $\left\| {\beta (t)} \right\|$ under the constraint force obtained by Udwadia–Kalaba Equation. It can be seen that $\left\| {\beta (t)} \right\|$ rapidly descends from a large initial magnitude to a very small magnitude (less than 0.01), which verifies the accuracy of the closed-form solution Eq. (64).

Table 1 Initial conditions

Figure 7

Trajectories of five robots under the constraint force Eq. (64)

Figure 8

The $\left\| \beta \right\|$ history under the constraint force Eq. (64)

8.3 Motion of Constrained Flexible Joint Manipulator

In Figure 9, we consider a two-link flexible joint manipulator to verify the effectiveness of Udwadia–Kalaba Equation. The system is described by the following equation [62]

$$\left\{ {_{{J\ddot{q}_{2} - K(q_{ 1} - q_{2} ) = u,}}^{{D(q_{ 1} )\ddot{q}_{1} + C(q_{ 1} ,\dot{q}_{1} )\dot{q}_{1} + G(q_{ 1} ) + K(q_{ 1} - q_{2} ) = 0,}} } \right.$$

(66)

where $q_{1} = [q^{(2)} \;q^{(4)} ]^{\text{T}}$ is link position vector, $q_{2} = [q^{(1)} \;q^{(3)} ]^{\text{T}}$ is joint position vector, $q = [q_{1}^{\text{T}} \;q_{2}^{\text{T}} ]^{\text{T}}$ represents the generalized coordinate for the system. The joint and link flexibility can be treated as linear torsional spring whose elasticity coefficient is K. $\varvec{D}(q_{1} )$ is the link inertia matrix and J is a diagonal matrix representing the inertia of actuators, $C\left( {q_{1} , \, \dot{q}_{1} } \right)\dot{q}_{1}$ represents the Coriolis and centrifugal force, $G\left( {q_{1} } \right)$ is the gravitation force, and u is the input force from motors. These matrices are given by

$$\begin{aligned} {\varvec{D}} & = \left[ {\begin{array}{*{20}c} {d_{11} } & {d_{12} } \\ {d_{21} } & {d_{22} } \\ \end{array} } \right],\;{\varvec{C}} = \left[ {\begin{array}{*{20}c} {c_{11} } & {c_{12} } \\ {c_{21} } & {c_{22} } \\ \end{array} } \right], \\ {\varvec{G}} & = \left[ {\begin{array}{*{20}c} {(m_{1} l_{c1} + m_{2} l_{1} )g\,\text{sin}\,q^{(2)} + m_{2} l_{c2} g\,\text{sin}(q^{(2)} + q^{(4)} )} \\ {m_{2} l_{c2} g\,\text{sin}(q^{(2)} + q^{(4)} )} \\ \end{array} } \right], \\ {\varvec{J}} & = \left[ {\begin{array}{*{20}c} {J_{11} } & 0 \\ 0 & {J_{22} } \\ \end{array} } \right],\;{\varvec{K}} = \left[ {\begin{array}{*{20}c} {K_{1} } & 0 \\ 0 & {K_{2} } \\ \end{array} } \right], \\ \end{aligned}$$

(67)

where $m_{1} (m_{2} )$ is the mass of link, $l_{1}$ is the length of the first link, $l_{c1} (l_{c2} )$ is the center position of the link (suppose that mass is uniform on the link), g is gravitational constant and

$$\begin{aligned} \;\;d_{11} & = m_{2} (l_{1}^{2} + l_{c2}^{2} + 2l_{1} l_{c2} \cos q^{(4)} ) + m_{1} l_{c1}^{2} + I_{1} + I_{2} , \\ d_{12} & = m_{2} (l_{c2}^{2} + l_{1} l_{c2} \cos q^{(4)} ) + I_{2} , \\ d_{21} & = d_{12} , \\ d_{22} & = m_{2} l_{c2}^{2} + I_{2} , \\ c_{11} & = - m_{1} l_{1} l_{c2} \sin q^{(4)} \mathop {\dot{q}}\nolimits^{4} , \\ c_{12} & = - m_{2} l_{1} l_{c2} \sin q^{(4)} (\mathop {\dot{q}}\nolimits^{4} + \mathop {\dot{q}}\nolimits^{2} ), \\ c_{21} & = m_{2} l_{1} l_{c2} \sin q^{(4)} \mathop {\dot{q}}\nolimits^{2} , \\ c_{22} & = 0. \\ \end{aligned}$$

(68)

Figure 9

Two-link flexible joint manipulator mechanism

For simplicity, we require that the velocities of the link angles meet the following constraint:

$$\mathop {\dot{q}}\nolimits^{(2)} + \mathop {\dot{q}}\nolimits^{(4)} = 0,$$

(69)

which means

$$A = [1\quad \quad 1],\quad \quad c = 0,\quad \quad b = 0.$$

(70)

Let $\beta (t) = A(q_{1} ,t)\mathop {\dot{q}}\nolimits_{1} - c(q_{1} ,t)$ stand for the tracking error of the constraint, according to Udwadia–Kalaba Equation, the constraint force should be

$$F^{c} = D^{1/2} (AD^{ - 1/2} )^{ + } [b + AD^{ - 1} (C\mathop {\dot{q}}\nolimits_{1} + G + q_{1} )].$$

(71)

This in turn means that if a control in form of Eq. (71) is applied to such system, then the system should meet the constraint. Without loss of generality, for any initial condition which is not satisfied the constraint, the following control can drive the system to meet the constraint

$$\begin{aligned} {\varvec{u}} & = \;{\varvec{F}}^{c} - {\varvec{DA}}^{\text{T}} ({\varvec{AA}}^{\text{T}} )^{ - 1} {\varvec{P}}^{ - 1} {\varvec{\upbeta}} \\ & = \; {\varvec{D}}^{1/2} ({\varvec{AD}}^{ - 1/2} )^{ + } [{\varvec{b}} + {\varvec{AD}}^{ - 1} ({\varvec{C}}\mathop {{\dot{\varvec{q}}}}\nolimits_{ 1} + {\varvec{G}} + {\varvec{q}}_{1} )] \\ & \quad - {\varvec{DA}}^{\text{T}} ({\varvec{AA}}^{\text{T}} )^{ - 1} {\varvec{P}}^{ - 1} {\varvec{\upbeta}}, \\ \end{aligned}$$

(72)

where P is a positive definite matrix.

The simulation is performed with $m_{1} = m_{2} = 1$, $l_{1} = 1$, $l_{c1} = l_{c2} = 0.5$, $K_{1} = K_{2} = 1$, $I_{1} = I_{2} = 1$, $J_{11} = J_{22} = 1$, $g = 9.81$. The initial condition is $\mathop {\dot{q}}\nolimits^{(2)} (0) = 1\;{\text{m/s}}$ and $\dot{q}^{(4)} (0) = - 0.1\;{\text{m/s}} .$ Then, in the very beginning, the constraint is not satisfied since $\beta = \mathop {\dot{q}}\nolimits^{(2)} (0) + \mathop {\dot{q}}\nolimits^{(4)} (0) = 0.9\; \text{m/s} \ne 0$. By using the proposed control scheme, system performance meets the constraints after a certain time (no more than 2 s). Figure 10 shows the constrained system performance (i.e., $\left\| \beta \right\| = \left\| {\mathop {\dot{q}}\nolimits^{(2)} + \mathop {\dot{q}}\nolimits^{(4)} } \right\|$). This corresponds to the Udwadia–Kalaba-like control for asymptotic convergence. Figure 11 gives the trajectories of the link angles velocities $\mathop {\dot{q}}\nolimits^{(2)}$ and $\mathop {\dot{q}}\nolimits^{(4)}$, respectively.

Figure 10

Histories of error of constraint

Figure 11

Histories of constrained link angles velocities

9 Conclusions

Udwadia and Kalaba departed from the conventional wisdom in distinguishing constrains into holonomic and nonholonomic by addressing second order form of constrains. As a result, an integrated framework is constructed to treat constraints. They then formulated the simplest form of equation of motion for constrained systems since 1788. The constraint force is represented in analytical (i.e., closed) form without invoking the use of Lagrange multiplier, projection method, or any quasi variables. The procedure of the Udwadia–Kalaba approach is rather straightforward. So far, the Udwadia–Kalaba Equation is the simplest and most comprehensive equation of motion for constrained mechanical systems. Due to its simplicity and closed form, the Udwadia–Kalaba Equation encompasses a wide range of applicability. It applies to a wide class of constraints, whether holonomic constraints or nonholonomic constraints, so long as they are linear with respect to the accelerations or reducible to be that form. Besides, it provides a new approach to the control design for constrained mechanical systems. We present examples to illustrate how to build the model and how to deal with the constraint. Furthermore, we demonstrate the performance of the Udwadia–Kalaba Equation via simulations. The Udwadia–Kalaba Equation has greatly contributed to address the complex constrained motion. Since the MP inverse exists in the closed-form constraint force, a high-performance computer is required when the constraints are comprehensive.
