Vibration Performance Analysis of a Mining Vehicle with Bounce and Pitch Tuned Hydraulically Interconnected Suspension

Abstract

The current investigations primarily focus on using advanced suspensions to overcome the tradeoff design of ride comfort and handling performance for mining vehicles. It is generally realized by adjusting spring stiffness or damping parameters through active control methods. However, some drawbacks regarding control complexity and uncertain reliability are inevitable for these advanced suspensions. Herein, a novel passive hydraulically interconnected suspension (HIS) system is proposed to achieve an improved ride-handling compromise of mining vehicles. A lumped-mass vehicle model involved with a mechanical–hydraulic coupled system is developed by applying the free-body diagram method. The transfer matrix method is used to derive the impedance of the hydraulic system, and the impedance is integrated to form the equation of motions for a mechanical–hydraulic coupled system. The modal analysis method is employed to obtain the free vibration transmissibilities and force vibration responses under different road excitations. A series of frequency characteristic analyses are presented to evaluate the isolation vibration performance between the mining vehicles with the proposed HIS and the conventional suspension. The analysis results prove that the proposed HIS system can effectively suppress the pitch motion of sprung mass to guarantee the handling performance, and favorably provide soft bounce stiffness to improve the ride comfort. The distribution of dynamic forces between the front and rear wheels is more reasonable, and the vibration decay rate of sprung mass is increased effectively. This research proposes a new suspension design method that can achieve the enhanced cooperative control of bounce and pitch motion modes to improve the ride comfort and handling performance of mining vehicles as an effective passive suspension system.

1 Introduction

Mining vehicles are an important underground device for the transportation of minerals and staff. Recently, higher requirements on their isolation vibration performance have been demanded. However, the vehicle body often experiences continuous and excessive vibrations owing to harsh working conditions. This can lead to discomfort and seriously affect the physical and mental health of staff [1]. Moreover, the long longitudinal distance between the axles and large load change in mining vehicles can aggravate the vehicle body pitch motion under continuous upslope and downslope roads in the mines. The severe pitch motion is the primary source of the longitudinal vibration to be experienced at points above the center of gravity (CG) of the vehicle body. Simultaneously, it intensifies the load transfer between the front and rear wheels, resulting in a safety accident. To improve the carrying capacity and reduce the maintenance cost, leaf spring suspension has been used as the typical suspension system for mining vehicles, but it cannot effectively suppress the vehicle body vibration.

It is known that the vehicle suspension system determines the full vehicle performances, such as ride comfort and handling safety [2]. Its properties can be described by using the combination of four suspension modes: bounce, pitch, roll, and warp [3]. For mining vehicles, the dynamic performance primarily depends on the coupled motion between the bounce and pitch modes. Thus, the reduction in vehicle body bounce and pitch motions is crucial to improve the ride comfort and stability of mining vehicles. However, the conventional suspension (CS) cannot well coordinate the bounce and pitch modes of the vehicle body. It is difficult to simultaneously obtain better ride comfort and handling performance by adjusting the suspension modal properties. To solve these problems, the remarkable advantages of active suspension (AS) have attracted the attention of researchers. Many control methods have been proposed to achieve the preferable vehicle performances, such as fuzzy logic control [4], optimal control [5], backstepping control [6], predictive control [7], and adaptive control [8]. Wu et al. [9] designed the active front steering (AFS) system by using the sliding mode control method to effectively improve vehicle handling and stability. Cheng et al. [10] proposed a human–machine cooperative-driving controller with a hierarchical structure to enhance vehicle dynamic stability effectively to ensure the driver’s intention. Li et al. [11] combined the adaptive square-root cubature Kalman filter with the integral correction fusion to acquire the slide-slip angle information for vehicle active safety control. Wong et al. [12] presented a novel integrated controller to coordinate the interactions among the AS, AFS, and direct yaw moment control (DYC), and it could effectively improve the lateral and vertical dynamics of the vehicle. Although these advanced control techniques can preferably solve the contradiction of vehicle performances, some drawbacks regarding control complexity, uncertain reliability, and high cost are inevitable.

To overcome these drawbacks of the CS and AS, a passive interconnected suspension (IS) system can be used alternatively owing to its simplicity, reliability, and zero energy consumption. The IS system between the individual wheel stations is typically realized through mechanical [13], hydraulic [14], and pneumatic [15] methods. The movement of any one of the wheels can generate the forces at other wheel stations. Its remarkable advantage is the passive decoupling of four suspension modes. In other words, this suspension can own the soft stiffness in the bounce and warp modes, and the stiff stiffness in the pitch and roll modes, simultaneously. In recent decades, many research efforts have been focused upon using interconnected suspension systems [16, 17]. Behave [18] developed a parametric study of the influence of pneumatic pitch-plane interconnection arrangements on vehicle ride performance. Yao et al. [19] designed a novel dual-mode interconnected suspension to optimize conflicting vehicle performance requirements by switching different modes. Guo et al. [20] devised a hydro–pneumatic interconnected suspension to enhance vehicle ride, traction ability, and trafficability. Zhang et al. [21] presented the research on the multibody system dynamics of vehicles fitted with HIS systems, and derived the impedance matrix of hydraulic subsystems for a roll-plane HIS system with linear parameters. Cao et al. [17] proposed interconnected hydro–pneumatic suspensions in roll planes and analyzed the dynamic characteristics of the HIS system at the full car level. Ding et al. [22] investigated the roll dynamics of a tri-axle truck model with the HIS system based on the established dynamic equations of motion for the coupled system. Zhu et al. [23] developed an investigation into the road-holding ability of a vehicle equipped with a hydraulically interconnected roll-plane suspension system. Zhou et al. [24] provided the parameter sensitivities of a half-car fitted with the HIS system using a global sensitivity analysis method. Wang et al. [25] proposed a new hydraulically interconnected inertia-spring-damper suspension to coordinate ride comfort and handling stability. The HIS used in the studies above has been proven capable of achieving good dynamic performances compared with the CS.

The vibration property of mining vehicles is easily subject to both the vertical bounce and pitch motions. Therefore, a suppression that can reduce bounce and pitch motions is essential for the suspension design of mining vehicles. A novel HIS system is proposed herein to effectively control the bounce and pitch motions to improve the ride comfort and handling performance. The remainder of the paper is organized as follows. Section 2 presents the description of a HIS-equipped vehicle. The modeling methodology is developed for deriving the dynamic equations of the HIS-equipped vehicle in Section 3. The modal analytical methods of vibration transmissibility and frequency response under stochastic road irregularity inputs are described in Section 4. Section 5 presents the comparative analyses of mining vehicles with the CS and HIS systems. Meanwhile, the sensitivity analysis of loss coefficient for damper valves is also given. Finally, the conclusions are drawn in Section 6.

2 Description of HIS-equipped Vehicles

The full mining vehicle studied herein contains two axles that are connected to the vehicle body through leaf spring suspension. A seven-degree-of-freedom (seven-DOF) car model comprising the lumped sprung mass and unsprung mass is used to describe the full mining vehicle. The schematic diagram of a two-axle vehicle with the HIS system is shown in Figure 1. Herein, the sprung mass ms is assumed to be a rigid body with three degrees-of-motion freedom in the vertical, pitch, and roll directions (zs, θ, and φ). Each unsprung mass mui (i = fr, fl, rr, rl) has a one degree-of-motion freedom in the vertical direction (zui). The CG of the vehicle is assumed to be located on a fixed distance (a and b) from the y-axis and a fixed distance (tf and tr) from the x-axis. The stiffness of the suspensions is assumed to be equal to ksi, and those of the tires are assumed to be equal to kti, respectively. zgi is the excitation of the road surface exerted on the tire. The pitch inertia Iy, and the roll inertia Ix are obtained about the CG. The subscripts (fr, fl, rr, and rl) are used to denote the front-right, front-left, rear-right, and rear-left, respectively.

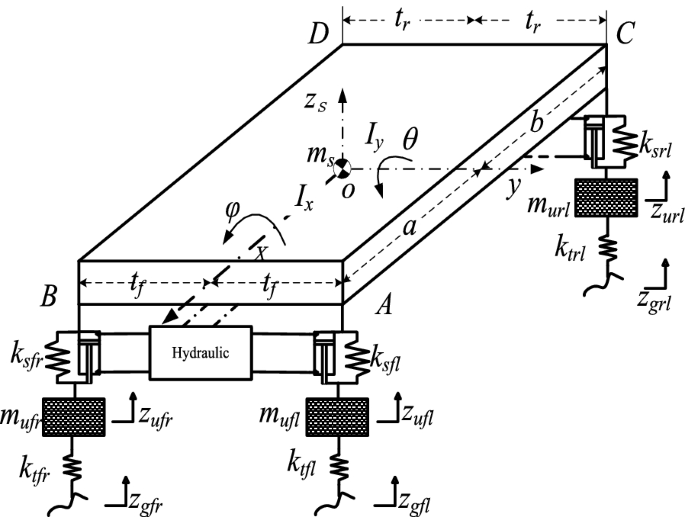

Figure 1
figure 1

Schematics of a seven-DOF two-axle vehicle model with HIS system

Herein, the HIS-equipped vehicle model is a mechanical and hydraulic coupled system. The layout for the hydraulic subsystem used in the HIS-equipped vehicle model is shown in Figure 2. The shock absorbers of the CS are replaced by the double acting actuators of the HIS that can directly provide the forces on the vehicle body and wheel assemblies. In the hydraulic subsystem, the hydraulic actuator has a cylinder and a piston, and the cylinder can be divided into a top and a bottom chamber. Furthermore, all the accumulators are integrated into the top chambers. The top chambers include some pin holes, namely accumulator valves, to permit the flow communication between the accumulators and top chambers. These valves can cause the differential pressure in the corresponding chambers. This structure is defined as a pneumatic–hydraulic actuator, which can rapidly alleviate the vibration from road excitations. The chambers of actuator assemblies are interconnected by the hydraulic circuits to enable the flow movement among the chambers, accumulators, and damper valves.

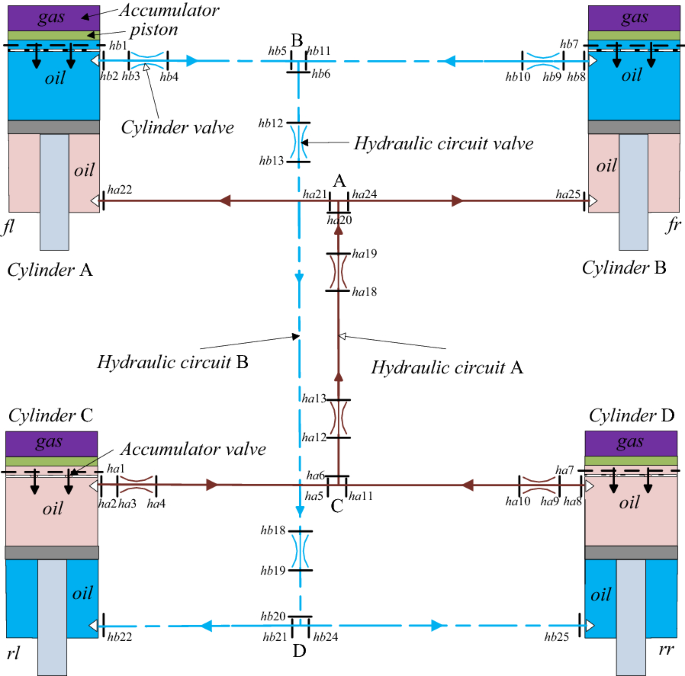

Figure 2
figure 2

Layout for the hydraulic subsystem

The wheel assemblies are coupled to each other by the HIS system. In the body bounce motion shown in Figure 1, the top and bottom chambers are compressed and extended, respectively. Owing to the asymmetry of the hydraulic cylinders, every hydraulic circuit contains a small amount of fluid flowing into the accumulators. This leads to a small pressure change in the two hydraulic circuits. Thus, the actuators could generate an additional hydraulic force to restrict the bounce motion of the sprung mass relative to the unsprung mass. In the body pitch motion, all the front and rear suspensions are compressed and extended, respectively. The front and rear cylinder bodies move downward and upward relative to the piston rod, respectively. It reduces the volume of the front top and rear bottom chambers, and simultaneously increases the volume of the front bottom and rear top chambers. Thus, the fluid in circuit B flows into the corresponding accumulator B, and the fluid in the corresponding accumulator A flows into circuit A. Consequently, the pressures in circuits A and B are increased and decreased, respectively. It in return generates the large pitch restoring moment to prevent the vehicle body pitch motion relative to the unsprung mass.

3 Model Development of Vehicles with HIS

Based on the free body diagram method [22] and by regarding the hydraulic forces as external forces, the equations of motion for the integrated mechanical–hydraulic system can be derived as

$${\varvec{M\ddot{y}}} + {\varvec{C\dot{y}}} + {\varvec{Ky}} = {\varvec{F}}_{H} + {\varvec{f}}_{\text{e}} ,$$
(1)

where M, C, and K are the mass, damping, and stiffness matrices for the mechanical system, respectively. y = [zs θ φ zufl zufr zurl zurr]T is the displacement vector, fe is the external force vector. The hydraulic force matrix FH is defined as FH = D1AcP. The pressure vector P related to the pressures piT and piB (i = fr, fl, rr, rl) in the corresponding cylinder chambers is given as P = [pflT pflB pfrT pfrB prlT prlB prrT prrB]T, the subscript symbols T and B denote the top and bottom chambers, respectively. Ac = [AflT AflB AfrT AfrB ArlT ArlB ArrT ArrB]T is the area matrix corresponding to the top chamber area AiT and the bottom chamber area AiB, respectively. D1 is the linear coefficient matrix.

For a double-acting hydraulic actuator, the relative velocity between the cylinder body and the piston rod results in a boundary fluid flow towards the mechanical–fluid interface. The relationship between the relative velocity and fluid flow forms the primary component of the boundary flow. Owing to small-amplitude oscillations under low pressure, the compression of the fluid and the cross-line leakage in the cylinder chambers can be ignored. Figure 3 shows the boundary flow conditions for the hydraulic actuator model.

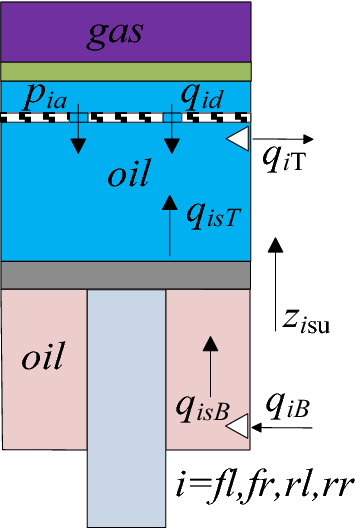

Figure 3
figure 3

Double-acting cylinder model

In the HIS system, the boundary flow conditions for the double-acting actuators are written as follows:

$$\begin{aligned} q_{flT} = q_{flsT} + q_{fld} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{flB} = q_{flsB} , \hfill \\ \hfill \\ \hfill \\ q_{frT} = q_{frsT} + q_{frd} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{frB} = q_{frsB} , \hfill \\ \hfill \\ \hfill \\ q_{rlT} = q_{rlsT} + q_{rld} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{rlB} = q_{rlsB} , \hfill \\ \hfill \\ \hfill \\ q_{rrT} = q_{rrsT} + q_{rrd} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{rrB} = q_{rrsB} , \hfill \\ \end{aligned}$$
(2)

where qiT and qiB are the out-flow and in-flow in the corresponding chambers, respectively. qisT = AiTżisu and qisB = AiBżisu are volumetric flows generated by the relative velocity żisu and piston area AiT/AiB in the corresponding chambers. The pinhole flow qid is assumed to be proportional to the pressure difference between the accumulators and top chambers, given by qid = (pia − piT)/ Riav. The pressure in the corresponding accumulators is defined as pia. The loss coefficient Riav of the accumulator valve is written as Riav = 128μl0d 2 av in Ref. [26], where l0 and dav represent the length and diameter of the accumulator valve, respectively.

As shown, the velocity vector żs-u = [żflsu żfrsu żrlsu żrrsu]T is relative to the velocity vector of the lumped sprung mass and unsprung mass, given by żs-u = D2, where D2 is the linear coefficient matrix. Applying these relationships to the four actuator cylinders yields

$${\varvec{Q}} = {\varvec{A}}_{c} {\varvec{D}}_{ 2} {\dot{\varvec{y}}} + {\varvec{D}}_{v 1} {\varvec{P}} + {\varvec{D}}_{v 2} {\varvec{P}}_{a} ,$$
(3)

where the flow vector is Q = [qflT qflB qfrT qfrB qrlT qrlB qrrT qrrB]T, and the accumulator pressure vector Pa = [pfla pfra prla prra]T . Dv1 and Dv2 are the resistance coefficient matrices of the cylinder pressure and accumulator pressure, respectively.

To obtain the motion properties of the mechanical–fluid coupled system in Eq. (1), the relationship between flow Q and pressure P of the fluid system must be derived. In this study, the transfer impedance matrix method is employed to describe the relationship between the flow rate Q and pressure P, given as Q = TP, where T is the impedance matrix of the hydraulic subsystem determined by the impedance matrices of the fluid components. As shown in Figure 2, the fluid components primarily include five types of components, namely hydraulic actuators, piston accumulators, three-way junctions, damper valves, and fluid pipelines. For the HIS system, the connection sections of different fluid components are marked by hai (i = 1, 2,…, 25) and hbi, respectively. The state vector composed of the pressure and flow rate (p and q) at the section hji (j = a, b) is defined as xij = [p q] T hij . The transmission matrix Nk is employed to describe the relationship between state vectors xij and xij+1 of the two terminal sections for the kth component, given as xji+1 = Nkxji (k = P,V), where the details of the transfer matrix Nk for these fluid components can be found in Ref. [21].

The connectivity matrix N can be obtained by a sequence of multiplications of the involved component impedance matrices according to the theory of transfer matrix. In the hydraulic circuit B of the HIS system, the connectivity matrix N can be written as

$$\underbrace {{\left[ {\begin{array}{*{20}c} {N_{11} } & {N_{12} } \\ {N_{21} } & {N_{22} } \\ \end{array} } \right]}}_{{N_{hb2 \to hb5} }} = \varvec{N}_{hb4 \to hb5}^{P} \varvec{N}_{hb3 \to hb4}^{V} \varvec{N}_{hb2 \to hb3}^{P} ,$$
(4)
$$\underbrace {{\left[ {\begin{array}{*{20}c} {N_{11} } & {N_{12} } \\ {N_{21} } & {N_{22} } \\ \end{array} } \right]}}_{{N_{hb8 \to hb11} }} = \varvec{N}_{hb10 \to hb11}^{P} \varvec{N}_{hb9 \to hb10}^{V} \varvec{N}_{hb8 \to hb9}^{P} ,$$
(5)
$$\underbrace {{\left[ {\begin{array}{*{20}c} {N_{11} } & {N_{12} } \\ {N_{21} } & {N_{22} } \\ \end{array} } \right]}}_{{N_{hb21 \to hb22} }} = \varvec{N}_{hb21 \to hb22}^{P} ,\quad \underbrace {{\left[ {\begin{array}{*{20}c} {N_{11} } & {N_{12} } \\ {N_{21} } & {N_{22} } \\ \end{array} } \right]}}_{{N_{hb24 \to hb25} }} = \varvec{N}_{hb24 \to hb25}^{P} ,$$
(6)
$$\underbrace {{\left[ {\begin{array}{*{20}c} {N_{11} } & {N_{12} } \\ {N_{21} } & {N_{22} } \\ \end{array} } \right]}}_{{N_{hb6 \to hb20} }} = \varvec{N}_{hb19 \to hb20}^{P} \varvec{N}_{hb18 \to hb19}^{V} \varvec{N}_{hb13 \to hb18}^{P} \varvec{N}_{hb12 \to hb13}^{V} \varvec{N}_{hb6 \to hb12}^{P} ,$$
(7)

where the rear subscripts in the matrices above represent the inflow and outflow sections of the corresponding components, respectively. The front subscripts P and V refer to the components of fluid pipes and valves, respectively. Accordingly, the relationships between the state vectors at all sections mentioned in Eqs. (4)–(7) are described as

$$\begin{aligned} \underbrace {{\left[ \begin{aligned} p_{hb5} \hfill \\ \hfill \\ q_{hb5} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb5} }} = {\varvec{N}}_{hb2 \to hb5} \underbrace {{\left[ \begin{aligned} p_{hb2} \hfill \\ \hfill \\ q_{hb2} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb2} }}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \underbrace {{{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \left[ \begin{aligned} p_{hb11} \hfill \\ \hfill \\ q_{hb11} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb11} }} = {\varvec{N}}_{hb8 \to hb11} \underbrace {{\left[ \begin{aligned} p_{hb8} \hfill \\ \hfill \\ q_{hb8} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb8} }} \hfill \\ \hfill \\ \hfill \\ \hfill \\ \underbrace {{\left[ \begin{aligned} p_{hb22} \hfill \\ \hfill \\ q_{hb22} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb22} }} = {\varvec{N}}_{hb21 \to hb22} \underbrace {{\left[ \begin{aligned} p_{hb21} \hfill \\ \hfill \\ q_{hb21} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb21} }}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \underbrace {{\left[ \begin{aligned} p_{hb25} \hfill \\ \hfill \\ q_{hb25} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb25} }} = {\varvec{N}}_{hb24 \to hb25} \underbrace {{\left[ \begin{aligned} p_{hb24} \hfill \\ \hfill \\ q_{hb24} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb24} }} \hfill \\ \hfill \\ \hfill \\ \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \underbrace {{\left[ \begin{aligned} p_{hb20} \hfill \\ \hfill \\ q_{hb20} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb20} }} = {\varvec{N}}_{hb6 \to hb20} \underbrace {{\left[ \begin{aligned} p_{hb6} \hfill \\ \hfill \\ q_{hb6} \hfill \\ \end{aligned} \right]}}_{{{\varvec{x}}_{hb6} }} \hfill \\ \end{aligned}$$
(8)

The relationships of pressures and flows for the three-way junctions B and D, through applying the continuity equation and assuming no pressure loss, can be defined as follows:

$$\left\{ {\begin{array}{*{20}l} {q_{{hb5}} + q_{{hb11}} = q_{{hb6}} ,\;p_{{hb5}} = p_{{hb6}} = p_{{hb11}} ,} \\ {q_{{hb21}} + q_{{hb24}} = q_{{sb20}} ,\;{\kern 1pt} p_{{hb20}} = p_{{hb21}} = p_{{hb24}} .} \\ \end{array} } \right.$$
(9)

Combining Eqs. (4)–(9), the impedance matrix Tb is obtained by solving the symbolic equations and given as

$$\left[ \begin{aligned} q_{hb2} \hfill \\ \hfill \\ \hfill \\ q_{hb8} \hfill \\ \hfill \\ \hfill \\ q_{hb22} \hfill \\ \hfill \\ \hfill \\ q_{hb25} \hfill \\ \end{aligned} \right] = \underbrace {{\left[ \begin{aligned} T_{b11} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b12} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b13} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b14} \hfill \\ \hfill \\ \hfill \\ T_{b21} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b22} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b23} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b24} \hfill \\ \hfill \\ \hfill \\ T_{b31} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b32} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b33} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b34} \hfill \\ \hfill \\ \hfill \\ T_{b41} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b42} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b43} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} T_{b44} \hfill \\ \end{aligned} \right]}}_{{{\varvec{T}}_{b} }}\left[ \begin{aligned} p_{hb2} \hfill \\ \hfill \\ \hfill \\ p_{hb8} \hfill \\ \hfill \\ \hfill \\ p_{hb22} \hfill \\ \hfill \\ \hfill \\ p_{hb25} \hfill \\ \end{aligned} \right].$$
(10)

Similarly, the impedance matrix TA of the hydraulic circuit A can also be obtained. Thus, the impedance matrices TA and Tb can be combined and expressed as

$$\varvec{Q = }\underbrace {{\left[ {\begin{array}{*{20}c} {T_{b11} } & 0 & {T_{b12} } & 0 & 0 & {T_{b13} } & 0 & {T_{b14} } \\ 0 & {T_{a31} } & 0 & {T_{a32} } & {T_{a33} } & 0 & {T_{a34} } & 0 \\ {T_{b21} } & 0 & {T_{b22} } & 0 & 0 & {T_{b23} } & 0 & {T_{b24} } \\ 0 & {T_{a41} } & 0 & {T_{a42} } & {T_{a43} } & 0 & {T_{a34} } & 0 \\ 0 & {T_{a11} } & 0 & {T_{a12} } & {T_{a13} } & 0 & {T_{a14} } & 0 \\ {T_{b31} } & 0 & {T_{b32} } & 0 & 0 & {T_{b33} } & 0 & {T_{b34} } \\ 0 & {T_{a21} } & 0 & {T_{a22} } & {T_{a23} } & 0 & {T_{a24} } & 0 \\ {T_{b41} } & 0 & {T_{b42} } & 0 & 0 & {T_{b43} } & 0 & {T_{b44} } \\ \end{array} } \right]}}_{\varvec{T}}\varvec{P,}$$
(11)

where T is the impedance matrix of the HIS system. As shown, the impedance matrix T is determined by the connectivity matrices and related to the precise arrangement of the component elements in hydraulic circuits.

Furthermore, Nac is defined as the impedance of the accumulator. Thus, the accumulator pressure vector can be written as

$${\varvec{P}}_{a} = [N_{ac} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} N_{ac} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} N_{ac} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} N_{ac} ]^{\text{T}} {\varvec{q}}_{d}^{\text{T}} ,$$
(12)

where qd is the accumulator fluid vector, given as qd = [qfld qfrd qrld qrrd]T. Owing to the different pressures inside the accumulators and top chambers generated by the accumulator valves, the fluid-flows qfld, qfrd, qrld, and qrrd at sections hb1, ha1, hb7, and ha7 are derived as

$$\begin{aligned} q_{fld} = (N_{ac} q_{fld} - p_{hb2} )/R_{flav} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{frd} = (N_{ac} q_{frd} - p_{hb8} )/R_{frav} , \hfill \\ \hfill \\ \hfill \\ q_{rld} = (N_{ac} q_{rld} - p_{ha2} )/R_{rlav} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} q_{rrd} = (N_{ac} q_{rrd} - p_{ha8} )/R_{rrav} . \hfill \\ \end{aligned}$$
(13)

According to Eq. (13), the relationships between accumulator fluid vector qd and pressure vector P can be rewritten as qd = DvP. Dv is the resistance coefficient matrix related to the impedance Nac and the loss coefficient Riav. Based on the Laplace transform of Eq. (11) with zero initial conditions, substituting it into Eq. (3) yields

$${\varvec{P}} = s({\varvec{T}} - {\varvec{D}}_{v} )^{ - 1} {\varvec{A}}_{c} {\varvec{D}}_{2} {\varvec{Y}}(s).$$
(14)

Combining Eqs. (1) and (14), the equation for the coupled system is expressed in the state-space form as

$$s{\varvec{Z}}(s) = {\varvec{A}}(s){\varvec{Z}}(s) + {\varvec{{B}F}}(s),$$
(15)

where the system state vector is z = [y ẏ]T and Z(s) is the Laplace transformation of z, F(s) is the Laplace transformation of the external force vector fe, A(s) is the system characteristic matrix, and B is the input coefficient matrix. They are described in the following form:

$${\varvec{A}}(s) = \left[ \begin{aligned} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{O}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{I}} \hfill \\ - {\varvec{M}}^{ - 1} {\varvec{K}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} - {\varvec{M}}^{ - 1} {\hat{\varvec{C}}}(s) \hfill \\ \end{aligned} \right]{\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{B}} = \left[ \begin{aligned} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{O}} \hfill \\ {\varvec{M}}^{ - 1} \hfill \\ \end{aligned} \right]{\kern 1pt} {\kern 1pt} .$$
(16)

In Eq. (16), Ĉ = C + Ch is the complex damping matrix. Ch = D1Ac(T − Dv)−1AcD2 is the damping contribution from hydraulic subsystem.

4 Vehicle Vibration Characteristics Analysis

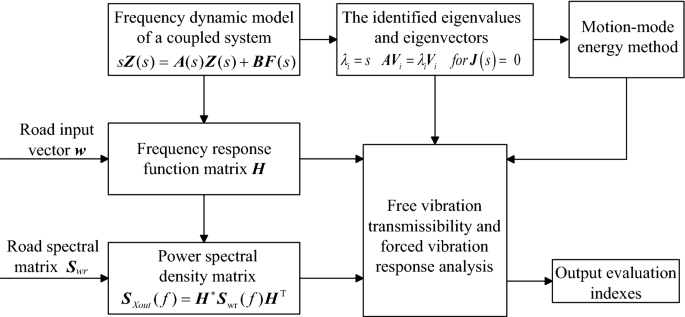

The modal analysis process is summarized briefly in the block diagram, as shown in Figure 4. Eq. (15) represents the general equation of motions for the completely coupled system in the frequency domain. The frequency response function (FRF) and power spectral density (PSD) response can be derived by the frequency dynamic model of the coupled system to evaluate the vehicle performances. Meanwhile, the eigenvalues and eigenvectors are identified to obtain the natural frequency and mode shape of the coupled system. The motion-mode energy method [27] derived by the identified eigenvalues and eigenvectors is employed to analyze the vehicle dynamic characteristics in the frequency domain.

Figure 4
figure 4

Analysis process of the vehicle vibration responses

As shown, the system modal characteristic matrix A(s) in Eq. (15) is frequency dependent and this matrix changes with the input frequency s. Based on the definition of the eigenvalue, solutions of the equation |det(A(s) − sI)| = 0 are the eigenvalues of A(s). Owing to the large numerical values of some of the parameters, the exact eigenvalues of A(s) are difficult to obtain by numerical means. Thus, the approximate roots are acceptable if the function J(s) = |det(A(s) − sI)| is approaching a local minimum value in the vicinity of s. To obtain the modal parameters, the Matlab optimization library function fminsearh was used to identify the real eigenvalues and eigenvectors according to the local minimum values.

Using the optimization method, the complex eigenvalues λi and eigenvectors Vi resulting from the solutions of the equation |det(A(s) − sI)| = 0 are given as

$$\lambda_{i} = s,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{AV}}_{i} = \lambda_{i} {\varvec{V}}_{i} {\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\text{for }}{\varvec{J}}\left( s \right) = 0,$$
(17)

where the first seven terms of Vi (i = 1, 2,…, 7) represent the mode shape of the displacement vector. For each complex root λi = ai + jbi, the natural frequency fi and damping ratio ξi for each mode are given as fi = sqrt(a2i+b2 i)/2π and ξi = ai/sqrt(a 2 i + b 2 i ).

The modal transition matrix can be determined by the eigenvalue matrix and eigenvector matrix, and it can be defined as

$${\varvec{L}} = [{\varvec{\Psi}}{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{\varLambda \varPsi }}]_{14 \times 7}^{\text{T}} ,$$
(18)

where ψ = diag[λ1 λ2 λ3 λ4 λ5 λ6 λ7] is the eigenvalue matrix and Λ = [V1 V2 V3 V4 V5 V6 V7] is the eigenvector matrix.

The system state vector Z can be described as a superposition of the motion-modes through modal transformation as

$${\varvec{Z}} = {\varvec{Lu}}(f),$$
(19)

where u = [u1 u2 u3 u4 u5 u6 u7]T is a modal amplitude vector. As shown, the modal amplitude ui is a complex number that contains both a scalar quantity and the phase information of this mode in the frequency domain.

As L is a known matrix determined by the coupled mechanical–hydraulic system, the modal amplitude vector u(f) can be obtained by applying the least-squares method, and the form of u is written as

$${\varvec{u}}(f) = ({\varvec{L}}^{\text{T}} {\varvec{L}})^{ - 1} {\varvec{L}}^{\text{T}} {\varvec{Z}}.$$
(20)

Subsequently, the modal amplitude vector u must be transferred into a physical coordinate as [di i], where di = real(uiVi), i = real(uiViλi), and di can be written as di = [dmi dui] referring to the displacement vector y defined in Eq. (1). In this study, dmi and dui are used to describe the body and wheel motions, respectively. The vector [di i] is the corresponding state vector component in the form of the displacement and velocity, and represents the ith motion-mode’s contribution to the vehicle’s body and wheel motions. The energy in one motion-mode does not exchange with the others according to the orthogonal property of modal transformation, and its energy is continuously converted between the potential energy and kinetic energy, and decays owing to the damping effect. The kinetic energy eki, potential energy epi, and the sum of mechanical energy ei for each motion-mode stored in the ith mode can be given as

$$\begin{aligned} {\varvec{e}}_{ki} = \frac{1}{2}{\dot{\varvec{d}}}_{i}^{\text{T}} {\varvec{M\dot{d}}}_{i} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{e}}_{pi} = \frac{1}{2}\left[ \begin{aligned} {\varvec{D}}_{3} {\varvec{d}}_{mi} - {\varvec{d}}_{ui} \hfill \\ \hfill \\ {\varvec{d}}_{ui} - {\varvec{d}}_{gi} \hfill \\ \end{aligned} \right]^{\text{T}}{\varvec{D}}_{k} \left[ \begin{aligned} {\varvec{D}}_{3} {\varvec{d}}_{mi} - {\varvec{d}}_{ui} \hfill \\ \hfill \\ {\varvec{d}}_{ui} - {\varvec{d}}_{gi} \hfill \\ \end{aligned} \right],{\kern 1pt} {\kern 1pt} \hfill \\ \hfill \\ \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\varvec{e}}_{i} = {\varvec{e}}_{ki} + {\varvec{e}}_{pi} , \hfill \\ \end{aligned}$$
(21)

where Dk = diag[ksfl ksfr ksrl ksrr]T and dgi is the projection of the road input in the same coordinate frame with the vehicle motion-mode, which can be determined by the same principle of modal transformation. D3 is the coefficient matrix related to the physical parameters of the vehicle model.

In this study, the FRF is employed to analyze the vibration characteristics of the suspension system in the frequency domain. The suspension vibration performances can be evaluated using the displacement response amplitude transmissibility between the displacement vector y and road input vector w = [0 0 0 zgfl zgfr zgrl zgrl]T. Combining Eqs. (1) and (20), the FRF matrix Hdis from the road input vector w to the displacement output vector y is described as

$${\varvec{H}}_{dis} (s) = \frac{{{\varvec{Y}}(s)}}{{{\varvec{W}}(s)}} = (s^{2} {\varvec{M}} + s{\hat{\varvec{C}}}(s) + {\varvec{K}})^{ - 1} {\varvec{\upbeta}}_{7 \times 7} (s ) ,$$
(22)

where s = jf and W(s) is the Laplace transformation of the road input vector w, and β(s) is a 7 × 7 input coefficient matrix, given as β(s) = diag[0 0 0 ktfl ktfr ktrl ktrr]. The FRF matrix is used to describe the system displacement response to any harmonic road excitation in the frequency domain.

To evaluate ride comfort, the corresponding transfer functions of the vibration accelerations, suspension deflections, and tire dynamic forces, which are related to the road input vector W(s), are defined as follows, respectively:

$$\begin{aligned} {\varvec{H}}_{acc} = \frac{{s^{2} {\varvec{Y}}(s)}}{{{\varvec{W}}(s)}} = s^{2} {\varvec{H}}_{dis} , \hfill \\ \hfill \\ {\varvec{H}}_{sus} = \frac{{{\varvec{D}}_{2} {\varvec{Y}}(s)}}{{{\varvec{W}}(s)}} = {\varvec{D}}_{2} {\varvec{H}}_{dis} , \hfill \\ \hfill \\ {\varvec{H}}_{tire} = \frac{{{\varvec{\beta}}(s)({\varvec{Y}}(s) - {\varvec{W}}(s))}}{{{\varvec{W}}(s)}} = {\varvec{\beta}}(s)({\varvec{H}}_{dis} - {\varvec{I}}), \hfill \\ \end{aligned}$$
(23)

where the Laplace transformations of the vibration accelerations, suspension deflections, and tire dynamic forces can be defined as Xacc = s2Y(s), Xsus = D2Y(s), and Xtire = β(s)(Y(s) − W(s)), respectively.

To obtain the evaluation outputs Xout = [Xacc Xsus Xtire]T, the entities of all transfer functions are assembled as follows:

$$\underbrace {{\left[ \begin{aligned} {\varvec{X}}_{acc} \hfill \\ \hfill \\ {\varvec{X}}_{sus} \hfill \\ \hfill \\ {\varvec{X}}_{tire} \hfill \\ \end{aligned} \right]}}_{{{\varvec{X}}_{out} }} = \left[ \begin{aligned} {\varvec{H}}_{acc} \hfill \\ \hfill \\ {\varvec{H}}_{sus} \hfill \\ \hfill \\ {\varvec{H}}_{tire} \hfill \\ \end{aligned} \right]{\varvec{W}}(s) = \underbrace {{\left[ \begin{aligned} {\varvec{H}}_{acc} \hfill \\ \hfill \\ {\varvec{H}}_{sus} \hfill \\ \hfill \\ {\varvec{H}}_{tire} \hfill \\ \end{aligned} \right]{\varvec{D}}_{T} }}_{{\varvec{H}}}{\varvec{W}}_{r} (s),$$
(24)

where Wr(s) is the Laplace transformation of the reduced road displacement vector wr = [zgfl zgfr zgrl zgrl]T, DT is the transfer coefficient matrix that can describe the corresponding relationship between the reduced road displacement vector wr and the road input vector w, given as w = DTwr, and H is defined as the transfer function from inputs Wr(s) to the evaluation outputs.

The PSD matrix SXout(f) can be derived from the complex transfer function, and the detailed expression is defined as

$${\varvec{S}}_{Xout} (f) = {\varvec{H}}^{ * } {\varvec{S}}_{wr} (f){\varvec{H}}^{\text{T}} ,$$
(25)

where H* and HT are the complex conjugate matrix and transpose matrix, respectively. Swr(f) is the spectral density matrix at four tire–road contact points, given by

$$\varvec{S}_{wr} (f) = \left[ {\begin{array}{*{20}l} {S_{d} } & {S_{r} } & {S_{d} e^{ - j2\uppi fl/v} } & {S_{r} e^{ - j2\uppi fl/v} } \\ {S_{r} } & {S_{d} } & {S_{r} e^{ - j2\uppi fl/v} } & {S_{d} e^{ - j2\uppi fl/v} } \\ {S_{d} e^{j2\uppi fl/v} } & {S_{r} e^{j2\uppi fl/v} } & {S_{d} } & {S_{r} } \\ {S_{r} e^{j2\uppi fl/v} } & {S_{d} e^{j2\uppi fl/v} } & {S_{r} } & {S_{d} } \\ \end{array} } \right]$$
(26)

where l is the wheel base, and v is the vehicle velocity. Sd and Sr are the auto-spectral density and cross-spectral density functions of the road surface model, respectively. They can be described as in Ref. [24]:

$$\begin{aligned} S_{d} (n) = S_{d} (n_{0} )(\frac{n}{{n_{0} }})^{ - \kappa } ,\hfill \\ \hfill \\ S_{r} (n) = \left[ {\frac{{2n_{0}^{\kappa } S_{d} (n_{0} )(\uppi B/n)^{\kappa /2} }}{{{\varvec{Ga}}(\kappa /2)}}} \right]{\varvec{Be}} (2\uppi Bn ) ,\hfill \\ \end{aligned}$$
(27)

where n = f/v is the spatial frequency, n0 is the reference spatial frequency (n0 = 0.1), Sd(n0) is the spatial PSD at the reference spatial frequency, ҡ = 2 is the undulation exponent, and B is the wheel track. The symbols Ga and Be are defined as Gamma and Bessel functions, respectively. The diagonal elements of SXout(f) represent the direct spectral densities of the output variable Xout.

5 Numerical Results and Discussions

The performance comparisons of mining vehicles with the CS and HIS systems are presented in this section. For the mining vehicle with the CS system, the stiffness of mechanical suspensions kpsj (j = fr, fl, rr, rl) is designed to be stiff to increase the pitch mode stiffness. However, the stiff suspension can cause poor ride comfort. Thus, The CS system cannot well coordinate bounce with the pitch vibrations of the mining vehicles. For the mining vehicle with the HIS system, the stiffness of the mechanical suspensions kbsj can be designed to be soft, which is smaller than kpsj, and the hydraulic subsystem can provide additional pitch mode stiffness. For the simplification, the vehicle model with CS (equivalent stiffness kpsj) and HIS are defined as VCS-EP and VHIS, respectively. The dynamic performance of the roll motion is not the research emphasis in this study owing to the low velocity of the mining vehicles not exceeding 50 km/h. The basic physical parameters of a seven-DOF vehicle model are given in Table 1. Table 2 lists the hydraulic parameters of the HIS system.

Table 1 Physical parameters of a seven-DOF vehicle model
Table 2 Hydraulic system parameters

5.1 Dynamic Performance Evaluation

The identified natural frequencies, damping ratios, and corresponding mode shapes of VCS-EP and VHIS are presented in Table 5. As shown in Table 5, vehicle body–wheel motion-modes referring to the relative motion between body and wheels can be classified into seven modes in terms of the modal shapes. The normalized factor of the state vectors is used to distinguish seven modes. The motion corresponding to the maximum absolute value of the normalized factor in each modal shape represents one mode of the body-wheel motions. The values in the black bold font reveal that the first three mode shapes are called the body-dominated motion-modes, namely roll (1st), bounce (2nd), and pitch (3rd) motions of the sprung mass, and the following four mode shapes are called the wheel-dominated motion-modes, namely, the pitch (4th), bounce (5th), roll (6th), and warp (7th) motions of the unsprung mass. For the VCS-EP, the equivalent stiffness kpsj (j = fl, fr, rl, rr) is 265 N/mm. For the VHIS, the equivalent stiffness kbsi (i = fl, fr) and kbsj (j = rl, rr) are 129.2 N/mm and 167.4 N/mm, respectively. In Table 5, the HIS system can effectively increase the pitch mode (the 3rd mode) frequency (from 2.539 Hz/VCS-EP to 2.747 Hz/VHIS) of the sprung mass vibration, and reduce the bounce mode (the 2nd mode) frequency (from 2.351 Hz/VCS-EP to 1.906 Hz/VHIS). The result illustrates that the proposed HIS system can provide a higher pitch mode stiffness owing to the large fluids rapidly flowing into the accumulator in the pitch mode, and the lower bounce mode stiffness owing to the large fluids freely flowing in the hydraulic circuits. Owing to the soft mechanical suspensions, the body roll mode (the 1st mode) frequencies (1.286 Hz/VHIS) of the VHIS are lower than that of the VCS-EP. It is also observed that the proposed HIS system is unable to provide the extra roll mode stiffness.

Additionally, the HIS system can reduce the natural frequencies of the wheel-dominated motion-modes, involving the wheel pitch mode (the 4th mode in VHIS, 9.158 Hz), wheel bounce mode (the 5th mode in VHIS, 10.419 Hz), wheel roll mode (the 6th mode in VHIS, 11.226 Hz), and wheel warp mode (the 7th mode in VHIS, 12.530 Hz). In the previous study [23], it can be seen that the lower warp mode stiffness can improve the ground holding performance. From the comparisons of the mode shapes, the HIS system can decouple the body bounce and pitch modes, and intensify the coupling of wheel bounce and pitch modes, which is beneficial to balance the distribution of the front and rear tire forces. Furthermore, it is observed that the HIS system can increase the damping ratios corresponding to both the body modes (roll, bounce, and pitch) and wheel modes (bounce and pitch) of the integrated system, and the high damping can eliminate transient oscillations.

According to the FRF matrix Hdis defined by Eqs. (27) and (28), the bilogarithmic graphs of the frequency response of CG’s bounce displacement, pitch angle, suspension deflections, and tire dynamic forces for the VCS-EP and VHIS under the front wheel input (w = [0 0 0 zgfl zgfr 0 0]T) and rear wheel input (w = [0 0 0 0 0 zgrl zgrr]T) are plotted in Figures 5, 6, 7 and 8, respectively. It shows that the HIS system reduces the peak vibration frequency for the bounce mode and increases the peak vibration frequency for the pitch mode. Under the front and rear wheel inputs, the peak values of the frequency response for the VHIS in the bounce and pitch modes are smaller than those of the VCS-EP. For the bounce mode, the transmissibility of the VHIS is suppressed if the frequency is less than 8 Hz. For the pitch mode, the frequency response of the VHIS located before and after the natural vibration frequency is slightly suppressed and enlarged, respectively.

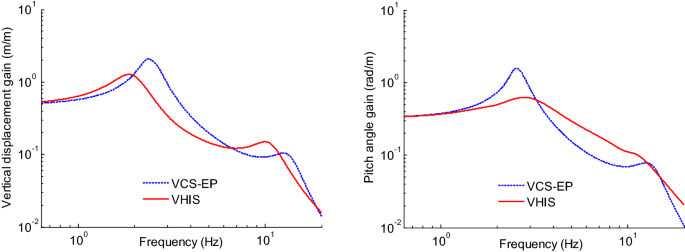

Figure 5
figure 5

CG’s bounce displacement and pitch angle under font wheel input

Figure 6
figure 6

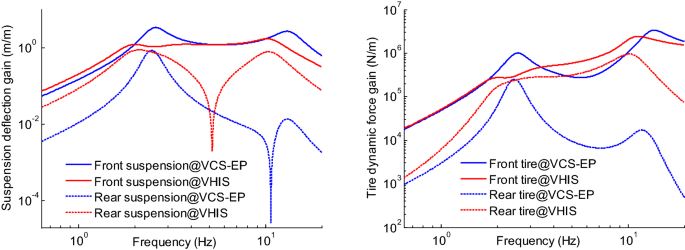

Suspension deflections and tire dynamic forces under front wheel input

Figure 7
figure 7

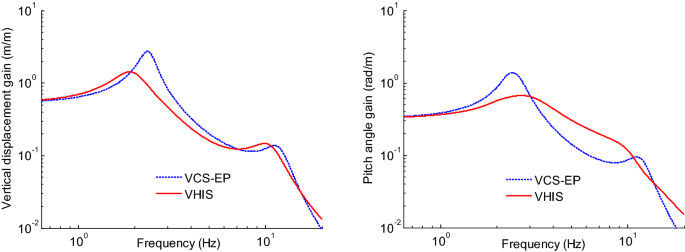

CG’s bounce displacement and pitch angle under rear wheel input

Figure 8
figure 8

Suspension deflections and tire dynamic forces under rear wheel input

As shown in Figures 6 and 8, the peak values of the front suspension deflections and front tire dynamic forces are reduced by the HIS under the front wheel input. For the front suspension deflections of the VHIS, the frequency response lower than the natural vibration frequency is slightly enlarged, and that higher than the natural vibration frequency is unchanged; further, the HIS system reduces the transmissibility in high frequency ranges. For the front tire dynamic forces, the proposed HIS system maintains the same transmissibility located before the oscillation frequency, but slightly increases the transmissibility higher than the natural vibration frequency, and the frequency response is reduced in higher frequency ranges. Moreover, the frequency responses of the rear suspension deflections and rear tire dynamic forces under the left wheel input for the VHIS are much larger than those of the VCS-EP. This phenomenon illustrates that a mining vehicle with the HIS system transmits a greater degree of motion to the opposite wheels under the corresponding mode vibration. As shown, the frequency responses of the VHIS exhibit much broader peak ranges than the VCS-EP owing to the interconnection mechanism. For the VHIS, the additional excitation applied to the front or rear wheels can be transmitted much more efficiently to the opposite wheel through the hydraulic system. This result is helpful to balance the dynamic forces between the front and rear wheels, thus enhancing the ground holding performance.

The frequency responses of the bounce and pitch modes motion-energy for the VCS-EP and VHIS under the front and rear wheel inputs are shown in Figure 9. The transmissibility of the bounce mode motion-energy is reduced by the HIS system, but the frequency response of the pitch mode motion-energy is enlarged. Based on the mode motion-energy definition, the complex eigenvalues exhibit a significant effect on the mode motion-energy. From Table 5, the modulus of the bounce mode eigenvalue for the VHIS is smaller than that of the VCS-EP, but the value of the pitch mode eigenvalue is larger than that of the VCS-EP. This is clearly a reflection that the vehicle with a softer bounce mode stiffness has a lower bounce mode motion-energy, and that with a stiffer pitch mode stiffness has a higher pitch mode motion-energy. Thus, these results show that the proposed HIS system can reduce the bounce mode stiffness and increase the pitch mode stiffness.

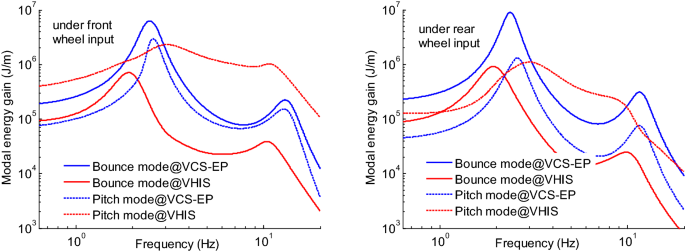

Figure 9
figure 9

Motion-energy transmissibility under front wheel front and rear wheel inputs

To evaluate the vehicle dynamic performances, the road surface spectrums including two types of the random road model (medium-smooth and rough roads) are applied in the simulation. Based on the road model description in Ref. [28], Sd(n0) = 0.64 × 106 and 10.64 × 106 are used to describe these two average road types. The comparisons of PSD responses for the VCS-EP and VHIS with different speeds (20, 30, 40, and 50 km/h) are presented to investigate the suspension properties. The frequency-weighted root mean square (RMS) bounce, pitch angular and roll angular accelerations of the vehicle body are used to quantify the ride comfort according to ISO-2631-1 [29], and they can be written as follows:

$$a_{i} = \sqrt {\chi_{i}^{2} (f){\varvec{S}}_{Xoutjj} (f)} {\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} i = b,p,r{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} jj\;{ = 11,}\, 2 2 ,\, 3 3 ,$$
(28)

where χb, χp, and χr are the weighting factors of the bounce, pitch, and roll modes, respectively; SXout11SXout22, and SXout33 are the PSD responses of the CG’s vertical, pitch, and roll angular accelerations, respectively.

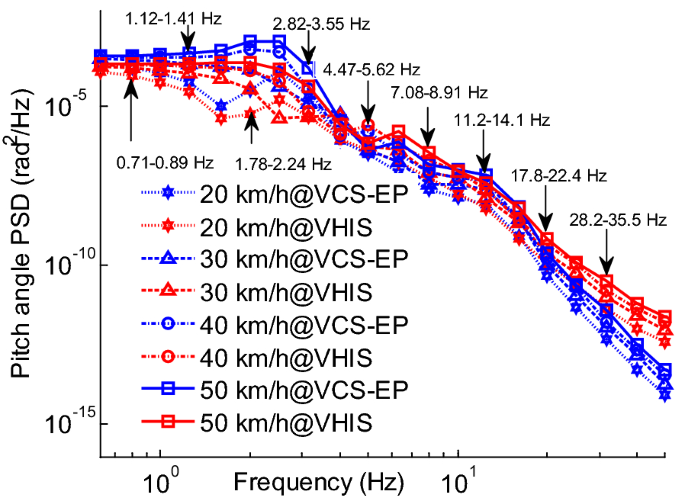

Figure 10 shows the pitch angular response in one-third octave bands for the VCS-EP and VHIS under the rough road. The HIS system can effectively reduce the pitch angle of the vehicle body in a low frequency range, and maintain the pitch angle response in the range of 11.2–14.1 Hz, but slightly increase the frequency response in high frequency ranges. This is owing to the higher pitch stiffness provided by the HIS system. The PSD responses of the suspension deflections and tire dynamic forces for the VCS-EP and VHIS under the rough road are shown in Figures 11 and 12. The frequency responses of the suspension deflections and tire dynamic forces are reduced by the HIS system in low frequency ranges, and those in high frequency ranges are unchanged. The first natural vibration frequency of the PSD response is reduced for the VHIS with different speeds from 20 to 50 km/h owing to the lower roll stiffness. The PSD response peak values of the suspension deflections and tire dynamic forces for the VHIS are evidently smaller than those of the VCS-EP. These results show that the HIS system can reduce the suspension deflections and tire dynamic forces to improve the holding ground performance, and decrease the bounce and pitch angular accelerations to improve the ride comfort for the mining vehicle.

Figure 10
figure 10

Pitch angle response in one-third octave bands under rough road

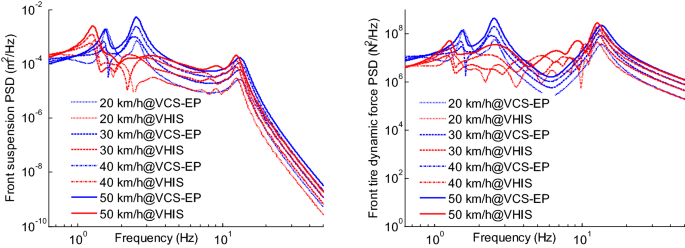

Figure 11
figure 11

Front suspension deflection and tire dynamic force under rough road

Figure 12
figure 12

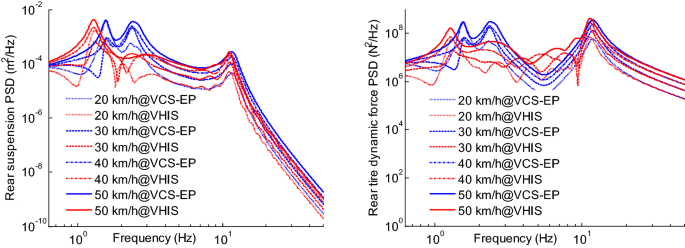

Rear suspension deflection and tire dynamic force under rough road

The RMS acceleration comparisons of the bounce, pitch, and roll modes between the VHIS and VCS are shown in Table 3. It shows that the proposed HIS can suppress the bounce and pitch motions of the vehicle body. The RMS vertical accelerations under the medium-smooth road with different speeds have been decreased from 0.783 to 0.614 m/s2, 1.515 to 0.886 m/s2, 1.621 to 1.102 m/s2, and 1.610 to 1.260 m/s2. The HIS system has significantly reduced the RMS vertical accelerations under the rough road by 20.49%, 41.56%, 35.22%, and 24.80%, respectively. Meanwhile, the RMS pitch angular accelerations under medium-smooth and rough roads have been decreased by no less than 14.5% and 20%, respectively. The RMS roll angular accelerations at low speeds (20 and 30 km/h) are almost reduced by 35% and 20%, respectively. And the HIS system has slightly increased the RMS roll angular accelerations at high speeds (40 and 50 km/h) within an accepted variance. These results demonstrate that the proposed HIS system can improve the mining vehicle ride comfort.

Table 3 RMS acceleration comparisons

5.2 Parametric Sensitivity Analysis

To further illustrate the decoupled advantages of the proposed HIS, the parametric sensitivity analysis of the damper valves is presented in this section, including the cylinder valve (CV), hydraulic circuit valve (HCV), and accumulator valve (AV). These parameters are employed to analyze their effects on the vibration transmissibility of the vehicle body bounce, pitch, and roll modes. Figure 12 shows the frequency responses of the CG’s bounce displacement, pitch angle, and roll angle with different loss coefficients for the VHIS under the front-left wheel input w = [0 0 0 zgfl 0 0 0]T. The front-left wheel input can easily induce the body bounce, pitch, and roll modes. From Figure 13(a), the CV provides the higher roll mode damping than the bounce mode damping, and has little influence on the pitch mode damping. Further, it is observed that the higher CV loss coefficient leads to a stiffer roll mode. From Figure 13(b), the HCV appears to generate a significant effect on the bounce mode characteristic. However, it is nearly unrelated to the dynamic characteristics of the roll mode. From Figure 13(c), the AV is primarily designed to control the pitch mode property. The comparisons of natural frequency and damping ratio with the CV, HCV and AV loss coefficients are presented in Table 4. These results are in accord with the above phenomena, and prove that the proposed HIS system can decouple the vehicle body modes by adjusting the corresponding loss coefficient, which is the irreconcilable contradiction for the CS system.

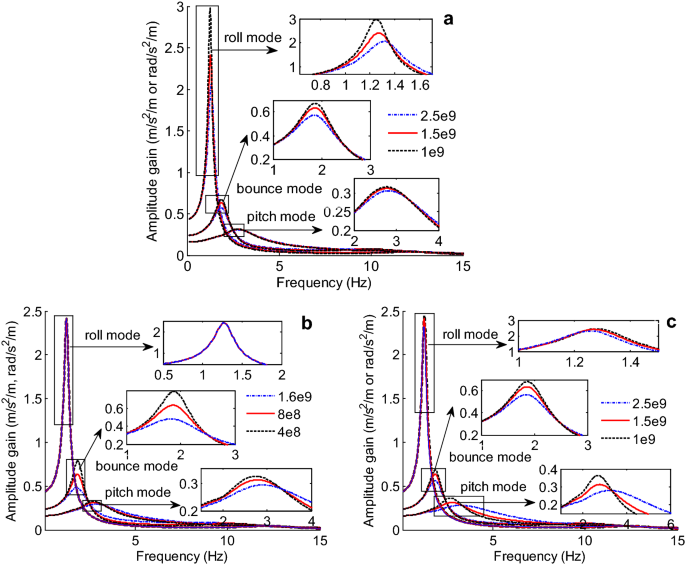

Figure 13
figure 13

Vibration transmissibility with different loss coefficients: (a) CV, (b) HCV, (c) AV

Table 4 Comparisons of natural frequency and damping ratio

6 Conclusions and Future Work

A new HIS system to was proposed herein to improve the bounce and pitch motion performances for a mining vehicle. The integrated dynamic equations of the mechanical–hydraulic coupled system were derived using the impedance transfer matrix and free-body diagram methods. Based on the derived equations, the modal analysis method was employed to obtain the free vibration transmissibilities and force vibration responses under different road excitations. The dynamic characteristic comparisons between the VCS-EP and VHIS were presented to verify the prominent advantages of the HIS system. These results illustrated that the proposed HIS system could decouple the bounce and pitch modes, and intensify the coupling of wheel bounce and pitch modes to balance the distribution of tire dynamic forces. Furthermore, the HIS system could provide additional pitch stiffness to control the vehicle pitch motion, reduce the bounce stiffness to improve ride comfort, and increase the corresponding mode damping to eliminate transient oscillations in the lower frequency range.

Herein, the most obvious limitation is that the HIS system could not provide adequate roll stiffness to control the roll mode. Another limitation was that the modal analysis method was linear in this study. However, the suspension system and tire assembly often exhibit many nonlinearities for practical applications. Thus, the performances of the bounce, pitch, and roll modes would be considered for the passive HIS system, and the extension of the proposed methodology to a full nonlinear vehicle model must be explored in the future. Additionally, the semi-active or active control strategy for the HIS system must be considered as future works to improve the ride comfort and handling performance of the mining vehicle based on control theories.
