Grinding Burn Detection Based on Cross Wavelet and Wavelet Coherence Analysis by Acoustic Emission Signal

Abstract

Grinding burn monitoring is of great importance to guarantee the surface integrity of the workpiece. Existing methods monitor overall signal variation. However, the signals produced by metal burn are always weak. Therefore, the detection rate of grinding burn still needs to be improved. The paper presents a novel grinding burn detection method basing on acoustic emission (AE) signals. It is achieved by establishing the coherence relationship of pure metal burn and grinding burn signals. Firstly, laser and grinding experiments were carried out to produce pure metal burn signals and grinding burn signals. No-burn and burn surfaces were generated and AE signals were captured separately. Then, the cross wavelet transform (XWT) and wavelet coherence (WTC) were applied to reveal the coherence relationship of the pure metal burn signal and grinding burn signal. The methods can reduce unwanted AE sources and background noise. Novel parameters based on XWT and WTC are proposed to quantify the degree of coherence and monitor the grinding burn. The grinding burn signals were recognized successfully by the proposed indexes under same grinding condition.

1 Introduction

Grinding burn is caused by excessive heat produced during grinding process. It changes the surface hardness and reduces the fatigue resistance which brings great damage to work-piece [1, 2]. Grinding burn is widespread in the field of cylindrical grinding, rail grinding, bearing rings grinding, and so on [3,4,5]. Therefore, the detection and monitoring of grinding burn is of great importance to guarantee the high quality of mechanical components.

Various monitoring methods basing on vibration [6], electric current [7], force [8], piezoelectric diaphragms [9], acoustic emission (AE) [10], Barkhausen [11], eddy current [12], and so on [13,14,15] are utilized to detect the occurrence of grinding burn. Among all these on line detection methods, AE is one of the most effective technology for grinding burn detection [7]. Besides, AE senor is easy to install and sensitive to the grinding signals [16]. Hence, it has been widely studied to determine the grinding burn occurrence.

Lots of experiments concerned with grinding monitoring were carried out. Jemielniak et al. [17] studied the relationship between wear of tool and grinding burn by examining the tool surface and AE signals [17]. Aguiar et al. [7] did the grinding experiment, during which AE signals and parameters were calculated to indicate the grinding burn [7]. Bell et al. [18] developed the grinding temperature prediction diagrams in high deep grinding process [18]. Griffin et al. [19] established the relationship of micro unit grit events of AE signals and macro phenomena during grinding burn process [19]. Researchers simulated the grinding burn process by laser, from which pure AE burn signals were obtained. The results were used as reference to identify grinding burn [20,21,22]. Wu et al. [23] carried out a series of grinding experiments to monitor grinding burn by AE sensor, dynamometer and surface roughness [23].

A plenty of signal processing methods were adopted to study the grinding burn detection. Parameters of AE signals such as root mean square (RMS), mean-value deviance (MVD), constant false alarm rate (CFAR) etc. have been calculated and compared [7]. Then time-frequency methods such as Short Time Fourier Transform (STFT) [22], Wavelet Packet Transform (WPT) [20], Hilbert Huang Transform (HHT) [24] and Ensemble Empirical Mode Decomposition (EEMD) [21] have been introduced to analyze grinding burn signals.

However, the detection rate of grinding burn still needs to be improved. Hence, a great deal of intelligence algorithms were employed to increase the identification accuracy. Liu et al. [25] used Fuzzy Pattern Algorithm to predict the grinding burn [25]. Wang et al. [26] established modals and utilizes Artificial Neural Networks (ANN) to predict different degrees of grinding burn [26]. Support Vector Machine (SVM) and Principle Component Analysis (PCA) were also employed to classify the grinding burn [27, 28]. Besides, Saravanapriyan et al. [29] selected force, vibration and AE signals as input information of ANN to predict grinding burn [29].

Although lots of work has been done, there are still some key problems to be solved. Firstly, the accuracy of traditional grinding burn identification methods basing on feature parameters is still need to be improved. Novel methods like EEMD and intelligence algorithms have high detection rate. However, these methods cost much computing time. Therefore, a new grinding burn detection method which has high accuracy and costs less time is needed. Secondly, the AE signal components which can indicate grinding burn are always covered by other AE sources and noises of the grinding process. Hence, new method which can eliminate the undesired signals is needed. Thirdly, although laser experiments have been carried out to produce pure AE burn signals, how does the pure metal burn signals effect the grinding burn signals is unknown. The correlation relationship of the two kinds of burn signals can provide more information to detect grinding burn.

Above mentioned problems are solved in this paper. A novel detection method based on the Cross Wavelet Transform (XWT) and Wavelet Coherence (WTC) is proposed [30]. It has high accuracy and costs less time. The common area with high energy and coherence relationship of pure metal burn signals and grinding burn signals were obtained by XWT and WTC, from which most of the interference signals and noises were eliminated. Besides, the correlation relationship of two kinds of burn signals were found and quantified by energy of XWT (EXWT) and degree of WTC (DWTC). The two indexes were employed to identify normal grinding and grinding burn signals successfully.

The organization of the paper is as follows. In Section 2, the definition of XWT and WTC are introduced. Section 3 describes the laser experiment and grinding experiment. In Section 4, the pure AE burn signals and grinding burn signals are analyzed by XWT and WTC methods. The feature parameters for grinding burn detection are defined and utilized to classify no-burn and burn AE signals. Section 5 provides the conclusion.

2 Theory

In order to find the relationship of pure metal burn signals and grinding burn signals, signal correlation needs to be found. For the transient non-stationary AE signals, Fourier-based coherence method is unable to detect temporal structure of AE signals. Hence, the time-frequency coherence methods should be utilized to analyze signals. XWT exposes common areas with high power and WTC reveals the coherence of two signals in time-frequency space. They have been widely applied to find the co-vary information of geophysical signals and brain signals [31,32,33]. The XWT has been used to demonstrate similar variation trend of current and vibration signals [34]. Hence, the XWT and WTC are suitable to study relationship of the two kinds of burn signals.

2.1 Theory of Wavelet Coherence

The wavelet transform can be divided into discrete wavelet transform (DWT) and continuous wavelet transform (CWT). The DWT suits orthogonal wavelet bases, while both CWT and DWT can be used for non-orthogonal wavelet functions [35]. CWT is suitable to describe the similarity and singularity of signal [36]. Therefore, the CWT is used in the paper. According to reference [37], the Morlet wavelet is most suitable for the analysis of AE signal. Therefore, the Morlet wavelet is utilized here.

The CWT of a signal \(x(t)\) is defined as follows [38]:

$$W_{x} (u,s) = \frac{1}{\sqrt s }\int_{ - \infty }^{ + \infty } {x(t)} \,\psi^{*} \left( {\frac{t - u}{s}} \right){\text{d}}t,$$
(1)

where \(s\) represents the scale factor and \(u\) behalves the time shift factor. Here ‘\(*\)’ denotes the complex conjugate. According to Ref. [18], the wavelet power is defined as \(\left| {W_{x} (u,s)} \right|^{2} .\)

Accordingly, the auto-spectrum of wavelet of signal \(x(t)\) is defined in Eq. (2):

$$W_{x,x} (u,s) = W_{x} (u,s)W_{x}^{*} (u,s).$$
(2)

And the definition of XWT of two signals \(x(t)\) and \(y(t)\) is provided as follows:

$$W_{x,y} (u,s) = W_{x} (u,s)W_{y}^{*} (u,s),$$
(3)

here, the corresponding cross wavelet power is defined as \(\left| {W_{x,y} (u,s)} \right|.\)

It is obviously that the XWT is suitable to find the common power areas with large energy of two signals in time-frequency plane.

Consulting the description of coherence, the definition of wavelet coherence is defined in Eq. (4):

$${\text{WTC}}(u,s) = \frac{{\left| {S\left( {s^{ - 1} W_{xy} (u,s)} \right)} \right|}}{{\sqrt {S\left( {s^{ - 1} \left| {W_{xx} (u,s)} \right|} \right)S\left( {s^{ - 1} \left| {W_{yy} (u,s)} \right|} \right)} }},$$
(4)

where S is the smooth function, s is the scale factor and u represents the time shift factor of CWT. Without the smooth function S, the WTC will be equal to one everywhere. However, the definition of the smooth operator is not uniform [27]. The smooth operator S must keep balance between frequency resolution and significance [25]. Usually, the smooth function is carried out in time and scale domain. In this paper, the smoothing operator is defined as follows:

$$S(W) = S_{scale} (S_{time} (W)),$$
(5)
$$S_{time} (W)\left| {_{s} = \left( {W(s)*e^{{\frac{{ - t^{2} }}{{2s^{2} }}}} } \right)} \right|_{s} ,$$
(6)

here, \(t\) is the points averaged over a range of time, which is determined empirically and set to \(t \in \left[ { - 30,30} \right].\)

$$S_{scale} (W) = W*\prod {(Cs)} ,$$
(7)

here, \(C\) is scale decorrelation length of wavelet which is determined empirically and set to 0.6 [24, 25]. \(\prod {}\) is the rectangle function.

According to Schwartz inequality, the result of WTC must between \(\left[ {0,1} \right]\). From the definition, it is known that WTC reveals the local correlation of two signals in time-frequency planes.

3 Experiments Set-up

In the grinding process, the grinding AE signal has a variety of AE resources. The metal burn AE signal is always buried in these resources. It is hard to judge whether the signal variation is induced by metal burn or by other grinding factors. In order to investigate the contribution of metal burn signal to grinding burn signal, a laser experiment was carried out to produce pure metal burn signals, during which the undesired AE resources were excluded. Then the grinding experiment was conducted and the grinding burn signals were obtained. The set-up of two experiments are given below.

3.1 Laser Experiment

In the experiment, laser machine is employed to generate metal burn, during which AE signals are collected simultaneously. Laser is provided by Chutian laser welding machine and the laser parameters are shown in Table 1. The energy of laser is adjusted to produce no-burn, and burn surfaces, which are confirmed by surface temperature and temper color.

Table 1 Laser parameters

The 1045 steel is adopted in the experiment. The PAC-II system collects the AE signals. The sample rate is set to 2 MHz. The amplification factor is 40 dB. And the AE threshold is 30 dB. The AE sensor, Nano30 is employed. The operating frequency range of Nano30 is between 125 kHz to 750 kHz. And its resonant frequency is 300 kHz. The surface temperature is recorded by infrared thermal imager (FLIR-SC7000). Figure 1 shows the experimental apparatus.

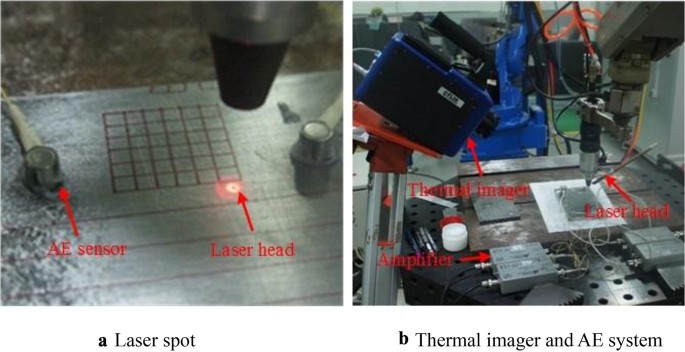

Figure 1
figure 1

Laser experimental setup

3.2 Grinding Experiment

Grinding burn can be produced by adjusting sharpness of grinding wheel. No-burn and burn surfaces are produced by grinding machine (M7130H). Table 2 shows the operation parameters of grinding process. Except for the cooling condition, the grinding parameters of the experiment are same with the parameters of the real grinding process. The burn surfaces are confirmed by temper color. The AE signals are picked up during the grinding process. The AE acquisition system and material of workpiece are same as those used in the laser experiment. The sample rate of the grinding experiment is set to 2 MHz. The amplification factor is 40 dB and the threshold is 30 dB. The schematic diagram of the experiment is shown in Figure 2.

Table 2 Grinding parameters and different degrees of grinding burn
Figure 2
figure 2

Schematic diagram of grinding experiment

The optical image of laser burn surface and grinding burn surface are presented in Figure 3. It can be seen that the temper color of grinding burn surface is similar to laser burn surface. No-burn surfaces have no obvious change. While burn surfaces are black and yellow. The results of two experiments are discussed in the next section.

Figure 3
figure 3

Optical image of laser heating surfaces and grinding surfaces

4 Results and Discussion

4.1 Result of Laser Burn Experiment

Figure 4 is the waveforms and spectrums of AE signals produced by laser. Figure 4(a) represents the waveforms of no-burn and burn signal. Figure 4(b) is the spectrums of no-burn and burn signal by laser heating. The amplitude of no-burn signal is much smaller than burn signal. The main frequencies of metal burn signal focus in frequency band of 250 kHz to 400 kHz. In the bandwidth of 420 kHz to 530 kHz, the amplitude of spectrum of burn signal is still higher than the no-burn signal. Besides, between the frequency band of 600 kHz to 650 kHz, some frequency components of burn signal are slightly higher than the no-burn signal. These characteristics of frequency distribution can be utilized in further detection work.

Figure 4
figure 4

AE signals produced by laser heating

4.2 Result of Grinding Burn Experiment

Figure 5 depicts the waveforms and spectrums of grinding signals. The no-burn and burn surfaces are produced by different bluntness of grinding wheel under same grinding parameters. The cooling liquid is forbidden to promote the occurrence of grinding burn. Figure 5(a) shows waveforms of the no-burn and burn signals. In order to ensure the effectiveness of the comparison, the grinding signals were truncated to the same length. Figure 5(b) presents the spectrums of no-burn and burn signals of grinding process. In Figure 5(b), the main energy of no-burn and burn signals are all below 100 kHz. The peak value of no-burn signal is even higher than burn signal. Hence it is hard to distinguish no-burn and burn signals by ordinary characteristic parameters within this bandwidth. Between frequency band of 200 kHz to 650 kHz which we concern, the frequency distributions of no-burn and burn signals are similar. Amplitudes of some frequency components of burn signal is slightly higher than no-burn signal. However, there is no obvious differences between no-burn and burn signals within the higher frequency bandwidth. Hence, new method should be proposed to distinguish the grinding burn.

Figure 5
figure 5

AE signals produced by grinding process

4.3 Signal Analysis by XWT and WTC

From the experiment result, it is known that when grinding burn happens, the AE signal induced by metal burn is easily covered by a variety of AE resources induced during grinding process. And sometimes it is hard to distinguish no-burn and burn signals only by RMS value. Therefore, obtaining and monitoring the frequency components which indicate the occurrence of metal burn can improve the detection accuracy of grinding burn. In order to extract the features which represent the grinding burn signals, the XWT and WTC are employed in the paper.

It is known that the XWT reveals the common areas with high power and WTC exposes co-vary character of two signals in time-frequency space. Statistically speaking, the coherence of two signals increases with the WTC value.

In order to obtain XWT and WTC results, the wavelet transform must be adopted first. According to Eq. (1), the wavelet transform of laser heating AE signal is denoted by \(W_{x} (u,s).\) The wavelet transform of grinding AE signal is denoted by \(W_{y} (u,s).\) Then the XWT and WTC of the two kinds of AE signals can be obtained by Eq. (3) and Eq. (4). Figure 6 shows the CWT results of no-burn and burn signals produced by laser. The energy of signal is normalized. The peak frequency of metal burn signal centers around 310 kHz. Figure 7 presents the CWT results of no-burn and burn signals of grinding process. The energy of signal is also normalized. The main energy of grinding signals focuses below 100 kHz. The energy above 100 kHz is relatively low no matter grinding burn happens or not.

Figure 6
figure 6

AE signals produced by laser heating

Figure 7
figure 7

AE signals produced by grinding process

Figure 8 is the XWT of laser and grinding signals. Figure 8(a) is the XWT of laser burn signal and grinding burn signal. Figure 8(b) is the XWT of laser burn signal and normal grinding signal. Figure 8(c) is the XWT of no-burn signal and grinding burn signal. Figure 8(d) is the XWT of no-burn signal and normal grinding signal. The energy around 310 kHz in Figure 8(a) is higher than other frequency bands. Comparing with the CWT results, the frequency components of metal burn in the grinding burn signal are enhanced by XWT. The background noise of grinding process is weakened accordingly. In Figure 8(c) and Figure 8(d), the energy around 310kHz is much lower than Figure 8(a) and Figure 8(b). In Figure 8(a) and Figure 8(b), common power areas also appear below 100 kHz. From the metal burn experiment, it is known that the metal burn AE signals distributes within 250 kHz to 650 kHz. Thus components below 100 kHz is beyond our consideration. Therefore, differences between Figure 8(a) and Figure 8(b) around 310 kHz are utilized to distinguish the grinding burn in the following section.

Figure 8
figure 8

XWT of laser and grinding signals

Figure 9(a) depicts the WTC result of the laser burn signal and grinding burn signal. Figure 9(b) depicts the WTC result of the laser burn signal and normal grinding signal. Figure 9(c) is the WTC result of laser no-burn and grinding burn signal. Figure 9(d) is the WTC result of laser no-burn and normal grinding signal. It shows that the high correlation coefficient focuses between 200 kHz to 530 kHz. Metal burn AE signal and grinding burn AE signal have low coherence relationship below 100 kHz. Between 200 kHz to 400 kHz, the two kinds of AE burn signals have the highest coherence relationship. But it is hard to distinguish grinding burn by WTC within this frequency band. Fortunately, between 600 kHz to 650 kHz, there is successive correlation frequency between laser burn and grinding burn signal. Considering the result in Figure 5(b), the background noise of this bandwidth is much lower than other frequency bands. It indicates that within this bandwidth, most energy of the grinding burn AE signal is originated from the metal burn signal. Therefore, by comparing the frequency difference within 600 kHz to 650 kHz, the grinding burn can be distinguished. Therefore, both the XWT and WTC results can be used to indicate occurrence of grinding burn.

Figure 9
figure 9

WTC result of the laser signal and grinding signal

The metal burn AE signal is transient and time-varying. And the AE burn signals of the two experiments are collected independently. Therefore, the phase correlation between the signals is meaningless here.

Comparing with EEMD, the computing time of XWT and WTC of signals length of 8192 are 3.13 s and 3.88 s. The computing time of the same length signal by EEMD is 22.28 s. Therefore, the proposed method in the paper is more suitable for online monitoring system.

4.4 Detection of Grinding Burn

In order to extract effective information, energy of XWT (EXWT) and degree of WTC (DWTC) are defined. The EXWT is defined as the sum of XWT of pure metal burn signal and grinding signal of unknown status within certain frequency band and time interval, see in Eq. (8):

$${\text{EXWT = }}\sum\limits_{0}^{T} {\sum\limits_{{f_{1} }}^{{f_{2} }} {\left| {W_{{x_{2} ,y_{\text{unknown}} }} (u,s)} \right|} } ,$$
(8)

where \(f_{1}\) and \(f_{2}\) are the lower and upper limit of frequency band.

The definition of DWTC is as follows:

$${\text{DWTC = }}\frac{{{{\left[ {\sum\limits_{0}^{T} {\sum\limits_{{f_{1} }}^{{f_{2} }} {\left( {{\text{WTC}}_{{x_{2} ,y_{\text{unknown}} }} - \overline{{\sum\limits_{0}^{T} {\sum\limits_{{f_{1} }}^{{f_{2} }} {{\text{WTC}}_{{x_{2} ,y_{1} }} } } }} } \right)} } } \right]^{4} } \mathord{\left/ {\vphantom {{\left[ {\sum\limits_{0}^{T} {\sum\limits_{{f_{1} }}^{{f_{2} }} {\left( {{\text{WTC}}_{{x_{2} ,y_{\text{unknown}} }} - \overline{{\sum\limits_{0}^{T} {\sum\limits_{{f_{1} }}^{{f_{2} }} {{\text{WTC}}_{{x_{2} ,y_{1} }} } } }} } \right)} } } \right]^{4} } T}} \right. \kern-0pt} T}}}{{\sigma_{{{\text{WTC}}_{{x_{2} ,y_{1} }} |_{{f_{1} }}^{{f_{2} }} }}^{4} }},$$
(9)

where \(\sigma^{2}\) is variance.

According to the results of the previous sections, the frequency band of EXWT is set to 300 kHz to 340 kHz and the DWTC is 600 kHz to 650 kHz. Sixty sets of normal grinding signals and grinding burn signals are employed. The two indexes are calculated to classify the grinding burn signals. The classification result is shown in Figure 10. The two sets have clearly boundaries which can be distinguished without doubt. The grinding burn detection accuracy achieves 100%.

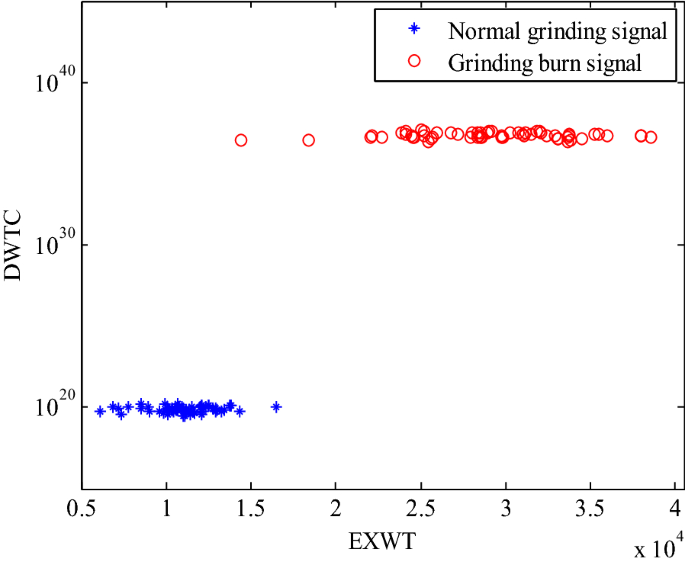

Figure 10
figure 10

Classification by EXWT and DWTC

5 Conclusions

In this paper, a new grinding burn detection method is proposed. The metal burn and grinding burn experiments are carried out by which the AE signals are obtained. The relationship between AE signals induced by pure metal burn and grinding burn process is established by XWT and WTC methods. Novel index, EXWT and DWTC are calculated to distinguish grinding burn signals, by which the accuracy of grinding burn classification achieves 100%. From the research work, the following conclusions can be made.

  1. 1.

    The metal burn AE signals and grinding burn AE signals have common high energy area within frequency band of 250 kHz to 400 kHz. They also have co-vary character within frequency band of 250 kHz to 650 kHz.

  2. 2.

    The relationship of metal burn and grinding burn signals can be found by XWT and WTC method. The common area with high energy of two kinds of AE signals can be enhanced by XWT. The coherence relationship of two kinds of signals can be found by WTC. Both of them can eliminate the unwanted AE sources and background noises to some extent.

  3. 3.

    New parameters are proposed. EXWT and DWTC within certain frequency bandwidth are capable to detect grinding burn accurately.
