Fuzzy Torque Control of the Bionic Flexible Manipulator Actuated by Pneumatic Muscle Actuators

Article metrics

  • 257 Accesses

Abstract

A bionic flexible manipulator driven by pneumatic muscle actuator (PMA) can better reflect the flexibility of the mechanism. Current research on PMA mainly focuses on the modeling and control strategy of the pneumatic manipulator system. Compared with traditional electro-hydraulic actuators, the structure of PMA is simple but possesses strong nonlinearity and flexibility, which leads to the difficulty in improving the control accuracy. In this paper, the configuration design of a bionic flexible manipulator is performed by human physiological map, the kinematic model of the mechanism is established, and the dynamics is analyzed by Lagrange method. A fuzzy torque control algorithm is designed based on the computed torque method, where the fuzzy control theory is applied. The hardware experimental system is established. Through the co-simulation contrast test on MATLAB and ADAMS, it is found that the fuzzy torque control algorithm has better tracking performance and higher tracking accuracy than the computed torque method, and is applied to the entity control test. The experimental results show that the fuzzy torque algorithm can better control the trajectory tracking movement of the bionic flexible manipulator. This research proposes a fuzzy torque control algorithm which can compensate the error more effectively, and possesses the preferred trajectory tracking performance.

Introduction

The pneumatic muscle actuator (PMA) is a new pneumatic element with characteristics similar to biological muscles. In addition to the low cost, cleanliness, and other advantages of pneumatic transmission technology, it also possesses the characteristics of simple structure, high power/weight ratio, good flexibility, and so on. PMA is one of the typical representatives of new pneumatic components since the development of pneumatic technology. Because of its extremely similar function with human muscle, PMA has been applied to robotic arms [1], robotic lower limbs [2, 3] and robotic claws [4, 5]. It is expected to have great potential applications in physiotherapy [6], vehicles [7], robots [8, 9] and other fields. PMA has become the new research hotspot in robotics.

The characteristics and models of PMA are the basis of control applications. Although the structure is very simple, it is very difficult to model accurately owing to the influence of nonelastic deformation and friction; the model of PMA is a typical a nonlinear model. In a previous study [10], we established the PMA mechanics model through neural network and achieved good results.

Because of the nonlinearity and flexibility of PMA, and the compressibility of the air, the control strategy is a hot topic in pneumatic muscle research. Since research on related manipulators driven by fluid transmission actuators have yielded good results [11,12,13], different control methods have been proposed to improve the control effect of the pneumatic manipulator system. Carbonell et al. [14] designed a fuzzy backstepping controller by considering the nonlinearity characteristics of PMAs, in which the system controlled has global convergence and certain robustness. Zhu et al. [15] proposed an adaptive robust attitude controller to solve the uncertainty and nonlinearity in the dynamics of a parallel robot driven by PMAs to achieve accurate attitude tracking and reduce control input jitter. Shen et al. [16] designed a hybrid sliding mode controller with an adaptive fuzzy cerebellar model articulation controller for the online approximation of a spring mass position control system driven by PMA. Lin et al. [17] simplified PMA into a three-element model. Considering that the H∞ robust controller has superior ability to handle system uncertainty, an H∞ robust controller was designed to ensure the stability and superior performance of the PMA system. Ba et al. [18] proposed an advanced position tracking control method for the control of PMA system. The neural network and sliding mode control algorithm were integrated into the new robust controller to guarantee the fast response, high accuracy, and robustness of the system. Wang et al. [19] established a cascade human elbow joint model driven by PMAs, and designed a fuzzy PI controller for position-tracking experiments to improve the control accuracy and verify the effectiveness of the fuzzy controller. Zhao et al. [20] proposed a self-adaptive disturbance rejection control strategy to improve the control effects of the single-joint manipulator driven by PMAs, and effectively solve nonlinear problems of the manipulator control system. Although these control theories improve the control effect of the pneumatic system to some extent, there are still many limitations such as model dependence, poor anti-interference ability, poor control precision, nonlinearity and uncertainty of the system, and so on.

More and more attention is being paid to the study of PMAs in the humanoid arm [21]. Hence, a humanoid arm mechanism driven by a PMA group based on the superior characteristics of PMA is proposed, and further research on the control strategy is carried out. Firstly, according to the analysis of the physiological characteristics of the human upper arm, the configuration design of the bionic flexible manipulator of serial parallel mechanism is realized, and the kinematic and dynamic model of the mechanism is established. The fuzzy torque controller is designed based on the fuzzy controller [22], and the application of computed torque method to test the trajectory tracking of the flexible manipulator is realized as well.

Characteristic Analysis of Bionic Flexible Manipulator

Configuration Analysis

The joint robot, which has the advantages of simple structure, small occupied space, large relative working space, etc., is one of the most widely used robots [23, 24]. Generally speaking, the arrangement of joints actuated by a humanoid arm can be divided into two categories: PMA serial mechanism and PMA parallel mechanism. For example, the study of the 7-DOF manipulator actuated by PMA was implemented [25] from the perspective of functional bionics, and the PMA actuated antagonistic bionic joint was designed [26]; a 3-DOF parallel robot platform based on PMA was proposed [27], and a 10-DOF robot arm driven by PMA group was designed [1]. The humanoid shoulder joint is usually designed as a series of rotating joints in order to realize the bionic structure. However, the analysis of this design is not based on the basic structure of the joint. The movement of the human shoulder can be divided into two parts: (a) the movement of the upper body and scapula; and (b) the movement of the humerus and scapula.

The skeleton of the human shoulder joint consists mainly of the shoulder blade, clavicle, and humerus. The shoulder blade has six kinds of motion including lift, inhibition, internal rotation, external rotation, abduction, and adduction. Relative to the shoulder blade, the humerus has six kinds of motion including flexion, extension, internal rotation, external rotation, abduction, and adduction [28].

From Table 1, the number of muscles that drive the motions of the shoulder blade and humerus is larger and the position structures of these muscles are more complex. Thus, muscles that have a greater impact on shoulder joint motion are only simulated by PMAs in the structural design. As shown in Figure 1, the trapezius, levator scapulae, serratus anterior, and latissimus dorsi are muscles that have a greater impact on shoulder blade motion; and four PMAs (P1-P4) were used for the bionic driving. The deltoid, teres major, and infraspinatus muscle are muscles that have a greater impact on humerus motion, and six PMAs (P5-P10) were used for the bionic driving [29].

Table 1 Motions of shoulder joint
Figure 1
figure1

Structural design of the shoulder joint

The connecting part of the human shoulder joint is divided into two parts. One is the connection between the upper torso and the shoulder blade. There is a scapulothoracic joint between the shoulder and the upper torso in the human body. In the design, a ball hinge was used for the bionic connection to achieve the shoulder blade motion. The other is the connection between the humerus and the shoulder blade. The glenohumeral joint, which consists of the humeral head and scapula glenoid, is a typical and most flexible ball-and-socket joint [30]. It connects the humerus and shoulder blade, and was simulated by another ball hinge for the bionic connection in the design.

Kinematics and Dynamics Analysis

The schematic diagram and coordinate system of the bionic shoulder joint are set up as shown in Figure 2 . The coordinate origin O1 of the fixed coordinate system O1X1Y1Z1 is located at the ellipse center at the bottom of the trunk; O1X1 is along the long axis of the ellipse; and O1Y1 is along the short axis of the ellipse. The coordinate origin O2 of the relative coordinate system O2X2Y2Z2 is located at the rotation center of ball hinge I, and the other axes are the same as the fixed coordinate system. The initial position of the relative coordinate system O3X3Y3Z3 is the same as the coordinate system O2X2Y2Z2, and the coordinate origin O3 is located at the rotation center of ball hinge II. The initial position of the execution end coordinate system O4X4Y4Z4 is the same as that of coordinate system O3X3Y3Z3, and the coordinate origin O4 is located at the rotation center of the execution end.

Figure 2
figure2

Simplified mechanism and coordinate systems of the shoulder joint

Let the X-Y-Z Euler angle \(\left( {\alpha_{1} ,\beta_{1} ,\gamma_{1} } \right)\) be the rotation of the shoulder blade relative to the upper torso; \({}_{2}^{1} \varvec{T}\) be the transformation matrix from O2X2Y2Z2 to O1X1Y1Z1; the X-Y-Z Euler angle \(\left( {\alpha_{2} ,\beta_{2} ,\gamma_{2} } \right)\) be the rotation of the humerus relative to the shoulder blade; \({}_{3}^{2} \varvec{T}\) be the transformation matrix from O3X3Y3Z3 to O2X2Y2Z2; \({}_{4}^{3} \varvec{T}\) be the transformation matrix from O4X4Y4Z4 to O3X3Y3Z3; and \({}_{4}^{1} \varvec{T}\) be the transformation matrix from the execution end to the fixed coordinate system.

$${}_{4}^{1} \varvec{T} = {}_{\text{2}}^{\text{1}} \varvec{T}\left( {\alpha_{1} ,\beta_{1} ,\gamma_{1} } \right){}_{\text{3}}^{\text{2}} \varvec{T}\left( {\alpha_{2} ,\beta_{2} ,\gamma_{2} } \right){}_{\text{4}}^{\text{3}} \varvec{T}.$$
(1)

In Figure 2(a), one end of PMA that drives the first motion platform is connected to the fixed platform and its coordinate in O1X1Y1Z1 is Ai. Another end is connected to the first motion platform and its coordinate in O2X2Y2Z2 is Bi. The length of four PMAs is

$$L_{i} = \left| {{}_{2}^{1} \varvec{RB}_{i} + \varvec{O}_{2} - \varvec{A}_{i} \, } \right| ,\quad i = 1-4,$$
(2)

where \({}_{2}^{1} {\varvec{R}}\) is the attitude matrix of the first motion-platform.

In Figure 2(b), one end of PMA that drives the second motion-platform is connected to the first motion-platform, and its coordinate in O2X2Y2Z2 is Bi. Another end is connected to the second motion-platform and its coordinate in O3X3Y3Z3 is Ci. The length of six PMAs is

$$L_{i} = \left| {{}_{3}^{2} \varvec{RC}_{i} + \varvec{O}_{3} - \varvec{B}_{i} } \right| , \quad { }i = 5 - 10,$$
(3)

where \({}_{2}^{3} { \varvec{R}}\) is the attitude matrix of the second motion-platform.

The Lagrange method is used to establish the dynamic equation of the flexible manipulator. The Lagrange method is known as

$$L_{\text{E}} = K_{\text{E}} - P_{\text{E}} ,$$
(4)

where KE is the system’s kinetic energy, PE is the system’s potential energy, and q is the generalized coordinate vector of the system. The following relationship is established:

$$\frac{\text{d}}{{{\text{d}}t}}\left( {\frac{{\partial L_{\text{E}} (\varvec{q} ,\dot{\varvec{q}} )}}{{\partial \dot{\varvec{q}}}}} \right) - \frac{{\partial L_{\text{E}} (\varvec{q} ,\dot{\varvec{q}} )}}{{\partial \varvec{q}}} =\varvec{\tau}\text{,}$$
(5)

where τ is the generalized force (torque) vector acting on the generalized coordinates. The RPY angle is used as the generalized coordinates of the system, which is q = [α β γ]T. The following expression is obtained by Eq. (5):

$$\varvec{M}(\varvec{q})\varvec{\ddot{q}} + \varvec{V}(\varvec{q},\dot{\varvec{q}})\dot{\varvec{q}} + \varvec{G}(\varvec{q}) =\varvec{\tau}\text{,}$$
(6)

where M(q) is the inertia matrix of the system, \(\varvec{V}(\varvec{q},\dot{\varvec{q}})\) is the Coriolis force and centrifugal force of the system, and G(q) is the gravity term.

It should be noted that τ is not the output force of PMA, but the generalized torque acting on the generalized coordinates q. The relationship between them is

$$\dot{\varvec{l}} = \varvec{J\dot{q}}\text{,}$$
(7)

where J is the Jacobi ratio of the corresponding joint, which characterizes the relationship between the aerodynamic speed of PMA and the angular velocity of the corresponding platform. According to the principle of virtual work, Eq. (8) is obtained:

$$\varvec{F} = (\varvec{J}^{\text{T}} )^{ - 1} \cdot\varvec{\tau}= (\varvec{J}^{\text{T}} )^{ - 1} \cdot \left[ {\varvec{M}(\varvec{q})\varvec{\ddot{q}} + \varvec{V}(\varvec{q},\dot{\varvec{q}}) + \varvec{G}(\varvec{q})} \right],$$
(8)

where F is the force vector consisting of the output forces of PMAi (i = 1–10).

Joint Trajectory Planning of Serial Mechanism

The bionic flexible manipulator is a typical 6-DOF series-parallel mechanism. Its end position space and attitude space are highly coupled. In this section, in order to smoothen the strong coupling mechanism trajectory tracking, based on the global optimization and parallel algorithm of the genetic algorithm, the smooth trajectory curves of each joint were obtained under a certain position trajectory curve of the end. The bionic flexible manipulator consists of ball hinge I and II, which constitute 6-DOF of bionic flexible manipulator; hence, the optimal variables are described as follows:

$$x = \{ \alpha_{1} ,\beta_{1} ,\gamma_{1} ,\alpha_{2} ,\beta_{2} ,\gamma_{2} \} .$$
(9)

Since the genetic algorithm is based on the fitness function of the required problem, the solution of the fitness function is very important. Assuming that the actual position of the end is \(\{ px_{\text{d}} ,py_{\text{d}} ,pz_{\text{d}} \}\), the ideal position is \(\{ px,py,pz\}\). The first objective is to minimize the difference between the actual position and desired position:

$$\hbox{min}\,f_{1} (x) = \left| {px_{\text{d}} - px} \right| + \left| {py_{\text{d}} - py} \right| + \left| {pz_{\text{d}} - pz} \right|.$$
(10)

Suppose the estimated rotation angle at a certain time is \(x_{k} = \{ \alpha_{1k} ,\beta_{1k} ,\gamma_{1k} ,\alpha_{2k} ,\beta_{2k} ,\gamma_{2k} \}\), when the actual rotation angle is \(x_{k - 1} = \{ \alpha_{1(k - 1)} ,\beta_{1(k - 1)} ,\gamma_{1(k - 1)} ,\alpha_{2(k - 1)} ,\beta_{2(k - 1)} ,\gamma_{2(k - 1)} \} .\) The secondary objective is the minimum value of the sum of the difference between the predicted rotation angle of hinge I and II at a certain moment relative to the actual rotation angle at the previous moment; hence, the joint trajectory curve can be relatively smooth.

$$\hbox{min}\,f_{2} (x) = \sum\limits_{i = 1}^{2} {(\left| {\alpha_{ik} - \alpha_{i(k - 1)} } \right| + \left| {\beta_{ik} - \beta_{i(k - 1)} } \right| + \left| {\gamma_{ik} - \gamma_{i(k - 1)} } \right|)} .$$
(11)

The primary goal of trajectory tracking is to ensure the reliability of the position curve. The secondary objective is to ensure the smoothness of the joint curve. By weighting the two objective functions with proper weights, the following objective function can be obtained:

$$f_{fit} = \hbox{min} (0.9f_{1} (x) + 0.1f_{2} (x)).$$
(12)

Let the ideal circular trajectory of the end be

$$\left\{ {\begin{array}{*{20}l} {px = px_{0} - 15,} \hfill \\ {py = py_{0} + 50\cos (wt),} \hfill \\ {pz = pz_{0} + 50\sin (wt).} \hfill \\ \end{array} } \right.$$
(13)

The size of the population is 100. After 241 generations, the trajectory curve of the end and optimal trajectory curves of all joints are shown in Figure 3 and Figure 4. Although the tracking effect is good, there exists a trajectory jitter of each joint, which is not conducive to control.

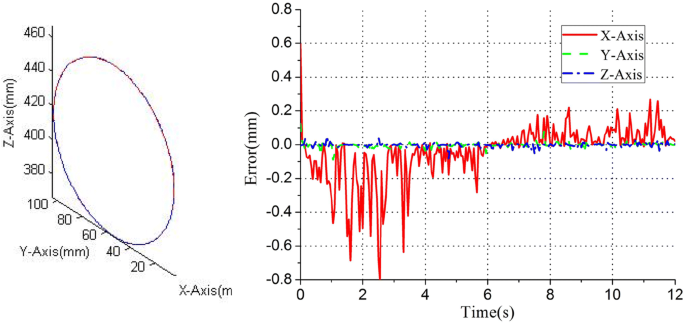

Figure 3
figure3

Ideal and actual trajectory curve of the end

Figure 4
figure4

Joint trajectory curves

To facilitate control, the joint trajectory curve must be smooth. Therefore, to improve the smoothness of the joint trajectory, MATLAB CFTOOL was used to fit the joint trajectory, as shown in Figure 5. Although there exists a larger error between the actual and ideal trajectory, the maximum position error of the X-axis, Y-axis, and Z-axis direction is only 1.536 mm, 1.816 mm, and 0.958mm, respectively. Compared with the trajectory circle with a radius of 50 mm, the error is smaller and the precision is satisfied. The curve is smoother, so the fitted curves can be used as the trajectory of each joint.

Figure 5
figure5

Ideal and fitting trajectory curve of the end

Fuzzy Torque Control of Bionic Flexible Manipulator

According to the dynamic model of the bionic flexible manipulator, the control scheme of trajectory tracking is proposed in this section. In the process of dynamic calculation, the robot model inevitably possesses structural and nonstructural uncertainty factors. Aiming at the nonlinearity of the manipulator and uncertainty of its model, the fuzzy system and computed torque method were combined to design the fuzzy torque controller.

Computed Torque Control of Flexible Manipulator

In the control algorithm of the manipulator, the computed torque method is relatively effective. The control idea of the computed torque method can be understood as introducing nonlinear compensation into the internal control loop of the manipulator control system. By such compensation, the manipulator can be simplified as a linear system to some extent. The computed torque method can ensure the stability of the trajectory tracking of the manipulator, and is able to control each joint separately by closed-loop control system.

Computed Torque Controller

According to the computed torque control method, a PD controller is designed in the control loop of the manipulator, which is shown in Figure 6. First introduce the control:

$$\varvec{\tau}= \varvec{M}(\varvec{q})\varvec{u} + \varvec{H}(\varvec{q},\dot{\varvec{q}}),$$
(14)

where \(\varvec{H}(\varvec{q},\dot{\varvec{q}}) = \varvec{V}(\varvec{q},\dot{\varvec{q}}) + \varvec{G}(\varvec{q})\).

Figure 6
figure6

Block diagram for computed torque control system

According to the kinetic equation:

$$\varvec{M}(\varvec{q})\varvec{\ddot{q}} + \varvec{H}(\varvec{q},\dot{\varvec{q}}) =\varvec{\tau}= \varvec{M}(\varvec{q})\varvec{u} + \varvec{H}(\varvec{q},\dot{\varvec{q}}),$$
(15)

which is equal to

$$\varvec{M}(\varvec{q})\varvec{\ddot{q} = M}(\varvec{q})\varvec{u}\text{.}$$
(16)

Since M(q) is an invertible matrix, it can be obtained that

$$\varvec{\ddot{q} = u}\text{.}$$
(17)

Thus, the upper form is equivalent to the linear constant system. In the control system, the position signal can be obtained by the feedback of the system. The desired trajectory is set as \(q_{{\mathbf{d}}}\), on this basis, PD control is introduced, which is expressed as follows:

$$\varvec{\ddot{q} = \ddot{q}}_{{\text{d}}} + K_\text{d} \left( {\dot{\varvec{q}}_{{\text{d}}} - \dot{q}} \right) + K_{{\text{p}}} \left( {\varvec{q}_{{\text{d}}} - q} \right),$$
(18)

where, \(\ddot{\varvec{q}}_{{\text{d}}}\), \(\dot{\varvec{q}}_{{\text{d}}}\), \(\varvec{q}_{{\text{d}}}\) represent the angular acceleration, angular velocity, and angle of each joint, respectively; and Kp and Kd are the PD parameters. By combining Eq. (17) and Eq. (18), the closed loop system is obtained:

$$\ddot{\varvec{e}} + K_{{\text{d}}} \dot{\varvec{e}} + K_{{\text{p}}} \varvec{e} = 0,$$
(19)

where \(\ddot{\varvec{e}} = \ddot{\varvec{q}}_{{\text{d}}} - \ddot{\varvec{q}}\), \(\dot{\varvec{e}} = \dot{\varvec{q}}_{{\text{d}}} - \dot{\varvec{q}}\), \(\varvec{e} = \varvec{q}_{{\text{d}}} - \varvec{q}\). According to the controller, if the system needs to move in accordance with the desired trajectory, let \(\varvec{e} \to 0,\dot{\varvec{e}} \to 0,\ddot{\varvec{e}} \to 0\).

Substituting Eq. (18) into Eq. (14), the control law of the robot arm can be obtained:

$$\varvec{\tau}= \varvec{M}(\varvec{q})\left( {\varvec{\ddot{q}}_{{\mathbf{d}}} + K_{{\mathbf{d}}} \dot{e} + K_{{\mathbf{p}}} e} \right) + \varvec{H}(\varvec{q},\dot{\varvec{q}}).$$
(20)

Simulation Analysis of Computed Torque

The bionic flexible manipulator is mainly driven by two parallel joints: the scapula joint and the glenohumeral joint. The expected trajectory of these two joints is \(\gamma = 10^\circ \sin \left( {\frac{\uppi}{2}t} \right),\) \(\beta = 10^\circ \sin \left( {\frac{\uppi}{2}t} \right),\) \(\alpha = 0^{^\circ } .\) The simulation control of the two joints was carried out and the control effect of the computed torque method was analyzed based on MATLAB and ADAMS.

Firstly, the proportional and differential parameters in the control loops of the scapula and glenohumeral joint are

$$\varvec{K}_{{\text{p}1}} = \left[ {\begin{array}{*{20}c} { - 3750} & 0 & 0 \\ 0 & { - 3750} & 0 \\ 0 & 0 & { - 3750} \\ \end{array} } \right],\varvec{K}_{{\text{d}1}} = \left[ {\begin{array}{*{20}c} { - 35} & 0 & 0 \\ 0 & { - 35} & 0 \\ 0 & 0 & { - 35} \\ \end{array} } \right],$$
(21)
$$\varvec{K}_{{\text{p}2}} = \left[ {\begin{array}{*{20}c} { - 3600} & 0 & 0 \\ 0 & { - 1350} & 0 \\ 0 & 0 & { - 1350} \\ \end{array} } \right],\varvec{K}_{{\text{d}2}} = \left[ {\begin{array}{*{20}c} { - 90} & 0 & 0 \\ 0 & { - 15} & 0 \\ 0 & 0 & { - 15} \\ \end{array} } \right].$$
(22)

The simulation chart of position tracking and its error can be obtained.

Through the simulation charts of the scapula joint and the glenohumeral joint in Figure 7, it was found that the computed torque method can realize the expected tracking trajectory of two joints. The maximum error of the rotation angle of the scapula joint in the XYZ direction is (0.686°, 0.531°, 0.602°), and the maximum error of the rotation angle of the glenohumeral joint in XYZ direction is (1.107°, 0.477°, 0.901°). It can be seen that the computed torque method is feasible for the tracking control of the manipulator. However, the tracking error and its range of variations are still large. The flexible manipulator is a nonlinear control system. Once the PD parameters of the control loop are determined, the control process cannot be adaptively adjusted to better control the system. Therefore, the computed torque control is improved and the fuzzy torque control method is proposed.

Figure 7
figure7

Simulation chart of scapula and glenohumeral joint by computed torque method

Fuzzy Torque Control of Bionic Flexible Manipulator

The manipulator control system is a typical nonlinear complex control system whose uncertain parameters change constantly in the process of movement, with some unstable disturbances. It is difficult to achieve the desired control effect for the conventional control of fixed parameters. In view of this, a control strategy is proposed in this section, which adjusts the parameters adaptively according to the control state. The fuzzy control is combined with the computed torque control to design the fuzzy torque controller.

Design of Fuzzy Torque Control System

The fuzzy controller is designed to have two inputs and two outputs. According to error \(\varvec{e}\) and error change \(\dot{\varvec{e}}\) of the system real-time feedback, the PD parameters of the control loop are adjusted online in real time. The changes of Kp and Kd are expressed as

$$\begin{aligned} \Delta K_{{\text{p}}} = \left( {\varvec{e},\dot{\varvec{e}}} \right)_{{\text{p}}} , \hfill \\ \Delta K_{{\text{d}}} = \left( {\varvec{e},\dot{\varvec{e}}} \right)_{{\text{d}}} . \hfill \\ \end{aligned}$$
(23)

Through the upper equation, we can achieve the automatic adjustment of the PD parameters on the basis of \(\varvec{e}\) and \(\dot{\varvec{e}}\) in the control process, and realize the adjustment of the control parameters:

$$\begin{aligned} K_{{{\text{mp}}}} = K_{{\text{p}}} + \left( {\varvec{e},\dot{\varvec{e}}} \right)_{{\text{p}}} , \hfill \\ K_{{{\text{md}}}} = K_{{\text{d}}} + \left( {\varvec{e},\dot{\varvec{e}}} \right)_{{\text{d}}} . \hfill \\ \end{aligned}$$
(24)

According to the computed torque control law above, the upper equation is substituted, and the fuzzy torque control law is obtained:

$$\varvec{\tau}= \varvec{M}(\varvec{q})\left( {\varvec{\ddot{q}}_{{\text{d}}} + K_{{{\text{md}}}} \dot{\varvec{e}} + K_{{{\text{mp}}}} \varvec{e}} \right) + \varvec{H}(\varvec{q},\dot{\varvec{q}}).$$
(25)

The PD parameters are adjusted according to the membership degree table of each fuzzy subset and the fuzzy control model of each parameter. The system develops improved adaptive ability in different environments. The block diagram of the fuzzy torque control system is shown in Figure 8.

Figure 8
figure8

Block diagram for fuzzy torque control system

Design of Fuzzy Controller

Fuzzy control applies linguistics to induce the operator’s control strategy. Linguistic variables and fuzzy geometry theory are used to form the control algorithms. As shown in Figure 9, fuzzy control has a transformation process, including the fuzzification of precise quantity and the precision of fuzzy quantity, which mainly consist of five parts: variable definition, fuzzification, fuzzy inference, fuzzy rule, and defuzzification.

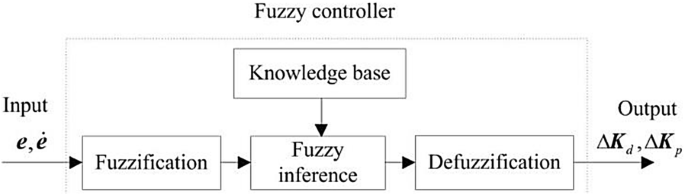

Figure 9
figure9

Block diagram of fuzzy controller

  1. 1)

    Variable definition

    The error \(\varvec{e}\) and error change \(\dot{\varvec{e}}\) of the input variables of the controller are defined, and the output variables are ∆Kp and ∆Kd.

  2. 2)

    Fuzzification

    The discourse domain of e and \(\dot{\varvec{e}}\) is set as [−6,6], and that of ∆Kp and ∆Kd is [−3,3]. In fuzzy rules, the error and error rate are expressed as E and EC, respectively, and the fuzzy subsets of input and output are {NB(negtive big), NM(negtive middle), NS(negtive small), ZO(Zero), PS(positive big), PM(positive middle), and PB(positive small)}. The membership function used in this section is the most common triangle membership function, which can cover all the fuzzy subsets.

    $$\mu \left( x \right) = \left\{ {\begin{array}{*{20}l} {(x - a)/(b - a){\kern 1pt} ,{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} a \le x \le b,} \\ {(x - c)/(b - c),{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} b \le x \le c,} \\ {\text{0},{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} \text{else}.} \\ \end{array} } \right.$$
  3. 3)

    Rule base and fuzzy inference

    In the control process, the fuzzy control rules are established as shown in Table 2 and Table 3. For example, when e becomes too big, in order to accelerate the response speed and prevent integral overflow caused by \(\dot{\varvec{e}}\), the larger Kp and smaller Kd are selected. Conversely, when e becomes too small, in order to ensure a certain response speed and reduce the system overshoot, Kp can be appropriately reduced and moderate Kp should be selected. We can determine the corresponding fuzzy rules according to experience to realize the fast response and effective control of the system.

    Table 2 Fuzzy control rules of ∆Kp
    Table 3 Fuzzy control rules of ∆Kd
  4. 4)

    Defuzzification

    The area centroid method is used for defuzzification, and the fuzzy output obtained by fuzzy inference is transformed into a precise quantity. The internal control loop of the computed torque method is improved and adjusted to realize the accurate control of the manipulator.

Simulation Analysis of Fuzzy Torque

The desired trajectory is the same as the upper section, the simulation control of the scapula joint and glenohumeral joint is implemented, respectively, and the control effect of fuzzy torque method is analyzed. The initial parameters of the proportional differential in the internal control loop of the computed torque method are the same as those of the upper section. The fuzzy torque control of the scapula joint and glenohumeral joint can be obtained, and the simulation chart of position tracking and its error is obtained as follows.

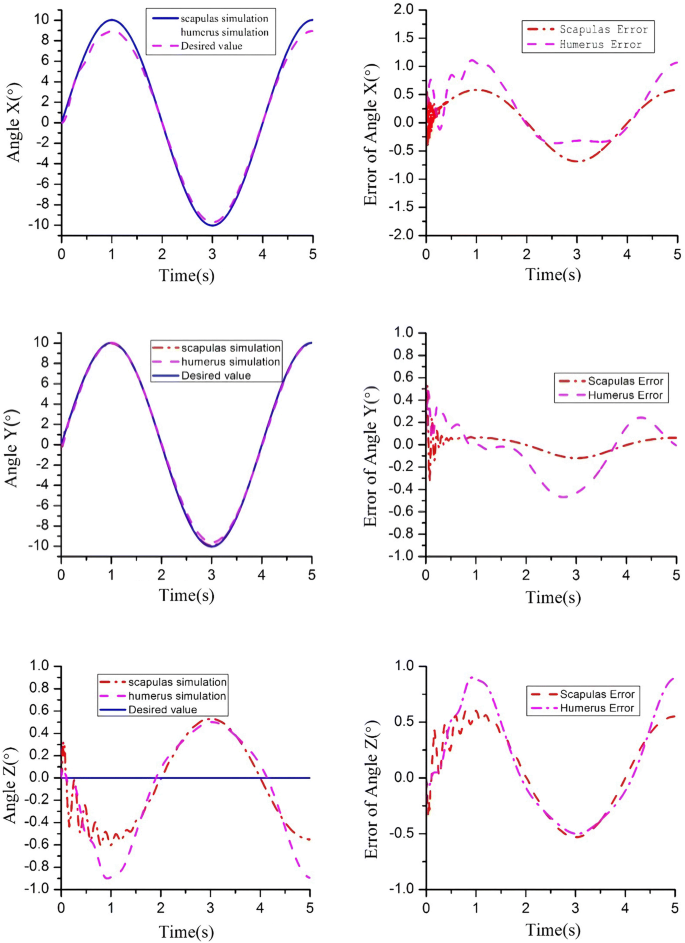

Observe the simulation charts in Figure 10, we can find that the fuzzy torque method can achieve the desired trajectory of two joints better than the computed torque method. The maximum error of the rotation angle of scapula joint in the XYZ direction is (0.109°, 0.260°, 0.481°). The maximum error of the rotation angle of glenohumeral joint in the XYZ direction is (0.390°, 0.398°, 0.486°). It can be seen that the fuzzy torque method has higher tracking control accuracy and the degree of shaking is significantly reduced, which is beneficial to the effective control of the physical mechanism.

Figure 10
figure10

Simulation chart of scapula and glenohumeral joint by fuzzy torque control

Test Analysis of Bionic Flexible Manipulator

Design of Test Platform

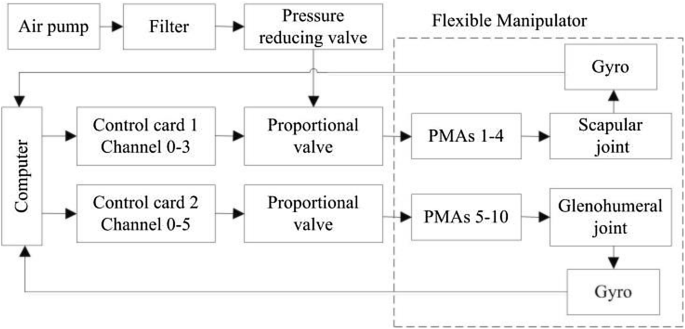

The test system of the manipulator consists of a computer, filter, pressure relief valve, proportional valve, pneumatic pump, peripheral component interconnect digital-to-analog conversion (D/A) control card, and gyroscope. The manipulator is driven by 10 PMAs, where the scapula joint is driven by four PMAs of which the models are DMSP-10N-110-RM-CM and DMSP-10N-55-RM-CM; the maximum working pressure is 0.8 MPa. The glenohumeral joint is driven by six PMAs, of which the model is DMSP-10N-110-RM-CM; the maximum working pressure is 0.8 MPa. The pneumatic pump is the pressure source, and the maximum supplied pressure is 1.25 MPa. The control signal of the proportional valve is controlled by computer through the D/A card. Finally, the attitude data is fed back to the computer through the gyroscope, and the closed-loop control is realized. The control block diagram and entity diagram of the test system are shown in Figure 11 and Figure 12, respectively.

Figure 11
figure11

Hardware composition of control system

Figure 12
figure12

Test platform of the bionic flexible manipulator driven by PMAs

Results Analysis

In order to verify the control strategy proposed in this paper, the manipulator is taken as the experimental object. The trajectory of the end of the manipulator is required to be a circle with a radius of 50 mm, whose equation is as follows:

$$\left\{ {\begin{array}{*{20}l} {px = px_{0} - 15,} \hfill \\ {py = py_{0} + 50\cos (wt),} \hfill \\ {pz = pz_{0} + 50\sin (wt),} \hfill \\ \end{array} } \right.$$
(26)

where \(px_{0} ,py_{0} ,pz_{0}\) are the initial positions of the end of manipulator in the XYZ direction. According to the joint trajectory planning in Section 2.3, the scapular joint and glenohumeral joint can be precisely controlled by fuzzy controller to achieve trajectory tracking of the manipulator.

Experimental analysis of the control algorithm was carried out using a test platform built on the upper section. The values of the initial gain parameter of the controller are kp1= diag[−3750 −3750 −3750], kd1= diag[−35 −35 −35], kp2 = diag[−3600 −1350 −1350], and kd2 = diag[−90 −15 −15]. The control period was set to 12 s, and the estimation parameters of the controller are the same as those in the simulation process.

First, we used the general computed torque method to control the motion of the manipulator joint and obtain the end track tracing curve, as shown in Figure 13. The XYZ direction error range of the end position in the trajectory tracking process is (−14.972 mm, 22.551 mm), (−45.421 mm, 49.912 mm), and (−5.790 mm, 13.388 mm) respectively. Then, we used the fuzzy torque algorithm to control the bionic flexible manipulator. Figure 14 shows that the actual motion trajectory of the end of mechanical arm is very close to the desired trajectory. The XYZ direction error range of the end position in the trajectory tracking process is (−3.102 mm, 2.664 mm), (−4.693 mm, 3.411 mm), and (−2.034 mm, 10.114 mm). The comparison of the simulation and experiment results using the fuzzy torque algorithm are summarized in Table 4.

Figure 13
figure13

Circle trajectory tracking of computed torque method

Figure 14
figure14

Circle trajectory tracking of fuzzy torque control

Table 4 Comparison of simulation and experiment using fuzzy torque algorithm

Compared with the computed torque method, the trajectory tracking precision of the fuzzy torque controller is much higher. However, some jitter still occurs in the process of trajectory tracking, and the experimental results are slightly larger than the simulation results, as shown in Table 4. The main reason for this phenomenon is the fluctuation in the inflation and deflation process of the proportional valve, which affects the movement process of PMA. It can be adjusted through the designed joint motion control strategy. The initial response of each joint is a step response; hence, there is large jitter at the initial time. Although the joints tend to stabilize quickly and track the desired trajectory of motion owing to the function of the fuzzy controller, the error of the tracking curve measured by experiments increases significantly compared with that in the simulation. Another reason is the error of the mathematical model of pneumatic muscle. However, experimental results show that the end of the mechanical arm can effectively track the desired trajectory; thus, the proposed fuzzy torque control algorithm is feasible.

Conclusions

  1. (1)

    Based on the anatomy theory of the shoulder joint, the skeleton and muscle of the human upper arm and the mechanism of action on the skeleton in the process of movement are analyzed. The basic structure of the human upper arm was selected as a serial parallel structure.

  2. (2)

    Based on the application of computed torque method in the trajectory tracking control of manipulator, a fuzzy torque control algorithm was designed. The two methods were compared by simulation, and the results show that the fuzzy torque control algorithm can compensate the error more effectively.

  3. (3)

    The hardware experimental system was established. Compared with general computed torque method, the effectiveness of fuzzy torque control algorithm was verified in the actual control test of the prototype. The XYZ direction error range of the end position in the trajectory tracking process is (−3.102 mm, 2.664 mm), (−4.693 mm, 3.411 mm), and (−2.034 mm, 10.114 mm). The control study in this paper does not consider the problem of load. In the future, the load capacity and maneuverability of the manipulator will be explored in depth.
