Mass-Spring-Damping Theory Based Equivalent Mechanical Model for Cylindrical Lithium-ion Batteries under Mechanical Abuse

Abstract

An equivalent mechanical model with the equivalent physical meaning of mass-spring-damping is proposed for cylindrical lithium-ion batteries through experiments and theory. The equivalent mechanical model of a cylindrical lithium-ion battery consists of a spring-damping parallel unit. Therefore, a spring-damping parallel unit connecting a damping unit in series is selected to construct the constitutive characteristics of the battery under mechanical abuse. Comparison results show that the equivalent mechanical model can more effectively describe the mechanical properties of the batteries than most cubic fitting models, of which the average relative error of the equivalent mechanical model under different states-of-charge is less than 6.75%. Combined with the proposed equivalent mechanical model, the failure process of the batteries was simulated and analyzed using LS-Dyna and HyperWorks. Under rigid rod tests, failure occurred at the core and bottom of the batteries; under hemispherical punch tests, failure occurred at the core and top, consistent with the experimental results. The average prediction error for the failure displacement under different abuse conditions is less than 4% in the simulations. The equivalent mechanical model requires only a few parameters and can be recognized easily. In the future, the model can be used in safety warning devices based on mechanical penetration.

Introduction

With the development of electric vehicles, the safety of lithium-ion batteries has become a societal concern [1, 2]. In the last two years, several safety accidents involving lithium-ion battery systems that resulted in severe casualties in electric vehicles have occurred. Based on safety reasons, China has launched a new car assessment program (C-NCAP) in 2018, in which requirements for the crash performance of pure electric vehicles have been added. Therefore, the mechanical properties of lithium-ion batteries under mechanical abuse conditions must be understood comprehensively to as a foundation for future battery safety studies.

A lithium-ion power battery comprises a positive electrode made of a positive active material and a positive current collector; and a negative electrode made of a negative active material, as well as a negative current collector and separator. Lithium-ion battery failure often occurs when a separator is damaged and the anode is in contact with the cathode, which causes a short circuit. Hence, most studies focus on the mechanical properties of the separator [3,4,5].

Some researchers have studied the mechanical properties of cylindrical lithium-ion cells subjected to mechanical abuse conditions and corresponding stress-strain constitutive models have been proposed. In the mechanical modeling of lithium-ion batteries, the force-displacement response is generally summarized as a cubic fitting equation. Wierzbicki and Avdeev et al. [6, 7] established a cubic fitting equation for cylindrical lithium-ion batteries under various load conditions and proposed a set of methods to calculate the average stress-strain. Based on the cubic fitting model, in-depth studies regarding the constitutive mechanical properties of the battery have been conducted; for example, the clay-like theory by Wang et al. [8] and the principle of virtual work by Sahraei et al. [9]. The cubic fitting model can predict the force-displacement response of lithium-ion batteries. Zhang et al. [10] proposed a constitute behavior at the electrode level to describe the mechanical failure of lithium-ion batteries; the model provided insights for improving the structure strength of lithium-ion batteries. Chung et al. [11] conducted various abuse tests to discuss the critical fracture, and the Mohr–Coulomb criterion was used to predict the failure of the batteries. Xu et al. [12] obtained the plastic stress-strain of the lithium-ion batteries using the Johnson–Cook material model.

Although the cubic fitting equation has a simple expression form and is convenient for mechanical modeling, it does not offer a high precision, which will result in large errors.

The stress field and structural damage of batteries under mechanical abuse through finite element simulation analysis can be obtained. Combined with simulation analysis, constitutive mechanical models can well predict the deformation behavior of cells under mechanical loads. The crushable-foam material model is a useful homogenized modeling method in which the battery is considered in entirety and evaluated from a macroscopic perspective [6,7,8,9, 13,14,15]. Homogenized modeling is simple, but it cannot reflect the actual mechanical changes inside the cells. Therefore, another method has been established to model the cathode, anode, and separator of the battery, separately [16,17,18]. Additionally, the representative volume element (RVE) method can be used to model lithium-ion batteries. Zhang et al. [10, 19] and other researchers have used the RVE model to calculate the mechanical properties of batteries, and their results were agreed well with experimental results. Liu et al. [20] developed a multiphysics computational model based on the RVE method, and a full spectrum safety mechanism map was proposed.

Homogenized models are the most computationally efficient, and the detailed models include the most information but are computationally intensive; the performance of the RVE method is in between those of the abovementioned methods [21].

The State-of-Charge (SOC) can change the mechanical properties and the volume of active particles owing to the expansion and contraction of the anode and cathode; therefore, the mechanical properties of the cells will change. Hence, we may conclude that the SOC can significantly change the properties of hard-shell batteries [22,23,24,25, 30].

By studying the magnitude-phase-angle characteristics of batteries, an equivalent mechanical model with equivalent physical significance is proposed based on the mass-spring-damping theory. The configuration of a spring-damping parallel unit connecting a damping unit in series was selected and modified. Combined with the crushable-foam material model and HyperWorks/LS-Dyna, we simulated and verified the proposed model. The simulation results can explain the failure behavior of the battery well, i.e., under rigid rod tests, the failure of the batteries occurs at the core and bottom, while under hemispherical punch tests, failure occurs at the core and top. The average prediction error of the modified equivalent mechanical model to the failure displacement under different load conditions is less than 4%. In the future, the equivalent mechanical model can be conveniently used in battery safety warning equipment under the condition of mechanical abuse.

Materials and Methods

Experimental Equipment and Process

The experimental settings are shown in Figure 1. Sony VTC4 18650 cylindrical lithium-ion batteries with nominal capacity 2100 mAh were used in the experiments, as shown in Figure 1c. Constant current-constant voltage was applied to discharge and charge the batteries to SOC = 0, 0.2, 0.4, 0.5, 0.6, and 0.8. An INSTRON universal tensile testing machine with the maximum load of 250 kN was used to compress the batteries, as shown in Figure 1a. A fire protection box was used to protect the test equipment and limit smoke and fire from battery explosions into a confined environment, and a vent pipe was used to process the smoke and channel it outside. A four-channel HOKI MR8880 data recorder was used, as shown in Figure 1b, as well as a FLUKE Ti400 infrared thermal camera.

Figure 1
figure1

Experimental settings under mechanical abuse tests: a Universal tensile testing machine and safety equipment, b Voltage data recorder, c Charge-discharge tester and batteries, d Hemispherical punch, d = 14 mm, e Rigid rod punch, d = 24 mm

The mechanical abuse tests performed in this study included flat plate, rigid rod, and hemispherical punch tests. The diameters of the hemispherical and rigid rod punches were 14 and 24 mm, respectively, as shown in Figure 1d and e. A lower penetration speed can produce more adverse results [26]; therefore, the mechanical abuse experiments in this study were performed under the quasi-static conditions at the loading speed of 0.5 mm/min. During the mechanical abuse experiments, the force-displacement, voltage, and temperature were recorded simultaneously.

Mathematical Model Description: Mass-Spring-Damping System

In a sense, the essence of mechanical system is the mass-spring-damping system. Under mechanical abuse conditions, the mechanical response of the cells can be treated as a mass-spring-damping system.

In the time domain, the expression of force to displacement for the mass-spring-damping system is complicated. However, in the frequency domain, when the equivalent spring stiffness of mass, spring, and damping units are known, the relationship between force and displacement can be derived easily.

The equivalent spring stiffness of mass quality M, spring elastic stiffness k, damping coefficient D, and corresponding structures are shown in Table 1. \(f(t)\) and \(F(s)\) are forces in the time and frequency domains, respectively. \(x(t)\) and \(X(s)\) are displacements in the time and frequency domains, respectively. \(s\) is the symbol representing the inverse of time, i.e., \(s = \omega j\), where ω is the angular frequency, and j is the imaginary part.

Table 1 Equivalent spring stiffness of the components

The mass-spring-damping system can be composed of a single or two or more components connected in series or parallel to form an integrated mass-spring-damping system:

$$\frac{f(j\omega )}{x(j\omega )} = \sum\limits_{n = 1}^{z} {\frac{f(t)}{x(t)}} e^{ - j\omega t} ,$$
(1)
$$H(j\omega )_{n} = a_{n} + b_{n} j,$$
(2)
$$\left| {\left. {A_{m} } \right|} \right._{n} = \sqrt {a_{n}^{2} + b_{n}^{2} } ,$$
(3)
$$\omega_{n} = \arctan \frac{{b_{n} }}{{a_{n} }}.$$
(4)

A Fourier transform on the experimental data of the flat plate, rigid rod, and hemispherical punch tests was performed. As shown in Eqs. (1)‒(4), n is the series of the discrete time signal, \(H(j\omega )_{n}\) is the transfer function, \(a_{n}\) and \(b_{n}\) are the coefficients, \(\left| {\left. {A_{\omega } } \right|} \right._{n}\) is the magnitude, and \(\omega_{n}\) is the phase angle.

As shown on the right side of Figure 2, from the qualitative analysis of the experiment, the mechanical characteristics of the batteries under different mechanical abuse conditions in the limited frequency range contained the spring-damping parallel unit, as shown on the left of Figure 1. This suggests that the mechanical properties of the batteries can be simplified by an equivalent mechanical model that contains a spring-damping parallel unit. In other words, the cylindrical lithium-ion batteries exhibit the equivalent physical effect of the spring-damping parallel unit under mechanical abuse conditions.

Figure 2
figure2

Magnitude-Phase-angle characteristics of the battery under mechanical abuse conditions in frequency domain

Based on the findings above, three different forms of equivalent mechanical models were analyzed and validated.

In all of the equivalent mechanical models, the action end of the force is free, and the component is unconstrained.

Configuration 1: Spring-Damping Parallel Structure

The Configuration 1 structure shown in Figure 3 is the basic spring-damping parallel unit. In the frequency domain, the response of the spring-damping parallel system, which is the displacement to the force, is given by Eq. (5):

$$f(s) = (k + Ds)X(s).$$
(5)
Figure 3
figure3

Configuration 1: equivalent mechanical model and verification results: a results of experiments and Eq. (9), b verification of the extended displacement of Eq. (9)

Subsequently, Eq. (5) can be converted to a transfer function that is related to the force and displacement:

$$H(s) = \frac{f(s)}{X(s)} = k + Ds.$$
(6)

To obtain the equivalent equation in the time domain, an inverse Laplace transform is performed to Eq. (7):

$$\frac{x(t)}{f(t)} = L^{ - 1} [H(s)] = L^{ - 1} \left[ {\frac{X(s)}{f(s)}} \right] = \frac{{e^{{ - \frac{k}{D}t}} }}{D},$$
(7)
$$f(t) = \frac{D}{{e^{{ - \frac{k}{D}t}} }}x(t).$$
(8)

In Eq. (7), \(H(s)\) is the force-displacement transfer function in the frequency domain, L−1 the symbol of the inverse Laplace transform, and \(v\) the simulation loading speed.

In the experiment, we did not consider the effect of time; therefore, the time t was replaced by the compression displacement x and compression speed v, \(x = vt \to t = \frac{x}{v}\). The force-displacement equation of the spring-damping parallel system is shown in Eq. (9):

$$f(x) = \frac{D}{{e^{{ - \frac{kx}{Dv}}} }}x.$$
(9)

To verify the effectiveness of Eq. (9), the result for flat plate compression under SOC = 0 was selected, and the equation for the extended displacement was tested. The corresponding parameters are shown in Table 2, where \(v\) was set to 100 mm/s, which is the simulation speed rather than the actual loading speed of 0.5 mm/min that would cause the equation to be distorted in advance. The validity and applicability results are shown in Figure 3a and b, respectively.

Table 2 Equation parameter of Eq. (9)

As shown in Figure 3a, the curve obtained using Eq. (9) at the region after 4 mm can reflect the experimental data well; the red curve is coincident with the experimental data, the average relative error between the Configuration 1 model and the experiment is less than 8.2%, and correlation coefficient R2 is 0.9938. However, in the first half of the curve, the equation cannot reflect the experiment because the compression primarily compresses the space in the battery, e.g., the electrolyte, gap between parts, etc. At this stage, the mechanical properties of the battery are similar to those of the spring unit; therefore, the force exhibits an approximately linear growth. However, Figure 3b shows that when the displacement is larger than the experimental area, in which the displacement increases by only 3 mm, the force increases significantly. The force value increased by one order of magnitude. This type of growth can be considered as inconsistent with the actual load condition. Therefore, the basic spring-damping parallel unit cannot fully describe the properties of cylindrical lithium-ion batteries.

Configuration 2: Mass-Spring-Damping Structure

The structure of Configuration 2 is that a mass unit is connected in series before the spring-damping parallel part, as shown in Figure 4. In the frequency domain, the displacement to force mass-spring-damping system is given by Eq. (10):

$$f(s) = \frac{1}{{\frac{1}{{ms^{2} }} + \frac{1}{k + Ds}}}X(s) = \frac{{mDs^{3} + mks^{2} }}{{ms^{2} + Ds + k}}X(s),$$
(10)
$$\frac{x(t)}{f(t)} = L^{ - 1} [H(s)] = L^{ - 1} \left[ {\frac{1}{{ms^{2} }} + \frac{1}{k + Ds}} \right] = \frac{{me^{{ - \frac{k}{D}t}} + Dt}}{mD},$$
(11)
$$f(x) = \frac{mD}{{me^{{ - \frac{k}{D}\frac{x}{v}}} + D\frac{x}{v}}}x.$$
(12)
Figure 4
figure4

Configuration 2 equivalent mechanical model and verification results: a Results of experimental data and Eq. (12), b Verification of extended displacement of Eq. (12)

Similar to Method 1, the comparison and applicability of Configuration 2 and Eq. (12) are shown in Figure 4a and b, of which the parameters are shown in Table 3.

Table 3 Equation parameter of Eq. (12)

By comparison, the results show that although Configuration 2 can reflect the basic mechanical properties of the battery, the average relative error between the experimental results and Configuration 2 model after 4 mm is less than 7% and the correlation coefficient R2 is 0.9947. However, the problem where the force increases excessively after an extended displacement still exists. Hence, we did not use this method for our application.

Configuration 3: Spring-Damping Parallel Unit Connects a Damping Unit in Series

Configuration 3 is the damping unit connected in series after the spring-damping parallel unit, as shown in Figure 5. In the frequency domain, the force to displacement relationship in frequency domain is given by Eq. (13):

$$f(s) = \frac{1}{{\frac{1}{{D_{2} s}} + \frac{1}{{k + D_{1} s}}}}X(s) = \frac{{D_{1} D_{2} s^{2} + kD_{2} s}}{{(D_{1} + D_{2} )s + k}}X(s),$$
(13)
$$\frac{x(t)}{f(t)} = L^{ - 1} \left[ {\frac{X(s)}{f(s)}} \right] = \frac{{D_{2} e^{{ - \frac{k}{{D_{1} }}t}} + D_{1} }}{{D_{1} D_{2} }}.$$
(14)
Figure 5
figure5

Configuration 3 equivalent mechanical model and verification results: a Results between experimental data and Eq. (15), b Verification of extended displacement of Eq. (15)

After an inverse Laplace transform, one obtains Eq. (15):

$$f(x) = \frac{{D_{1} D_{2} }}{{D_{2} e^{{ - \frac{k}{{D_{1} }}\frac{x}{v}}} + D_{1} }}x.$$
(15)

The corresponding parameters and comparison of Eq. (15) are shown in Table 4, and Figure 5a and b, respectively.

Table 4 Equation parameter setting of Eq. (15)

As shown, this structure exhibits good characteristics in the second half; the average relative error between the experimental results and Configuration 3 model is less than 10% and the correlation coefficient R2 is 0.9910. Similar to the two schemes mentioned above, this solution contains errors in the first stage of the curve. To solve this problem, the piecewise function will be used, which will be discussed in Section 2.3. The verification of suitability for the extended displacement shows that the increase in force is less than those of the first two structures mentioned previously, and that the model is more consistent with the actual situation; therefore, it has a higher application value. Hence, we will use the Configuration 3 model for our subsequent study.

The parameter analysis suggests that cylindrical lithium-ion batteries are composed of a spring-damping parallel unit and a damping unit connected in series in terms of the equivalent physics. This can simplify the mechanical model of the battery based on considering the structure and render the relevant parameters easy to identify. It would be beneficial to construct the corresponding finite element simulation.

Optimization of the Equivalent Mechanical Model under Multi-SOC

To verify the adaptation of the proposed Configuration 3 structure under various SOC states, several SOC states with SOC = 0, 0.2, 0.4, 0.5, 0.6, and 0.8 were selected and tested under the condition of flat plate compression and then compared with the most frequently used cubic fitting Eqs. (6)‒(9). The proposed equivalent model was modified accordingly to improve the performance of the entire compression process.

To ensure the repeatability of the experiment, the tests were repeated several times to obtain similar results with the best correlation of the experimental data. The force-displacement equation derived from Configuration 3 was calculated and compared with the cubic fitting equation of Eq. (16):

$$f(x) = c \times x^{3}.$$
(16)

As mentioned previously, the result of Configuration 3 before 4 mm was not ideal. The deviation was primarily due to the gap between battery parts. Therefore, the equation of Configuration 3 should be modified. From the experiment, it was discovered that the growth of the force was almost linear in the first half (before 4 mm) of the curve. We have discussed this in Section 2.2.1 where, in the first half of the compression process, the main reason for the linear growth is the force squeezing the gap between the battery components. Hence, the equivalent mechanical model can be modified by a piecewise function that, in the first half of the model, modified the function by a linear equation, and expressed the progress by the Configuration 3 equation in the second half of the model. Discrete force-displacement and stress-strain relationships are required in the model validation and simulations; therefore, the linear interpolation algorithm was used near the critical turning displacement \(x_{l}\) to ensure the continuity of the modified equivalent mechanical equation.

The basic form of the modified equivalent mechanical equation is shown in Eq. (17):

$$f(x) = \left\{ {\begin{array}{*{20}ll} k_{t} x, & \quad 0 \le x \le x_{l} , \\ \frac{{D_{1} D_{2} }}{{D_{2} e^{{ - \frac{k}{{D_{1} }}\frac{x}{v}}} + D_{1} }}x, & \quad x > x_{l} , \\ \end{array} } \right.$$
(17)

where \(k_{t}\) represents the slope of the linear increasing section, and \(x_{l}\) is the critical turning displacement of the linear section and the Configuration 3 equation.

The experimental and equivalent model results are optimized based on Eq. (17). The parameters are shown in Table 5, and the comparison results are shown in Figure 6a‒f.

Table 5 Corresponding parameters of the modified equivalent mechanical model and cubic fitting equation under SOC = 0, 0.2, 0.4, 0.5, 0.6, and 0.8
Figure 6
figure6

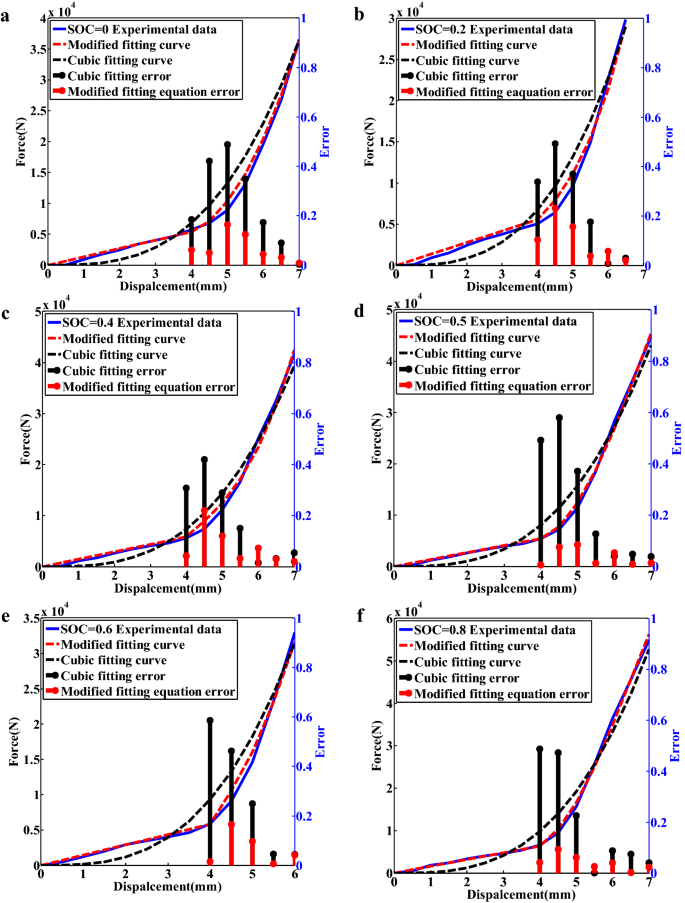

Comparison of equivalent mechanical model with cubic fitting equation under multi-SOC states. Comparison results of flat plate test under a SOC = 0, b SOC = 0.2, c SOC = 0.4, d SOC = 0.5, e SOC = 0.6, and f SOC = 0.8

In Figure 6a‒f, the black needle line is the error between the cubic fitting equation and the experiment, and the red needle line is the error between the modified equivalent model and the experiment. The results show that the prediction error of the modified equivalent model is much smaller than that of the cubic fitting equation in the nonlinear part. Under the flat plate tests, the relative errors among the equivalent model, cubic fitting equation, and experiment are shown in Table 6.

Table 6 Relative error and correlation coefficient R2 among equivalent model, cubic fitting equation and experiment

The average prediction error of the equivalent model to the experiment is less than 6.75%, and the correlation coefficient of the data is greater than 0.9976.

As shown, the piecewise equivalent mechanical model of Configuration 3 can effectively predict the experimental data under various SOCs.

Under the same compression direction, the mechanical properties of the battery will not change; the simulations of the flat plate, rigid rod, and hemispherical punch tests will be discussed in the following sections. Additionally, the experimental phenomena will be explained along with the simulation results to reveal the failure characteristics of the battery.

Results and Discussion

Simulation and Verification

According to Refs. [6, 8], the stress-strain constitutive properties of cylindrical lithium-ion batteries can be calculated by the average stress-strain method under flat plate compression. An example of a flat plate compression, the corresponding dimensions, and its meaning are shown in Figure 7a. During the calculation, we applied the following assumptions [8]:

Figure 7
figure7

Experimental and simulation settings: a Compression of battery under flat plates, b Flat plate test, c Rigid rod test, d Hemispherical punch test, e Stress-strain constitutive properties under multi-SOC

  • During the compression process, the cylindrical lithium-ion batteries and its contact surfaces remained flat.

  • The total length of the cells remained unchanged during compression.

Furthermore, Ref. [6] summarized that the average stress-strain of the batteries can be expressed by Eqs. (18)‒(20):

$$b = \frac{\uppi}{4}x,$$
(18)
$$\sigma_{av} = \frac{f(x)}{2bL},$$
(19)
$$\varepsilon_{av} = \frac{x}{2R},$$
(20)

where \(\sigma_{av}\) is the average stress, \(\varepsilon_{av}\) the average strain, \(b\)the width of the compression plane, and \(L\) the effective compression length of the battery, where L = 58 mm when the positive electrode of the battery was removed. We can use part of the battery length rather than the entire length. Wierzbicki et al. concluded that the contributions from the shell casing and end-caps to resist deformation could be neglected, compared with the jellyroll [6, 9]. R is the radius before the battery was compressed, the measured value of which was R = 8.8 mm.

In the simulation experiments, the thermal softening effect on the battery was not considered in the mechanical model because the compression duration was short [14, 27, 28].

The crushable-foam material model is the most frequently used model in battery modeling [6, 9, 14, 19]. We adopted the typical self-similar yield surface model presented by Deshpande et al. [29] to predict the stress–strain relationship. The yield function is given in Eq. (21), where \(\mathop A\limits^{ \wedge }\) is the equivalent stress, α the shape of the yield surface, σe the von Mises effective stress calculated by Eq. (23), σm the mean stress following Eq. (24), and Y the uniaxial yield strength in compression, also known as the tensile cutoff value in simulations. In the simulation, using Eqs. (21)‒(24), the failure elements were shown to be under mechanical abuse; therefore, we can acquire the damaged structure.

$$\varLambda \,{ = }\,\hat{A} - Y \le 0,$$
(21)
$$\hat{A}^{2} = \frac{1}{{[1 + (\alpha /3)^{2} ]}}(\sigma_{e}^{2} + \alpha^{2} \sigma_{m}^{2} ),$$
(22)
$$\sigma_{e} = \sqrt {\frac{3}{2}\sigma^{\prime}_{ij} \sigma^{\prime}_{ij} } ,$$
(23)
$$\sigma_{m} = \frac{{\sigma_{ii} }}{3}.$$
(24)

The material model requires two key inputs: stress-body strain datasets and tensile stress cutoff value (TSC). The real stress-strain value shown in Figure 7e can be used as the stress-body strain, and the TSC is 10 MPa. The simulation elements are shown in Figure 7b‒d. In LS-Dyna, the properties are solid and the material model is crushable-foam for jellyroll. The properties and material for the flat plate are solid and rigid, while those for the rigid rod and hemispherical punch are shell and rigid. The jellyroll was divided with a mesh size of 1 mm and 46200 elements. If the simulation velocity is 0.5 mm/min, then the compression speed will yield an unacceptable calculation time. Meanwhile, the high compression speed can be regarded as a quasi-static state, in which the kinetic energy of the punch in the simulation can be ignored [17]. Hence, to reduce the calculation time, 100 mm/s was set as the compression speed. After the simulation, it was discovered that the actual kinetic energy of the punch affected the total energy insignificantly, i.e., less than 1%; therefore, the high compression speed could be used to simulate the quasi-static process.

Combined with Eqs. (18)‒(20), the stress-strain for cylindrical lithium-ion batteries is shown in Eq. (26):

$$\sigma_{av} = \frac{f(x)}{2bL} = \frac{f(x)}{{\pi RL \cdot \varepsilon_{av} }},$$
(25)
$$\sigma_{av} (\varepsilon_{av} ) = \left\{ {\begin{array}{ll} {k_{av} \varepsilon_{av} , \qquad \qquad\qquad 0 \le \varepsilon_{av} \le \varepsilon_{\lim it}, } \\ {\frac{{D_{1} D_{2} \cdot 2R}}{{\left( {D_{2} e^{{ - \frac{k}{{D_{1} }}\frac{{2R\varepsilon_{av} }}{v}}} + D_{1} } \right) \cdot \pi RL}}, \quad \varepsilon_{\lim it} < \varepsilon_{av} ,} \\ \end{array} } \right.$$
(26)

where \(k_{av}\) is the stress-strain slope in the linear section, and \(\varepsilon_{\lim it}\) the critical strain at the turning point between the linear section and the Configuration 3 equivalent model.

Using the obtained stress-strain data shown in Figure 7e, simulation experiments were performed combined with Hyperworks and LS-Dyna. The material parameters of the jellyroll are shown in Table 7, and the simulation results are shown in Figure 8.

Table 7 Material parameter of jellyroll
Figure 8
figure8

Comparison of experimental and simulation results: ad Flat plates test under SOC = 0, 0.4, 0.5, and 0.8, e Rigid rod test under SOC = 0, f Hemispherical punch test under SOC = 0.4

As shown in Figure 8a‒d, the constitutive parameters of the jellyroll obtained by the modified equivalent mechanical model can predict the battery properties well, the simulation effect is better than that of the cubic fitting equation, and the simulation effect of the correlation coefficient R2 is larger than 0.9940.

In addition to the flat plate tests, the rigid rod and hemispherical punch tests are shown in Figure 8e and f. The equivalent mechanical model can reflect the actual situation under different loading conditions, the correlation coefficient R2 is larger than 0.9980, and for the mechanical failure of the battery, the simulation failure displacement can predict the actual failure displacement well. Failure analysis will be introduced in the following section.

In Figure 8b‒d, the simulation results of medium and high SOCs indicate certain errors in the linear part compared with the experiment. This is primarily because the Young’s modulus of the battery is no longer maintained as a constant value, while the value of 1.5 GPa under SOC = 0 is directly used to simplify the simulation process. Hence, the effect of SOC on material constants should be considered in the future to obtain more accurate mechanical properties of the battery.

The simulation results show that the equivalent mechanical model can obtain accurate constitutive parameters, which is beneficial to the development of the simulation and the analysis of battery failure.

Failure Analysis under Mechanical Abuse Condition

During the experiment, the voltage and temperature were measured synchronously and the failure process was recorded. The failure results of the experiment and simulation are shown in Figure 9.

Figure 9
figure9

Stress cloud, temperature, and voltage: a Stress cloud under rigid rod test by simulation, b Stress cloud under hemispherical punch test by simulation, a1 Temperature at the start of thermal runaway under rigid rod test, a2 The highest temperature under rigid rod test, b1 Temperature at the start of thermal runaway under hemispherical punch test, b2 The highest temperature under hemispherical punch test, c Temperature under rigid rod test, d Temperature under hemispherical punch test, e Mechanical and electrical experiments, simulation results of rigid rod test under SOC = 0.6, f Local magnification of Figure 8e

As shown in Figure 9a and b, as the load increased, breaks occurred inside the battery. Under the rigid rod test, the break occurred at the core and bottom of the battery. Under the hemispherical punch test, the break occurred at the core and top of the battery. Figure 9a1 to b2 verify the rationality of the simulation. As shown in Figure 9a1, when the thermal runaway was triggered, the high-temperature point P0 was located at the bottom of the battery. However, the high-temperature point was not observed in the middle of the battery, which exhibited low thermal conductivity in the radial direction. At this time, we removed the punch and the thermal runaway was spread out; after 159.5 s, the highest temperature of 34.94 °C was reached. Under the hemispherical punch test, similar conclusions were obtained; the high-temperature point P0 was located at the top of the battery, consistent with the simulations. After 143.2 s, the battery reached the highest temperature of 147.7 °C.

As shown in Figure 9e and f, under the rigid rod test at SOC = 0.6, when the displacement was approximately 4 mm, the main role of the external load was to squeeze the gap between the battery components such the growth of force was almost linear. During this period, the component structures of the jellyroll-like separator, anode, and cathode have not been destroyed; therefore, the voltage maintained at 3.8 V. Subsequently, the shape of the mechanical experiment curve changed significantly. The curve no longer grew linearly but increased nonlinearly.

When reaching 7.3 mm, the voltage dropped slighted to 3.6 V at point A, which we call a soft short-circuit. Meanwhile, as shown in the black curve, during the mechanical experiment, mechanical failure point B occurred at the same displacement as point A. The external force resulted in the damage of the battery structure and changed the electrical characteristics of the battery. This proved the possibility of predicting the failure of the battery by mechanical characteristics.

The soft short-circuit required 19.6 s to reach 3.6 V; however, the voltage decreased to 0 V only in 1.65 s with further compression. By now, the battery has been destroyed completely, and a hard-short circuit occurred.

As shown in Figure 9f, the failure displacement of the battery characterized by electrical results is 7.5 mm, while the simulation failure displacement is 7.65 mm, and the error is only 0.15 mm. This shows that the equivalent mechanical model can predict the failure displacement of the battery well at the simulation level and proves the practicability of the equivalent mechanical model.

In Table 8, the failure displacement by simulation and experiment under different operating conditions are summarized, from which we discovered that the equivalent mechanical model combined with the crushable-foam material model can effectively predict the failure of the battery under mechanical abuse conditions, and the prediction error is less than 11%.

Table 8 Failure displacement by experiment and simulation and corresponding relative error

From the experiment, we discovered that the displacement of the change point of the mechanical properties is almost always preceded by the displacement of the change point of the electrical and thermal properties. This suggests that the failure warning by voltage and temperature may lag because the battery energy cannot change immediately when the high capacity battery is subjected to mechanical abuse. Therefore, the detection of battery penetration displacement can be a failure warning mechanism.

Conclusion

Data analysis indicated that the magnitude-phase-angle characteristics of a battery under mechanical abuse in the frequency domain were similar to those of a spring-damping parallel unit. Hence, we proposed an equivalent mechanical model where a spring-damping parallel unit was connected to a damping unit in series with equivalent physical meaning. The modified equivalent mechanical model could reflect the mechanism of the battery under mechanical abuse, the failure occurring at the core and bottom of the battery under a rigid rod test, and the failure occurring at the core and top of the battery under a hemispherical punch test, which were consistent with the experiment.

Through experiments and simulations, we discovered that a certain lag may have occurred in judging the failure of the batteries from in terms of voltage and temperature, i.e., the structure was not heavily damaged, while the internal electrochemical reaction accelerated, and a soft short-circuit occurred. This study suggested that for high-capacity batteries, a lag might have occurred in predicting battery failure merely from electric and temperature. Therefore, future research on failure prediction should focus on the mechanical characteristics.

In summary, the modified equivalent mechanical model provided more accurate constitutive parameters in a simple manner, recognized parameters easily, and presented a reference method for battery modeling and failure analysis. In the future, the model can be used in safety warning devices based on mechanical penetration.
