Flow Control for a Two-Stage Proportional Valve with Hydraulic Position Feedback

Abstract

The current research mainly focuses on the flow control for the two-stage proportional valve with hydraulic position feedback which is named as Valvistor valve. Essentially, the Valvistor valve is a proportional throttle valve and the flow fluctuates with the change of load pressure. The flow fluctuation severely restricts the application of the Valvistor valve. In this paper, a novel flow control method the Valvistor valve is provided to suppress the flow fluctuation and develop a high performance proportional flow valve. The mathematical model of this valve is established and linearized. Fuzzy proportional-integral-derivative (PID) controller is adopted in the closed-loop flow control system. The feedback is obtained by the flow inference with back-propagation neural network (BPNN) based on the spool displacement in the pilot stage and the pressure differential across the main orifice. The results show that inference with BPNN can obtain the flow data fast and accurately. With the flow control method, the flow can keep at the set point when the pressure differential across the main orifice changes. The flow control method is effective and the Valvistor valve changes from proportional throttle valve to proportional flow valve. For the developed proportional flow valve, the settling time of the flow is very short when the load pressure changes abruptly. The performances of hysteresis, linearity and bandwidth are in a high range. The linear mathematical model can be verified and the assumptions in the system modeling is reasonable.

Introduction

Proportional valves are widely used in hydraulic systems of various machines and devices. Their main task is to control the motion of hydraulic actuators. Single stage proportional valves can only be used in the small flow conditions owing to the performance limitation of electromagnet, while two-stage proportional valves can be used in the large flow conditions [1, 2]. In the two-stage proportional valves, the feedback types for proportional control include electric position feedback, force position feedback and hydraulic position feedback [3,4,5]. The two-stage proportional valve with hydraulic position feedback was originally developed by Andersson. In this valve, a very small pilot flow is used to actuate the large main flow. The main flow is an amplification of the pilot flow. The behavior of the valve is similar to an electronic transistor, hence this valve is named as Valvistor valve [6, 7]. Because of the superiorities of low production costs, simple construction and strong reliability, this valve shows a broad application prospect. In recent years, the valves that use the Valvistor principle have been produced by the Eaton Corporation in the United States, a world famous hydraulic component manufacturer.

Although the Valvistor valve is a popular industrial product, it has an inherent defect. It is a proportional throttle valve and the spool displacement is the controlled object [8]. In addition to the input voltage, the flow is also affected by the change of load pressure [9, 10]. Thus, it can only be applied in the conditions where the requirement for the accuracy of flow is low or the load pressure is constant. However, in many industrial applications, the velocity of hydraulic actuators must be precisely controlled when the load pressure changes [11,12,13]. This need to make the flow unaffected by the change of load pressure. As a result, the application of the Valvistor valve is limited to a rather narrow range due to this inherent disadvantage.

To solve this problem, researchers put forward some different methods based on the characteristic of the Valvistor valve that the main flow is an amplification of the pilot flow, and attempt to obtain the pilot flow which is not affected by the change of the load pressure. Eriksson arranged a mechanical pressure compensator between the pilot stage and the main stage to maintain a constant pressure differential across the pilot stage and the pilot flow is independent to the load pressure [14]. Hao et al. [15] used a hydraulic pump with small displacement to regulate the pilot flow by changing the pump speed, then the impact of pressure differential change on the flow can be counteracted. Huang et al. [16] presented a digital pressure compensator and the spool displacement of the pilot stage is adjusted based on the pressure differential across the pilot stage, so that the pilot flow can be precisely controlled. The common characteristic of these methods is regarding the pilot flow as the controlled object and the flow is under indirect control. However, the amplification factor between the main flow and the pilot flow is so uncertain that it cannot even be accurately calculated or predicted, because it is influenced by many disturbance factors, such as pressure fluctuation, machining error, flow force [17,18,19]. Consequently, these methods are not very effective and the flow accuracy is still poor.

It is certain that regarding the flow as the controlled object and controlling it directly can improve the flow accuracy [20]. However, this will bring an issue that how to measure the flow through this valve fast and accurately and use it as the feed-back. Usually, there are two methods for metering the flow through a valve [21]. The first method is metering the flow with flow meter directly. This method is accurate, but greatly lagging because the response of flow meter is slow [22]. The second method is metering the pressure differential and spool displacement, then the flow can be computed with the flow equation. This method is fast enough, but rather imprecise due to the indeterminacy of the discharge coefficient [23]. Therefore, these two methods cannot be applied to this case. Measuring the flow through this valve fast and accurately become the bottleneck of direct control for the flow.

Artificial neural network is an information processing system simulating the biological neural network of the brain by interconnecting artificial neurons and has been widely used in practice. Back-propagation neural network (BPNN) is a representative learning model for the artificial neural network [24]. Accurate inference with BPNN have been frequently concerned by researchers [25]. Many research achievements have been applied to many industry fields [26,27,28]. This brings a good inspiration for measuring the flow fast and accurately. The flow through a hydraulic valve can be precisely inferred according to the pressure differential and spool displacement. This nicely copes with the problem encountered in flow control for this valve that is measuring the flow fast and accurately.

Proportional-integral-derivative (PID) controller is a commonly used control loop feedback mechanism which continuously calculates the error between the desired value and the measured value, and conducts the correction based on proportional, integral, and derivative terms [29]. Fuzzy PID controller is a type of PID controller, in which the PID coefficients can be tuned automatically based on the fuzzy logic [30]. The fuzzy PID controller provide more accurate results in non-linear situations compared with the standard PID controller and has been successfully applied in the flow control [31,32,33].

Motivated by the above observations, the present study mainly concentrates on the flow control for the two-stage proportional valve with hydraulic position feedback which is named as Valvistor valve. In this paper, a novel flow control method for the Valvistor valve is provided. Fuzzy PID controller is adopt in the closed-loop flow control system. The feedback is obtained by the flow inference with BPNN based on the spool displacement in the pilot stage and the pressure differential across the main orifice. By this method, the flow is precisely controlled and unaffected by the change of load pressure. The aim is to develop a high performance two-stage proportional flow valve based on the Valvistor valve.

System Modelling

The schematic diagram of the Valvistor valve is shown in Figure 1. The Valvistor valve can be categorized into two-stage proportional valve. The poppet valve serves as the main stage and the solenoid operated proportional spool valve serves as the pilot stage. The channel inside the poppet and the slot on the side surface of the poppet close the hydraulic position feedback loop which is used to control the poppet displacement. The poppet displacement is proportional to the orifice area formed by the slot and valve body. There is an underlap in the slot, so that the oil can flow into the upper cavity of the main stage when the main orifice closes.

Figure 1
figure1

Schematic diagram of the Valvistor valve: a No voltage signal input, and b voltage signal input

As shown in Figure 1a, when there is no signal input in the proportional solenoid and the pilot orifice closes, the upper cavity of the main stage is only connected to the inlet. The pressure in the upper cavity of the main stage pc is equal to the inlet pressure pa when the oil flows into the upper cavity through the underlap in the slot xo. The force acting on the top of the poppet is larger than the force acting on the bottom of the poppet, because the inlet pressure pa is larger than the outlet pressure pb. Thus the main orifice closes.

As shown in Figure 1b, when the proportional solenoid receives voltage signal u and opens the pilot orifice, the upper cavity of the main stage is connected to both the inlet and the outlet. The oil flow through the pilot stage leads to a pressure differential across the main stage and consequently causes the poppet to move. When under steady state condition, the flow equilibrium generates slot orifice area. The force equilibrium generates the pressure in the upper cavity of the main stage pc. The orifice area formed by the slot and valve body which is proportional to the poppet displacement xm is controlled by the pilot orifice. As a result, the main flow qm is controlled by the pilot orifice. In addition, the pilot flow qp converges with the main flow qm so as to increase the efficiency of hydraulic system.

To simplify the analysis, there are some reasonable assumptions in the system modeling. The assumptions are summarized as follows. (1) The flow force is neglected because researchers have confirmed that the effect of flow force on the Valvistor valve performance is rather weak. In the analysis related to the Valvistor valve, researchers have given convincing results with neglected flow force [6, 16]. (2) The solenoid dynamics is ignored as it is fast enough. Researchers have established mathematical model of the Valvistor valve with ignored solenoid dynamics and the results are validated by experiments [17]. (3) The pilot stage dynamics is ignored because the spool mass is rather small and spring stiffness is relatively high [6, 17]. (4) Flow in this valve is assumed to be turbulent because it has been certified that turbulent flow occurs at high Reynolds numbers in the poppet valve and spool valve [16]. (5) The effect of temperature on fluid properties is neglected and liquid properties are constant [15]. (6) The oil in this valve is incompressible and the leakage of this valve is omitted [14].

In the pilot stage, the force balance on the spool can be expressed as

$$k_{{\text{e}}} u = k_{{\text{p}}} x_{{\text{p}}} ,$$
(1)

where ke denotes the gain of the proportional solenoid, u denotes the input voltage, kp denotes the proportion coefficient, and xp denotes the spool displacement in the pilot stage. When the input signal opens the pilot orifice, the fluid is allowed to flow through the pilot stage and the flow can be calculated as

$$q_{{\text{p}}} = C_{{{\text{dp}}}} \omega_{{\text{p}}} x_{{\text{p}}} \sqrt {\frac{{2\left( {p_{{\text{c}}} - p_{{\text{b}}} } \right)}}{\rho }} ,$$
(2)

where qp is the pilot flow, Cdp is the discharge coefficient of the pilot orifice, ωp is the area gradient of the pilot orifice, xp is the spool displacement in the pilot stage, pc is the pressure in the upper cavity of the main stage, pb is the outlet pressure, and ρ is the oil density. Whenever the pilot orifice opens, the fluid is allowed to flow through the slot on the side surface of the poppet. According to the flow equilibrium, the pilot flow can also be expressed as

$$q_{{\text{p}}} = q_{{\text{s}}} = C_{{{\text{ds}}}} \omega_{{\text{s}}} \left( {x_{{\text{o}}} + x_{{\text{m}}} } \right)\sqrt {\frac{{2\left( {p_{{\text{a}}} - p_{{\text{c}}} } \right)}}{\rho }} ,$$
(3)

where qs is flow through the slot orifice, Cds is the discharge coefficient of the slot orifice, ωs is the area gradient of the slot orifice, xo is the underlap of the slot orifice, xm is the poppet displacement in the main stage, and pa is the inlet pressure.

In the main stage, the force equilibrium on the poppet can be described as

$$A_{{\text{a}}} p_{{\text{a}}} + \left( {A_{{\text{c}}} - A_{{\text{a}}} } \right)p_{{\text{b}}} - A_{{\text{c}}} p_{{\text{c}}} = m_{{\text{m}}} \ddot{x}_{{\text{m}}} + B_{{\text{m}}} \dot{x}_{{\text{m}}} + k_{{\text{m}}} x_{{\text{m}}} ,$$
(4)

where Aa denotes the area at the top of the poppet, Ac denotes the area at the bottom of the poppet, mm denotes the poppet mass, Bm denotes the viscous damping coefficient in the main stage, and km denotes main spring stiffness. According to the standard orifice equation, the flow through the main can be expressed as

$$q_{{\text{m}}} = C_{{{\text{dm}}}} \omega_{{\text{m}}} x_{{\text{m}}} \sqrt {\frac{{2\left( {p_{{\text{a}}} - p_{{\text{b}}} } \right)}}{\rho }} ,$$
(5)

where qm is the main flow, Cdm is the discharge coefficient of the main orifice, and ωm is the area gradient of the main orifice. Based on the main stage geometry, the area gradient of the main orifice can be calculated as

$$\omega_{{\text{m}}} = {\uppi }d_{{\text{m}}} \sin \frac{\alpha }{2}\left( {1 - \frac{{x_{{\text{m}}} }}{{2d_{{\text{m}}} }}\sin \alpha } \right),$$
(6)

where dm denotes the diameter of the main stage seat and α denotes the cone angle of the poppet.

In the Valvistor valve, the pilot flow converges with the main flow at the outlet. Thus, the total flow through the Valvistor valve can be calculated as

$$q_{{\text{t}}} = q_{{\text{p}}} + q_{{\text{m}}} ,$$
(7)

where qt is the total flow through the Valvistor valve.

Employing Eqs. (1)‒(7), the system model of the Valvistor valve can be written as

$$\left[ {\begin{array}{*{20}c} 0 \\ 0 \\ {\dot{x}_{{\text{m}}} } \\ {\ddot{x}_{{\text{m}}} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} { - k_{{\text{p}}} x_{{\text{p}}} } \\ {C_{{{\text{ds}}}} \omega_{{\text{s}}} \left( {x_{{\text{o}}} + x_{{\text{m}}} } \right)\sqrt {\frac{{2\left( {p_{{\text{a}}} - p_{{\text{c}}} } \right)}}{\rho }} - C_{{{\text{dp}}}} \omega_{{\text{p}}} x_{{\text{p}}} \sqrt {\frac{{2\left( {p_{{\text{c}}} - p_{{\text{b}}} } \right)}}{\rho }} } \\ {\dot{x}_{{\text{m}}} } \\ {\frac{{A_{{\text{a}}} p_{{\text{a}}} + \left( {A_{{\text{c}}} - A_{{\text{a}}} } \right)p_{{\text{b}}} - A_{{\text{c}}} p_{{\text{c}}} }}{{m_{{\text{m}}} }} - \frac{{B_{{\text{m}}} }}{{m_{{\text{m}}} }}\dot{x}_{{\text{m}}} - \frac{{k_{{\text{m}}} }}{{m_{{\text{m}}} }}x_{{\text{m}}} } \\ \end{array} } \right] + \left[ {\begin{array}{*{20}c} {k_{{\text{e}}} } \\ 0 \\ 0 \\ 0 \\ \end{array} } \right]u,$$
(8)
$$q_{{\text{t}}} = C_{{{\text{dp}}}} \omega_{{\text{p}}} x_{{\text{p}}} \sqrt {\frac{{2\left( {p_{{\text{c}}} - p_{{\text{b}}} } \right)}}{\rho }} + C_{{{\text{dm}}}} \omega_{{\text{m}}} x_{{\text{m}}} \sqrt {\frac{{2\left( {p_{{\text{a}}} - p_{{\text{b}}} } \right)}}{\rho }} ,$$
(9)

To linearize the system model, define

$$x_{{\text{p}}} = x_{{{\text{p0}}}} + \Delta x_{{\text{p}}} ,$$
(10)
$$p_{{\text{c}}} = p_{{{\text{c0}}}} + \Delta p_{{\text{c}}} ,$$
(11)
$$x_{{\text{m}}} = x_{{{\text{m0}}}} + \Delta x_{{\text{m}}} ,$$
(12)
$$\dot{x}_{{\text{m}}} = \dot{x}_{{{\text{m0}}}} + \Delta \dot{x}_{{\text{m}}} ,$$
(13)
$$q_{{\text{t}}} = q_{{{\text{t0}}}} + \Delta q_{{\text{t}}} ,$$
(14)

Then the linearized model can be derived as

$$\left[ {\begin{array}{*{20}c} 0 \\ 0 \\ {\Delta \dot{x}_{{\text{m}}} } \\ {\Delta \ddot{x}_{{\text{m}}} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} { - 1} & 0 & 0 & 0 \\ {c_{1} } & { - 1} & {c_{2} } & 0 \\ 0 & 0 & 0 & 1 \\ 0 & { - \frac{{A_{{\text{c}}} }}{{m_{{\text{m}}} }}} & { - \frac{{k_{{\text{m}}} }}{{m_{{\text{m}}} }}} & { - \frac{{B_{{\text{m}}} }}{{m_{{\text{m}}} }}} \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} {\Delta x_{{\text{p}}} } \\ {\Delta p_{{\text{c}}} } \\ {\Delta x_{{\text{m}}} } \\ {\Delta \dot{x}_{{\text{m}}} } \\ \end{array} } \right] + \left[ {\begin{array}{*{20}c} {\frac{{k_{{\text{e}}} }}{{k_{{\text{p}}} }}} \\ 0 \\ 0 \\ 0 \\ \end{array} } \right]\Delta u,$$
(15)
$$\Delta q_{{\text{t}}} = c_{3} \Delta x_{{\text{p}}} + c_{4} \Delta p_{{\text{c}}} + c_{5} \Delta x_{{\text{m}}} ,$$
(16)

where the coefficients are

$$c_{{1}} = \frac{{2C_{{{\text{dm}}}}^{2} \omega_{{\text{m}}}^{2} \left( {p_{{\text{a}}} - p_{{{\text{c0}}}} } \right)x_{{{\text{m0}}}} }}{{C_{{{\text{dp}}}}^{2} \omega_{{\text{p}}}^{2} x_{{{\text{p0}}}}^{2} + C_{{{\text{dm}}}}^{2} \omega_{{\text{m}}}^{2} x_{{{\text{m0}}}}^{2} }} = \frac{{\left( {p_{{\text{a}}} - p_{{{\text{c0}}}} } \right)\left( {p_{{{\text{c0}}}} - p_{{\text{b}}} } \right)}}{{x_{{{\text{m0}}}} \left( {p_{{\text{a}}} - p_{{\text{b}}} } \right)}},$$
(17)
$$c_{{2}} = - \frac{{2C_{{{\text{dp}}}}^{2} \omega_{{\text{p}}}^{2} \left( {p_{{{\text{c0}}}} - p_{{\text{b}}} } \right)x_{{{\text{p0}}}} }}{{C_{{{\text{dp}}}}^{2} \omega_{{\text{p}}}^{2} x_{{{\text{p0}}}}^{2} + C_{{{\text{dm}}}}^{2} \omega_{{\text{m}}}^{2} x_{{{\text{m0}}}}^{2} }} = - \frac{{\left( {p_{{\text{a}}} - p_{{{\text{c0}}}} } \right)\left( {p_{{{\text{c0}}}} - p_{{\text{b}}} } \right)}}{{x_{{{\text{p0}}}} \left( {p_{{\text{a}}} - p_{{\text{b}}} } \right)}},$$
(18)
$$c_{{3}} = C_{{{\text{dp}}}} \omega_{{\text{p}}} \sqrt {\frac{{2\left( {p_{{{\text{c0}}}} - p_{{\text{b}}} } \right)}}{\rho }} ,$$
(19)
$$c_{{4}} = \frac{{C_{{{\text{dp}}}} \omega_{{\text{p}}} x_{{{\text{p0}}}} }}{{\sqrt {2\rho \left( {p_{{{\text{c0}}}} - p_{{\text{b}}} } \right)} }},$$
(20)
$$c_{{5}} = C_{{{\text{dm}}}} \omega_{{\text{m}}} \sqrt {\frac{{2\left( {p_{{\text{a}}} - p_{{\text{b}}} } \right)}}{\rho }} ,$$
(21)

Employing the Laplace transform, Eqs. (15) and (16) can be transformed as

$$k_{{\text{p}}} \Delta X_{{\text{p}}} \left( s \right) - k_{{\text{e}}} \Delta U\left( s \right) = 0,$$
(22)
$$c_{1} \Delta X_{{\text{p}}} \left( s \right) - \Delta P_{{\text{c}}} \left( s \right) + c_{2} \Delta X_{{\text{m}}} \left( s \right) = 0,$$
(23)
$$\Delta X_{{\text{m}}} \left( s \right)s^{2} + \frac{{B_{{\text{m}}} }}{{m_{{\text{m}}} }}\Delta X_{{\text{m}}} \left( s \right)s + \frac{{k_{{\text{m}}} }}{{m_{{\text{m}}} }}\Delta X_{{\text{m}}} \left( s \right) = - \frac{{A_{{\text{c}}} }}{{m_{{\text{m}}} }}\Delta P_{{\text{c}}} \left( s \right),$$
(24)
$$\Delta Q_{{\text{t}}} \left( s \right) = c_{3} \Delta X_{{\text{p}}} \left( s \right) + c_{4} \Delta P_{{\text{c}}} \left( s \right) + c_{5} \Delta X_{{\text{m}}} \left( s \right).$$
(25)

As shown in Figure 2, the system model of the Valvistor valve can be presented as a block diagram. The transfer function can be derived as

$$G_{{\text{v}}} \left( s \right) = \frac{{\Delta Q_{{\text{t}}} \left( s \right)}}{\Delta U\left( s \right)} = \frac{{k_{{\text{e}}} }}{{k_{{\text{p}}} }}\frac{{\left( {c_{3} + c_{1} c_{4} } \right)\left( {m_{{\text{m}}} s^{2} + B_{{\text{m}}} s + k_{{\text{m}}} } \right) + A_{{\text{c}}} \left( {c_{2} c_{3} - c_{1} c_{5} } \right)}}{{m_{{\text{m}}} s^{2} + B_{{\text{m}}} s + k_{{\text{m}}} + c_{2} A_{{\text{c}}} }}.$$
(26)
Figure 2
figure2

System model of the Valvistor valve

Flow Control Method

The flow control method for the Valvistor valve is shown in Figure 3. Fuzzy PID controller is adopt in the closed-loop flow control system. The feedback is obtained by the flow inference with BPNN based on the spool displacement in the pilot stage and the pressure differential in the main stage. By this method, the flow is precisely controlled and unaffected by the change of load pressure. The transfer function is expressed as

$$G\left( s \right) = \frac{{Q_{{\text{t}}} \left( s \right)}}{{Q_{{\text{r}}} \left( s \right)}} = \frac{{G_{{\text{c}}} \left( s \right)G_{{\text{v}}} \left( s \right)}}{{1 + G_{{\text{c}}} \left( s \right)G_{{\text{v}}} \left( s \right)}}.$$
(27)
Figure 3
figure3

Flow control method for the Valvistor valve

Establishment of BPNN Model

The BPNN with three layers including an input layer, a hidden layer and an output layer is adopted to infer the flow. Based on the pressure differential across the main orifice Δpm and the poppet displacement in the main stage xm, the flow through the Valvistor valve used as the feedback qf can be predicted with the BPNN. As shown in Figure 4, there are two neurons labelled as Δpm and xm in the input layer and one neuron labelled as qf in the output layer.

Figure 4
figure4

Schematic of the BPNN

In the BPNN model, the error function for the output neuron is defined as

$$E = \frac{1}{2}\left( {p_{1} - z_{1} } \right)^{2} ,$$
(28)

where E is the error function, p1 is the inferred value of the output neuron, and z1 is the actual value of the output neuron. The output of the hidden layer can be calculated as

$$y_{j} = f_{{\text{y}}} \left( {\sum\limits_{i = 1}^{2} {x_{i} w_{ij} } + b_{j} } \right),$$
(29)

The output of the output layer can be expressed as

$${z}_{1} = f_{{\text{z}}} \left( {\sum\limits_{j = 1}^{n} {y_{j} w_{j1} } + c_{1} } \right),$$
(30)

where fy is the transfer function between the input layer and hidden layer, fz is the transfer function between the hidden layer and output layer, n is the number of neurons in the hidden layer, wij is the weight between the input layer and hidden layer, bj is the threshold of the hidden layer, wj1 is the weight between the hidden layer and output layer, c1 is the threshold of the output layer.

Design of Fuzzy PID Controller

The input voltage u can be regulated by the Fuzzy PID controller based on the flow error e. For the fuzzy PID controller, the input is the flow error e and the output is the voltage signal u. The schematic diagram of the fuzzy PID controller is shown in Figure 5. The fuzzy PID controller is composed by a fuzzy logic controller and a PID controller. The mathematical expression of the fuzzy PID controller can be written as

$$u\left( t \right) = K_{{\text{P}}} e\left( t \right) + K_{{\text{I}}} \int_{0}^{t} {e\left( t \right){\text{d}}t + } K_{{\text{D}}} \frac{{{\text{d}}e\left( t \right)}}{{{\text{d}}t}},$$
(31)

where e is the flow error, KP is the proportion coefficient, KI is the integral coefficient, and KD is the derivative coefficient. Employing the Laplace transform, Eq. (31) can be transformed as

$$U\left( s \right) = K_{{\text{P}}} E\left( s \right) + \frac{{K_{{\text{I}}} }}{s}E\left( s \right) + K_{{\text{D}}} sE\left( s \right),$$
(32)
Figure 5
figure5

Schematic diagram of the fuzzy PID controller

Consequently, the transfer function of the fuzzy PID controller can be written as

$$G_{{\text{c}}} \left( s \right) = \frac{U\left( s \right)}{{E\left( s \right)}} = \frac{{K_{{\text{D}}} s^{2} + K_{{\text{P}}} s + K_{{\text{I}}} }}{s}.$$
(33)

For the fuzzy logic controller, the inputs are the flow error e and its change rate ec, and the outputs are the increments of PID coefficients ΔKP, ΔKI and ΔKD. Then, the PID coefficients KP, KI and KD can be expressed as

$$K_{{\text{P}}} = K_{{{\text{P0}}}} + \Delta K_{{\text{P}}} ,$$
(34)
$$K_{{\text{I}}} = K_{{{\text{I0}}}} + \Delta K_{{\text{I}}} ,$$
(35)
$$K_{{\text{D}}} = K_{{{\text{D0}}}} + \Delta K_{{\text{D}}} .$$
(36)

The fuzzy subset of the fuzzy linguistic variables e, ec, ΔKP, ΔKI and ΔKD can be expressed as {NB, NM, NS, ZO, PS, PM, PB}, where NB denotes negative big, NM denotes negative medium, NS denotes negative small, ZO denotes zero, PS denotes positive small, PM denotes positive medium and PB denotes positive big. In consideration of the control system of the Valvistor valve, the discourse universe of the fuzzy linguistic variables is selected as {−6, −5, −4, −3, −2, −1, 0, 1, 2, 3, 4, 5, 6}. Gaussian function is employed as the membership function. By means of the weighted average method, the fuzzy reasoning is solved with simple calculation and the output is smooth.

Experimental Apparatus

As shown in Figure 6, the tested valve is fixed on the test bench. In order to measure the pressure differential across main orifice accurately, the pressure sensors are mounted on the main stage and pressure in the cavity is directly measured. Gear flow meters are applied to measure the flow through the tested valve and the pilot flow. The pilot stage is a single stage proportional valve, in which a linear variable differential transformer (LVDT) and its monitoring pin are integrated. The spool displacement can be measured by the LVDT and the data can be collected via the monitoring pin. Signals are sampled by means of the National Instrument (NI) PXI controller. The specifications of experimental setup are shown in Table 1. The parameters of the tested valve are shown in Table 2.

Figure 6
figure6

Experimental system of the Valvistor valve: 1. Filter, 2. Variable pump, 3. Check valve, 4. Oil tank, 5. Relief valve, 6. Cooler, 7. Pressure sensor, 8. Displacement sensor, 9. Flow meter for pilot flow, 10. Flow meter for total flow, 11. Pilot valve, 12. Main valve

Table 1 Specifications of experimental setup
Table 2 Parameters of the tested valve

Results and Discussion

In order to collect the training data, the flow is measured at different pressure differentials across the main orifice and the spool displacements in the pilot stage. The training data set for the inference of the flow is shown in Table 3.

Table 3 Training data set for the inference of the flow through the Valvistor valve

To find the proper number of the neurons in the hidden layer and ensure that the inference is accurate, comparisons between the inferred data and the measured data are performed at different numbers of the neurons in the hidden layer. The numbers of the neurons in the hidden layer are 2, 5, 10 and 15. Two typical cases are used to carry out the test on the performance of the BPNN model. In case 1, the pressure differential across the main orifice Δpm is constant at 2 MPa and the spool displacement in the pilot stage xp increases from 0.02 mm to 0.16 mm at increment of 0.02 mm. In case 2, the spool displacement in the pilot stage xp is constant at 0.06 mm and the pressure differential across the main orifice Δpm increases from 2 MPa to 16 MPa at increment of 2 MPa. When the comparisons between the inferred data and the measured data in the two cases are shown in Figures 7 and 8. The maximum errors between the inferred data and the measured data are listed in Table 4. Obviously, the change of the maximum error is very small as the number of the neurons in the hidden layer increases from 5 to 15. Therefore, the BPNN model with 5 neurons in the hidden layer is adequate in consideration of the inference accuracy and the computational effort.

Figure 7
figure7

Comparisons between the inferred data and the measured data in case 1

Figure 8
figure8

Comparisons between the inferred data and the measured data in case 2

Table 4 Maximum errors between the inferred data and the measured data

The conventional method for the feedback flow acquisition is metering the pressure differential and poppet displacement, then the flow can be computed with the flow equation. Comparisons between the inferred data and the computed data in the two typical cases are shown in Figures 9 and 10. The maximum error between the inferred data and the measured data is about 4.0% while the maximum error between the computed data and the measured data is about 11.4%. It can be found that compared to the conventional flow equation, the BPNN can inferred the flow more accurately.

Figure 9
figure9

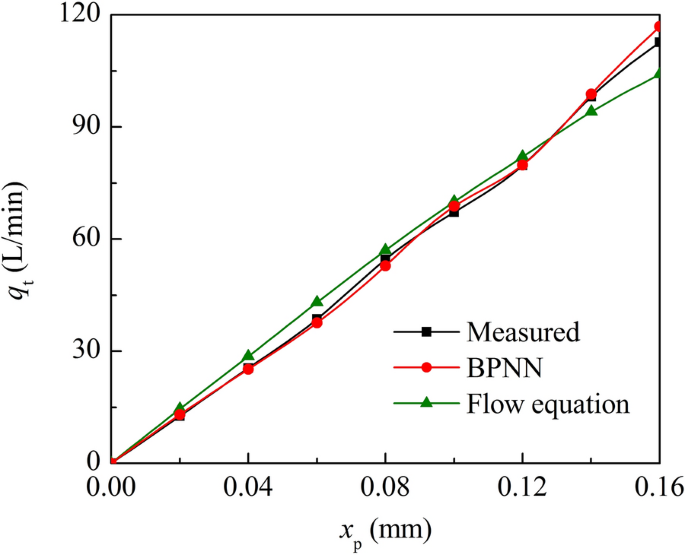

Comparisons between the inferred data and the computed data in case 1

Figure 10
figure10

Comparisons between the inferred data and the computed data in case 2

Without the flow control method, the spool displacement in the pilot stage is the controlled object. It can be seen from Figure 11 that when the pressure differential across the main orifice increases, the flow increase at a certain spool displacement in the pilot stage. Thus, without the flow control method, the Valvistor valve is a proportional throttle valve.

Figure 11
figure11

Flow without the flow control method

With the flow control method, the flow is the controlled object. As shown in Figure 12, when the pressure differential across the main orifice increases, the flow can keep at the set point. The maximum error between the experimental and setting values is 3.1%. The spool displacements in the pilot stage with the flow control method are shown in Figure 13. When the pressure differential across the main orifice increases, the spool displacements in the pilot stage decrease. It can be seen from Figures 11, 12, 13 that the flow control method is very effective, with which the Valvistor valve changes from proportional throttle valve to proportional flow valve.

Figure 12
figure12

Flow with the flow control method

Figure 13
figure13

Spool displacements in the pilot stage with the flow control method

In Figures 11, 12, 13, the maximum error between the experimental and simulation values is 4.6%. Thus, the linear mathematical model can be verified and the assumptions in the system modeling is reasonable.

The performances of the developed valve are tested. The flow is measured when the pressure differential across the main orifice abruptly changes between 2 MPa and 7 MPa. It can be seen from Figure 14 that the flow can maintain constant when the pressure differential across the main orifice abruptly changes. The flow is unaffected by the change of the load pressure. The overshoot is about 20 L/min and the settling time is about 0.5 s. The flow characteristic is measured when the input voltage circulate between 0 V and 8 V. It can be calculated from Figure 15 that the hysteresis of the developed valve is less than 4.6% and the nonlinearity of the flow is less than 5.3%. The frequency response of the Valvistor valve is measured when the frequency of the input voltage increases from 0.1 Hz to 100 Hz. It can be seen from Figure 16 that the bandwidth of the developed valve is about 18 Hz. Thus, with the flow control method, a high performance two-stage proportional flow valve based on the Valvistor valve is developed.

Figure 14
figure14

Flow through the developed valve at abrupt change of the load pressure

Figure 15
figure15

Flow characteristic of the developed valve

Figure 16
figure16

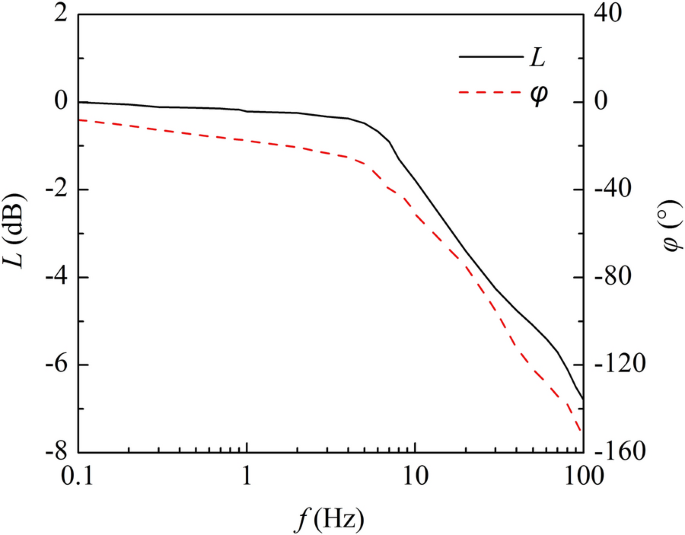

Frequency response of the developed valve

Conclusions

In this paper, a novel flow control method for a two-stage proportional valve with hydraulic position feedback which is named as Valvistor valve is provided to develop a high performance proportional flow valve. The mathematical model of this valve is established and linearized. Fuzzy PID controller is adopt in the closed-loop flow control system. The feed-back is obtained by the flow inference with BPNN based on the spool displacement in the pilot stage and the pressure differential across the main orifice.

  1. (1)

    With BPNN, the inferred data is very close to the measured data. Therefore, inference with BPNN can obtain the flow data fast and accurately.

  2. (2)

    With the flow control method, the flow can keep at the set point when the pressure differential across the main orifice changes. Therefore, the flow control method is effective and the Valvistor valve changes from proportional throttle valve to proportional flow valve.

  3. (3)

    For the developed proportional flow valve, the settling time of the flow is very short when the load pressure changes abruptly. Thus, the flow is unaffected by the change of the load pressure.

  4. (4)

    The performances of hysteresis, linearity and bandwidth are in a high range. Thus, with the flow control method, a high performance two-stage proportional flow valve based on the Valvistor valve is developed.

  5. (5)

    The simulation results are close to the test results. Therefore, the linear mathematical model can be verified and the assumptions in the system modeling is reasonable.
