A Review on Friction Stir Welding of Steels

Abstract

Friction Stir Welding (FSW) is the most promising solid-state metals joining method introduced in this era. Compared to the conventional fusion welding methods, this FSW can produce joints with higher mechanical and metallurgical properties. Formerly, FSW was adopted for low melting metals like aluminum alloys. In recent years it has made significant progress in friction stir welding of steels since unfavourable phase transformations occurred in welds due to the melting of the parent and filler metals in fusion welding can be eliminated. The main advantage of FSW over traditional fusion welding is the reduction in the heat-affected zone (HAZ), and the joints exhibit excellent mechanical and corrosion resistance properties. This article reviews the progress in the relevant issues such as the FSW tool materials and tool profiles for joining steels, microstructure and mechanical properties of steels joints, special problems in joining dissimilar steels. Moreover, in-situ heating sources was used to overcome the main limitations in FSW of hard metals and their alloys, i.e., tool damages and insufficient heat generation. Different in-situ heating sources like laser, induction heat, gas tungsten arc welding assisted FSW for various types of steels are introduced in this review. On the basis of the up-to-date status, some problems that need further investigation are put forward.

Introduction

Friction Stir Welding (FSW), as a solid-state welding process, can achieve the joining of metals below the melting point or in the plastic stage of the metals with the aid of a non-consumable tool [1]. Compared with the welds made by fusion welding processes, the friction stir welds have a more homogeneous grain structure and better mechanical properties like tensile strength, hardness, and toughness [2]. Friction stir welded specimens exhibit better corrosion resistance properties due to the homogeneous microstructure and narrow heat-affected zone. The feature of joining metals in the semisolids state helps this FSW method to join metals with different melting points like aluminium and copper. Nowadays, FSW has become one of the prevailing joining processes of aluminium alloys in the industry [35]. While considering hard metals like steel, FSW still does not accomplish the same feasibility in aluminium alloys [6, 7]. The limitations of friction stir welding on steels are as follows: (a) a very high durable tool is required for welding steels, (b) the temperature produced by the tool pin and shoulder will not be sufficient to plasticize the metals, (c) welding speed cannot be attained as good as on aluminium alloys due to the high hardness of steels, (d) tool damage rate is very high, and (e) high flow stress is maintained by the hot steels while conducting FSW process, and which causes high contact stress and severe tool degradations [8]. Tool material like commercial pure Tungsten (Cp- W) or Polycrystalline Cubic Boron Nitride (PCBN) tools can survive these problems. Still, it increases the welding cost by eight times or even more while comparing to fusion welding.

Although the FSW tools for steel are expensive, friction stir welding of steel has numerous advantages compared to conventional fusion welding methods. Some of them are as follows: (a) the heat-affected zone created by fusion welding is large, and this eventually decreases the strength and quality of the weld, (b) fusion welding requires a filler metal to join the base metals, where FSW does not require any filler metals at all, (c) to eliminate hydrogen embrittlement or porosity like defects, fusion welding requires shielding gas which will pollute the atmosphere highly, while FSW does not require any kind of shielding gases, (d) fusion welding arcs emit intense visible, ultraviolet, and infrared radiation which is very hazardous to the welder and nature, whereas FSW does not produce any harmful rays or FSW is a 100% eco-friendly joining process [911]. Moreover, fusion welding of martensitic steels is complicated, but for FSW, it is pretty easy.

To improve the welding efficiency and quality of steel, hybrid friction stir welding was invented. An additional heating source will combine with the conventional FSW for in-situ heating in hybrid friction stir welding. The best examples for such welding are laser-assisted FSW (LA-FSW) and induction assisted FSW (IA-FSW) [12, 13]. These methods help to in-situ heat the metals, and by this way, a higher welding speed will achieve; the softening of metal before plunging the tool helps reduce tool damage rates, and tools like high-speed steel tungsten carbide were capable of welding steels [14]. In these methods, the temperature requires to weld steel ranges from 500 °C to 1100 °C. The microstructure analysis of such joints proved that the specimen has a fine grain structure and better mechanical properties than fusion welding [15]. These researches show that FSW on steel became much cheaper and commercial, like FSW on aluminium alloys.

This article reviews the current research and advancements in friction stir welding of steels and determines all the constraints faced in this present scenario.

FSW Tools for Joining Steels

The tool materials widely used for FSW are high-speed steel (HSS). Soft metals like aluminium, copper and their alloys can often be welded by this kind of tool [1618]. For overcoming tool wear, process parameters optimization is mandatory [19]. In welding steels, HSS tools are incapable because they cannot produce the required temperature, withstand the elevated temperature of about 950 °C, and resist the abrasive wear [2022]. The tools for joining steels must tolerate all kinds of wear, have high strength and hardness, and have fracture toughness. Considering all these properties, the tool materials used nowadays are Commercially pure Tungsten (Cp- W) and Poly Crystalline Cubic Boron Nitride (PCBN).

Refractory Metals as FSW Tools

Refractory metals are the kind of metals that exhibit high melting points and wear resistance. The refractory metal tool cannot be fabricated using conventional metal-based forming techniques due to its high melting point [23]. The method adopted for making refractory metal tools is metal injection moulding. Due to this tedious processing, the metal cost will be much higher compared to HSS tools. Some of the essential refractory metal FSW tools used nowadays are silicon nitride, tungsten carbide, tungsten lanthanide, and tungsten carbide cobalt alloy [24, 25]. Figure 1 shows the properties of refractory metals.

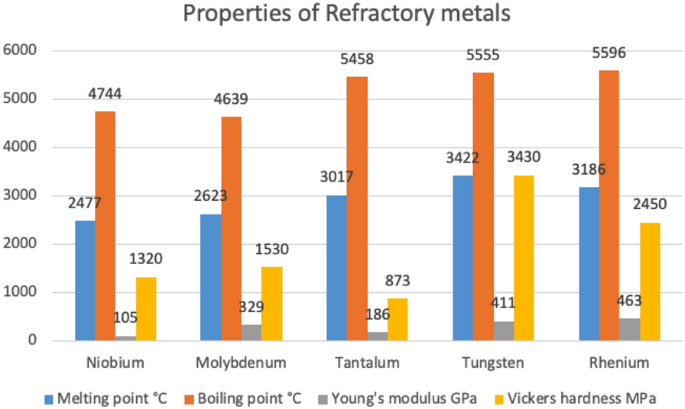

Figure 1
figure 1

Properties of refractory metals

In the initial stages of welding steel through FSW, molybdenum and tungsten tools were adopted. The main limitation of these FSW tools is that they are fractured and deformed during plunging into steels [26]. The deformations are happened due to the high axial force while plunging the tool into the steels and high ductile-to-brittle transition temperatures of the tool material. Due to these all problems, these metals were replaced by a new refractory tool material, tungsten-rhenium (W-25%Re). Comparing with the molybdenum and tungsten, tungsten-rhenium alloy exhibits less ductile-to-brittle transition temperatures due to the alloying element rhenium and has better wear resistance, too [27, 28]. Moreover, the damages happening to the tool during welding of steels are still not recovered fully.

Synthetic Material as an FSW Tool

The Polycrystalline Cubic Boron Nitride (PCBN) is one of the best Carbon Boron Nitride tools commonly used for friction stir welding, machining and cutting operations. By utilizing a sintering or frottage method, the PCBN can be fabricated [2931]. For this sintering process, high temperature and pressure are necessary, along with binder phases. The binder phase includes metals like nickel and copper and ceramics like aluminium oxide, titanium carbide, and titanium nitride [3235]. Figure 2 shows the properties of PCBN.

Figure 2
figure 2

Properties of PCBN

PCBN provides high hardness, and diamond is the only hard material available which offers more hardness than PCBN. Comparing with diamond, PCBN can withstand very high temperatures. PCBN also resists thermal shock, chemical wear and offers high toughness [3639]. Due to these abilities, PCBN tools were accepted mainly for machining areas, including friction stir welding. Numerous researches are conducted on PCBN tools. It primarily concentrates on the pin and shoulder profiles and how it affects the weld's mechanical properties [40].

The studies show that PCBN can successfully implement for alloy steels and stainless steels, like austenitic stainless steel, ferritic stainless steel, martensitic stainless steel, and duplex stainless steel. Comparing with the refractory metals FSW tools, PCBN provides a much better joint with uniform microstructures [41, 42]. Many researchers took PCBN-tungsten alloys tools to weld less hard steel alloys with a thickness of up to 12 mm. While using the same alloys, deformations were still happening to these tools [43]. Nowadays, superalloys tools are primarily considered. The superalloys mainly used for FSW are cobalt or nickel-based ones [4446].

Moreover, these are not sustainable remedies for preventing the fracture of tools, improving joints' strength, and making the steel welding process cheaper. The current research shows that the better option is to adopt a hybrid welding technique. By utilizing such methods, conventional tools can weld hard alloys, such as the tungsten carbide tool for AISI 410 stainless steel plates [47].

Tool Profile

The tool profile or tool geometry critically influences the weld quality and the tool wear rate. The tool profile helps the FSW process in the followings ways: (a) to generate accurate temperature in welding, (b) to create the same axial force to the weld region, (c) to achieve good welding speed, and (d) to gain proper metal flow in the stir zone and to gain homogenous grain structure [48, 49]. The stir zone's plastic deformation rate also depends on the tool profile, not on the tool rotation rate and welding speed. The significant factors that need to consider before design a tool are (a) the thickness of the base plate, (b) the kind of base metal, whether it is a soft or hard metal, and (c) the tool material [50]. While designing a tool, the vital factors that need to consider are the pin diameter & profile and the shoulder diameter & profile. The shoulder profile plays a crucial role in FSW. The area needs to heat, and the heat generated for welding depends on the shoulder profile and diameter [5153]. With increasing the shoulder diameter, the heating area will also get increased. The unwanted increment in the shoulder size leads to an increase in the heat-affected zone [54].

Ultrahigh carbon steel with a thickness of 2.3 mm was welded successfully with the aid of a tapered PCBN tool (shoulder diameter 12 mm, and pin length 2 mm, diameter at the top 4 mm and bottom 5.8 mm) [55, 56]. The results have shown that the fine grain structure was visible in the thermomechanical affected zone due to continuous dynamic recrystallization. An NSSC 270 super austenitic stainless steel with a thickness of 6 mm was welded by using a convex scrolled shoulder + step spiral pin tool at a tool rotation speed of 400 and 800 r/min [5760]. At 400 r/min, the strength and ductility of the joint were similar to the base metal, while more intermetallic phases were formed at 800 r/min, which resulted in weak joint strength. Figure 3 shows the tapered PCBN tool and the convex scrolled shoulder + step spiral pin tool.

Figure 3
figure 3

Examples of tool profiles: a Tapered PCBN tool, b Convex scrolled shoulder + step spiral pin tool [62]

A SAF 2507 grade super duplex stainless steel of thickness 1.5 mm was butt welded by PCBN tool with a concave shoulder (diameter 25 mm) and tapered pin (length 3.8 mm) [6163]. The results show that the joint possesses the same strength as the base metal, and the specimen was broken at the retreating side near the thermomechanical affected zone and retreating side [64, 65]. An AISI 304L stainless steel of thickness 3.4 mm was welded using a tungsten alloy tool with a concave shoulder profile (shoulder diameter 10.2 mm) and a cylindrical pin profile (pin length of 2.3 mm) [6668]. The result shows that a joint efficiency attained ranges from 80% to 98%, and the ultimate tensile strength is near to the base metal. After successful welding, tool wear is found at the pin tip and shoulder edge; these kinds of wear are mostly happening to the tungsten alloy tools due to their inability to withstand large axial force in welding [69, 70].

An AISI 410 martensitic stainless steel plate of thickness 3 mm was successfully welded by induction assisted FSW. The tool used was tungsten carbide (25 mm shoulder diameter, 2.6 mm pin length and 5 mm pin diameter, hexagonal pin profile) [71, 72]. The strength gained was close to the base metal that is 462 MPa, and the specimen exhibited a much higher corrosion rate of 2.79757 mm/year, which is better than the corrosion rate of base metal. The in-situ heating helped the tool propagate and stir well in the stir zone and achieved a homogeneous fine grain structure than the base metal [73]. An S45C steel plate was successfully welded by using laser-assisted FSW. The tool used for this welding was a tipped tungsten cobalt alloy tool. The main advantage shown in this process was the high welding speed, 800 mm/min. In the conventional FSW method, it was about 400 mm/min [74, 75]. This method made a tensile strength of joint close to the base metals, and the specimen failure has happened in the base metal area.

Microstructure and Mechanical Properties

Mechanical Properties

The prime aim of a metal joining is to achieve excellent mechanical properties like tensile strength and hardness. Nowadays, a lot of research has been conducted to enhance the joints' mechanical properties [7678]. Many studies show that most friction stir welded steel joints achieve mechanical properties close to the base metals.

The friction stir welding on modified 9Cr–1Mo–V–Nb steel was done successfully, and the microhardness distribution across the weldment cross-section was studied. The weld zone possessed a different range of microhardness from the heat-affected zone to the stir zone due to varied heat generated in each area [79]. The weld is shown the peak microhardness of 503 HV0.5. The formation of fresh martensite resulted in this microhardness. Relatively lower microhardness was found in the tempered region. Due to the tempering effect, the microhardness found was 482 HV0.5. Because of the martensitic substructure, the heat-affected zone shown a microhardness of 417 HV0.5 [80, 81]. Figure 4 shows the Vickers microhardness map at the cross-section of friction stir welded P91 steel joint.

Figure 4
figure 4

Vickers microhardness map: a microhardness distribution, b microhardness indentations [79]

An austenitic stainless steel grade AISI 410 was successfully welded by using the tungsten lanthanum oxide tool. The influence of the tool tilt angle was studied. When a tool tile angle of 1.5°, with the parameter combination of tool rotation speed 600 r/min, welding speed 45 mm/min, and axial load 11 kN, was used, the best results were achieved. The tool tilt angle enhanced the weld’s plasticization so that a uniform microstructure throughout the weld was obtained [8285]. The yield strength of the weld joint was 605 MPa, which means the weld joint can achieve a strength of 96% of the base metal. An average microhardness attained in the stir zone was 230±5 HV, and this microhardness value is higher than the thermo-mechanically affected zone.

DP700 high strength steel was butt welded with two constant parameters and one varying parameter. The tool rotation speed was constant at 800 r/min and tool tile angle at 3°, while the welding speed varied from 100 mm/min, 150 mm/min, and 200 mm/min [86, 87]. A parameter combination of 800 r/min tool rotation speed, 150 mm/min welding speed and 3° tool tilt angle provided the best results. The mechanical properties like tensile strength and microhardness were studied. The stir zone had an average microhardness of 395 HV, while the base metal had a microhardness of 275+3 HV. The improved microhardness gained in the stir zone is due to the cooling rate and grain refinement. Under the same parameter combination, the tensile strength of the joint was 687 MPa, which means the weld joint offers 91.7% more strength than the base metal.

FSW welded a steel plate of IS 2062, and a mechanical test like microhardness was carried out. The average microhardness found in the base metal and stir zone was 143 VN and 182 VN at 200 g load. The increase in the stir zone’s microhardness was due to the grain refinement and cooling rate [8891]. The result has also shown that grain refinement helped to increase the tensile strength of the joint.

Microstructure Evaluation

The weld structure analysis helps to study and understand the material flow and microstructure formation. By evaluating these things, the weld defects can be easily found out. The grain structure evolution during welding can be examined by comparing the grain structure of welded specimens with that of the parent metal. The grain’s homogeneity in the weld area can be determined [9295].

Currently, many types of research are conducted in the FSW of steels. The results show that many factors affect the microstructure formation in friction stir welding of steels. Some of the significant parameters affecting the microstructures are (a) tool rotation speed, (b) welding speed, (c) axial force, (d) tool profile, and (e) tool tilt angle. The common thing related to these parameters is the amount of heat generated by these process parameters, while welding significantly affects microstructure evolution [96, 97]. The material flow in the stir zone predominantly depends on the tool and its profile. The tool shoulder influences the top layer material movements, while the pin profile and tip control material movements at the intermediate and lower portions [98101]. Figure 5 shows the tool influencing areas during FSW.

Figure 5
figure 5

Tool influencing areas in FSW

A butt joint was configured using DP 700 grade stainless steel. The microstructure evaluation showed that the stir zone's grain structure was transformed into a single-phase austenite structure at a 100 mm/min welding speed. The temperature generated at this time was 885 °C [102104]. Increasing the welding speed to 150 mm/min and 200 mm/min, a dual-phase ferrite-austenite area was found in the bottom regain. The top and the middle portion remained the same single phase austenite structure. The temperatures generated in welding at 150 mm/min and 200 mm/min were 813 °C and 731 °C, respectively [105]. The study has shown that the high welding speed led to the formation of a fine-grain structure with high hardness in the weld region. The correlation of temperature and welding speed in the microstructure change in DP 700 stainless steel friction stir welding was addressed well.

An AISI 316L stainless steel was welded successfully using the FSW method, and a nearly fine grain structure was found in the stir zone. The same grain structure was visible in the hot working process of AISI 316L stainless steels, and this is due to the low stacking fault energy of the austenitic steels [106108]. The results showed that the weldment had a higher strain rate than the base metal’s critical strain rate due to the displacement density across the grain boundaries and the strain-free nucleated grains.

Figure 6 presents the macrographs of the weld zone made at three different tool tilt angles. There are mainly four zones visible in a friction stir weld specimen, i.e., the base metal (BM), heat affected zone (HAZ), thermo-mechanically affected zone (TMAZ), and the stir zone (NZ) [109, 110]. In Figure 6, very small or no HAZ is visible, revealing that the heat generated during welding was optimum. The tool shoulder diameter on the joint surface and the tool pin diameter towards the plate's bottom was roughly the same as the stir zone’s volumetric size.

Figure 6
figure 6

Macrographs of FSW welds: a 0° tilt angle, b 1.5° tilt angle, c 3° tilt angle [110]

Figure 7
figure 7

Schematic representation of dynamic stir zone: a 0° tilt angle, b 1.5° tilt angle, c 3° tilt angle [110]

Figure 7 is a schematic diagram illustrating the dynamic stir zone volume for three different tool tilt angles. When the tool tilt angle is increased, the stir zone's dynamic volume is raised a little [111114]. Under three levels of tool tilt angle 0°, 1.5° and 3°, the dynamic volume is 104.64 mm3, 116.24 mm3 and 127.84 mm3, respectively.

It is visible that at 0° tool tile angle, the stir zone’s volume and the tool shoulder diameter are similar due to perfect contact between the tool shoulder and the weld surface [115117]. Hence, the physical contact changes when it comes to 1.5° and the 3° tool tilt angle, and the dynamic stir zone also increases. The shear band formation in the weld zone can be explained by the rise in the stir zone’s dynamic volume, where the formation of the nugget zone with an incline top flow arm is more comprehensive when moving towards the advancing side [118, 119]. This shear band is very narrow and defect-free. One of the disadvantages of this shear band is that they are inelastic and does not undergo deformation at a high strain rate.

Figure 8 shows the AISI 316L stainless steel and friction stir weld joint’s micrograph at three different tool tilt angles. It indicates that the tool tilt angle significantly affects forming microstructure and material flow in the weld zone. A temperature of 865 °C was attained by the 3° tool tilt angle, which is sufficient to produce a sound joint in AISI 316L stainless steel. The heat-affected zone generated was significantly less [120122]. Moreover, a fine grain structure was achieved. A temperature of 968 °C was developed by 0° tilt angle, and the increase in heat led to the rise in the heat-affected zone and some coarse grain structure in the stir zone. While adopting a tool tilt angle of more than 3°, the tool cannot produce sufficient heat and results in poor joint strength [123].

Figure 8
figure 8

Micrograph of AISI 316L stainless steel with friction stir welded specimen at three different tool tilt angles: a Base metal, b at tilt angles of 0°, c at tilt angles of 1.5°, d at tilt angles of 3° [124]

The optical microscope also reveals that due to the strong dynamic recrystallization in the stir zone by different tool tilt angles of 0°, 1.5°, and 3° resulted in the formation of grains of size 8±3 mm, 5±2 mm and 6±2 mm, respectively. Due to the discontinuous dynamic recrystallization process, approximately equiaxed refined grains were visible in the stir zone. Similar recrystallization was observed in all medium to low stacking fault energy materials like AISI 316L [124126].

Surface Defects

Some typical surface defects that happen to the friction stir welded stainless steels with similar and dissimilar metals are rough texture, surface cracks, and grooves. These surface defects are mostly related to poor plasticization or over plasticization that happens to the joint surface. These plasticization issues are majorly associated with the welding parameters like welding speed, tool rotation speed, axial force/plunge depth, or related to the pin and shoulder designs of the FSW tool. Two dissimilar steel grades of DH36 and EH46 were joined by using the FSW method [127]. The experiment reveals that surface defects like microcracks were visible in the weld surface. Figure 9 shows the microcracks propagated from the top surface of FSW DH36 between the steady-state and the plunge regions. Figure 9(a) low magnification, Figure 9(b) high magnification. The sample was cut in the direction of the weld line.

Figure 9
figure 9

Microcracks prolonged on the DH36 and EH46 FS-Weld region started from the top surface: a low magnification, b high magnification [127]

The reason for forming this microcrack in the bimetallic region is related to the lack of materials flow. It is directly related to the welding speed and tool rotation speed. Microcracks were prolonged when the welding speed exceeded 400 mm/min and a tool rotation speed of 550 r/min [128, 129]. A temperature of 1250 °C was found when the tool rotation speed went beyond 550 r/min; this led to the elemental precipitation of TiN and elemental segregation of Mn, Si, Al and O between the bimetallic region. This prevented the material flow, resulted in the formation of microcracks, and eventually decreased the mechanical properties of the joints.

Figure 10 shows the different characteristic defects that happen while joining dissimilar stainless steel using FSW. Most of the defects are related to the tool geometry or material flow [130132]. Fusion defects that happened due to the lack of tool penetration or improper seam tracking are considered tool geometric defects, and the flow-related defects are related to the heat generation in the weld zone. When the heat generated at the weld zone is very high, the weld zone becomes over plasticize and results in the flash formation, which leads to the surface galling and nugget collapse [133, 134]. The insufficient material flow was visible when the heat generated while welding was too low, and this resulted in the lack of surface fill. This lack of surface fill forms defects like consolidation defects on the advancing side due to increasing forge force and wormholes [135137].

Figure 10
figure 10

Different characteristic defects forms related to the material flow [130]

While adopting the optimum process parameters for joining steels with the FSW method, the flow-related defects happen at a temperature where stick-slip wiping flow occurs, and material flowing from the region ahead of the pin tool can be eliminated [138]. Another common surface defect usually visible while joining hard metals like steel is surface groove defects. Figure 11 shows the surface groove defect on AISI 430 stainless steel weld surface.

Figure 11
figure 11

Surface groove defect in AISI 430 stainless steel joint [138]

This steady appearance of flat surface groove defects is formed in low pressure due to the insufficient axial force/plunge depth. Surface groove defects can be removed by sufficient axial force/plunge depth on the butting region [139, 140]. Moreover, to prevent surface groove defects, sufficient heat input is required.

The surface finish provided by the FSW joining method is related to the tool movements like welding speed and tool rotational speed [141]. The surface finish plays a vital role in the weld joint property; while the FSW tool rotates and moving along the butting surface, it leaves feed marks (onion rings) on the weld surface. If the welding speed is too high or the tool rotation is too low, rough surface textures form. These surface properties lead to higher surface stress concentration and eventually degrade the joints’ mechanical properties, especially fatigue life cycle [142]. Thus, an FSW joint with a higher surface texture has a weak joint strength. Figure 12 shows the FSW joint fabricated with AISI 304 steel; high textures are visible on the weld surface.

Figure 12
figure 12

AISI 304 steel joint with high surface textures [142]

Friction Stir Welding of Dissimilar Steels

The vital issue of fusion welding is its limitation to weld dissimilar metals and the heavy heat affected zone created in the joining process. Compared to fusion welding, the heat generation is significantly less in FSW. FSW can overcome the problems encountered by fusion welding due to its solid-state welding feature.

11 pct Cr ferritic/martensitic steel (PNC-FMS) and 316 austenitic stainless steel were successfully welded using the FSW process. AISI 316 was kept at the advancing side and the PNC-FMS at the retreating side for this welding. A defect-free joint was produced, but the two steel plates were not mixed well but interleaved a sharp zigzagging interface in the stir zone [143]. Besides, the robust interface did not act as a fracture site when a micro tensile test was conducted for the stir zone alone. The mechanical property revealed by the specimen was much better than the base metals; this indicates that FSW can be feasible for sound welding in dissimilar metals, too [144, 145]. Figure 13 shows the transverse cross-section of the joints taken by optical microscopy, revealing that this joint does not have any weld defects, like tunnel defects, cracks and voids.

Figure 13
figure 13

Transverse cross-section of the dissimilar joints [145]

The scanning electron microscope image and the elemental mapping done by energy-dispersive x-ray spectroscopy (EDS) images are given in Figure 14. The lighter contrast in the EDS mapping images means the higher content, and the darker means, the lower content, respectively [146]. The specimen selected for elemental mapping was prepared at a tool rotation of 100 r/min. The Fe in the 316 stainless steel side is lower when the Cr and Ni content is lower on the PMC-FMS side [147151]. These distributed elements are separated along with the weld interface.

Figure 14
figure 14

a SEM image, b Fe, c Cr, and d Ni elemental maps [146]

Figure 15 shows the magnified SEM image of the stir zone. There are no voids or reaction layers visible in it, and the interface’s sharpness is very well observed [152]. A gradual change in Cr and Ni concentrations has occurred over the interface due to the diffusion of alloying elements during friction stir welding. In this experiment, the tool rotation speed of 100 r/min and 150 r/min exhibited similar results. The only difference was in the width of diffusion layers, and it was more prominent at the tool rotation speed of 150 r/min [153]. The results have proven that intermetallic bonding was successful in PNC-FMC and 316 stainless steel joints.

Figure 15
figure 15

PNC-FMS and 316 stainless steel joint's SEM image [152]

During friction stir welding of F82H to 304 stainless steel, the shift in tool plunging prevented the intermixing in the nugget zone [154, 155], so the exact extent of mixing was in the stir zone not precise. Moreover, the welding conditions like tool profile and welding speed predominantly influence the nugget zone’s grain formation [156159]. Therefore, this research shows that any change in the plunging area may lead to kissing bonding or root defects.

In dissimilar welding of steel with other metals like superalloys [160], the melting point of these alloys is somewhat close. The super duplex steel SAF 2507 was friction stir welded with a nickel-based superalloy Incoloy 825. A defect-free weld was fabricated by placing SAF 2507 on the advancing side and Incoloy 825 on the retreating side [161, 162]. The microstructure analysis has shown that the thermo-mechanically affected side was from deformed austenite−ferrite grains of the SAF 2507 region and the elongated austenite at the Incoloy 825 region. Due to the subsequent refinement of the grain structure and dynamic recrystallization, the nugget zone shown the highest hardness.

In the medium carbon steel welding, carbon and chromium presence significantly affect the weld region’s microstructure formation. The chromium content enhancement in the stir zone transformed the pearlite structure into a martensite structure [163, 164]. This transformation would increase the tensile strength and ductility of the joint. The carbon and chromium content also reduces the carbide precipitation in the stir zone due to martensite's auto tempering [165].

Due to the supercilious comprehensive properties of the reduced activation, ferritic/martensitic (RAFM) steels are broadly used in nuclear reactors as structural materials [166, 167]. An investigation was conducted to join the reduced activation ferritic/martensitic steel by friction stir welding. The quantitative relationship with microstructure generated in the stir zone and tensile strength was examined [168171]. Moreover, the effects of post-weld tempering treatments were also studied. For this post weld tempering treatment, three different temperatures were adopted, i.e., 720 °C, 760 °C, and 800 °C, respectively [172]. The microstructure evaluation was conducted by using transmission electron microscopy (TEM), Electron backscatter diffraction (EBSD) and the Thermo-Calc Calphad software [173]. The matrix’s precipitate number density, martensite lath width, geometrically necessary dislocation (GND) density, and solid equilibrium solubility of alloying elements were quantitatively analyzed.

The transmission electron microscope image of the RAFM steel is given in Figure 16(a) and 16(b). In Figure 16(a), a distinctive tempered martensitic microstructure is visible in it, and coarse M23C6 particles are seen in the martensite lath boundaries. In Figure 16(b) the inner area of the martensite laths MX carbonitrides are distributed uniformly [174176]. Based on the interpretation, the size of the M23C6 particles ranges from 90‒230 nm, and the size of the MX carbonitrides varies from 15‒60 nm. In the intra-lath region, a high density of free dislocation is visible. The energy dispersive spectroscopy graphs of two different areas with different sizes marked as A and B in Figure 16(b) are given in Figure 16(c) and (d), respectively [177]. Cr and W rich M23C6 carbide are visible in the coarse particle at the A region because the A region mainly has Cr, W and C elements. Besides, the B region shows its V, Ta and C, N-type carbonitrides due to the chemical composition in this small region are V, Ta. C and N.

Figure 16
figure 16

a Microstructure of BM using TEM, b local higher resolution microstructure of BM, c EDS graph of A marked in Figure 13(b), d EDS graph of B marked in Figure 13(b) [173

The stir zone TEM microstructure of the specimen after welding and after tempering is given in Figure 17. Due to the martensitic transformations in the FSW process, the martensite lath is visible in the stir zone (Figure 17(a)). The results show that while increasing the tempering temperature, the average width of martensitic lath increases exponentially [178]. Figure 17(b) shows that the specimen treated with tempering temperature 720 °C and the non-tempered specimen has appropriately the same average width of martensitic lath. The dislocation migration due to high-temperature recovery caused dislocation tangles and networks at a tempering temperature of 720 °C. Moreover, fragmented subgrains were formed inside the martensite laths when the tempering temperature was increased to 760 °C (Figure 17(c)). At tempering at 800 °C, it was nearly impossible to identify martensite laths, while an equiaxed grain or subgrains were found (Figure 17(d)).

Figure 17
figure 17

TEM micrographs of the SZ at different conditions: a SZ in the as-welded condition, b SZ tempered at 720 °C, c SZ tempered at 760 °C, d SZ tempered at 800 °C [178]

Figure 18 shows the martensite laths width or the subgrains, determined using the line intercept method. The average width of martensite lath width was 441 nm when the stir zone was tempered at 760 °C. If the stir zone was tempered at 800 °C, the average width of martensite lath was 602 nm, which exceeds that of the base metal (493 nm) [179].

Figure 18
figure 18

The mean widths of martensite laths or subgrains under different conditions [179]

Figure 19 shows the high magnified transmission electron microscope images of the stir zone, which helps identify the precipitate distribution of the stir zone. Figure 19(a) reveals the dissolved MX carbonitrides dispensed within the martensite lath [180, 181]. The peak temperature attained by the stir zone ranged from 973 °C to 1139 °C. Due to this temperature, M23C6 carbides were hard to find. Thermo-Calc software with the thermodynamic database TCFE9 was used to analyze the equilibrium phases at various temperatures, which helps investigate the evolution of participants. The derived results are given in Figure 20.

Figure 19
figure 19

Precipitate distributions of the stir zone (SZ) at different conditions: a SZ in the as-welded, b SZ tempered at 720 °C, c SZ tempered at 760 °C, d SZ tempered at 800 °C [180]

Figure 20
figure 20

Stability phase in RAFM steel as a function of temperature [180]

In microstructure analysis, the phases like Laves phase and the Z phase are not visible in the base metal or stir zone of the RAFM steel, so they were omitted from the calculation. Figure 20 shows that below 886 °C, M23C6 carbides were formed. When the temperature was above 988 °C, the MX carbonitrides were dissolved entirely [182], indicating that MX carbonitride withstands higher temperatures than M23C6 carbides. Figure 20 shows the Thermo-Calc calculated data as well. Figure 19(b), (c) and (d) show that the thawed M23C6 and MX phases were reappeared from the supersaturated solid solution of the martensite matrix after PWTT [183, 184]. In contrast, the friction stir welding of super duplex steel SAF 2507 with a nickel-based superalloy Incoloy 825 indicates that vital microstructure deformation is happened due to the dynamic recrystallization on the dissimilar metal interface, and this will affect the yield strength of the joint.

Multi-material design or multi-material joining have a colossal requirement since joining dissimilar metals with different physical properties and chemical properties can provide a synergic effect like corrosion resistance, high weight reduction, and high impact & yield strength. These are the results gained from the hybrid uses of such dissimilar metals [185]. With the aid of friction stir welding, steel and aluminium were joined, and this solid-state welding avoids the formation of thick intermetallic compound layers in steel/aluminium joints. The optimized process parameters and a cylindrical tool geometry were the keys for this dissimilar joining process [186]. Three different tools were used for this experiment. For tool-1, shoulder diameter was 25 mm, pin length was 2.85 mm, and pin profile was tapered cylindrical with a 6‒8 mm diameter. For tool-2, shoulder diameter 18 mm, pin length 2.85 mm, tapered cylindrical pin with diameter 5‒7 mm. For tool-3, shoulder diameter 13 mm, pin length 2.85 mm, and cylindrical pin profile with diameter 5 mm [187, 188].

The bead geometry and microstructure analysis were carried out using an optical microscope and field emission scanning electron microscope (FESEM) for analyzing the intermetallic compounds (IMC) layer. The phase and composition of the IMC layer were investigated by the XRD method [189]. Figure 21 shows the field emission scanning electron microscope images of the joint interface at higher magnifications.

Figure 21
figure 21

FESEM images of IMC thickness in weld made by a, a1 Tool 1, b, b1 Tool 2, and c, c1 Tool 3 [191]

Figure 21(a) presents the magnified view of the joint interface made by tool-1. It reveals a serrated type of material, which formulae an IMC layer with fragmented particles. In Figure 21(b), the interface of weldment produced by tool-2 also shows such a damaged IMC layer. A tinny and uninterrupted IMC layer was visible in the weld interface fabricated by tool-3, as shown in Figure 21(c). While exposed to heat, the metallurgically mismatched steel/aluminium joint formed a brittle and hard IMC layer on the close contact region [190]. The joint strength is decreased according to the increase in the composition and thickness of this IMC layer.

The FESEM images also reveal that a unique IMC layer of somewhat different contrast from the parent metal is observable. Also, Figure 21 shows that the IMC layer’s thickness varies from 1 μm to 4 μm. This IMC layer variation occurs due to the different diffusion temperatures formed in other regions and the different kinetics of diffusion of materials [191, 192]. For all three joints, the thickness of all the weld interfaces was measured and shown in Figure 21(a1), (b1) and (c1). 10 points were taken for average thickness. The IMC layer thickness gained by tool-1 is comparatively higher than those formed by the other two tools. The continuous detachment of debris always limits the IMC layer growth. Consequently, for tool-1 and tool-2, the IMC layer area and the detached fragments nearby get amplified in the stir zone [193, 194]. As evident from Figure 21, the thickness of the IMC layer is about 2.5 μm.

With the aid of energy-dispersive X-ray spectroscopy (EDS), the chemical line analysis was conducted along the thickest region of the intermetallic layer, as shown in Figure 22(a) and 22(b). This EDS image clearly shows the coexistence of Al and Fe in the intermetallic layer in the line analysis curve. To check the existence of various elements, a chemical analysis was initiated for a selected point (Figure 22(c)) [195]. The element analysis method analysed the atomic percentage and weight of different aspects, given in Figure 22(d). The result revealed that the atomic percentage of the aluminium atom was around 73.42%, and the atomic ratio of iron was 25.45%. It is challenging to analyze the intermetallic phases of various composites in this complex system.

Figure 22
figure 22

a, b Elemental line analysis of interlayer, c, d Elemental point scan inside the intermetallic layer and e, f Elemental line scan across a detached steel particle [195]

Along with the detached steel fragment, elemental analysis was conducted, shown in Figure 22(e) [196]. Reinforced particles were formed in the aluminium matrix due to the congestion of steel fragments in the nugget zone. In Figure 22(f), an IMC layer is visible around the steel debris with a thickness of 5 μm, thicker than the actual interface of aluminium/ steel [197, 198]. Initially, the detached fragments were part of interfacial steel and an IMC layer formed towards the aluminium side of the exposed surface. While examining the nugget zone, the debris gained a suitable diffusion time due to the higher heat generation, leading to thickening of the IMC layer.

XRD analysis was conducted for all the fracture tested specimens joined by three tools. The XRD analysis is given in Figure 23.

Figure 23
figure 23

XRD analysis of the fractured surface [199]

The XRD analysis showed that the joint fabricated by the tool-1 had the presence of Fe2Al5 beside aluminium and iron. For the tool-2 welded specimen, a more or less similar result was gained. The presence of aluminium metal was visible in the fracture sample made by tool-3. It was evident that the failure in this specimen was due to the aluminium metal and not the IMC layer [199].

With the aid of FESEM, with varying magnifications, the fractured tensile samples were examined, as shown in Figure 24. Figure 24(a) was the joint fabricated by tool-1. For improved clarity, a magnified view was given inside the box [200]. The image portrays that the failure has happened in the down portion of the IMC layer, and a small number of indiscretions were visible in the upper part of the fracture, and the remaining region was almost flat. Due to the high heat generated by the tool plunge depth, an extreme softened aluminium was formed in the upper area of the specimen (Figure 24(a)), which led to the fracture. Some unevenness was visible in the upper area of the fractured specimen prepared by the tool-2, but the bottom area was primarily flat. Figure 24(b) shows the occurrence of dimples in the magnified view, and these dimples caused ductile failure [201, 202]. Due to the tool spindle speed, the aluminium particles moved upwards along with the tool shoulder over the steel region, leading to the failure of the upper part of the fracture surface, and brittle fracture happened in the bottom.

Figure 24
figure 24

FESEM images of fractured surface in tensile loading of welds made by a Tool 1, b Tool 2, and c Tool 3 [200]

Nevertheless, the steel and aluminium created an almost flat interface. Figure 24(c) shows the fracture surface of the weldment prepared by tool-3. A ductile failure was visible in the image, and in the magnified view, a web-like arrangement and dimples were visual, which reveals that the failure was happened by the ductile way. Also, some irregular surfaces were visible at the bottom of the specimen, which refers to the interaction of two metals [203, 204]. The aluminium presence in the fracture surface was visible in the XRD graph of the fracture specimen prepared by tool-3, and steel defragmentation was not due to the proper bonding. The results reveal that a tool causing maximum material movement can provide a better bonding surface and join steel with soft metals like aluminium. The steel grains should be minimized to obtain sound joint strength [205, 206].

Dual-phase (DP) steel 700 was welded successfully by using friction stir welding. The texture development and microstructure formation were examined thoroughly. FESEM analyzed the stir zone microstructure of the DP 700 weldment, as given in Figure 25.

Figure 25
figure 25

Microstructure of the centre of the SZ: a Optical image, b FESEM image, c IPF map, d Corresponding phase distribution map [207]

The optical micrograph and the FESEM micrograph of the DP steel stir zone are shown in Figure 25(a) and (b). The image portraits that the stir zone combination of fine martensite, ferrite and retained austenite microstructure. Figure 25(c) and (d) show the stir zone's IPF map and phase map [207]. The grain size in the stir zone had an average length of 1.3 ± 0.5 μm, which is comparatively smaller than that in the base metal. Moreover, the 3.8% of retained austenite dispersed in the ferrite matrix and visible in the phase distribution map (Figure 25(d)). Besides, the austenite's prolonged crystal defect enhanced its constancy against martensitic evolution, resulting in an improved level of retained austenite in the microstructure [208, 209]. Nevertheless, the martensite and ferrite have a BCC structure, so it is hard to identify duplex steels. However, in the IFP map, this phase is seen as a cluster of comparatively arbitrarily oriented points.

Furthermore, the Kernal average Misorientation (KAM) maps were also interpreted to examine the validity and accuracy of the threshold. Significant differences are detected in the intermediate level of distortions in different grains, a grain distinct related to the minor boundaries of 50, and the most petite pixels of 4 is significant [210].

Based on the above Kernal average Misorientation map approach, the separation of martensite and ferrite is given in figure 26. The volume fraction was estimated to be 11.3% and 84.9% for martensite and ferrite, respectively. This volume fraction was calculated from many SEM images analyses [211]. The martensite and austenite elements were eliminated, and the IPF map of the ferrite phase was plotted in Figure 26(d). Figure 26(e)‒(f) show the grain boundaries map and misorientation angle distribution. It is visible that primarily all the HABs established closed structures, and equiaxed ferrite grains were also visible [212214]. The yellow arrow in Figure 26(e) represents the structure free of LABs, which symbolize that recrystallization had been finished. During the dynamic recovery process, steady accumulation and reordering of grains dislocations led to the formation of grains having LABs. The green arrows and red arrows in Figure 26(e) represent the adequate extent of dynamic recovery and inadequate dynamic recovery during the process, respectively [215]. Figure 26(f) illustrates that most of the LABs vary from 20 to 50. The research found that the recovery mechanism for the ferrite phase in the stir zone was continuous dynamic recrystallization and discontinuous dynamic recrystallization. Due to the lower strain in the thermomechanically affected zone, geometric dynamic crystallization was also involved in the ferritic phase recovery [216]. The primary recovery mechanism for ferrite in the thermomechanically affected zone and stir zone were continuous dynamic recrystallization.

Figure 26
figure 26

a IPF map of BCC constituents, b Grain average IQ distribution for BCC phases, c IPF map of martensite phase, d IPF map of the ferrite phase, e Grain boundaries map of ferrite phase, f Misorientation angle distribution chart of the ferrite phase [211]

Friction stir welding on 12Cr oxide dispersion strengthened (ODS) steel was successfully executed. The results have shown that the grain size in the stir zone was smaller than the base metal. The dynamic recrystallization in the stir zone and the thermomechanically affected zone was analyzed by electron backscattering diffraction (EBSD) results. It was observed that a changeover from low angle boundaries (LAB) to high angle boundaries (HAB) was convoyed by the dynamic recrystallization process [217].

The 12Cr-OSD steel weldments IPF maps were taken from different areas of the joint, as shown in Figure 27. The different colours and patterns in Figure 27(f) represent different crystallographic orientations.

Figure 27
figure 27

EBSD IPF maps of a BM, b HAZ, c SZ, d AS-TMAZ, e RS-TMAZ, and f Orientation [217]

The average grain size of the various zones was measured by the intercept method, and Figure 28 portraits the histogram of grain size distribution. Figure 28(a) shows the number fraction of grain size in the base metal. The grain size in base metal was 1249 nm, where the grain size in the heat-affected zone was 1121 nm, which was comparatively smaller than the base metal (Figure 28(b)); this is due to the recrystallization that happened in the metal due to heat generated by FSW process [218220]. The grain structure found in the stir zone was vastly different from the base metal and HAZ. The grain size in the stir zone was 358 nm, and the refined grains were uniformly distributed due to the dynamic recrystallization in the stir zone, as shown in Figure 28(c). The breakage of grains in the stir zone resulted in a refined grain structure. The heat-affected zone and thermomechanical affected zone grains did not break much and resulted in 878 nm and 1245 nm, respectively [221, 222].

Figure 28
figure 28

Grain size distributions of a BM, b HAZ, c SZ, d AS-TMAZ, and e RS-TMAZ [218]

Figure 29 shows the 12Cr-ODS steel joint’s EBSD grain boundary misorientation angle distribution in base metal, stir zone and thermomechanical affected zone. The blue line showed the misorientation angle of more than 150, i.e., the high angle boundary. The misorientation angle less than 150, i.e., the low angle boundary (50 to 150), was portraited in green, and the red line showed those with misorientation angle20 to 50. Figure 29(a) shows that the fraction of LABs was around 49.9 % and the elongated grains enclosed by the vast number of HABs. HAB formation increased to 86%, the metal flow and mechanical force highly promoted the recrystallization in the stir zone [223, 224]. Figure 29(b) shows that the grain boundaries of the stir zone were more refined, and the grain was distributed evenly compared to the base metal. Equiaxed grains and the LAB distributed besides the flow track were noticeable in the TMAZ region due to the recrystallization process, as shown in Figure 29(c). The researchers concluded that 49.4%, 85.6% and 49.6% were the recrystallization percentages in the heat-affected zone, stir zone and thermomechanical affected zone, respectively [225].

Figure 29
figure 29

EBSD grain boundary misorientation angle distributions: a Base metal, b Stir zone, c Thermomechanical affected zone [223]

Process Variants in FSW of Steels

Implementing FSW for high melting point metals like steel is quite challenging due to the tool wear. The replacement of tools in a short span of welding makes the process costly. One of the best methods to attain a prolonged tool life is to adopt preheating or in-situ heating techniques to soften the weld region before the tool enters. This softening of the weld region will reduce the wear rate of the tool, and therefore the tool life will increase. This method is called Hybrid Friction Stir Welding.

Hybrid FSW means an additional heating source is attached with the conventional FSW process for preheating or in-situ heating the metal plates before the tool plunging [226228]. This method helps to plasticize the tool plunging area of the metals, and through this, the plunging and tool movement will be much easier. Figure 30 shows the schematic diagram for a hybrid FSW process.

Figure 30
figure 30

Hybrid FSW process

This method helps to reduce the tool damages due to high axial force while plunging. Through this method, FSW of steels can take over by using HSS or tungsten carbide tools. The welding cost will be much cheaper through this technique than the PCBN tool used in the FSW process [229]. The widely used preheating or in-situ heating techniques are laser heating, ultrasonic vibration and induction heating. Laser heating can be applicable for magnetic and non-magnetic alloys, while induction is more capable in ferromagnetic steels [230232].

Laser-assisted FSW

In laser-assisted friction stir welding (LAFSW), the dominating process is friction stir welding, and the supporting process is laser heating. The supportive process helps preheat or in-situ heat the weld region of the metal plates before the tool approaches [233]. The laser beam produces localized heating in the weld zone and makes the region get plasticized, and this helps the tool move quickly through the metal. Due to the enhanced plastic deformation of the metal, the tool damage or tool wear is reduced, and high welding speed is attained [234].

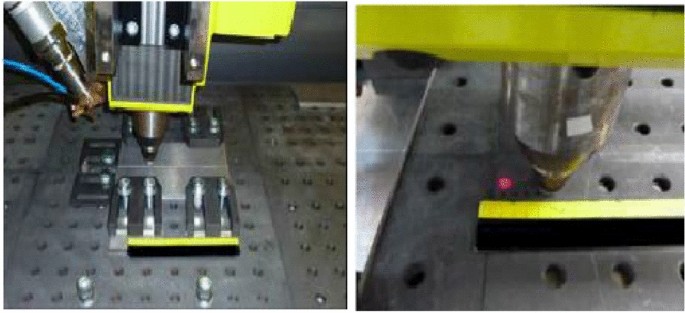

Figure 31 shows the laser-assisted friction stir welding setup. A cold rolled DC04 steel was welded by using the LAFSW method. A 2 kW laser was adopted. It demonstrated that the laser beam lowered the residual stress and enhanced the weld zone’s microhardness. The nugget shape was transformed drastically, but it did not change the metal's microstructure [235]. The in-situ heating helps to attain a higher elongation without changing the mechanical strength. Besides, the microhardness improved in the in-situ heated region, and the tool wear was reduced drastically and achieved a better welding speed.

Figure 31
figure 31

Laser-assisted friction stir welding [235]

LAFSW method can be used to join dissimilar metals like steel and aluminium [236]. While examining the grain structure in these dissimilar metals joining, the grain size gained is different in different areas. The bigger-sized grains were visible in the heat-affected zone, the medium size was viewable in the thermomechanical affected zones, and the refined grains were found in the nugget zones. The main reason for achieving such a different grain structure is the different cooling rates of dissimilar metals. Figure 32 shows the schematic representation of grain structure in the steel/aluminium friction stir welded joints.

Figure 32
figure 32

Schematic representation of grain structure in the steel with aluminium friction stir welded joints

Induction Heat-Assisted FSW

Comparing with laser-assisted FSW, the induction heat-assisted friction stir welding (IA-FSW) have some advantages. It is quite challenging to operate a laser on a glossy metal surface or mirror finish metal surfaces due to the reflection property of the laser. When it comes to ferromagnetic materials, induction heat is economical. Induction heating can heat the parent metals locally in a much faster way. The setup and installation of the induction heater are effortless, and they can be handled easily. The power wattage adjustment attains the required temperature. Figure 33 shows the IA-FSW setup [237, 238].

Figure 33
figure 33

Induction assisted friction stir welding setup [237]

An AISI 410 stainless steel was successfully welded by using IA-FSW. The results indicated that the microstructure formed in the nugget zone was much more refined than the base metal due to dynamic recrystallization. Similarly, this in-situ heating and dynamic recrystallization helped improve the microhardness of the stir zone. The corrosion studies conducted by (three and twenty-four hours) weight-loss method with the aid of 0.5 M H2SO4 showed that the stir zone improved corrosion resistance property due to refined grain formation [239]. The in-situ heating increased the welding speed, lowered clamping force, and reduced tool wear.

The induction assisted friction stir welded AISI 410 stainless steel shows that the tool's travelling speed is much higher than conventional FSW [240243]. The microstructure revealed that a fine homogeneous martensitic grain structure was found in the stir zone. The formation of an exemplary microstructure enhanced joint strength of 467 MPa.

Gas Tungsten Arc Welding Assisted FSW

AZ31B magnesium alloy and SS400 mild steel were successfully joined using gas tungsten arc-friction stir welding [244]. In this joining process, the preheating focuses on the SS400 mild steel because magnesium alloy has a lesser melting point than mild steel. Comparing standard friction stir welded joints and gas tungsten arc assisted friction stir welded (GTA-FSWW) joints was done. The results show that the GTA-FSW joints have superior strength than the usual friction stir welded joints. The tensile strength gained was 91% of the strength of magnesium alloy AZ31B, that is 237 MPa, which is higher than the strength gained by conventional friction stir welding, which is 226 MPa, which is the 77% strength of the AZ31B magnesium alloy [245, 246]. The enhanced plastic flow enhances the tensile strength, and the limited annealing happened on the AZ31B magnesium alloy by the in-situ heating of GTA-FSW. Moreover, the maximum welding speed achieved by the GTA-FSW is 72 mm/min, while the counterpart conventional friction stir welding achieved only 55 mm/min welding speed. Figure 34 shows the optical microscope images of the distinct regions of friction stir welded and GTA-FS welded joints.

Figure 34
figure 34

Optical microstructure of the distinct regions of the weldments a shows the microstructure of the FSW and b shows the microstructure of the GTA-FSW [245]

A fine equiaxed grain structure is visible in the microstructure of the base metal (A) in the magnesium alloy, as shown in Figure 34(a). The heat-affected zone and the thermomechanical affected zone in the magnesium alloy (B) also exhibits a comparatively similar grain structure. The grain size in the HAZ is 12.4 μm, where the grain size in the base metal is around 8.2 μm, which means the HAZ has a slightly coarser grain structure. While in the TMAZ region (B), the size of the grains found was 7.1 μm, which is an almost fine grain structure due to the mechanical stirring and the frictional heat generated by the tool. Similarly, a refined grain structure is found in the stir zone (C) due to plastic deformation, and the weld nugget (D) shows a bimetal interface of magnesium alloy and mild steel. The bottom region provides a non-mixed structure [247]. While examining the lower and upper area of the nugget zone of mild steel (E) exhibits uniform size and shape. Moreover, the microstructure in the TMAZ and HAZ of the mild steel (F) shows a more or less similar grain structure to the base metal.

Figure 34(b) shows the microstructure of GTA-FSW joints. Due to the in-situ heating, the average grain size of magnesium alloys become 16.4 μm and which is slightly coarser than the FSW joint (B). The stir zone (C) shows a fine recrystallized grain structure due to the severe plastic deformation. Moreover, the weld nugget (D) at the interface of magnesium alloy and mild steel exhibits completely refined grains with a sound weld structure. Comparing the average grain size of the upper side (10.8 μm) with the lower side (14.4 μm) of the nugget zone, the upper portion has a fine grain structure (E) due to the work hardening that happened due to the tool stirring and the in-situ heating by GTAW during joining. In contrast, the grain structure in the HAZ and TMAZ in the mild steel region (F) was slightly coarser than FSW joints due to the in-situ heat input. In contrast, this research shows that a good joint with better strength can be achieved by using GTA-FSW joining method.

Summary and Future Work

Friction stir welding of steels reached a certain height recently. Many types of research have been conducted to find better combinations like tool material, tool profile, welding speed, tool rotation speed, axial force, and tool tilt angles. This research shows that better steel joints can be fabricated by using friction stir welding [248]. While considering the structure changes, the primary factor affecting heat generation is welding and cooling rate. A fine-grain structure can be achieved in the weld region by controlling the heat generation and cooling rate after welding [249]. This method will enhance the tensile as well as the toughness of the joints. While comparing with the conventional fusion welding techniques, this friction stir welding has many advantages. The pollution that occurs while friction stir welding is nearly nil; porosity and hydrogen embrittlement should not happen while using FSW. Moreover, the heat-affected zone is comparatively less, and the mechanical and corrosive properties of the joints are far better than fusion-welded joints [250]. The paramount aim of this research is to identify the benefits and limitations of FSW while applying the same method to join different grades of steel.

Comparing with fusion welding methods, this FSW method has many advantages like higher mechanical properties, corrosion resistance property, lesser heat-affected zone, and FSW does not require any filler metals or special environments to join steel [251]. FSW showed a substantial saving in power consumption. The power consumed in fusion welding was four times or higher than FSW for fabricating similar joints. Also, FSW exhibits better microhardness in the weld zone compared to fusion welding. Moreover, the HAZ in FSW was narrower than that in fusion welding. Nevertheless, the fusion welding process produces higher amounts of harmful gases such as carbon monoxide and carbon dioxide to the surroundings (2.7 ppm and 346 ppm, respectively). At the same time, the FSW is a green method, which does not produce any harmful gases. [252, 253].

The review on the friction stir welding on steel shows that more research is needed to conduct similar and dissimilar steels and other alloys using hybrid and conventional FSW to reduce the joining costs and enrich the commercialization of friction stir welding in all-metal joining areas. The above review shows that most researchers concentrate on enhancing the strength of the joints, and a few are concentrated on the economic feasibility of the research. Numerous researches were conducted on similar stainless steel joints using PCBN like expensive tools; still, the strength gained was inadequate [254]. Using such tools are not recommendable due to its high expense. In dissimilar metal joining, the microstructure generated in the bimetal region is satisfactory, and the strength gained is insufficient to adopt this method to industry [255]. While laser-assisted FSW and induction heated FSW is widely used for welding steel and its alloys. One of the limitations of IA-FSW is that it can only use for ferromagnetic materials, while ultrasonic vibration-assisted friction stir welding can be adopted for any metals. High strength metals require high heat input to increase the metal flow to obtain a good joint. This volumetric material flow can be enhanced by clubbing an ultrasonic vibration unit with the friction stir welding unit. The significant advantage of ultrasonic vibration-assisted friction stir welding (UVAFSW) is that this ultrasonic vibration is directly given to the tool itself, so there is no energy loss. But since no evident research is undertaken on ultrasonic vibration-assisted FSW for steel and its alloys, this research area requires more attention.

While considering metal matrix composites (MMC), these MMC’s are poorly explored using friction stir welding. Dissimilar MMC joining by friction stir welding is still in the nascent stage. These limitations can be addressed by using hybrid friction stir welding and advance FSW tools. Still, enough researches are conducted on the cryogenic post-weld treatments for friction stir weld specimens. The study on pre and post-weld treatments’ effect on steels is a prerequisite in friction stir welding research. The impact of different profiled bobbin tools on steel friction stir welding needs more studies. These are the current research voids found in the friction stir welding of steels, which are required to address well.
