Dynamic Characteristics of High-speed Water-Lubricated Spiral Groove Thrust Bearing Based on Turbulent Cavitating Flow Lubrication Model

Abstract

The water-lubricated bearings are usually the state of turbulent cavitating flow under high-speed conditions. And the distribution of cavitation bubbles and the interface effect between the two phases have not been included in previous studies on high-speed water-lubricated bearings. In order to study the influence of interface effect and cavitation bubble distribution on the dynamic characteristics of high-speed water-lubricated spiral groove thrust bearings (SGTB).A turbulent cavitating flow lubrication model based on two-phase fluid and population balance equation of bubbles was established in this paper. Stiffness and the damping coefficients of the SGTB were calculated using the perturbation pressure equations. An experimental apparatus was developed to verify the theoretical model. Simulating and experimental results show that the small-sized bubbles tend to generate in the turbulent cavitating flow when at a high rotary speed, and the bubbles mainly locate at the edges of the spiral groove. The simulating results also show that the direct stiffness coefficients are increased due to cavitation effect, and cross stiffness coefficients and damping coefficients are hardly affected by the cavitation effect. Turbulent effect on the dynamic characteristics of SGTB is much stronger than the cavitating effect

1 Introduction

Water-lubricated bearing has been widely applied due to its low viscosity, low temperature rise, no pollution and etc. Spiral groove thrust bearing (SGTB) has advantages in hydrodynamic effect and stability. Nowadays, the water-lubricated spiral groove thrust bearing has been used in high-speed spindle. However, since inception cavitation number of water is larger than that of oil, cavitation phenomenon in water-lubricated bearings is more serious than the oil-lubricated bearing at high speed, and the water-lubricated bearing tends to fall into turbulent fluid condition when rotary speed exceeds a certain value.Hence,both cavitating effect and turbulent effect should be considered to model the high-speed water-lubricated bearing.

The cavitating and turbulent effects of water or oil bearings with different configurations have been investigated in previous studies. In the early studies on bearing cavitation, the different boundary conditions for lubrication equation including the Swift-Stiebe condition [1], the JFO condition [2], the Elrod condition [3] have been adopted to describe the cavitation effect of the lubricating film. With those conditions, solution of a two-phase flow in cavitated region can be avoided. However, the cavitating flow is not involved in those models. To overcome this problem,the cavitation lubricant is treated as two-phase mixed fluid. The two-phase mixed fluid models have been developed, those models can be divided into three types based on calculation approaches of gas phase volume fraction: (1) the model based on the R-P equation [4, 5] (2) the model based on gas solubility and surface tension of bubble [4, 6,7,8,‒9] (3) the model based on transport equation of the gas phase volume fraction [10,11,12,13,14,15]. In addition, with the rapid development of computational fluid dynamics (CFD) technology,some researchers have proposed performance analysis of bearings with the cavitation using the CFD software [7, 11, 16,17,18,‒19]. However, the interfacial effect (the momentum and energy transfer effect between phases at the interface of two phases) of the two-phase flow is not included in the above lubrication models of cavitating flow. Actually, the momentum and energy exchange between the two phases produces at the interface, so the interface effect is a very important feature for two-phase flow,which can not be ignored when modeling the high-speed water-lubricated bearing. In addition, the size distribution of the bubbles cannot be obtained using the present mixed fluid model or the CFD model. In our previous study, lubrication models considering the interface effect of two-phase flow have been proposed [20,21,22,23]. However, those models are established under heat isolation, and the bubble population equilibrium equation is solved directly. Since the bubble size probability density function is an unknown quantity, so it is difficult to determine the bubble size probability density function at the initial moment and at the interface. Furthermore, this kind of algorithm tends to unstable.

This study aims to establish a lubrication model for the water-lubricated spiral groove thrust bearings including both two-phase interfacial and fluid turbulent and bearing heat conduction effects. A generalized Reynolds equation considering the cavitation interface and turbulence, and an energy equation considering bearing heat conduction are derived. A population balance equation considering the breakage and coalescence of bubbles is introduced to describe the evolution of the size distribution of bubbles. A discrete interval method is employed to solve the bubble population balance equation. The influence of cavitation and turbulence on the dynamic characteristics of the SGTB is analyzed using the established model. The size distribution of cavitation bubbles and stiffness coefficient of water film are measured using a self-developed experimental device. A comparison of the simulating results with experimental ones is given to verify the proposed model.

2 Theoretical Model

2.1 Generalized Reynolds Equation Based on the Two-Phase Flow Theory

This paper studies the water-lubricated SGTB with the turbulent cavitating flow film (Figure 1). The classical Reynolds equation is not suitable for describing the bearing lubrication state, a Reynolds equation which contains turbulent and two-phase interfacial effects is needed, so the following basic assumptions are made for the modeling.

  1. (1)

    The bubbles in the cavitation flow be regarded as spheres.

  2. (2)

    The flow field is a small perturbation of the turbulent Couette flow [24].

  3. (3)

    The turbulent shear stress is defined by the law of wall, Reichardt [25] empirical formula is used to define the eddy viscosity coefficient.

  4. (4)

    The average viscosity along the film thickness is adopted in generalized turbulent Reynolds equation.

Figure 1
figure 1

Structure schematic of inward-pumping SGTB

The spiral area is an irregular area in the polar coordinate system, a spiral coordinates system \((\eta ,\zeta )\) are adopted to improve numerical calculation accuracy. The polar coordinates \((\theta ,r)\) are converted into the spiral coordinates system \((\eta ,\zeta )\) as follows:

$$\begin{array}{ll}\zeta =r,\\ \eta =\theta -f\left(\zeta \right),\\ f\left(\zeta \right)=\frac{1}{\mathrm{cot}\beta }\mathrm{ln}\left(\frac{\zeta }{{\zeta }_{b}}\right).\end{array}$$
(1)

The spiral patterns before and after the coordinates conversion are shown in Figure 2.

Figure 2
figure 2

Coordinates transformation of spiral patterns

A generalized turbulent Reynolds equation with cavitation interface effects and inertial effects in the \((\eta ,\zeta )\) coordinates is derived based on two-phase flow theory [26]:

$$\begin{array}{ll}\frac{\partial }{\partial \zeta }\left(\frac{{h}^{3}\zeta }{{\overline{\mu }}_{w}{k}_{r}}\frac{\partial {C}_{w}p}{\partial \zeta }\right)+\frac{\partial }{\partial \eta }\left(\left(\frac{{\zeta }^{2}{{f}^{^{\prime}}}^{2}\left(\zeta \right)}{{k}_{r}}+\frac{1}{{k}_{\theta }}\right)\frac{{h}^{3}}{{\overline{\mu }}_{w}\zeta }\frac{\partial {C}_{w}p}{\partial \eta }\right)\\ -\frac{\partial }{\partial \zeta }\left(\frac{{h}^{3}\zeta }{{\overline{\mu }}_{w}{k}_{r}}{f}^{^{\prime}}(\zeta )\frac{\partial {C}_{w}p}{\partial \eta }\right)-\frac{\partial }{\partial \eta }\left(\frac{{h}^{3}\zeta }{{\overline{\mu }}_{w}{k}_{r}}{f}^{^{\prime}}(\zeta )\frac{\partial {C}_{w}p}{\partial \zeta }\right)\\ =\frac{\partial }{\partial \eta }\left(\frac{hU{C}_{w}}{2}\right)+\frac{\partial }{\partial \eta }\left(\frac{{h}^{3}}{{\overline{\mu }}_{w}{k}_{\theta }}M(\eta )\right)\\ \quad+\, \frac{\partial }{\partial \zeta }\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}\right)-\frac{\partial }{\partial \eta }\left({f}^{^{\prime}}(\zeta )\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}\right),\end{array}$$
(2)

where

$$\begin{array}{ll}{\overline{\mu }}_{w}=\frac{1}{h}\int\limits_{0}^{h}\,{\mu }_{w}\,\mathrm{d}z,\\ \overline{u }=\frac{1}{h}\int\limits_{0}^{h}\,u\mathrm{d}z,\end{array}$$
(3)
$$\begin{array}{ll}\frac{1}{{k}_{\theta }}=\int\limits_{0}^{1}\int\limits_{0}^{{z}^{*}}\frac{1}{{f}_{c}}\left(1-\frac{{g}_{c}}{{f}_{c}}\right)\left(\frac{1}{2}-{z}^{*\prime}\right)\mathrm{d}{z}^{*\prime}\mathrm{d}{z}^{*},\\ \frac{1}{{k}_{r}}=\int\limits_{0}^{1}\int\limits_{0}^{{z}^{*}}\frac{1}{{f}_{c}}\left(\frac{1}{2}-{z}^{*\prime}\right)\mathrm{d}{z}^{*\prime}\mathrm{d}{z}^{*},\\ {f}_{c}=0.4\left[{z}^{*}{h}_{c}^{*}-10.7th\left(\frac{{z}^{*}{h}_{c}^{*}}{10.7}\right)\right]+1,\\ {g}_{c}=0.2{z}^{*}{h}_{c}^{*}t{h}^{2}\left(\frac{{z}^{*}{h}_{c}^{*}}{10.7}\right),\\ {z}^{*}=\frac{z}{h},\end{array}$$
(4)
$${h}_{c}^{*}=\frac{h}{{\nu }_{w}}\sqrt{\frac{{\tau }_{c}}{{\rho }_{w}}}.$$
(5)

The following expression can be given for the logarithmic spirals:

$${f}^{\mathrm{^{\prime}}}\left(\zeta \right)=\frac{1}{\zeta \mathrm{cot}\beta }.$$
(6)

The circumferential velocity distribution of the water film is written as

$$u=\frac{U}{2}+\frac{{({h}_{c}^{*})}^{2}}{{R}_{c}}\frac{U}{{h}^{*}}{G}_{1}({z}^{*})-\frac{1}{{C}_{w}}\frac{{h}^{2}}{{\overline{\mu }}_{w}}(\frac{1}{\zeta }\frac{\partial ({C}_{w}p)}{\partial \eta }M(\eta )){G}_{2}({z}^{*}),$$
(7)

where

$$\begin{array}{ll}{G}_{1}\left({z}^{*}\right)=\int\limits_\frac{1}{2}^{{z}^{*}}\frac{1}{{f}_{c}}\mathrm{d}{z}^{*{{\prime}}},\\ {G}_{2}({z}^{*})=\int\limits_{0}^{{z}^{*}}\frac{1}{{f}_{c}}\left(1-\frac{{g}_{c}}{{f}_{c}}\right)\mathrm{d}{z}^{*{{\prime}}},\end{array}$$
(8)
$${C}_{w}=1-{C}_{g},$$
(9)
$${C}_{g}=\frac{\frac{\pi }{6}\int\limits_{0}^{\infty }{\varsigma }^{3}{f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma }{1+\frac{\pi }{6}\int\limits_{0}^{\infty }{\varsigma }^{3}{f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma },$$
(10)

where \({f}_{eq}(\eta ,\varsigma )\) is the equilibrium distribution function of the cavitation bubble diameter; \({f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma\) represents the number of bubbles with diameter between \((\varsigma ,\varsigma +\mathrm{d}\varsigma )\) per unit volume of water at spatial coordinate η under the equilibrium state. The first term on the right-hand side of Eq. (2) is the hydrodynamic effect, the second term on the right side of Eq. (2) is the interface hydrodynamic effect, the third and fourth terms on the right side of Eq. (2) is the inertia hydrodynamic effect. The interface momentum transfer function includes the following three parts:

$$M\left(\eta \right)={M}_{1}\left(\eta \right)+{M}_{2}\left(\eta \right)+{M}_{3}(\eta ),$$
(11)

where \({M}_{1}(\eta )\) is the interface momentum transfer term due to mass transfer, \({M}_{2}(\eta )\) is the interface momentum transfer term due to viscous drag, \({M}_{3}(\eta )\) is the interface momentum transfer term due to surface tension. Because the film thickness is thin, the liquid velocity in \({M}_{1}\left(\eta \right),{M}_{2}(\eta )\) are approximated by the average velocity. \({M}_{1}(\eta ),{M}_{2}(\eta )\) and \({M}_{3}(\eta )\) are written as:

$$\begin{array}{ll}{M}_{1}=-\left[{\rho }_{w}\frac{\pi }{3}\int\limits_{0}^{\infty }{\varsigma }^{2}{f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma \right]\overline{u }(\overline{u }-{u}_{b}),\\ {M}_{2}=\left[\frac{\pi }{3}{C}_{Ds}{\rho }_{w}\int\limits_{0}^{\infty }{\varsigma }^{2}{f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma \right]{(\overline{u }-{u}_{b})}^{2},\\ {M}_{3}=2\pi \sigma \int\limits_{0}^{\infty }\varsigma {f}_{eq}(\eta ,\varsigma )d\varsigma ,\end{array}$$
(12)

where \({C}_{Ds}\text{=}\frac{24}{{R}_{e}}\).

Assume that the range of bubble diameter is divided into M smaller intervals, the diameter distribution of the bubbles is uniform in a smaller interval. So the equilibrium distribution function of bubble diameter in the kth smaller diameter interval \(({\varsigma }_{k},{\varsigma }_{k+1})\) can be expressed as:

$${f}_{eq}\left(\eta ,\varsigma \right)\approx {n}_{eq}^{k}\left(\eta \right)\delta \left(\varsigma -{x}_{k}\right),$$
(13)

where

$${n}_{eq}^{k}\left(\eta \right)=\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}{f}_{eq}(\eta ,\varsigma )\mathrm{d}\varsigma ,$$
(14)
$${x}_{k}=\frac{1}{2}\left({\varsigma }_{k}+{\varsigma }_{k+1}\right),$$
(15)

where \({n}_{eq}^{k}(\eta )\) is the number of bubbles in the kth diameter interval \(({\varsigma }_{k},{\varsigma }_{k+1})\). And the integral in Eq. (12) can be approximated as:

$$\begin{array}{ll}\int\limits_{0}^{\infty }{\varsigma }^{2}\,\,{f}_{eq}(\eta ,\varsigma )d\varsigma \approx \sum\limits_{k=1}^{M}{x}_{k}^{2}{n}_{eq}^{k}(\eta ),\\ \int\limits_{0}^{\infty }\varsigma\,\, {f}_{eq}(\eta ,\varsigma )d\varsigma \approx \sum\limits_{k=1}^{M}{x}_{k}{n}_{eq}^{k}(\eta ).\end{array}$$
(16)

The boundary conditions of Eq. (2) are as follows:

$$\begin{array}{c}{p|}_{\zeta ={\zeta }_{out}}=0,\\ {p|}_{\zeta ={\zeta }_{in}}={p}_{in},\\ p(\eta )=p(\eta +\frac{2\pi }{N}).\end{array}$$
(17)

The pressure at the groove-ridge boundary can be solved by using continuous condition of flow at the groove-ridge boundary. The finite volume at the groove-ridge boundary is shown in Figure 3.

Figure 3
figure 3

Finite volume separated by groove-ridge boundary

In a finite volume at the groove-ridge boundary, the continuous condition of the flow can be written as

$${\sum }_{i}{Q}_{i}^{\eta }+{\sum }_{j}{Q}_{j}^{\zeta }=0,$$
(18)

where

$${Q}_{i}^{\eta }=\int\limits_{{\zeta }_{1}}^{{\zeta }_{2}}\left(\begin{array}{c}\zeta {f}^{^{\prime}}(\zeta )\left(\frac{{h}^{3}}{{C}_{w}{\bar {\mu }_{w}}}\left(\frac{\partial {C}_{w}p}{\partial \zeta }-\frac{1}{\zeta \mathrm{cot}\beta }\frac{\partial {C}_{w}p}{\partial \eta }\right)-\frac{{h}^{3}}{\bar {\mu }_{w}}\frac{\rho {\overline{u} }^{2}}{\zeta }\right)\frac{1}{{k}_{r}}\\ +\frac{Uh}{2}-\frac{{h}^{3}}{{\bar {\mu }_{w}}}\left(\frac{1}{\zeta {C}_{w}}\frac{\partial {C}_{w}p}{\partial \eta }-\frac{M(\eta )}{{C}_{w}}\right)\frac{1}{{k}_{\theta }}\end{array}\right)\mathrm{d}\zeta,\quad (i=BF,FC,DE,EA).$$
(19)
$${Q}_{j}^{\zeta }=\underset{{\eta }_{1}}{\overset{{\eta }_{2}}{\int }}\zeta \left(-\frac{{h}^{3}}{{C}_{w}{\bar {\mu }_{w}}}\left(\frac{\partial {C}_{w}p}{\partial \zeta }{f}^{^{\prime}}(\zeta )\frac{\partial {C}_{w}p}{\partial \eta }\right)\frac{1}{{k}_{\theta }}\frac{{h}^{3}}{{\bar {\mu }_{w}}}\frac{\rho {\overline{u} }^{2}}{\zeta }\frac{1}{{k}_{r}}\right)\mathrm{d}\eta.\,\, \left(j\text{=}AB,CD\right).$$
(20)

2.2 Turbulent Cavitating Flow Energy Equation

The temperature field of the cavitating flow water film can be obtained by solving the two-phase flow energy equation under high-speed conditions, and the following assumptions are adopted to simplify the energy equation.

  1. (1)

    The circumferential convection term is only considered in the energy equation, because the circumferential velocity is much larger than the radial velocity.

  2. (2)

    Turbulent pulsation heat conduction term is ignored.

  3. (3)

    The viscous dissipation term along the film thickness is only considered in the energy equation.

According to the above assumption, the energy equation in the \((\eta ,\zeta )\) coordinates in the spiral coordinate system can be simplified to

$${\rho }_{w}{c}_{v}\left(\frac{u}{\zeta }\frac{\partial \left({C}_{w}T\right)}{\partial \eta }\right)={C}_{w}{k}_{w}\frac{{\partial }^{2}T}{\partial {z}^{2}}+{C}_{w}\left({\tau }_{t}\left(z\right)\right)\left(\frac{\partial u}{\partial z}\right)+{E}_{int},$$
(21)

where

$$\left({\tau }_{t}\left(z\right)\right)=\frac{{({h}_{c}^{*})}^{2}{\overline{\mu }}_{w}U}{{R}_{c}h}+\frac{1}{{C}_{w}}\left(\frac{1}{\zeta }\frac{\partial ({C}_{w}p)}{\partial \eta }-M(\eta )\right)\left(z-\frac{h}{2}\right),$$
(22)
$$\frac{\partial u}{\partial z}=\frac{{({h}_{c}^{*})}^{2}}{{R}_{c}{h}^{*}}\frac{\partial {G}_{1}({z}^{*})}{\partial {z}^{*}}\frac{U}{h}-\frac{h}{{C}_{w}{\overline{\mu }}_{w}}\left(\frac{1}{\zeta }\frac{\partial \left({C}_{w}p\right)}{\partial \eta }M\left(\eta \right)\right)\frac{\partial {G}_{2}\left({z}^{*}\right)}{\partial {z}^{*}}.$$
(23)

The interface term \({E}_{\mathrm{int}}\) in the energy equation is expressed as

$$\begin{array}{c}{E}_{int}\approx {C}_{Ds}\pi {\left(\overline{u }-{u}_{b}\right)}^{2}\overline{u }\sum_{k=1}^{M}{x}_{k}^{2}{n}_{eq}^{k}\left(\eta \right)\\ -{\rho }_{w}{c}_{v}T(\overline{u }-{u}_{b})\pi \sum_{k=1}^{M}{x}_{k}^{2}{n}_{eq}^{k}(\eta )\\ +2\sigma \overline{u }\pi \sum_{k=1}^{M}{x}_{k}{n}_{eq}^{k}(\eta ).\end{array}$$
(24)

The following boundary conditions are adopted for the energy Eq. (21).

  1. (1)

    At the inlet of the spiral groove

    $$T\left(0,z\right)={T}_{0}.$$
    (25)
  2. (2)

    On the interface of the water film and the thrust disk

    $$T\left(\eta ,h\right)={T}_{d}(\eta ,0).$$
    (26)
  3. (3)

    On the interface of the water film and the stationary ring

    $$T\left(\eta ,0\right)={T}_{s}\left(\delta_{s} \right).$$
    (27)

The viscosity temperature relationship is written as

$${\mu }_{w}={\mu }_{w0}{e}^{(-b(T-{T}_{0}))}.$$
(28)

The water film temperature field can be obtained solved by simultaneously solving the energy Eq. (21), the heat conduction equation of the stationary ring and the heat conduction equation of the thrust disk.The surface temperature \({T}_{s}(\delta_{s} )\) of the stationary ring and surface temperature \({T}_{d}(\eta ,0)\) of the thrust plate are set as the boundary condition of the energy Eq. (21).

2.3 Heat Conduction Equation in Stationary Ring

The circumferential and radial heat conduction of the stationary ring are ignored, the heat conduction equation is simplified as follows:

$$\frac{{\partial }^{2}{T}_{\mathrm{s}}}{\partial {z}_{s}^{2}}=0 \left(0\le {z}_{s}\le {\delta }_{s}\right).$$
(29)

The boundary conditions of Eq. (29) are given as follows.

  1. (1)

    At the surface between the stationary ring and the fluid \(\left({z}_{s}={\delta }_{s}\right)\):

    $$\begin{array}{c}{-k}_{s}{\left.\frac{\partial {T}_{s}}{\partial {z}_{s}}\right|}_{{z}_{s}={\delta }_{s}}={\alpha }_{w}({\left.{T}_{s}\right|}_{{z}_{s}={\delta }_{s}}-{T}_{m}),\\ {T}_{m}=\frac{1}{h}\int\limits_{0}^{h}T\mathrm{d}z.\end{array}$$
    (30)
  2. (2)

    At the surface between the stationary ring and the ambient \(\left({z}_{s}={0}\right)\):

    $${k}_{s}{\left.\frac{\partial {T}_{s}}{\partial {z}_{s}}\right|}_{{z}_{s}=0}={\alpha }_{a}({{T}_{s}|}_{{z}_{s}=0}-{T}_{0}).$$
    (31)

The expression of the temperature at the surface of the stationary ring can be obtained from Eq. (29) and boundary conditions (30), (31). The temperature at the surface of the stationary ring is written as

$${{T}_{s}|}_{{z}_{s}={\delta }_{s}}=\frac{{T}_{m}-{T}_{0}}{\frac{{\alpha }_{w}}{{\alpha }_{a}}-\frac{{\alpha }_{w}}{{k}_{s}}{\delta }_{s}-1}+{T}_{m}.$$
(32)

2.4 Heat Conduction Equation in Thrust Disk

For the rotary thrust disk, the heat transfer effects in circumferential and radial directions are also ignored, the heat conduction equation is simplified as follows:

$$\frac{{k}_{d}}{{\rho }_{d}{c}_{d}}\frac{{\partial }^{2}{T}_{d}}{\partial {z}_{d}^{2}}=\omega \frac{\partial {T}_{d}}{\partial \eta }.\begin{array}{cc}& \left(0\le {z}_{d}\le {\delta }_{d}\right).\end{array}$$
(33)

The boundary conditions of Eq. (33) are given as follows:

  1. (1)

    At the surface between the thrust disk and the fluid \(({z}_{d}=0)\):

    $${k}_{d}{\left.\frac{\partial {T}_{d}}{\partial {z}_{d}}\right|}_{{z}_{d}=0}={\alpha }_{w}\left({{T}_{d}|}_{{z}_{d}=0}-{T}_{m}\right).$$
    (34)
  2. (2)

    At the surface between the thrust disk and the ambient \(({z}_{d}={\delta }_{d})\):

    $${k}_{d}{\left.\frac{\partial {T}_{d}}{\partial {z}_{d}}\right|}_{{z}_{d}={\delta }_{d}}=-{\alpha }_{a}\left({{T}_{d}|}_{{z}_{d}={\delta }_{d}}-{T}_{0}\right).$$
    (35)

2.5 Force Balance Equation of Bubble

The force balance equation of bubbles is expressed as

$${F}_{B}+{F}_{D}+{F}_{G}=0,$$
(36)

where

$${F}_{B}=\langle V\rangle ({\rho }_{w}-{\rho }_{g})g,$$
(37)
$${F}_{G}=({\rho }_{w}-{\rho }_{g})\langle V\rangle \frac{\mathrm{d}u}{\mathrm{d}t},$$
(38)
$$\frac{\mathrm{d}u}{\mathrm{d}t}=-\frac{1}{{\rho }_{w}}\frac{\partial p}{\zeta \partial \eta },$$
(39)
$$\langle V\rangle \approx \frac{\pi }{6}\sum_{k=1}^{M}{x}_{k}^{3}{n}_{eq}^{k}(\eta ),$$
(40)
$${F}_{D}=12\pi {\overline{\mu }}_{w}\langle {R}_{b}\rangle \left({u}_{b}-\overline{u }\right)\frac{1-{C}_{g}^\frac{5}{3}}{{\left(1-{C}_{g}\right)}^{2}},$$
(41)
$$\langle {R}_{b}\rangle \approx \frac{1}{2}\sum_{k=1}^{M}{x}_{k}{n}_{eq}^{k}\left(\eta \right).$$
(42)

The bubble velocity ub in the cavitating flow is calculated by the force balance Eq. (36). Substitute \({F}_{B}\), \({F}_{G}\), \({F}_{D}\) into Eq. (36), the bubble velocity ub can be expressed as [27]

$${u}_{b}=\overline{u }+\frac{{(1-{C}_{g})}^{2}({\rho }_{w}-{\rho }_{g})}{12\pi {\overline{\mu }}_{w}\langle {R}_{b}\rangle (1-{C}_{g}^\frac{5}{3})}\langle V\rangle \left(g+\frac{1}{{\rho }_{w}}\frac{\partial p}{\zeta \partial \eta }\right).$$
(43)

2.6 Population Balance Equation of Bubbles

Interface effect is an important phenomenon for cavitating flow, the momentum, mass and energy transfer occur through the interface between the gas-liquid. The interfacial area per unit volume liquid is positively correlated with the size distribution of the bubble, the bubble size distribution can be described by defining a probability density function \(f({\varvec{r}},\varsigma ,t)\), and the internal coordinates \(\varsigma\) are taken as bubble diameter in the model, and the \(f({\varvec{r}},\varsigma ,t)\mathrm{d}\varsigma\) represents the number of bubbles with between \((\varsigma ,\varsigma +\mathrm{d}\varsigma )\) at per volume liquid. Thus, integration of \(f\) over bubble diameter results in the total number of bubbles per volume liquid.The breakage, coalescence are two main factors affecting bubble size distribution in the cavitating flow, and bubble size distribution is predicted by the model of the breakage and coalescence processes of bubbles, this leads to the so-called population balance equation (PBE).

The PBE is a transport equation, the evolution of function \(f\) can be described by the PBE in the spiral coordinates \((\eta ,\zeta )\), the PBE is written as follows:

$$\begin{array}{ll}\frac{\partial f\left(\eta ,\varsigma ,t\right)}{\partial t}+{u}_{b}\frac{\partial }{\zeta \partial \eta }\left(f\left(\eta ,\varsigma ,t\right)\right)\\= -\,b(\varsigma )f(\eta ,\varsigma ,t)\\ \,\,+\int\limits_{\varsigma }^{{\varsigma }_{\mathrm{max}}}{h}_{b}\left(\xi ,\varsigma \right)b\left(\xi \right)f\left(\eta ,\xi ,t\right)\mathrm{d}\xi \\\,\, -\,f(\eta ,\varsigma )\int\limits_{0}^{{\varsigma }_{\mathrm{max}}}c(\varsigma ,\xi )f(\eta ,\xi ,t)\mathrm{d}\xi \\ \,\,+\,\frac{{\varsigma }^{2}}{2}\int\limits_{0}^{\varsigma }\frac{c\left({\left({\varsigma }^{3}-{\xi }^{3}\right)}^{1/3},\xi \right)}{{\left({\varsigma }^{3}-{\xi }^{3}\right)}^{2/3}}f\left(\eta ,{\left({\varsigma }^{3}-{\xi }^{3}\right)}^{1/3},t\right)f\left(\eta ,\xi ,t\right)\mathrm{d}\xi \\ \,\,+\,{S}_{c}(\varsigma ),\end{array}$$
(44)

where, the first term on the right-hand side of Eq. (44) represents breakup sink term of bubbles with diameter \(\varsigma\) per unit time, the second term on the right-hand side of Eq. (44) represents breakup source term of bubbles with diameter \(\varsigma\) per unit time, the third term on the right-hand side of Eq. (44) represents coalescence sink term of bubbles with diameter \(\varsigma\) per unit time,the fourth term on the right-hand side of Eq. (44) represents coalescence source term of bubbles with diameter \(\varsigma\) per unit time, the fifth term on the right-hand side of Eq. (44) represents bubbles with diameter \(\varsigma\) source term.

The initial condition for Eq. (44) is given

$$f(\eta ,\varsigma ,0)=0.$$
(45)

The breakage frequency \(b(\varsigma )\) is given as [28]:

$$b\left(\varsigma \right)=\frac{{\kappa }_{1}{\varepsilon }^{1/3}}{{\varsigma }^{2/3}}\mathrm{exp}\left(-\frac{\sigma {\kappa }_{2}}{{\rho }_{g}{\varepsilon }^{2/3}{\varsigma }^{5/3}}\right),$$
(46)
$$\varepsilon ={C}_{g}{u}_{b}g.$$
(47)

The daughter bubble size redistribution function \({h}_{b}(\xi ,\varsigma )\) is given as [28]

$${h}_{b}\left(\xi ,\varsigma \right)=\frac{4.8}{\xi }\mathrm{exp}\left(-4.5{\frac{(2\varsigma -\xi )}{{\xi }^{2}}}^{2}\right).$$
(48)

The coalescence closure is given as [28]:

$$\begin{array}{ll}c\left(\varsigma ,\xi \right)=0.05\frac{\pi }{4}{(\varsigma +\xi )}^{2}{\left[{\beta }_{c}{\left(\varepsilon \varsigma \right)}^{2/3}+{\beta }_{c}{(\varepsilon \xi )}^{2/3}\right]}^{1/2}\\ \mathrm{exp}\left(-\frac{{\left({r}_{c}^{3}{\rho }_{w}/16\sigma \right)}^{1/2}{\varepsilon }^{1/3}\mathrm{ln}\left({h}_{i}/{h}_{f}\right)}{{r}_{c}^{2/3}}\right),\end{array}$$
(49)
$${r}_{c}=\frac{1}{4}{\left(\frac{1}{\varsigma }+\frac{1}{\xi }\right)}^{-1}.$$
(50)

The value of parameter \({\beta }_{c}\) is taken as 2.48. The expression of source term \({S}_{c}(\varsigma )\) is

$${S}_{c}\left(\varsigma \right)={C}_{\rho }\sqrt{\left({p}_{v}-p\right)}\chi \left(\varsigma \right),$$
(51)

where

$$\chi \left(\varsigma \right)=\int\limits_{0}^{\varsigma }(\psi (\varsigma ,{\varsigma }_{c}){g}_{c}({\varsigma }_{c}))\mathrm{d}{\varsigma }_{c},$$
(52)
$${C}_{\rho }={\left(\frac{2}{3{\rho }_{w}}\right)}^{1/2}.$$
(53)

The redistribution function of bubble diameter \(\varsigma\) is given as

$$\psi \left({\varsigma }_{c},\varsigma \right)=\frac{{c}_{1}}{{\varsigma }_{c}}\mathrm{exp}\left(-\frac{{c}_{2}{(\varsigma -{\varsigma }_{c})}^{2}}{{\varsigma }_{\mathrm{max}}^{2}}\right).$$
(54)

The diameter distribution density function of the gas nucleus is given by experimental data [29]:

$${g}_{c}\left({\varsigma }_{c}\right)\approx \frac{\left(\alpha +1\right)}{{\varsigma }_{c\mathrm{max}}}{N}_{i}{\left(\frac{{\varsigma }_{c}}{{\varsigma }_{c\mathrm{max}}}\right)}^{\alpha },$$
(55)

where the value of parameter \(\mathrm{\alpha }\) is taken as − 10/3.

3 Calculation of Dynamic Characteristics of the SGTB

As shown in Figure 4, the origin of Cartesian coordinate is located at the center of the stationary ring. The possible independent motions of the thrust disk are axial movement along z axis and angular movements around x and y axes. The perturbed displacements and velocities of the thrust disk with respect to the steady equilibrium position are defined as \((\Delta z,\Delta {\varphi }_{x},\Delta {\varphi }_{y})\) and \((\Delta \dot{z},\Delta {\dot{\varphi }}_{x},\Delta {\dot{\varphi }}_{y})\). The assume initial position of the thrust disk is \(({h}_{0},{\varphi }_{x0},{\varphi }_{y0})\), the film thickness in quasi-equilibrium can be expressed as

Figure 4
figure 4

Motion of a SGTB

$$h={h}_{0}+\Delta z+r\mathrm{cos}\theta\Delta {\varphi }_{y}-r\mathrm{sin}\theta\Delta {\varphi }_{x}.$$
(56)

The perturbations will have influence on the pressure distribution in the water film through Reynolds equation. The high order terms are ignored, the transient pressure of water film can be expressed as

$$p={p}_{0}+{p}_{z}\Delta z+{p}_{{\varphi }_{x}}\Delta {\varphi }_{x}+{p}_{{\varphi }_{y}}\Delta {\varphi }_{y}+ {p}_{\dot{z}}\Delta \dot{z}+{p}_{{\dot{\varphi }}_{x}}\Delta {\dot{\varphi }}_{x}+{p}_{{\dot{\varphi }}_{y}}\Delta {\dot{\varphi }}_{y}.$$
(57)

Substituting Eqs. (56) and (57) into Eq. (2), the zeroth and first-order perturbation generalized Reynolds equations in the \((\eta ,\zeta )\) coordinates system are obtained for the SGTB respectively,

$$Rey\left(\right)\left\{\begin{array}{c}{C}_{w}{p}_{z}\\ {{C}_{w}p}_{{\varphi }_{x}}\\ \begin{array}{c}{{C}_{w}p}_{{\varphi }_{y}}\\ {{C}_{w}p}_{\dot{z}}\\ \begin{array}{c}{{C}_{w}p}_{{\dot{\varphi }}_{x}}\\ {{C}_{w}p}_{{\dot{\varphi }}_{y}}\end{array}\end{array}\end{array}\right\}=\left\{\begin{array}{c}{q}_{z}\\ {q}_{{\varphi }_{x}}\\ \begin{array}{c}{q}_{{\varphi }_{y}}\\ {q}_{\dot{z}}\\ \begin{array}{c}{q}_{{\dot{\varphi }}_{x}}\\ {q}_{{\dot{\varphi }}_{y}}\end{array}\end{array}\end{array}\right\},$$
(58)

where the operator \(Rey()\) is defined as

$$\begin{array}{c}Rey()=\frac{\partial }{\partial \eta }\left(\frac{{h}_{0}^{3}}{{\overline{\mu }}_{w}\zeta }\left(\frac{{\zeta }^{2}{{f}^{^{\prime}}}^{2}(\zeta )}{{k}_{r}}\text{+}\frac{1}{{k}_{\theta }}\right)\frac{\partial }{\partial \eta }\right)\text{+}\frac{\partial }{\partial \zeta }\left(\frac{\zeta {h}_{0}^{3}}{{\overline{\mu }}_{w}{k}_{r}}\frac{\partial }{\partial \zeta }\right)\\ -\frac{\partial }{\partial \zeta }\left(\frac{{h}_{0}^{3}}{{\overline{\mu }}_{w}{k}_{r}}\zeta {f}^{^{\prime}}(\zeta )\frac{\partial }{\partial \eta }\right)-\frac{\partial }{\partial \eta }\left(\frac{{h}_{0}^{3}}{{\overline{\mu }}_{w}{k}_{r}}\zeta {f}^{^{\prime}}(\zeta )\frac{\partial }{\partial \zeta }\right),\end{array}$$

and \({q}_{j}\left(j=z,{\varphi }_{x},{\varphi }_{y},\dot{z},\dot{{\varphi }_{x}},\dot{{\varphi }_{y}}\right)\) can be found in Appendix.

The stiffness and damping coefficients in the \((\eta ,\zeta )\) coordinates system can be found by the following integrals

$$\left[\begin{array}{ccc}{K}_{zz}& {K}_{z{\varphi }_{x}}& {K}_{z{\varphi }_{y}}\\ {K}_{{\varphi }_{x}z}& {K}_{{\varphi }_{x}{\varphi }_{x}}& {K}_{{\varphi }_{x}{\varphi }_{y}}\\ {K}_{{\varphi }_{y}z}& {K}_{{\varphi }_{y}{\varphi }_{x}}& {K}_{{\varphi }_{y}{\varphi }_{y}}\end{array}\right]=\underset{0}{\overset{2\pi }{\int }}\underset{{r}_{in}}{\overset{{r}_{out}}{\int }}\left[\begin{array}{c}-1\\ {G}_{1}(\eta ,\zeta )\\ -{G}_{2}(\eta ,\zeta )\end{array}\right]\{{p}_{z}{p}_{{\varphi }_{x}}{p}_{{\varphi }_{y}}\}\,\,\zeta \mathrm{d}\zeta \mathrm{d}\eta ,$$
(59)
$$\left[\begin{array}{ccc}{C}_{zz}& {C}_{z{\varphi }_{x}}& {C}_{z{\varphi }_{y}}\\ {C}_{{\varphi }_{x}z}& {C}_{{\varphi }_{x}{\varphi }_{x}}& {C}_{{\varphi }_{x}{\varphi }_{y}}\\ {C}_{{\varphi }_{y}z}& {C}_{{\varphi }_{y}{\varphi }_{x}}& {C}_{{\varphi }_{y}{\varphi }_{y}}\end{array}\right]=\underset{0}{\overset{2\pi }{\int }}\underset{{r}_{in}}{\overset{{r}_{out}}{\int }}\left[\begin{array}{c}-1\\ {G}_{1}(\eta ,\zeta )\\ -{G}_{2}(\eta ,\zeta )\end{array}\right]\{{p}_{\dot{z}}{p}_{{\dot{\varphi }}_{x}}{p}_{{\dot{\varphi }}_{y}}\}\,\,\zeta \mathrm{d}\zeta \mathrm{d}\eta ,$$
(60)

where

$$\begin{array}{c}{G}_{1}(\eta ,\zeta )=\zeta \mathrm{sin}(\eta +f(\zeta )),\\ {G}_{2}(\eta ,\zeta )=\zeta \mathrm{cos}(\eta +f(\zeta )).\end{array}$$
(61)

4 Numerical Calculation Method of Theoretical Model

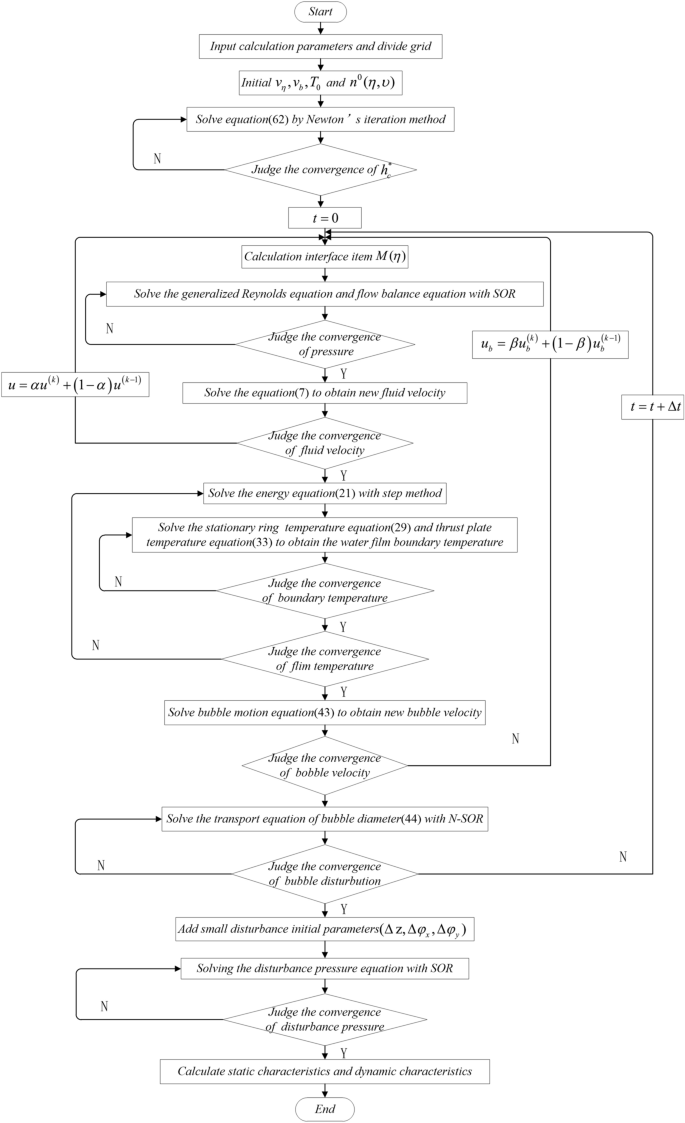

The generalized Reynolds Eq. (2), energy Eq. (21), and PBE Eq. (44) are the main three governing equations for the bearing. The pressure field, temperature field, and bubble diameter distribution are obtained by solving these three equations respectively, and pressure field; temperature field and bubble diameter distribution are coupled to each other, and an iterative algorithm needs to be employed to solve these distributions. Eq. (2) and Eq. (21) are discretized using finite difference, the pressure field is obtained by solving discretization equations of Eq. (2) with the SOR iterative method, the temperature field is obtained by solving discretization equations of Eq. (21) with the stepping method.

4.1 Calculation of Parameter \({{\varvec{h}}}_{{\varvec{c}}}^{\boldsymbol{*}}\)

The shear stress parameter \({h}_{c}^{*}\) of the Couette flow is included in turbulent velocity distribution Eq. (2), The governing equation for parameter \({h}_{c}^{*}\) is written as [24]

$${({h}_{c}^{*})}^{2}\int\limits_{0}^{1}\frac{\mathrm{d}{z}^{*}}{{f}_{c}({z}^{*},{h}_{c}^{*})}-{R}_{c}^{*}{h}^{*}=0.$$
(62)

Eq. (62) is a nonlinear equation with respect to \({h}_{c}^{*}\), the parameter \({h}_{c}^{*}\) can be solved using the Newton iteration method. The Newton iteration formula is expressed as \({h}_{c}^{*}\)

$${({h}_{c}^{*})}^{(k+1)}={({h}_{c}^{*})}^{(k)}-\frac{F\left({{h}_{c}^{*}}^{\left(k\right)}\right)}{{F}^{^{\prime}}\left({{h}_{c}^{*}}^{\left(k\right)}\right)},$$
(63)

where

$$F\left({h}_{c}^{*}\right)={\left({h}_{c}^{*}\right)}^{2}\int\limits_{0}^{1}\frac{\mathrm{d}{z}^{*}}{{f}_{c}\left({z}^{*},{h}_{c}^{*}\right)}-{R}_{c}^{*}{h}^{*}.$$
(64)

4.2 Numerical Solution of Bubble PBE

A discrete interval method [30] is employed to solve the bubble population balance Eq. (44). The procedure of the discrete interval method is as follows.

  1. (1)

    Assume that the entire bubble diameter range is divided into M smaller intervals. The bubble diameter is approximated uniform distribution at the kth representative diameter range \(({\varsigma }_{k},{\varsigma }_{k+1})\), then the \(f(\eta ,\varsigma )\) can be expressed by the bubble number density \({n}_{k}(\eta )\) at the kth representative diamete range \(({\varsigma }_{k},{\varsigma }_{k+1})\). Thus,

    $$f\left(\eta ,\varsigma ,t\right)\approx {n}_{k}\left(\eta ,t\right)\delta \left(\varsigma -{x}_{k}\right),$$
    (65)

    where

    $${n}_{k}\left(\eta ,t\right)=\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}f(\eta ,\varsigma ,t)\mathrm{d}\varsigma .$$
    (66)
  2. (2)

    The integrating the continuous Eq. (44) over a smaller range \(({\varsigma }_{k},{\varsigma }_{k+1})\). Thus,

    $$\begin{array}{ll}\frac{\partial }{\partial t}\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}f\left(\eta ,\varsigma ,t\right)\mathrm{d}\varsigma +{u}_{b}\frac{\partial }{\zeta \partial \eta }\left(\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}f\left(\eta ,\varsigma ,t\right)\mathrm{d}\varsigma \right)\\ = -\,\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}b(\eta ,\varsigma )f(\eta ,\varsigma ,t)\mathrm{d}\varsigma \\\,\, +\,\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}\mathrm{d}\varsigma \int\limits_{\varsigma }^{{\varsigma }_{max}}{h}_{b}(\xi ,\varsigma )b(\eta ,\xi )f(\eta ,\xi ,t)\mathrm{d}\xi \\ \,\,-\,\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}f(\eta ,\varsigma ,t)\mathrm{d}\varsigma \int\limits_{0}^{{\varsigma }_{max}}c(\varsigma ,\xi )f(\eta ,\xi ,t)\mathrm{d}\xi \\ \,\,+\,\frac{1}{2}\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}{\varsigma }^{2}\mathrm{d}\varsigma \int\limits_{0}^{\varsigma }\frac{c\left({\left({\varsigma }^{3}-{\xi }^{3}\right)}^{1/3},\xi \right)}{{\left({\varsigma }^{3}-{\xi }^{3}\right)}^{2/3}}f(\eta ,{\left({\varsigma }^{3}-{\xi }^{3}\right)}^{1/3},t)f(\eta ,\xi ,t)\mathrm{d}\xi \\\,\, +\,{C}_{\rho }\sqrt{\left({p}_{v}-p\right)}\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}\chi (\varsigma )\mathrm{d}\varsigma .\end{array}$$
    (67)
  3. (3)

    Since coalescence or breakage of bubbles of these diameters results in the formation of new bubbles whose diameters do not match with any of the node diameters, the new bubble diameter will be assigned to the adjoining node by introducing weight factor \(\gamma\), the weight factor \(\gamma\) can be determined by the total mass conservation of the bubble and the number of bubbles conservation. The expression is written as

    $$\begin{array}{c}{\gamma }_{k}{x}_{k}^{3}+{\gamma }_{k+1}{x}_{k+1}^{3}={\varsigma }^{3},\\ {\gamma }_{k}+{\gamma }_{k+1}=1.\end{array}$$
    (68)

Substituting Eq. (65) into Eq. (67), and the integral term at the right end of Eq. (67) is reconstructed using the mean value theorem on breakage frequency and coalescence frequency, so Eq. (67) can be closed, a closed set of equations with regard to \({n}_{k}\left(\eta ,t\right)\) can be written as

$$\begin{array}{ll}\frac{\partial {n}_{k}(\eta ,t)}{\partial t}+{u}_{b}\frac{\partial }{\zeta \partial \eta }({n}_{k}(\eta ,t))=-b(\eta ,{x}_{k}){n}_{k}(\eta ,t)\\ +\sum\limits_{i=k}^{M}{\alpha }_{k,i}b\left(\eta ,{x}_{i}\right){n}_{i}\left(\eta ,t\right)-{n}_{k}(\eta )\sum\limits_{i=1}^{M}c(\eta ,{x}_{k},{x}_{i}){n}_{i}(\eta ,t)\\ +\sum\limits^{j\ge i}_{j,i\, \, \, {x}_{k-1}\le {\left({x}_{j}^{3}+{x}_{i}^{3}\right)}^{1/3}\le {x}_{k+1}}\left(1-\frac{1}{2}{\delta }_{j,i}\right){\gamma }_{j,i}^{k}c\left(\eta ,{x}_{j},{x}_{i}\right){n}_{j}\left(\eta ,t\right){n}_{i}(\eta ,t)\\ +{C}_{\rho }\sqrt{\left({p}_{v}-p\right)}\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}\chi (\varsigma )\mathrm{d}\varsigma ,\end{array}$$
(69)

where

$${\gamma }_{j,i}^{k}=\left\{\begin{array}{ll}\frac{{x}_{k+1}^{3}-\left({{x}_{j}}^{3}+{x}_{i}^{3}\right)}{\left({x}_{k+1}^{3}-{x}_{k}^{3}\right)}, \quad {x}_{k}^{3}\le \left({{x}_{j}}^{3}+{x}_{i}^{3}\right)\le {x}_{k+1}^{3},\\ \frac{\left({{x}_{j}}^{3}+{x}_{i}^{3}\right)-{x}_{k}^{3}}{\left({x}_{k+1}^{3}-{x}_{k}^{3}\right)}, \quad\,\, {x}_{k-1}^{3}\le \left({{x}_{j}}^{3}+{x}_{i}^{3}\right)\le {x}_{k}^{3},\\ 0, \qquad \qquad\,\,\,\, \mathrm{else},\end{array}\right.$$
(70)
$$k=\mathrm{1,2},...,M-2 ,{\varsigma }^{3}={\varsigma }_{j}^{3}+{\varsigma }_{k}^{3},$$
$${\gamma }_{j,i}^{M-1}=\left\{\begin{array}{ll}\frac{\left({{x}_{j}}^{3}+{x}_{i}^{3}\right)}{{x}_{M-1}^{3}}, \quad\quad\quad {x}_{k-1}^{3}\le ({{x}_{j}}^{3}+{x}_{i}^{3})\le {\varsigma }_{M}^{3},\\ \frac{\left({{x}_{j}}^{3}{+x}_{i}^{3}\right)-{x}_{M-2}^{3}}{\left({x}_{M-1}^{3}-{x}_{M-2}^{3}\right)}, \quad \, {x}_{M-2}^{3}\le ({{x}_{j}}^{3}+{x}_{i}^{3})\le {x}_{M-1}^{3},\\ 0, \quad\quad\quad\quad\quad\,\, \mathrm{else},\end{array}\right.$$
(71)
$${\delta }_{j,i}=\left\{\begin{array}{ll}1,\quad j=i,\\ 0, \quad j\ne i.\end{array}\right.$$
(72)

Coefficient \({\alpha }_{k,i}\) is given as

$${\alpha }_{k,i}=\int\limits_{{x}_{k-1}}^{{x}_{k}}\frac{\left({\varsigma }^{3}-{x}_{k-1}^{3}\right)}{\left({x}_{k}^{3}-{x}_{k-1}^{3}\right)}{h}_{b}({x}_{i},\varsigma )\mathrm{d}\varsigma +\int\limits_{{x}_{k}}^{{x}_{k+1}}\frac{\left({x}_{k+1}^{3}-{\varsigma }^{3}\right)}{\left({x}_{k+1}^{3}-{x}_{k}^{3}\right)}{h}_{b}({x}_{i},\varsigma )\mathrm{d}\varsigma .$$
(73)

Eq. (69) is a set of first-order differential equations. Suppose that at a fixed time t, a set of nonlinear equations with regard to \({n}_{k,l}^{t}\) can be obtained by discretizing the second term on the left side of Eq. (69). The discrete equation at node \(l\) is written as follows:

$$\tilde{Q }({n}_{k,l}^{t})=0,$$
(74)

where the operator \(\tilde{Q }({n}_{k,l})\) are defined as

$$\begin{array}{ll}\tilde{Q }({n}_{k,l}^{t})=\frac{{u}_{b}}{{\zeta }_{m}}\frac{{n}_{k,l}^{t}-{n}_{k,l-1}^{t}}{\Delta \eta }+b({\eta }_{l},{x}_{k}){n}_{k,l}^{t}\\ -\sum_{i=k}^{M}{\alpha }_{k,i}b({\eta }_{l},{x}_{i}){n}_{i,l}^{t}+{n}_{k,l}^{t}\sum\limits_{i=1}^{M}c({\eta }_{l},{x}_{k},{x}_{i}){n}_{i,l}^{t}\\ -\sum\limits_{\begin{array}{c}j,i\\ {x}_{k-1}\le {x}_{j}+{x}_{i}\le {x}_{k+1}\end{array}}^{j\ge i}\left(1-\frac{1}{2}{\delta }_{j,i}\right){\gamma }_{j,i}^{k}c\left({\eta }_{l},{x}_{j},{x}_{i}\right){n}_{j,l}^{t}{n}_{i,l}^{t}\\ -\,{C}_{\rho }\sqrt{{p}_{v}-p}\int\limits_{{\varsigma }_{k}}^{{\varsigma }_{k+1}}\chi \left(\varsigma \right)\mathrm{d}\varsigma .\end{array}$$
(75)

Eq. (74) can be solved using the Newton-SOR iterative method.In addition, since \({h}_{b}({x}_{k},\varsigma )\) is a given function, the coefficient \({\alpha }_{k,i}\) can be calculated using the Gaussian integration method, and the value of the coefficient \({\alpha }_{k,i}\) is stored in a matrix, it will be called directly in the iterative calculation process, and the calculation time can be greatly saved by using the iterative process.

The term of the time derivativein the transient Eq. (69) is specially processed with finite difference,and a weighted averaging method is adopted for the time-differencing. It can be written as [31]

$$\frac{{n}_{k,l}^{t+1}-{n}_{k,l}^{t}}{\Delta t}+\left(\left(1-{\omega }_{t}\right)\tilde{Q }\left({n}_{k,l}^{t}\right)+\omega \tilde{Q }\left({n}_{k,l}^{t+1}\right)\right)=0,$$
(76)

where, \({n}_{k,l}^{t+1}={n}_{k,l}(t+\Delta t)\), weight factor \({0}\le {\omega }_{t}\le {1}\).

Aset of nonlinear equations with regard to \({n}_{k,l}^{t+1}\) can be rewritten as

$$\begin{array}{c}{F}_{q}\left({n}_{k,l}^{t+1}\right)={n}_{k,l}^{t+1}+\Delta t{\omega }_{t}\tilde{Q }\left({n}_{k,l}^{t+1}\right)\\ +\Delta t\left(1-{\omega }_{t}\right)\tilde{Q }\left({n}_{k,l}^{t}\right)-{n}_{k,l}^{t}=0.\\ \text{\hspace{0.17em}}(q=1,...,{N}_{q})\end{array}$$
(77)

The nonlinear Eq. (77) is also solved using the Newton-SOR iterative method. And downhill condition is adopted in numerical iterative procedure to improve convergence. The downhill condition is expressed as

$$\Vert {F}_{q}\left({n}_{k,l}^{t+1\left(m+1\right)}\right)\Vert \le \Vert {F}_{q}\left({n}_{k,l}^{t+1\left(m\right)}\right)\Vert ,$$
(78)

where \(m\) is iteration number. The overall algorithm flow diagram is given by Figure 5.

Figure 5
figure 5

Flow diagram of overall algorithm

5 Results and Discussion

5.1 Experimental Verification of Theoretical Models

Table 1 list the related parameters of the water-lubricated SGTB for the numerical calculation.In order to verify this theoretical model, the simulating results of bubble distribution and axial stiffness coefficient are compared with experimental ones from our previous test study in Refs. [22, 23]. The experimental rotational speed are specified as 15000 r/min and 18000 r/min respectively, and the corresponding Reynolds numbers (1256 and 1507) are greater than the critical Reynolds number \({R}_{e}\left({R}_{e}=1000\right)\) [32] of the bearing. And the cavitation number \((\sigma =0.14\,{\mathrm{ to }}\,0.2)\) of the water-lubricated bearing is smaller than the cavitation inception number \(({\upsigma }_{i}\approx 0.7)\) [33] of water under the above specified experimental rotational speed and standard atmospheric pressure, and it shows that cavitation occurs in experimental water-lubricated bearings.

Table 1 Parameters of the water-lubricated SGTB

5.1.1 Bubble Distribution

Figure 6 shows the photographs of bubble distributions taken during the experiments under the rotational speeds of 15000 r/min and 18000 r/min.

Figure 6
figure 6

Photographs of bubble distributions under both rotational speeds

The experimental data of bubble diameter distribution can be obtained through the photo 6 using the experimental processing method provided in Ref. [22]. In order to improve the reliability of the experimental data of the small bubble diameter distribution, the multiple bubble photos are taken under a specified experimental rotation speed condition.The experimental data of bubble diameter can be obtained from multiple bubble photos using the image processing method of Ref. [22]. The average experimental value of the bubble diameter is calculated by statistically averaging the experimental data of the bubble diameter. A comparison of the theoretical results of the bubble size distribution with the experimental statistics results is shown in Figure 7. It can be seen that, for a specified rotational speed of 15000 r/min, the results predicted by the model are in good agreement with the experimental statistics results over the entire bubble size range; while, for a specified rotational speed of 18000 r/min, the results predicted by the model are in good agreement with the experimental statistics results in the large size bubble range, but the deviation between the theoretical calculation and the experimental statistics results is large in the small size bubble range, and the experimental statistical values are all larger than the theoretical ones in the small size bubble range. Due to the limitation of the resolution of the experimental photos, it is not easy to identify the edge of the small bubble outline in the experimental photos. This deviation can be attributed to the statistical error of the experimental data of the small bubble diameter due to the above reasons.

Figure 7
figure 7

Comparison of the theoretical probability density distributions with the experimental ones (\(\beta \text{=}{20}^{\circ }\), \({h}_{s}=15{\,} {\upmu m}\), \({h}_{g}=40 {\,}{\upmu m}\))

5.1.2 Axial Stiffness Coefficient

A comparison of the predicting axial stiffness coefficients with the experimental ones is shown in Figure 8. It can be seen that the predicting stiffness coefficients with axial load are generally in agreement with the experimental ones, but the experimental values are larger than the predicting ones in the entire range of applied load. This may be explained by the fact that the actual water flowrate of the bearing is less than the theoretical one, because the water is tended to be prevented from entering the clearance of inward-pumping SGTB due to the centrifugal effect.

Figure 8
figure 8

Comparison of the theoretical stiffness coefficients with the experimental ones at 15000 r/min

5.2 Influence of Cavitation Effect on Dynamic Characteristics

5.2.1 Stiffness Coefficient

Figure 9 shows the influence of cavitation effect on the stiffness coefficients of the SGTB with different spiral angles. The results show the \({K}_{zz}^{*},{K}_{{\varphi }_{x}{\varphi }_{x}}^{*},{K}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) predicted by the cavitation flow model are larger than that of the non-cavitation flow model when the spiral angle is less than 50°. This may be explained by the fact that the bubbles cause the interfacial hydrodynamic effect for the the cavitating flow. In addition, the relative deviation between the two models decreases with the increasing of spiral angle, so the interface hydrodynamic effect of the bubbles decreases with the spiral angle.It means that the influence of the cavitation effect on the water film stiffness is weakened with the increasing of spiral angle. The \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) are of opposite sign, and \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*}\) and \({K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) of cavitating flow model with the angle generally coincide with those of non-cavitating flow model. It shows that the influence of cavitation effect on \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) are negligible. In addition, the \({K}_{{\varphi }_{x}z}^{*},{K}_{z{\varphi }_{x}}^{*},{K}_{{\varphi }_{y}z}^{*},{K}_{z{\varphi }_{y}}^{*}\) with different spiral angle sare approximately equal to zero for the cavitating flow or the non-cavitating flow.

Figure 9
figure 9

Influence of cavitation effect on the stiffness coefficient for different spiral angles (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \({h}_{s}=15 {\,}{\upmu}\mathrm{m}\), \({h}_{g}=40{\,}{\upmu}\mathrm{m}\))

Figures 10 and 11 show the influence of cavitation effect on the water film stiffness coefficients for different groove depths and rotating speeds. The result also show the \({K}_{zz}^{*},\,{K}_{{\varphi }_{x}{\varphi }_{x}}^{*},{K}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) predicted by the cavitation flow model are larger than that of the non-cavitation flow model at a specific groove depth and rotating speed. However, the deviation of \({K}_{zz}^{*},{K}_{{\varphi }_{x}{\varphi }_{x}}^{*},{K}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) between the two models increase first and then decrease with the groove depth. Therefore, the interface hydrodynamic effect changes with the groove depth. A possible explanation is that the interface hydrodynamic effect is weakened and the cavitation effect is increased when the groove depth is increased in a certain range (20‒35 μm), and the interface hydrodynamic effect is increased and the cavitation effect is weakened when the groove depth exceeds a given value. And the deviation of \({K}_{zz}^{*},{K}_{{\varphi }_{x}{\varphi }_{x}}^{*},{K}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) between the two models gradually increase as the rotating speed increases, This also can be explained by the fact that the interface hydrodynamic effect enhances and the cavitation effect is increased as the rotational speed increases.

Figure 10
figure 10

Influence of cavitation effect on stiffness coefficients for different groove depth (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \(\beta ={20}^{\circ }\), \({h}_{s}=15 {\,}{\upmu}\mathrm{m}\))

Figure 11
figure 11

Influence of cavitationeffect on stiffness coefficients for different rotating speed (\(\beta ={20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\), \({h}_{g}=40 \,{\upmu}\mathrm{m}\))

In addition, the variation of the \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) with the groove depth is identical with that with the spiral angle. Similarly, it also shows that the influence of cavitation effect on \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) are negligible for different groove depths and rotating speeds. The \({K}_{{\varphi }_{x}z}^{*}\), \({K}_{z{\varphi }_{x}}^{*}\), \({K}_{{\varphi }_{y}z}^{*}\), \({K}_{z{\varphi }_{y}}^{*}\) predicted by the two models are approximately equal to zero for different groove depths and rotating speeds.

5.2.2 Damping Coefficient

Figures 12 and 13 show the influence of cavitation effect on the water film damping coefficients for different spiral angles and groove depths. It can be seen that the cavitation effect on damping coefficients is very weak. Because the damping coefficient is determined by the perturbed pressure, and the perturbed pressure with cavitating flow is only affected by the fraction \({C}_{g}\) of bubble volume, and the variation of bubble volume fraction is very small for the cavitating flow. In addition, the \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) decreases with the increasing of the spiral angle and groove depth, and the \({C}_{z{\varphi }_{x}}^{*},{C}_{{\varphi }_{x}z}^{*},{C}_{z{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}z}^{*},{C}_{{\varphi }_{x}{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) predicted by the two models are also approximately equal to zero for different spiral angles and groove depth.

Figure 12
figure 12

Influence of cavitation effect on the damping coefficients for different spiral angles (\(\omega =18000\,\mathrm{r}/\mathrm{min}\), \({h}_{s}=15 {\,}{\upmu}\mathrm{m}\), \({h}_{g}=40 {\,}{\upmu}\mathrm{m}\))

Figure 13
figure 13

Influence of cavitation effect on damping coefficients for different groove depth (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \(\beta \text{=}{20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\))

5.3 Influence of Turbulence Effect on Dynamic Characteristics

5.3.1 Stiffness Coefficient

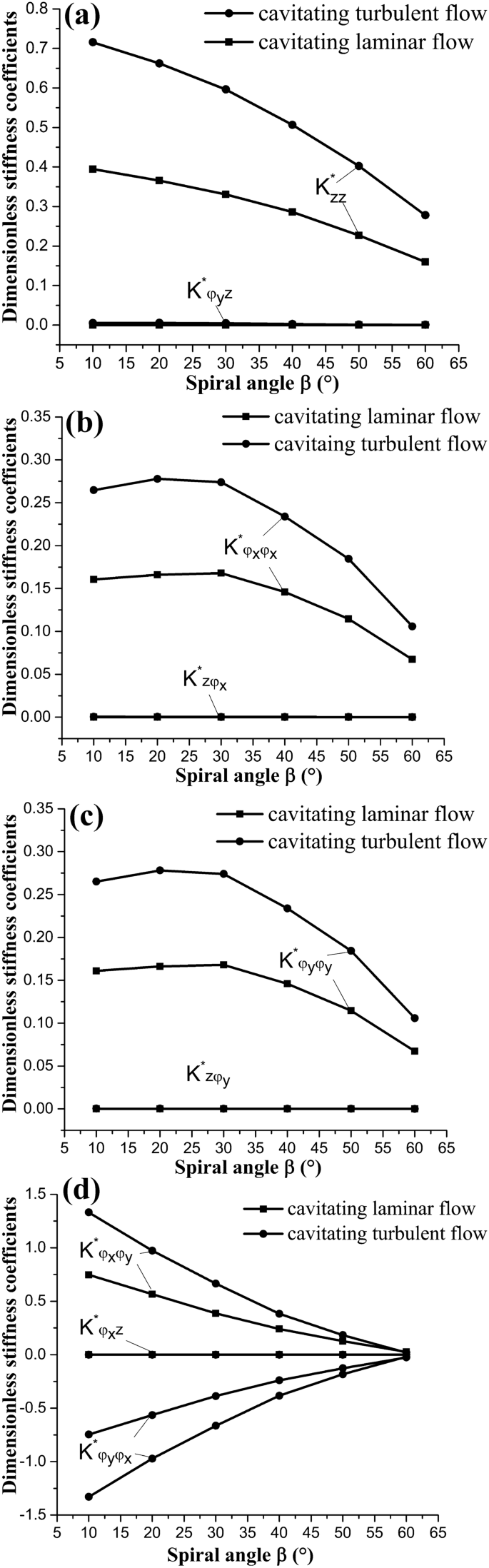

Figure 14 shows the influence of turbulence effect on the water film stiffness coefficients for different spiral angles. It can be seen that the \({K}_{zz}^{*}\),\({K}_{{\varphi }_{x}{\varphi }_{x}}^{*}\), \({K}_{{\varphi }_{y}{\varphi }_{y}}^{*}\), \({K}_{{\varphi }_{x}{\varphi }_{y}}^{*}\), \({K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) calculated by the turbulent cavitating flow model are larger than those of the laminar cavitating flow model at a specified spiral angle. This may be explained by the fact that additional Reynolds shear stress generates due to pulsating velocity in the turbulent flow, and equivalent viscosity of the turbulent water film increases, and the force of the turbulent water film needed to produce unit displacement increases, so the stiffness of the water film increases. In addition, it can be seen that the deviation of stiffness coefficient between turbulence model and laminar model gradually decreases with the increase of the spiral angle. This is due to the fact that the outward pumping hydrodynamic effect increases first and then decreases with the increase of the spiral angle. Therefore, when the spiral angle exceeds a certain value, the outward pumping hydrodynamic effect becomes weak and the additional Reynolds shear stress of the turbulent flow reduces. This indicates that the influence of turbulence effect on the water film stiffness coefficients is weakened when the spiral angle exceeds a certain value. And the \({K}_{z{\varphi }_{x}}^{*},{K}_{{\varphi }_{x}z}^{*},{K}_{z{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}z}^{*}\) calculated by the two models are approximately equal to zero for different spiral angles.

Figure 14
figure 14

Influence of turbulence effect on the water film stiffness coefficient for different spiral angles (\(\omega =18000\,\mathrm{r}/\mathrm{min}\), \({h}_{s}=15 \, {\upmu}\mathrm{m}\), \({h}_{g}=40 \,{\upmu}\mathrm{m}\))

Figures 15 and 16 show the influence of turbulence effect on the water film stiffness coefficients for different groove depths and rotating speeds. It can also be seen that the \({K}_{zz}^{*},{K}_{{\varphi }_{x}{\varphi }_{x}}^{*}, {K}_{{\varphi }_{y}{\varphi }_{y}}^{*}, {K}_{{\varphi }_{x}{\varphi }_{y}}^{*}, {K}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) calculated by the turbulent flow model are also larger than that of the laminar flow model for different groove depths and rotating speeds. And the deviation of the calculation results of the two models decreases with the increase of groove depth, and the deviation of the calculation results of the two models increase with the increase of rotating speed, and the \({K}_{z{\varphi }_{x}}^{*},{K}_{{\varphi }_{x}z}^{*},{K}_{z{\varphi }_{y}}^{*},{K}_{{\varphi }_{y}z}^{*}\) calculated by the two models are also approximately equal to zero for different groove depths and rotating speeds.

Figure 15
figure 15

Influence of turbulence effect on the stiffness coefficient for different groove depths (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \(\beta \text{=}{20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\))

Figure 16
figure 16

Influence of turbulence effect on the stiffness coefficient for different rotating speed (\(\beta ={20}^{\circ }\), \({h}_{s}=15 \, {\upmu}\mathrm{m}\), \({h}_{g}=40 \, {\upmu}\mathrm{m}\))

5.3.2 Damping Coefficient

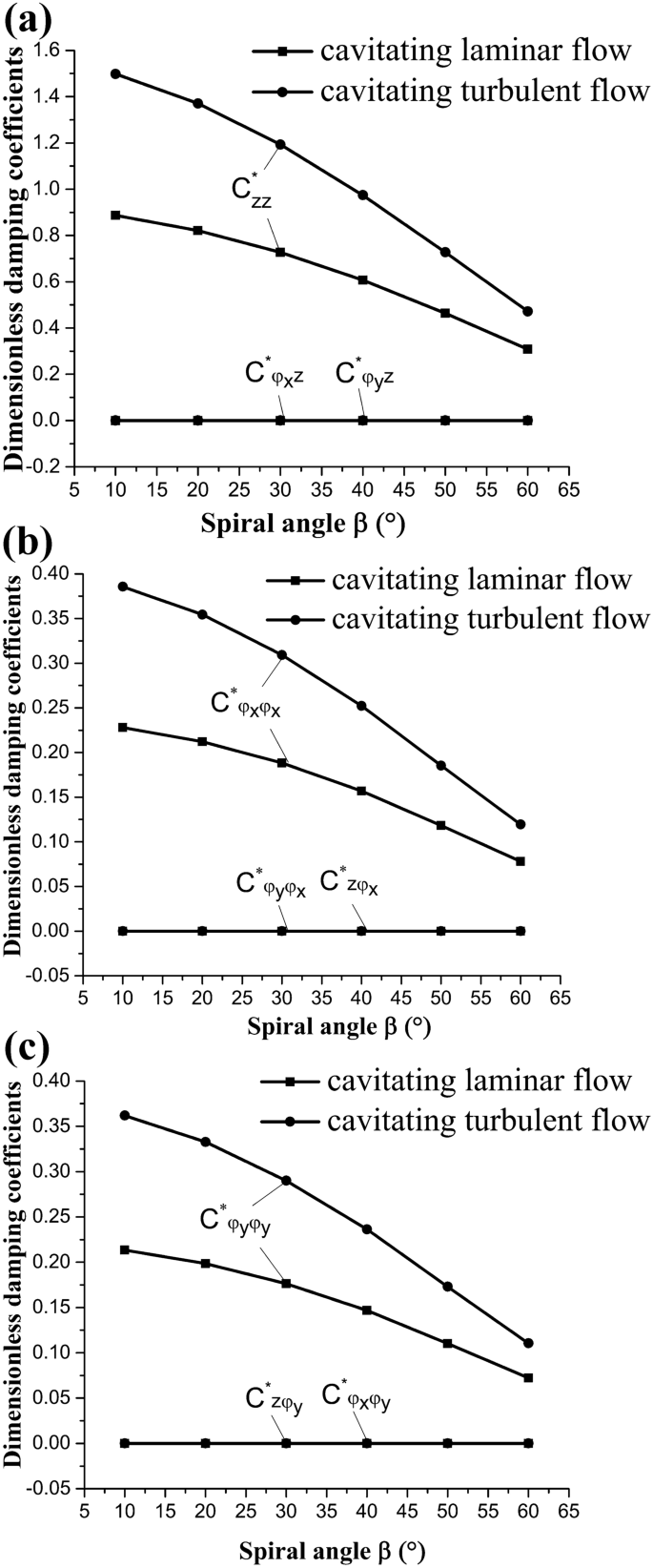

Figures 17 and 18 show the influence of turbulence effect on the water film damping coefficients for different spiral angles and groove depths.It can also be seen that the \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) calculated by the turbulent flow model are also larger than that of the laminar flow model for different spiral angles and groove depths. And the deviation between \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) calculated by the two models is gradually decreased with the increase of spiral angle. This indicates that the turbulence effect is gradually weakened when the spiral angle increases. And the deviation between \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) calculated by the two modes hardly changes with the increase of groove depth, and this indicates that the turbulence effect is not sensitive to changes in groove depth. In addition, the \({C}_{z{\varphi }_{x}}^{*},{C}_{{\varphi }_{x}z}^{*},{C}_{z{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}z}^{*},{C}_{{\varphi }_{x}{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) calculated by the two models are also approximately equal to zero for different spiral angles and groove depth.

Figure 17
figure 17

Influence of turbulence effect on the damping coefficients for different spiral angles (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \({h}_{s}=15\, {\upmu}\mathrm{m}\), \({h}_{g}=40 \, {\upmu}\mathrm{m}\))

Figure 18
figure 18

Influence of turbulence effect on the damping coefficients for different groove depths (\(\omega =18000\, \mathrm{r}/\mathrm{min}\), \(\beta \text{=}{20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\))

Figure 19 shows the influence of turbulence effect on the water film damping coefficients for different rotating speed. It can be seen that the \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) calculated by the two models increases gently with the increase of rotating speed, it means that \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) is insensitive when rotating speed is increased. And the deviation between \({C}_{zz}^{*},{C}_{{\varphi }_{x}{\varphi }_{x}}^{*},{C}_{{\varphi }_{y}{\varphi }_{y}}^{*}\) calculated by the two modes increase alse with the increase of rotating speed. The \({C}_{z{\varphi }_{x}}^{*},{C}_{{\varphi }_{x}z}^{*},{C}_{z{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}z}^{*},{C}_{{\varphi }_{x}{\varphi }_{y}}^{*},{C}_{{\varphi }_{y}{\varphi }_{x}}^{*}\) calculated by the two models are also approximately equal to zero for different rotating speeds.

Figure 19
figure 19

Influence of turbulence effect on the damping coefficients for different rotating speed (\(\beta ={20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\), \({h}_{g}=40 \,{\upmu}\mathrm{m}\))

5.3.3 Bubble Density

Figure 20 shows the influence of turbulence effect on the bubble number for different radius. It can be seen that the bubbles mainly locate at the groove-ridge edges and the outer rim of bearing. This may be explained by the fact that the bubbles are formed due to the pressure drop near the groove-ridge edges. The result also show that the bubbles are approximately evenly distributed in dam region of bearing. In addition, the number of bubbles with laminar flow is more than the number of bubbles with turbulent flow at a specified circumferential position. Because the Reynolds shear stress due to the turbulent flow causes the equivalent viscosity of the turbulent liquid to increase, consequently, the turbulent flow effect on dynamic pressure is enhanced, which contributes to the generation of the bubbles.

Figure 20
figure 20

Influence of turbulence effect on bubbles number for different radius: (a) \(\zeta \text{=}0.2\), (b) \(\zeta \text{=}0.5\) (\(\omega =18000\,\mathrm{r}/\mathrm{min}\), \(\beta \text{=}{20}^{\circ }\), \({h}_{s}=15 \,{\upmu}\mathrm{m}\), \({h}_{g}=40 \,{\upmu}\mathrm{m}\))

6 Conclusions

In this paper, a theoretical model of water lubrication based on two-phase flow considering both turbulence and cavitation bubble effect is established. In the turbulent state, the evolution of the size distribution of the bubbles is described by the bubble transport equation considering the mechanism of breakage and coalescence. The interval discretization method is used to solve the bubble transport equation.The size and spatial equilibrium distribution of the bubbles under turbulent flow are predicted by solving the generalized Reynolds equation and the bubble transport equation simultaneously. The dynamic characteristics of water-lubricated SGTB under turbulent cavitating flow is analyzed. Based on discussion, the following conclusion can be drawn:

  1. (1)

    The bubbles are mainly concentrated near the spiral-groove edges of the SGTB.

  2. (2)

    The small-sized bubbles is much more than the large-sized bubbles for the water-lubricated SGTB under the cavitation flow condition.

  3. (3)

    The cavitation has a significant effect on the direct stiffness coefficients, and the cavitation hardly affect the cross-coupled stiffness coefficients and the damping coefficients of SGTB.

  4. (4)

    Compared to the cavitation, the turbulence has a much greater effect on the dynamic characteristics of the high-speed water-lubricated SGTB.

Abbreviations

\(b\) :

Temperature viscosity coefficient (1/K)

\({C}_{ij}(i=z,{\varphi }_{x},{\varphi }_{y};j=z,{\varphi }_{x},{\varphi }_{y})\) :

Nine damping coefficients (\(\mathrm{N}\cdot \mathrm{s}/\mathrm{m},\mathrm{N}\cdot \mathrm{s}/\mathrm{rad},\mathrm{N}\cdot\mathrm{s},\mathrm{N} \cdot\mathrm{m} \mathrm{s}/\mathrm{rad}\))

\({C}_{ij}^{*}(i=z,{\varphi }_{x},{\varphi }_{y};j=z,{\varphi }_{x},{\varphi }_{y})\) :

Nine dimensionless damping coefficients (dimensionless)

\({C}_{w}\) :

Water volume fraction (dimensionless)

\({C}_{Ds}\) :

Drag coefficient(dimensionless)

\({C}_{g}\) :

Bubble volume fraction (dimensionless)

\({c}_{v}\) :

Specific heat capacity of water (\(\mathrm{J}/\mathrm{kg}\cdot \mathrm{K}\))

\({c}_{d}\) :

Specific heat capacity of thrust disk (\(\mathrm{J}/\mathrm{kg}\cdot\mathrm{K}\))

\({c}_{1},{c}_{2}\) :

Experimental constant (dimensionless)

\({f}_{c}\) :

Function of \({z}^{*}\) containing the parameter \({h}_{c}^{*}\) (dimensionless)

\({f}_{eq}(\eta ,\varsigma )\) :

Equilibrium distribution function of bubble diameter at \((\zeta ,\eta )\) coordinates system (\(1/{\mathrm{m}}^{6}\))

\(f(\eta ,\varsigma )\) :

Distribution function of bubble diameter at \((\zeta ,\eta )\) coordinates system (\(1/{\mathrm{m}}^{6}\))

\(g\) :

Gravity acceleration (\(\mathrm{m}/{\mathrm{s}}^{2}\))

\({g}_{c}\) :

Function of \({z}^{*}\) containing the parameter \({h}_{c}^{*}\) (dimensionless)

\(h\) :

Film thickness (\(\mathrm{m}\))

\({h}_{g}\) :

Groove depth (\(\mathrm{m}\))

\({h}_{0}\) :

Static film thickness (\(\mathrm{m}\))

\({h}_{s}\) :

Film thickness of the ridge (\(\mathrm{m}\))

\({h}_{i}\) :

Initial film thickness of bubble (\(\mathrm{m}\))

\({h}_{f}\) :

Critical rupture film thickness of bubble (\(\mathrm{m}\))

\({h}_{c}^{*}\) :

Shear stress parameter of the Couette flow (dimensionless)

\({k}_{s}\) :

Heat transfer coefficient of the stationary ring (\(\mathrm{W}/\mathrm{m}\cdot\mathrm{K}\))

\({k}_{d}\) :

Heat transfer coefficient of the thrust disk (\(\mathrm{W}/\mathrm{m}\cdot\mathrm{K}\))

\({k}_{w}\) :

Heat transfer coefficient of water (\(\mathrm{W}/\mathrm{m}\cdot \mathrm{K}\))

\({k}_{r}\) :

Turbulence correction coefficient of radial direction (dimensionless)

\({k}_{\theta }\) :

Turbulence correction coefficient of circumferential direction (dimensionless)

\({K}_{ij}(i=z,{\varphi }_{x},{\varphi }_{y};j=z,{\varphi }_{x},{\varphi }_{y})\) :

Nine stiffness coefficients (\(\mathrm{N}/\mathrm{m},\mathrm{N}/\mathrm{rad},\mathrm{N},\mathrm{N}\cdot\mathrm{m}/\mathrm{rad}\))

\({K}_{ij}^{*}(i=z,{\varphi }_{x},{\varphi }_{y};j=z,{\varphi }_{x},{\varphi }_{y})\) :

Nine dimensionless stiffness coefficients (dimensionless)

\(l\) :

Circumferential discrete node (dimensionless)

\(M(\eta )\) :

Interface item at \((\zeta ,\eta )\) coordinates system (\(\mathrm{N}/{\mathrm{m}}^{3}\))

\(N\) :

Number of spiral groove (dimensionless)

\({N}_{i}\) :

Number density of nuclei (\(1/{\mathrm{m}}^{3}\))

\({n}_{eq}^{k}(\eta )\) :

Number of bubbles in the kth diameter range \(({\varsigma }_{k},{\varsigma }_{k+1})\) at equilibrium (dimensionless)

\({n}_{k}(\eta )\) :

Number of bubbles in the kth diameter range \(({\varsigma }_{k},{\varsigma }_{k+1})\) (dimensionless)

\(p\) :

Water film pressure (\(\mathrm{N}/{\mathrm{m}}^{2}\))

\({p}_{0}\) :

Static pressure (\(\mathrm{N}/{\mathrm{m}}^{2}\))

\({p}_{z},{p}_{{\varphi }_{x}},{p}_{{\varphi }_{y}},{p}_{\dot{z}},{p}_{{\dot{\varphi }}_{x}},{p}_{{\dot{\varphi }}_{y}}\) :

Perturbed pressure components (\(\mathrm{N}/{\mathrm{m}}^{3},\mathrm{N}/{\mathrm{m}}^{2},\mathrm{N}\cdot \mathrm{s}/{\mathrm{m}}^{3},\mathrm{N}\cdot\mathrm{s}/{\mathrm{m}}^{2}\))

\({p}_{v}\) :

Vaporization pressure of water (\(\mathrm{N}/{\mathrm{m}}^{2}\))

\({p}_{in}\) :

Pressure at inter radius (\(\mathrm{N}/{\mathrm{m}}^{2}\))

\({Q}_{i}^{\eta }\),\({Q}_{j}^{\zeta }\) :

Volume flow (\({\mathrm{m}}^{3}/\mathrm{s}\))

\(r\) :

Radial coordinate in polar coordinates (\(\mathrm{m}\))

\({r}_{b}\) :

Basecircle radius of spiral line (\(\mathrm{m}\))

\({r}_{in}\) :

Thrust disk inner radius (\(\mathrm{m}\))

\({r}_{out}\) :

Thrust disk outer radius (\(\mathrm{m}\))

\(<{R}_{b}>\) :

Statistical average radius of bubbles (\(\mathrm{m}\))

\({R}_{e}\) :

Reynolds number (dimensionless)

\({S}_{c}\) :

Source terms (\(1/{\mathrm{m}}^{6}\,\mathrm{s}\))

\(t\) :

Time (\(\mathrm{s}\))

\(T\) :

Water film temperature (\(\mathrm{K}\))

\({T}_{m}\) :

Average temperature of water film (\(\mathrm{K}\))

\({T}_{s}\) :

Temperature of stationary ring (\(\mathrm{K}\))

\({T}_{d}\) :

Temperature of thrust plate (\(\mathrm{K}\))

\({T}_{0}\) :

Ambient temperature (\(\mathrm{K}\))

\(U\) :

Max circumferential velocity of thrust disk (\(\mathrm{m}/\mathrm{s}\))

\(\overline{u }\) :

Circumferential average velocity of water (\(\mathrm{m}/\mathrm{s}\))

\(u\) :

Circumferential velocity of water at \((\zeta ,\eta )\) coordinates system (\(\mathrm{m}/\mathrm{s}\))

\({u}_{b}\) :

Bubble velocity (\(\mathrm{m}/\mathrm{s}\))

\({x}_{k}\) :

Diameter of bubbles (\(\mathrm{m}\))

\(z\) :

Coordinate of the film thickness (\(\mathrm{m}\))

\({z}^{*}\) :

Coordinate of the dimensionless film thickness (\({z}^{*}=\frac{z}{h}\))

\({z}_{s}\) :

Coordinate of thickness of the stationary ring (\(\mathrm{m}\))

\({z}_{d}\) :

Coordinate of thickness of the thrust disk (\(\mathrm{m}\))

\(\alpha \) :

Experimental constant (dimensionless)

\({\alpha }_{a}\) :

Air convection heat transfer coefficient (\(\mathrm{W}/{\mathrm{m}}^{2}\cdot\mathrm{K}\))

\({\alpha }_{w}\) :

Forced convective heat transfer coefficient of water (\(\mathrm{W}/{\mathrm{m}}^{2}\cdot\mathrm{K}\))

\(\beta \) :

Helix angle of bearing (°)

\({\beta }_{c}\) :

Parameter in coalescence kernel (dimensionless)

\({\delta }_{s}\) :

Thickness of the stationary ring (\(\mathrm{m}\))

\({\delta }_{d}\) :

Thickness of thrust plate (\(\mathrm{m}\))

\(\zeta \) :

Spiral coordinates (\(\mathrm{m}\))

\({\zeta }_{b}\) :

Basecircle radius of spiral line at \((\zeta ,\eta )\) coordinates system (\(\mathrm{m}\))

\({\zeta }_{in}\) :

Radius of the oil inlet at \((\zeta ,\eta )\) coordinates system (\(\mathrm{m}\))

\({\zeta }_{out}\) :

Radius of the oil outlet at \((\zeta ,\eta )\) coordinates system (\(\mathrm{m}\))

\(\varepsilon \) :

Turbulent kinetic energy dissipation rate per unit mass (\({\mathrm{m}}^{2}/{\mathrm{s}}^{3}\))

\(\eta \) :

Spiral coordinates (°)

\({\eta }_{max}\) :

Maximum value of spiral coordinates (°)

\({\kappa }_{1},{\kappa }_{2}\) :

Adjustable parameters (dimensionless)

\({\lambda }_{b}\) :

Groove-to-land ratio (dimensionless)

\({\lambda }_{l}\) :

Groove-to-dam ratio (dimensionless)

\({\mu }_{w}^{*}\) :

Dimensional dynamic viscosity of water (dimensionless)

\({\overline{\mu }}_{w}\) :

Average dynamic viscosity of water (\(\mathrm{N}\cdot\mathrm{s}/{\mathrm{m}}^{2}\))

\({\mu }_{w}\) :

Dynamic viscosity of water (\(\mathrm{N}\cdot\mathrm{s}/{\mathrm{m}}^{2}\))

\({\mu }_{w0}\) :

Dynamic viscosity of water at \({T}_{0}\) (\(\mathrm{N} \cdot\mathrm{s}/{\mathrm{m}}^{2}\))

\({\rho }_{g}\) :

Density of bubble (\(\mathrm{kg}/{\mathrm{m}}^{3}\))

\({\rho }_{w}\) :

Density of water (\(\mathrm{kg}/{\mathrm{m}}^{3}\))

\({\rho }_{d}\) :

Density of thrust disk (\(\mathrm{kg}/{\mathrm{m}}^{3}\))

\(\sigma \) :

Surface tension of bubble (\(\mathrm{N}/\mathrm{m}\))

\(\xi \) :

Diameter of bubbles (\(\mathrm{m}\))

\({\varsigma }_{c}\) :

Diameter of gas nucleus (\(\mathrm{m}\))

\({\varsigma }_{c\mathrm{max}}\) :

Maximum diameter of gas nucleus (\(\mathrm {m}\))

\(\omega \) :

Angular velocity of bearing rotation (\(\mathrm{rad}/\mathrm{s}\))

\(\varsigma \) :

Diameter of bubbles (\(\mathrm{m}\))

\({\varsigma }_\mathrm{max}\) :

Maximum diameter of bubbles (\(\mathrm{m}\))

\(\Delta t\) :

Time step (\(\mathrm{s}\))

\(\Delta z,\Delta {\varphi }_{x},\Delta {\varphi }_{y}\) :

Perturbations quantity (\(\mathrm{m}\))

References

  1. B C Majumdar, R Pai, D J Hargreaves. Analysis of water-lubricated journal bearings with multiple axial grooves. Proc. Inst. Mech. Eng. Part J: J. Eng. Tribol., 2004, 218: 135-146.

  2. Y M Zhao, C Wei, S Yuan, et al. Theoretical and experimental study of cavitation effects on the dynamic characteristic of spiral-groove rotary seals (SGRSs). Tribology Letters, 2016, 64(3): 1-18.

    Article  Google Scholar

  3. H G Elrod. A cavitation algorithm. ASME J. Lubr. Technol., 1981, 103(3): 350-354.

    Article  Google Scholar

  4. Y Song, C Gu. Development and validation of a three-dimensional computational fluid dynamics analysis for journal bearings considering cavitation and conjugate heat transfer. Journal of Engineering for Gas Turbines and Power, 2015, 137(12):122502.

    Article  Google Scholar

  5. Y Wang, Z Yin, D Jiang, et al. Study of the lubrication performance of water-lubricated journal bearings with CFD and FSI method. Industrial Lubrication and Tribology, 2016, 68(3): 341-348.

    Article  Google Scholar

  6. E P Grando, M Priest, A T Prata. A two-phase flow approach to cavitation modelling in journal bearings. Tribology Letters, 2006, 21(3): 233-244.

    Article  Google Scholar

  7. H Liu, H Xu, P J Ellison, et al. Application of computational fluid dynamics and fluid– structure interaction method to the lubrication study of a rotor–bearing system. Tribology Letters, 2010, 38(3): 325-336.

    Article  Google Scholar

  8. J L Nikolajsen. The effect of aerated oil on the load capacity of a plain journal bearing. Tribology Transactions, 1999, 42(1): 58-62.

    Article  Google Scholar

  9. S Choi, K W Kim. Analysis of bubbly lubrication in journal bearings. JSME International Journal Series C, 2002, 45(3): 802-808.

    Article  Google Scholar

  10. Q Li, S L Liu, X H Pan, et al. A new method for studying the 3D transient flow of misaligned journal bearings in flexible rotor-bearing systems. Journal of Zhejiang University Science A, 2012, 13(4): 293-310.

    Article  Google Scholar

  11. Q Li, G Yu, S Liu, et al. Application of computational fluid dynamics and fluid structure interaction techniques for calculating the 3D transient flow of journal bearings coupled with rotor systems. Chinese Journal of Mechanical Engineering, 2012, 25(5): 926-932.

    Article  Google Scholar

  12. J Hu, W Wei, M Wu, et al. Numerical investigation of the air–oil two-phase flow inside an oil-jet lubricated ball bearing. International Journal of Heat and Mass Transfer, 2014, 68: 85-93.

    Article  Google Scholar

  13. X Zhang, Z Yin, G Gao, et al. Determination of stiffness coefficients of hydrodynamic water-lubricated plain journal bearings. Tribology International, 2015, 85: 37-47.

    Article  Google Scholar

  14. Q Li, S Zhang, L Ma, et al. Stiffness and damping coefficients for journal bearing using the 3D transient flow calculation. Journal of Mechanical Science and Technology, 2017, 31(5): 2083-2091.

    Article  Google Scholar

  15. Y Chen, Y Sun, Q He, et al. Elastohydrodynamic behavior analysis of journal bearing using fluid–structure interaction considering cavitation. Arabian Journal for Science and Engineering, 2019, 44: 1305-1320.

    Article  Google Scholar

  16. D Sun, S Y Li, C W Fei, et al. Investigation of the effect of cavitation and journal whirl on static anddynamic characteristics of journal bearing. Journal of Mechanical Science and Technology, 2019, 33(1): 77-86.

    Article  Google Scholar

  17. H Liu, H Xu, Y Zhang. The influence of sea water in oil emulsion on bearing performance. Proc. Inst. Mech. Eng. Part J: J. Eng. Tribol., 2009, 223(3): 457-468.

  18. Q Y Lin, Z Y Wei, N Wang, et al. Analysis on the lubrication performances of journal bearing system using computational fluid dynamics and fluid–structure interaction considering thermal influence and cavitation. Tribology International, 2013, 64: 8-15.

    Article  Google Scholar

  19. S B Shenoy, R Pai, D Rao, et al. Elasto-hydrodynamic lubrication analysis of full 360 journal bearing using CFD and FSI techniques. World Journal of Modelling and Simulation, 2009, 5(4).

  20. X H Lin, S Y Jiang, C B Zhang. Thermohydrodynamic analysis of high speed water-lubricated spiral groove thrust bearing considering effects of cavitation, inertia and turbulence. Tribology International, 2018, 119: 645-658.

    Article  Google Scholar

  21. X H Lin, S Y Jiang, C B Zhang, et al. Thermohydrodynamic analysis of high-speed water-lubricated spiral groove thrust bearing using cavitating flow model. Journal of Tribology, 2018, 140: 0517031-05170312.

    Article  Google Scholar

  22. X H Lin, R Q Wang, S W Zhang, et al. Study of cavitation bubbles evolution for high-speed water-lubricated spiral groove thrust bearings. ASME Journal of Tribology, 2019, 141: 051703-1.

    Article  Google Scholar

  23. X H Lin, R Q Wang, S W Zhang, et al. Study on dynamic characteristics for high speed water-lubricated spiral groove thrust bearing considering cavitating effect. Tribology International, 2019, 143:106022.

    Article  Google Scholar

  24. C W Ng, C H T Pan. A linearized turbulent lubrication theory. ASME J. Fluids Eng., 1965, 87(3): 675–688.

    Google Scholar

  25. J O Hinze. Turbulence. McGraw-Hili Book Company., Inc., New York, 1959.

    Google Scholar

  26. J R Ni, G Q Wang, H W Zhang. The basic theory of solid liquid two-phase flow and its latest applications. Beijing: Science Press, 1991.

    Google Scholar

  27. L J Guo. Two-phase and multiphase flow dynamics. Xi’an: Xi’an Jiaotong University Press, 2002.

  28. J Solsvik, H A Jakobsen. Evaluation of weighted residual methods for the solution of a population balance model describing bubbly flows: The Least Squares, Galerkin, Tau, and Orthogonal Collocation Methods. Industrial & Engineering Chemistry Research, 2013, 52(45): 15988-16013.

    Article  Google Scholar

  29. M L Billet. Cavitation nuclei measurements. Proc. of the 2nd Intcrn. Symp. on Cavitation Inception, New Orleans, Louisiana, USA, 1984: 33-42.

  30. S Kumar, D Ramkrishna. On the solution of population balance equations by discretization-I. A Fixed Pivot Technique. Chemical Engineering Science, 1996, 51(8): 1311-1332.

    Article  Google Scholar

  31. C A Dorao, H A Jakobsen. A least squares method for the solution of population balance problems. Computers and Chemical Engineering, 2006, 30: 535-547.

    Article  Google Scholar

  32. Z M Zhang, Y Y Zhang, Y B Xie, et al. The theory of hydrodynamic lubrication of sliding bearings. Beijing: Higher Education Press, 1986.

    Google Scholar

  33. C E Brennen. Cavitation and bubble dynamics. Oxford University Press, 1995.

Download references

Acknowledgements

Not applicable.

Authors’ Information

Xiaohui Lin, born in 1960, is currently an associate professor at School of Mechanical Engineering, Southeast University, China. He received his bachelor degree from Wuhan University of Technology, China, in 1982. His research interests include two-phase flow transport theory.

Shun Wang, born in 1995, is currently a master at Southeast University, China.

Shuyun Jiang, born in 1966, is currently a PhD supervisor at Southeast University, China.

Shaowen Zhang, is currently a PhD candidate at Southeast University, China.

Funding

Supported by National Natural Science Foundation of China (Grant Nos. 51635004, 11472078).

Author information

Authors and Affiliations

Authors

Contributions

XL was in charge of the whole trial; XL wrote the manuscript; SW is responsible for model calculation and drawing; SJ revises and reviews the manuscript; SZ assisted with laboratory analyses. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Xiaohui Lin.

Ethics declarations

Competing interests

The authors declare no competing financial interests.

Appendix

Appendix

1.1 Derivation of Perturbation Generalized Reynolds Equations

The generalized Reynolds equation in \((r,\theta )\) coordinate system,

$$\begin{array}{c}\frac{\partial }{\partial r}\left(\frac{{h}^{3}r}{{\bar{\mu }_{w}}{k}_{r}}\left(\frac{\partial {C}_{w}p}{\partial r}\right)\right)+\frac{\partial }{\partial \theta }\left(\frac{{h}^{3}}{{\bar{\mu }_{w}}{k}_{\theta }r}\left(\frac{\partial {C}_{w}p}{\partial \theta }\right)\right)\\ =\frac{\partial }{\partial \theta }\left(\frac{hU{C}_{w}}{2}+\frac{{h}^{3}}{{\bar{\mu }_{w}}{k}_{\theta }}M(\theta )\right)+\frac{\partial }{\partial r}\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\bar{\mu }_{w}}{k}_{r}}\right)+{C}_{w}r\frac{\partial h}{\partial t}.\end{array}$$
(A1)

Ignoring the infinitesimal value of higher order, the expression of \({h}^{3}\) is as follows:

$${h}^{3}\approx {h}_{0}^{3}+3{h}_{0}^{2}\left(\Delta z+r\mathrm{cos}\theta\Delta {\varphi }_{y}-r\mathrm{sin}\theta\Delta {\varphi }_{x}\right).$$
(A2)

Bring Eq. (A2) and Eq. (57) into the right side of Eq. (A1),

$$\begin{array}{c}\frac{\partial }{\partial \theta }\left(\frac{hU{C}_{w}}{2}+\frac{{h}^{3}}{{\overline{\mu }}_{w}{k}_{\theta }}M(\theta )\right)+\frac{\partial }{\partial r}\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}\right)+{C}_{w}r\frac{\partial h}{\partial t}\\ =\frac{\partial }{\partial \theta }({C}_{w}U{h}_{0})+\frac{\partial }{\partial \theta }\left(\frac{{h}_{0}^{3}}{{\overline{\mu }}_{w}{k}_{\theta }}\right)+\frac{\partial }{\partial r}\left(\frac{{h}_{0}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}{h}_{0}^{3}\right)\\ +\left[\frac{\partial }{\partial \theta }\left({C}_{w}U\right)\text{+}\frac{\partial }{\partial \theta }\left(\frac{M\left(\theta \right)}{{\overline{\mu }}_{w}{k}_{\theta }}3{h}_{0}^{2}\right)+\frac{\partial }{\partial r}\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}3{h}_{0}^{2}\right)\right]\Delta z\\ +\left[\frac{\partial }{\partial \theta }\left({C}_{w}Ur\mathrm{cos}\theta \right)+\frac{\partial }{\partial \theta }\left(\frac{M\left(\theta \right)}{{\overline{\mu }}_{w}{k}_{\theta }}3{h}_{0}^{2}r\mathrm{cos}\theta \right)+\frac{\partial }{\partial r}\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}3{h}_{0}^{2}r\mathrm{cos}\theta \right)\right]\Delta {\varphi }_{y}\\ -\left[\frac{\partial }{\partial \theta }({C}_{w}Ur\mathrm{sin}\theta )+\frac{\partial }{\partial \theta }\left(\frac{M(\theta )}{{\overline{\mu }}_{w}{k}_{\theta }}3{h}_{0}^{2}r\mathrm{sin}\theta \right)+\frac{\partial }{\partial r}\left(\frac{{h}^{3}{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{{\overline{\mu }}_{w}{k}_{r}}3{h}_{0}^{2}r\mathrm{sin}\theta \right)\right]\Delta {\varphi }_{x}\\ +{C}_{w}r\Delta \dot{z}+{C}_{w}{r}^{2}\mathrm{cos}\theta \Delta {\dot{\varphi }}_{y}-{C}_{w}{r}^{2}\mathrm{sin}\theta \Delta {\dot{\varphi }}_{x}.\end{array}$$
(A3)

Convert the coordinate system of Eq. (A3) to the \((\eta ,\zeta )\) coordinate system, and compare similar terms,

$$\begin{array}{c}{q}_{z}=\frac{\partial }{\partial \eta }\left({C}_{w}U\right)+\frac{\partial }{\partial \eta }\left(\frac{M\left(\theta \right)}{\bar{\mu }_{w}{k}_{\theta }}3{h}_{0}^{2}\right)+\frac{\partial }{\partial \zeta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\bar{\mu }_{w}{k}_{r}}3{h}_{0}^{2}\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\zeta {\bar{\mu }_{w}}{k}_{r}\mathrm{cot}\beta }3{h}_{0}^{2}\right)-\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\bar{\mu }_{w}{k}_{\theta }\zeta }\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }\right)\\ -\left[\begin{array}{c}\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}\zeta }{\bar{\mu }_{w}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }\right)-\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }\right)+\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\zeta {\mathrm{cot}}^{2}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }\right)\end{array}\right],\end{array}$$
(A4)
$$\begin{array}{c}{q}_{{\varphi }_{x}}=\frac{\partial }{\partial \eta }\left({C}_{w}U{G}_{1}\left(\eta ,\zeta \right)\right)\\ +\frac{\partial }{\partial \eta }\left(\frac{M(\theta )}{\bar{\mu }_{w}{k}_{\theta }}3{h}_{0}^{2}{G}_{1}(\eta ,\zeta )\right)+\frac{\partial }{\partial \zeta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\bar{\mu }_{w}{k}_{r}}3{h}_{0}^{2}{G}_{1}(\eta ,\zeta )\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\zeta {\bar{\mu }_{w}}{k}_{r}}\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta }{G}_{1}(\eta ,\zeta )\right)+\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\bar{\mu }_{w}{k}_{\theta }\zeta }\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{1}(\eta ,\zeta )\right)\\ +\left[\begin{array}{c}\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}\zeta }{\bar{\mu }_{w}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }{G}_{1}(\eta ,\zeta )\right)-\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{1}(\eta ,\zeta )\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }{G}_{1}(\eta ,\zeta )\right)+\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\zeta {\mathrm{cot}}^{2}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{1}(\eta ,\zeta )\right)\end{array}\right],\end{array}$$
(A5)
$$\begin{array}{c}{q}_{{\varphi }_{y}}=\frac{\partial }{\partial \eta }\left({C}_{w}U{G}_{2}(\eta ,\zeta )\right)\\ +\frac{\partial }{\partial \eta }\left(\frac{M\left(\theta \right)}{\bar{\mu }_{w}{k}_{\theta }}3{h}_{0}^{2}{G}_{2}(\eta ,\zeta )\right)+\frac{\partial }{\partial \zeta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\bar{\mu }_{w}{k}_{r}}3{h}_{0}^{2}{G}_{2}(\eta ,\zeta )\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{{\rho }_{w}{\overline{u} }^{2}{C}_{w}}{\zeta {\bar {\mu }_{m}}{k}_{r}}\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta }{G}_{2}(\eta ,\zeta )\right)-\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\bar{\mu }_{w}{k}_{\theta }\zeta }\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{2}(\eta ,\zeta )\right)\\ -\left[\begin{array}{c}\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}\zeta }{\bar{\mu }_{w}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }{G}_{2}\left(\eta ,\zeta \right)\right)-\frac{\partial }{\partial \zeta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{2}\left(\eta ,\zeta \right)\right)\\ -\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\mathrm{cot}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \zeta }{G}_{2}\left(\eta ,\zeta \right)\right)+\frac{\partial }{\partial \eta }\left(\frac{3{h}_{0}^{2}}{\zeta {\mathrm{cot}}^{2}\beta {\bar{\mu }_{w}}{k}_{r}}\frac{\partial {C}_{w}{p}_{0}}{\partial \eta }{G}_{2}\left(\eta ,\zeta \right)\right)\end{array}\right],\end{array}$$
(A6)
$${q}_{\dot{z}}={C}_{w}\zeta ,$$
(A7)
$${q}_{{\dot{\varphi }}_{x}}=-{C}_{w}\zeta {G}_{1}\left(\eta ,\zeta \right),$$
(A8)
$${q}_{{\dot{\varphi }}_{y}}={C}_{w}\zeta {G}_{2}\left(\eta ,\zeta \right),$$
(A9)

where

$$\begin{array}{c}{G}_{1}\left(\eta ,\zeta \right)=\zeta \mathrm{sin}\left(\eta +f\left(\zeta \right)\right),\\ {G}_{2}\left(\eta ,\zeta \right)=\zeta \mathrm{cos}\left(\eta +f\left(\zeta \right)\right).\end{array}$$
(A10)

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Lin, X., Wang, S., Jiang, S. et al. Dynamic Characteristics of High-speed Water-Lubricated Spiral Groove Thrust Bearing Based on Turbulent Cavitating Flow Lubrication Model. Chin. J. Mech. Eng. 35, 13 (2022). https://doi.org/10.1186/s10033-021-00671-3

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s10033-021-00671-3

Keywords
