A comparative study on the influence of different manufacturing methods (selective laser melting and hot rolling) on the microstructure, mechanical and thermal behaviours of tungsten (W) was presented for the first time. The results indicated that the selective laser melting (SLM) W exhibited a finer grain sizes, a lower strength ductility, hardness and thermal conductivity compared to hot-rolled W. The main reason for this result was that the laser underwent rapid heating and cooling when it was used to melt W powder with high energy density, resulting in large internal stress in the sample after manufacturing. Subsequently, the internal stress was released, leading to the generation of micro-cracks at the grain boundaries, thereby affecting the performance of SLM W samples. In addition, the higher fraction of high-angle grain boundaries (HAGBs) of SLM W was found to be the key factor for intrinsic brittleness. Because the HAGBs are the preferred crack paths, which could promote crack propagation and decrease fracture energy.
Tungsten (W), a typical refractory metal, has high melting point, low thermal expansion coefficient, low tritium retention and high self-sputtering threshold . Due to these characteristics, pure W has been widely used as plasma facing materials (PFMs) in fusion devices . W is generally considered as a brittle material at room temperature because of its high ductile-brittle transition temperature (DBTT). Consequently, W has always been fabricated primarily using the powder metallurgy (PM) method . The pressed powder is sintered and generally deformed (forged, rolled, drawn, etc.) under high temperature to produce the final products (billets, bars, plates, etc.) [4,5,6]. However, the PM method has a limitation in terms of the production of parts with complex geometries, such as He-cooled divertor in fusion reactors . Therefore, it is necessary to find a novel approach to fabricate W parts with intricate structures to expand the application scope.
Selective laser melting (SLM) is one of the promising additive manufacturing techniques. During the SLM process, a fiber laser works as the energy source for melting and solidifying the metal powders of selected areas according to the CAD data. Then the substrate is lowered and the laser repeats to scan and deposit next layer until the whole parts are fabricated [8, 9]. The SLM exhibits considerable advantages in fabricating metal parts with desired complex shapes [10, 11]. Recently, SLM has been widely applied in preparing steel, Ti alloys, CoCrMo alloys, Cu alloys and Al alloys [12,13,14,15,16]. However, pure W is still difficult to fabricate using SLM due to its high melting point, high thermal conductivity, high viscosity and high DBTT, leading to pores formation and low-temperature brittleness. A limited number of studies pertaining to SLM W, most of which focused on enhancing the density and investigating the cracking phenomenon of SLM W parts, have been published. Zhang et al.  obtained a W part with a relative density of 82% by optimizing process parameters. When the laser energy density was below a certain threshold, metal powders could not be completely melted, resulting in lower relative density . Zhou et al.  investigated the balling phenomena occurring during the SLM process. According to the cracking model of SLM W , the driving force of cracking was the thermal stress induced by the high temperature gradient during the SLM process. And cracks in SLM W appeared until the material was cooled to a threshold temperature according to the in situ observing by a high-speed camera . Recently, SLM W parts with a higher relative density (more than 90%) were prepared by using finer W powders with spherical morphology, excellent flowability, suitable powder size and narrow particle size distribution [22,23,24].
Despite the advantages of the SLM in forming complex shapes and structures, the differences in the microstructure and macroscopic performance of pure W formed by SLM and that obtained using traditional methods are yet unclear. Further, it is not known if the SLM method can replace traditional methods in the field of nuclear materials. Research on these aspects has not been reported so far. Therefore, for the first time, a comparative research on the influence of different manufacturing methods (SLM and hot rolling) on the microstructure, mechanical and thermal behaviours of W was conducted. The purpose of this study is to evaluate the potential applications of SLM W in the nuclear industry.
2 Experimental Procedure
2.1 Sample Preparation
Hot rolling W plate (Xiamen Tungsten Co. Ltd., Xiamen, China), manufactured by sintering and subsequent rolling at 1500 °C. Spherical W powder used for SLM was purchased from Tekna Advanced Materials Inc. (Quebec, Canada). The average particle size of W powder is 14.8 μm, as shown in Figure 1a.
All the SLM W samples were fabricated on the SLM 125 machine. A cubic sample (10 mm × 10 mm × 5 mm) was prepared on a 316L steel substrate, which was maintained at 200 °C to reduce the thermal stress. The SLM process was carried out in an argon atmosphere to avoid oxidation. The laser scan strategy is shown in Figure 1b. In our previous work, the SLM process parameters, including the laser power, laser scanning speed, hatch spacing and layer thickness were optimized to obtain a part with the maximal density . The optimized process parameters are shown in Table 1. The relative densities, as obtained using the Archimedes principle, of the samples prepared using hot-rolled and SLM were 97.4% and 98.7%, respectively.
2.2 Performance Testing
Figure 2 shows the geometry and dimension of test samples for microstructure and mechanical performance characterization. Before tensile test, all the samples were polished and cleaned to get fresh surface. The tensile direction of hot-rolled samples was the same as the rolling direction (RD), while the tensile direction of the SLM samples was vertical to the building direction (BD). The high temperature tensile test was conducted on the Instron-5967 universal mechanical tester according to the standard ASTM E8M. The test temperature was from RT to 500 °C and tension rate was fixed at 0.6 mm/min.
A nano-indentation test was conducted using a Hysitron TI 750 (Bruker, American) nanoindenter with a load force of 7 mN for 5 s. At least five measurements were performed for each sample. The thermal conductivity (γ) of samples fabricated by SLM and hot rolling was calculated by the formula γ = αCpρ. The thermal diffusivity (α) was measured using an LFA 427 (Nexus Analytics, Singapore) laser flash diffusivity system along the normal direction (ND) of the hot-rolled samples and XY-plane of the SLM samples. The density ρ of pure W is 19.3 g/cm3. The specific heat Cp was obtained from Ref. .
2.3 Microstructure Characterization
The hot-rolled samples and SLM samples were prepared through wet grounding with SiC abrasive papers down to 2000 mesh to allow microstructural observation. Subsequently, the samples were polished with diamond suspensions and etched with a solvent containing of NaOH (10 g), K3 [Fe(CN)6] (10 g) and H2O (100 mL) for 20 s. The microstructure was observed by optical microscope (OM) (ZEISS, Oberkochen, Germany). The phase identification was observed by an XRD-7000S instrument (Shimadzu, Japan) with a Cu tube at 40 kV and 30 mA. A scanning angle (2θ) ranging from 35° to 90° was employed with a continuous scan rate of 10°/min.
Average grain sizes and grain shape ratio were calculated according to Electron backscatter diffraction (EBSD) orientation maps. EBSD measurements were performed using a FEI Quanta 650 field-emission scanning electron microscope with an OIM orientation imaging microscope system (EDAX, Ametek, America). The EBSD data was processed using the HKL Channel 5 software packages. The samples for EBSD test were electrolytically polished with a 5% sodium hydroxide aqueous solution at 11 V and 30 mA/mm2. Areas of 400 × 300 µm were scanned with a step size of 500 nm to analyse texture and microstructure.
3 Results and Discussion
3.1 Microstructure Characterization
Figure 3 shows the XRD patterns of the W powder, hot-rolled W and SLM W. The four observed diffraction peaks could be assigned to (110), (200), (211) and (220), as shown in Figure 3a. These results conformed to that of standard W diffraction with a body-centred cubic (bcc) lattice structure. Furthermore, the diffraction peak of SLM W was wider than those of hot-rolled W and W powder (Figure 3b), and this finding was consistent with that of previous research . According to the Debye-Scherrer formula, the peak broadening was related to the grain refinement, which was benefited by the rapid solidification during the SLM process. In addition, the main peaks shifted to the left also indicated the presence of high residual stress in the SLM W, resulting in lattice distortion [23, 26].
Furthermore, the (110) diffraction angle of SLM W gradually shifted to a lower angle compared to those of W powder and hot-rolled W, as shown in Figure 3b, and according to the Bragg equation as follows:
$$2d \, \sin \theta = \lambda ,$$
where d is the interplanar spacing, θ is the diffraction angle and λ is the wavelength. According to Eq. (1), a smaller diffraction angle θ represents a larger interplanar spacing d, indicating the higher residual stress and lattice expansion of SLM W.
The optical micrograph surfaces of different directions of SLM W and hot-rolled W are shown in Figure 4. The individual scan tracks could be notably distinguished, and strip-shape grains were observed in the XY surface of SLM W, as shown in Figure 4a. Longitudinal and transverse cracks were present, and they extended along the grain boundaries. Columnar grains were observed in the YZ surface, which were different from the strip-shape grains noted in the XY surface, as shown in Figure 4b. The columnar grains along the building direction are typical microstructure in the SLM of pure metals due to the maximum heat flow direction is parallel to building direction, leading to the epitaxial growth of grains . As shown in Figure 4c and d, the hot-rolled sample demonstrated a notable fibre structure combined with the small recrystallized grains, which could be attributed to the dynamic recrystallization occurring during the hot rolling process . Few micropores and micro-cracks could be observed in the hot-rolled W. The average grain size of the hot-rolled W was significantly larger than that of SLM W.
Figure 5a and b show the EBSD orientation maps of the hot-rolled W and SLM W. It can be found that the deformed grains extended along the RD, as shown in Figure 5a. The average length and width of the grains were approximately 74.6 μm and 34.8 μm, respectively. The grain shape aspect ratio was 2.14. A typical microstructure morphology of SLM W with striped-shape grains was observed, as shown in Figure 5b. Similar grain morphologies were also reported in previous studies [22, 23, 27]. The average grain size of SLM W was approximately 14.2 μm, which was considerably smaller than that of hot-rolled W. The finer grains of SLM W could be a result of the occurrence of rapid solidification with an extremely high cooling rate during the SLM process [8, 28].
To further characterize the crystallographic textures of hot-rolled W and SLM W, the pole figures and inverse pole figures are shown in Figure 5c to g. The texture of the hot-rolled W had the following characteristics: <110>//RD, <110>//TD, <111>//ND and <001>//ND. Zhang et al.  compared the macro-texture and mechanical properties of W prepared using different rolling methods and found that the main texture <001> and <111> was parallel to the ND, which is in agreement with our result. The main texture orientation of SLM W was the <111> direction, parallel to the building direction (Z axis) with a higher texture intensity of 4.9 compared to the corresponding value of approximately 3.9 for hot-rolled W. The X and Y directions of the inverse pole figure exhibited a similar texture orientation due to the continuous rotation laser scan , as shown in Figure 5g.
Figure 6a and b show the distribution of grain boundaries of hot-rolled W and SLM W, respectively. The differently coloured lines represented different grain boundary angles: sub-grain boundary (SGBs, 2°–5°, red), low angle grain boundary (LAGBs, 5°–15°, green), high-angle grain boundary (HAGBs, > 15°, blue). The distribution of the grain boundary misorientation angles of the hot-rolled W and SLM W are shown in Figure 6c. The hot-rolled W had a large number of LAGBs and SGBs, distributed inside the elongated grains. The similar sub-grain structures were also observed in other hot-rolled W, which were caused by plastic deformation . During plastic deformation, low deformation temperature and high strain rate can introduce more dislocations and inhibit the dynamic recovery of dislocations, which is beneficial to the formation of dislocation walls and sub-grain. Compared with HAGBs, the misorientation of LAGBs is so small that dislocations are easier to transfer across the boundary of adjacent grains, reducing the dislocations pile-up [31, 32]. As a result, the SLM W with higher fraction of HAGBs exhibits better strain compatibility than hot-rolled W. HAGBs are the preferred crack paths because that grain boundaries with large misorientation can promote crack propagation and decrease fracture energy . Therefore, hot-rolled W shows better ductility than SLM W according to the grain boundary analysis.
3.2 Mechanical and Thermal Properties
Figure 7 shows the tensile stress–strain curves of the hot-rolled W and SLM W at different temperatures. The tensile direction of the hot-rolled W was parallel to the RD. The hot-rolled W exhibited typical brittle fracture at RT, 100 °C and 200 °C. When the temperature increased to 250 °C, the ultimate tensile strength (UTS) of the hot-rolled W was 496 MPa and the total elongation (TE) was 6.0%. It is well known that the DBTT is defined as the lowest temperature at which a sample undergoes a minimum elongation beyond 5% without failure . According to the high temperature tensile test, it could be estimated that DBTT of the considered hot-rolled W was approximately 250 °C, which was similar to the reported results . With the temperature increased from 250 °C to 500 °C, the UTS decreased from 496 MPa to 393 MPa. Furthermore, the samples at 400 °C and 500 °C demonstrated considerably ductility with a TE of ~15%.
Figure 7b shows the tensile results of the SLM W at various temperatures. Even at the highest testing temperature of 500 °C, the SLM W exhibited almost no ductility and a rather low tensile strength. However, the compressive strength of the SLM pure W was approximately 1500 MPa, which was higher than coarse grain W (CG W) fabricated through powder metallurgy (PM) [5, 36]. Thus, it could be noted that SLM W exhibited an interesting performance involving a relatively high compressive strength and an extremely low tensile strength. According to our previous research , due to the high residual stress of the SLM process, some micro-cracks appear in the sample, resulting in the low plasticity of pure W at room temperature. Therefore, for the SLM W, the tensile properties were sensitive to the micro-cracks in the samples, while the compression properties were not sensitive. However, no effective method currently exists to eliminate the micro-cracks by adjusting the process parameters or adding toughening materials [37,38,39]. Compared with SLM W, hot-rolled W has been subjected to more uniform temperature, less thermal gradient and higher external pressure during hot rolling process, so hot-rolled W exhibits higher density and almost no pre-existing micro-cracks. According to the comparative study, suppressing micro-cracks and increasing strength will be a research hotspot of SLM W.
Figure 8 shows the fracture surfaces of the SLM W and hot-rolled W at different test temperatures. The pre-existing micro-cracks acted as the source of cracks propagation, as shown in Figure 8a to c. Under tensile loading, the micro-cracks grew along the grain boundaries. According to Figure 4a and b, a large number of micro-cracks were distributed along the grain boundaries, which significantly weakened the bonding strength between the neighbouring grains. Thus, the fracture surfaces of SLM W were dominated by intergranular fracture, which propagated along the strip-shaped grain boundaries. Figure 8d shows that the fracture surfaces of hot-rolled W at room temperature were dominated by transgranular fracture (green dotted rectangles). Some intergranular fracture was also present along the rolling direction (red dotted rectangles), in which a fine and equiaxed recrystallization microstructure was observed. As shown in Figure 8e, the sample demonstrated a smaller cleavage surface and exhibited a certain amount of ductility. Nevertheless, at 500 °C the hot-rolled samples exhibited extremely ductile in Figure 8f. Strong necking phenomenon and many dimples can be observed on the fracture surfaces.
To further study the influence of micro-cracks on the mechanical performance of the hot-rolled W and SLM W, nano-indentation test was carried out. As shown in Figure 9, the load–depth curves of SLM W and hot-rolled W were present. Three segments were observed in the curves: loading, holding at maximum load and unloading. A larger depth was observed for SLM W at the same load, demonstrating that SLM W exhibited a lower hardness than hot-rolled W. In this work, the Oliver-Pharr analysis  was applied to calculate the hardness and elastic modulus. The hardness (H) is defined as follows [12, 41]:
where Pmax is the maximum load, Ac is the area of the indentation, hc is the contact depth at the maximum load. It could be determined that the hardness of the hot-rolled W (5.85 ± 0.18 GPa) was slightly higher than that of SLM W (5.51 ± 0.24 GPa). The results were in accordance with those presented in previous reports, indicating the results were reliable [37, 42]. It could be concluded that the rolled W was harder than the SLM W. Furthermore, the curves of hot-rolled W and SLM W demonstrated a similar unloading segment, implying a similar elastic modulus.
Even though the grain size of SLM was smaller, hot-rolled W exhibited higher nano-hardness and tensile strength. It could be speculated that the SLM W samples had large numbers of micro-cracks, which could easily expand. This W was sensitive to cracking, because of its high DBTT (~ 400 °C) . The cracking of W was difficult to suppress due to the high thermal stress, which was larger than the intrinsic ductility. Wang et al.  reported that the segregated nano-pores at the grain boundaries (GBs) acted as crack nucleation zones.

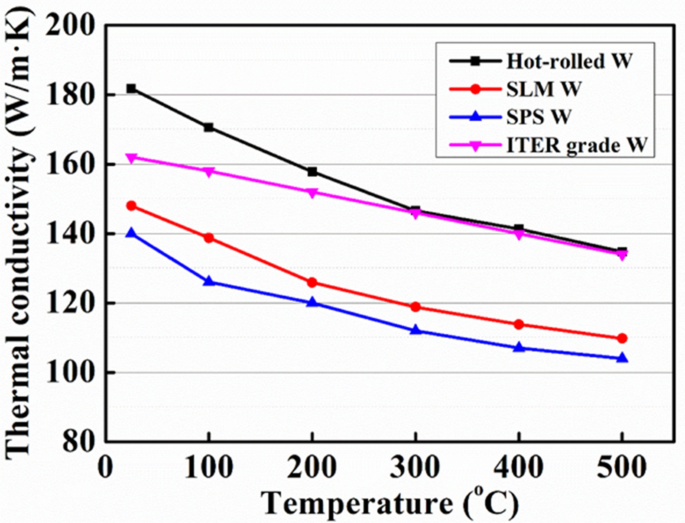

The thermal conductivities of the hot-rolled W, SLM W, SPS W and ITER grade W are shown in Figure 10. At room temperature, the thermal conductivity of hot-rolled W was 182 W/m·K, that was 23% higher than that of SLM W. As is well known, the thermal conductivity was dependent on many factors, for instance the relative density, grain size, grain shape, grain boundary, defect and porosity. The relative density of the hot-rolled W and SLM W was 97.4% and 98.7%, respectively. The grain size of the hot-rolled W along the ND was 34.8 μm, which was approximately 2.5 times that of the SLM W. The GB density of the hot-rolled W was significantly less compared with that of the SLM due to larger average grain size of hot-rolled W. When there are more grain boundaries, the electrons are more likely to scatter at the interface and thus reduce thermal conductivity. At the same time, the SLM W exhibited a higher thermal conductivity compared with SPS W, because the columnar grain of the SLM W along the building direction was conducive to the thermal conduction .
A comparative research on the influence of different manufacturing methods (SLM and hot rolling) on the microstructure, mechanical and thermal behaviours of W was conducted. The SLM W exhibited a smaller average grain size (14.2 μm) due to the high solidification rate of the laser process. While the hot-rolled W exhibited a finer equiaxed recrystallizing sub-grain microstructure. The hot-rolled W demonstrated the best performance in terms of the tensile strength (496 MPa at 250 °C), nano-hardness (5.85 ± 0.18 GPa) and thermal conductivity (182 W/m·K).
E Lassner, W Schubert. Tungsten: Properties, chemistry, technology of the element, alloys, and chemical compounds. New York: Kluwer Academic, 1999.
S Bonk, J Hoffmann, A Hoffmann, et al. Cold rolled tungsten (W) plates and foils: Evolution of the tensile properties and their indication towards deformation mechanisms. International Journal of Refractory Metals and Hard Materials, 2018, 70: 124-133.
J K Lee, S Y Kim, R T Ott, et al. Effect of reinforcement phase on the mechanical property of tungsten nanocomposite synthesized by spark plasma sintering. International Journal of Refractory Metals and Hard Materials, 2016, 54: 14-18.
S Wen, K Chen, W Li, et al. Selective laser melting of reduced graphene oxide/S136 metal matrix composites with tailored microstructures and mechanical properties. Materials and Design, 2019, 175: 107811.
J Zhang, B Song, Q Wei, et al. A review of selective laser melting of aluminum alloys: Processing, microstructure, property and developing trends. Journal of Materials Science & Technology, 2019, 35(2): 270-284.
W Li, Y Yang, J Liu, et al. Enhanced nanohardness and new insights into texture evolution and phase transformation of TiAl/TiB2 in-situ metal matrix composites prepared via selective laser melting. Acta Materialia, 2017, 136: 90-104.
C Han, C Yan, S Wen, et al. Effects of the unit cell topology on the compression properties of porous Co-Cr scaffolds fabricated via selective laser melting. Rapid Prototyping Journal, 2017, 23(1): 16-27.
Y Zhou, X Zeng, Z Yang, et al. Effect of crystallographic textures on thermal anisotropy of selective laser melted Cu-2.4Ni-0.7Si alloy. Journal of Alloys and Compounds, 2018, 743: 258-261.
M B Wang, R D Li, T C Yuan, et al. Microstructures and mechanical property of AlMgScZrMn-A comparison between selective laser melting, spark plasma sintering and cast. Materials Science & Engineering A, 2019, 756: 354-364.
S Wen, C Wang, Y Zhou, et al. High-density tungsten fabricated by selective laser melting: Densification, microstructure, mechanical and thermal performance. Optics & Laser Technology, 2019, 116: 128-138.
C Tan, K Zhou, W Ma, et al. Selective laser melting of high-performance pure tungsten: Parameter design, densification behavior and mechanical properties. Science and Technology of Advanced Materials, 2018, 19(1): 370–380.
B Li, B Qian, Y Xu, et al. Additive manufacturing of ultrafine-grained austenitic stainless steel matrix composite via vanadium carbide reinforcement addition and selective laser melting: Formation mechanism and strengthening effect. Materials Science and Engineering: A, 2019, 745: 495-508.
B Song, X Zhao, S Li, et al. Differences in microstructure and properties between selective laser melting and traditional manufacturing for fabrication of metal parts: A review. Frontiers of Mechanical Engineering, 2015, 10(2): 111-125.
M Cloots, P J Uggowitzer, K Wegener. Investigations on the microstructure and crack formation of IN738LC samples processed by selective laser melting using Gaussian and doughnut profiles. Materials & Design, 2016, 89: 770-784.
S Miao, Z M Xie, L F Zeng, et al. Mechanical properties, thermal stability and microstructure of fine-grained W-0.5 wt.% TaC alloys fabricated by an optimized multi-step process. Nuclear Materials and Energy, 2017, 13: 12-20.
D Rupp, R Monig, P Gruber, et al. Fracture toughness and microstructural characterization of polycrystalline rolled tungsten. International Journal of Refractory Metals and Hard Materials, 2010, 28(6): 669-673.
K Li, D Wang, L Xing, et al. Crack suppression in additively manufactured tungsten by introducing secondary-phase nanoparticles into the matrix. International Journal of Refractory Metals and Hard Materials, 2019, 79: 158-163.
W C Oliver, G M Pharr. An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. Journal of Materials Research, 2011, 7(6): 1564–1583.
H Attar, S Ehtemam-Haghighi, D Kent, et al. Nanoindentation and wear properties of Ti and Ti-TiB composite materials produced by selective laser melting. Materials Science and Engineering: A, 2017, 688: 20-26.
Chong Wang, born in 1995, is a master candidate at State Key Laboratory of Material Processing and Die & Mold Technology, Huazhong University of Science and Technology, China.
Yan Zhou, born in 1987, is an associate professor at Faculty of Engineering, China University of Geosciences (Wuhan), China.
Shifeng Wen, born in 1979, is an associate professor at State Key Laboratory of Material Processing and Die & Mold Technology, Huazhong University of Science and Technology, China.
Supported by National Natural Science Foundation of China (Grant No. U1808216), Hubei Provincial Natural Science Foundation of China (Grant No. 2020CFB667), Hubei Provincial Key Research and Development Program of China (Grant No. 2020BAB045), Wuhan Second Ship Design and Research Institute (No. YT19201903), and the Sixth China Association of Science and Technology Youth Talents Invitation Project (No.YESS20200326).
