Establishment of Dynamic Model for Axle Box Bearing of High-Speed Trains Under Variable Speed Conditions

Abstract

In this study, a dynamic model for the bearing rotor system of a high-speed train under variable speed conditions is established. In contrast to previous studies, the contact stress is simplified in the proposed model and the compensation balance excitation caused by the rotor mass eccentricity considered. The angle iteration method is used to overcome the challenge posed by the inability to determine the roller space position during bearing rotation. The simulation results show that the model accurately describes the dynamics of bearings under varying speed profiles that contain acceleration, deceleration, and speed oscillation stages. The order ratio spectrum of the bearing vibration signal indicates that both the single and multiple frequencies in the simulation results are consistent with the theoretical results. Experiments on bearings with outer and inner ring faults under various operating conditions are performed to verify the developed model.

Introduction

In recent years, the rapid development of high-speed trains has led to a rapid increase in the mileage and number of high-speed trains globally. The safe and reliable operation of trains is critical to railway safety [1, 2]. As key components of train running systems, the movement modelling and state monitoring of bogie axle box bearings have attracted extensive research attention [3]. Dynamic simulations of bearing systems are commonly used to better understand the mechanism of bearing faults and their effects on movement. In these bearing models, a set of differential equations is established to study the influence of parameters on bearing motion states. These equations can be solved using numerical solution methods.

In the early models, relatively simple nonlinear equations were used to simulate the bearing motion and study the motion law of bearings based on the exact solutions of these equations. For instance, Chinta et al. [4] used dimensionless differential equations to describe the unbalanced response of rotor bearings and Floquet theory to study the stability and bifurcation behavior of bearing systems. Sinou [5] established a dynamic model of a flexible rotor-rolling bearing system under unbalanced excitation, used the harmonic balance method to study the nonlinear motion law of the system, and analyzed the influence of the bearing radial clearance and unbalanced mass on the Hertzian contact force between the roller and raceway.

Because traditional methods for solving nonlinear equations can only generate approximate solutions for nonlinear systems with fewer degrees of freedom (DOF), more advanced methods have been developed for higher-DOF bearing systems. Fukata et al. [6] used a numerical method to solve the differential equations for ball bearing motion for the first time and intuitively analyzed the motion state of the bearings. Tiwari et al. [7] established a nonlinear dynamic model for bearing rotor systems and analyzed the influence of radial clearance on motion stability based on Floquet theory. Sawalhi et al. [8] built a dynamic model of a bearing and gear coupling system in which a small sprung mass with relatively high damping is used to represent a typical high frequency. The model was verified experimentally under different fault conditions [9]. Tsuha et al. [10] developed a rolling bearing model with improved fidelity by introducing a set of equivalent contact stiffness and damping values and using the theory of elastic fluid lubrication to calculate the contact force. Song et al. [11] proposed a dynamic model for spindle bearing systems by combining the angular contact and floating bearings. Compared with traditional methods, more factors that affect the bearing motion are considered in these methods. The established bearing motion models are therefore more accurate. At the same time, the numerical solution methods provide a more intuitive solution of the equations as well as greater convenience for further nonlinear analysis. However, these previous works have only focused on bearings under constant operating conditions, which cannot adequately describe dynamic operating conditions.

In contrast to bearings operating under relatively consistent operating conditions, high-speed train bearings in running systems often operate under high-speed, heavy-duty, and harsh conditions and are severely affected by strong noises in the surrounding environment. It is difficult to evaluate the bearing quality directly and study the bearing motion states. To address these challenges, dynamic model simulation methods are required for high-speed train bearings. The influence of various factors on the motion states of bearings should be considered in the dynamic modeling method to reduce the research cost and improve research efficiency. Cao et al. [12] established a nonlinear dynamic model for the CRH1 EMU (China Railway High-speed-1, Electric Multiple Units) coupling system in which the loose between the inner ring and main shaft of the axle box bearing in a high-speed train is considered. The motion characteristics of the model were also studied and compared using optimized numerical algorithms under various working conditions. Cao et al. [13] established a dynamic model for high-speed rolling bearings by considering actual factors such as the centrifugal and thermal expansion of the inner ring. The model was then used to predict system parameters such as the contact angle and bearing stiffness and to perform a correlative analysis of the bearing damage mechanism. Yang et al. [14] established a 4 DOF nonlinear dynamic model with classic faults for high-speed train bearing rotor systems. The model was verified using a certain type of high-speed train bearing under outer ring, inner ring, and roller element fault conditions. Liu et al. [15] established a 12 DOF nonlinear dynamic model for high-speed train axle box bearings with outer ring faults. The influence of the bearing speed and fault size on the system motion was studied from a nonlinear perspective. Wang et al. [16] proposed a novel stochastic vehicle-track coupled model to evaluate the dynamic performance of axle box bearings in a high-speed train with unsteady wind loads and random track irregularities. The model was used to study the influence of crosswind speed on the dynamic performance of the bearings.

Despite these achievements in bearing model research, the existing works face the limitation that the failure mechanism and bearing motion were all studied under static bearing speeds. Mishra et al. [17] established a bond graph model of rolling element bearings under special operating conditions and experimentally verified its effectiveness [18]. The main function of this model is to generate a series of nonstationary signals for fault diagnosis algorithm research. However, this model cannot describe the vibration response of each part of the bearing rotor system. Moreover, the previous bearing models have a single structure, which is insufficient to represent the structural characteristics of the tapered roller bearings in high-speed trains. Furthermore, in addition to the bearing mass eccentricity, the shaft mass eccentricity is also very important but has always been ignored in previous studies on bearing rotor systems. To address these limitations, in this study, a dynamic model for the coupling system of bearings and shafts is established to accurately simulate the dynamics of an axle box bearing in a high-speed train under variable speed conditions. The novelties of this study are threefold: First, the shaft and two bearings are regarded as a coupled system in which the shaft is regarded as a rotor and the mass eccentricity of the shaft is considered. Second, the angular iteration method is used to calculate the spatial position of the bearing rollers at each moment under the variable-speed operation of the bearing. Third, the model is verified through a series of simulations and actual experiments with different fault modes.

The remainder of this paper is organized as follows: Section 2 describes the process of building the shaft-bearing coupling system model under variable speed conditions and introduces the outer ring fault, inner ring fault, and rolling element fault models. Section 3 presents the simulation results when different types of faults are present in the model under variable speed conditions. Section 4 describes the verification of the model effectiveness through a comparison of the physical and simulation experiments.

Bearing Model

Bearing Dynamic Model

The running part of a high-speed train consists of an axle, a left wheel, and a right wheel. According to the law of energy conservation, the axle mass is equivalent to the axle center of mass. Figure 1 shows the structure of the axle box bearing in a high-speed train. O1, O2 and O3 are the bearing geometry center, shaft section center, and shaft section center of mass, respectively; e is the eccentricity of the shaft cross section; mc is the equivalent mass (kg) of the shaft at the center; K and C are the stiffness and damping of the shaft, respectively; FxL and FyL are the reaction forces (N) received by the left end bearing along the horizontal and vertical directions, respectively; FxR and FyR are the reaction forces (N) received by the right end bearing along the horizontal and vertical directions, respectively; and α and β are the contact and half cone angles in degrees, respectively. Because the rollers of tapered roller bearings change the direction of the contact force and decompose the load on the bearing into the axial and radial components, the half-cone angle should be considered in the model.

Figure 1
figure 1

Shaft and bearing coupling system model

Figure 2 shows the schematic diagram of the bearing dynamics model. m1, m2 and mb are the masses (kg) of the bearing inner ring, bearing, and unit resonator, respectively; x1 and y1 are the displacements (m) of the inner ring along the horizontal and vertical directions, respectively; K1 and C1 are the support stiffness (N/m) and support damping (N·s/m) of the inner ring, respectively; x2 and y2 are the displacements (m) of the outer ring along the horizontal and vertical directions, respectively; K2 and C2 are the support stiffness (N/m) and support damping (N·s/m) of the outer ring, respectively; and yb, Kb and Cb are the vertical displacement (m), stiffness (N/m), and damping (N·s/m) of the unit resonator, respectively. The bearing model in Figure 2 is coupled with a series of spring mass models and simulated by establishing a set of differential equations according to Newton's second law.

Figure 2
figure 2

Spring mass system of simplified bearings

When a fault occurs, the periodic impact due to the fault leads to the natural vibration of the bearing inner and outer rings and other components. These vibrations can be accurately simulated by adjusting the stiffness and damping coefficients of the unit resonator [19, 20]. According to Newton’s second law, the vibration of the shaft along the horizontal and vertical directions can be described by:

$$\left\{ \begin{gathered} m_{{\text{c}}} \ddot{x}_{{\text{c}}} + C\dot{x}_{{\text{c}}} + K(x_{{\text{c}}} - x_{{{\text{r}}1}} ) + K(x_{{\text{c}}} - x_{{{\text{l}}1}} ) = m_{{\text{c}}} ew_{{\text{c}}}^{2} \cos (w_{{\text{c}}} t), \hfill \\ m_{{\text{c}}} \ddot{y}_{{\text{c}}} + C\dot{y}_{{\text{c}}} + K(y_{{\text{c}}} - y_{{{\text{r}}1}} ) + K(y_{{\text{c}}} - y_{{{\text{l}}1}} ) = m_{{\text{c}}} ew_{{\text{c}}}^{2} \cos (w_{{\text{c}}} t) - m_{{\text{c}}} g. \hfill \\ \end{gathered} \right.$$
(1)

The vibration equations for the right-end bearing along the horizontal and vertical directions are expressed as follows:

$$\left\{ \begin{gathered} m_{1} \ddot{x}_{{{\text{r}}1}} + C_{1} \dot{x}_{{{\text{r}}1}} + K_{1} x_{{{\text{r}}1}} + F_{x{{\text{R}}}} \cos (\alpha - \beta ) = 0, \hfill \\ m_{1} \ddot{y}_{{{\text{r}}1}} + C_{1} \dot{y}_{{{\text{r}}1}} + K_{1} y_{{{\text{r}}1}} + F_{y{{\text{R}}}} \cos (\alpha - \beta ) = 0, \hfill \\ m_{2} \ddot{x}_{{{\text{r}}2}} + C_{2} \dot{x}_{{{\text{r}}2}} + K_{2} x_{{{\text{r}}2}} - F_{x{{\text{R}}}} \cos (\alpha + \beta ) = 0, \hfill \\ m_{2} \ddot{y}_{{{\text{r}}2}} + (C_{2} + C_{{\text{b}}} )\dot{y}_{{{\text{r}}2}} + (K_{2} + K_{{\text{b}}} )y_{{{\text{r}}2}} - K_{{\text{b}}} y_{{\text{b}}} - C_{{\text{b}}} \dot{y}_{{\text{b}}} - F_{y{{\text{R}}}} \cos (\alpha + \beta ) = F\cos (\alpha + \beta ). \hfill \\ \end{gathered} \right.$$
(2)

The vibrations of the left-end bearing along the horizontal and vertical directions can be calculated as follows:

$$\left\{ \begin{gathered} m_{1} \ddot{x}_{{{\text{l}}1}} + C_{1} \dot{x}_{{{\text{l}}1}} + K_{1} x_{{{\text{l}}1}} + F_{x{{\text{L}}}} \cos (\alpha - \beta ) = 0, \hfill \\ m_{1} \ddot{y}_{{{\text{l}}1}} + C_{1} \dot{y}_{{{\text{l}}1}} + K_{1} y_{{{\text{l}}1}} + F_{y{{\text{L}}}} \cos (\alpha - \beta ) = 0, \hfill \\ m_{2} \ddot{x}_{{{\text{l}}2}} + C_{2} \dot{x}_{{{\text{l}}2}} + K_{2} x_{{{\text{l}}2}} - F_{x{{\text{L}}}} \cos (\alpha + \beta ) = 0, \hfill \\ m_{2} \ddot{y}_{{{\text{l}}2}} + (C_{2} + C_{{\text{b}}} )\dot{y}_{{{\text{l}}2}} + (K_{2} + K_{{\text{b}}} )y_{{{\text{l}}2}} - K_{{\text{b}}} y_{{\text{b}}} - C_{{\text{b}}} \dot{y}_{{\text{b}}} - F_{y{{\text{L}}}} \cos (\alpha + \beta ) = F\cos (\alpha + \beta ). \hfill \\ \end{gathered} \right.$$
(3)

The vibration equations for the unit resonator along the vertical direction at the right and left bearings can be expressed as:

$$\left\{ \begin{gathered} m_{{\text{b}}} \ddot{y}_{{{\text{rb}}}} + C_{{\text{b}}} (\dot{y}_{{{\text{rb}}}} - \dot{y}_{{{\text{r}}2}} ) + K_{{\text{b}}} (y_{{{\text{rb}}}} - y_{{{\text{r}}2}} ) = 0, \hfill \\ m_{{\text{b}}} \ddot{y}_{{{\text{lb}}}} + C_{{\text{b}}} (\dot{y}_{{{\text{rb}}}} - \dot{y}_{{{\text{l}}2}} ) + K_{{\text{b}}} (y_{{{\text{lb}}}} - y_{{{\text{l}}2}} ) = 0, \hfill \\ \end{gathered} \right.$$
(4)

where xc and yc are the displacements of the shaft centroid along the horizontal and vertical directions, respectively; xr1 and yr2 are the displacements of the outer and inner rings at the right end bearing along the horizontal direction, respectively; yr1 and yr2 are the displacements of the outer and inner rings at the right end bearing along the vertical direction, respectively; xl1, xl2, yl1, and yl2 are the corresponding displacements at the left end bearing; yrb and ylb are the displacements of the unit resonator at the right and left ends along the vertical direction, respectively; and F is the axle load of the train.

Bearing Support Reaction Force

The bearing support reaction force is required in this model. However, the magnitude and direction of the force changes with the rotation of the bearing. The force is calculated as follows:

  • The contact force at each roller is calculated.

  • The force is decomposed along the horizontal and vertical directions of the bearing.

  • The bearing support reaction forces along the two directions are obtained by combining all the forces in the respective directions.

    Because the forces on the inner and outer rings of the bearings are transmitted through the rollers during bearing movement, the reaction force is the sum of the resultant forces of the contact forces at each roller. In practice, the motion state and force of the bearings are very complicated. To simplify the calculation, the following assumptions were made. These assumptions are commonly used and do not reduce the accuracy or fidelity of the model.

  • The outer ring of the bearings is fixed on a rigid element with a rotating velocity of 0 and exhibits horizontal and vertical displacements.

  • The rolling elements are equidistantly located on the raceway and perform pure rolling (i.e., sliding of the rolling elements is not considered).

  • The contact stress is modelled using Hooke’s law.

Figure 3 shows the side view of a double-row tapered roller bearing with N0 rollers equally separated by an angle of 2π/N0. During rotating operation, the angle that the i-th roller (i = 1, 2, …, N0) turns at time t can be calculated as:

$$\theta_{i} = \gamma (t) + \frac{{2{\uppi }}}{{N_{0} }}(i - 1),i = 1,2, \cdots ,N_{0} ,$$
(5)

where γ(t) is the angle through which the roller indexed by 1 turns at time t, and its initial value is γ(t0) = 0. The normal contact deformation of the i-th roller of the right-end bearing with the raceway at angular displacement θi can be calculated as:

$$\delta_{i} = (x_{r1} - x_{r2} )\cos \theta_{i} + (y_{r1} - y_{r2} )\sin \theta_{i} - c_{0} ,$$
(6)

where c0 denotes the bearing radial clearance. The contact force between the ball and the raceway can be expressed as a nonlinear Hertz contact force [21, 22]:

$$P_{i} = K_{t} \delta_{i}^{n} H_{i} ,$$
(7)

where Kt is the contact stiffness and n = 10/9. When δi > 0, Hi = 1, which indicates that there is a nonlinear Hertz contact force, whereas when δi < 0, Hi = 0, which indicates that there is no nonlinear Hertz contact force.

Figure 3
figure 3

Side view of a double-tapered roller bearing

By decomposing the contact force at every roller along the horizontal and vertical directions, the resultant force in the two directions can be obtained. The total contact force of the bearing along the horizontal and vertical directions is the sum of the resultant forces from all the rollers, which is given by:

$$\left\{ \begin{gathered} F_{x{{\text{R}}}} = K_{t} \sum\limits_{i = 1}^{{N_{0} }} {\delta_{i}^{\frac{10}{9}} H_{i} \cos \theta_{i} ,} \hfill \\ F_{y{{\text{R}}}} = K_{t} \sum\limits_{i = 1}^{{N_{0} }} {\delta_{i}^{\frac{10}{9}} H_{i} \sin \theta_{i} ,} \hfill \\ \end{gathered} \right.$$
(8)

where FxR and FyR are the contact forces along the horizontal and vertical directions, respectively. The corresponding FxL and FyL for the left-end bearing can be similarly obtained.

Model Analysis with Different Fault Modes

To solve the model, the angle γ(t) through which the roller rotates at any time t is required. However, in a high-speed train, the angular rotating velocity of the main shaft, w0(t), is not constant. To address this, we simplified and applied the angle iteration method [17] to calculate the angle γ(t) in real time. The angle γ(t) can be calculated as:

$$\gamma (t) = \int_{0}^{ + \infty } {w_{0} (t)t{\text{d}}t} .$$
(9)

When the rotational speed changes with time, γ(t) cannot be expressed as a linear function of time, and the total angle through which the roller turns at each moment cannot be determined from the angular velocity.

In the proposed angle iteration method, it is assumed that the bearing speed is piecewise constant, that is, the speed is constant within a short period of time Δtt → 0). Consequently, the angle through which the bearing rotates at time (t + Δt) can be expressed as γ(t + Δt) = γ(t) + w(tt where w(t) is the relative speed of the roller with respect to the location of the fault, which can be on the outer ring, inner ring, or roller. Therefore, w(t) has different values for different fault types. When the fault is on the outer (or inner) ring, w(t) is the speed of the roller relative to the outer (or inner) ring at t. When the fault is on the rolling element, w(t) is the rotation speed of the roller at t. A schematic of this process is shown in Figure 3. The problem is then transformed into the estimation of w(t). In the simulation, Δt represents the step size used in each iteration of the ode45 solver.

Modeling of Outer Ring Fault

Figure 4 shows a scenario in which the outer ring has a fault [23, 24] located in the lower bearing area where θc is the location of the fault center, θca is the central angle of the arc on which the fault is located, L0 is the fault width, r is the inner ring radius of the bearing, R is the outer ring radius of the bearing, and rg is the section radius at the center of mass of the tapered roller. When a roller rolls over the fault area, the roller descending depth couter between the roller and raceway can be expressed as:

$$c_{{{\text{outer}}}} = \left\{ \begin{gathered} r_{{\text{g}}} - \sqrt {r_{{\text{g}}}^{2} - \left( {\frac{{L_{0} }}{2}} \right)^{2} } ,\cos (\theta_{{\text{i}}} - \theta_{{\text{c}}} ) > \cos \frac{{\theta_{{{\text{ca}}}} }}{2}, \hfill \\ 0, {\text{else}}, \hfill \\ \end{gathered} \right.$$
(10)
Figure 4
figure 4

Outer ring fault model

where \(\theta_{{{\text{ca}}}} = 2\arcsin (\frac{{L_{0} }}{2R})\).

Because the outer ring speed is zero, the relative speed of the roller with respect to the outer ring wouter(t) can be expressed as:

$$w(t) = w_{{{\text{outer}}}} (t) = \frac{1}{2}(1 - \frac{d}{D}\cos \alpha )w_{0} (t),$$
(11)

where d is the roller diameter, and D is the bearing pitch diameter.

Modeling of Inner Ring Fault

Figure 5 shows a scenario in which the inner ring of the bearing has a fault. In contrast to the outer ring fault, the location of the inner ring fault continuously changes as the bearing rotates. Because there is relative movement between the bearing cage and inner ring, the inner ring is used as the reference system. This makes the form of the inner ring fault equivalent to that of the outer ring fault. When a roller rolls over the fault area on the inner raceway, the roller descending depth cinner between the roller and raceway can be expressed as:

$$c_{{{\text{inner}}}} = \left\{ \begin{gathered} r_{{\text{g}}} - \sqrt {r_{{\text{g}}}^{2} - \left( {\frac{{L_{0} }}{2}} \right)^{2} } ,\cos (\theta_{{\text{i}}} - \theta_{{\text{c}}} ) > \cos \frac{{\theta_{{{\text{ca}}}} }}{2}, \hfill \\ 0, {\text{else}}, \hfill \\ \end{gathered} \right.$$
(12)
Figure 5
figure 5

Inner ring fault model

where \(\theta_{{{\text{ca}}}} = 2\arcsin (\frac{{L_{0} }}{2r})\).

The relative speed of the roller with respect to the inner ring winner(t) can then be calculated as:

$$w(t) = w_{{{\text{inner}}}} (t) = \frac{1}{2}(1 + \frac{d}{D}\cos \alpha )w_{0} (t).$$
(13)

Modeling of Rolling Element Fault

Figure 6 shows a scenario in which the rolling element of the bearing has a fault and θrc is the central angle of the arc on which the fault is located. When the bearing has a rolling element fault, the roller contacts the inner ring raceway and the outer ring raceway once in its own rotation cycle as the inner ring of the bearing rotates. Here, we set the bearing cage as the reference system and assume that the initial angle of the fault area is 0° and that the rollers only rotate (without revolution). When the roller rotates 90° counterclockwise, it contacts the inner ring. When the roller rotates 270° counterclockwise, it contacts the outer ring. During this process, the roller descending depth croller when the roller rolls over the fault area can be calculated as:

$$c_{{{\text{roller}}}} = \left\{ \begin{gathered} r_{{\text{g}}} - \sqrt {r_{{\text{g}}}^{2} - \left( {\frac{{L_{0} }}{2}} \right)^{2} } ,\cos (\theta_{{\text{i}}} - \varphi ) > \cos \frac{{\theta_{{{\text{rc}}}} }}{2}, \hfill \\ 0, {\text{else}}, \hfill \\ \end{gathered} \right.$$
(14)

where φ = π/2 and 3π/2 when the inner and outer raceways are contacted, respectively; \(\theta_{{{\text{rc}}}} = 2\arcsin (\frac{{L_{0} }}{{2r_{0} }})\); and the rotating speed of the roller wroller(t) is given by:

$$w(t) = w_{{{\text{roller}}}} (t) = \frac{D}{2d}(1 - (\frac{d}{D})^{2} \cos^{2} \alpha )w_{0} (t).$$
(15)
Figure 6
figure 6

Rolling element fault model

Based on the above analysis, the contact deformation in the fault area under different fault modes can be summarized as follows:

$$\delta_{{\text{i}}} = (x_{{{\text{r}}1}} - x_{{{\text{r}}2}} )\cos \theta_{{\text{i}}} + (y_{{{\text{r}}1}} - y_{{{\text{r}}2}} )\sin \theta_{{\text{i}}} - c_{0} - c_{{{\text{change}}}} ,$$
(16)

where cchange is couter, cinner, or croller depending on the fault mode.

Simulation Analysis of the Bearing Model

System Parameters

A series of simulations were performed to verify the proposed model under varying speeds. Tables 1, 2, and 3 list the main parameters of the high-speed EMU axle box bearing, rotor system, and unit resonator used in the simulation, respectively.

Table 1 Bearing parameters
Table 2 Bearing system model parameters
Table 3 Unit resonator parameters

Introduction to GATD

To verify the model, the simulation results are compared with the theoretical results. The model was first simulated under variable speed conditions to obtain the time-domain waveform of the bearing vibration acceleration. The order ratio spectrum of the vibration was then calculated for bearing diagnosis. The model is verified to be correct if the order ratio spectrum of the vibration obtained from the simulation is close to the theoretical one. Therefore, the key step is to find a suitable fault diagnosis method to obtain the order ratio spectrum of the bearing vibration acceleration. In 2016, Urbanek et al. [25] proposed a generalized angular temporal deterministic (GATD) signal model for rotating machinery failures under variable speed conditions based on cyclostationary theory. The GATD signal extracted from wind turbine bearings enables the accurate identification of bearing faults. The advantage of the GATD-based method is that it does not rely on angle resampling and can be used to perform bearing fault diagnosis while retaining the original signal characteristics. Therefore, this method is adopted in this study to extract the fault characteristics from the model simulation results.

The GATD-based fault diagnosis process is as follows:

  • (1) First, the collected faulty bearing signal x(t) is normalized according to the Z-score standardization method:

$$z_{T} \left( {\varphi ,f;\varphi_{0} } \right) = \frac{{x\left( {t - \tau \left( {\varphi + \varphi_{0} } \right)} \right) - \mu_{T} \left( \varphi \right)}}{{\sigma_{T} \left( \varphi \right)}}w_{T} \left( t \right),$$
(17)
  • where φ(t) is the angle through which the roller turns at time t with the initial phase φ0, \(\frac{1}{T} = \max \left( {\frac{{{\text{d}}\varphi }}{{{\text{d}}x}}} \right)\), wT(t) is the Hanning window function, and τ(φ) is the angle-fixed time increment used for positioning the window. μT(φ) is the local angular-temporal mean value of the signal x(t), and σT(φ) is the localized angular-temporal standard deviation of x(t), which is calculated as:

    $$\mu_{T} \left( {\varphi ;\varphi_{0} } \right) = \frac{1}{T}\int_{{\lambda - {T \mathord{\left/ {\vphantom {T 2}} \right. \kern-\nulldelimiterspace} 2}}}^{{\lambda + {T \mathord{\left/ {\vphantom {T 2}} \right. \kern-\nulldelimiterspace} 2}}} {x\left( u \right)} {\text{d}}u,$$
    (18)
    $$\sigma_{T} \left( {\varphi ;\varphi_{0} } \right) = \sqrt {\frac{1}{T}\int_{{\lambda - {T \mathord{\left/ {\vphantom {T 2}} \right. \kern-\nulldelimiterspace} 2}}}^{{\lambda + {T \mathord{\left/ {\vphantom {T 2}} \right. \kern-\nulldelimiterspace} 2}}} {\left( {x\left( u \right) - \mu_{T} \left( {\tau \left( \varphi \right)} \right)} \right)}^{{2}} {\text{d}}u} ,$$
    (19)

where λ = tτ(φ+φ0).

  • (2) A Fourier transform is performed on the normalized signal:

$$Z_{T} \left( {\varphi ,f;\varphi_{0} } \right) = \mathop {\lim }\limits_{T \to \infty } \frac{1}{T}\int_{0}^{T} {z_{T} \left( {\varphi ,t;\varphi_{0} } \right)e^{ - j2\uppi ft} {\text{d}}t} .$$
(20)
  • (3) A fast Fourier transform is performed on the squared envelope spectrum of ZT(φ, f; φ0) to obtain the angular-temporal spectrum (ATS) of the signal:

    $$ATS_{T} \left( {\Omega ,f,\varphi_{0} } \right) = \mathop {\lim }\limits_{\Theta \to \infty } \frac{1}{\Theta }\int_{0}^{\Theta } {\left| {Z_{T} } \right|^{2} e^{ - j2\uppi \Omega \varphi } {\text{d}}\varphi } ,$$
    (21)
  • where ZT denotes ZT (φ, t; φ0) to simplify the notation, Ω is the frequency related to angle-fixed events (expressed in orders), f denotes the event occurrence frequency in Hz, and Θ is the maximum angle period. The obtained ATS is a family of curves distributed in three-dimensional (3-D) space. The order ratio spectrum of the signal can be obtained by plotting ATST with Ω as the horizontal axis.

Model Simulation

According to theoretical mechanics, the fault characteristic order ratio of the outer ring, inner ring, and rolling element can be calculated as [[26]]:

$$f_{{\text{o}}} = \frac{{N_{0} }}{2} \times \left( {1 - \frac{d}{D}\cos \alpha } \right),$$
(22)
$$f_{{\text{i}}} = \frac{{N_{0} }}{2} \times \left( {1 + \frac{d}{D}\cos \alpha } \right),$$
(23)
$$f_{{\text{r}}} = \frac{1}{2} \times \frac{D}{d} \times \left( {1 + \left( {\frac{d}{D}\cos \alpha } \right)^{2} } \right).$$
(24)

For the bearing used in this study, fo = 7.082, fi = 9.917, and fr = 2.871.

The simulation was conducted using MATLAB at a sampling frequency of 512000 Hz. The angular rotation velocity of the main shaft w0(t) given by Eq. (25) is shown in Figure 7. This speed was chosen to simulate the entire operating process of the bearing system, which includes accelerating, decelerating, and oscillating processes with a sine law. Three simulations were conducted with the fault size of L0 = 1 mm for the three types of faults, i.e., an outer ring fault, an inner ring fault, and a rolling element fault.

$$w_{0} \left( t \right) = \left\{ {\begin{array}{*{20}c} \begin{gathered} 640t \hfill \\ 1600 + 400\sin \left( {\uppi \left( {t - 2.5} \right)} \right) \hfill \\ 4800 - 640t \hfill \\ \end{gathered} & \begin{gathered} 0.2 < t \le 2.5, \hfill \\ 2.5 < t \le 5, \hfill \\ 5 < t \le 7.5. \hfill \\ \end{gathered} \\ \end{array} } \right.$$
(25)
Figure 7
figure 7

Angular speed of bearing inner ring

The order ratio spectrum analysis method in Ref. [25] was used to obtain the corresponding order ratio spectrum from the solutions of Eqs. (1)–(4). The time-domain waveform of the bearing acceleration and the corresponding order ratio spectrum were obtained by simulating the model. Figures 8, 9, 10 show the results.

Figure 8
figure 8

Vibration with outer ring fault: a vibration signal, b order ratio spectrum

Figure 9
figure 9

Vibration with inner ring fault: a vibration signal, b order ratio spectrum

Figure 10
figure 10

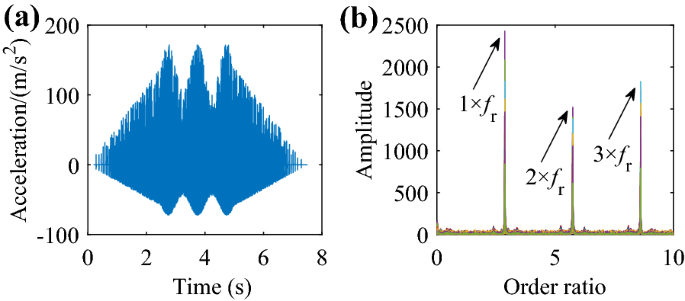

Vibration with rolling element fault: a vibration signal, b order ratio spectrum

It can be intuitively seen from the above time-domain graphs that when a fault occurs, the acceleration amplitude of the bearing changes with the shaft angular speed. In addition, the maximum amplitude increases to different extents depending on the type of fault. This implies that the location of the fault has different effects on the vibration of the bearing. The bearing has the most severe vibration when a fault occurs on the rolling elements. Moreover, the results show that the simulated characteristic order ratios of the outer ring (7.085), inner ring (9.9172), and rolling element (2.8694) are close to the calculation results given by Eqs. (22)–(24). Simultaneously, the corresponding frequency multiplication can be observed in the order ratio spectrum, which proves the correctness of the model.

Because the order ratio spectrum is obtained from the signal after two Fourier transforms, there is a linear relationship between the order ratio spectrum amplitude and the original signal amplitude. Let the amplitudes corresponding to a single frequency (ACSFs) in the signal order ratio spectra under an outer ring fault and an inner ring fault be Ao and Ai, respectively. The influence of the fault location and fault size on the ACSF was studied, and the results are shown in Figure 11.

Figure 11
figure 11

Variation of amplitude with fault size

Figure 11 shows that the ACSF values under the outer ring fault are always larger than those under the inner ring fault, and that the ACSF values in the order-ratio spectrum under these two fault conditions increase as the fault size increases. The latter indicates that the fault size has an important influence on the motion state of the bearing. As the size of the fault increases, more energy is generated in the fault area when the roller collides with the raceway, which causes an increase in amplitude at fault characteristic frequency.

Experimental Verification

To make the operating conditions close to the actual ones, a speed profile in which the bearing rotating speed was increased from 0 to a certain speed, maintained for a period of time, and then decreased to 0 was used in the experiments. It is important to note that in the experiments, no tachometer was used to measure the speed of the bearing and no program was used to control its speed. For fault type verification, the vibrations were obtained from the experiment and the speed profile was not needed. However, the speed profile was used as the model input for the verification of the bearing operating condition. As the model speed profile was unknown, the instantaneous speed of the bearing must be estimated from the bearing vibration signals.

Fault Type Verification

Two EMU axle box bearings were used in the experiments. One bearing had a through-groove fault on the outer ring with a width of L0 = 1 mm, and the other a pitting fault on the inner ring with L0 = 0.1 mm. A schematic diagram of the outer ring, fault on the outer ring, and fault on the inner ring is shown in Figure 12. In the experiments, the vibration signal of the bearing was collected for 60 s at the sampling frequencies of 51 and 200 Hz.

Figure 12
figure 12

Outer ring, outer ring fault, and inner ring fault of bearing

Acceleration sensors were installed near the experimental bearing so that the vibration signal could be accurately measured. Figure 13 shows the experimental platform and horizontal and vertical locations of the sensors.

Figure 13
figure 13

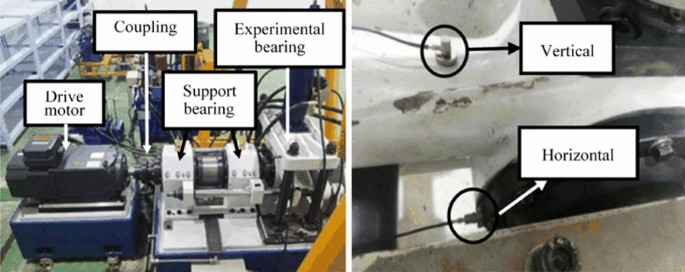

Test rig for railway vehicle roller bearing and sensor locations

The experiments were conducted on the bearings with the seeded faults. Figure 14 shows the time-domain signal and order ratio spectrum of the bearing vibration acceleration for the bearing with the outer ring fault. The differences between the experimental and calculation results for the first three-order fault feature order ratio are 5.97%, 5.67% and 6.34%, respectively.

Figure 14
figure 14

Vibration with outer ring fault: a time domain vibration signal, b order ratio spectrum

Figure 15 shows the time-domain signal and order ratio spectrum of the bearing vibration acceleration for the bearing with an inner ring fault. The differences between the experimental and calculation results for the first three-order fault feature order ratio are 2.59%, 3.95%, and 4.15%, respectively.

Figure 15
figure 15

Vibration with inner ring fault: a time domain vibration signal, b order ratio spectrum

As mentioned earlier, the bearing speed changed during the experiments. Under these nonlinear operating conditions, the acceleration amplitude of the bearing changed continuously with time, which is typical of variable-speed bearing operation in high-speed trains. The results show that compared to the theoretical values given by Eqs. (22) and (23), the differences in the fault characteristic order ratios under the two experimental conditions are within the allowable range, which proves the effectiveness of the model.

Bearing Operating Conditions Verification

To further prove that the model is also effective under actual working conditions and robust against interference from noise, the bearing speed estimated in the experiment was used as the input of the model, and noise was added to the bearing vibration acceleration signal obtained from the model. Order ratio spectrum analysis was performed on the model output vibration signal with noise. The model is verified to be correct if the model results are consistent with the calculation results.

Because no speed measuring device such as a tachometer was used and the speed profile was not known, the real-time speed of the bearing spindle could not be obtained. Therefore, the instantaneous speed curve was extracted from the signals collected in the two experiments and a time function was used to fit the two working conditions for the model speed input. Simultaneously, on-site noise was added to the model to simulate an actual noisy environment.

Verification Under Outer Ring Fault

The speed curve was extracted from the experimental signals using the method in Ref. [27], and the noise signal extracted using the wavelet noise reduction method [28]. Figure 16 shows the instantaneous speed and experimental site noise extracted from the outer ring fault test signal. The fitted curve function is f(t) = − 0.002t4 + 0.2535t3 − 11.7572t2 +232.4658t – 2.0618 × 10−4.

Figure 16
figure 16

Experimental signal under outer ring fault: a speed curve, b site noise

It can be observed that the bearing speed experienced a process of increase, slow change, and decrease during the experiment. The noise amplitude also underwent the same process. Figure 17(a) shows the vibration signal obtained from the model, fitted speed curve, and noise. The order ratio spectrum in Figure 17(b) shows that the frequency-singled, frequency-doubled, and frequency-tripled values are close to the theoretical values given by Eq. (22). The results demonstrate the effectiveness of the model.

Figure 17
figure 17

Simulation results of bearing with outer ring fault: a vibration acceleration, b order ratio spectrum

Verification Under Inner Ring Fault

The same methods were used to obtain the time-frequency curve and experimental site noise in the inner ring fault experiment. Figure 18 shows the instantaneous speed and experimental site noise extracted from the inner ring fault test signal. The fitted curve function is f(t) = − 0.0028t4 + 0.3423t3 − 14.3913t2 + 251.987t − 6.0213×10−4.

Figure 18
figure 18

Experimental signal under inner ring fault: a Speed curve, b site noise

The model vibration signal shown in Figure 19(a) was obtained using the proposed model under the fitted speed profile shown in Figure 18(a). The order ratio spectrum in Figure 19(b) shows that the frequency-singled, frequency-doubled, and frequency-tripled values are close to the theoretical values given by Eq. (23). The results demonstrate the effectiveness of the model.

Figure 19
figure 19

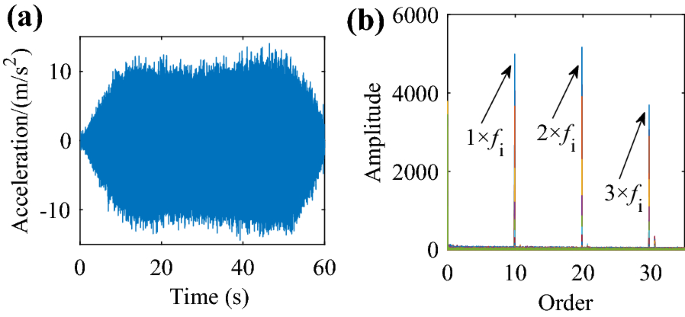

Simulation results of bearing with inner ring fault: a vibration acceleration, b order ratio spectrum

It is observed that the ACSF values under the outer ring fault are smaller. This is because when the bearing speed changed, the instantaneous impact load and amplitude caused by a single fault were reduced. There are also very few messy frequency components in the order ratio spectrum, which proves that the model has good anti-interference ability. Distinct results could be obtained from the simulation model even when experimental site noise was added.

Conclusions

  1. (1)

    A dynamic model for the bearing system in the running part of high-speed trains under variable speed conditions was established. The angle iteration method is used in the model to address the problem that the roller space position cannot be determined during bearing rotation. This problem was ignored in previous studies.

  2. (2)

    By simulating the actual operating conditions of the train, the vibration response of the system during a process of speed increase, decrease, and oscillation was obtained. The results indicate that the vibration acceleration amplitude of the bearing outer ring is positively correlated with the spindle speed of the bearings. The results of the order spectrum analysis are also consistent with the theoretical results.

  3. (3)

    To demonstrate the effectiveness of the model, bearing experiments and simulations under an outer ring fault and inner ring fault and varying speeds were conducted. The order ratio of the fault characteristics shows that the errors between the simulation and experimental results were always within the allowable range, thereby proving the effectiveness of the model.

References

  1. J W Yang, J H Wang, H Qiang, et al. Reliability assessment for the solenoid valve of a high-speed train braking system under small sample size. Chinese Journal of Mechanical Engineering, 2018, 31: 47.

    Article  Google Scholar

  2. Y X Yu, J K Liu, B L Ye, et al. Design and experimental research on seedling pick-up mechanism of planetary gear train with combined non-circular gear transmission. Chinese Journal of Mechanical Engineering, 2019, 32: 49.

    Article  Google Scholar

  3. Z W Shang, W X Li, M S Cao, et al. An intelligent fault diagnosis method of multi-scale deep feature fusion based on information entropy. Chinese Journal of Mechanical Engineering, 2021, 34: 58.

    Article  Google Scholar

  4. M Chinta, A Palazzolo. Stability and bifurcation of rotor motion in a magnetic bearing. Journal of Sound and Vibration, 1998, 214(5): 793-803.

    Article  Google Scholar

  5. J J Sinou. Non-linear dynamics and contacts of an unbalanced flexible rotor supported on ball bearings, Mechanism and Machine Theory, 2009, 44(9): 1713-1732.

    Article  Google Scholar

  6. S Fukata, E H Gad, T Kondou, et al. On the radial vibration of ball bearings: computer simulation, Bulletin of JSME, 1985, 28(239): 899-904.

    Article  Google Scholar

  7. M Tiwari, K Gupta, O Prakash. Effect of radial internal clearance of a ball bearing on the dynamics of a balanced horizontal rotor. Journal of Sound and Vibration, 2000, 238(5): 723-756.

    Article  Google Scholar

  8. N Sawalhi, R Randall. Simulation gear and bearing interactions in the presence of faults: Part I: the combined gear bearing dynamic model and the simulation of localized bearing faults. Mechanical Systems and Signal Processing, 2008, 22(8): 1924-1951.

    Article  Google Scholar

  9. N Sawalhi, R Randall. Simulation gear and bearing interactions in the presence of faults: Part II: Simulation of the vibrations produced by extended bearing faults. Mechanical Systems and Signal Processing, 2008, 22(8): 1924-1951.

    Article  Google Scholar

  10. N A H Tsuha, K L Cavalca. Stiffness and damping of elastohydrodynamic line contact applied to cylindrical roller bearing dynamic model. Journal of Sound and Vibration, 2020, 481: 1-22.

    Article  Google Scholar

  11. S T Xi, H R Cao, X F Chen. Dynamic modeling of spindle bearing system and vibration response investigation., Mechanical Systems and Signal Processing, 2019, 114: 486-511.

  12. Q S Cao, X B Guo, G L Xiong, et al. Study on dynamic characteristics of high-speed train rolling bearing with pedestal looseness. Journal of Mechanical Engineering, 2016, 52(21): 87-95. (in Chinese)

    Article  Google Scholar

  13. H R Cao, Z J He, Y Y Zi. Modeling of a high-speed rolling bearing and its damage mechanism analysis, Journal of Vibration and Shock, 2012, 31(19): 134-140. (in Chinese)

    Google Scholar

  14. T Y Yang, Q Ding, T Guo. Vibration characteristic analysis of localized fault on MU train bogie bearing. Journal of Vibration, Measurement & Diagnosis, 2016, 36(4): 665-673. (in Chinese).

    Google Scholar

  15. Y Q Liu, B S Wang, S P Yang. Nonlinear dynamic behaviors analysis of the bearing rotor system with outer ring fault in the high-speed train. Journal of Mechanical Engineering, 2018, 54(8): 17-25. (in Chinese)

    Article  Google Scholar

  16. Z W Wang, Y Song, Z H Yin, et al. Random response analysis of axle-box bearing of a high-speed train excited by crosswinds and track irregularities. IEEE Transactions on Vehicular Technology, 2019, 68(99): 10607-10617.

    Article  Google Scholar

  17. C Mishra, G Chakraborty, A K Samantaray. Rolling element bearing fault modelling to develop a diagnosis scheme for oscillating and non-uniform shaft rotation. 1st International & 16th National Conference on Machines and Mechanisms, Roorkee, December 18-20, 2013: 86-94.

  18. C Mishra, A Samantaray, G Chakraborty. Bond graph modeling and experimental verification of a novel scheme for fault diagnosis of rolling element bearings in special operating conditions. Journal of Sound and Vibration, 2016, 377: 302-330.

    Article  Google Scholar

  19. L Ma, J H Zhang, J W Lin, et al. Dynamic characteristics analysis of a misaligned rotor-bearing system with squeeze film dampers. Journal of Zhejiang University-Science A: Applied Physics & Engineering, 2016, 17(8): 614-631.

    Article  Google Scholar

  20. L Cui, Y Zhang, F Zhang, et al. Vibration response mechanism of faulty outer race rolling element bearings for quantitative analysis. Journal of Sound and Vibration, 2016, 364: 67-76.

    Article  Google Scholar

  21. Y Qin, F Cao, Y Wang, et al. Dynamics modelling for deep groove ball bearings with local faults based on coupled and segmented displacement excitation. Journal of Sound and Vibration, 2019, 447: 1-19.

    Article  Google Scholar

  22. D Xiang, Y H Shen, Y Z Wei, et al. A contact force model considering meshing and collision states for dynamic analysis in helical gear system. Chinese Journal of Mechanical Engineering, 2019, 32(3): 1-12.

    Google Scholar

  23. Y C Jiang, W T Huang, J N Luo. An improved dynamic model of defective bearings considering the three-dimensional geometric relationship between the rolling element and defect area. Mechanical Systems and Signal Processing, 2019, 129: 694-716.

    Article  Google Scholar

  24. A M Ahmadi, D Petersen, C Howard. A nolinear dynamic vibration model of defective bearings-the importance of modelling the finite size of rolling elements. Mechanical Systems and Signal Processing, 2015, 52: 309-326.

    Article  Google Scholar

  25. J Urbanek, T Barszcz, A Jablonski. Application of angular-temporal spectrum to exploratory analysis of generalized angular-temporal deterministic signals. Applied Acoustic, 2016, 109: 27-36.

    Article  Google Scholar

  26. Y Hu, X T Tu, F C Li. An adaptive and tacholess order analysis method based on enhanced empirical wavelet transform for fault detection of bearings with varying speeds. Journal of Sound and Vibration, 2017, 409: 241-255.

    Article  Google Scholar

  27. Y Yang, Z K Peng, G Meng. Spline-kernelled chirplet transform for the analysis of signals with time-varying frequency and its application. IEEE Transactions on Industrial Electronics, 2011, 59(3): 1612-1621.

    Article  Google Scholar

  28. S Wen, W S Gan, D Shi. An improved selective active noise control algorithm based on empirical wavelet transform. IEEE International Conference on Acoustic, Speech and Signal Processing, Barcelona, May 4–8, 2020: 1633-1637.

Download references

Acknowledgements

The authors would like to thank Xiaohui Gu, Wenpeng Liu and Jing Zhao for their work on the fault bearing experiment of high-speed train.

Funding

Supported by National Natural Science Foundation of China (Grant Nos. 11790282, 12032017, 11802184, 11902205, 12002221, 11872256), S&T Program of Hebei (Grant No. 20310803D), and Natural Science Foundation of Hebei Province (Grant No. A2020210028), Postgraduates Innovation Foundation of Hebei Province (Grant No. CXZZBS2019154), and State Foundation for Studying Abroad.

Author information

Authors and Affiliations

Authors

Contributions

YL was in charge of the whole trial; BW and BZ wrote the manuscript. All authors read and approved the final manuscript.

Authors’ information

Yongqiang Liu, born in 1983, is currently a professor at School of Mechanical Engineering, Shijiazhuang Tiedao University, China. He received his PhD degree in vehicle engineering from Beijing Jiaotong University, China, in 2011. His research interests include prognostics and health management, vehicle system dynamics, and smart soft material and damper.

Baosen Wang, born in 1990, is currently a PhD candidate at School of Traffic and Transportation, Shijiazhuang Tiedao University, China. He received his master's degree from Shijiazhuang Tiedao University, China, in 2018. His research interests include dynamic modeling analysis and bearing fault diagnosis of high-speed train bearings.

Bin Zhang, born in 1972, is currently an associate professor at Department of Electrical Engineering, University of South Carolina, USA. He received his PhD degree in electrical engineering from Nanyang Technological University, Singapore, in 2007. His research interests include prognostics and health management, intelligent systems and controls, and their applications to various engineering systems.

Shaopu Yang, born in 1962, is currently a professor at State Key Laboratory of Mechanical Behavior and System Safety of Traffic Engineering Structures, Shijiazhuang Tiedao University, China. He received his PhD degree in mechanics from Tianjin University, China, in 1991. His research interests include dynamics and control of vehicle system, theory and application of nonlinear system dynamics and control.

Corresponding author

Correspondence to Yongqiang Liu.

Ethics declarations

Competing interests

The authors declare no competing financial interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Liu, Y., Wang, B., Zhang, B. et al. Establishment of Dynamic Model for Axle Box Bearing of High-Speed Trains Under Variable Speed Conditions. Chin. J. Mech. Eng. 35, 47 (2022). https://doi.org/10.1186/s10033-022-00725-0

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s10033-022-00725-0

Keywords

  • Variable speed conditions
  • High-speed train
  • Bearing model
  • Angle iteration
  • Order ratio spectrum
