Design and Manufacturing Strategies for Fused Deposition Modelling in Additive Manufacturing: A Review

Abstract

Although several research works in the literature have focused on studying the capabilities of additive manufacturing (AM) systems, few works have addressed the development of Design for Additive Manufacturing (DfAM) knowledge, tools, rules, and methodologies, which has limited the penetration and impact of AM in industry. In this paper a comprehensive review of design and manufacturing strategies for Fused Deposition Modelling (FDM) is presented. Consequently, several DfAM strategies are proposed and analysed based on existing research works and the operation principles, materials, capabilities and limitations of the FDM process. These strategies have been divided into four main groups: geometry, quality, materials and sustainability. The implementation and practicality of the proposed DfAM is illustrated by three case studies. The new proposed DfAM strategies are intended to assist designers and manufacturers when making decisions to satisfy functional needs, while ensuring manufacturability in FDM systems. Moreover, many of these strategies can be applied or extended to other AM processes besides FDM.

1 Introduction

The need to increase flexibility and speed up the design and manufacture process of new products led to the development of rapid technologies, including the additive manufacturing (AM) techniques (also known as rapid prototyping, rapid manufacturing, rapid tooling, additive fabrication, additive layer manufacturing, layer manufacturing, and freeform fabrication technologies). Initially, the AM technologies were known as Rapid Prototyping (RP) technologies since they were used for visualization and design validation purposes; however, the fast evolution of these technologies allowed the rapid manufacture (RM) of end-use parts and the rapid development of tooling. From the beginning of AM systems, more than 100 different techniques have been reported in Ref. [1]. In 2009 the American Society for Testing Materials (ASTM) standardized the terminology associated with AM technologies [2].

The design and manufacture stages during a new product development process are critical because any decisions at this point can have a great impact on the final cost and quality of the product. In order to assist designers in this decision-making process, basic rules and design guidelines, known as Design for X, have been proposed in the literature. These design guidelines are focused on manufacturability, assembly, sustainability, minimum risk, avoiding corrosion, recycling, standardization, durability, materials, maintenance, minimum cost, among others. Regarding the design for manufacturability, the existing guidelines only consider traditional manufacturing processes, such as casting, machining, forming, joining, material treatment, finishing, etc. [3, 4]. The challenge of design for AM technologies is to create quality parts that satisfy the design requirements such as functionality, geometry, mechanical properties and cost, while assuring manufacturability in AM systems.

Several research works have focused on studying the limitations of AM technologies, such as shrinkage and layer orientation [5, 6]. In Ref. [7] six design guidelines for part cost and part weight in FDM processes were proposed. The design guidelines reported in Ref. [8] consider only three issues of FDM processes: stepping effect, knife edges and hollow parts. The influence of critical FDM parameters (layer thickness, air gap, raster angle, build orientation, road width, and number of contours) on build time, material consumption and dynamic flexural modulus, was studied in Ref. [9]. As a result, mathematical models to relate the processing conditions and the process quality characteristics were proposed and evaluated. On the other hand, geometric assessments to identify the presence of features known to cause problems such as thin sections, cusps, knife edges and part size, were proposed in Ref. [10]. Similarly, a hybrid approach to overcome size limitations and fabricate large components in AM systems was proposed in Ref. [11]. The results comprised process chains and design for manufacturing and assembly guidelines.

A general methodology to design for AM based on the capabilities and constraints of AM systems was proposed in Ref. [12]. Likewise, two design strategies for AM were proposed in Ref. [13]: a manufacturing driven design strategy to allow a substitution of manufacturing processes at a later stage of the product life cycle, and a function driven design strategy to increase the product performance. More recently, a methodology to standardize design rules from AM by decomposing fundamental geometry, process and material relationships into reusable modules, was proposed in Ref. [14]. A top-down assembly design methodology for parts and assemblies to be AM manufactured with a few or no assembly operations, was presented in Ref. [15]. The proposed methodology provides guidance into how to derive a functional architecture that is additively manufacturable. However, although several research works in the literature have focused on the Design for Additive Manufacturing (DfAM) [16,17,18,19,20,21,22,23,24], the development of DfAM knowledge, tools, rules, processes, and methodologies, is still one of the main technical challenges, needs and opportunities to boost the penetration and use of AM [25,26,27,28,29,30,31].

The aim of this paper is to review and analyse the design for Additive Manufacturing strategies, in particular for the FDM process. From this review and analysis, a new comprehensive set of DfAM strategies are proposed based on the operation principle, materials, capabilities and limitations of existing FDM technologies, and on the analysis of existing studies in the literature. The proposed design and manufacturing rules consider the main technical limitations and problems of current FDM systems, which are susceptible to evolve and change with time.

2 Additive Manufacturing Technologies

Additive manufacturing is the process of adding material to produce physical objects from their digital model data [32]. Unlike traditional manufacturing processes, where material is removed to generate a part, most of AM techniques are based on an additive process, where components are built up gradually layer by layer [33]. The general methodology to produce a component in AM systems is shown in Figure 1. From their origins, AM technologies have been used for creating models and prototypes (Rapid Prototyping), end-use parts (Rapid Manufacturing), and long-term tools for mass production of parts (Rapid Tooling) [29, 34]. According to the operation principle AM technologies can be comprehensively classified into four main categories [1]: additive, subtractive, forming and hybrid processes. More recently, the ASTM grouped the complete range of AM technologies into seven categories: binder jetting, direct energy deposition, material extrusion, material jetting, powder bed fusion, sheet lamination, and vat photopolymerization [32].

Figure 1

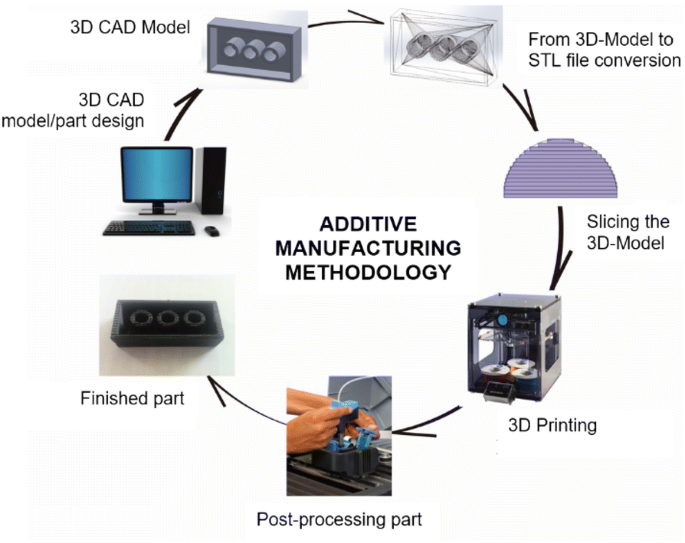

AM general methodology

3 Design for Additive Manufacturing (DfAM)

According to Ref. [29], the objectives and goals of DfAM comprise the three levels of abstractions of traditional Design for Manufacturing and Assembly (DfMA): 1) to offer tools, techniques and guidelines to adapt a design to a given set of downstream manufacturing constraints; 2) to understand and quantify the effect of the design process on manufacturing (and viceverse) in order to improve the performance of the manufacturing system and product quality; and 3) to know the relationship between design and manufacturing and its impact on the designer, the design process and the design practice. However, although the definition and goals of DfMA may be applicable for AM technologies, the design knowledge, tools, rules, processes, and methodologies will be substantially different for DfAM [29]. In fact, the development of such knowledge, tools, rules, processes, and methodologies for AM has been identified as one of the main technical challenges that have prevented the overall penetration of AM in industry [21, 27,28,29]. Being aware of the limitations and capabilities of AM can help designers to generate components suitable for AM production [4, 12, 13, 26]. The unique capabilities of AM comprise shape complexity, material complexity, functional complexity, hierarchical complexity, mass customization, product personalization, and production decentralization [35,36,37]. The designers’ challenge is to use these exceptional characteristics to create a functional product for the user and an added value product for the manufacturer. Thus, the aim of DfMA is to assist designers in the creation of quality and cost-effective parts to satisfy functional needs, while ensuring manufacturability in AM systems.

4 Design and Manufacturing Strategies for FDM

The material extrusion AM processes are those in which the material is selectively dispensed through a nozzle or orifice. These processes are characterized by a pre-heating chamber that raises the material temperature to the melting point so that it can flow through a nozzle in a controlled manner [16]. AM extrusion techniques comprise Fused Deposition Modelling (FDM), Bioplotting, Fused Deposition of Ceramics (FDC), Extrusion Free Forming (EFF), Contour Crafting (CC), Shaped Deposition Manufacture (SDM), Ballistic Particle Manufacture (BPM), among others. The FDM process is one of the most widely used AM technique because of its several advantages, such as low technology and maintenance costs, low material cost, wide range of materials available, easy to operate, low temperature operation, compact design, office friendly, among others [38]. In the FDM process the parts are created layer by layer. Each layer is created by depositing semi-liquid material on a fixtureless platform and in a temperature-controlled environment [39, 40]. The conventional FDM process can produce parts from thermoplastic materials such as ABS (Acrylonitrile-Butadiene-Styrene) and PLA (Polylactic Acid); however, variants of this process consider the use of ceramics, digital materials and other composite materials.

Although AM technologies have exceptional capabilities, they still have some limitations and drawbacks that prevent designers from creating unlimited parts. These limitations are related to the operating principle, production speed, part geometry, part size, materials, etc. According to Ref. [16], there are some key characteristics that are common to material extrusion processes: 1) loading of material, 2) liquefaction of material, 3) application of pressure to move the material through the nozzle, 4) extrusion mechanism, 5) plotting according to a predefined path, 6) bonding of the material to itself or secondary build materials, and 7) addition of supporting structures to enable complex geometries. From the analysis of these characteristics and technical capabilities of commercial systems, the main advantages and disadvantages of FDM systems were identified and are summarized in Table 1. Consequently, design and manufacturing strategies for FDM systems are identified, analysed and divided into four main groups: strategies for geometry, strategies for quality, strategies for material and strategies for sustainability.

Table 1 General advantages and disadvantages of FDM systems

4.1 Strategies for Geometry

In theory, any shape or geometry can be easily created in AM systems. However, the geometrical freedom of current FDM technologies is still fairly limited by the size of the part, the need to provide and remove support structures, the complexity and size of small features, etc. [34]. Therefore, geometry limitations of FDM systems must be considered as follows.

4.1.1 Support Structures, Cavities & Overhangs

Support structures are an array of thin ribs used to rigidly attach the part to the construction platform and avoid the collapse of the part under construction, in particular cavities and overhangs features, Figure 2. The lack of support structures may lead to the distortion of the part, causing geometrical and dimensional errors; for instance, overhangs may affect the surface flatness because of distortion. However, support structures are difficult to be removed from beneath features or inside internal cavities. The removal or braking away processes of support structures may also damage small features of the part [41]. According to Ref. [21], the length for overhangs in FDM must be kept under 1.8 mm in order to avoid the falling out of the filaments due to their low stiffness when the overhang becomes longer than 1.8 mm. This limitation can be also used to define the separation or gap among support structures. Moreover, gaps between combined elements must be designed with a minimum gap height of 0.4 mm in order to achieve the smallest possible dimensional deviations [21].

Figure 2

Support structures: (a) structure to support overhangs, (b) support structures to link the part to the build platform

4.1.2 Part Size

Typical build sizes for midrange commercial FDM systems are in the range of 200 mm to 300 mm. The largest FDM system commercially available has a build volume of 1000 × 800 × 500 mm. Consequently, designers must consider the build size limitation when designing a component intended to be fabricated by FDM. If the part is larger than the build size of the FDM system, it could be fabricated by combining FDM with other manufacturing process (hybrid approach) [11]; or it could be carefully subdivided into smaller part sections to be fabricated in the FDM system [10]. Once all the part sections are fabricated, they can be assembled and bonded together to complete the part. In general, a part can be subdivided into smaller sections by an array of orthogonal planes, but the resulting subcomponents may have geometries that are difficult to produce on FDM systems. Therefore, the decomposition process must consider the size and shape capabilities of the FDM system in order to generate part subsections that are suitable for fabrication.

4.1.3 Thin Sections

Parts with excessively thin sections are difficult to produce in FDM systems because these sections may break or distort during fabrication. The ability of FDM systems to produce thin sections depends on the layer thickness. The use of an incorrect layer thickness can cause breakable walls and geometry distortion. The minimum wall thickness that can be produced with a specific value of layer thickness in dispensing processes, are as shown in Table 2. The generation of narrow holes with close tolerances is also a complex task for most FDM systems because these features tend to distort. In this case a post-processing step is required to obtain the final dimensions and tolerances. To avoid the risk of damage during handling, a wall thickness between 1 to 1.5 mm is recommended [42], which depends on the layer thickness. Existing commercial FDM systems allow layer thicknesses as fine as 16 microns.

Table 2 Minimal wall thickness in dispensing processes

4.1.4 Geometrical Features

Geometrical features, such as fillets, sharp edges, sharp angles, narrow holes, tangential transitions, etc., can be easily produced on FDM systems. However, all FDM processes have limitations in terms of accuracy, resolution and repeatability. Since in FDM systems all nozzles are circular, it is impossible to draw sharp external and internal edges or corners; there will be a radius equivalent to that of the nozzle at any corner or edge [16]. The dimensional accuracy in FDM systems depends on several factors such as the system resolution, layer thickness, nozzle diameter, part geometry, build parameters, part orientation, material properties and deviations, distortion, warping, and shrinkage [43]. The typical accuracy values of commercially available FDM systems are in the range of 0.100 mm to 0.300 mm; however, there are some systems capable of generating features as small as 16 micron. However, small features may distort or break during fabrication or during the removal of support structures because of their poor structural strength. Therefore, features must not be too small, too closely spaced, or with extremely geometric accuracy and tolerances beyond the system’s capabilities. According to Ref. [21], sharp edges cannot be manufactured without form defects; the size of the material filament limit the minimal dimensions of edges. Superior form accuracy and removability of support structures can be obtained with rounded and blunted edges.

4.1.5 Build Orientation

Determining the optimal build orientation of a part is an essential task in FDM systems. The build orientation may affect the surface finish and geometric tolerances, mechanical properties, use of support structures, material consumption, and build time and costs. Surface finish, particularly the staircase effect, depends on the layer thickness and varies according to the surface and part orientation. The amount of support structures required to build a part depends on the part orientation and affects the material use, production time and part cost [44,45,46]. Some methods to find the optimal part orientation in AM systems have been proposed and studied in the literature. A method to obtain the optimal build orientation by minimizing the surface contact with support structures was described in Ref. [47]. Also, a method to orientate the part to reduce the construction time and optimize the build space was suggested in Ref. [48]. A procedure to calculate the number of layers in different directions in order to find the optimal orientation in terms of building time was reported in Ref. [49]. Similarly, an algorithm to minimize the build direction was reported in Ref. [50]. An algorithm to orientate the part and reduce the staircase effect was proposed in Ref. [51]. More recently, the design principle early determination of the part orientation, which states that the orientation should be determined before the final design of the part begins, was proposed in Ref. [52]. A new process to determine the build orientation based on dividing the concept design of the part into several design elements, and analyse them separately to determine their best orientation and the global orientation of the part, was envisaged in Ref. [52]. A functionality-based part orientation methodology for AM fabrication of assembled products was presented in Ref. [53]. The methodology focuses on the assembly features while considering the part orientation. According to Ref. [9], the build orientation has a marginal effect on build time, and it has a little effect on material consumption and flexural modulus. The build orientation that leads to the minimum number of layers is the desirable orientation of the part not only for reducing the build time and material consumption, but also to achieve good surface roughness and mechanical properties along with a higher dimensional accuracy [9].

The aim of an optimal build orientation selection is to improve surface finish, increase part strength in a specific direction, reduce support material, minimize build time and maximize the geometric accuracy [54]. However, there are several factors that must be considered when selecting the build orientation in FDM systems [9, 51, 55,56,57]:

• Part height and building time. Since the time required to create a layer is essentially the same regardless of the layer complexity, the build time depends directly on the number of layers, i.e., the build height of the part.

• Surface quality. The build orientation determines the part surfaces that will suffer the staircase effect.

• Surface support. The part stability during construction is affected by the surface area on which the part is supported on the building platform, i.e., build orientation.

• Mechanical properties. The part has orthotropic mechanical properties that depend on the layer and build orientation.

• Sloped surfaces. The staircase effect varies with the surface inclination, which is dependent on the build orientation.

4.1.6 Path Planning

Path planning refers to the process of planning the tool trajectories to produce a part in an FDM system. Two types of paths are considered: internal and external paths. Internal path planning considers the strategy to fill the interior of the layers. On the other hand, external path planning comprises the generation of the tool path trajectories to create the layer contours. Path planning affects the mechanical properties, material usage, cost, weight and inertia of the fabricated part. FDM processes require internal path planning to define the strategy to fill the entire volume of the part [51, 58,59,60,61]. The internal path planning comprises the infill percentage (contrary air gap), filling pattern and layer orientation process parameters. Several investigations have been conducted to evaluate the influence of these process parameters on the mechanical properties of FDM parts [42, 62,63,64,65,66,67,68]. The results have shown that the structural properties are directly influenced by the infill percentage and the infill pattern. Spiral and curved filling paths have been proposed in order to reduce the anisotropic effect and improve the mechanical properties of parts [69]. Regarding the external paths, the results have shown that the number of contours has also a direct effect on the mechanical properties of FDM parts. In addition, the effect of the raster angle and the number of contours on the build time, material consumption and flexural modulus was evaluated in Ref. [9]. The results evidenced that the raster angle has a marginal effect on build time and flexural modulus but has no effect on the material consumption; whereas the number of contours has a direct effect on the build time, material consumption and flexural modulus. Figure 3 shows some of the filling patterns used in the FDM process.

Figure 3

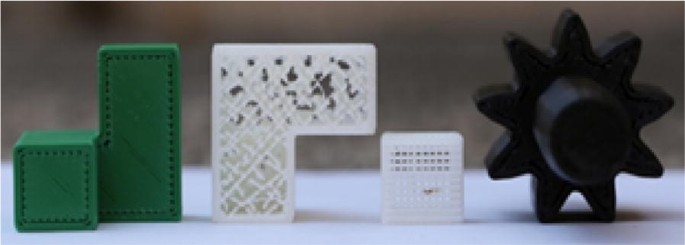

Filling path strategies used in an FDM process

Thus, the proposed DfAM strategies concerning part geometry are shown in Table 3.

Table 3 DfAM strategies regarding geometry

4.2 Strategies for Quality

Distortion, shrinkage and warping are present in FDM parts. If these defects are not considered at the design and manufacturing stages, the accuracy and quality of the part could be reduced since the small features, surface finish, dimensional tolerances and shape tolerances may be affected.

4.2.1 Distortion, Shrinkage & Warping

The quality and dimensional accuracy of FDM parts are affected by distortion, shrinkage, and warping, which are known to be caused by the internal stresses generated during fabrication. The internal stresses depend on the volume shrinkage during the cooling period from the glass transition temperature to the building room temperature. According to Ref. [70], the largest warping deformation (d) of FDM parts depends on the number of layers (n), the section length of the part (L), the material shrinking coefficient (α), the thickness of layer (Δs), the build room temperature (T_e), and the glass transition temperature (T_g), as follows:

$$\delta = \frac{{n^{3} \Delta s}}{{6\alpha \left( {T_{g} - T_{e} } \right)\left( {n - 1} \right)}}\left\{ {1 - { \cos }\left[ {\frac{3\alpha L}{n\Delta s}\left( {T_{g} - T_{e} } \right)\frac{n - 1}{{n^{2} }}} \right]} \right\}.$$

(1)

The experimental results reported in Ref. [70] showed that warping of FDM parts decreases with n increasing, L decreasing, Δs decreasing, α decreasing, and T_e increasing.

4.2.2 Surface Finish

The surface finish can be defined in terms of the surface roughness value (Ra). Since FDM systems are based on a layer by layer additive process, the staircase effect is present and affects the part surface finish [56]. The staircase effect depends on the surface inclination and the layer thickness [44, 45]. The average surface roughness (Ra) can be estimated by the following equation [48]:

$$Ra = \frac{L}{2}\left| {\frac{{\cos \left( {\theta - \phi } \right)}}{\cos \phi }} \right|,$$

(2)

where L is the layer thickness, θ is the surface angle, and ϕ is the profile surface angle, as shown in Figure 4. The surface finish in FDM depends not only on the part orientation, layer thickness, layer orientation, and surface angle, but also on the material, intricate features, distortion, shrinkage, and warping.

Figure 4

Parameters to calculate the surface roughness in AM systems

4.2.3 Stability and Post-Processing

The stability of a part during and after its production in FDM systems must be ensured to preserve its quality and geometric characteristics. Therefore, factors, such as support structures, building orientation, environmental conditions, building material, and post-processing, are important for part stability. Parts produced by FDM are dimensionally stable, unlike parts made by vat photopolymerization processes, which are vulnerable to shrinkage and creep after fabrication. However, FDM parts made of polymers are affected by environmental agents, such as heat, UV radiation, moisture and chemical reactions, causing instability, material aging, layer bonding reduction, and tolerance and geometry deviations. On the other hand, post-processing comprises the removal of support structures, the improvement of surface finish, and the enhancement of dimensional accuracy (mainly in features) to ensure part usability and stability. These post-processing operations are usually required in parts fabricated by FDM.

Thus, the proposed DfAM strategies concerning part quality are shown in Table 4. Since the part geometry strategies shown in Table 3 are also related to the geometrical quality of the part, they must be also considered to assure the quality of the FDM part.

Table 4 DfAM strategies regarding quality

4.3 Strategies for Material

At the design stage, some characteristics of the material such as mechanical properties, manufacturability, cost, availability and disposal, must be considered to select the appropriate material [4].

4.3.1 Type of Material

At the present time, the range of materials available in AM technologies is large and includes polymers, metals, ceramics, and organics [46, 71]. Moreover, some AM systems can produce parts with two or more different materials. Figure 5 attempts to summarize the range of materials available in current AM technologies. In the case of commercial FDM systems, polymeric materials, such as ABS, PLA, PC, PP, PPSF/PPSU, Nylon, ASA, elastomers and wax, are available. Table 5 presents a general overview of the mechanical strength (tensile strength ultimate) ranges of current commercial AM materials and processes, which has been generated from the analysis of the AM manufacturers’ accessible data and the study presented in Ref. [71].

Figure 5

Parameters to calculate the surface roughness in AM systems

Table 5 Mechanical strength of commercial AM materials

4.3.2 Mechanical Properties

One of the main characteristics to be considered when designed a part for AM is the mechanical properties of the material, particularly the mechanical strength. Several investigations have been conducted in order to determine the influence of the process parameters on the mechanical properties of AM components [38, 40, 65, 72,73,74,75,76,77,78,79,80]. The results have shown that the mechanical properties of an AM part depend not only on the material properties, but also on the process parameters used when fabricating the part. In the case of the FDM process, the process parameters that affect the mechanical strength are the build orientation, layer thickness, infill percentage and filling pattern [42, 62,63,64,65,66,67,68]. The infill percentage and pattern are two of the most influencing parameters; the larger the infill percentage is, the larger the strength of the part. Spiral and curved filling paths have been proposed in order to reduce the anisotropic effect and improve the mechanical properties of FDM parts [69]. One major weakness of FDM parts is that they exhibit reduced strength along the build direction caused by the bonding strength between layers. The mechanical properties of FDM parts also depend on the number of contours used to fabricate the part; the larger the number of contours is, the greater the part strength. The layer thickness has a small influence on the mechanical strength; the smaller the layer thickness is, the greater the part strength. A mathematical model to estimate the dynamic flexural modulus (DFM) as a function of the FDM process parameters was proposed in Ref. [9] as follows:

$$\begin{aligned} DFM\left( {\text{MPa}} \right) = \, & - 1992.089 + 2507.582A - 2404.225B - 0.732C \\ &+ 0.0519D + 10168.137E + 6.090F - 688.983AB \\ &- 1725.895AE + 1818.298BE + 88.567BF - 7.228E - 003CD \\ &- 2924.348A^{2} + 1175.176B^{2} + 9.988 \times 10^{ - 3} C^{2} - 9910.801E^{2}, \\ \end{aligned}$$

(3)

where A, B, C, D, E and F, are the layer thickness, air gap, raster angle, part road width, build orientation and number of contours process parameters, respectively. This model is subject to the following rules: 0.127 mm ≤ A ≤ 0.3302 mm, 0 mm ≤ B ≤ 0.5 mm, 0° ≤ C ≤ 90°, 0° ≤ D ≤ 90°, 0.4572 mm ≤ E ≤ 0.5782 mm, and 0 ≤ F ≤ 10. From this model it is observed that all the process parameters affect the flexural modulus, but the two most influential parameters are the air gap (the opposite of infill percentage) and the number of contours. The smaller the air gap, the larger the flexural modulus; whilst the larger the number of contours, the larger the flexural modulus.

More recently, the effect of the process parameters on the wear behaviour of FDM PC-ABS components was investigated in Ref. [81]. As a result, the following mathematical model was proposed:

$$\begin{aligned} SWR\left( {{\text{mm}}^{3} /{\text{Nm}}} \right) =\, & 0.000002 + 0.000004A{-}0.000000C \\ &+ 0.000000D{-}0.000000F + 0.000000F^{2}, \\ \end{aligned}$$

(4)

where SWR is the sliding wear resistance, and A, C, D and F are the layer thickness, raster angle, build orientation, and number of contours process parameters, respectively. The SWR is defined as follows:

$$SWR = \frac{\Delta V}{F \times S},$$

(5)

where ΔV (mm³) is the volume loss of the sample, F is the applied load (N), and S is the sliding distance (m). According to this wear model, the raster angle, layer thickness, build orientation and number of contours are the most influential parameters affecting the wear performance of FDM parts; the wear rate decreases as the layer thickness and build orientation decrease and the air gap and raster angle increase [81].

The use of structures at three different levels (micro, meso and macro structures) have been proposed in the literature in order to optimize the design and performance of AM components [26, 82,83,84,85,86,87]. The performance is commonly defined in terms of the design requirements, such as weight, stiffness, strength, compliance, thermal, dynamic and visual [26]. To achieve the desired properties of the FDM part, structures such as handles, ribs, cellular and lattice, are added and optimized to reduce weight and material usage. In general, these structures are only possible to be created in AM systems.

Considering the wide range of materials and properties of existing FDM systems, and the influence of geometry and process parameters on the mechanical properties of FDM parts, DfAM strategies regarding material and mechanical properties are proposed as shown in Table 6.

Table 6 DfAM strategies regarding material and mechanical properties

4.4 Strategies for Sustainability

Design for sustainability consider the creation of products that maximize their economic and social impact and minimize harmful environment effects. Thus, the AM strategies for sustainability must consider the design of durable parts, the use of recycled materials, the use of high-efficiency manufacturing processes, the reduction of toxic materials, and a deep link between the product and the user. Products that meet these criteria usually have longer life and reduced negative impact on the environment. AM technologies allow designers to generate customized products with practically unlimited shapes for high value applications, such as medical (e.g., hearing aids, prosthesis and medical implants), sports, aviation, automotive, marine, among others. AM systems can generate products that satisfy the triple bottom line requirements: economy, environment and society; making sustainable products [88].

4.4.1 Part Cost

The cost of a part fabricated in FDM depends on the material consumption, material cost, build time, energy use, system’s cost, and post-processing work. The material consumption and cost depend on the part volume and the material unit cost. Some parts may require support structures and therefore the additional material cost of these structures must be also considered. Build time also affects the part cost because it increases the energy consumption and the use of the system. Since the build orientation affects the build time, support structures, and cost, the build orientation must be selected considering a compromise among these three effects. The following mathematical model to estimate the Feedstock Material Consumption (FMC) in FDM was proposed in Ref. [9]:

$$\begin{aligned} FMC({\text{cm}}^{3} ) = \, & 0.972 - 0.545A - 2.423B + 6.301 \times 10^{ - 4} D \\ &+ 3.866E + 0.025F + 0.332AB - 1.439AE \\ &+ 1.185BE + 0.113BF - 0.049EF + 1.888A^{2} \\ &+ 1.088B^{2} - 7. 4 10 \times 10^{ - 6} D^{ 2} - 3. 2 4 8E^{ 2}, \\ \end{aligned}$$

(6)

where A, B, C, D, E and F, are the layer thickness, air gap, raster angle, part road width, build orientation and number of contours process parameters, respectively. This model is subject to the following rules: 0.127 mm ≤ A ≤ 0.3302 mm, 0 mm ≤ B ≤ 0.5 mm, 0° ≤ C ≤ 90°, 0° ≤ D ≤ 90°, 0.4572 mm ≤ E ≤ 0.5782 mm, and 0 ≤ F ≤ 10. From this model it is observed that the most influential parameters on the material consumption are the air gap and the number of contours. The larger the air gap, the smaller the material consumption; whereas the smaller the number of contours, the smaller the material consumption.

4.4.2 Energy Consumption

Energy consumption in AM systems depends on the percentage of utilizing the machine (build time), the material consumption and the part orientation. According to Ref. [89], the FDM process has the lowest ecological impact per part over the CNC and polyjet processes. In contrast, an investigation reported in Ref. [90] revealed that CNC machining has less ecological impact than the SLS and FDM processes. An investigation to analyse the production time and energy consumption in terms of the building orientation and internal filling in FDM, was presented in Ref. [91]. A computation tool to assess the product’s environmental impact was developed and the results showed that the part orientation affects directly the energy consumption during the production process, and that the material consumption is also critical for the product end-of-life disposal. Moreover, to minimize the energy environmental impact, it is essential to reduce the non-productive time of the extrusion system and reduce the amount of productions to dilute the pre-heating between productions [91]. Since the build orientation (which defines the number of layers) and material consumption affect the build time, the energy consumption and environmental impact depend directly on the build time; the larger the build time, the greater the energy consumption. The following mathematical model to estimate the Build Time (BT) in FDM was also proposed in Ref. [9]:

$$\begin{aligned} BT\left( { \text{min} } \right) =\, & 21.616 - 129.180A - 3.732B + 0.022C \\ &+ 0.056D + 4.395E + 0.777F + 11.039AB \\ &- 1.26AF - 0.073DE - 0.627EF + 224.347A^{2} \\ &- 2.307 \times 10^{ - 4} C^{2} - 1.721 \times 10^{ - 4} D^{2}, \\ \end{aligned}$$

(7)

where A, B, C, D, E and F, are the same FDM process parameters defined previously. In this case, the build time is greatly influenced by the layer thickness and the number of contours.

4.4.3 Environmental Resistance

The environmental resistance of a component can be defined in terms of environmental variables such as temperature, humidity, UV radiation, chemical exposure, and corrosion, among others. FDM fabricated parts are resistant to weather conditions only for a short period of time since most of the FDM materials are polymers with limited environmental exposure resistances. Therefore, if a higher environmental strength is required, additional treatments must be applied to the FDM parts. In addition, there are special FDM materials with high thermal, chemical and tensile resistance, such as the ULTEM from Stratasys©.

Thus, the proposed DfAM strategies for sustainability are shown in Table 7. Since the product sustainability is also affected by its functionality, the previous FDM design and manufacturing strategies (Tables 3, 4 and 6) should be also considered to assure the product sustainability.

Table 7 DfAM strategies for sustainability

5 Implementation

To demonstrate the use of the proposed design and manufacturing strategies for FDM, three case studies were selected and correspond to the design of three components intended to be fabricated in a 3DTouch (from 3D systems®) FDM system, with a build volume of 275 mm × 275 mm × 210 mm and three layer thickness values: 0.125 mm, 0.25 mm and 0.5 mm.

5.1 Case Study 1

This case study corresponds to the design and fabrication of a breast implant pattern to produce a mould. The size of the breast implant is 170 mm × 120 mm × 80 mm. From the analysis and application of the proposed DfAM strategies, the decisions and modifications shown in Table 8 were made. Figure 6 shows the breast implant after its fabrication.

Table 8 Results of applying the proposed DfAM strategies to case study 1

Figure 6

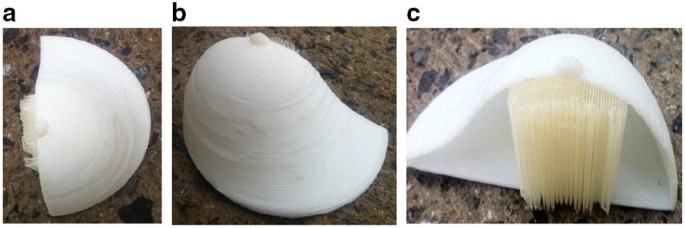

Breast implant prototype (sliced prototype): a) top view, b) front view, c) internal cavity, wall thickness and support structures

5.2 Case Study 2

The second case study corresponds to an oil gear pump assembly. The end use of this component was to evaluate different assembly plans and sequences. The gear pump comprises five parts: one pump casing with dimensions 140 mm × 105 mm × 80 mm, two bearings with dimensions 90 mm × 50 mm × 20 mm, one drive gear shaft with dimensions 55 mm × 55 mm × 120 mm (shaft diameter 22 mm), and one driven gear shaft with dimensions 55 mm × 55 mm × 80 mm (shaft diameter 22 mm). The decisions shown in Table 9 were made from the analysis and application of the proposed DfAM strategies. Figure 7 shows the gear pump components after their fabrication.

Table 9 Results of applying the proposed DfAM strategies to case study 2

Figure 7

Gear pump: a) assembly, b) components of the gear pump, c) pump casing, d) gear bearing, e) drive gear shaft, f) driven gear shaft

5.3 Case Study 3

The third case study corresponds to a pneumatic actuator assembly. The end purpose of this component was also to evaluate different assembly sequences. The pneumatic actuator comprises the following parts: two cap-end heads (70 mm × 75 mm × 22 mm), four screws (ϕ8 mm × 130 mm), one piston and rod (ϕ50 mm, ϕ15 mm × 160 mm), and one cylinder (ϕ55 mm × 115 mm). From the analysis and application of the proposed DfAM strategies to the pneumatic actuator, the decisions and modifications shown in Table 10 were made. Figure 8 shows the pneumatic actuator components after their fabrication.

Table 10 Results of applying the proposed DfAM strategies to case study 3

Figure 8

Pneumatic actuator: a) assembly, b) components, c) cap-end head, d) screw, e) piston, f) cylinder, g) rod-end head

6 Conclusions

In this paper a complete review and analysis of design and manufacturing strategies for Fused Deposition Modelling has been presented. As a result, a comprehensive set of design for additive manufacturing strategies have been proposed based on the main technical limitations and drawbacks of current FDM technologies and systems. The proposed DfAM strategies have been divided into four main groups: geometry, quality, materials and sustainability. Since FDM technologies are continuously evolving, it is recommended to consider the capabilities of the FDM system to be used. The DfAM strategies are intended to assist designers when making decisions at the design stage in order to satisfy functional needs, while ensuring manufacturability in FDM systems, and to assist manufacturers during the fabrication of parts in FDM systems. Moreover, the new prosed set of DfAM strategies can be extended to other types of AM processes besides the FDM process.
