City-Bus-Route Demand-based Efficient Coupling Driving Control for Parallel Plug-in Hybrid Electric Bus

Chinese Journal of Mechanical Engineering201831:58

Received: 14 December 2016

Accepted: 22 June 2018

Published: 5 July 2018


Recently, plug-in hybrid electric bus has been one of the energy-efficient solutions for urban transportation. However, the current vehicle efficiency is far from optimum, because the unpredicted external driving conditions are difficult to be obtained in advance. How to further explore its fuel-saving potential under the complicated city bus driving cycles through an efficient control strategy is still a hot research issue in both academic and engineering area. To realize an efficient coupling driving operation of the hybrid powertrain, a novel coupling driving control strategy for plug-in hybrid electric bus is presented. Combined with the typical feature of a city-bus-route, the fuzzy logic inference is employed to quantify the driving intention, and then to determine the coupling driving mode and the gear-shifting strategy. Considering the response deviation problem in the execution layer, an adaptive robust controller for electric machine is designed to respond to the transient torque demand, and instantaneously compensate the response delay and the engine torque fluctuation. The simulations and hard-in-loop tests with the actual data of two typical driving conditions from the real-world city-bus-route are carried out, and the results demonstrate that the proposed method could guarantee the hybrid powertrain to track the actual torque demand with 10.4% fuel economy improvement. The optimal fuel economy can be obtained through the optimal combination of working modes. The fuel economy of plug-in hybrid electric bus can be significantly improved by the proposed control scheme without loss of drivability.


  • Hybrid electric vehicle
  • Single-shaft parallel electromechanical powertrain
  • Coupling driving mode
  • Adaptive robust control

1 Introduction

As representative of new energy vehicles, plug-in hybrid electric vehicle is always a hot topic in the field of recent vehicle technology [1]. Especially in areas of urban public transport, the excellent performance of low energy consumption and low emissions makes the plug-in hybrid electric bus (PHEB) become the primary solution [2, 3]. Recently, with the application of the idle-stop technology [4], the all-electric range of PHEB might be extended by utilizing more pure electric driving [5]. Considering the traffic congestion in the big city of China, the vehicle launch and accelerating condition might frequently appear in the driving cycles of the city bus [6]. However, in most cases the electric energy stored in the PHEB might not cover the whole city-bus-route, the optimal coordinated operation between the engine and the electric machine (EM) is very worthy of study [7]. Because of the configuration features, the coordinated control becomes very difficult especially for the single-shaft parallel hybrid powertrain with the automated mechanical transmission (AMT) [810]. To solve this problem, several solutions have been presented for real-time optimization of the steady-state energy flows utilizing dynamic programming presented by Li et al. [11] and Lin et al. [12], equivalent consumption minimization strategy presented by Yang et al. [13] and Geng et al. [14], or model predictive control (MPC) strategy presented by Yan et al. [15]. Nevertheless, the transient process, such as the complicated electromechanical coupling working mode and the multi-modes transition, was not considered in these control strategies.

During a vehicle launch and accelerating process, PHEB might fulfill an electromechanical coupling-driving mode after a pure electric driving mode to ensure the operation efficiency until the engine torque satisfies the demand torque on a high efficient zone [1618]. Therefore, the coupling driving mode, which refers to the hybrid driving mode or the engine active charging mode, is crucial for the vehicle launch and accelerating process of PHEB [16].

Considering the difference between dynamic characteristics of the engine and the EM, it is necessary to further study the coordinated control method for an efficient solution of the hybrid powertrain. Therefore, a novel torque-demand control approach based on the MPC was proposed by He et al. [19], to implement the torque control of parallel hybrid powertrain. In addition, for a parallel hybrid powertrain, the coordinated control method using dynamic input allocation, MPC, and sliding mode control method presented by Cordiner et al. [20], Minh et al. [21], and Metin et al. [22], respectively. Using the fast response behavior of the EM, an electromechanical coupling driving control scheme was proposed by Yang et al. [23, 24] to achieve good torque tracking performance.

The coordinated control strategies can ensure the torque tracking performance during a coupling driving process. However, the instantaneous variation of the traffic flows, road conditions, and the passenger loads in a city-bus-route, might greatly affect the robustness of the control system. To adaptively deal with the stochastic driving intention, a city-bus-route demand-based coupling driving control approach is designed for the single-shaft parallel PHEB with AMT. Firstly, the time-varying driving intention is quantified with a fuzzy logic, and then the coupling driving mode and the AMT gear-shifting strategy are determined with a strategy determination module. Secondly, considering the dynamic characteristics of the EM, the adaptive robust controller is designed for the EM to respond to the transient torque demand. Meanwhile, the response deviation and the transient fluctuation of the engine torque are compensated with the fast response behavior of the EM.

The rest of the paper is organized as follows: Section 2 gives the models of the single-shaft parallel PHEB. The efficient coupling driving control approach is developed in Section 3. The results of simulation and hard-in-loop (HIL) test are given in Section 4. Finally, the conclusion and discussion are given in Section 5.

2 Model Descriptions

A typical single-shaft parallel hybrid powertrain is illustrated as Figure 1.

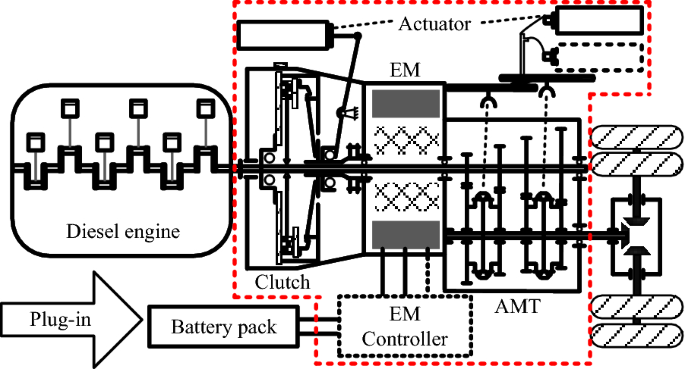

Figure 1
Figure 1

Diagram of the single-shaft parallel PHEB

As shown in Figure 1, the EM is placed between the output of clutch and the input of AMT, and the clutch could implement the mode transition of this powertrain with engagement and disengagement operations. AMT could assist the vehicle to adapt to the demand from different conditions, and help the engine and the EM to work in their efficient zones as well. Furthermore, the parameters of the studied PHEB are shown in Table 1.
Table 1

Parameters of HEB powertrain



Diesel engine

YC6J200-42, nominal power: 147 kW


Permanent magnet, max torque: 750 Nm, nominal power: 94 kW, peak power: 121 kW


Lithium titanate battery, capacity: 60 Ah,

nominal voltage: 346 V


AMT, gear ratios: 7.05, 4.13, 2.52, 1.59, 1, 0.78. Efficiency of gearbox is assumed 95%

Final drive ratio


2.1 Energy Demand Analyses of City Bus Route

During the operation, PHEB with that powertrain could fulfil six basic working modes, including idling stop mode, pure electrical driving mode, engine driving mode, hybrid driving mode, engine active charging mode, and regenerative braking mode. The diagram of the PHEB energy demand corresponded to the working modes mentioned above is shown in Figure 2. As shown in Figure 2, between two bus stops, the expected engine operation in PHEB might contain two states, engine-off and engine high-efficiency operation. The engine-off state occurs at the idling stop mode, pure electrical driving mode, and the regenerative braking mode. With the increasing driving demand torque the engine will be started and engaged into the driveline. Then the problem of fuel saving becomes the optimization problem of engine working points. It should be noted that the EM might be utilized to assist the engine running in its high-efficiency area both in the hybrid driving mode and the engine active charging mode. Thus, those two modes are very important for improving the fuel economy of PHEB.
Figure 2
Figure 2

Diagram of the energy demand of studied PHEB

2.2 Diesel Engine Model

The simplified model of the diesel engine is employed for the torque control, which could be shown in Figure 3.
Figure 3
Figure 3

Simplified engine model

In Figure 3, ϕ represents the accelerator pedal position. Je is the moment of inertia of the crankshaft; ωe is the rotational speed of the crankshaft; φ(dωe/dt) is the dynamic compensation factor; ke and τe are the proportional coefficient and the time constant, respectively; Te and TL are the effective torque and the load torque of the engine, respectively; Tes is the static torque of the engine, which could be obtained from the engine map; ΔTe represents a dynamic correction item of the engine torque, which could be described as follows:
$$\Delta T_{\text{e}} = J_{\text{e}} \frac{{{\text{d}}\omega_{\text{e}} }}{{{\text{d}}t}} \cdot \varphi \left( {\frac{{{\text{d}}\omega_{\text{e}} }}{{{\text{d}}t}}} \right).$$
Only considering the rotational dynamics of the crankshaft, the engine model could be written as follows:
$$\left\{ {\begin{array}{*{20}l} {J_{\text{e} }} \dot{\omega }_{\text{e}} = T_{\text{e}} - T_{\text{L}} , \\ {T_{\text{e}}} = T_{\text{es}} - \Delta T_{\text{e}} - f_{1} ({{\text{d}}\phi }/ {\text{d}t).} \\ \end{array} } \right.$$

2.3 EM Model

The control-oriented dynamic model of the EM consists of two modes: the driving mode and the generating mode. In order to realize the transient torque tracking control, the axis models are employed, when the EM operates in the driving mode:
$$\left\{ {\begin{array}{*{20}l} {\frac{{{\text{d}}\omega_{\text{m}} }}{{{\text{d}}t}} = \frac{1}{{J_{\text{m}} }}T_{\text{m}} - \frac{{B_{\upmu} }}{{J_{\text{m}} }}\omega_{\text{m}} - \frac{1}{{J_{\text{m}} }}T_{\text{l}} ,} \\ {\frac{{{\text{d}}i_{\text{d}} }}{{{\text{d}}t}} = - \frac{{R_{\text{s}} }}{L}i_{\text{d}} + P\omega_{\text{m}} i_{\text{q}} + \frac{1}{L}u_{\text{d}} ,} \\ {\frac{{{\text{d}}i_{\text{q}} }}{{{\text{d}}t}} = - \frac{{R_{\text{s}} }}{L}i_{\text{q}} - P\omega_{\text{m}} i_{\text{d}} - \frac{P\varPhi }{L}\omega_{\text{m}} + \frac{1}{L}u_{\text{q}} .} \\ \end{array} } \right.$$
When the EM operates in the generating mode:
$$\left\{ {\begin{array}{*{20}l} {\frac{{{\text{d}}\omega_{\text{m}} }}{{{\text{d}}t}} = \frac{1}{{J_{\text{m}} }}T_{\text{e}} - \frac{1}{{J_{\text{m}} }}T_{\text{m}} - \frac{{B_{\upmu} }}{{J_{\text{m}} }}\omega_{\text{m}} - \frac{1}{{J_{\text{m}} }}T_{\text{l}} ,} \\ {\frac{{{\text{d}}i_{\text{d}} }}{{{\text{d}}t}} = - \frac{{R_{\text{s}} }}{L}i_{\text{d}} + P\omega_{\text{m}} i_{\text{q}} - \frac{1}{L}u_{\text{d}} ,} \\ {\frac{{{\text{d}}i_{\text{q}} }}{{{\text{d}}t}} = - \frac{{R_{\text{s}} }}{L}i_{\text{q}} - P\omega_{\text{m}} i_{\text{d}} + \frac{P\varPhi }{L}\omega_{\text{m}} - \frac{1}{L}u_{\text{q}} ,} \\ \end{array} } \right.$$
where id and iq are the d and q axis stator currents, respectively; ud and uq are the d and q axis stator voltages, respectively; Rs, L, P and Φ represent the stator resistance, the stator inductance, the number of the pole pairs, and magnet’s flux linkage, respectively; Jm and Bμ are the moment of inertia of the EM output shaft and the damping coefficient, respectively; Te is the engine torque when the PHEB runs in the active charging mode, and Tm is the EM torque, which can be described as the following equation:
$$T_{\text{m}} = \frac{3}{2}P\varPhi i_{\text{q}} .$$

3 City-Bus-Route Demand-based Efficient Coupling Driving Control Strategy

In this section, a novel city-bus-route demand-based coupling driving control strategy is presented. Firstly, the fuzzy logic controller quantifies the driver’s driving intention. Then the AMT gear-shifting strategy and the coupling driving mode are determined with the quantified driving intention in the strategy determination module. Secondly, the designed PI controller for engine and adaptive robust controllers for EM implement the torque tracking control in the coupling driving mode. Moreover, considering the properties of the single-shaft parallel hybrid powertrain, the response error of engine torque is compensated by the accurate EM torque control to guarantee the torque tracking performance of powertrain.

3.1 Fuzzy Logic Inference for Driving Intention

The driving intention is generated from the driver’s maneuvers during the PHEB accelerating process. However, it is difficult to describe the intention accurately by the mathematical expressions. Therefore, the fuzzy logic based on the test data and experience is adopted to implement the quantification of the driving intention. Diagram of the fuzzy logic controller is shown in Figure 4.
Figure 4
Figure 4

Diagram of the fuzzy logic controller

As shown in Figure 4, the input variables are vehicle speed vveh, the relative accelerator pedal position ϕrel, and the absolute value of the change rate of accelerator pedal position dϕ/dt, the output variable is driving intention Id. The relative accelerator pedal position could be obtained by the equation as follows:
$$\phi_{\text{rel}} = \frac{{100 \times \left( {\phi - \phi_{\text{equ}} } \right)}}{{\phi_{\text{equ}} }} ,$$
where ϕ is actual accelerator pedal position, ϕequ is equilibrium accelerator pedal position reflecting the accelerator pedal position which maintains the vehicle driving on flat road with a uniform speed, and the value of ϕequ might be obtained through looking up the steady-state table with the inputs of the engine torque and the engine rotational speed, and the engine torque could be obtained by the vehicle longitudinal dynamics equation as follows:
$$T_{\text{e}} = {{\left( {F_{\text{f}} + F_{\text{w}} } \right)r} \mathord{\left/ {\vphantom {{\left( {F_{\text{f}} + F_{\text{w}} } \right)r} {\eta_{\text{T}} i_{\text{g}} i_{\text{f}} }}} \right. \kern-0pt} {\eta_{\text{T}} i_{\text{g}} i_{\text{f}} }},$$
where Ff and Fw are the rolling resistance and the aerodynamic drag, respectively. r, ηT, ig, and if are wheel radius, transmission efficiency, AMT gear ratio, and differential ratio, respectively.
According to the test data of actual vehicle, the fuzzy logic rule base shown in Table 2 can be obtained. In Figure 5, the memberships of vveh are L, M, and H, which represent the low speed, the middle speed, and the high speed, respectively. The memberships of frel are Nb, Ns, Z, Ps, and Pb, which are the negative big, the negative small, the zero, the positive small, and the positive big of the equilibrium accelerator pedal open, respectively. The memberships of df/dt are S, Mi, and Bi, which are the small, the middle, and the big of the change rate of accelerator pedal open, respectively. Moreover, the output variable Id obtained by the defuzzification are quantified as St, D, K, A, and B, which represent the intention of stop, decelerating, keep, accelerating, urgent accelerating.
Table 2

Fuzzy logic rule base

Relative pedal open ϕrel

Change rate of accelerator pedal position dϕ/dt

Vehicle speed







































































Figure 5
Figure 5

Membership functions of input variables

3.2 Balanced AMT Gear-shifting Strategy and Driving Mode Determination Module

The double-parameters balanced AMT gear-shifting strategy (BGS), which balances the dynamic gear-shifting (DGS) maneuver and the economic gear-shifting (EGS) maneuver, is employed. This strategy tends to dynamic or economic depending on the driving intention, which could be quantified by the designed fuzzy inference. Taking the effects of engine operating points for example, the full DGS ensures that engine might work on the external characteristic line, and the full EGS reflects that engine would work on the optimal operating line with the highest efficiency. According to the quantified driving intention, the AMT gear-shifting maneuver might be determined that the gear-shifting maneuver tends to DGS with urgent accelerating intention and conversely tends EGS with keep and normal accelerating intention. Therefore, the energy-efficient operation of PHEB without drivability loss might be fulfilled by the proposed gear-shifting strategy.

Combined with the quantified driving intention, the AMT gear-shifting strategy and the mode selection during the coupling driving mode can be determined, the logic of which is shown in Figure 6. In Figure 6, Id(tswitch) is the driving intention when the engine engages into the driveline at the time tswitch, and Ith represents the logic threshold of driving intention, and its value could be obtained by repeated tests.
Figure 6
Figure 6

Logic in strategy determination module

According to the description of PHEB working modes, the coupling driving modes can ensure the efficient operation of PHEB. As shown in Figure 7, the engine working points are improved into its high-efficiency area by EM in the coupling driving modes. However, during the simultaneous operation of engine and EM, the difference of dynamic characteristics between the engine and the EM causes the torque deviation of powertrain, which might significantly influence the drivability of PHEB. In this paper, the coordinated control scheme utilizes the EM to compensate the torque response deviation. Thus, the EM controller is very important that some uncertainties should be taken into account in the controller design. Then the design of the torque controllers for the engine and EM will be given in the next two parts.
Figure 7
Figure 7

Diagram of two coupling driving modes

3.3 PI torque Controller for Diesel Engine

In order to response the demand torque, a PI torque controller is designed. The expression can be written as:
$$u_{\text{eng}} = k_{\text{p}} \left( {T_{\text{e}}^{\text{r}} - T_{\text{e}} } \right) + k_{\text{i}} \int {\left( {T_{\text{e}}^{\text{r}} - T_{\text{e}} } \right)} {\text{d}}t,$$
where ueng is the engine control input that represent the fuel injection quantity, T e r is demand powertrain speed, kpki are proportional and integral gains, respectively.

3.4 Adaptive Robust Controllers for the EM Torque Tracking Control

To ensure the torque balance of the whole powertrain, the EM control system design might become the chief task. Then the objective of EM controller becomes that ensures the accurate trajectory tracking control with the existence of model uncertainties and external disturbances. First, the error models of EM in the driving mode and generating mode are necessary. Therefore, the error variables can be defined as follows:
$$\begin{aligned} {\varvec{x}} & = \left[ {\begin{array}{*{20}c} {x_{1} } & {x_{2} } & {x_{3} } \\ \end{array} } \right]^{\text{T}} \\ & = \left[ {\begin{array}{*{20}l} {\omega_{\text{m}} - \omega_{\text{m}}^{\text{r}} } & {i_{\text{d}} - i_{\text{d}}^{\text{r}} } & {i_{\text{q}} - i_{\text{q}}^{\text{r}} } \\ \end{array} } \right]^{\text{T}} , \\ {\bar{\varvec{x}}} & = \left[ {\begin{array}{*{20}c} {\bar{x}_{1} } & {\bar{x}_{2} } & {\bar{x}_{3} } \\ \end{array} } \right]^{\text{T}} \\ & = \left[ {\begin{array}{*{20}c} {\omega_{\text{m}} - \omega_{\text{m}}^{ *} } & {i_{\text{d}} - i_{\text{d}}^{ *} } & {i_{\text{q}} - i_{\text{q}}^{ *} } \\ \end{array} } \right]^{\text{T}} , \\ \end{aligned}$$
where x and \({\bar{\varvec{x}}}\) are the error variables when the EM works in the driving mode and generating mode, respectively. ω m r , i d r , i q r are the desired values of the EM speed, the d-axis, and the q-axis stator currents when the EM operates in the driving mode, respectively. ω m * , i d * , i q * are the desired values of the EM speed, the d-axis, and the q-axis stator currents when the EM operates in the generating mode, respectively. Combining with the EM model described in Eqs. (3) and (4), the error equations that have considered the uncertainties can be defined when EM operates in the driving mode:
$$\left\{ {\begin{array}{*{20}l} {\dot{x}_{1} = \frac{3P\varPhi }{{2J_{m} }}x_{3} - \theta_{1} x_{1} - \tilde{\theta }_{1} \omega_{m}^{r} - w_{1} ,} \\ {\dot{x}_{2} = - \theta_{2} x_{2} + P(x_{1} x_{3} + x_{1} i_{q}^{r} + \omega_{m}^{r} x_{3} ) + u_{1} ,} \\ {\dot{x}_{3} = - \theta_{2} x_{3} - P(x_{1} x_{2} + \omega_{m}^{r} x_{2} ) - \frac{P\varPhi }{L}x_{1} - \tilde{\theta }_{2} i_{q}^{r} + u_{2} .} \\ \end{array} } \right.$$
When EM operates in the generating mode:
$$\left\{ {\begin{array}{*{20}l} {\dot{\bar{x}}_{1} = T_{E} - \frac{3P\varPhi }{{2J_{m} }}\bar{x}_{3} - \tau_{1} \bar{x}_{1} - \tilde{\tau }_{1} \omega_{m}^{*} - w_{2} ,} \\ {\dot{\bar{x}}_{2} = - \tau_{2} \bar{x}_{2} + P(\bar{x}_{1} \bar{x}_{3} + e_{1} i_{q}^{*} + \omega_{m}^{*} \bar{x}_{3} ) + u_{3} ,} \\ {\dot{\bar{x}}_{2} = - \tau_{2} \bar{x}_{3} - P(\bar{x}_{1} \bar{x}_{2} + \omega_{m}^{*} \bar{x}_{2} ) + \frac{P\varPhi }{L}\bar{x}_{1} - \tilde{\tau }_{2} i_{q}^{*} + u_{4} ,} \\ \end{array} } \right.$$
where the uncertainty parameters θ1, θ2, τ1, and τ2 are given as follows:
$$\left\{ {\begin{array}{*{20}c} {\theta_{1} = \frac{{B_{\upmu} }}{{J_{\text{m}} }},\theta_{2} = \frac{{R_{\text{s}} }}{L},} \\ {\tau_{1} = \frac{{B_{\upmu} }}{{J_{\text{m}} }},\tau_{2} = \frac{{R_{\text{s}} }}{L},} \\ \end{array} } \right.$$
\(\tilde{\theta }_{i}\) and \(\bar{\tau }_{i}\)(i = 1, 2) are the error between the uncertain parameters and the adaptive estimated value, which would be described in later part. Moreover, w1, w2 represent the load disturbances of EM control system. Then the performance vectors are defined as follows:
$$\left\{ {\begin{array}{*{20}c} {z = [\begin{array}{*{20}c} {\rho_{1} x_{1} } & {\rho_{2} x_{2} } & {\rho_{3} x_{3} } \\ \end{array} ]^{\text{T}} ,} \\ {\bar{z} = [\begin{array}{*{20}c} {\bar{\rho }_{1} \bar{x}_{1} } & {\bar{\rho }_{1} \bar{x}_{1} } & {\bar{\rho }_{1} \bar{x}_{1} } \\ \end{array} ]^{\text{T}} ,} \\ \end{array} } \right.$$
where ρi and \(\bar{\rho }_{i}\) (i = 1, 2, 3) are the weighting factors. TE is an error term. Moreover, u1, u2, u3, u4 are equivalent control inputs described as follows:
$$\left\{ {\begin{array}{*{20}l} {u_{1} = P\omega_{\text{m}}^{\text{r}} i_{\text{q}}^{\text{r}} + \frac{1}{L}u_{\text{d}} ,} \\ {u_{2} = \hat{\theta }_{2} i_{\text{q}}^{\text{r}} - \frac{P\varPhi }{L}\omega_{\text{m}}^{\text{r}} - \dot{i}_{\text{q}}^{\text{r}} + \frac{1}{L}u_{\text{q}} ,} \\ \end{array} } \right.$$
$$\left\{ {\begin{array}{*{20}l} {u_{3} = P\omega_{\text{m}}^{ *} i_{\text{q}}^{ *} - \frac{1}{L}u_{\text{d}} ,} \\ {u_{4} = \tilde{\tau }_{2} i_{\text{q}}^{*} + \frac{P\varPhi }{L}\omega_{\text{m}}^{*} - \dot{i}_{\text{q}}^{ *} - \frac{1}{L}u_{\text{q}} ,} \\ \end{array} } \right.$$
Then the control objective of EM controller becomes that the closed-loop system is stable with L2-gain, that is, when w ≠ 0, the system from the disturbance inputs wi (i = 1, 2) to the penalty outputs z and \(\bar{z}\) has finite L2-gain not larger than γi (i = 1, 2).
$$\left\{ {\begin{array}{l} {\int_{0}^{T} {\left\| {z(t)} \right\|}^{2} {\text{d}}t \le \gamma_{1} \int_{0}^{T} {\left\| {w_{1} (t)} \right\|}^{2} {\text{d}}t,\quad \forall w_{1} ,} \\ {\int_{0}^{T} {\left\| {\bar{z}(t)} \right\|}^{2} {\text{d}}t \le \gamma_{2} \int_{0}^{T} {\left\| {w_{2} (t)} \right\|}^{2} {\text{d}}t,\quad \forall w_{2} ,} \\ \end{array} } \right.$$
where T > 0 is any given scalar. γi (i = 1, 2) are the evaluating factors. Thus, regarding the system described in Eqs. (10) and (11), an adaptive robust controller for EM is designed when EM operates in the driving mode:
$$\left\{ {\begin{array}{*{20}l} {u_{1} = \hat{\theta }_{2} x_{2} - P(x_{1} x_{3} + x_{1} i_{\text{q}}^{\text{r}} + \omega_{\text{m}}^{\text{r}} x_{3} ) - k_{2} x_{2} ,} \\ {u_{2} = \left( {\frac{P\varPhi }{L} - \frac{3P\varPhi }{{2J_{\text{m}} }}} \right)x_{1} + \hat{\theta }_{2} x_{3} + P(x_{1} x_{2} + \omega_{\text{m}}^{\text{r}} x_{2} )} \\ \qquad + {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}\frac{3P\varPhi }{{2J_{\text{m}} }}x_{3} - \frac{{\partial \alpha_{1} }}{{\partial x_{1} }}\hat{\theta }_{1} x_{1} - \frac{{\partial \alpha_{1} }}{{\partial x_{1} }}\hat{\theta }_{2} + \frac{{\partial \alpha_{1} }}{{\partial \hat{\theta }_{1} }}\dot{\hat{\theta }}_{1} } \\ \qquad - {\frac{1}{{2\gamma_{1}^{2} }}Z_{1} \left( {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}} \right)^{2} - k_{3} Z_{1} .} \\ \end{array} } \right.$$
And the parameter adaptive update laws are chosen as
$$\left\{ {\begin{array}{*{20}l} {\dot{\hat{\theta }}_{1} = \chi_{1} \left( {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}x_{1} Z_{1} - x_{1}^{2} - \omega_{\text{m}}^{\text{r}} x_{1} + \frac{{\partial \alpha_{1} }}{{\partial x_{1} }}\omega_{\text{m}}^{\text{r}} Z_{1} } \right),} \\ {\dot{\hat{\theta }}_{2} = \chi_{2} ( - x_{3} Z_{1} - x_{2}^{2} - i_{\text{q}}^{\text{r}} Z_{1} ).} \\ \end{array} } \right.$$
When EM operates in the generating mode:
$$\left\{ {\begin{array}{*{20}l} {u_{3} = \hat{\tau }_{2} \bar{x}_{2} - P(\bar{x}_{1} \bar{x}_{3} + \bar{x}_{1} i_{\text{q}}^{ *} + \omega_{\text{m}}^{ *} \bar{x}_{3} ) - \bar{k}_{2} \bar{x}_{2} ,} \\ {u_{4} = \left( {\frac{3P\varPhi }{{2J_{\text{m}} }} - \frac{P\varPhi }{L}} \right)\bar{x}_{1} + P(\bar{x}_{1} \bar{x}_{2} + \omega_{\text{m}}^{ *} \bar{x}_{2} )} \\ \qquad + {\hat{\tau }_{2} \bar{x}_{2} - \frac{P\varPhi }{L}\bar{x}_{1} + \frac{{\partial \alpha_{2} }}{{\partial \bar{x}_{1} }}T_{\text{E}} - \frac{{\partial \alpha_{2} }}{{\partial \bar{x}_{1} }}\frac{3P\varPhi }{{2J_{m} }}\bar{x}_{3}} \\ \qquad - {\frac{{\partial \alpha_{2} }}{{\partial \bar{x}_{1} }}\hat{\tau }_{1} \bar{x}_{1} + \frac{{\partial \alpha_{2} }}{{\partial \hat{\tau }_{1} }}\dot{\hat{\tau }}_{1} - \bar{k}_{3} Z_{2} .} \\ \end{array} } \right.$$
And the parameter adaptive update laws are chosen as
$$\left\{ {\begin{array}{*{20}l} {\dot{\hat{\tau }}_{1} = \beta_{1} \left( {\frac{{\partial \alpha_{2} }}{{\partial \bar{x}_{1} }}\bar{x}_{1} Z_{2} + \frac{{\partial \alpha_{2} }}{{\partial \bar{x}_{1} }}\omega_{\text{m}}^{ *} Z_{2} - \bar{x}_{1}^{2} - \omega_{\text{m}}^{ *} \bar{x}_{1} } \right),} \\ {\dot{\hat{\tau }}_{2} = \beta_{2} ( - \bar{x}_{3} Z_{2} - \bar{x}_{2}^{2} - i_{\text{q}}^{ *} Z_{2} ),} \\ \end{array} } \right.$$
where ki(i = 1, 2, 3) and \(\bar{k}_{i} (i = 1,2,3)\) are adjustable parameters of the controller, \(Z_{1} = x_{3} - \alpha_{1} (x_{1} ,\hat{\theta }_{1} )\) and \(Z_{2} = \bar{x}_{3} - \alpha_{2} (\bar{x}_{1} ,\hat{\tau }_{1} )\), \(\alpha_{1} (x_{1} ,\hat{\theta }_{1} )\) and \(\alpha_{2} (\bar{x}_{1} ,\hat{\tau }_{1} )\) are virtual controllers which could be chosen as follows:
$$\left\{ {\begin{array}{*{20}l} {\alpha_{1} (x_{1} ,\hat{\theta }_{1} ) = \frac{{2J_{\text{m}} }}{3P\varPhi }\left( {\hat{\theta }_{1} x_{1} - k_{1} x_{1} - \frac{1}{{2\gamma_{1}^{2} }}x_{1} } \right),} \\ {\alpha_{2} (\bar{x}_{1} ,\hat{\tau }_{1} ) = \frac{{2J_{\text{m}} }}{3P\varPhi }\left( {T_{\text{E}} - \hat{\tau }_{1} \bar{x}_{1} + \bar{k}_{1} \bar{x}_{1} + \frac{1}{{2\gamma_{2}^{2} }}\bar{x}_{1} } \right).} \\ \end{array} } \right.$$
In addition, χi(i = 1, 2) and βi(i = 1, 2) are adjustable parameters of adaptive laws.Taking the driving mode of EM for example, the adaptive robust controller described in Eqs. (17) and (18) might be designed by the close-loop system Lyapunov stability analysis. First, a positive definite Lyapunov function is defined as follows:
$$V = \frac{1}{2}x_{1}^{2} + \frac{1}{2}x_{2}^{2} + \frac{1}{2}Z_{1}^{2} + \frac{1}{2}\tilde{\theta }^{\text{T}} \varGamma^{ - 1} \tilde{\theta }.$$
Then, its time derivative could be calculated as follows:
$$\begin{aligned} V & = x_{1} \left( {\frac{3P\varPhi }{{2J_{\text{m}} }}x_{3} - \theta_{1} x_{1} - \tilde{\theta }_{1} \omega_{\text{m}}^{\text{r}} - w_{1} } \right) \\ & \quad + x_{2} [ - \theta_{2} x_{2} + P(x_{1} x_{3} + x_{1} i_{\text{q}}^{\text{r}} + \omega_{\text{m}}^{\text{r}} x_{3} ) + u_{1} ] \\ & \quad + Z_{1} [ - \theta_{2} x_{3} - P(x_{1} x_{2} + \omega_{\text{m}}^{\text{r}} x_{2} ) - \frac{P\varPhi }{L}x_{1} - \tilde{\theta }_{2} i_{\text{q}}^{\text{r}} + u_{2} \\ & \quad - \left. {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}\left( {\frac{3P\varPhi }{{2J_{\text{m}} }}x_{3} - \theta_{1} x_{1} - \tilde{\theta }_{1} \omega_{\text{m}}^{\text{r}} - w_{1} } \right) - \frac{{\partial \alpha_{1} }}{{\partial \hat{\theta }_{1} }}\dot{\hat{\theta }}_{1} } \right]. \\ \end{aligned}$$
Remark: For the external disturbance w1, the inequality transform might be used which can be written as follows:
$$\left\{ {\begin{array}{*{20}l} { - x_{1} w_{1} \le \frac{1}{{2\gamma_{1}^{2} }}x_{1}^{2} + \frac{{\gamma_{1}^{2} }}{2}w_{1}^{2} ,} \\ {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}w_{1} Z_{1} \le \frac{{\gamma_{1}^{2} }}{2}w_{1}^{2} + \frac{1}{{2\gamma_{1}^{2} }}Z_{1}^{2} \left( {\frac{{\partial \alpha_{1} }}{{\partial x_{1} }}} \right)^{2} .} \\ \end{array} } \right.$$
Choosing the adaptive robust controller described in Eqs. (17) and (18), and combining Eq. (24), Eq. (23) might become as follows:
$$\begin{aligned} \dot{V} & \le - \left( {k_{1} - \frac{1}{2}\rho_{1} } \right)x_{1}^{2} - \left( {k_{3} - \frac{1}{2}\rho_{3} } \right)Z_{1}^{2} \\ & \quad - \left( {k_{2} - \frac{1}{2}\rho_{2} } \right)x_{2}^{2} + \gamma_{1}^{2} w_{1}^{2} - \frac{1}{2}z^{\text{T}} z, \\ \end{aligned}$$
where the adjustable gains ki(i = 1, 2, 3) should satisfy the conditions as follows:
$$k_{1} \ge \frac{1}{2}\rho_{1} ,k_{2} \ge \frac{1}{2}\rho_{2} ,k_{3} \ge \frac{1}{2}\rho_{3} .$$

Therefore, combing with the LaSalle invariant set principle, it can be concluded that the designed controller can achieve the mentioned above control objectives. Because the adaptive controller described in Eqs. (19) and (20) for the generating mode of EM is deduced that is similar with that of the driving mode of EM, so the proof procedure will be omitted here.

4 Validation Results and Analysis

The simulation and HIL tests are performed on a single-shaft parallel PHEB in MATLAB/Simulink. Basic parameters are listed in Table 1. Moreover, control parameters in Table 3 are selected among all parameters obtained from repeatedly debugging model with the proposed method. These selected parameters can show the best control performance.
Table 3

Control parameters





k p




k i


χ 1


k 1


χ 2


k 2


β 1


k 3


β 2




γ 1




γ 2


To verify the effectiveness of the proposed control approach, a driving condition of city-bus-route 613 in Chongqing, China, is selected as the simulation condition.

A road section of city-bus-route is extracted from KongGang-Square station to YuBei-Broadcast station that the vehicle speed and the road grade information are shown in Figure 8. It should be noted that, the grade changes with the distance, so generally the grade-distance curve is used to reflect the grade information of a road section.
Figure 8
Figure 8

Curves of the studied simulation scenario

4.1 Driving Intention Quantification

To verify the intention recognition, the accelerator pedal position and the actual gear position curve were collected from the driving condition as shown in Figure 9.
Figure 9
Figure 9

Actual driver’s operation curves

As shown in Figure 9, two sections of routes are with fully different driver’s maneuvers. The first section from 0 s to 117 s shows the higher acceleration and the larger pedal open than that of the second section from 120 s to 300 s. Therefore, the quantified driving intention is shown as in Figure 10. The result shows that the intention could essentially reflect the actual maneuver. Moreover, the urgent accelerating intention appears in 4.5 s and the rest is the normal accelerating intention. Therefore, the threshold of Ith could be selected as 3.2. Because the focus in this paper is the process of PHEB driving mode, two vehicle launch process are extracted from the selected driving condition and the results are shown in Sections 4.2 and 4.3.
Figure 10
Figure 10

Result of driving intention

4.2 Results under Different Driving Intentions

A clear city-bus-route without traffic jams is simulated in this part. The driver’s intention under this condition inclines to drive through this section of road fast, so according to the strategy determination described in Section 3.2, the simulation results are shown in Figure 11.
Figure 11
Figure 11

Simulation results (intention of urgent driving)

As shown in Figure 11(a), the results of vehicle speed obtained from the simulation are close to the test data, and the deviation reflects the error between simulation model and actual vehicle. With the increasing vehicle speed, the AMT will execute the gear shifting operation in accordance with BGS strategy. The engine torque tracking performance can be ensured, which is shown in Figure 11(c). The designed adaptive robust controller can respond to the demand EM torque quickly and accurately, as shown in Figure 11(d).

A congested city-bus-route is simulated to reflect the driver maneuvers with the intention Id(tswitch) < Ith. The simulation results are shown in Figure 12. As shown in Figure 12(a), the vehicle speed of simulation is in accordance with the test data, and with the intention of slow driving, Figure 12(c) shows that the engine demand torque is elevated by the generating torque of EM in the driving condition of the low torque demand. In addition, due to the engine response characteristics, the PI controller with the control input of fuel injection cannot eliminate the torque deviation. However, the proposed coupling driving control approach utilizes the EM torque to compensate the above torque deviation, and the good tracking performance is ensured by the designed adaptive robust controller for EM, the effect curves of which is shown in Figure 12(d). Therefore, it can be concluded that the efficient operation of PHEB is ensured. It should be noted that Figure 11 and Figure 12 show two different driving conditions with relevant driving intentions. Under urgent driving condition, the test vehicle uses less time than that under slow driving condition, when it reaches the same speed. Thus, the timeline in Figure 11 shows less than that in Figure 12.
Figure 12
Figure 12

Simulation results (intention of slow driving)

The working points of engine and EM in two different driving intentions are shown in Figure 13. As seen in Figure 13, the working areas of engine and EM are improved by the coupling driving mode, especially in engine active charging mode, the working points of engine are moved into its high-efficiency area. To show the improvement of working points more clearly, the areas plot by the red dotted line are defined as the high-efficiency areas of engine and EM. The results show that the working points of engine and EM are greatly improved by the proposed control strategy.
Figure 13
Figure 13

Simulation results of working points

4.3 HIL Test Results

To verify the real-time capability of the proposed control method, the HIL test is carried out. The HIL test platform is shown in Figure 14.
Figure 14
Figure 14

HIL test platform

As shown in Figure 14, the dSPACE real time test system is employed for running the vehicle model. Hybrid control unit (HCU) is the actual controller used in PHEB. The PHEB model built in MATLAB/Simulink are loaded into dSPACE through real time interface (RTI). The C codes of proposed control strategy is generated with the auto code function of real time workshop (RTW), meanwhile, the controller drive program is compiled with the main program in Tasking EDE tool. A PC is employed with control desk to monitor the test operation. The test is carried out in Chinese typical urban condition and its results are shown in Figure 15.
Figure 15
Figure 15

Test results under Chinese typical urban condition

The outstanding vehicle speed tracking performance and the reasonable torque spilt effect can be shown in Figure 15, which proves the proposed control strategy is effective to the real time HIL test. To further show the advantage, a rule-based control strategy is adopted as the baseline strategy, which is commonly used in actual vehicle [19]. The FC and EC represent the fuel consumption and the electricity consumption, respectively. The average brake specific fuel consumption (BSFC) results reflect the improvement of working points. As shown in Table 4, the fuel consumption improvement is 10.4% under the given driving condition.
Table 4

Comparison results of two control strategy


FC (L)

Improvement (%)

Average BSFC(g/kWh)








5 Conclusions

  1. (1)

    The driving intention is recognized by the designed fuzzy logic inference.

  2. (2)

    According to the quantified intention, the mode selection method in the coupling driving mode and AMT gear-shifting strategy given in the strategy determination module by the pre-set threshold.

  3. (3)

    The adaptive robust controller is designed for EM to ensure the tracking effect with the uncertainties and disturbances.

  4. (4)

    The proposed control approach could guarantee the torque tracking performance, and the fuel economy can be improved 10.4% through adjusting the engine working points under different driving intentions.

  5. (5)

    The real time capability of the control approach has been validated by HIL tests. The proposed control method has the potential to apply in the actual vehicle.
