Tooth Position and Deformation of Flexspline Assembled with Cam in Harmonic Drive Based on Force Analysis

Abstract

Deformation of the flexspline is the basis of analyzing tooth trajectory and designing tooth profile. Considering the tooth influence on the position of equivalent neutral layer, a piecewise method for calculating the deformation of flexspline assembled with a cam wave generator is presented in this paper. Firstly, a mechanic model of a ring of uniform thickness in contact with a rigid cam is established. The displacements of the ring inside and outside an unknown wrapping angle are determined by the geometric constraints of the cam profile and the equilibrium relationship, respectively. Meanwhile, the wrapping angle is solved according to the boundary conditions. The assembly forces are derived to investigate the circumferential elongation and strain. Then, considering the tooth effects on the neutral layer of flexspline, the tooth is positioned on the equivalent neutral layer, which is the non-elongation layer within one gear pitch but offset from the geometric mid-layer. The equivalent neutral layer is positioned by the empirical formula of the offset ratio, which is summarized by the orthogonal simulation on finite element models of racks. Finally, finite element models of a ring-shaped and a cup-shaped flexspline assembled with elliptical cam are established to verify the effectiveness and accuracy of the piecewise method. The results show that, compared with the geometric method, the tooth positioning deviation calculated by the piecewise method can be reduced by about 70% with a more accurate deformation description from the geometric condition and mechanic condition inside and outside the wrapping angle.

Introduction

Harmonic drive is a transmission mechanism invented by Musser [1]. It consists of three main components: wave generator (WG), flexspline (FS), and circular spline. The rotating WG drives the FS producing oval-shaped deformation periodically to realize the meshing between the FS tooth and the circular spline tooth and to transfer torque and motion. Harmonic drives possess a number of advantages: compact size, light in weight, large gear ratio in one stage, high load-carrying capacity, small moment of inertia of the mechanism and backlash. Thus, harmonic drives are widely used in fields requiring precision transmission, such as aerospace, instruments, industrial robots, medical equipment, and military and national defense equipment [2]. For FS is a thin-walled component, the research of torsion measurement [3] and hysteresis characteristics [4] are essential means to evaluate its working performance. In addition, the deformation of the FS not only causes structural stresses [5, 6], but also is an essential basis for the tooth positioning and meshing trajectory [7], tooth profile design [8, 9], and backlash calculation [10, 11].

The positioning of the tooth depends on the accurate description of the FS deformation. In order to calculate the FS deformation, Ivanov [7] proposed a ring model, which lays a theoretical foundation for the analysis of deformation and force of the FS. Based on this, Ivanov [7] and Shen [10] conducted a more detailed study on the FS deformation under the action of various WGs such as four-rollers WG, double-discs WG, and cam WG. Dong et al. [12] calculated the assembly deformation of a cup-shaped FS and fitted the loaded deformation results with cubic spline curves. Ma et al. [13] developed an experimental apparatus that integrates a special-fabricated micro-displacement platform and a pair of laser sensors to measure the radial displacement of the FS and investigated the effect of the driving speed on the deformation characteristics of the FS.

At present, the theoretical analysis of FS deformation is still based on the assumption of small deformation and non-elongation of the neutral layer. Chen et al. [14] found that due to the assumption of small deformation, the arc length of the deformed neutral curve expressed by the displacements is a little longer than the original arc. Yang et al. [15] conducted a more rigorous discussion on the deformed neutral curve, which described by displacements, and pointed out that the correct curve length can be obtained by the integration on the curve’s geometric shape of the deformed neutral layer, which can be expressed by the equidistant line of cam WG profile. The cam WG not only makes the FS maintain a more stable deformation and ideal meshing state under transmission torque but also produces the FS deformation to any shape through a proper design of the cam profile. Therefore, the cam WG is the most widely used form in the harmonic drive.

With the assumption of FS tightly fitted with the cam WG, the FS deformation under the action of cam is usually determined directly by the geometry of the cam, which dramatically simplifies the design process. Maiti [16] provided a cam formed by splicing arcs at the major axis and elliptical arcs at the minor axis to make the standard involute tooth work normally. Gravagno [17] used a cam follower system to study the influence of the cam WG profile on the meshing performance of the FS. In addition, Routh et al. [18] studied the effect of tooth pitch variation on the contact between the teeth pairs on the elliptic pitch curve of FS that formed by the action of elliptical cam. In fact, there is a certain gap between the cam and the FS. Routh et al. [19] and Li et al. [20] considered the clearance caused by the taper deformation of cup-shaped FS and by the roughness between the FS-cam contact surface, respectively, when studying the hydrodynamic lubrication.

In addition, in order to reduce the FS stresses, a clearance fit is usually designed between the FS and the WG. Therefore, the assumption that the WG and the FS contact over the entire circumferential area is inappropriate. At the same time, slight circumferential elongation of the FS neutral layer under the action of the assembly force may lead to separation on a small scale. Therefore, it must be more realistic to consider that they are only in contact in some areas around the major axis of WG. Chen et al. [14, 21] conducted theoretical studies on the neutral layer elongation of FSs under the action of double-disks WG and four-roller WG and verified the elongation by finite element simulation. The research confirms that the circumferential elongation of the FS neutral layer exists, but it is far less than the extra length obtained by the integration the displacement under the assumption of small deformation. Considering a ring model in contact with WG in partial along the circumferential direction, mechanic analysis in contact region will help us to find a more realistic details of the deformation and the internal forces inside and outside of the more reasonable wrapping angle.

At present, the mid-layer radius of the ring model used to calculate the FS deformation is considering the same with the radius of the geometric mid-layer (GML) of FS tooth rim, which ignored the tooth. However, the tooth not only affects the stress [22, 23] and meshing [24, 25] of the FS but also causes the change of the actual neutral layer (ANL) on position and shape. Kondo [9] performed a bending test on an enlarged simple trapezoidal rack to obtain the ANL distribution. His research shows that the ANL of rack is not a straight line, and its position deviates from the GML. The shape and position change of the ANL makes the previous ring model have a certain model deviation. Considering the influence of the tooth to improve the ring model can reduce the deviation of the FS deformation results and improve the positioning accuracy of the tooth.

This paper is aiming to calculate the displacement of FS accurately. The forces and displacements on the equivalent neutral layer (ENL) of the FS are studied under the action of a cam WG. In Section 2, the existing methods for tooth positioning based on the deformation of FS are described, and the causes of tooth position deviation are analyzed. In Section 3, the actual contact state and forces between the cam and the ring are analyzed, and a piecewise method of calculating the ring’s displacement is proposed, which is verified by finite element analysis of a ring-cam assembly model with shell elements. In Section 4, a bending rack model is established with 2D solid elements to analyze the influence of the tooth geometric parameters on the shape and position of ANL. The concept of ENL is introduced, and an empirical formula of ENL offset ratio is fitted through orthogonal simulations. The mid-layer of the ring model is migrated to the position of FS’s ENL. In Section 5, validation models of a ring-shaped FS and a cup-shaped FS, which all assembled with an elliptical cam, are introduced. In Section 6, The simulations of the validation models are carried out, and the ring-shaped FS is used to verify the theoretical method of this paper. The deformation and force characteristics of cup-shaped FS are also discussed. Finally, some conclusions of this paper are summarized in Section 7.

Tooth Positioning Methods and Deviations

Ivanov [7] constructed the tooth profile coordinate system to position the tooth on the mid-layer of the FS and calculated the radial and circumferential displacements of the tooth based on the deformation and puts forward a graphical method for calculating the tooth trajectory and the backlash between the teeth pairs. Shen [10] proposed an envelope method for conjugate tooth profile design based on the deformation curve ρ(\(\varphi\)) constructed by the displacement on the mid-layer of the FS to position the tooth. Figure 1 shows the correspondence relationship in the envelope method.

Figure 1
figure1

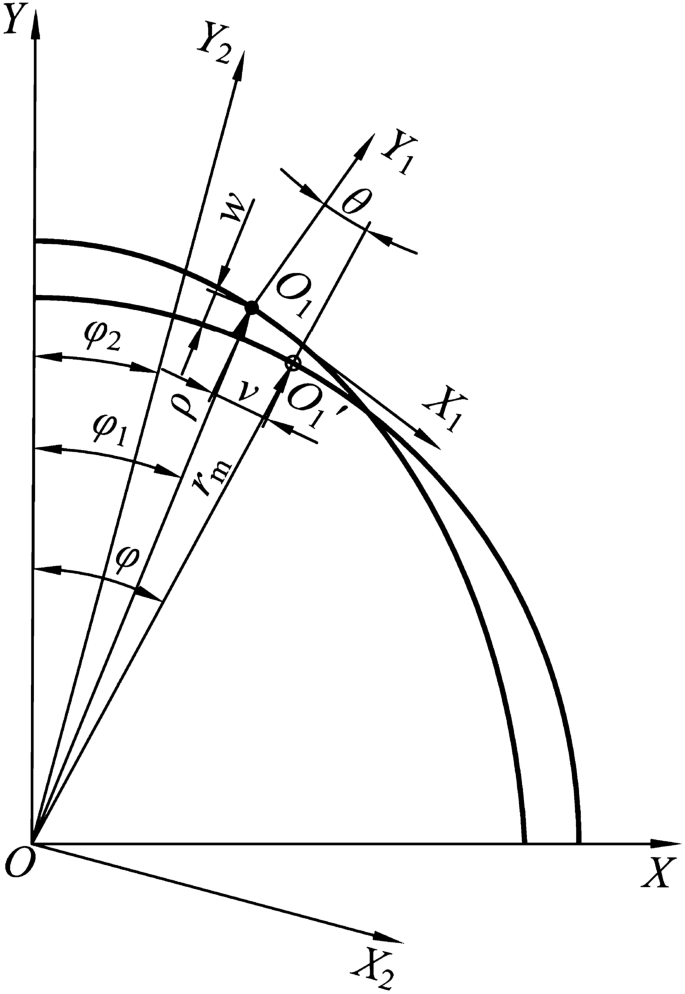

Schematic diagram of the positional relationship between cam, flexspline and circular spline

Figure 1 illustrates that the mid-layer circle (dash line) of the FS with a radius of rm is deformed into a curve shape (heavy line). Coordinate system {O-XY} is fixed on the WG, and the Y and X axes coincide with the major and minor axes, respectively. Coordinate system {O1-X1Y1}, fixed on the FS tooth, is located on the deformed curve of the initial circle, and the Y1-axis coincides with the tooth symmetry line. Coordinate system {O-X2Y2}, located at the rotating center, is fixed on the circular spline. As the FS deformed, its tooth positioning point O1 (at polar angle \(\varphi\) to the Y-axis) moves to O1' (at polar angle \(\varphi\)1 to the Y-axis) with the following displacements and orientation: radial displacement w(\(\varphi\)), circumferential displacement v(\(\varphi\)), and the normal rotation angle θ(\(\varphi\)). By using the theories of material mechanics, Ivanov [7] and Shen [10] performed rigorous force analysis on various deformed models, such as four-rollers model and double-discs model, under the assumptions of small deformation and non-elongation on mid-layer, and derived the expressions and relationships of w, v, and θ.

Generally, the deformed shape of the mid-layer is expressed in polar coordinates:

$$\rho \left( \varphi \right) = r_{{\text{m}}} + w\left( \varphi \right),$$
(1)

The deformed curve of the mid-layer expressed by Eq. (1) in the envelope method [10] is used to position the tooth. In general, Eq. (1) is also used to construct equidistant cam profiles to maintain the designed curve deformation. However, the expression of the curve by Eq. (1) is not accurate enough. It can be seen in Figure 1 that the polar angle corresponding to the polar diameter ρ should be \(\varphi\)1, not \(\varphi\). Therefore, ρ(\(\varphi\)) in Eq. (1) only describes the polar diameter accurately, but do not describe the polar angle clearly. Chen et al. [14] obtained the deformed curve length of the mid-layer by integrating ρ(\(\varphi\)) with respect to \(\varphi\) and found that the deformed curve length is larger than the arc length calculated on the initial circle. Moreover, the geometric elongation is much more significant than the elongation caused by the circumferential assembly force. Considering this deviation, the current design manual [11] has made the following approximate correction to the polar angle:

$$\varphi_{1} = \varphi + \frac{v\left( \varphi \right)}{{r_{{\text{m}}} }},$$
(2)

Chen et al. [26] derived the relationship between \(\varphi\)1 and \(\varphi\) according to the assumption of non-elongation on the mid-layer,

$$\varphi = \int_{0}^{{\varphi_{1} }} {\sqrt {\left[ {1 + \frac{w\left( \varphi \right)}{{r_{{\text{m}}} }}} \right]^{2} + \left[ {\frac{{\dot{w}\left( \varphi \right)}}{{r_{{\text{m}}} }}} \right]^{2} } } {\text{d}\varphi} = F\left( {\varphi_{1} } \right),$$
(3)

and substitute \(\varphi\)1 for \(\varphi\) to position the tooth more accurately in the conjugate equation [10]. However, the object of integration in Eq. (3) is still ρ(\(\varphi\)), so the deviation caused by geometric elongation still exists. Yang et al. [15] proposed that the deformed curve length of the mid-layer under the action of an elliptical cam should be integrated with polar diameter ρ(\(\varphi\)1), which is directly expressed by its real polar angle, \(\varphi\)1, to determine the relationship between \(\varphi\)1 and \(\varphi\):

$$\varphi = \frac{1}{{r_{{\text{m}}} }}\int_{0}^{{\varphi_{1} }} {\sqrt {\rho^{2} \left( {\varphi_{1} } \right) + \dot{\rho }^{2} \left( {\varphi_{1} } \right)} {\text{d}}\varphi_{1} } ,$$
(4)

The relationship between \(\varphi\)1 and \(\varphi\) expressed by Eq. (4) is more accurate than that in Eq. (3). Based on the assumption of non-elongation of the mid-layer, the FS is assumed to be closely attached to the cam after deformation. Then the tooth can be positioned directly by ρ(\(\varphi\)1). When calculating the tooth trajectory and backlash between tooth pairs, the tooth displacements are calculated as follows:

$$\left\{ \begin{gathered} w_{{1}} = \rho \left( {\varphi_{1} } \right) - r_{{\text{m}}} , \\ v_{{1}} = - \int_{0}^{{\varphi_{{1}} }} {w_{{1}} {\text{d}} \varphi_{{1}} ,} \\ \theta_{{1}} = \frac{1}{{r_{{\text{m}}} }}\left( {v_{{1}} - \dot{w}_{1} } \right). \\ \end{gathered} \right.$$
(5)

The calculation in Eq. (5) can be performed according to the Geometric Equation [7] that satisfies the non-elongation assumption. It does not involve complicated force analysis and calculation, which can significantly simplify the design process. However, if the FS is not closely contacting with the cam, the deviations of displacements calculation will occur.

Besides, it is noted that the independent variable \(\varphi\)1 of the displacements w1, v1, and θ1 in Eq. (5) is the polar angle of ρ(\(\varphi\)1). However, in the existing geometric relationship of the displacements, the independent variable of w, v, and θ is the polar angle \(\varphi\) on the mid-layer circle without deformation [7, 10]. The descriptions of the displacements in terms of the deformed geometry will also cause displacement calculation deviations.

As mentioned above, factors such as the differences in the independent variables of deformation and displacement, the elongation of the FS under the assembly force, and the change in the contact state between the cam and the FS will cause deviations in the calculation of the FS deformation, and then affect the tooth positioning accuracy. Proposing a displacement calculation method based on force analysis of the FS and cam assembly might not only reveal the actual contact state of them but also reduce the deviations of displacement calculation and improve the accuracy of tooth positioning.

Model and Methodology Based on Force Analysis

At first, the model and methodology of deformation and force analysis of the FS is presented using the uniform thickness ring proposed by Ivanov [7], the tooth effect will be discussed in Section 4 later. As the calculation of the ring model is carried on the mid-layer, the cam profile is defined as contacting the ring on the mid-layer.

Ring Deformation Calculation Piecewise with Wrapping Angle

The analytical model of the ring deformed by the cam is shown in Figure 2 (due to the symmetry of the model, only the first quadrant is illustrated here). In Figure 2, the radius of the mid-layer of the ring (arc AC) is rm, the expression of the cam profile (curve A'C') is ρ(\(\varphi\)1), the y-axis coincides with the cam’s major axis, and the x-axis coincides with its minor axis. Under the assumption that the ring is in close contact with the cam, the deformed arc AC will coincide with curve A'C', so its deformed shape can also be expressed by ρ(\(\varphi\)1).

Figure 2
figure2

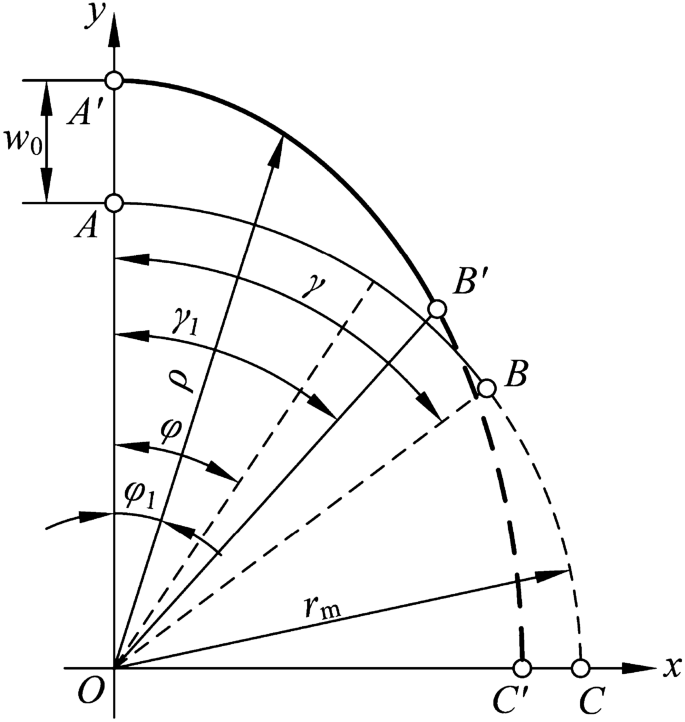

Schematic diagram of the piecewise deformation of a ring under a cam

In this case, the tooth positioning can be achieved by ρ(\(\varphi\)1) and Eq. (5). For the convenience of description, this method for calculating the displacement of the ring is named the Geometric Method. According to the content of Section 2, the ring and the cam may only be in contact partially, so the concept of wrapping angle is introduced to analyze the ring model.

Suppose that the segment AB (in Figure 2) on the ring continuously contacts the cam to form a curve A'B' after deformation, and the segment BC’s deformed shape B'C' does not contact the cam. Then only the deformed shape A'B' can be determined with the expression of ρ(\(\varphi\)1). Based on the assumption of non-elongation in the circumferential direction, the polar angle γ (corresponding to undeformed arc AB) and the polar angle γ1(corresponding to deformed curve A'B') have the relationship in Eq. (4). Define γ and γ1 as the wrapping angles of ring AB before and after deformation, respectively. Therefore, the ring inside the wrapping angle (0 ≤ \(\varphi\)1 ≤ γ1) is in close contact to the cam, so the curve A'B' is constrained on the geometric profile of the cam, and its displacement can be calculated by Eq. (5); the arc BC, outside the wrapping angle (γ ≤ \(\varphi\) ≤ π/2), needs to solve the bending differential equation [7] to obtain the deformation calculation formula:

$$\left\{ \begin{gathered} w_{2} = B_{1} \sin \varphi + B_{2} \cos \varphi - \frac{{r_{{\text{m}}}^{2} }}{EI}\left( {X_{1} + X_{2} r_{{\text{m}}} } \right) \\ \;\; - \frac{{r_{{\text{m}}}^{3} }}{2EI}X_{2} \varphi \cos \varphi , \\ v_{2} = - \int_{{{\uppi }/2}}^{\varphi } {w_{2} {\text{d}}\varphi } , \\ \theta_{2} = \frac{1}{{r_{{\text{m}}} }}\left( {v_{2} - \dot{w}_{2} } \right), \\ \end{gathered} \right.$$
(6)

where w2 is the radial displacement, v2 is the circumferential displacement, θ2 is the normal rotation angle; E is the elastic modulus, and I is the moment of inertia of cross area. The unknown coefficients B1, B2, X1, and X2, can be determined by boundary conditions (in Section 3.2.2). For the convenience of description, the method of calculating the ring displacement segmented with wrapping angle by the Eq. (5) and Eq. (6) is named the Piecewise Method.

Wrapping Angle and Ring Force Calculation

To determine the wrapping angle of the ring to the cam and the force condition of the ring, a force analysis of the ring deformed under the action of the cam is required. Inside the wrapping angle, the ring bears the radial external load caused by the contact of the cam, while there is no external load outside the wrapping angle, so the force analysis of the ring is segmented by the wrapping angle.

Force Analysis of Ring

According to the deformation analysis in Section 3.1, the shape change of the ring inside the wrapping angle (0 ≤ \(\varphi\)1 ≤ γ1) from AB to A'B' is known, then its curvature change can be obtained for calculating the bending moment M1 (Figure 3a) on any cross-section by using the elastic equation [7]. In addition, there are also a circumferential force FN1, a shear force FS1, and a radial external load qr on any section within the A'B' segment. Mγ, F, and F are the corresponding forces in the cross-section, which is on the wrapping boundary.

Figure 3
figure3

Free body diagram of the ring

According to the equilibrium equation [7], the assembly forces on the ring inside the wrapping angle can be calculated as follows:

$$\left\{ \begin{gathered} M_{1} = - \frac{EI}{{r_{{\text{m}}}^{2} }}\left( {\ddot{w}_{1} + w_{1} } \right), \hfill \\ F_{{{\text{N1}}}} = - \frac{{M_{1} }}{{r_{{\text{m}}} }} + F_{{{\text{N0}}}} , \hfill \\ F_{{{\text{S1}}}} = \frac{{\dot{M}_{1} }}{{r_{{\text{m}}} }}, \hfill \\ q_{{\text{r}}} = - \frac{{\ddot{M}_{1} + M_{1} }}{{r_{{\text{m}}}^{2} }} + \frac{{F_{{{\text{N0}}}} }}{{r_{{\text{m}}} }}, \hfill \\ \end{gathered} \right.$$
(7)

where FN0 is the integral constant to be determined.

Although the deformed shape of the ring outside the wrapping angle is unknown, it should meet the condition of force balance. Before deformed, this segment is an initial arc within γ ≤ \(\varphi\) ≤ π/2. When deformed, it has a circumferential force FN2, a shear force FS2, and a bending moment M2 in any cross-section (Figure 3b). The cross-section on the minor axis has bending moment X1 and circumferential force X2. The forces of the ring outside the wrapping angle can be calculated as following [14]:

$$\left\{ {\begin{array}{*{20}l} {M_{2} = X_{1} + X_{2} r_{m} \left( {1 - \sin \varphi } \right),} \hfill \\ {F_{N2} = X_{2} \sin \varphi ,} \hfill \\ {F_{S2} = - X_{2} \cos \varphi .} \hfill \\ \end{array} } \right.$$
(8)

Determine Wrapping Angle with Boundary Conditions

Since the wrapping angle γ (or γ1) is unknown, the above-mentioned piecewise calculation conditions of deformation and force are currently incomplete. Based on the deformations and forces of the whole ring, the wrapping angle can be determined according to reasonable boundary conditions. Besides the wrapping angle, there are the other four unknown quantities: B1, B2, X1, and X2 (Eq. (6)). Refer to the boundary conditions of analyzing of the wrapping angle of the ring to the double-discs, there are

  1. 1)

    \(\dot{w}_{2} |_{{\varphi = {\uppi }/2}} = 0;\)

  2. 2)

    \(w_{1} |_{{\varphi_{1} = \gamma_{1} }} = w_{2} |_{\varphi = \gamma } ;\)

  3. 3)

    \(\dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} = \dot{w}_{2} |_{\varphi = \gamma } ;\)

  4. 4)

    \(M_{1} |_{{\varphi_{1} = \gamma_{1} }} = M_{2} |_{\varphi = \gamma } ;\)

  5. 5)

    \(v_{1} |_{{\varphi_{1} = \gamma_{1} }} = v_{2} |_{\varphi = \gamma } .\)

Substituting Eqs. (5)‒(8) into the boundary conditions 1)–4), the following formulae can be obtained after simplification:

$$\left\{ \begin{gathered} B_{1} = \frac{1}{{C_{1} }}\left\{ \begin{gathered} \left[ {2\cos \gamma - \left( {2\gamma - {\uppi }} \right)\sin \gamma } \right]\ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\ + \left[ {4\sin \gamma + \left( {2\gamma - {\uppi }} \right)\cos \gamma } \right]\dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\ \end{gathered} \right\}, \hfill \\ B_{2} = \frac{{\uppi }}{{C_{1} }}\left( {\cos \gamma \ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} + \sin \gamma \dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} } \right), \hfill \\ X_{1} = - \frac{EI}{{C_{1} r_{{\text{m}}}^{2} }}\left[ \begin{gathered} \left( {C_{2} + 4\cos \gamma } \right)\ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} + C_{1} w_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\ + 4\sin \gamma \left( {1 - \sin \gamma } \right)\dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\ \end{gathered} \right], \hfill \\ X_{2} = \frac{4EI}{{C_{1} r_{{\text{m}}}^{3} }}\left[ {\cos \gamma \ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} + \sin \gamma \dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} } \right], \hfill \\ \end{gathered} \right.$$
(9)

where \(C_{1} = 2\gamma - {\uppi } + 2\cos \gamma \sin \gamma\), \(C_{2} = 2\gamma - {\uppi } - 2\cos \gamma \sin \gamma .\)

As γ and γ1 has the relationship in Eq. (4), B1, B2, X1, and X2 can be converted into variables about γ1. Then the wrapping angle can be solved with the following formula according to boundary condition 5):

$$\begin{aligned} & \frac{1}{{C_{1} }}\left[ {4\cos^{2} \gamma + C_{2} \left( {\frac{{\uppi }}{2} - \gamma } \right)} \right]\ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\&\quad + \left[ {\frac{1}{{C_{1} }}\left( {2{\uppi } - 4\gamma } \right)\cos^{2} \gamma + 3} \right]\dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} \hfill \\&\quad + \left( {\frac{{\uppi }}{2} - \gamma } \right)w_{1} |_{{\varphi_{1} = \gamma_{1} }} + \int_{0}^{{\gamma_{1} }} {w_{1} } {\text{d}} \varphi_{1} { = }0. \hfill \\ \end{aligned}$$
(10)

When γ1 obtained from Eq. (10), the corresponding γ can be determined by Eq. (4). It can be noted from Eq. (10) that the wrapping angle only depends on the shape of the cam profile. As the wrapping angle is obtained, then B1, B2, X1, and X2 can be determined by Eq. (9). Furthermore, the ring displacement outside the wrapping angle can be determined by Eq. (6), and the assembly forces expressed by Eq. (7) and Eq. (8) can also be determined.

Circumferential Strain and Elongation

In the theoretical calculation of the ring displacement, the circumferential non-elongation assumption is adopted, which is considered that the deformation is mainly formed by the shape change under bending moment rather than the elongation caused by the circumferential force. In fact, under the circumferential forces FN1 and FN2 shown in Figure 3, the ring will be extended with a specific elongation. This elongation is often ignored because it is too small, but it is enough to change the actual contact state of the FS to the WG, thus causing a specific tooth positioning deviation.

Since the circumferential force is continuous, the integral constant FN0 can be determined by the circumferential force in the cross-section at wrapping angle:

$$F_{{{\text{N0}}}} = X_{2} \sin \gamma { + }\frac{1}{{r_{{\text{m}}} }}M_{1} |_{{\varphi_{1} = \gamma_{1} }} .$$
(11)

According to the circumferential forces in Eqs. (7) and (8), the circumferential strain of the ring

$$\varepsilon_{\rm N} = \left\{ {\begin{array}{*{20}c} {\frac{{\delta_{0}^{2} }}{{12r_{\rm m} }}\left( {\chi_{\gamma } - \chi_{1} + \frac{{4C_{3} }}{{r_{\rm m}^{2} C_{1} }}\sin \gamma } \right),} & {0 \le \varphi_{1} \le \gamma_{1} ,} \\ {\frac{{\delta_{0}^{2} C_{3} }}{{3C_{1} r_{\rm m}^{3} }}\sin \varphi ,} & {\gamma \le \varphi \le \frac{\pi }{2},} \\ \end{array} } \right.$$
(12)

where \(\chi_{1} = - {{\left( {\ddot{w}_{1} + w_{1} } \right)} \mathord{\left/ {\vphantom {{\left( {\ddot{w}_{1} + w_{1} } \right)} {r_{{\text{m}}}^{2} }}} \right. \kern-\nulldelimiterspace} {r_{{\text{m}}}^{2} }}\), (denotes the curvature change)

$$\chi_{\gamma } = - \frac{1}{{r_{{\text{m}}}^{2} }}\left[ {\ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} + w_{1} |_{{\varphi_{1} = \gamma_{1} }} } \right],$$
$$C_{3} = \cos \gamma \ddot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} + \sin \gamma \dot{w}_{1} |_{{\varphi_{1} = \gamma_{1} }} .$$

The curvature change is the derivative of the normal angle to the arc length, i.e., \(\chi_{1} = {{\dot{\theta }_{1} } \mathord{\left/ {\vphantom {{\dot{\theta }_{1} } {r_{{\text{m}}} }}} \right. \kern-\nulldelimiterspace} {r_{{\text{m}}} }}\). Therefore, by integrating the circumferential strain εN along the arc length, the circumferential elongation of the ring can be obtained

$$\Delta l_{{\text{N}}} = \left\{ {\begin{array}{*{20}c} {\frac{{\delta_{0}^{2} }}{12}\left( {\frac{{4C_{3} \sin \gamma }}{{r_{{\text{m}}}^{2} C_{1} }}\varphi_{1} + \varphi_{1} \chi_{\gamma } - \frac{{\theta_{1} }}{{r_{{\text{m}}} }}} \right),} & {0 \le \varphi_{1} \le \gamma_{1} ,} \\ {\frac{{\delta_{0}^{2} }}{12}\left[ \begin{gathered} \frac{{4C_{3} }}{{r_{{\text{m}}}^{2} C_{1} }}\left( {\gamma_{1} \sin \gamma + \cos \gamma - \cos \varphi } \right) \hfill \\ + \gamma_{1} \chi_{\gamma } - \frac{{\theta_{\gamma } }}{{r_{{\text{m}}} }} \hfill \\ \end{gathered} \right],} & {\gamma \le \varphi \le \frac{\uppi }{2}.} \\ \end{array} } \right.$$
(13)

Forces and Displacements of Flexspline Assembled with Elliptical Cam

Segment analysis of ring deformation and force based on wrapping angle has previously always been the concept related to the double-disk WG. Because the radius of the eccentric disk is smaller than the radius of the ring, so the ring cannot be wrapped entirely on the disk. The formulae obtained from the present analysis is also applicable to solving the FS cases with a double-disk (Appendix 1).

To the best authors’ knowledge, the deformation of FS assembled with cam has not been investigated based on force analysis. Take elliptical cam for calculation. The model parameters are tabulated in Table 1. The elastic modulus of the ring E = 196 GPa. The polar diameters on the major axis and minor axis of the elliptical cam in Table 1 are calculated by Cмиpнoв formula [10]

$$\left\{ \begin{gathered} \rho_{a} = r_{\rm m} + w_{0} , \hfill \\ \rho_{b} = \frac{{(12r_{\rm m} - 7\rho_{a} ) + 4\sqrt {\rho_{a} (3r_{\rm m} - 2\rho_{a} )} }}{9}, \hfill \\ \end{gathered} \right.$$
(14)
Table 1 Structural parameters of ring and elliptical cam (mm)

and the expression of the cam profile is

$$\rho = \frac{{\rho_{a} \rho_{b} }}{{\sqrt {\rho_{a}^{2} \sin^{2} \varphi_{1} + \rho_{b}^{2} \cos^{2} \varphi_{1} } }}.$$
(15)

To save computer time, the contact model between elliptical cam and ring is established by shell elements in ANSYS environment, and the cam is simplified as a rigid ring with its elliptical shape. The contact elements are established between the inner surface of the flexible ring and the outer surface of the rigid elliptical ring (represents the cam). As the contact pressure of the model is illustrated in Figure 4, it can be seen that the contact between the elliptical cam and the ring exists only in a part of the area near the major axis of the cam, which indicates that the wrapping angle of the ring to the elliptical cam does exist.

Figure 4
figure4

Nephogram of the contact pressure between the ring and elliptical cam

According to Eq. (10), the wrapping angle γ1 = 35.29° (γ = 35.56°) of the ring to the elliptical cam is obtained. Substituting it into Eq. (9), then B1 = 2.553, B2 = 3.486, X1 = − 9.127 N·mm, X2 = 0.58 N is determined. In the finite element model (FEM), the bending moment of the ring at the minor axis is − 9.196 N·mm, and the circumferential force is 0.594 N. Compared with the finite element results, the deviations of the numerical solutions of X1 and X2 are 0.75% and 2.4%, respectively, which indicates that the numerical solutions are very close to the finite element results.

Displacements of Ring under Elliptical Cam

Calculate the displacements of the ring in Table 1 by the geometric method and the piecewise method and extract the displacement results from the FS for reference. Figure 5 illustrates the comparisons between two numerical and simulation results about the radial displacement, the circumferential displacement, and the normal rotation angle.

Figure 5
figure5

Displacements of ring assembled with elliptical cam

In Figure 5, wt1, vt1, and θt1 are numerical results of the radial displacement, the circumferential displacement, and the normal rotation angle calculated by the geometric method, respectively. wt2, vt2, and θt2 are the numerical results of the corresponding displacements calculated by the piecewise method. UX, UY, and ROTZ are the simulation results of the FS. Figure 5 illustrates that the displacements calculated by the two theoretical methods are very close to the results of the FS. Also, the two numerical results of each displacement are entirely the same inside the wrapping angle, but slightly different outside the wrapping angle.

Based on the finite element results, two numerical results are used to minus the corresponding result of the FS to obtain the deviations of the displacements. As shown in Figure 6, Δwt1, Δvt1, and Δθt1 illustrate the radial displacement deviation, the circumferential displacement deviation, and the normal rotation angle deviation of the geometric method. Δwt2, Δvt2, and Δθt2 illustrate the corresponding deviations of the piecewise method.

Figure 6
figure6

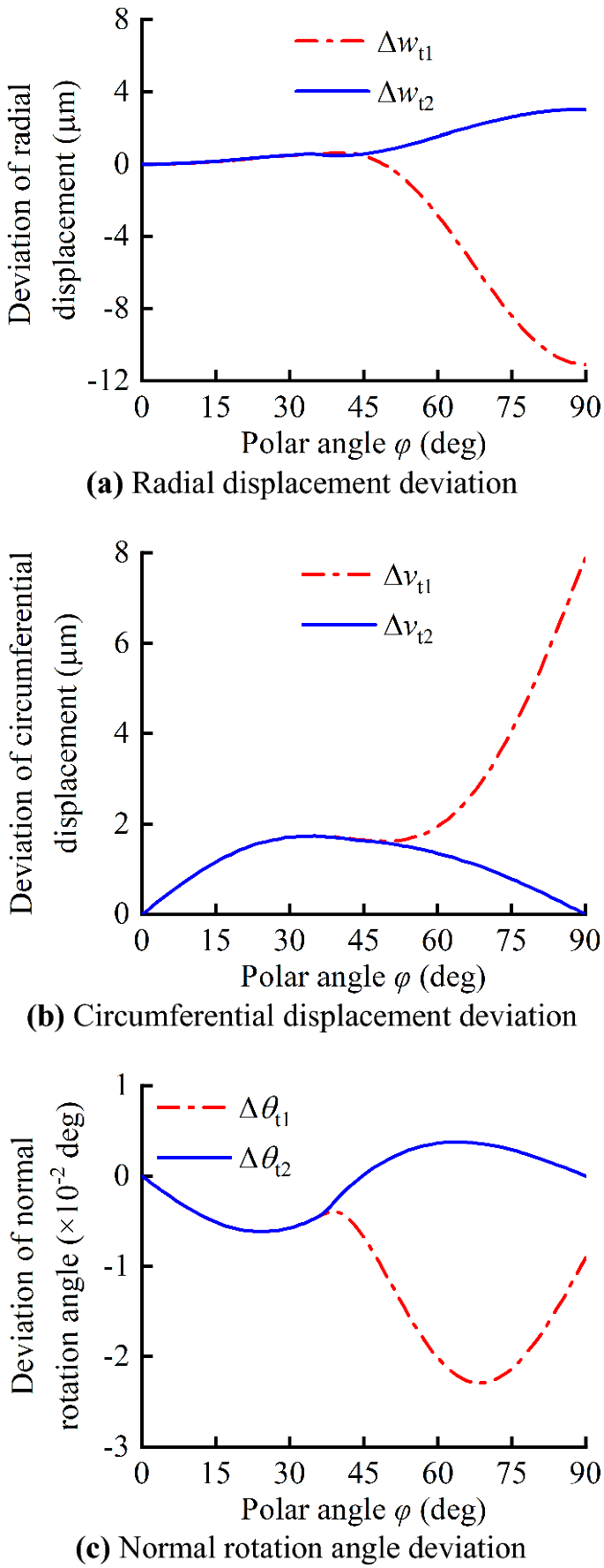

Displacement deviations of ring assembled with elliptical cam

Figure 6a illustrates that Δwt2 almost monotonously increases and Δwt1 (absolute value) increases rapidly outside the wrapping angle. Figure 6b shows that Δvt2 first increases and then decreases, reaching the maximum at the wrapping angle, while Δvt1 increases rapidly outside the wrapping angle. This is because vt2 is integrated from the minor axis to the major axis (Eq. (6)), so Δvt2 accumulates to zero at the minor axis. However, vt1 is still an integral starting from the major axis to the minor axis, even outside the wrapping angle (Eq. (5)), so its deviation Δvt1 is accumulated from the major axis to the minor axis. Figure 6c shows that Δθt2 fluctuates near zero and finally reduced to zero, while Δθt1 fluctuates greatly and does not decrease to zero at the minor axis.

Figure 6 shows that, in general, the deviations of the two numerical results of each displacement are the same inside the wrapping angle, which are mainly caused by the independent variable deviation and circumferential elongation. Moreover, the calculation deviation of the piecewise method outside the wrapping angle is smaller than that of the geometric method. The calculation deviation of the piecewise method is mainly caused by the circumferential elongation, while the geometric deviation is formed under the combined action of circumferential elongation, independent variable deviation and non-contact state outside the wrapping angle. It can be seen from Figure 6 that, overall, the piecewise method eliminates the displacement calculation deviation caused by these factors to a certain extent, so it has a higher calculation accuracy.

Assembly Force of Ring under Elliptical Cam

Calculate the numerical results of the assembly force of the ring, according to Eqs. (7), (8), and (11), and compared with the bending moment M11, tensile force N11, and shear force Q13 of the FS on unit width. There is no direct corresponding simulation result for the radial external load qr, so the load on the unit width of the ring is compared with the contact pressure of the FS.

Figure 7 shows that the numerical results of the assembly forces of the ring are in good agreement with the finite element results. Among them, the bending moment M changes continuously and monotonously from the major axis (\(\varphi\) = 0°) to the minor axis (\(\varphi\) = 90°), and changes the direction at \(\varphi\) = 45° (Figure 7a); the shear force FS increases monotonously at first, then decreases monotonously after a sudden increase within a small range of about 2°‒5° (Figure 7b), the area where the shear force suddenly changes is the wrapping angle position; the circumferential force FN increases monotonously from the major axis to the minor axis, and the growth rate increases at first and then slows down (Figure 7c). In Figure 7d, the external load qr of the ring decreases monotonously inside the wrapping angle, and most of the contact pressure of the FS of the ring inside the wrapping angle is basically consistent with that of qr. Different from the phenomenon that qr drops to zero directly outside the wrapping angle, the contact pressure increases sharply near the wrapping angle and then rapidly decreases to zero, which is due to the additional pressure caused by the shear jump at the wrapping angle of the FS. The results in Figure 7 show that the piecewise method is basically accurate on the force analysis and calculation of the ring.

Figure 7
figure7

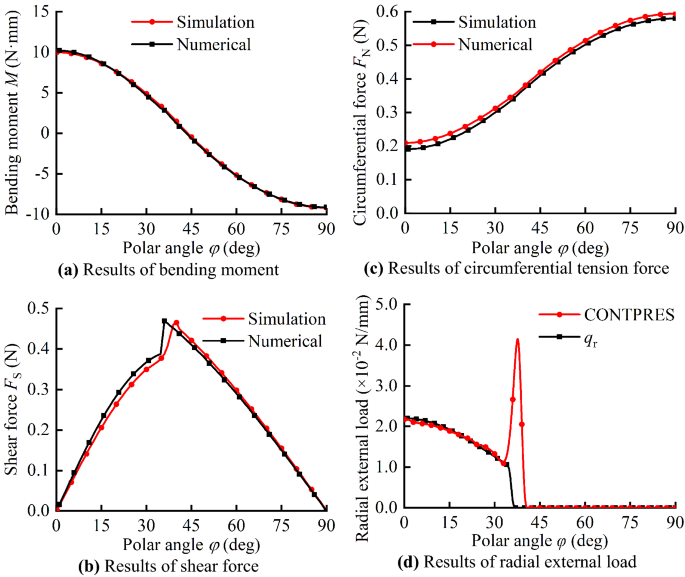

Assembly force of ring under elliptical cam

Circumferential Strain and Elongation of the Ring under the Elliptical Cam

Figure 6 shows that the elongation of the ring under the assembly force has a specific effect on the displacement deviation, especially on the circumferential displacement deviation. Calculate the circumferential strain and elongation of the ring, according to Eq. (12) and Eq. (13), and extract the corresponding results in the FS for comparison. The results are illustrated in Figure 8.

Figure 8
figure8

Circumferential strain and elongation of the ring under the elliptical cam

The circumferential strain in Figure 8a has the same trend as the circumferential force in Figure 7c and its numerical result is basically consistent with the finite element result. The elongation of the ring obtained by integrating the circumferential strain along the arc length monotonically increases, and its numerical result is basically the same as the simulation result (Figure 8b). In Figure 8b, when \(\varphi\) = 90°, the total elongation of the ring in the first quadrant under the assembly force is about 0.16 μm.

Apply a 50 N tension force on the ENL (if the force is applied in other positions, the rack will bend) of the rack model (parameters in Table 2, Section 3.3), the elongation of the rack is 7.7 μm. Under the same conditions, the elongation of the smooth beam, which thickness is the same as the rack’s wall thickness, is 8 μm. The elongation of rack is only about 3.75% smaller than that of the smooth beam. Therefore, the forces of the ring can be regarded as that of the FS.

Table 2 Basic parameters of rack model

Offset Correction of the Flexspline Equivalent Neutral Layer

In Section 3, the force and deformation analysis of the ring is based on the assumption of circumferential non-elongation of the mid-layer, in which the radius rm is an important parameter. As the FS is simplified to a uniform thickness ring, the ENL is exactly its GML. However, when considering the tooth structure, there is an offset of the ENL, or even it is no longer in a cylindrical shape. The offset of the GML to the ENL will cause the offset deviation in both the geometric method and the piecewise method.

Equivalent Neutral Layer of Flexspline

Kondo [9] conducted bending tests on simple trapezoidal racks with gear modulus of m = 32 mm and with different rack thickness and found that the ANL of the rack fluctuates with the tooth structure (Appendix 2). As for the FS, its ANL will also fluctuate along the cylinder, so it is impossible to effectively calculate the deformation or stress based on such an ANL shape. Therefore, find a cylindrical surface on the FS: when the FS is bent, although the circumferential strain of the cylindrical surface is not always constant to zero, the strain integral within a gear pitch equals to zero, i.e., the arc length of the layer within a tooth pitch is maintained constant. This cylindrical surface is defined as the ENL of the ring gear, and its radius is ren.

Take a short section of the FS and reduce it to a straight rack model for bending analysis. Figure 9 shows the three layers when the rack model is bent: the ANL, the GML, and the ENL. In Figure 9, hn is the full tooth depth, hf is the dedendum height, sf is the tooth root thickness (defined as the thickness of the straight tooth profile extending to the tooth root), α is the tooth profile angle, rc is addendum arc radius, and ri is dedendum arc radius. dmn is the relative offset distance between the ENL and the GML.

Figure 9
figure9

Schematic diagram of rack structure and equivalent neutral layer

In order to express the degree of relative offset between the GML and the ENL, the ENL offset ratio is defined as the ratio of the offset distance to half the wall thickness

$$\Delta _{{{\text{mn}}}} = \frac{{2d_{{{\text{mn}}}} }}{{\delta_{0} }}.$$
(16)

As illustrated in Figure 10, Establish the FS of the rack by 2D solid elements in ANSYS environment, solve the model with a specific bending moment, for instance, 50 N·m. Then perform the following operations in the post-processing: 1) Establish multiple paths parallel to the Y-axis (Figure 9), and map the X-strain results to the path, connect the points with zero strain result on each path to obtain the ANL distribution of the rack; 2) Establish a path parallel to the X-axis according to the initial Δmn, and map the X-strain results to the path; 3) integrate the strain in the X-direction to obtain the Elongation Δp within a gear path; 4) iterative the Y-coordinate of the path to make the elongation within a gear pitch approach to zero.

Figure 10
figure10

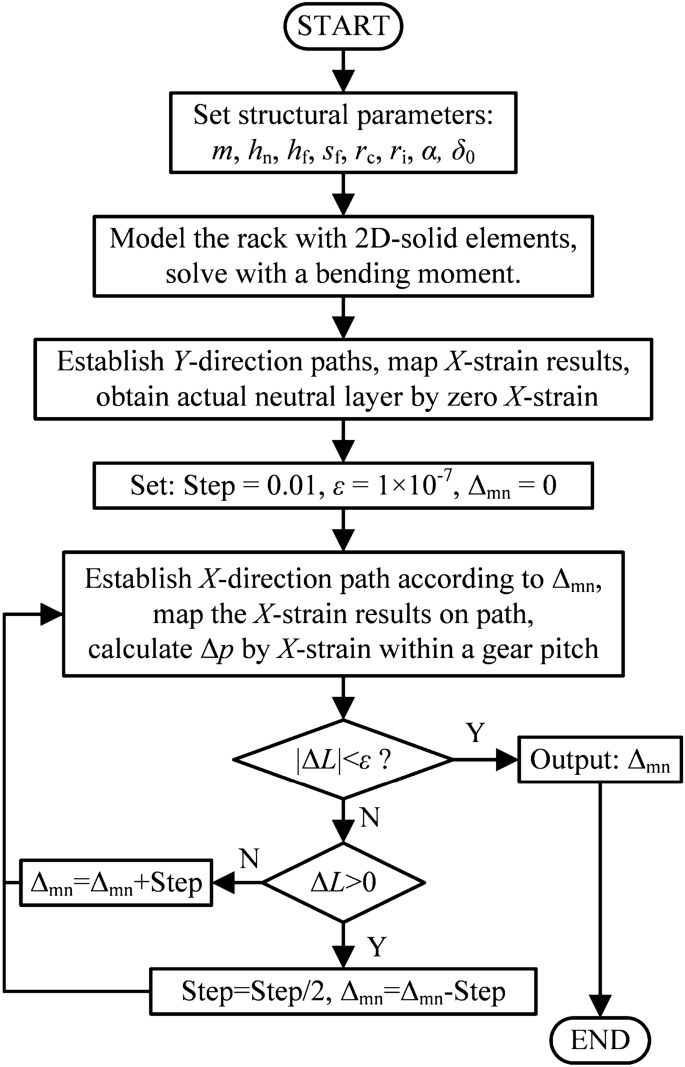

Flowchart for calculating neutral layer position and offset ratio

Circumferential Strain and Elongation on Mid-layer due to Offset from Equivalent Neutral Layer

When the FS is deformed by inserting a cam, the assembly force, especially the circumferential force, will make both GML and the ENL producing a specified elongation. Besides, an amount of expansion or contraction produced by circumferential strain caused by bending will be superimposed on the GML due to the offset from the ENL. The circumferential strain on the GML caused by bending can be calculated according to the ENL offset ratio

$$\varepsilon_{{{\text{mn}}}} = \frac{{\Delta_{{{\text{mn}}}} \delta_{0} }}{{2r_{{{\text{en}}}}^{2} }}\left( {\ddot{w} + w} \right),$$
(17)

where the radial displacement w is applicable to be provided by any of the geometric method or the piecewise method. The addition elongation of the GML caused by ENL offset can be obtained by integrating εmn along the arc length

$$\Delta l_{{{\text{mn}}}} = \left\{ {\begin{array}{*{20}c} {\frac{{\Delta_{{{\text{mn}}}} \delta_{0} }}{{2r_{{{\text{en}}}} }}\int_{0}^{{\varphi_{1} }} {\left( {\ddot{w}_{1} + w_{1} } \right)} {\text{d}} \varphi_{1} ,} & {0 \le \varphi_{1} \le \gamma_{1} ,} \\ {\frac{{\Delta_{{{\text{mn}}}} \delta_{0} }}{{2r_{{{\text{en}}}} }}\left[ \begin{gathered} \int_{0}^{{\gamma_{1} }} {\left( {\ddot{w}_{1} + w_{1} } \right)} {\text{d}} \varphi_{1} \hfill \\ + \int_{\gamma }^{\varphi } {\left( {\ddot{w}_{2} + w_{2} } \right)} {\text{d}} \varphi \hfill \\ \end{gathered} \right],} & {\gamma \le \varphi \le \frac{\uppi }{2}} \\ \end{array} } \right..$$
(18)

Mid-layer Offset Characteristics of Rack

By using the finite element method shown in Figure 10, the simple trapezoidal rack tested by Kondo [9] is modeled and calculated and then compared with the experimental results. The simulation results show good agreement with the experimental results (Appendix 2), which verified the accuracy of the present simulation method. In order to analyze the mid-plane characteristics of rack considering the ENL offset, a parametric rack model with detailed tooth profile features (Figure 9, Table 2) is established and the simulated according to the flowchart illustrated in Figure 10. Elastic modulus of rack E = 196 GPa.

The position of the ANL of the rack obtained by the process shown in Figure 10 is illustrated in Figure 11. because of the symmetry of the structure, the horizontal axis is valued within half the tooth pitch (πm/2), from the tooth symmetry line to the tooth space symmetry line.

Figure 11
figure11

Distribution of the actual neutral layer

It can be seen from Figure 11 that: 1) the ANL of the rack has a wavy shape that deviates outward from the GML (> δ0/2); 2) the offset distance at different positions on the ANL varies continuously, and the maximum offset is achieved at the stress concentration position (near the connection between the dedendum arc and the root line); 3) the offset of the ANL at the position of the tooth slot symmetry line is more significant than that at the tooth symmetry line. These results show that the offset position of the ANL is not only related to the tooth structure but also affected by the stress concentration at the tooth space. Thus, the tooth dedendum arc, which can significantly influence the stress concentration, should also be considered when analyzing the offset of the neutral layer.

Induction of Equivalent Neutral Layer Offset Ratio Formula

According to Section 4.3, the geometric parameters of the tooth may affect the position of ANL. Analyze the sensitive parameters of the offset ratio of ENL by using the dimensional analysis, and then summarize the empirical formula of the offset ratio can provide a theoretical basis of the correction of the ring model for calculating the FS deformation and force.

Sensitive Parameter Analysis

According to the rack shown in Figure 9, the structural parameters that may affect the ANL offset include tooth depth, tooth thickness, dedendum arc radius, tooth profile angle, and rack thickness. Among them, in the univariate analysis, if the tooth thickness is constant, the change of tooth profile angle can be reflected by the change of tooth root thickness, so the change of tooth profile angle and tooth thickness are considered together as the change of tooth root thickness.

Rack experiments [9] and simulations (Appendix 2) have shown that the rack thickness has a significant effect on the offset of the rack’s ANL. Therefore, three structural parameters: tooth depth, tooth root thickness, and dedendum arc radius, are taken to be analyzed here. Taking the parameters in Table 2 as the basis and perform univariate simulations. The change of the rack’s ANL with the three parameters is shown in Figure 12.

Figure 12
figure12

Actual neutral layers of rack with different structures

Figure 12a shows that when the tooth depth coefficient hn* valued with 1.65, 2 and 3 (hn* = 3 exceeds the standard value of tooth height coefficient 2.35, here only valued for the purpose of analyzing the influence of tooth depth), the ANL distribution of the rack is basically the same, indicating that the change in tooth depth has almost no effect on the ANL when the tooth depth is enough. Figure 12b and Figure 12c show that when the tooth root thickness coefficient Ks valued with 0.45, 0.55 and 0.65, or when the dedendum arc radius coefficient ri* valued with 0.02, 0.4, and 0.8, the ANL of the rack is significantly raised and the shape changes. Besides the rack thickness, it is illustrated in Figure 12 that the sensitive parameters of ANL offset also include tooth root thickness and dedendum arc radius.

Dimensional Analysis of Equivalent Neutral Layer Offset Ratio

According to the Π theorem in dimensional analysis [27], Δmn as the dependent variable is a dimensionless quantity, and the three independent variables: δ0, sf, and ri, have the same dimension of L and with a power of 1. Since the independent variables have the same dimension, one of them can be taken as the basic quantity. In this problem, it is appropriate to take δ0 as the basic quantity. Then the functional relationship between the new dimensionless variables is

$$f\left( {{\Pi }_{1} \left( {\Delta _{{{\text{mn}}}} } \right),{\Pi }_{2} \left( {{{s_{{\text{f}}} } \mathord{\left/ {\vphantom {{s_{{\text{f}}} } {\delta_{0} }}} \right. \kern-\nulldelimiterspace} {\delta_{0} }}} \right),{\Pi }_{3} \left( {{{r_{{\text{i}}} } \mathord{\left/ {\vphantom {{r_{{\text{i}}} } {\delta_{0} }}} \right. \kern-\nulldelimiterspace} {\delta_{0} }}} \right)} \right) = 0,$$
(19)

where Π1mn) represents the ENL offset ratio, Π2(sf /δ0) reflects the relative thickness of the tooth (i.e., the width of the tooth root relative to the rack thickness), and Π3(ri /δ0) reflects the size of the dedendum arc relative to the rack thickness.

In order to obtain the function f of Eq. (19), 25 finite element rack models are designed and established for orthogonal simulation according to the parameter value recommendations [7, 10]. The ENL offset ratio Δmn, tabulated in Table 3, is obtained by the method illustrated in Figure 10. Due to the coupling constraint between the maximum dedendum arc radius and the maximum tooth root thickness, the items ‘–’ in Table 3 indicate that the group of parameters exceed the geometric constraint.

Table 3 Orthogonal simulation results of equivalent neutral layer offset ratio Δmn (%)

Table 3 shows that the ENL offset ratio of the rack increases monotonously with the relative tooth root thickness and increases monotonically with the relative dedendum arc radius. The results in Table 3 expressed as contour lines illustrated in Figure 13. The offset ratio has a linear relationship with the relative root thickness and the relative dedendum arc radius. When expressed in the Cartesian coordinate system, the offset ratio will appear as a spatial plane.

Figure 13
figure13

Contour map of the simulation results of the equivalent neutral layer offset ratio Δmn

Fit the ENL offset ratio Δmn in Table 3 with the general equation of the space plane as follows:

$${\Pi }_{1} = {\Pi }_{0} + A{\Pi }_{2} + B{\Pi }_{3} .$$
(20)

After fitting, the parameters in Eq. (20) are: Π0 = − 7.3191, A = 11.8458, B = 13.6256. The R-Square and Reduced Chi-Sqr of the fitting are 0.9891 and 3.455 × 10−2, respectively. The contour map of the fitted results of the ENL offset ratio is illustrated in Figure 14.

Figure 14
figure14

Contour map of the fitted results of equivalent neutral layer offset ratio Δmn

Then the ENL offset ratio Δmn has the following relationship with tooth root thickness, dedendum arc radius, and rack thickness (or wall thickness of FS):

$$\Delta _{{{\text{mn}}}} = \frac{{\left( { - 7.3191\delta_{0} + 11.8458s_{{\text{f}}} + 13.6256r_{{\text{i}}} } \right)}}{{100\delta_{0} }}.$$
(21)

The empirical formula of the ENL offset ratio Δmn makes it possible to calculate the position of the ENL of the FS numerically and to improve the ring model for calculating the displacement of FS. Alternatively, it can be used to evaluate the tooth circumferential positioning deviation when calculating the FS displacement on GML.

Solid Finite Element Models of Flexspline-cam Assembly for Verification

In Section 2, The assembly forces and deformation of the FS under the action of cam WG are analyzed, and then the offset position of the ENL of the FS considering the tooth effect is obtained in Section 3. To verify the accuracy of the piecewise method in calculating the displacement on the ENL of the FS, the solid FS models with detailed tooth information are established to assemble with ring-shaped cams for contact analysis.

Model of Ring-shaped Flexspline Assembling Elliptical Cam

The structural and tooth parameters of the ring-shaped FS are tabulated in Table 4. The FS is modeled by 3D-solid elements, and the cam, modeled by shell elements, is designed to have the same width of the FS. The profile of cam is calculated with the inner surface radius of FS, according to Eq. (14) and Eq. (15). Contact elements are arranged between the inner surface of the FS and the outer surface of the cam. The element size near the mid-layer of the FS is 0.035 mm. The assembly model is shown in Figure 15. the elastic modulus of the model material is E = 196 GPa, the Poisson’s ratio and friction coefficient are set to zero.

Table 4 Parameters of ring-shaped flexspline
Figure 15
figure15

Ring-shaped flexspline assembling elliptical cam

Model of Cup-shaped Flexspline Assembling Elliptical Cam

Figure 16 illustrates the structure of a cup-shaped FS, which is formed by adding a cup to the ring-shaped FS in Section 5.1. In Figure 16, Sf, Sm, and Sb are the front, middle, and rear cross-section positions on the tooth rim, respectively. L is the cup length of the FS, Rfi is the rounding radius of the cup bottom, and δ1 is the wall thickness of the flexible cup. When modeling in ANSYS, in order to reduce the calculation scale, the flange at cup bottom used to fix the FS is not modeled. Then, the fixed constraint placed on a cylindrical surface with a radius Rb can play the same role.

Figure 16
figure16

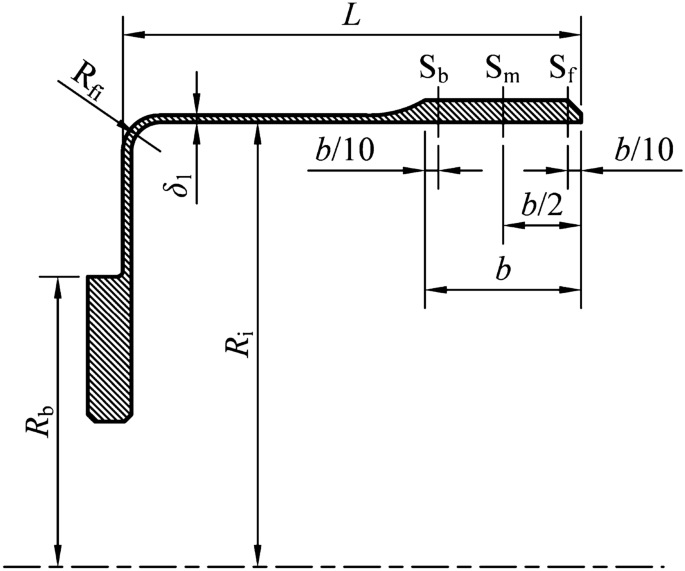

Schematic of cup-shaped flexspline

The material settings are the same as Section 5.1 but considering the Poisson’s ratio (υ = 0.3). As the cup-shaped FS deforms, the outer ring of the flexible bearing will achieve a taper deformation accordingly. To avoid bearing deformation affecting the results, set the WG to an elliptical ring with a width of 0.4 mm. The parameters of the tooth rim of the cup-shaped FS are the same as those in Table 4, and the remaining parameters are tabulated in Table 5.

Table 5 Structural parameters of cup-shaped flexspline mm

Results and Discussions

Results of Ring-shaped Flexspline Assembling Elliptical Cam

According to Eq. (21), the ENL offset ratio of the model is Δmn = 8.86%. Referring to the parameters in Table 4, the radii of the GML and the ENL of the FS are: rm = 29.119 mm and ren = 29.152 mm, respectively. Set the maximum radial displacement w0 = 0.375 mm and perform numerical and simulation calculations on the deformation and force of the ring-shaped FS.

Results of Circumferential Strain and Elongation

Extract the circumferential strain elongation of the FS on GML and ENL in the FS to compared with the numerical results. According to Eq. (12) and Eq. (13), there are only circumferential strain εen = εN and elongation Δlen = ΔlN on the ENL of the ring-shaped FS. Referring to Eq. (17) and Eq. (18), besides εN and ΔlN, on the GML of the FS, there will superimpose a circumferential strain εmn and elongation Δlmn caused by offset from the ENL. Therefore, on the GML, the circumferential strain εm = εN + εmn, and the circumferential elongation Δlm = ΔlN + Δlmn.

Figure 17 illustrates the results of circumferential strain and elongation. Because the ANL of the FS is fluctuating, then the finite element results of the circumferential strain extracted along the circular path of both the ENL and the GML are also fluctuating (Figure 17a). It is shown that the numerical solutions of the circumferential strain on the ENL and the GML are basically consistent with the corresponding finite element results. The maximum absolute value of εm is about 10 times the maximum value of εen.

Figure 17
figure17

Circumferential strain and elongation of ring-shaped flexspline

The numerical results of circumferential elongation of GML and ENL shown in Figure 17b are in good agreement with the finite element results. Among them, the elongation result Δlen on the ENL shows a monotone increasing trend. Affected by the variation of circumferential strain εm, the GML is compressed at first and then elongated along the circumferential direction. The maximum absolute value of Δlm is about 3 times of the maximum value of Δlen.

The above results show that the piecewise method for analyzing the ring model can accurately solve the forces of the ring-shaped FS. meanwhile, the empirical formula of the ENL offset ratio (Eq. (21)) is proofed to be accurate enough by the circumferential strain and elongation on the GML.

Results of Tooth Positioning

Use the intersection of the tooth symmetry line with the geometrical mid-layer or with the ENL of the FS as the tooth positioning point. On the FS model in Section 6.1.1, the radial displacement and circumferential displacement of the tooth positioning point are extracted on each tooth positioning point. However, the rotate angle of the tooth symmetry line cannot be extracted from the model directly. Then the angle can be calculated according to the radial displacement and circumferential displacement as follows:

$$\theta = \arctan \left( {\frac{{v_{\rm a} - v_{\rm m} }}{{R_{\rm a} + w_{\rm a} - R_{\rm m} - w_{\rm m} }}} \right),$$
(22)

where Rm, wm, and vm are the radial and circumferential displacements of the tooth positioning point, while wa and va are the radial and circumferential displacements on the middle point of tooth top. Ra is the outside radius of FS.

Position the tooth on the GML and calculate its displacement by the geometric method. Then minus the displacement results by that of the FS on GML. The deviations are recorded as Δwg, Δvg, and Δθg. Then position the tooth on the ENL and calculate its displacement by piecewise method. Then minus the displacement results by that of the FS on ENL. The deviations are recorded as Δwp, Δvp, and Δθp. Figure 18 illustrates the comparison of these displacement deviations.

Figure 18
figure18

Positioning deviation of tooth on flexspline

The results in Figure 18 are similar to those in Figure 6. The change of Δwg and Δwp in Figure 18a are consistent with those of Δwt1 and Δwt2 in Figure 6a, respectively, indicating that the offset of the neutral layer has little effect on the radial positioning of the tooth. In terms of maximum deviation, Δwp is about 75% smaller than Δwg.

The change of Δvp in Figure 18b is consistent with that of Δvt2 in Figure 6b, while circumferential deviation, which is caused by neutral layer offset, is superimposed on Δvg compared to Δvt1, indicating that the neutral layer offset has a significant influence on the circumferential positioning of the tooth. In terms of maximum deviation, Δvp is about 77% smaller than Δvg.

The change of Δθg and Δθp in Figure 18c are consistent with those of Δθt1 and Δθt2 in Figure 6c, respectively. However, due to the change of the circumferential displacement deviation Δvg, Δθg also increases to a certain extent, indicating that the neutral layer offset also has a specific effect on the positioning accuracy of tooth orientation. In terms of maximum deviation, Δθp is about 70% smaller than Δθg.

According to the above results, the method proposed in the present investigation to calculate the FS deformation on the ENL can significantly reduce the existing calculation deviation and obtain a more accurate tooth positioning.

Results of Cup-shaped Flexspline Assembling Elliptical Cam

Figure 19 illustrates the radial displacement of the cup-shaped FS. It is noted that under the constraint of the cup bottom, the radial deformation of the cup-shaped FS has a taper characteristic, and the amount of radial deformation decreases linearly from the cup edge to the cup bottom.

Figure 19
figure19

Nephogram of the radial displacement on cup-shaped FS

Establish paths at the intersection of the tooth rim’s ENL (determined by Eq. (21)) with the three cross-sections shown in Figure 16. Extract the circumferential strain and integrating the strain to obtain the circumferential elongation. The results are illustrated in Figure 20.

Figure 20
figure20

Circumferential strain and elongation on the equivalent neutral Layer of tooth rim of cup-shaped flexspline

It is illustrated in Figure 20a that, from the major axis (\(\varphi\) = 0°) to the minor axis (\(\varphi\) = 90°), the average circumferential strain of ENL on the front section is positive and increases monotonously, the average strain on the middle section is also positive but decreases gradually, while the average strain on the rear section changes significantly from positive to negative and is close to zero around \(\varphi\) = 50°. On the major axis (\(\varphi\) = 0°) of view, the circumferential strain of ENL is the largest in the rear section, the second in the middle section, and the smallest in the front section. These strains are all positive. On the minor axis (\(\varphi\) = 90°) of view, the strain of ENL in the front section is the largest, the strain in the middle section is the second, and the strain in the rear section is the smallest and negative.

These phenomena indicate that ENL will gradually elongate on the front section and middle section, while ENL will elongate rapidly at the rear section at first, and then begin to shorten rapidly around \(\varphi\) = 50°. The elongation result in Figure 20b confirms this conclusion. The strain distribution and circumferential elongation illustrated in Figure 20 indicate that the equivalent neutral layer analyzed based on the ring-shaped FS in the present investigation has not accurately reflected the actual neutral layer characteristics of the cup-shaped FS.

Under the comprehensive influence of the cup-shaped structure, cylinder stiffness, and Poisson’s ratio, the ENL of the cup-shaped FS tooth rim gradually changes from the front section to the rear section, forming a conical equivalent neutral layer. This tapered ENL makes the stress and deformation of the FS tooth rim more complicated. Therefore, besides the tooth effects, the influence of the FS cylinder on the stress and deformation of tooth rim deserves further study.

Conclusions

In this paper, the actual contact state and assembly forces between the cam and the flexspline are revealed based on mechanic analysis, and the empirical formula of the equivalent neutral layer offset ratio of the flexspline is fitted out. A piecewise method for calculating the flexspline deformation in the equivalent neutral layer is proposed. The accuracy of the theoretical calculation of tooth displacement is verified by establishing a solid finite element model of flexspline contacted elliptical cam. The main conclusions are as follows:

  1. (1)

    The flexspline has a wrapping angle far less than 90 to the cam. After deformation, the flexspline segment inside the wrapping angle is wrapped on the cam, while the outside segment deformed by force balance.

  2. (2)

    The equivalent neutral layer of the flexspline deviates outward from the geometric mid-layer, and the offset ratio has a spatial bilinear relationship with the relative tooth root thickness and the relative dedendum arc radius.

  3. (3)

    Calculate the tooth displacement in the equivalent neutral layer by the piecewise method can eliminate the calculation deviation caused by independent variable difference, circumferential extension, and un-contact state outside the wrapping angle to a certain extent. The deviation can be reduced by about 70%; therefore, the method can obviously improve the tooth positioning accuracy.

  4. (4)

    The deformation of the tooth rim of cup-shaped flexspline has taper characteristics, and its equivalent neutral layer is conical, which makes its stress and deformation state complicated and needs researches furthermore.

References

  1. [1]

    C W Musser. Strain wave gearing: US, 2906143. 1959-9-29.

  2. [2]

    B Routh. Design aspects of harmonic drive gear and performance improvement of its by problems identification: A review. 1st International Conference on Design, Materials and Manufacture, Surathkal, India, January 29–31, 2018, 200016.

  3. [3]

    B J Jung, B Kim, J C Koo, et al. Joint torque sensor embedded in harmonic drive using order tracking method for robotic application. IEEE/ASME Transactions on Mechatronics, 2017, 22(4): 1594-1599.

    Article  Google Scholar

  4. [4]

    H Zhang, S Ahmad, G Liu. Modeling of torsional compliance and hysteresis behaviors in harmonic drives. IEEE/ASME Transactions on Mechatronics, 2015, 20(1): 178-185.

    Article  Google Scholar

  5. [5]

    S Wang, G Jiang, X Mei, et al. A rapid stress calculation method for short flexspline harmonic drive. Engineering Computations (Swansea, Wales), 2019, 36(6): 1852-1867.

    Article  Google Scholar

  6. [6]

    J Pacana, W Witkowski, J Mucha. FEM analysis of stress distribution in the hermetic harmonic drive flexspline. Strength of Materials, 2017, 49(3): 388-398.

    Article  Google Scholar

  7. [7]

    M N Ivanov. Harmonic Drive Transmission. Beijing: National Defense Industry Press, 1987. (in Chinese)

    Google Scholar

  8. [8]

    Y C Chen, Y H Cheng, J T Tseng, et al. Study of a harmonic drive with involute profile flexspline by two-dimensional finite element analysis. Engineering Computations (Swansea, Wales), 2017, 34(7): 2107-2130.

    Article  Google Scholar

  9. [9]

    K Kondo, J Takada. Study on tooth profiles of the harmonic drive. Journal of Mechanical Design, 1990, 112(1): 131-137.

    Article  Google Scholar

  10. [10]

    Y Shen, Q Ye. Theory and design of harmonic drive. Beijing: China Machine Press, 1985. (in Chinese)

    Google Scholar

  11. [11]

    Gear Manual Editorial Board. Gear manual. Beijing: China Machine Press, 2004. (in Chinese)

    Google Scholar

  12. [12]

    H Dong, D Wang. Elastic deformation characteristic of the flexspline in harmonic drive. International Conference on Reconfigurable Mechanisms and Robots, London, UK, June 22–24, 2009: 363–369.

  13. [13]

    D H Ma, J N Wu, T Liu, et al. Deformation analysis of the flexspline of harmonic drive gears considering the driving speed effect using laser sensors. Science China Technological Sciences, 2017, 60(8): 1175-1187.

    Article  Google Scholar

  14. [14]

    X X Chen, Y S Liu, J Z Xing, et al. Neutral line stretch of flexspline in harmonic driver. Journal of Mechanical Engineering, 2014, 50(21): 189-196. (in Chinese)

    Article  Google Scholar

  15. [15]

    Y Yang, J X Wang, Q H Zhou, et al. Exact solution for conjugate profiles of zero backlash harmonic drives with elliptical cam wave generators. Journal of Central South University (Science and Technology), 2017, 48(12): 3231-3238. (in Chinese)

    Google Scholar

  16. [16]

    R Maiti. A Novel harmonic drive with pure involute tooth gear pair. Journal of Mechanical Design, Transactions of the ASME, 2004, 126 (1): 178-182.

    Article  Google Scholar

  17. [17]

    F Gravagno, V H Mucino, E Pennestrì. Influence of wave generator profile on the pure kinematic error and centrodes of harmonic drive. Mechanism and Machine Theory, 2016, 104: 100-117.

    Article  Google Scholar

  18. [18]

    B Routh, R Maiti, A K Ray, et al. An investigation on secondary force contacts of tooth pairs in conventional harmonic drives with involute toothed gear set. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 2016, 230(4): 622-638.

    Google Scholar

  19. [19]

    B Routh, R Maiti, A K Ray. Analysis of coning and lubrication at flexspline cup and cam interface in conventional harmonic drives. Industrial Lubrication and Tribology, 2017, 69(6) 817-827.

    Article  Google Scholar

  20. [20]

    J Y Li, J X Wang, G W Zhou, et al. Accelerated life testing of harmonic driver in space lubrication. Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology, 2015, 229(12): 1491-1502.

    Article  Google Scholar

  21. [21]

    X X Chen, Y S Liu, J Z Xing, et al. A novel method based on mechanical analysis for the stretch of the neutral line of the flexspline cup of a harmonic drive. Mechanism and Machine Theory, 2014, 76: 1-19.

    Article  Google Scholar

  22. [22]

    D León, N Arzola, A Tovar. Statistical analysis of the influence of tooth geometry in the performance of a harmonic drive. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2015, 37(2): 723-735.

    Article  Google Scholar

  23. [23]

    O Kayabasi, F Erzincanli. Shape optimization of tooth profile of a flexspline for a harmonic drive by finite element modeling. Materials and Design, 2007, 28(2): 441-447.

    Article  Google Scholar

  24. [24]

    D Ma, R Wang, P Rao, et al. Automated analysis of meshing performance of harmonic drive gears under various operating conditions. IEEE Access, 2018, 6: 68137-68154.

    Article  Google Scholar

  25. [25]

    H Dong, D Wang, K L Ting. Kinematic effect of the compliant cup in harmonic drives. Journal of Mechanical Design, Transactions of the ASME, 2011, 133(5): 1–7.

    Article  Google Scholar

  26. [26]

    X X Chen, S Z Lin, J Z Xing. Exact conjugate algorithm based on assembly deformation of flexspline in harmonic drives. China Mechanical Engineering, 2010, 21(17): 2053-2057. (in Chinese)

    Google Scholar

  27. [27]

    Q M Tan. Dimensional analysis. Hefei: University of Science and Technology of China Press, 2005. (in Chinese)

    Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

Supported by National Natural Science Foundation of China (Grant No. 51575390), and Tianjin Municipal Natural Science Foundation of China (Grant Nos. 19JCZDJC38700, 18JCZDJC39000).

Author information

Affiliations

Authors

Contributions

XC was in charge of the whole trial and revised the manuscript; YY deduced and verified the theory, modeled and simulated the case, analyzed and processed the data, wrote and revised the manuscript; JX provided rigorous theoretical guidance and revised the manuscript; LS assisted performing the case verification in Appendix 1; YW assisted performing the case verification in Appendix 2. All authors read and approved the final manuscript.

Authors’ Information

Yunpeng Yao, born in 1989, is currently a PhD candidate at School of Mechanical Engineering, Tiangong University, China. He received his master degree from Tiangong University, China, in 2016. His research interests focus on the harmonic drive.

Xiaoxia Chen, born in 1969, is currently a professor at School of Mechanical Engineering, Tiangong University, China. She received her doctor degree on mechanical design and theory in Tiangong University, China, in 2012. Her research interests include harmonic drive, digital design, etc.

Jingzhong Xing, born in 1966, is currently a professor at School of Mechanical Engineering, Tiangong University, China. He received his doctor degree on mechanics in the University of Chinese Academy of Sciences, China, in 2004. His research interests include performance analysis and optimal design of harmonic drive, mechanical analysis of textile composites, structural optimization design, etc.

Liteng Shi, born in 1992, is currently a master candidate at School of Mechanical Engineering, Tiangong University, China. He received his undergraduate diploma from Henan University of Science and Technology, China, in 2015. His research interests focus on the harmonic drive.

Yuqi Wang, born in 1996, is currently a master candidate at School of Mechanical Engineering, Tiangong University, China. He received his bachelor degree from Xinke College of Henan Institute of Science and Technology, China, in 2018. His research interests focus on the harmonic drive.

Corresponding author

Correspondence to Xiaoxia Chen.

Ethics declarations

Competing Interests

The authors declare no competing financial interests.

Appendices

Appendix 1

As illustrated in Figure 21, a disk is eccentrically assembled in a ring, and the ring will cling on the disk within a wrapping angle. Rp is the radius of the disk, rm is the radius of the ring, and ep is the eccentricity between the disk and the ring. The deformation of the ring outside the wrapping angle is determined according to the force balance.

Figure 21
figure21

Schematic diagram of ring deformation under eccentric disc

Compared with the general cam, disc have a profile of equal curvature. Therefore, the current method for calculating the ring deformation under the action of the eccentric disk inside and outside the wrapping angle is all based on the force analysis. The relationship between the wrapping angle of the ring and the radius of the disk is given as

$$\frac{{w_{0} B_{\rm p} }}{{A_{\rm p} - B_{\rm p} }} = r_{\rm m}^{2} \left( {\frac{1}{{R_{\rm p} }} - \frac{1}{{r_{\rm m} }}} \right),$$
(23)

where

$$A_{\rm p} = {\uppi }/2 - \gamma - \sin \gamma \cos \gamma ,$$
$$B_{\rm p} = 4\left[ {\cos \gamma - \left( {{\uppi }/2 - \gamma } \right)\sin \gamma } \right]/{\uppi }{.}$$

When the wrapping angle γ of the ring to the disk is given as a design parameter, the radius Rp of the disk can be determined according to Eq. (23). Based on this, Chen et al. [14] deduced the circumferential strain formula of the ring under the double-disk

$$\varepsilon_{{\text{N}}} = \left\{ \begin{gathered} \frac{{\delta_{0}^{2} w_{0} }}{{6r_{{\text{m}}}^{3} }}\frac{{1 - \frac{{r_{{\text{m}}} }}{{w_{0} }}\left( {1 - \frac{{r_{{\text{m}}} }}{{R_{\rm p} }}} \right)}}{{\frac{{\uppi }}{2} - \gamma - \sin \gamma \cos \gamma }}\sin \gamma ,\quad 0 \le \varphi \le \gamma , \hfill \\ \frac{{\delta_{0}^{2} w_{0} }}{{6r_{{\text{m}}}^{3} }}\frac{{1 - \frac{{r_{{\text{m}}} }}{{w_{0} }}\left( {1 - \frac{{r_{{\text{m}}} }}{{R_{\rm p} }}} \right)}}{{\frac{{\uppi }}{2} - \gamma - \sin \gamma \cos \gamma }}\sin \varphi ,\quad \gamma < \varphi \le \frac{{\uppi }}{2}, \hfill \\ \end{gathered} \right.$$
(24)

and calculated four groups of models with different disc radii. Calculate these models by the piecewise method for cam in Section 2 with the profile of eccentric disk expressed by polar coordinate equation

$$\rho = \sqrt {R_{\rm p}^{2} - e_{\rm p}^{2} \sin^{2} \varphi_{1} } + e_{\rm p} \cos \varphi_{1} .$$
(25)

The ring models calculated by Chen et al. [14] have radius rm = 80.4 mm, thickness δ0 = 2.373 mm, and maximum radial displacement w0 = 0.955. The designed wrapping angle γ of rings are 15°, 20.7°, 25°, and 30°. According to Eq. (23), the disc radii Rp corresponding to these wrapping angles are 77.58 mm, 77.83 mm, 77.98 mm, and 78.13 mm, respectively.

Referring to Figure 21, the disc eccentricity

$$e_{{\text{p}}} = r_{{\text{m}}} + w_{0} - R_{{\text{p}}} .$$
(26)

Thus, the eccentricity ep of the disks in these four models is 3.755 mm, 3.525 mm, 3.375 mm, and 3.225 mm, respectively. Now, the polar equations of the eccentric disks in these models can be determined according to the Eq. (25).

According to Eqs. (4), (5), (10), and (25) in the present investigation, the wrapping angles γ of the four models are calculated as 14.1°, 19.9°, 24.2°, and 29.3°, respectively. The wrapping angle results of the four models calculated by Eq. (10) are basically consistent with those calculated by Eq. (23), and the differences are all less than 1°. Substituting the wrapping angle calculated by Eq. (10) into Eq. (12) to calculate the circumferential strain of the ring (Figure 22). the strain results are also basically the same as the results calculated by Chen et al. [14] (Figure 8).

Figure 22
figure22

Circumferential strain of ring under eccentric disks

Appendix 2

Kondo [9] considered the change of the neutral layer caused by tooth when studying the method of tooth profile design and designed bending tests on simple trapezoidal racks. Four equidistant parallel lines are planned from the tooth symmetry line to the tooth slot symmetry line, and forty strain gauges are arranged on the lines to extract the strain results when the rack is bent. The experiments were carried out on 6 racks with different rack thicknesses (the teeth of these racks maintained the same) and plotted the position of the neutral layer of the racks according to the strain results [9] (Figure 4a).

Establish the corresponding finite element models of the 6 racks based on the structures and parameters designed by Kondo, the simulation position of the racks’ neutral layers obtained by the process shown in Figure 10 is illustrated in Figure 23. The actual neutral layer positions of the six rack models shown in Figure 23 are basically consistent with the experimental results of Kondo [9] (Figure 4a), which proves that the finite element analysis method in the present investigation is accurate enough.

Figure 23
figure23

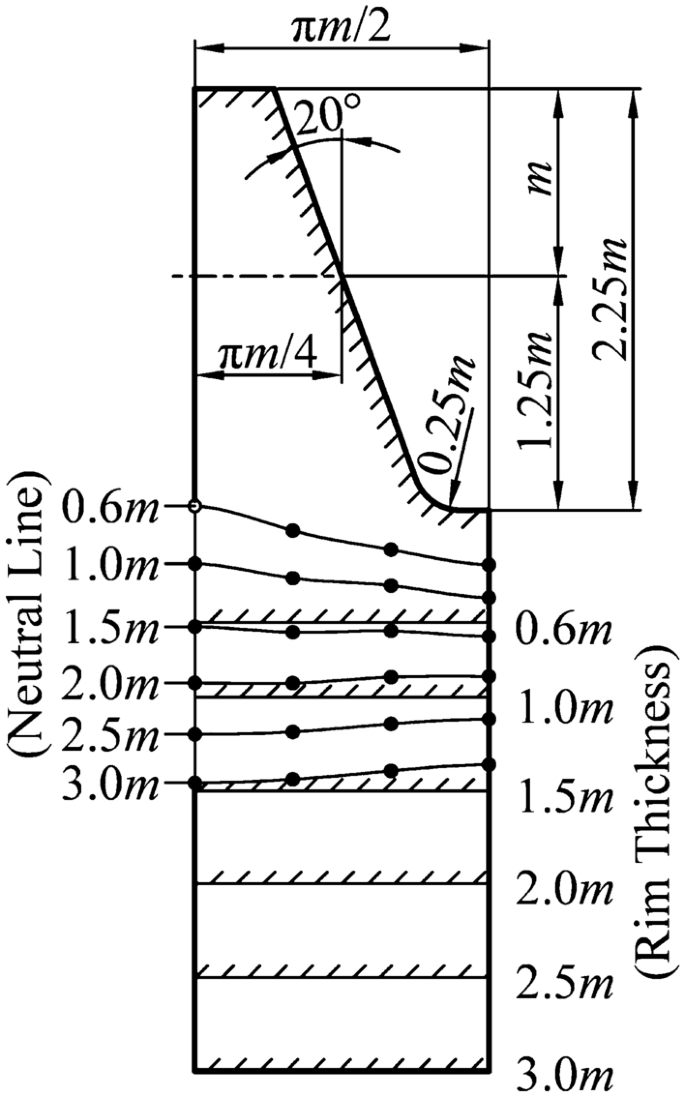

Morphology of neutral layer of simple trapezoidal racks

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Yao, Y., Chen, X., Xing, J. et al. Tooth Position and Deformation of Flexspline Assembled with Cam in Harmonic Drive Based on Force Analysis. Chin. J. Mech. Eng. 34, 104 (2021). https://doi.org/10.1186/s10033-021-00621-z

Download citation

Keywords

  • Harmonic drive
  • Deformation calculation
  • Cam wave generator
  • Force analysis
  • Equivalent neutral layer
