Oblique Cutting Based Mechanical Model for Insertion Torque of Dental Implant

Abstract

The insertion torque of a dental implant is an important indicator for the primary stability of dental implants. Thus, the preoperative prediction for the insertion torque is crucial to improve the success rate of implantation surgery. In this present research, an alternative method for prediction of implant torque was proposed. First, the mechanical model for the insertion torque was established based on an oblique cutting process. In the proposed mechanical model, three factors, including bone quality, implant geometry and surgical methods were considered in terms of bone-quality coefficients, chip load and insertion speeds, respectively. Then, the defined bone-quality coefficients for cancellous bone with the computed tomography (CT) value of 235–245, 345–355 and 415–425 Hu were obtained by a series of insertion experiments of IS and ITI implants. Finally, the insertion experiments of DIO implants were carried out to verify the accuracy of developed model. The predicted insertion torques calculated by the mechanical model were compared with those acquired by insertion experiments, with good agreement, the relative error being less than 15%. This method allows the insertion torque for different implant types to be quickly established and enhances prediction accuracy by considering the effects of implants’ geometries and surgical methods.

Introduction

Implant dentures have been one of the most popular options for teeth loss in last decade [1]. After the implant socket is prepared by a series of processes such as drilling, reaming and tapping, the implant is inserted in alveolar bone with a certain torque, which called the insertion torque. Most clinical data shows that 30–70 N·cm is a reasonable range of insertion torque to achieve satisfactory initial implant stability. This means that if the insertion torque for the implant is in this range, it would ideally be considered that the surgery would be successful [2,3,4], otherwise, the surgery would fail. As the insertion torque can only be known after the whole implant is inserted, if the insertion torque is not good (lower than 30 N·cm or higher than 70 N·cm), the patient has to endure a second surgery. However, if the insertion torque could be predicted before the surgery, it would allow the dentist to make or adjust the surgery plan and improve the surgery success rate. So, this research focuses on the preoperative prediction of the insertion torque. Actually, the reasonable range of insertion torque is different for each patient, depending on their age, gender and height [5, 6], and also implant shape and diameter [7, 8], loading condition [9], etc. However, it is supposed here that the 30–70 N·cm is reasonable for any condition.

To predict implant insertion torque, three factors, implant geometries [10], surgical methods [11, 12] and bone quality, have been considered. It has been shown that the larger insertion torque can be obtained by a conical [13], large-diameter implant [14] or a small-diameter implant socket [15, 16]. Bone quality, which is primarily influenced by bone density, is a key focus for dentists in-clinic, and has been shown to be positively correlated with insertion torque [17]. Computed tomography (CT) is normally used to quantify bone density in-clinic and several empirical fits have been established for the linear relationship between CT value and insertion torque, which were further used to predict the insertion torque [18,19,20,21]. The accuracy of these empirical fits is largely high, (greater than 80%), however, these formulas are only suitable for just one combination of implant and method of surgery. In order to use empirical formulas to predict the insertion torque, formulas for every combination of implants and surgery would have to be established, which would be time-consuming and expensive.

In this research, an alternative method to predict the insertion torque is provided by establishing a mechanical model based on oblique cutting theory, although it has been widely accepted in engineering, has not previously been used in calculating insertion torque for dental implants. In the proposed model, using DIO implants as an example, the effects of implant geometry and surgical methods were captured by chip load and insertion speeds, respectively, meanwhile the effect of bone quality was considered by the defined coefficients, termed bone-quality coefficients. Then, the bone-quality coefficients for the bone quality with CT value of 235–245, 345–355 and 415–425 Hu were obtained by a series of insertion experiments using the IS and ITI implants. With the obtained coefficients, a relationship between insertion torque and bone quality was obtained. Then, the DIO implants were used to verify the accuracy of the developed model. The results show that the model has high accuracy with relative error less than 15%.

Mechanical Model Based on Oblique Cutting Theory

The insertion process for dental implants involves two forming methods, i.e., the thread-cutting process [22] for implants with cutting edges and the thread-forming process for implants without cutting edges [23]. In this section, the implant typed DIO SFR5010 (DIO Innovation Health Care, Busan City, Korea) with 4 cutting edges in the apical part and continuous threads in the tail part was selected to establish the mechanical model for insertion torque.

Forming Process of Matching Threads

Figure 1 describes the geometry of DIO SFR5010 and its insertion process, where Figure 1(a) is the initial position of implant while Figure 1(b) is the position after one thread was inserted. The threads in the bone are initially formed by successive passes of the cutting edges in the apical part of the implant, in a similar operation to thread-cutting using a tap. This process is called the thread-cutting process, and the bone debris generate in this process. The threads in the tail part of the implant, without cutting edges, are subsequently inserted [24], in what is called the thread-forming process without bone debris generation.

Figure 1
figure 1

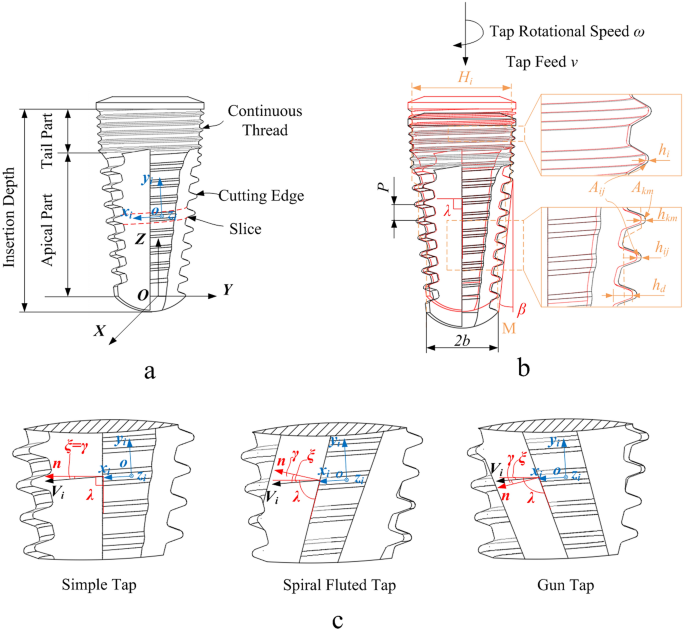

DIO SFR5010 and its insertion process: a the geometry of DIO SFR5010 and two coordinate systems, b geometrical parameters of DIO SFR5010 and the insertion process: initial position in red and position of one rotation cycle in black, c the relationship of angular parameters γ, ξ and λ

To detail the shape of the matching threads, DIO SFR5010 was cut into 12 thin slices considering only one thread in each. In the apical part, each slice was further separated into 4 cutting elements by 4 cutting edges. The whole process was separated into 12 steps, with one thread inserted into the implant socket per step. The shape of the matching threads in each step was defined by the cutting element passed last. A global coordinate system {C:OXYZ} was attached to the implant. Its origin point O was the starting point of the first threads, and its Z-axis was set along the axis of rotation. The cutting element coordinate system {c:oixiyizi} was given to each cutting element. Its x-axis was set parallel to the helical path, where i indicates the ith thread.

The helical path of the matching thread is the same as that of the implant threads, and can be expressed as follows:

$$g(P,\theta ) = \left\{ \begin{gathered} x(P,\theta ) = (P\theta /2\uppi \tan \beta + b + h_{d} ) \cdot \cos \theta , \hfill \\ y(P,\theta ) = (P\theta /2\uppi \tan \beta + b + h_{d} ) \cdot \sin \theta , \hfill \\ z(P,\theta ) = {{P\theta } \mathord{\left/ {\vphantom {{P\theta } {2\pi }}} \right. \kern-\nulldelimiterspace} {2\uppi }}, \hfill \\ \end{gathered} \right.$$
(1)

x, y, z are the point coordinates of the helical path; θ is the angular position of the helical path; b, hd, P and β are the initial radius, tooth height, pitch and taper angle of DIO SFR5010, respectively. Particularly, in the tail part, β = 0.

The radius ri of the matching thread can be given by the radial distance from the Z-axis to the outer geometry of the ith thread as:

$$r_{i} = \sqrt {x(P,\theta_{i} )^{{2}} + y(P,\theta_{i} )^{{2}} } .$$
(2)

The engagement hi of the ith cutting element can be calculated as follows:

$$h_{i} = \begin{array}{*{20}c} {r_{i} (P,\theta_{i} ) - r_{i} (P,\theta_{i} - \theta_{i - 1} ),} & {} & {} \\ \end{array}$$
(3)

θi-1 is the angular position of the last cutting element.

The thread inclination angle γ can be calculated as follows:

$$\gamma = {{\uppi } \mathord{\left/ {\vphantom {{\uppi } 2}} \right. \kern-\nulldelimiterspace} 2} + \xi - \lambda = {{\uppi } \mathord{\left/ {\vphantom {{\uppi } 2}} \right. \kern-\nulldelimiterspace} 2} + \arctan ({P \mathord{\left/ {\vphantom {P {2{\uppi }r_{i} }}} \right. \kern-\nulldelimiterspace} {2{\uppi }r_{i} }}) - \lambda ,$$
(4)

where, ξ and λ are the thread lead angle and the flute helix angle, respectively.

Force–chip Load Relationship

Three assumptions were made as follows: each cutting element sustains normal and friction forces, and all forces are applied on the centroid of the respective faces; the effects of elastic recovery for the prediction of insertion torque were ignored; insertion torques generated by one thread remained constant throughout the whole insertion process.

According to these assumptions, the forces applied on all cutting elements can be composed of the normal force Fn and the friction force Ff as follows [25]:

$$F_{n} = K_{n} A,$$
(5)
$$F_{f} = K_{f} A,$$
(6)

A is chip load, which is equal to the unformed chip area and depends on the implant geometry; Kn and Kf are specific energies, which are related to the tool geometry and work conditions as follows [26]:

$$\ln K_{n} = a_{0} + a_{1} \ln h + a_{2} \ln V + a_{3} \ln h\ln V,$$
(7)
$$\ln K_{f} = b_{0} + b_{1} \ln h + b_{2} \ln V + b_{3} \ln h\ln V,$$
(8)

V is the insertion speed, h is the radial engagement of each cutting element, and a0a3 and b0b3 are the specific energy coefficients which depend on materials of the cutting tool (i.e., implant) and the workpiece (i.e., cancellous bone). As most most implants are composed of titanium or titanium-alloys, the a0a3 and b0b3 were only determined by bone quality and defined as bone-quality coefficients.

Considering the normal force Fn and the friction force Ff are different during thread-cutting and thread-forming processes, they are discussed in Sections 2.2.1 and 2.2.2, respectively.

Forces in Thread-cutting Process

In the thread-cutting process, as the cutting velocity and the chip flow directions are not perpendicular to the cutting edge, this can be considered an oblique cutting process [27, 28] as shown in Figure 2. The coordinate system {c:oxiyizi} is used to define the forces on each elements during thread-cutting process. Two planes, the normal and chip-flow plane, were introduced. The normal plane was defined by the xi-axis and zi-axis and the chip-flow plane was coincident with the rake surface of the cutting edges. In the normal plane, the normal force Fcni was defined perpendicular to the rake surface. In the chip-flow plane, the friction force Fcfi was defined collinear with the chip-flow orientation [29]. Meanwhile, the chip-flow angle i was defined equal to the inclination angle γ based on the Stabler’s rule.

Figure 2
figure 2

The thread-cutting process, with Fn in the normal plane and Ff in the chip-flow plane (Vc is parallel to the bone-tissue surface)

According to Eqs. (5) and (6), Fcni and Fcfi can be expressed as follows:

$$F_{cni} = K_{cn} A_{ci} ,$$
(9)
$$F_{cfi} = K_{cf} A_{ci} ,$$
(10)

where, Aci are the chip load of the ith cutting element, and Kcn and Kcf are the specific energies in the thread-cutting process. According to Eqs. (7) and (8), these can be calculated as:

$$\ln K_{cn} = a_{0} + a_{1} \ln h_{i} + a_{2} \ln V_{i} + a_{3} \ln h_{i} \ln V_{i} ,$$
(11)
$$\ln K_{cf} = b_{0} + b_{1} \ln h_{i} + b_{2} \ln V_{i} + b_{3} \ln h_{i} \ln V_{i} ,$$
(12)

where, a0a3 and b0b3 are the bone-quality coefficients during the thread-cutting processes, to be further determined by insertion experiments.

The chip load Aci can be calculated as follows:

$$A_{ci} = h_{i} \left( {w_{i} + 2h_{i} \tan \alpha_{1} + 2h_{i} \tan \alpha_{2} } \right),$$
(13)

where, w is the tooth top width of ith cutting element, the radial engagement hi can be calculated according to Eq. (3) as:

$$h_{i} = \begin{array}{*{20}c} {r_{i} (P,\theta_{i} ) - r_{i} (P,\theta_{i} - {{2\uppi } \mathord{\left/ {\vphantom {{2\uppi } {N_{t} }}} \right. \kern-\nulldelimiterspace} {N_{t} }}),} & {\begin{array}{*{20}c} {} \\ \end{array} } & {} \\ \end{array}$$
(14)

where, Nt is the number of cutting edges. For DIO SFR5010, Nt = 4.

By decomposing Fcni and Fcfi into the three axes of {c:oxiyizi}, three axial forces \(F_{{x_{i} }}\), \(F_{{y_{i} }}\) and \(F_{{z_{i} }}\) can be obtained as follows:

$$\left( {\begin{array}{*{20}c} {F_{{x_{i} }} } \\ {F_{{y_{i} }} } \\ {F_{{z_{i} }} } \\ \end{array} } \right) = \left( {\begin{array}{*{20}c} {\cos \varphi } \\ 0 \\ { - \sin \varphi } \\ \end{array} } \right)F_{cni} + \left( {\begin{array}{*{20}c} { - \sin \varphi } \\ {\sin \gamma } \\ {\cos \gamma \cos \varphi } \\ \end{array} } \right)F_{cfi} .$$
(15)

Then, the thrust force \(F_{{thr_{i} }}\) and tangential force \(F_{{tan_{i} }}\) of each cutting element and the total insertion torque M can be calculated from Eqs. (16)–(18), respectively.

$$F_{{tan_{i} }} = F_{{x_{i} }} \cos \xi + F_{{y_{i} }} \sin \xi ,$$
(16)
$$F_{{thr_{ij} }} = F_{{y_{ij} }} \cos \xi - F_{{x_{ij} }} \sin \xi ,$$
(17)
$${\varvec{M}} = \mathop \sum \limits_{i = 1}^{n} F_{{tan_{i} }} \cdot r_{i} .$$
(18)

Forces in Thread-forming Process

Like the thread-cutting process, in the thread-forming process, the cutting velocity and the chip flow directions are not perpendicular either. Therefore, the model was also based on oblique cutting (forming).

However, in this process, as previously mentioned, there is no cutting process, the matching thread is formed by bone plastic deformation and flow. To define the forces during the thread-forming process, six faces named S1S6 were introduced as shown in Figure 3. The highest portion of the implant edge, defined by S4S6, was named as the lobe. This defines the final geometry of the matching thread. The regions before the lobe have a slope to provide relief, which was used to minimize the contact between the implant and the bone material. The normal forces Fni were defined proportional to the contact areas, and the friction forces Ffi were defined collinear with chip-flow orientation [30], in the same way as the thread-cutting process:

$$F_{fni} = K_{fn} A_{fi} ,$$
(19)
$$F_{ffi} = K_{ff} A_{fi} ,$$
(20)

where, Kfn and Kff are the specific energies during the thread-forming process. According to the Eqs. (7) and (8), they can be calculated using:

$$\ln K_{fn} = c_{0} + c_{1} \ln h_{i} + c_{2} \ln V_{i} + c_{3} \ln h_{i} \ln V_{i} ,$$
(21)
$$\ln K_{ff} = d_{0} + d_{1} \ln h_{i} + d_{2} \ln V_{i} + d_{3} \ln h_{i} \ln V_{i} ,$$
(22)

where, c0c3 and d0d3 are the bone-quality coefficients in the thread-forming process which would be further determined by insertion experiments.

Figure 3
figure 3

A typical form tap tooth: a the schematic diagram of form tap tooth, b three views of ith tooth

The chip load Afi can be calculated as follows:

$$A_{fi} = \left\{ \begin{gathered} S_{1} { = }S_{3} = \left| {{{{\varvec{PQ}} \times {\varvec{PM}}} \mathord{\left/ {\vphantom {{{\varvec{PQ}} \times {\varvec{PM}}} 2}} \right. \kern-\nulldelimiterspace} 2}} \right| = {{h_{i} \cdot z_{i} \cdot y(\eta )} \mathord{\left/ {\vphantom {{h_{i} \cdot z_{i} \cdot y(\eta )} {2,}}} \right. \kern-\nulldelimiterspace} {2,}} \hfill \\ S_{2} = {{w \cdot h_{i} } \mathord{\left/ {\vphantom {{w \cdot h_{i} } {\cos \eta_{1} ,}}} \right. \kern-\nulldelimiterspace} {\cos \eta_{1} ,}} \hfill \\ \end{gathered} \right.$$
(23)
$$y(\eta ) = \sqrt {(\tan \alpha )^{2} + (\tan\eta_{1} \tan\alpha )^{2} + (\tan\eta_{1} + \tan \eta_{2} )^{2} } ,$$
(24)

where, hi is the radial engagement of the ith thread and it was given by Eq. (3), α is the thread angle, η1 and η2 are the incident angle and the lobe-relief angle of threads, respectively, zi is the z coordinate of the point Q and it is given by:

$$z_{i} = \sum\limits_{n = 1}^{i} {h_{i} } = r_{i} (P,\theta_{i} ) - r_{k} (P_{k} ,\theta_{k} ),$$
(25)

where, rk is the first thread without cutting edges.

By decomposing Ffni and Fffi of the ith thread into three axes of {c:oxiyizi}, three axial forces can be obtained by:

$$\left( {\begin{array}{*{20}c} {F_{{x_{i} }} } \\ {F_{{y_{i} }} } \\ {F_{{z_{i} }} } \\ \end{array} } \right) = \left( {\begin{array}{*{20}c} { - \cos \eta_{1} } \\ 0 \\ {\sin \eta_{1} } \\ \end{array} } \right)F_{fni} + \left( {\begin{array}{*{20}c} {\sin \eta_{1} } \\ 0 \\ {\cos \eta_{1} } \\ \end{array} } \right)F_{ffi} .$$
(26)

Then, the thrust force \(F_{{thr_{i} }}\) and the tangential force \(F_{{tan_{i} }}\) of each cutting element and the total insertion torque M can be calculated by:

$$F_{{tan_{i} }} = F_{{x_{i} }} \cos \xi + F_{{y_{i} }} \sin \xi ,$$
(27)
$$F_{{thr_{i} }} = F_{{y_{i} }} \cos \xi - F_{{x_{i} }} \sin \xi ,$$
(28)
$${\varvec{M}} = \mathop \sum \limits_{i = 1}^{n} F_{tani} \cdot r_{i} .$$
(29)

According to Eqs. (15)–(18) and (26)–(29), it could be observed that the insertion torque was related to the normal and the friction force, which were determined by bone-quality coefficients, insertion speed V, radial engagement hi and chip load A. These give a good explanation for the effects of the bone quality, surgical methods, and the implant geometry, respectively. When the implant and the surgical method were selected, hi, A and V can be determined. The only consideration is the bone-quality coefficients, which were given in Section 3.

Determination of Bone-quality Coefficient and Validation of Mechanical Model

To define the bone-quality coefficients, more than 80 bone blocks with the size of 25 × 25 × 40 mm3 were cut from the epiphysis areas of four bovine femurs with different age, weight and gender as shown in Figure 4. The mean CT value of bone material within 1 mm around the predicted implant socket for each bone block as shown in Table 1 were recorded by Planmeca ProMax® 3D Mid CT (Planmeca UK Limited, Coventry, UK. scanning time: 13.929 s, tube voltage: 90 kV tube current: 10 mA). According to recorded CT value, 36 bone blocks were selected and further classified into 3 groups with the CT value of 235–245, 345–355, and 415–425 HU, respectively.

Figure 4
figure 4

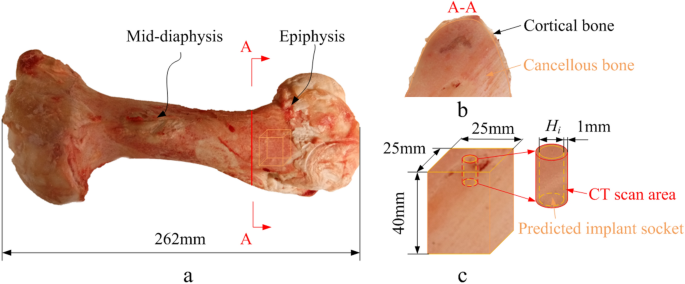

Preparation of bone blocks: a bovine femur, b A-A cross-section, the cortical bone and cancellous bone could be recognized in this cross-section, as cortical layer were so thin, therefore, it could be ignored in our research, c the bone blocks used in experiments and the CT scan area (CT scan area was defined within 1 mm around the predicted implant socket)

Table 1 CT value of 3 group bone blocks

Insertion Experiments

Three groups of insertion experiments were conducted. The geometry parameters of these implants were shown as Table 2.

Table 2 Implant parameters

In Table 2, β1, α1, L1, D1, P1, H1 are the parameters of apical part of implant DIO SFR5010 while β2, α2, α3, L2, D2, P2, H2 the tail part of implant DIO SFR5010.

IS implants (IS BIS4510 and IS BIS5010, Neobiotech Co.,Ltd., Seoul, Korea) with cutting edges were used to determine bone-quality coefficients a0a3 and b0b3 while ITI implants (ITI RN4510 and ITI RN5010, ITI International Team for Implantology, Basel, Switzerland) without cutting edges were used to determine bone-quality coefficients c0c3 and d0d3. DIO SFR5010 were used to verify the established model.

The insertion experiments involved the drilling processes of implant sockets and the insertion process of implants. They were conducted on the CNC machine (HAAS OM-2A, Haas Automation Inc., Oxnard, CA, USA). The equipment setting was shown in Figure 5. The parameters of drills and experiment setting were listed as Table 3. To minimize the coaxially error between the implants and corresponding predicted implant sockets, there was no interruption between the drilling and insertion processes. The high accuracy dynamometer (Kistler9119AA2, Kistler Instruments Ltd., London, UK, sampling rate: 1200 Hz) was used to capture the thrust forces and insertion torques during the insertion process of implants.

Figure 5
figure 5

The equipment of insertion experiments

Table 3 Parameters of insertion experiments

Bone-quality Coefficients

The results of thrust forces \(F_{{thr_{i} }}\) and insertion torques of IS and ITI implants were presented as Figure 6.

Figure 6
figure 6figure 6

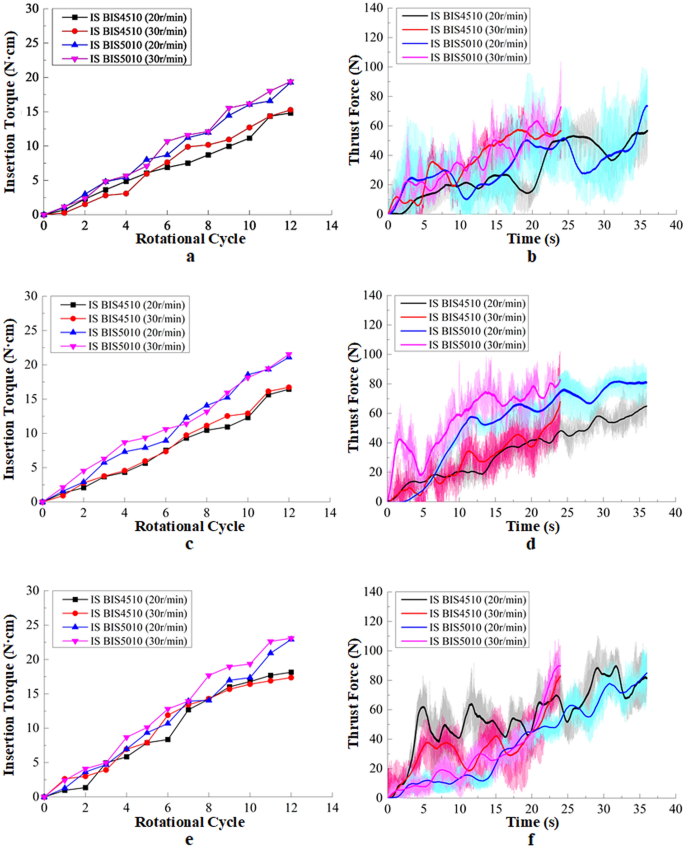

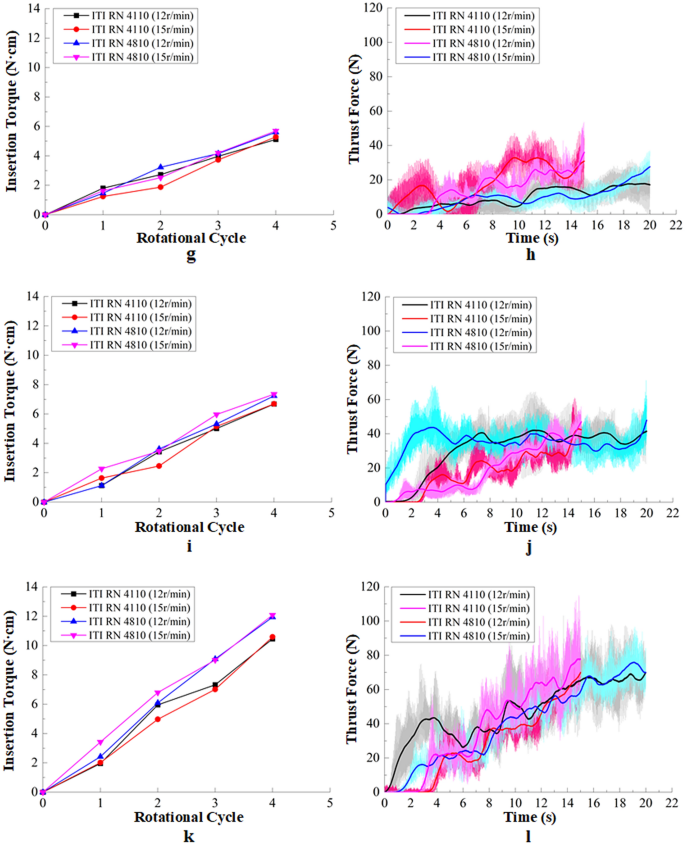

The insertion torques and thrust forces obtained by insertion experiments: af data of IS implants, a and b, c and d, e and f were insertion torques and thrust forces of 235–245Hu, 345–355 Hu and 415–425 Hu, respectively; gl data of ITI implants, g and h, i and j, k and l were insertion torques and thrust forces of 235–245Hu, 345–355 Hu and 415–425 Hu, respectively

The peak torque and thrust force were used to determine the bone-quality coefficients for thread-cutting and thread-forming processes. The obtained bone-quality coefficients were listed in Tables 4 and 5.

Table 4 Bone-quality coefficients for thread-cutting
Table 5 Bone-quality coefficients for thread-forming

It was observed that the bone-quality coefficients a0a3, b0b3, c0c3 and d0d3 were different in 3 group, which is the good explanation for the effects of bone quality.

Until now, we can get the general equations for dentists to predict insertion torque by substituting the bone-quality coefficients into the mathematical framework. Taking Group 1 as an example, Kcn, Kcf, Kfn and Kff were given by:

$$K_{cn} = {\text{e}}^{14.6} \cdot h^{0.17} \cdot V^{0..44} ,$$
(30)
$$K_{cf} = {\text{e}}^{12.9} \cdot h^{0.02} \cdot V^{0.17} ,$$
(31)
$$K_{fn} = {\text{e}}^{22.4} \cdot h^{0.06} \cdot V^{0.16} ,$$
(32)
$$K_{cf} = {\text{e}}^{21.2} \cdot h^{0.06} \cdot V^{0.15} .$$
(33)

As the Kcf is much smaller than Kcn, it can be ignored, and insertion torque with simplified form can be given by:

$${\varvec{M}} = {\text{e}}^{14.6} \cos \xi \cos \varphi \cdot V^{0.44} \mathop \sum \limits_{i = 1}^{n} r_{i} h_{i}^{2.17} \left( {\tan \alpha_{1} + \tan \alpha_{2} } \right),$$
(34)
$${\varvec{M}} = y(\eta )\cos \xi \mathop \sum \limits_{i = 1}^{n} z_{i} r_{i} h_{i} (\sin \eta_{1} {\text{e}}^{21.2} V^{0.15} - \cos \eta_{1} {\text{e}}^{22.4} V^{0.16} ),$$
(35)

where Eq. (34) is used for implant with cutting edge while Eq. (35) is used for implant without cutting edge, y(η) and zi are given as follows:

$$y(\eta ) = \sqrt {(\tan \alpha )^{2} + (\tan\eta_{1} \tan\alpha )^{2} + (\tan\eta_{1} + \tan \eta_{2} )^{2} } ,$$
(36)
$$z_{i} = \sum\limits_{n = 1}^{i} {h_{i} } = r_{i} - r_{1} .$$
(37)

Validation of Mechanical Model

The predicted insertion torque of bone block A11, A12, B11, B12, C11, C12 were compared with that obtained by insertion experiments using DIO SFR5010. The torques of each thread during the insertion processes were listed in Figure 7 and Table 6. The insertion torque is the peak torque. As the bone blocks A11 and A12 are both in Group 1, thus, they share the same bone-quality in either thread-cutting or thread forming process, and there is only one predicted value to be compared, same as B11 and B12, C11 and C12.

Figure 7
figure 7

Insertion torques obtained by the mechanical model and experiments: ac the results of three insertion tests, where A11, A12, B11, B12, C11, C12 are the measured values

Table 6 Comparison of averaged insertion torques from experiments and predictions

In Figure 7 and Table 6, the two series of measured values for Group 1–3 were obtained by insertion experiments by bone blocks A11, A12, B11, B12, C11, C12, respectively. As shown in Figure 7, the variations of material properties of bone blocks brought a significant fluctuation of the initial insertion torques obtained by experiments. But the trends and predicted peak insertion torques by mechanical models agreed well with that acquired by insertion experiments. The relative errors were calculated as follows.

$$\left| {\frac{{T_{pred} - T_{measured} }}{{T_{measured} }}} \right| \times 100\% .$$
(38)

The errors were mainly caused by the simplification in the modeling process; the deviation between the predicted implant sockets and the real implant sockets. As the surgery process for implant socket is fully conducted by dentist, the real implant sockets could not perfect as predicted one. There would be, for example, the deviation for position or the central axis even for a skilled dentist; the heterogeneous of bone quality in CT scan area. As the material properties for bone material does not only depend on the bone density, but it also depends on the microstructure of the trabecular bone, the unit of the cancellous bone. As the microstructure of the trabecular bone is complex and different from point to point, there is high heterogeneous properties for bone material. In prediction model, the material properties of bone are decided by bone density, therefore, the effect of the heterogeneous cannot be predicted. We think, the error within 15% could be accepted in clinical prediction. In addition, considering the errors were contributed by three influence factors: bone quality, implant geometry and surgical methods, there is no doubt that the predicted model we established with the relatively high accuracy.

Conclusions

In this research, a mechanical model was established for the insertion torque of dental implant. The effect of bone quality, the surgical method and the implant geometry were explained by the model parameters: bone-quality coefficients, insertion speed, and radial engagement hi, chip load A and implant diameter ri, respectively. The more specific conclusions can be drawn as follows:

  1. (1)

    The bone-quality coefficients were determined by bone CT value and different in implants with or without cutting edges. The reasonable explanation for this may be the bone quality depended not only on bone density, i.e., bone CT value, but also the microstructure of trabecular bone.

  2. (2)

    The error of this mechanical model result from the the simplification of modeling; the ignored effects of local anisotropy and heterogeneous of bone quality; the surgical errors.

  3. (3)

    The established mechanical model can help dentists to make accurate assessment whether the implants and surgical methods are reasonable for individual. Comparing to the fitting formulas, this method can avoid plenty of experiments caused by changing implants and surgical method.
